Southeast University
Sheng Tian Yi

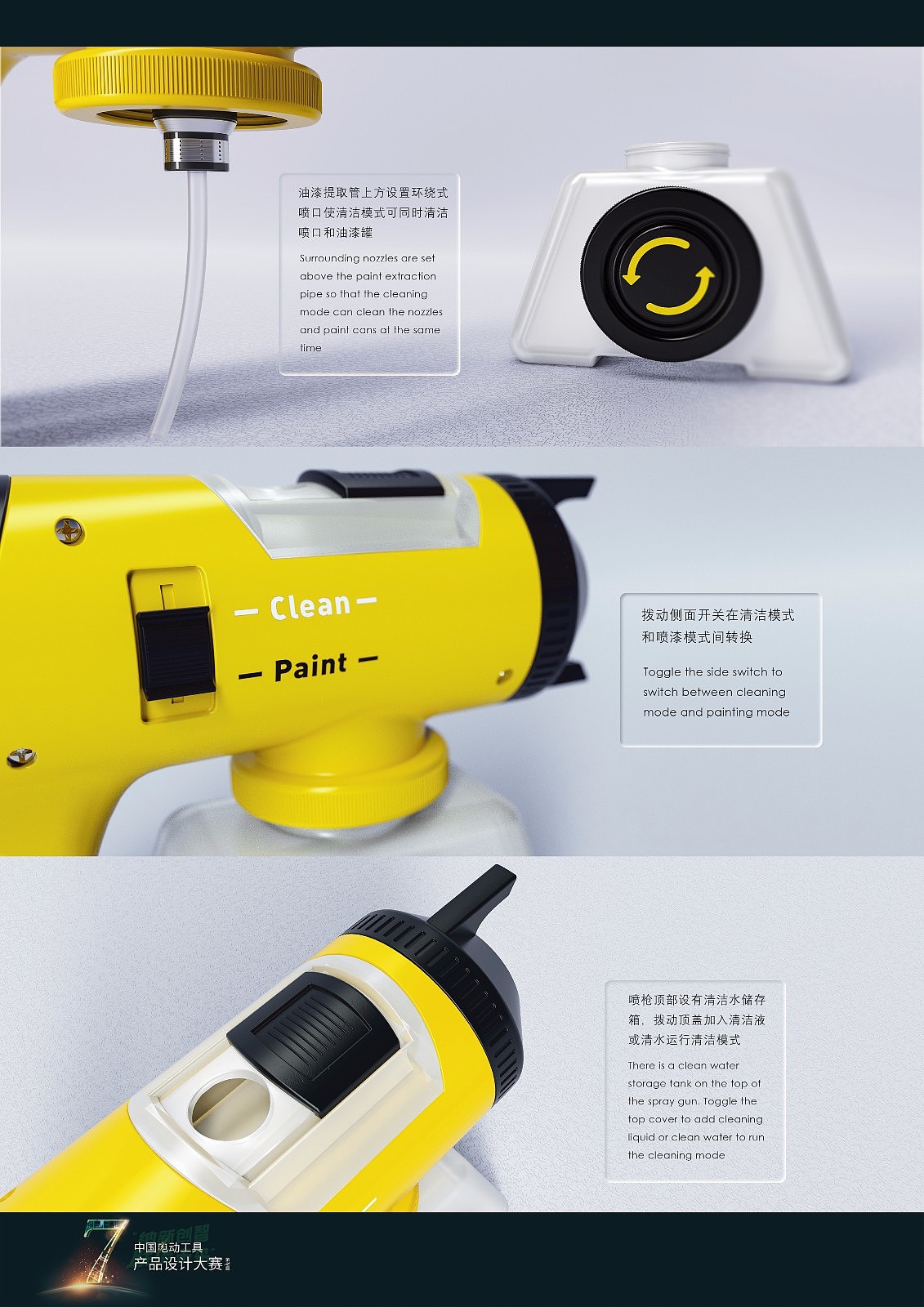

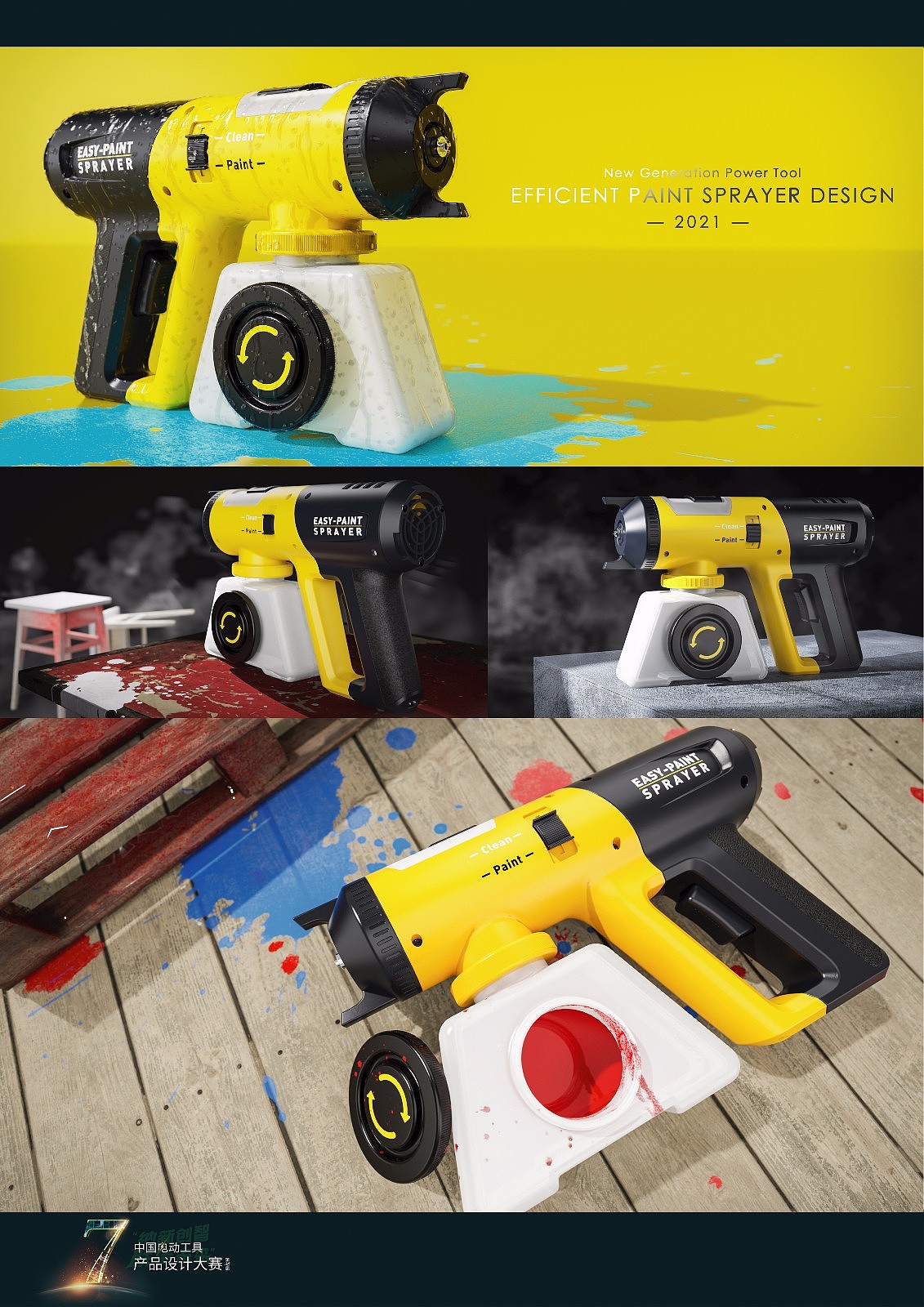

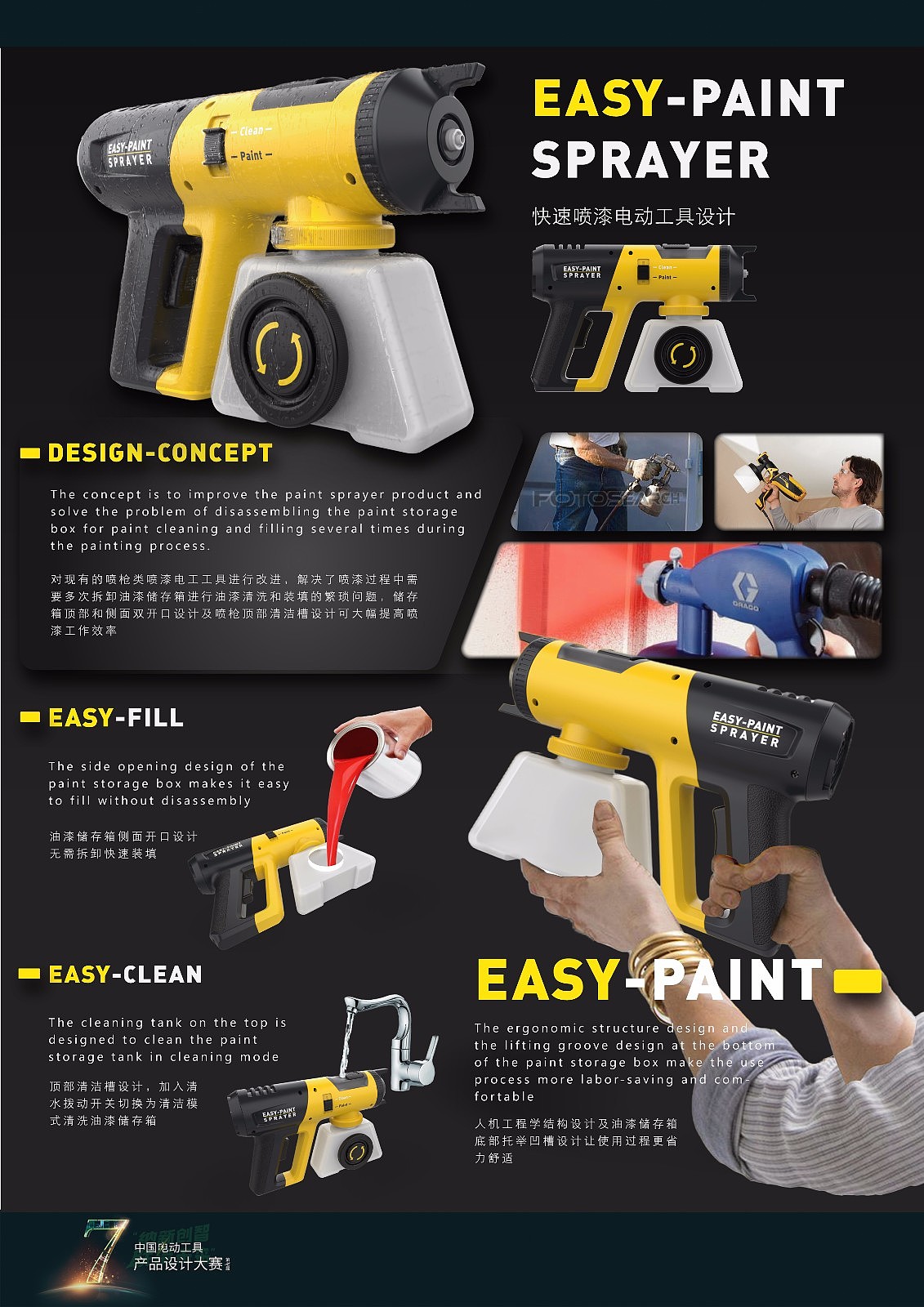

NGPT high-efficiency electric painting tool aims to optimize the appearance and function of existing painting tools by taking the innovation and transformation of electric tools as an opportunity to create a more efficient and convenient operation experience for painting operations. While catering to the modeling trend of modern intelligent products and having a simple and fashionable appearance, the whole painting operation process is optimized in combination with functional innovation, which is intended to solve the problem that the paint can needs to be disassembled and replaced and cleaned many times in the painting process. The paint can part of the spray gun adopts a double-opening design. After the side screw cover is opened, the paint supplement operation can be carried out without disassembling the entire paint can. The bottom groove design of the paint can makes it more ergonomic to hold with both hands when there is more paint or the painting angle is higher, and the operation is comfortable, labor-saving and more convenient. A cleaning tank is arranged above the spray gun. After the cleaning agent is poured, the side button of the spray gun is moved to switch to the cleaning mode, and the switch is pulled to clean the paint tank and the paint channel of the gun body at the same time. For the whole painting process, the time for disassembly and cleaning of paint cans is saved for many times, making the painting operation more efficient.
