In 22 years, I received ASK's entrustment to design their flagship graphics card. The requirements are white and concise. The product itself takes a cost-effective route. The cost control is relatively strict. Finally, it is made of all-plastic material. In order to avoid being too cheap, I used the process of wire drawing, sun grain, frosting and electroplating on the decorative parts (mass production was changed to oil injection), and the finished products basically reached the ideal state.

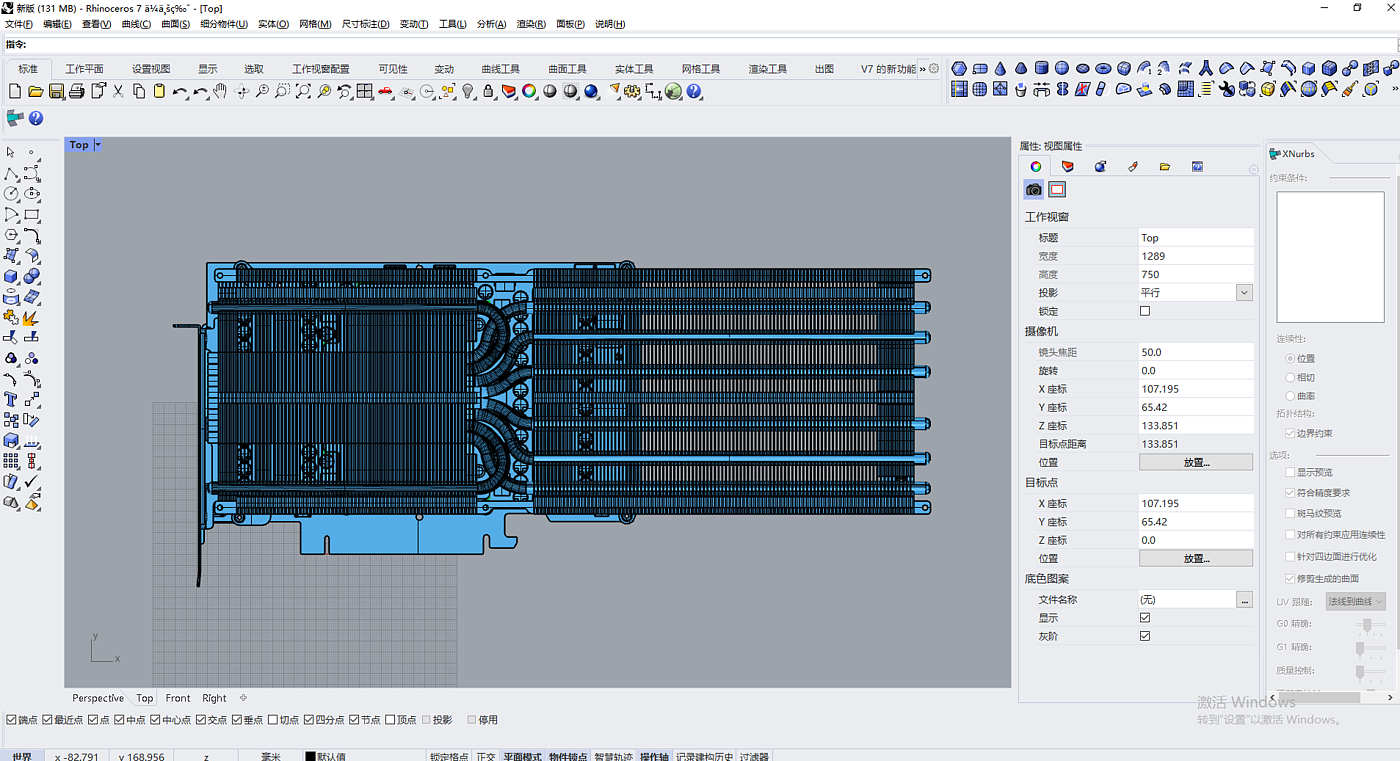

Before the design starts, it is still necessary to carry out structural analysis, consider the size and position avoidance, so as to avoid the situation that the structure cannot be realized in the later period and the situation of overturning and starting again (I suffered a lot before).

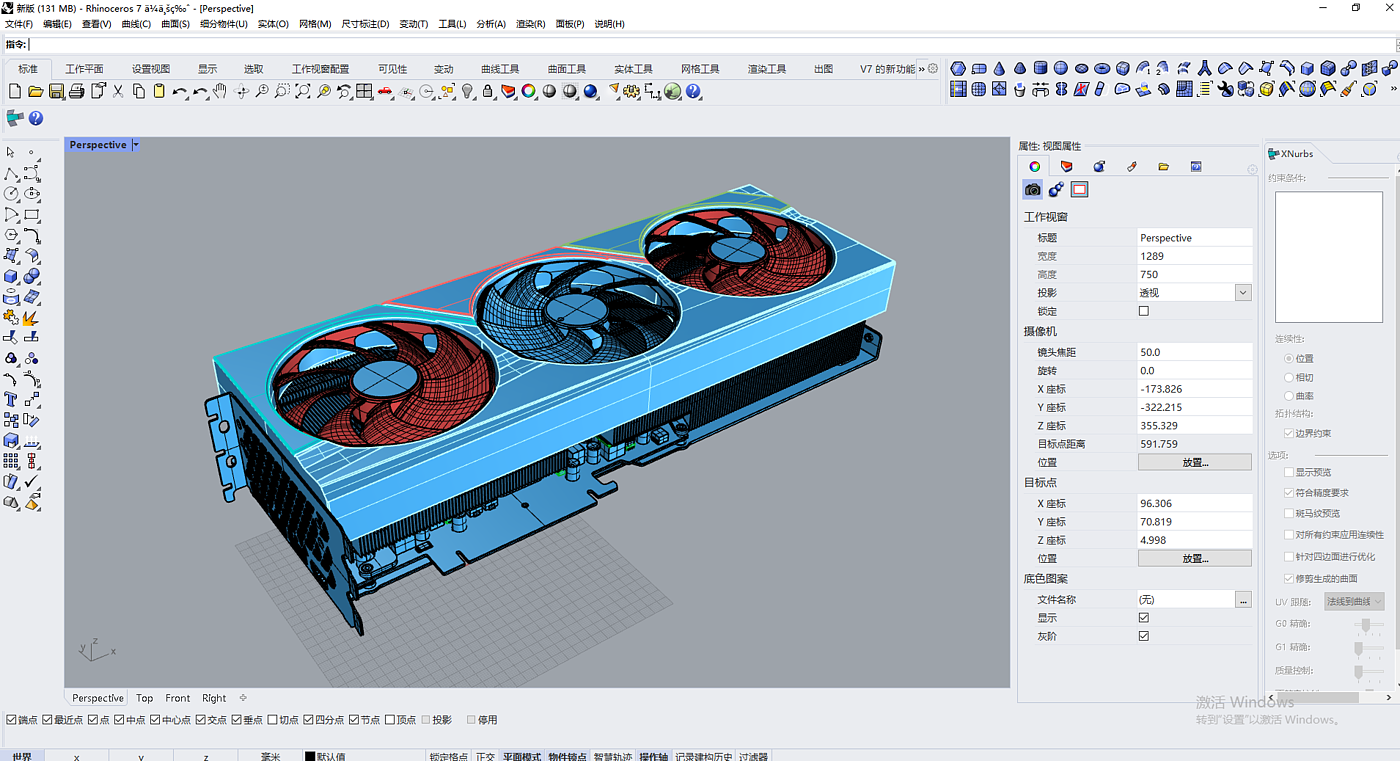

This product does not have complex curved surfaces, so it is directly modeled, and sketching will waste more time, even if the effect is not satisfied by the customer, it is very easy to modify.

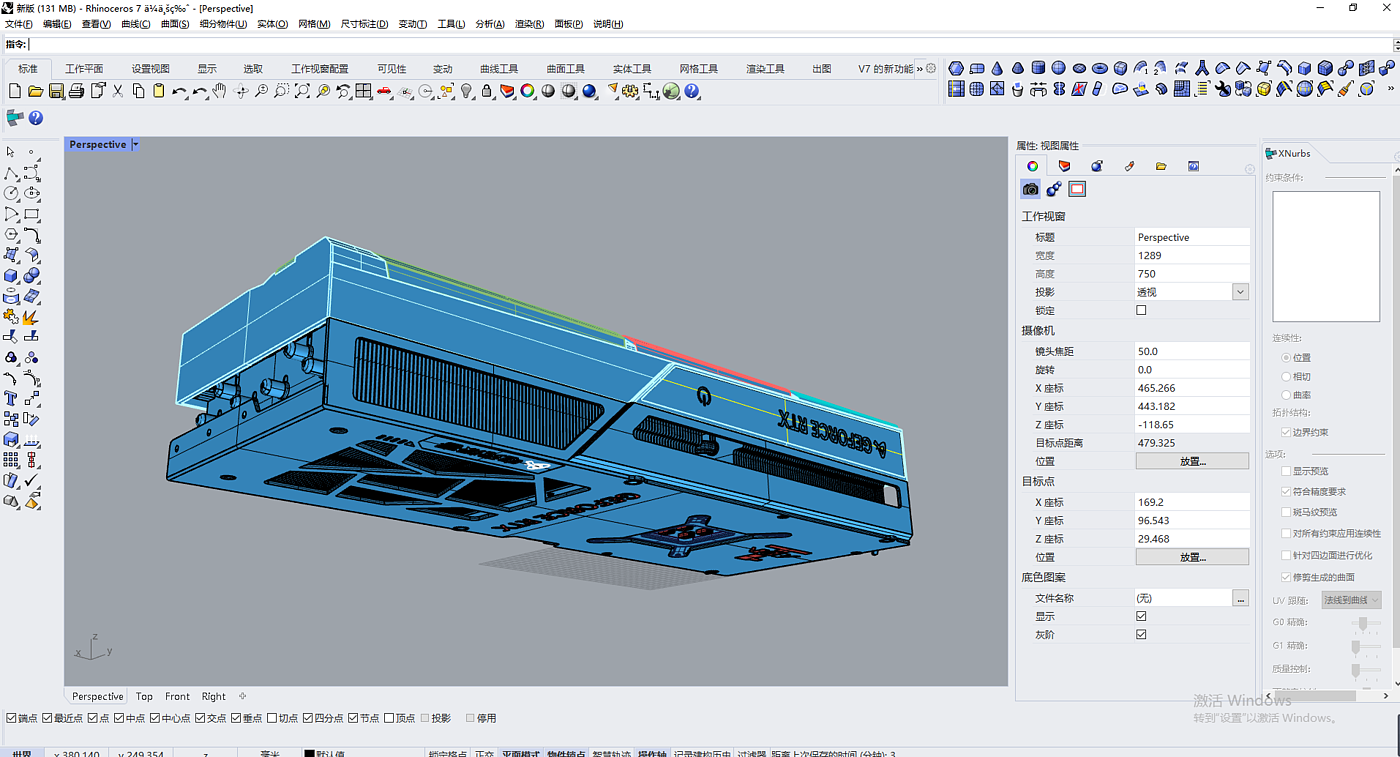

After the preliminary model is built, check whether there is any wearing mode? If not, it can be rendered. When rendering, you don't need to carefully light up, just when the meaning comes, and the customer is not satisfied and asks for changes, which can save time.

After the first exchange, the customer asked to add a baffle on the side.

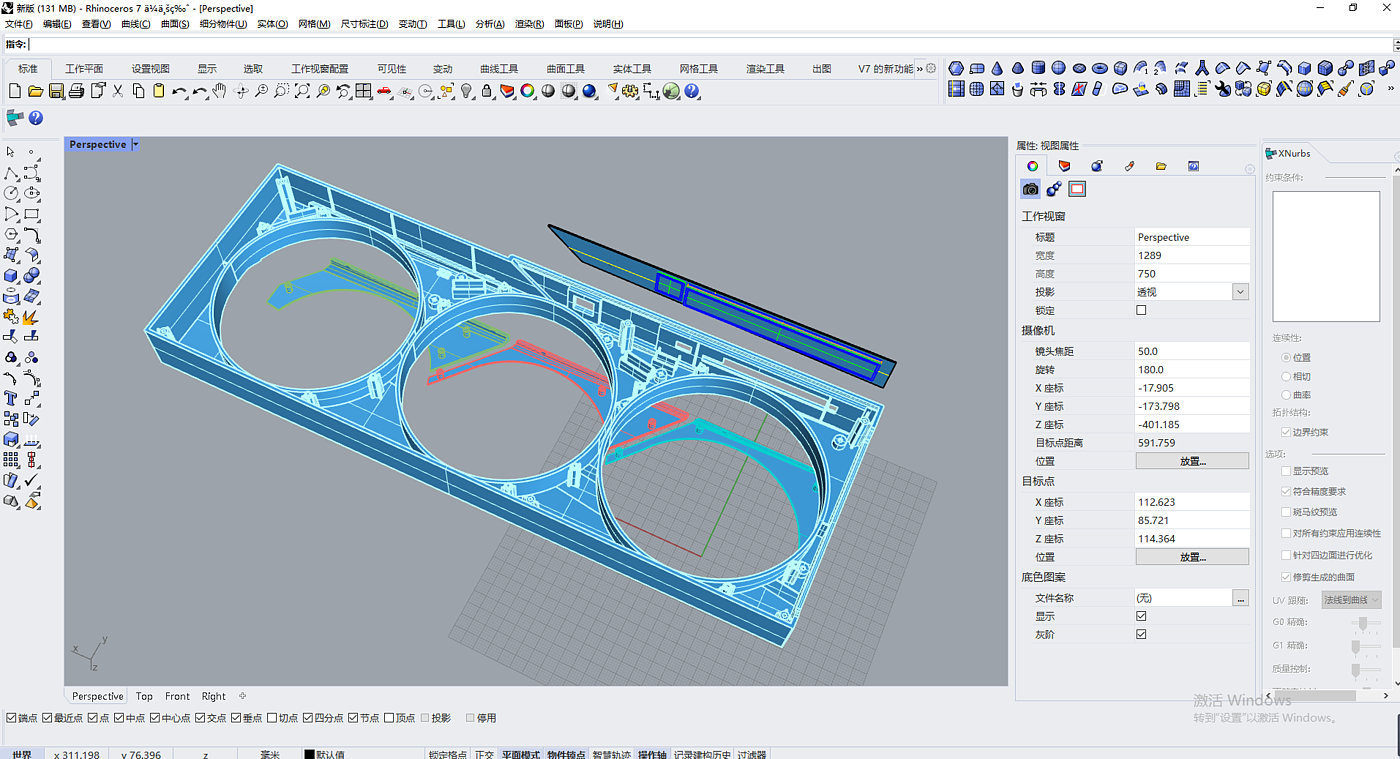

The structural design can be carried out here. The structure itself does not appear snap and dynamic mechanism, proofing once through.

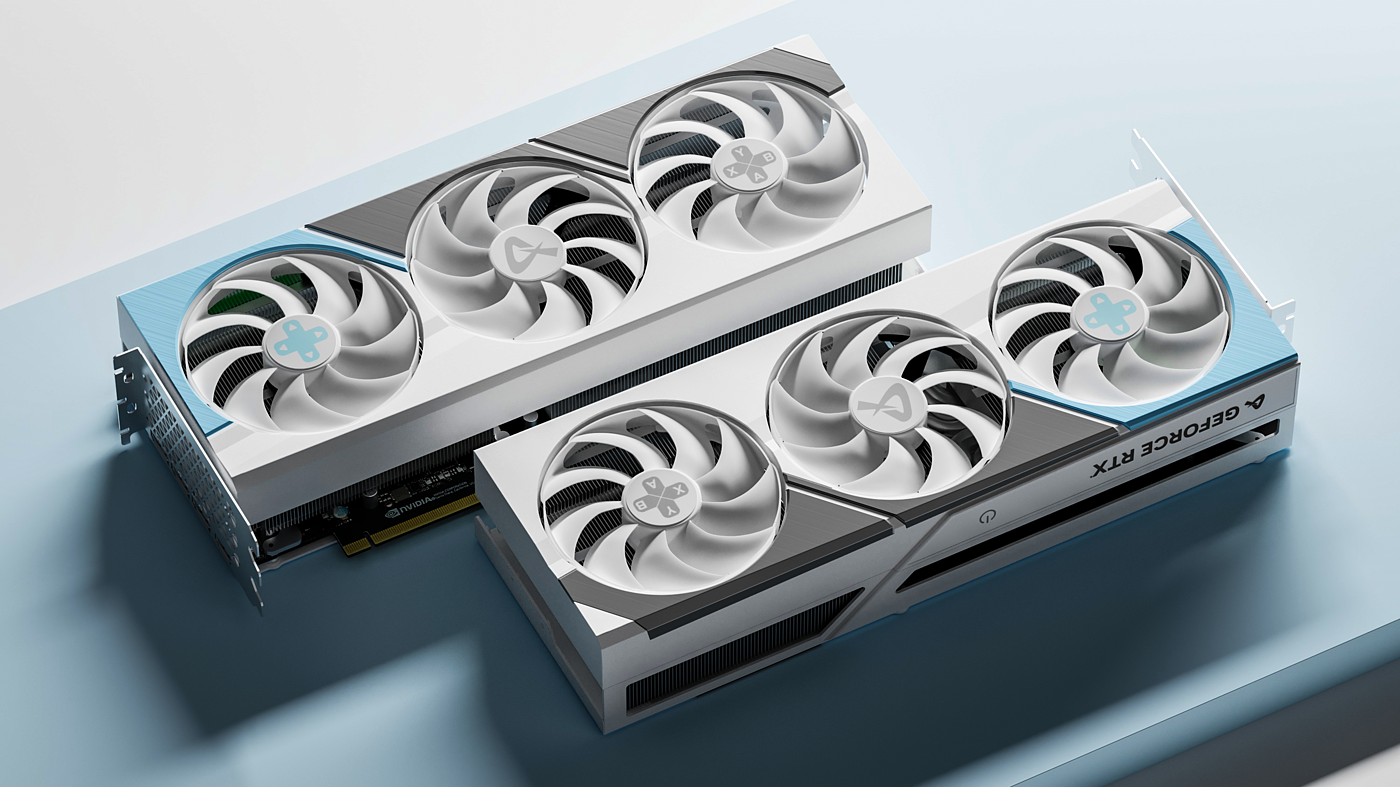

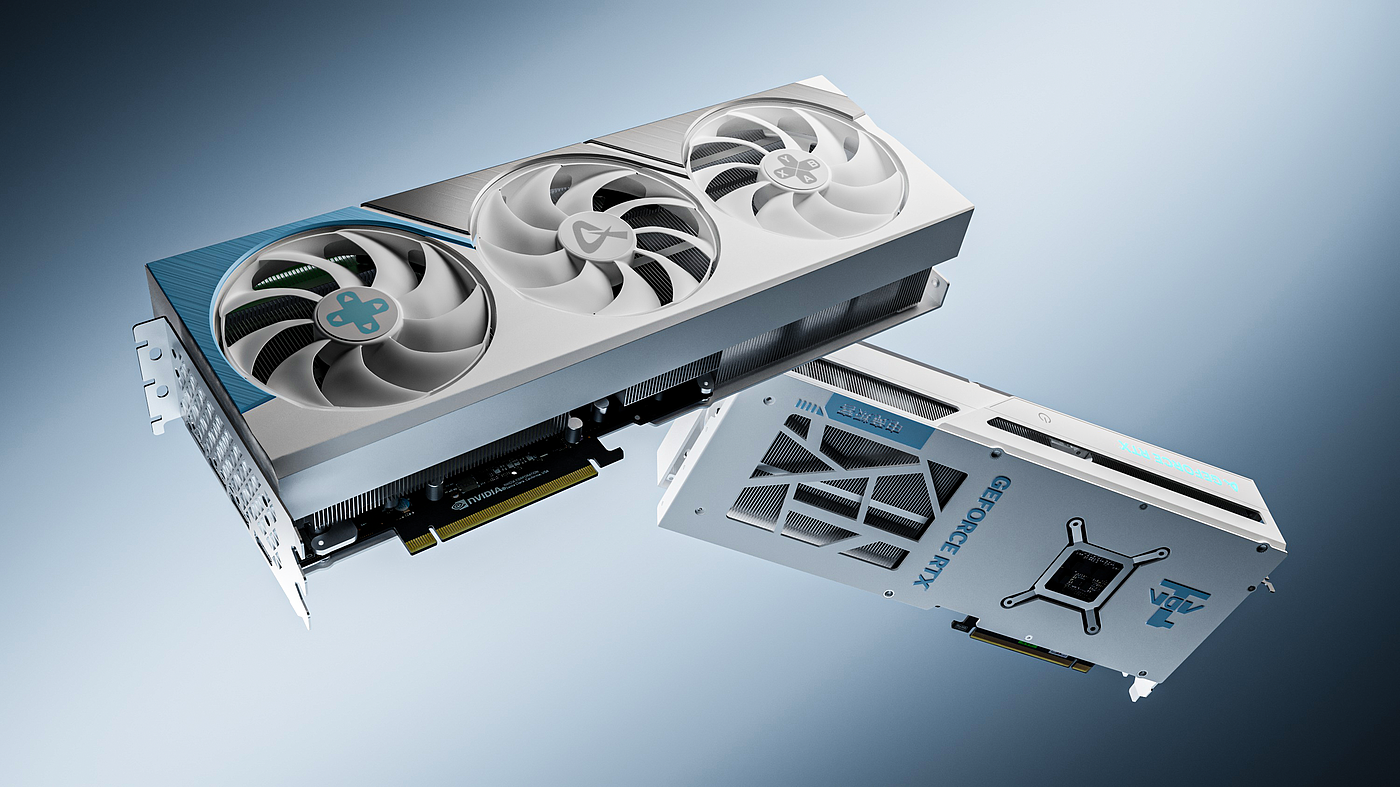

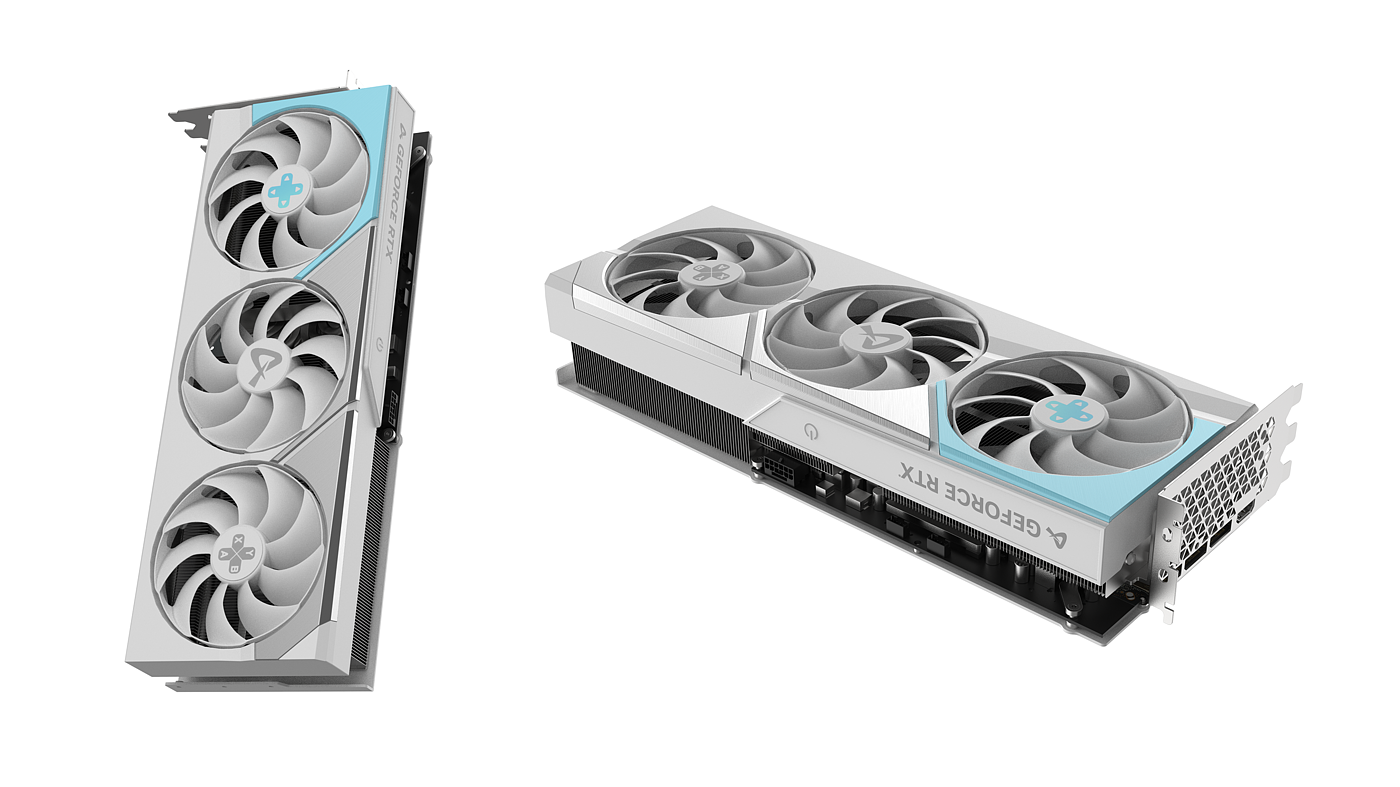

The whole project will be closed within two weeks. At this time, several renderings can be rendered to the customer. When the customer is making the detailed page, he uses real objects to shoot. It is useless to share too much and save some electricity charges.
