For professional photographers, a suitable tripod is necessary to cope with various outdoor shooting environments and help them record the beautiful scenery in the most comfortable position and angle.

In the context of the Z era, video bloggers and the live broadcast industry have sprung up, and then expanded the market for professional shooting equipment. Camera tripods are one of them. All kinds of bloggers need to shoot in front of the camera for a long time, and often go out alone to shoot creative materials. Due to these professional characteristics, camera tripods have naturally become their indispensable work partners.

Customer service: onion technology YC ONION
Design Team: White Fox Design BIFOXS DESIGN
Service Content: Product Design | Structural Research and Development

industrial design，product design，White fox design，Electronics，Photographic equipment，tripod，

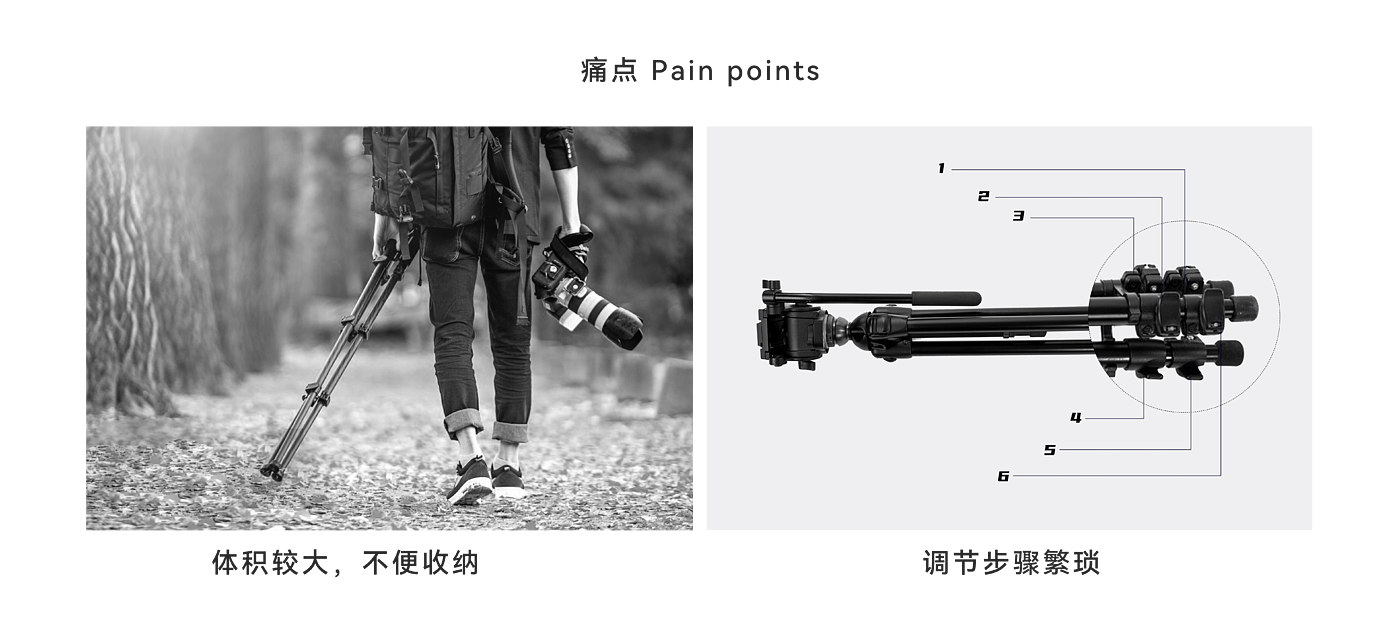

I believe all photographers have this experience: when adjusting the tripod foot tube, they need to open the lock buckle of each section on the three foot tubes. Under normal circumstances, each foot tube of the tripod is equipped with 2-3 plate foot tube locks. When adjusting the height of the tripod, at least 6 locks should be pulled, up to 9; therefore, adjusting the length of the foot tube The operation is very complicated. Especially when photographers carry backpacks and other equipment, they want to adjust the tripod conveniently and quickly.

In order for photographers to quickly place tripods and seize the instant beauty. We redesigned the structure of the tripod to solve the operation pain point of the upper speed. While reducing the number of locks to 3, we also realized the operation of directly pulling and shrinking a single foot tube, which improved the use and storage experience of the camera tripod. It is worth celebrating that the product structure has won the invention patent.

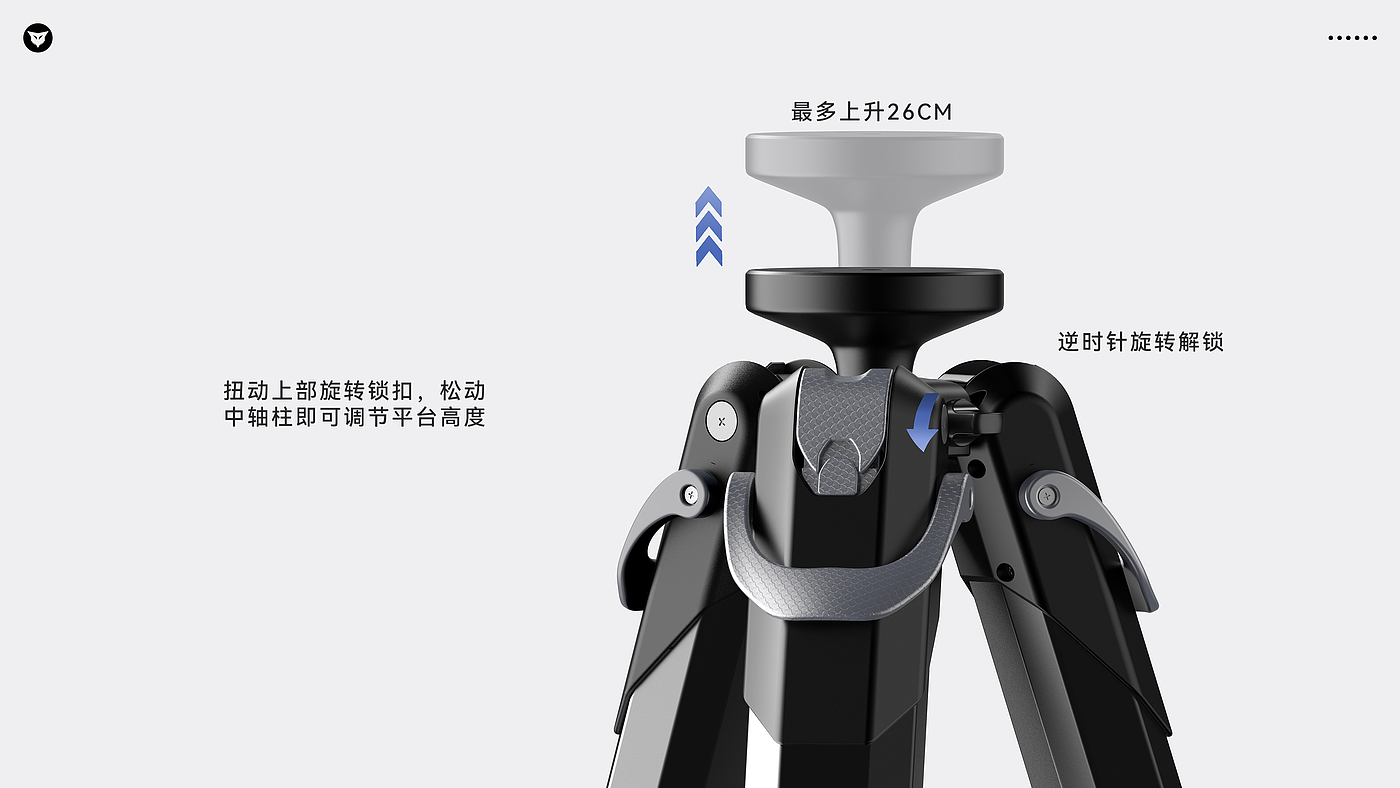

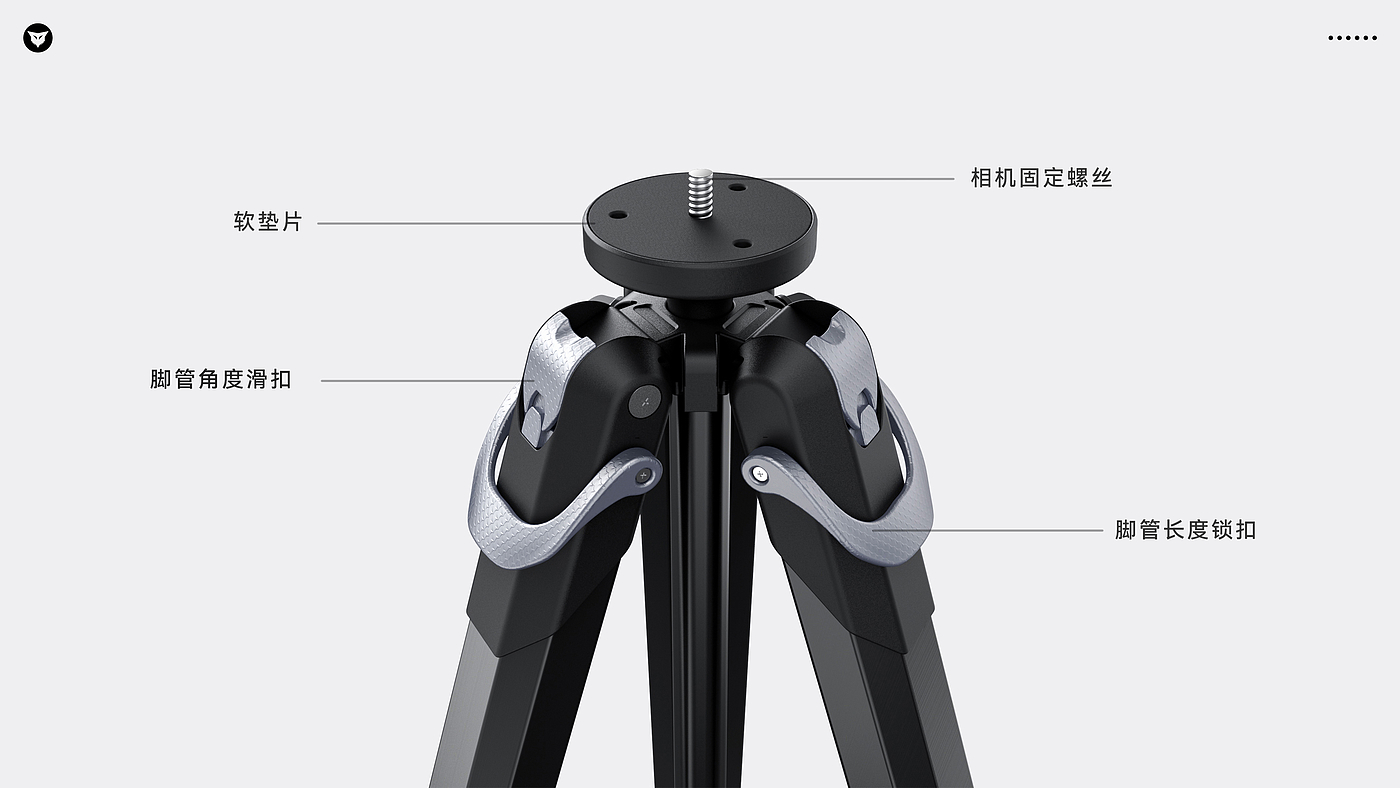

The invention belongs to the technical field of accessories, and in particular relates to a linkage locking device and a telescopic bracket. The locking device includes a fixed structure, a guiding structure, a rotating structure, a dynamic structure and a locking structure. The external casing, positioning pipe and inner casing can be locked at the same time, with high efficiency.

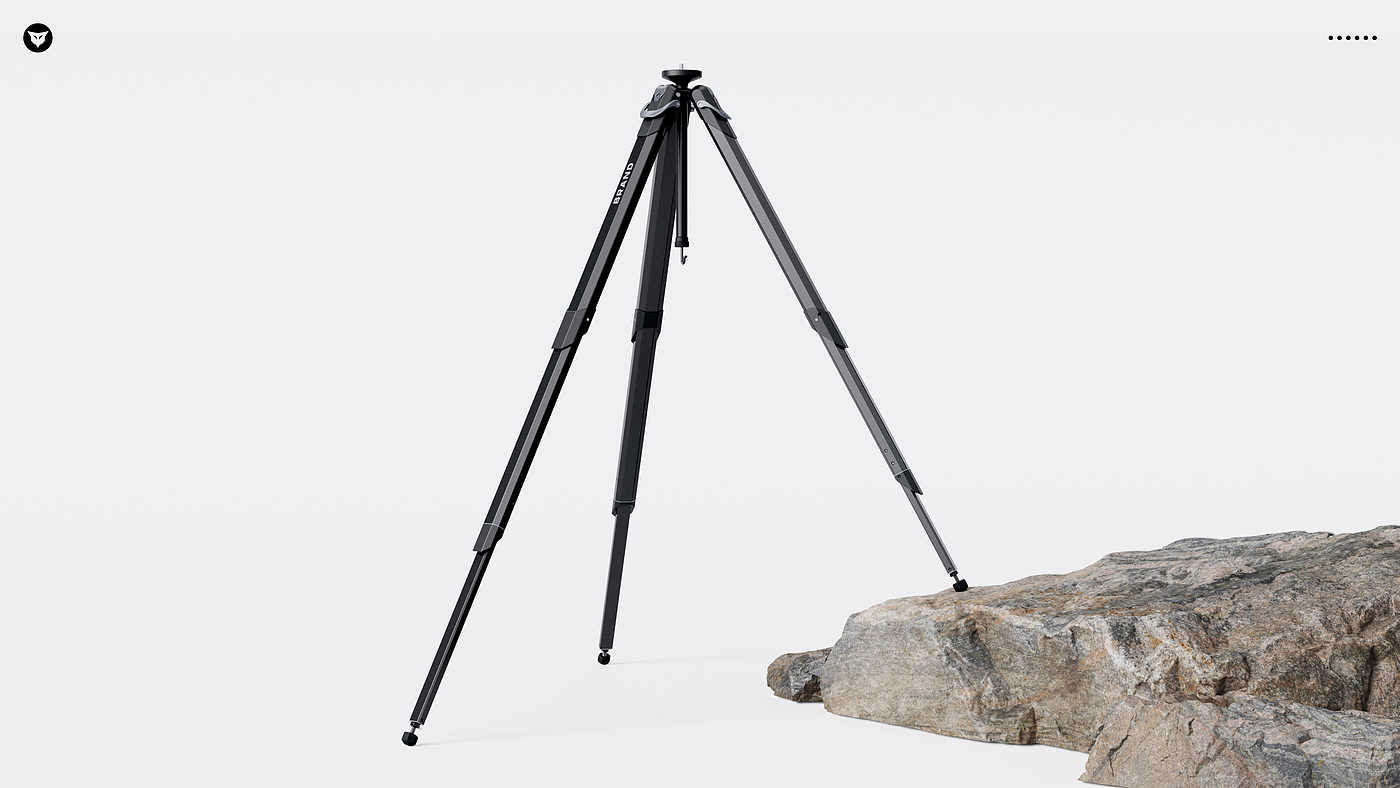

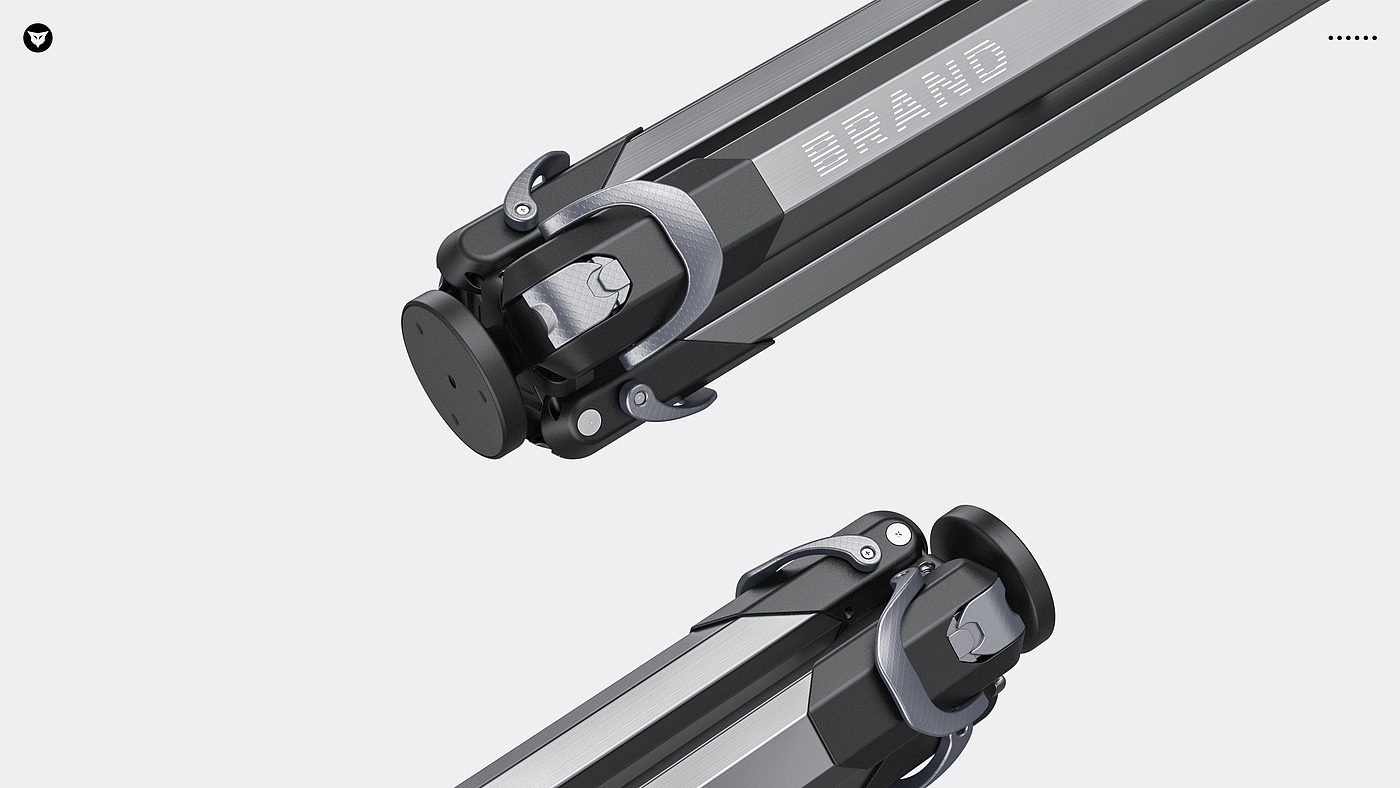

The foot tube of the tripod breaks through the previous cylindrical shape and chooses a more stable cut-angle three-sided trapezoidal body; moreover, with the blessing of metal material and classic black, it shows a more tough, stable and professional temperament.

The feature of this patent is that it allows the photographer to adjust the length of a foot tube by pulling a lock when using it, which is very fast and convenient.

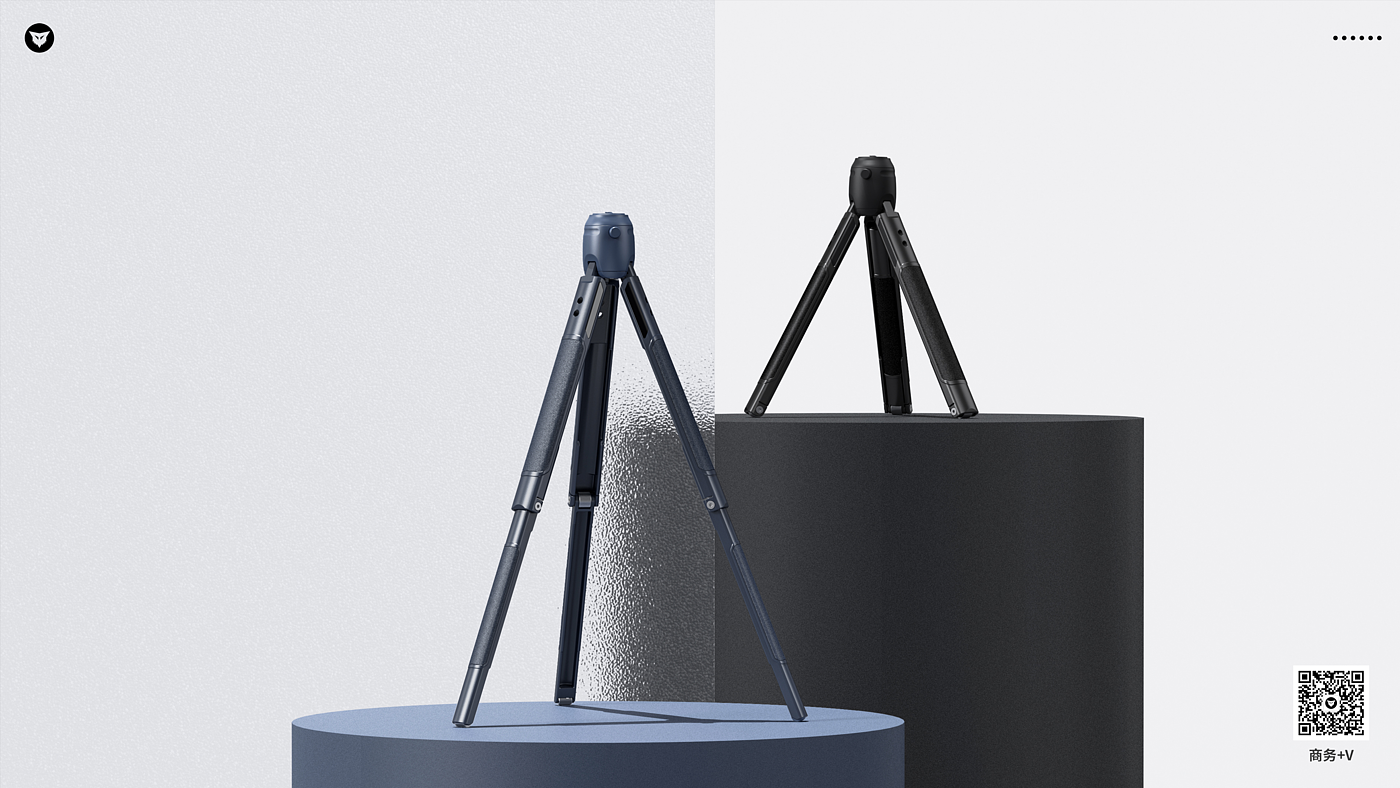

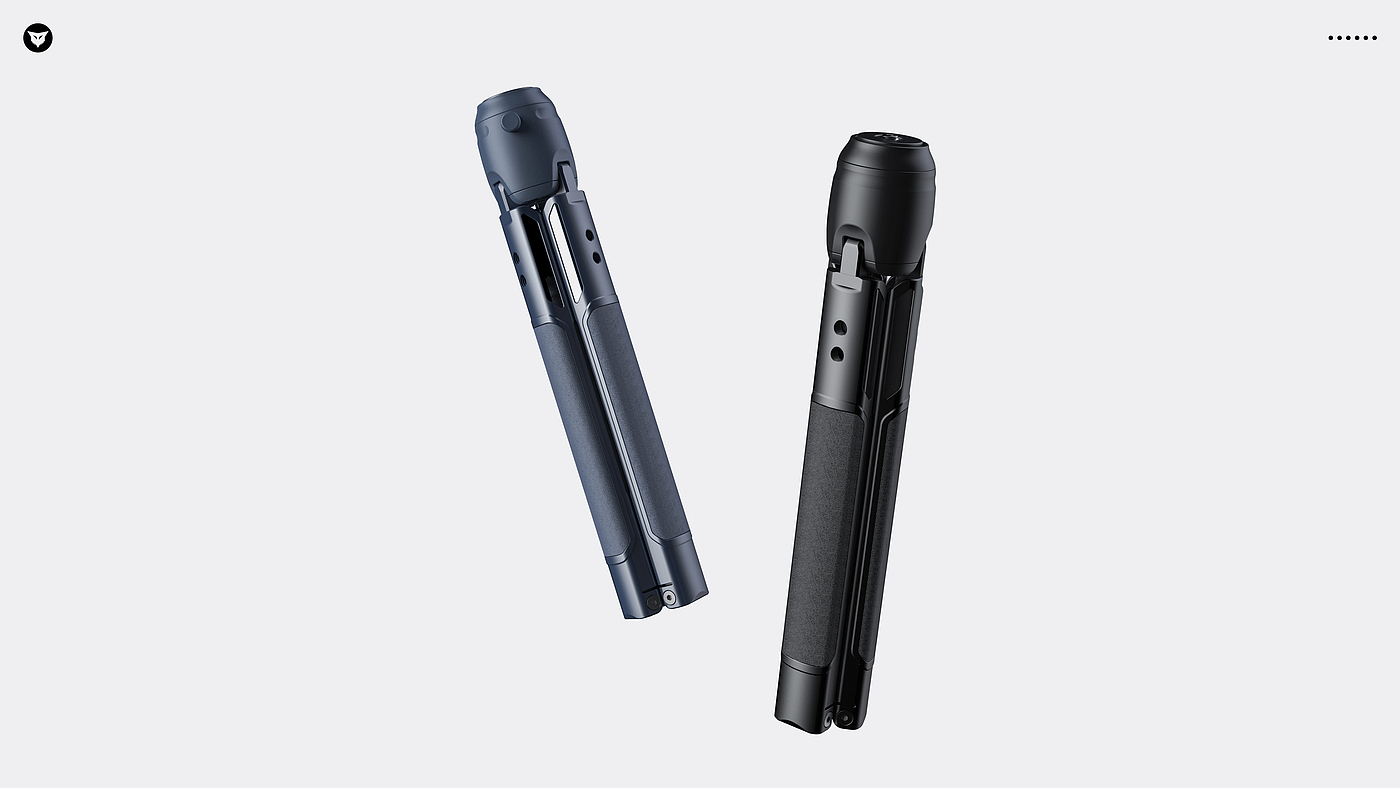

Considering the needs of some bloggers and photographers to collect creative materials outdoors, we have created a small camera holder that is convenient to carry. Its stick-shaped shape is round and friendly, which is convenient to grasp. The arc surface adopted by the foot tube echoes with the cylindrical frame head platform to reduce the wear on the inside of the backpack. Folding telescopic design is adopted for convenient storage.

Design is an activity that creates a comfortable product experience. It requires designers to have keen insight to explore the pain points of product use; with a high degree of design literacy as the cornerstone, through repeated thinking, use design methods to solve problems, To meet the user's use needs, experience needs and aesthetic needs, etc., in order to impress users among many competing products.

Patent Publication Number: CN113375016A
Applicator: Shenzhen Baihu Industrial Design Co., Ltd.

Product Design: Li Jin, Zhu Shengyi, Qin Zhikang, Guo Jinglin, Li Shubin, Xie Haifan
Structural research and development: in the tube, Chen Xiangyue.

Business V : 18028791372 White Fox Design Bifoxs, 13923404531 HiFun Bifoxs
WeChat: BifoxsDesign-Hi
Official website: www.bifoxs.com
Address: No.5 Jianxing Road, Luozu Community, Shiyan Street, Bao 'an District, Shenzhen
Recruitment: haifan.xie@silverbasis.com/xiuding.wu@silverbasis.com

60 37

kinyu 2022-09-05

How long is this put away? In fact, the pain point of taking a shelf when I go out is that I hope I can have a small shelf that can be put into my Decathlon sports backpack, otherwise I will carry a big schoolbag everywhere, which is very uncomfortable.

Bifoxs丨白狐工业设计作者 2022-09-13

Length 384mm

我也说一句

焦糖先生 2022-08-30

Roll

就这？ 2022-08-30

The new structure is a good thing, but I usually walk without taking the tripod. Taking the tripod is equal to taking the machine. I don't have much interest in taking the tripod quickly. Is it easy to repair after breaking the legs? How much does the new structure bear?

Bifoxs丨白狐工业设计作者 2022-09-01

1. this form can also realize the function of tripod carrying and walking directly without receiving feet; 2. Quick retracting and retracting tripod does not need to bend over and adjust the 3 brakes on the 3 legs one by one like the traditional tripod. Only need to adjust the top of the three locking structure, you can deploy the length of all the legs, angle, convenient for the photographer to quickly set up a tripod; 3. This structure is relatively stable inside, there are already similar structures on the market tripod. If there is a quality problem with the outrigger, it is recommended to send it back to the manufacturer for repair. 4. The weight borne is about 20kg.
