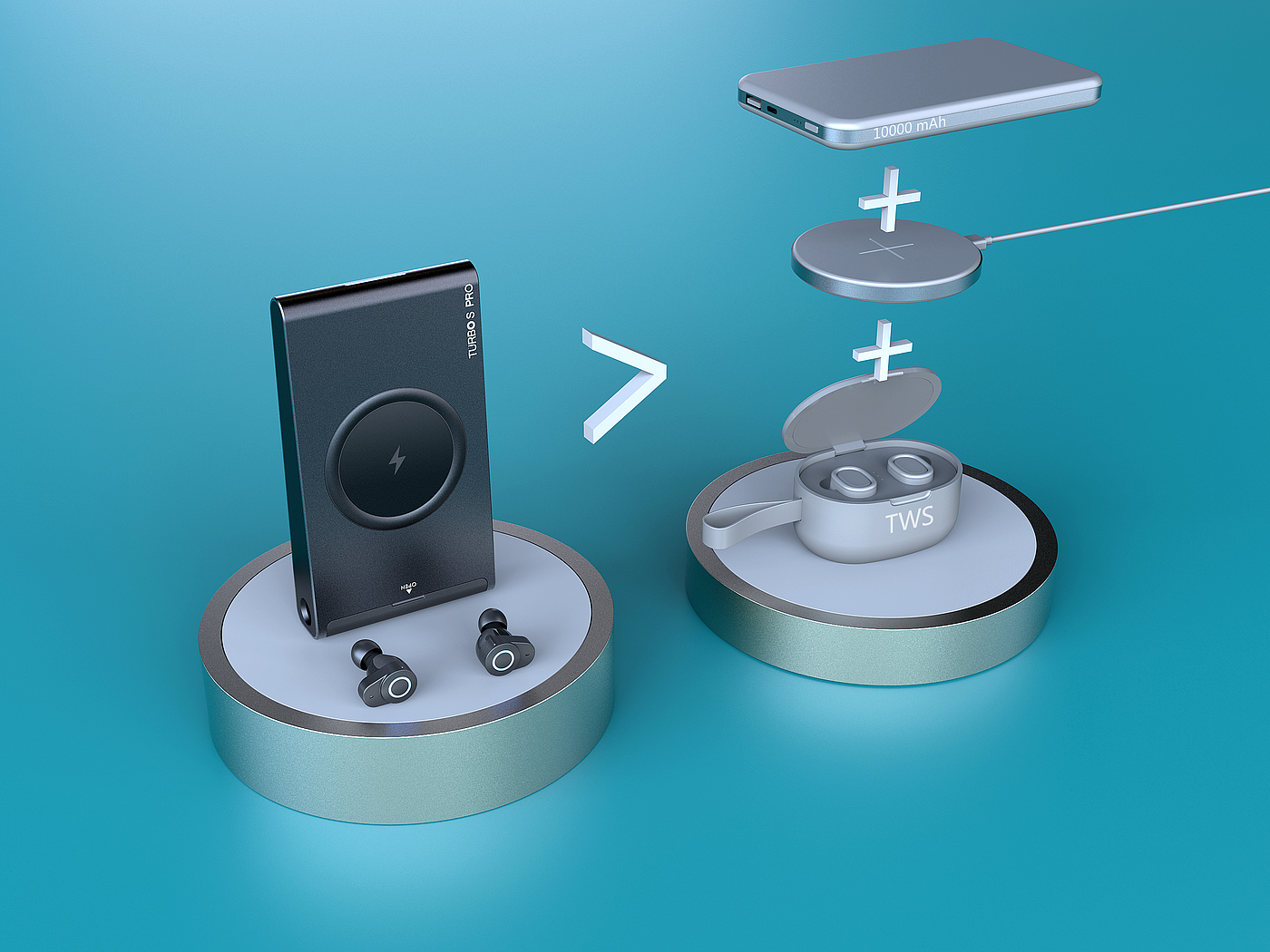

Turbo S Pro is a product specially designed for outdoor travel. It integrates TWS real wireless headphones and mobile power supply (including wire charging and wireless charging). It goes out to avoid the trouble of carrying a variety of equipment. It is now on the market!!

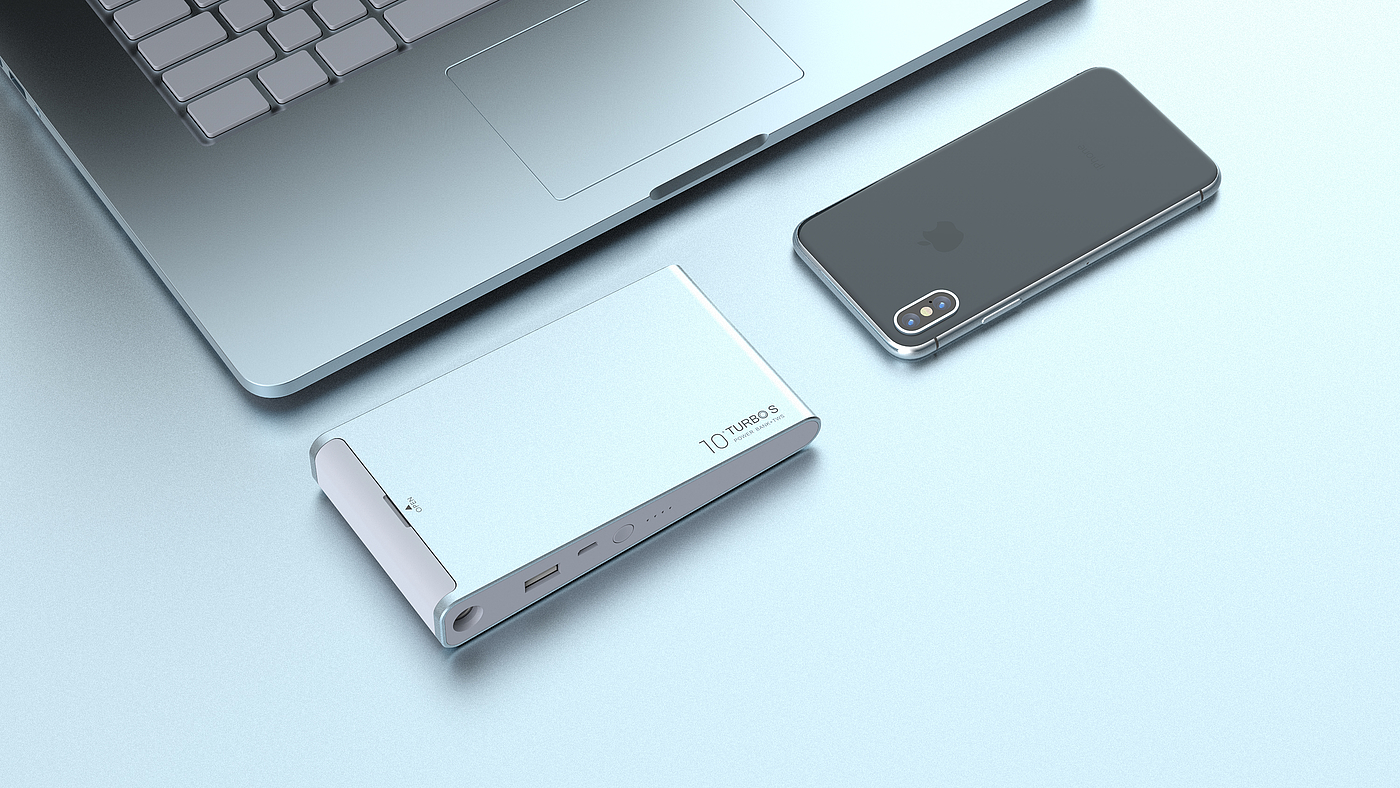

Before, I sent the first version of the design on the general image. The real wireless Bluetooth headset combined with the integrated design of the mobile power supply. Through the research on the design and modeling, the combination and breakthrough of functions were finally difficult to go on the market (2018). After a period of sales and market changes, the second generation version (202020) was launched, with no wire charging function added and color matching upgraded! https://www.puxiang.com/galleries/28f09963112c3437aaffafb2eddd351e

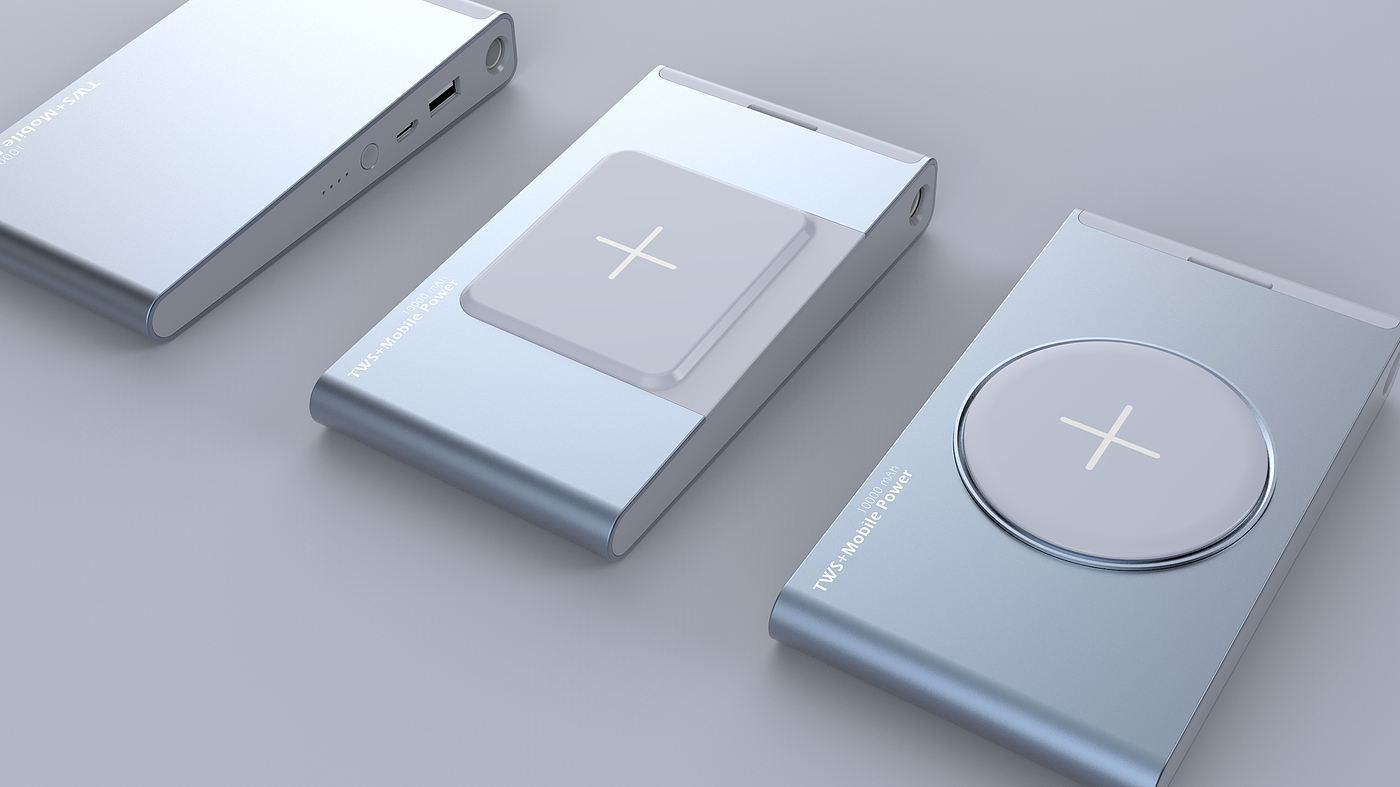

The design scheme of wireless charging was added, and the shape design of the middle circle was finally selected. The first reason was that it was durable, but the original product was changed less, including no need to change the plastic mold!

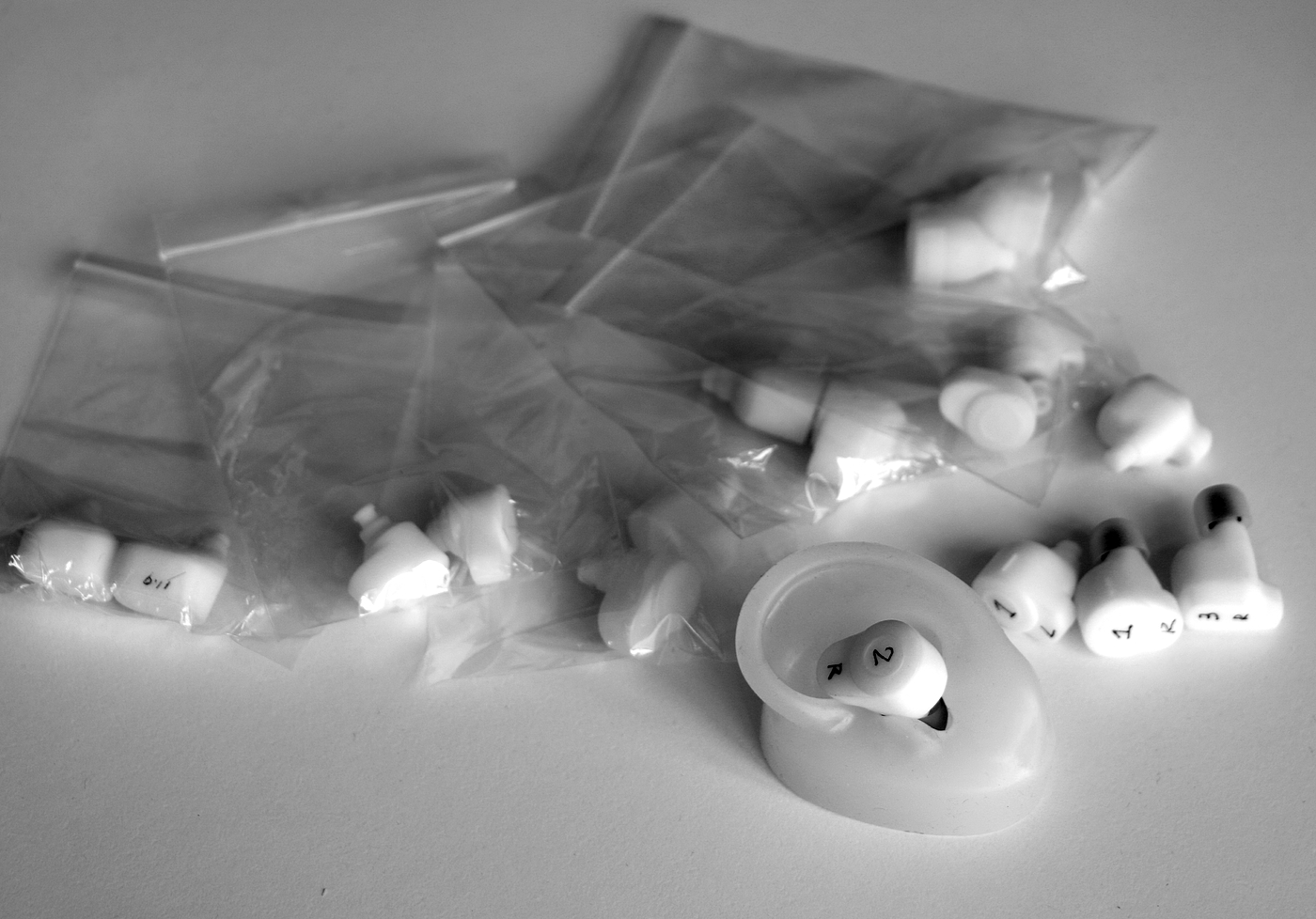

Ergonomic adjustment, try the front cavity design of different angles, and the earphone design of different shapes to ensure comfortable and stable wearing!

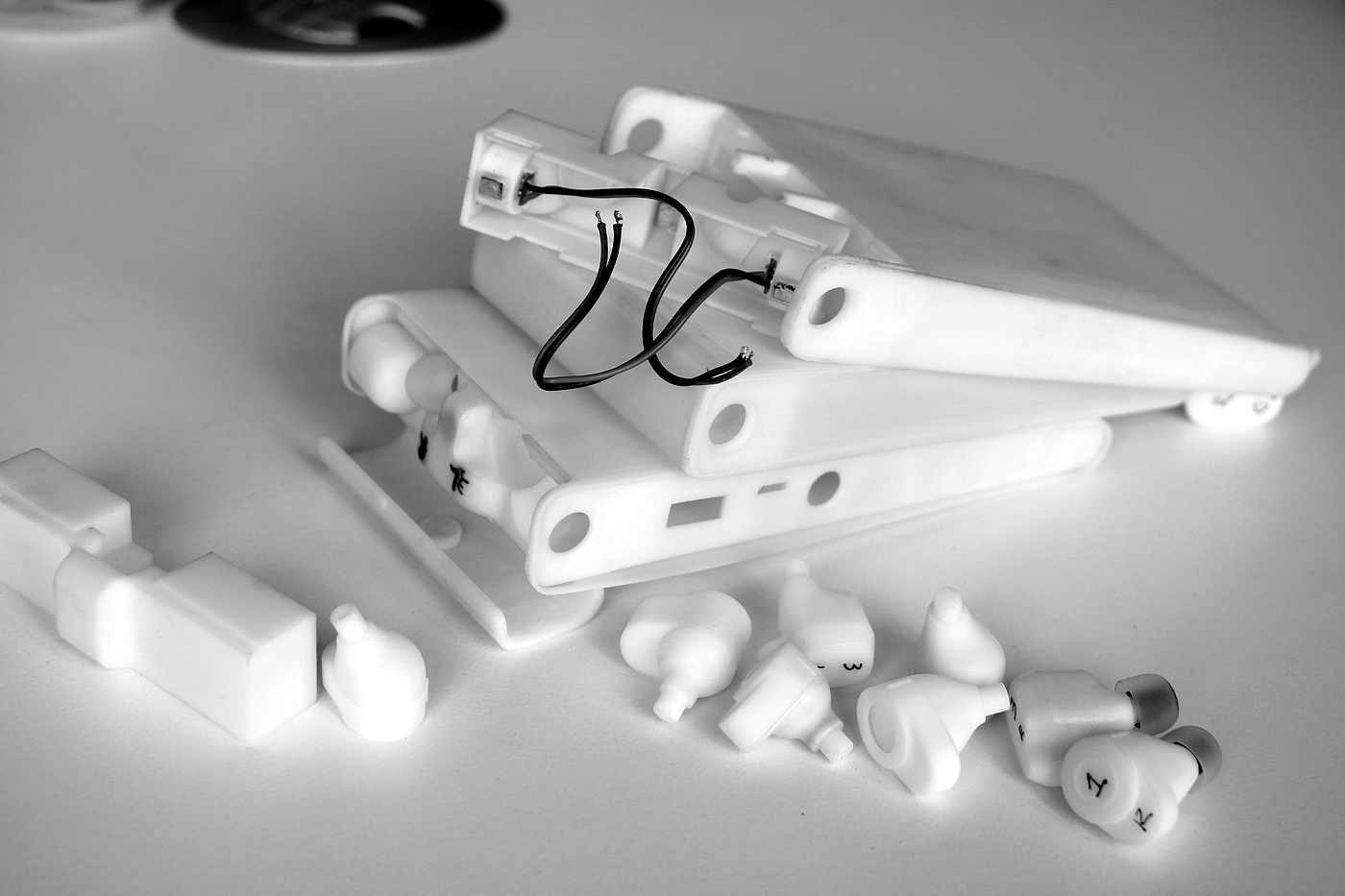

Functional prototype assembly

Handboard Test

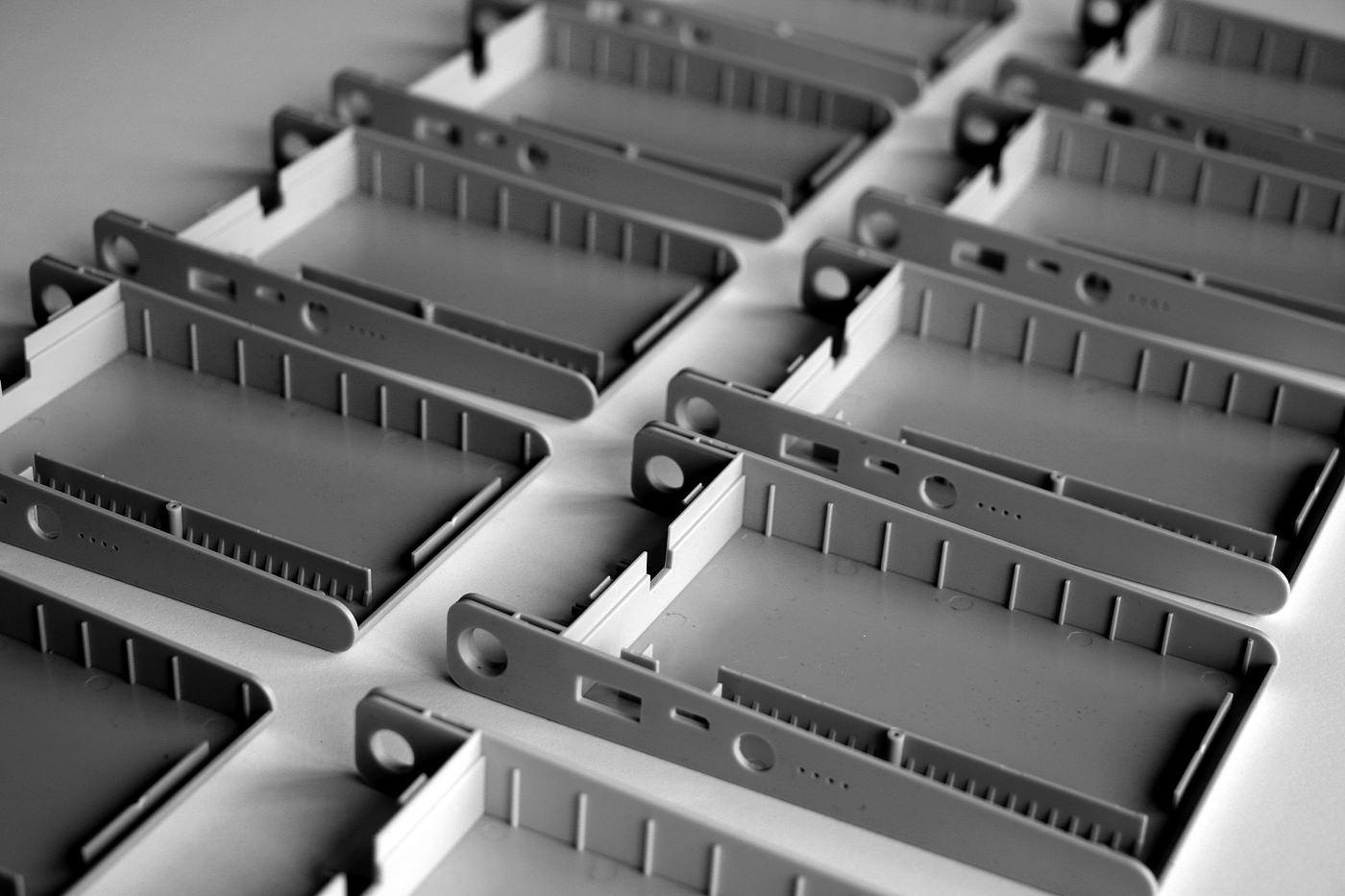

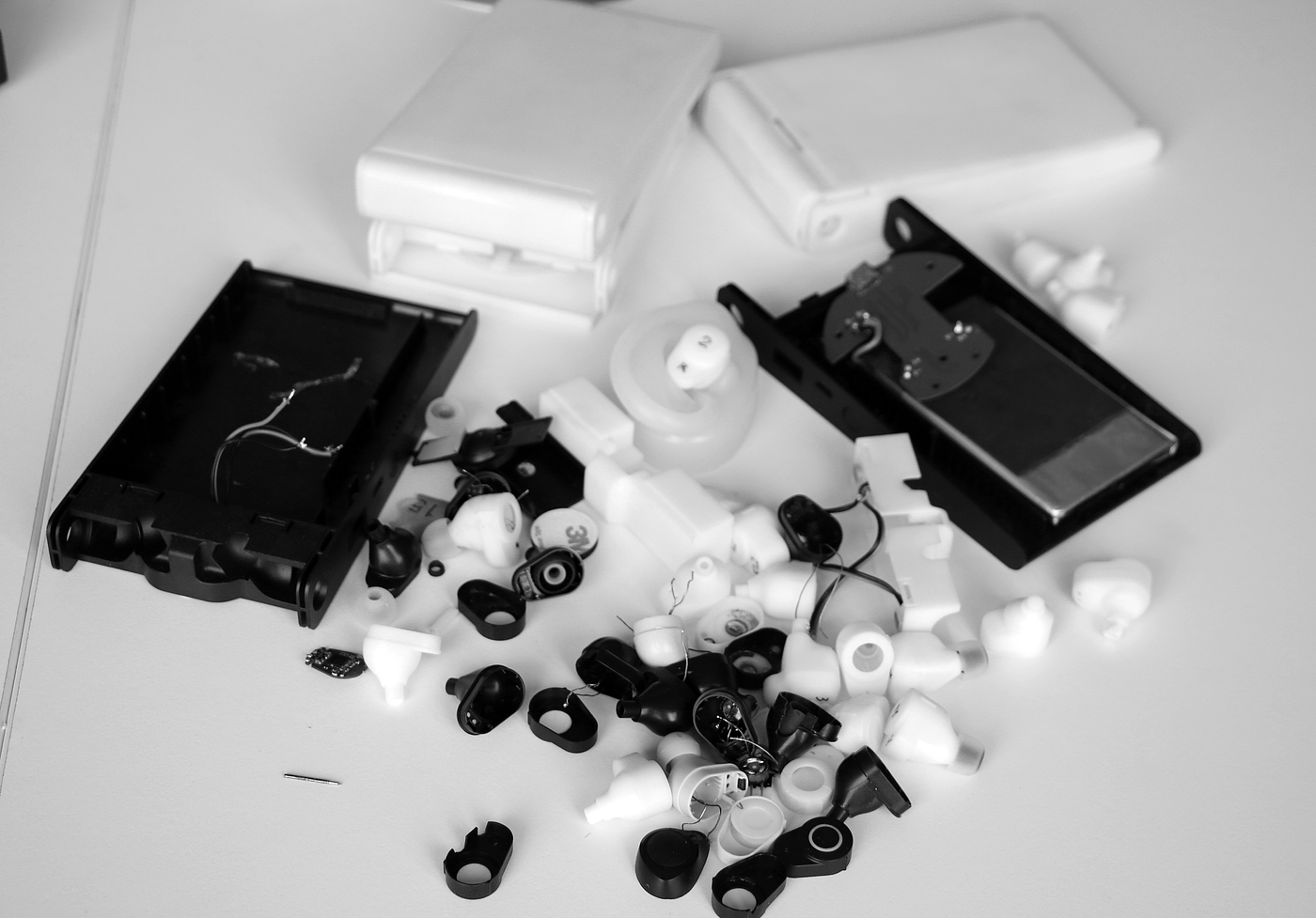

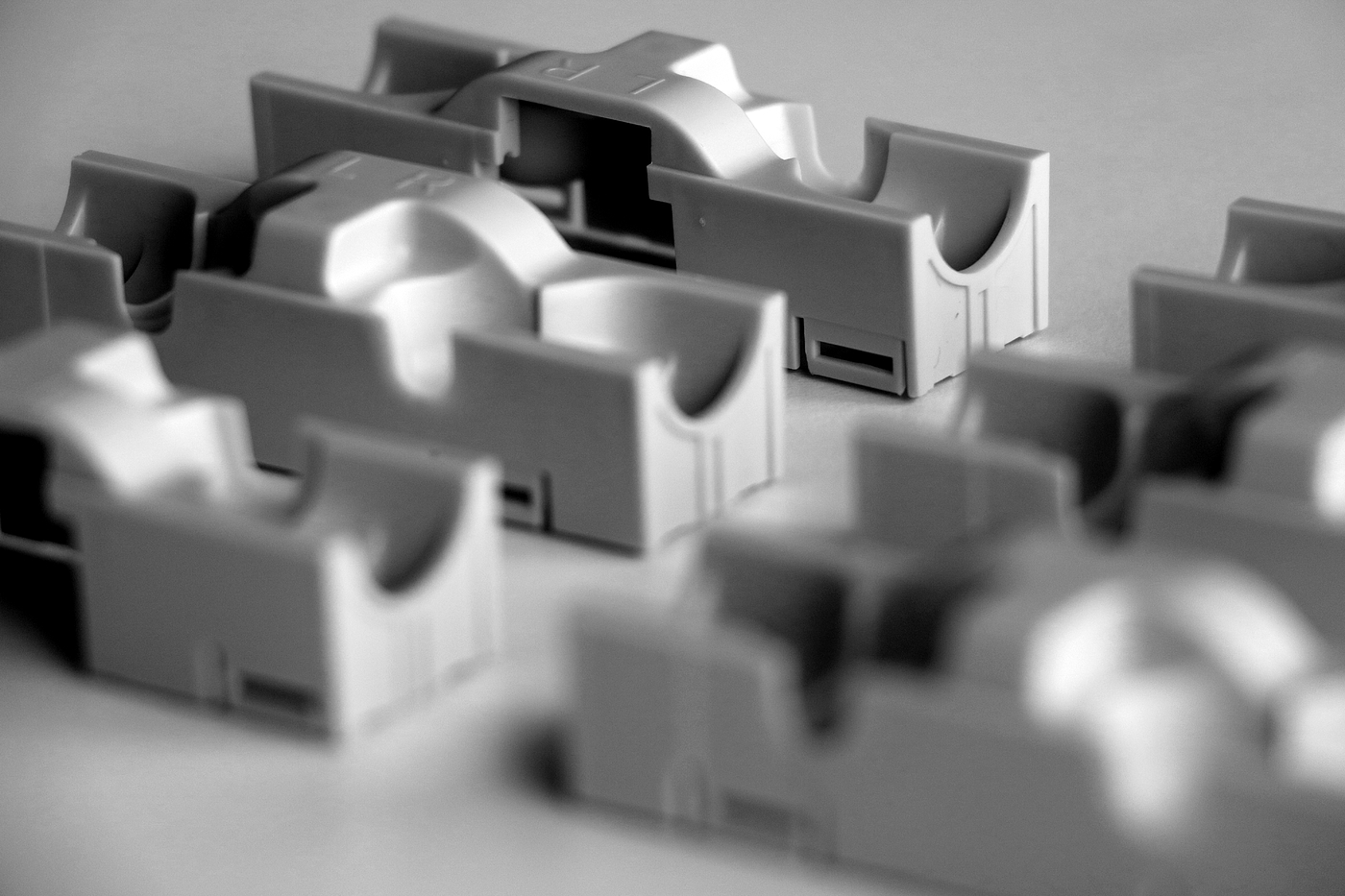

Test mold for plastic parts

Test mold for plastic parts

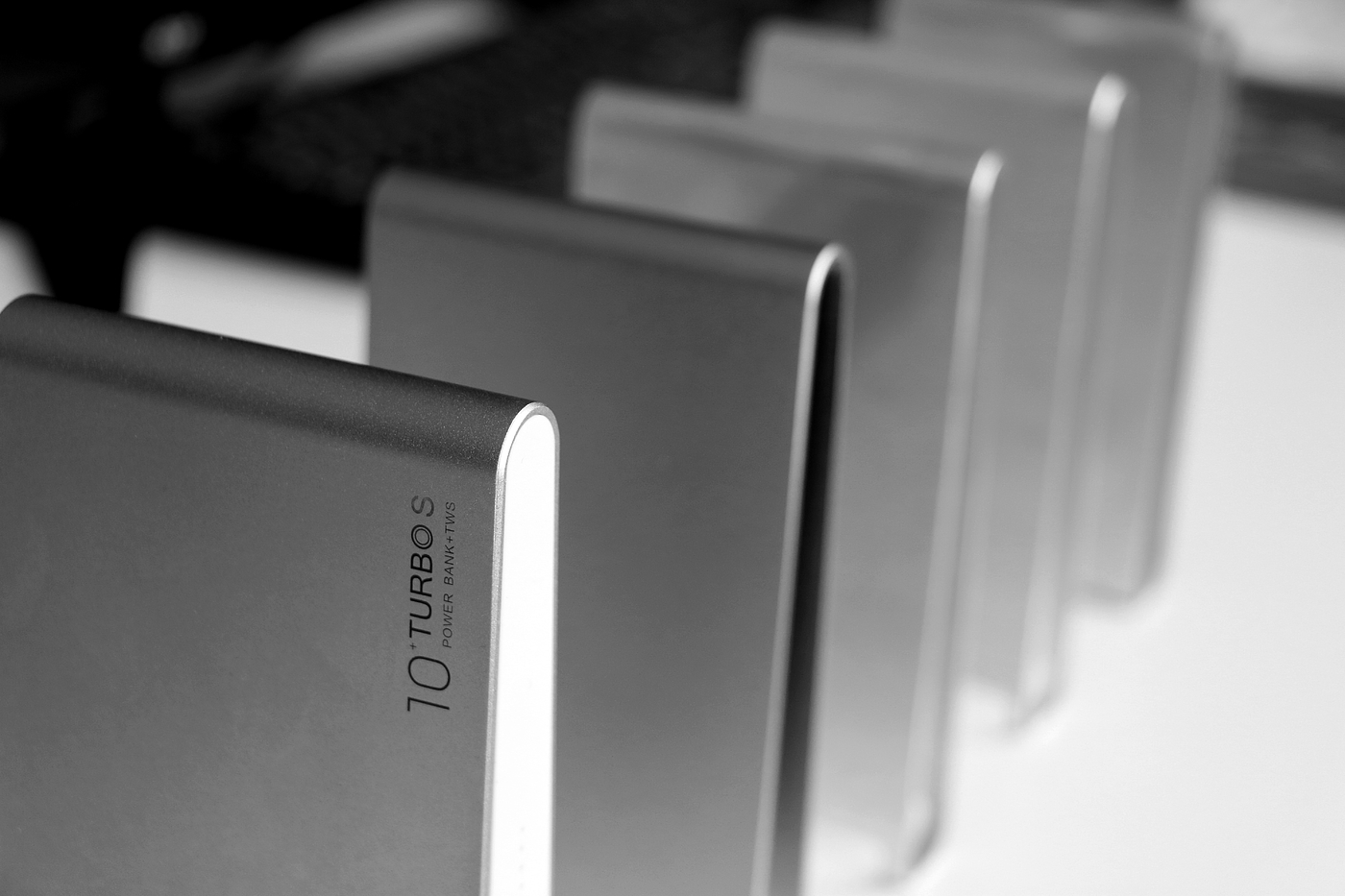

Hardware is the highlight of this product, but it is also one of the difficulties of this product. The closed aluminum alloy, with a long cross section and a large asymmetrical design at the top, leads to easy deformation, including the treatment of the carved gap at the earphone end. The processing process is more difficult to deal with, and these troubles have been solved simply!

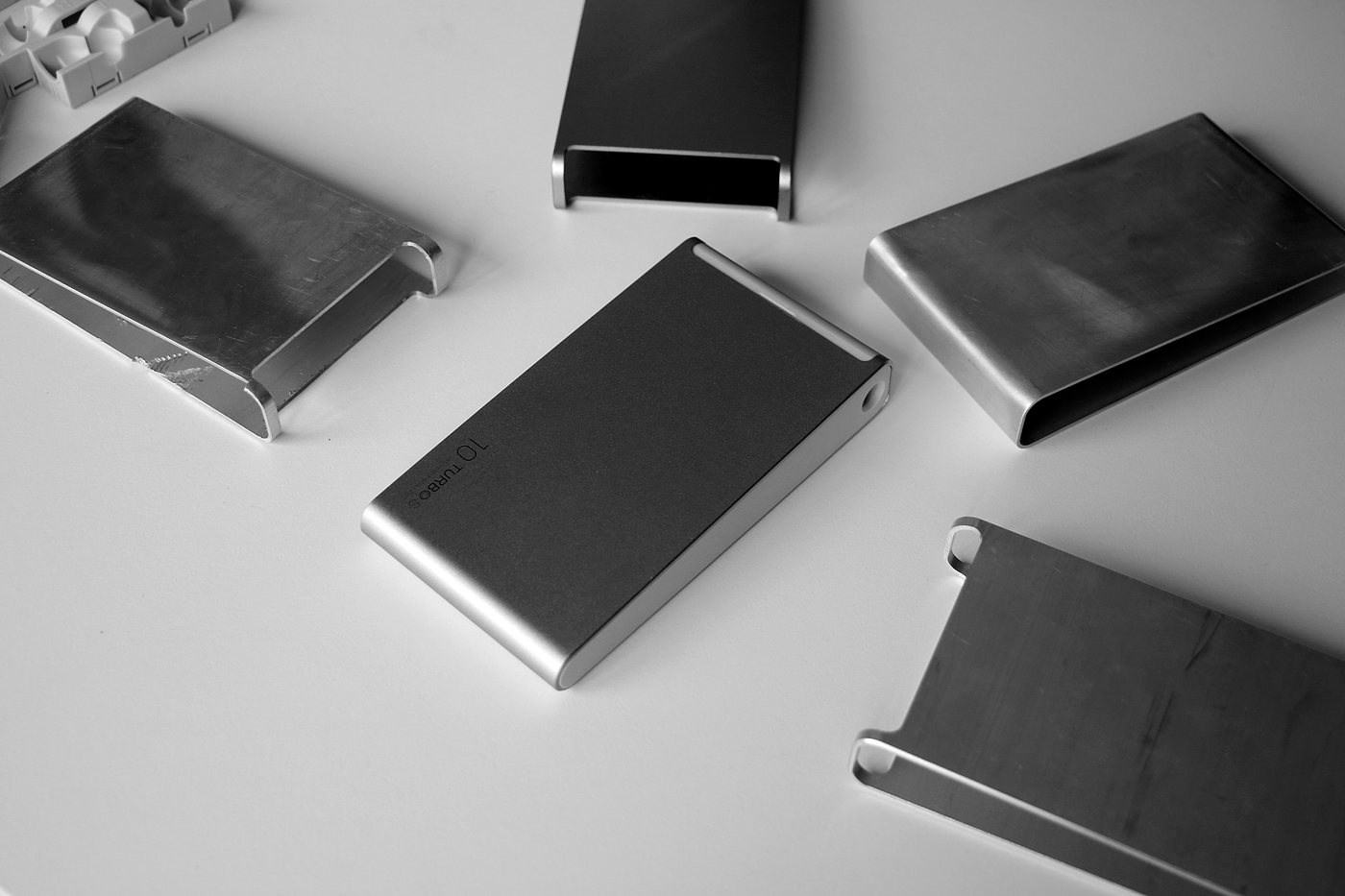

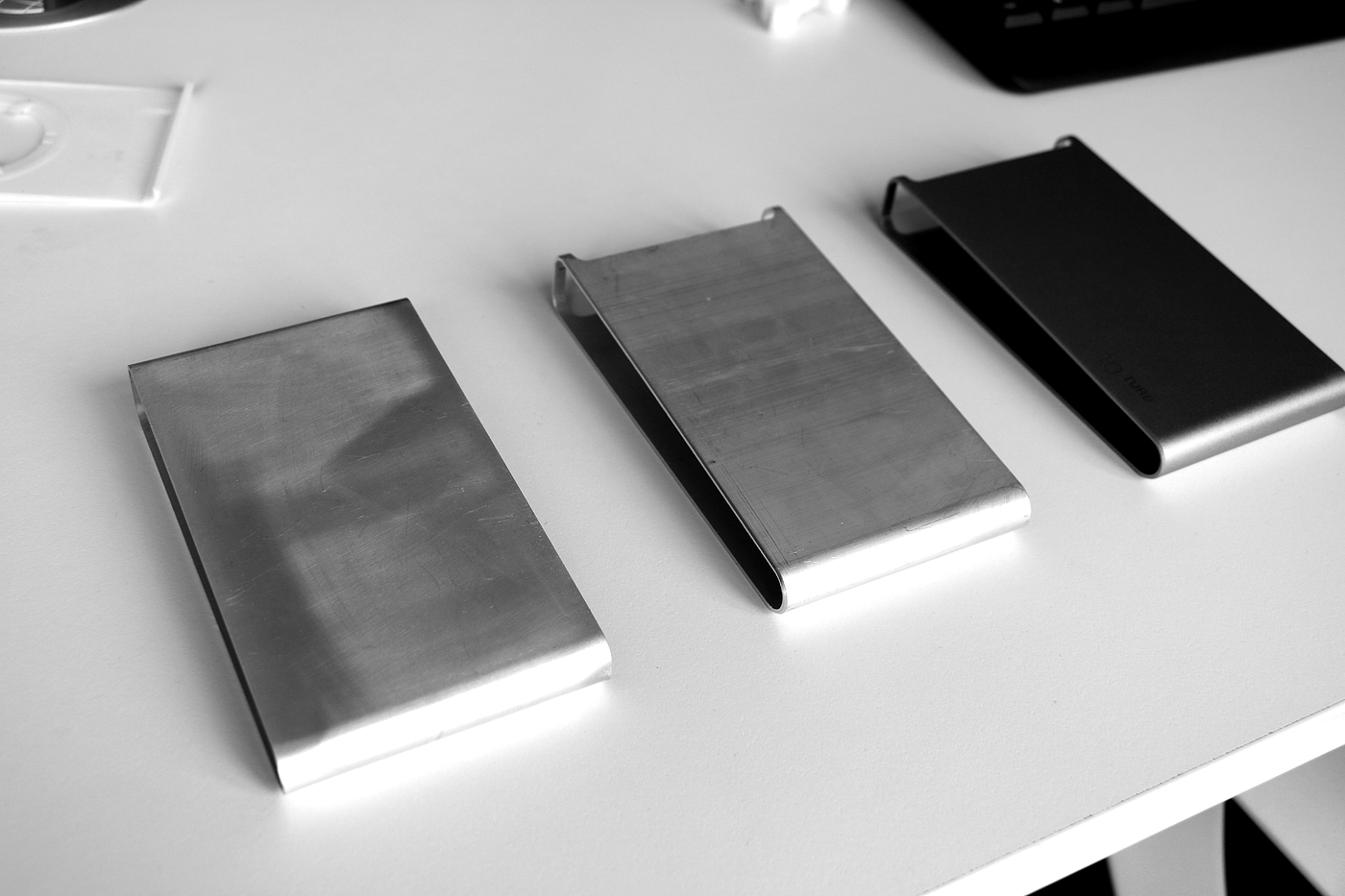

The model of the whole hardware processing process

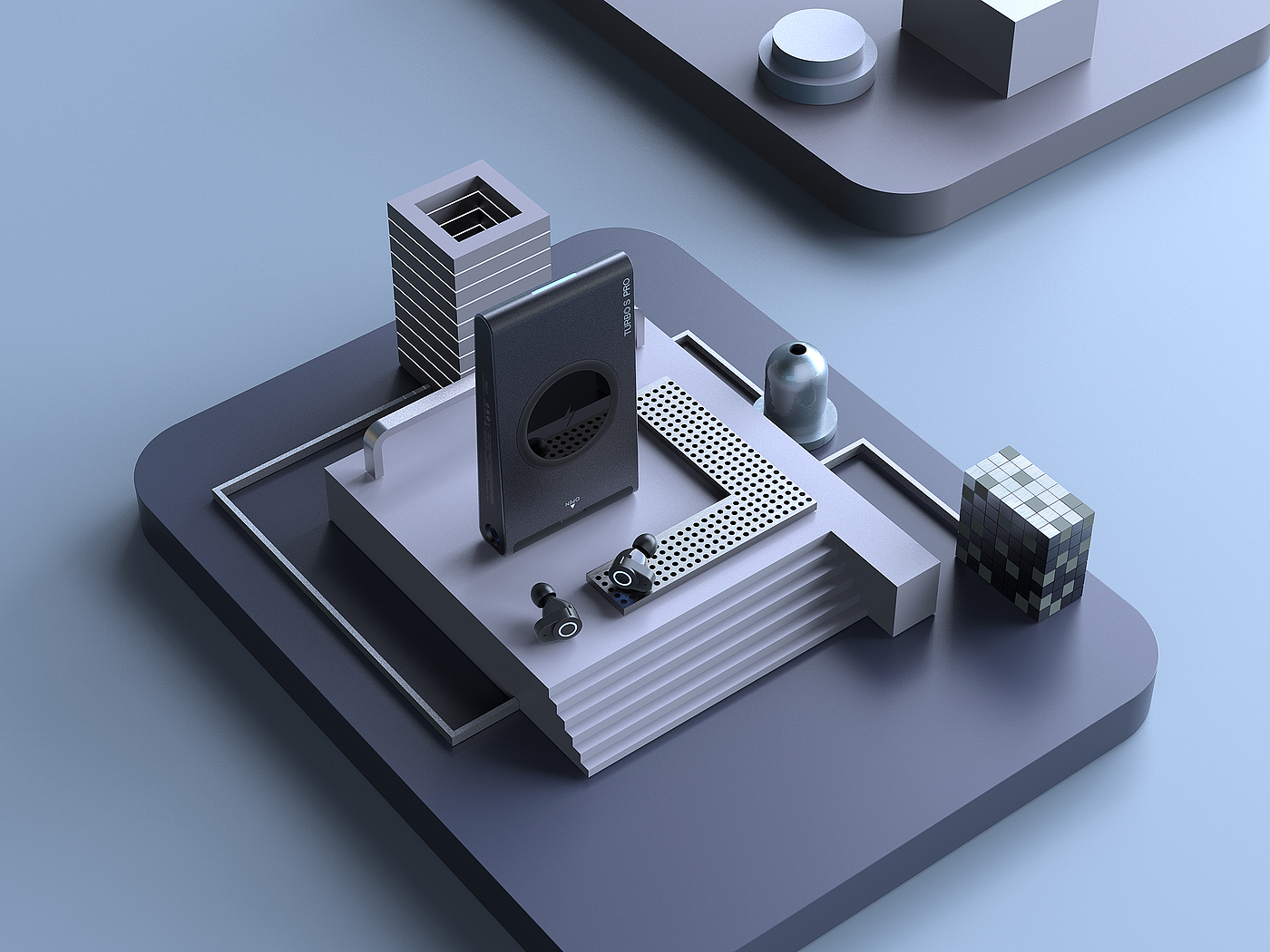

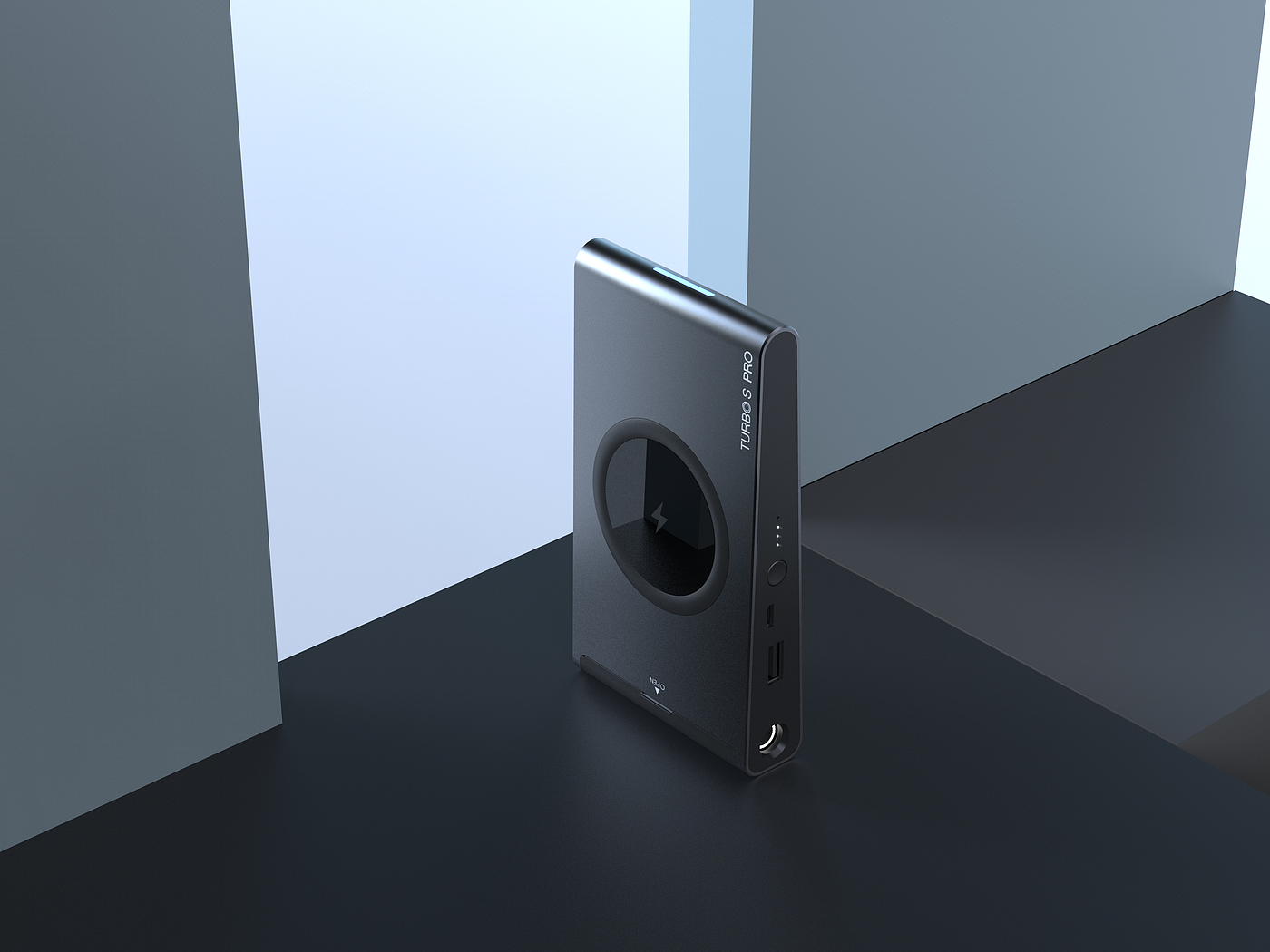

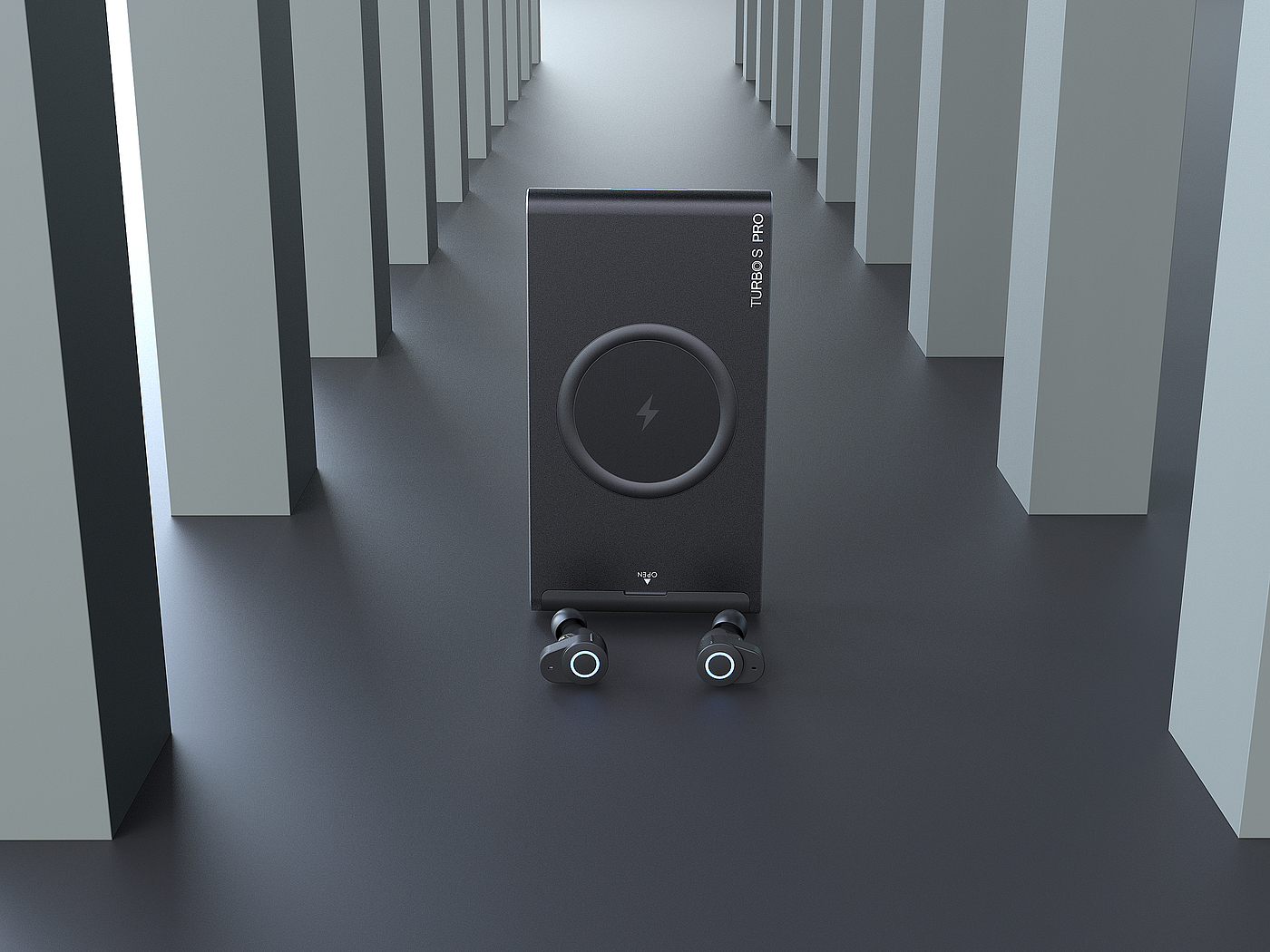

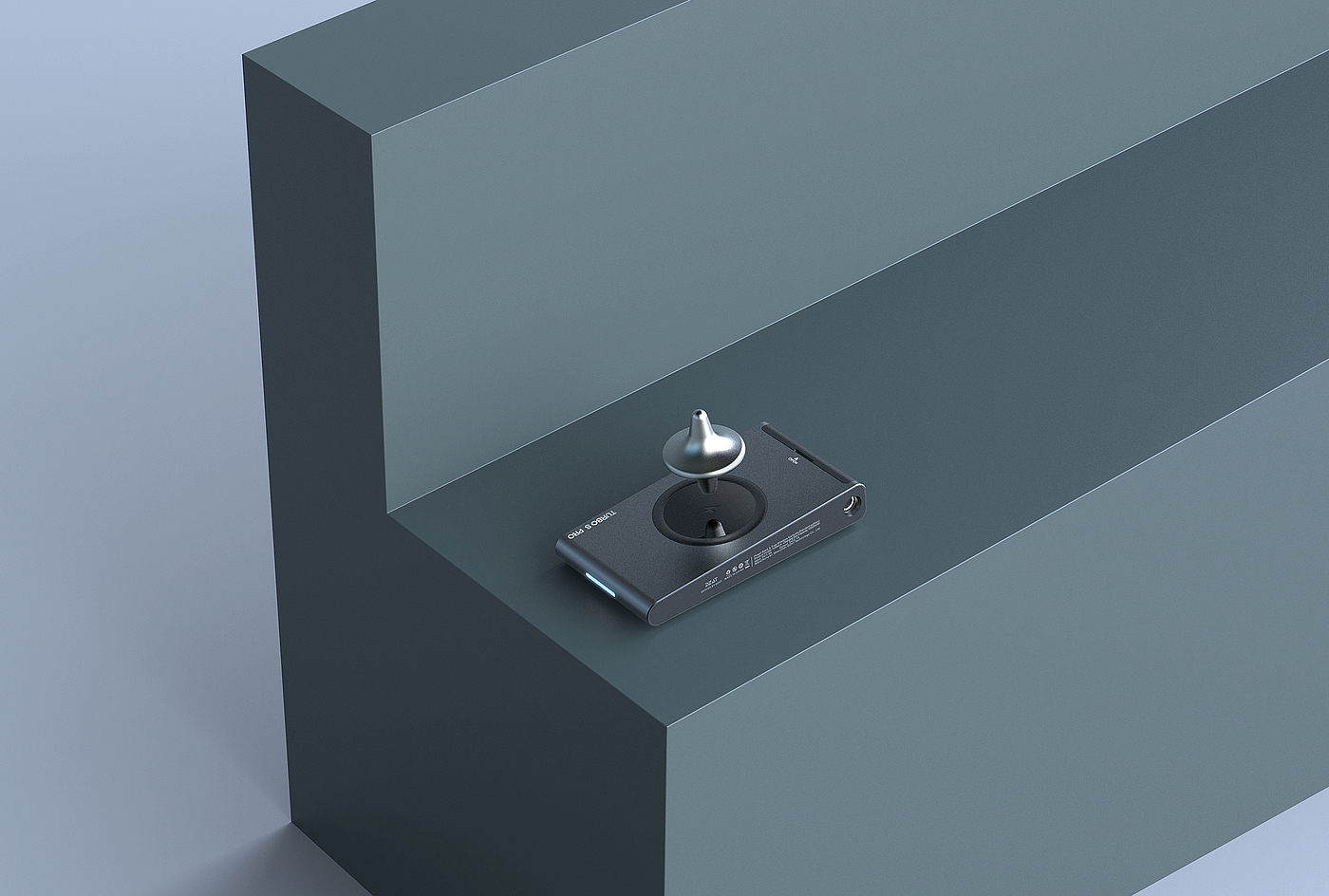

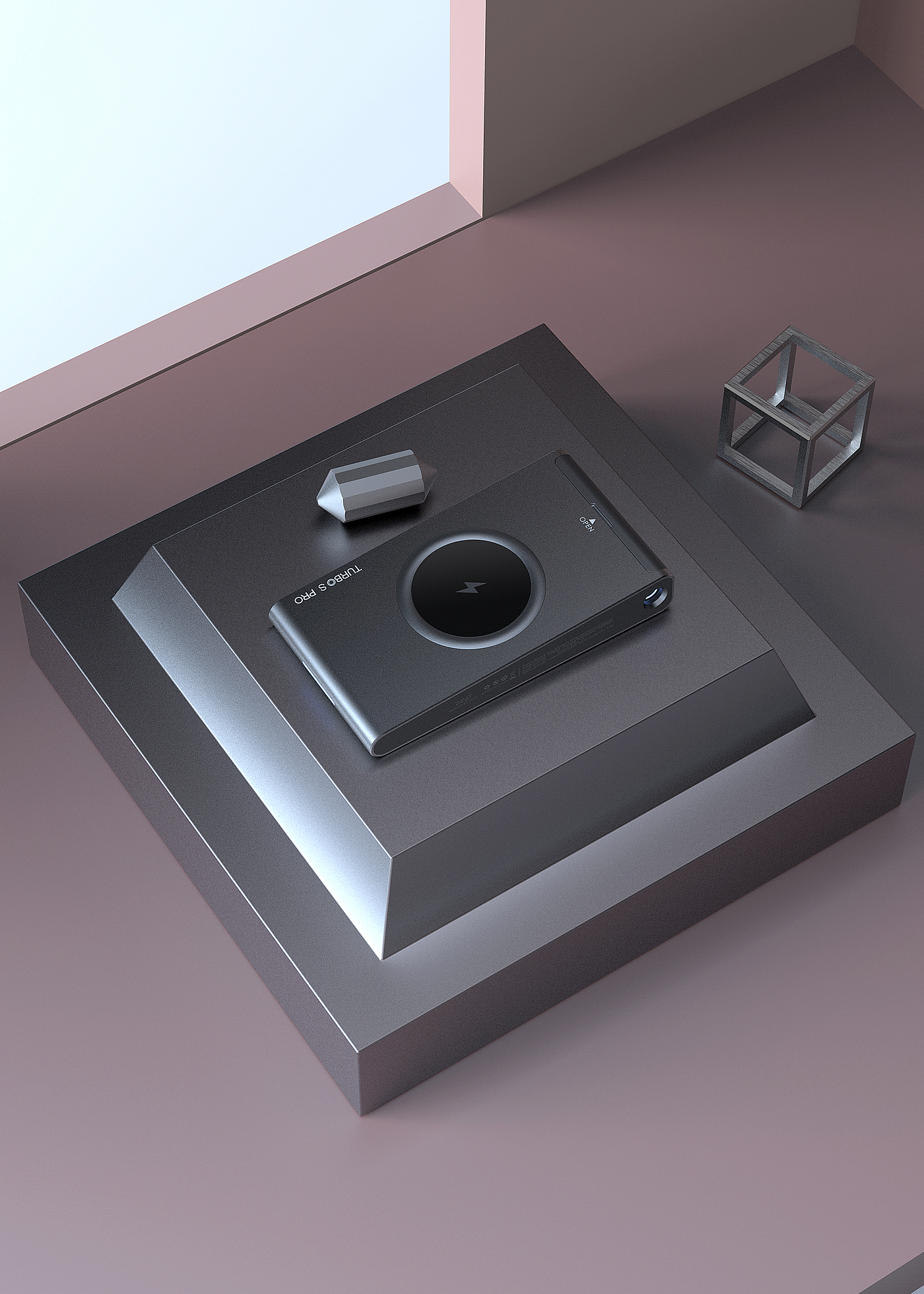

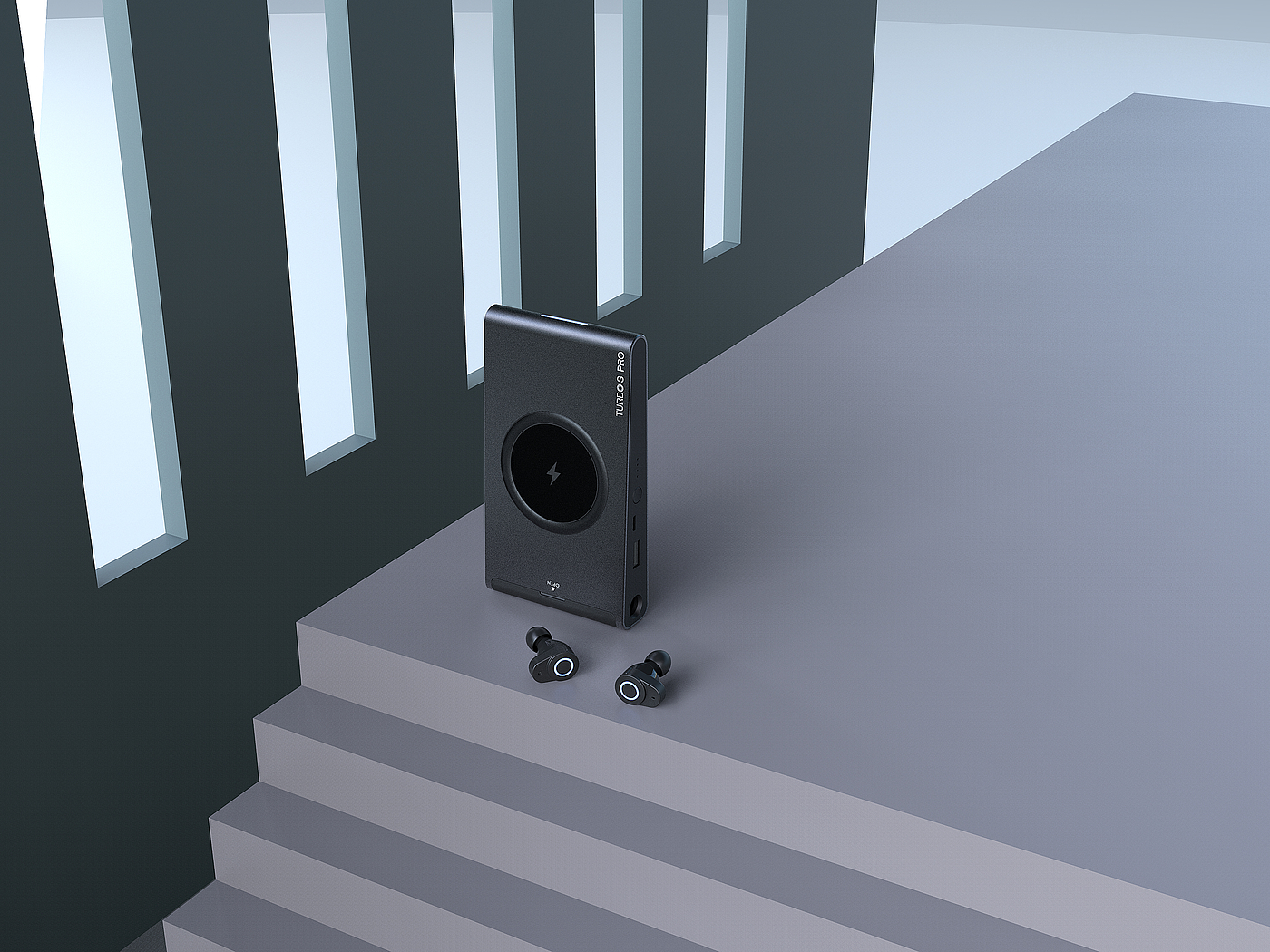

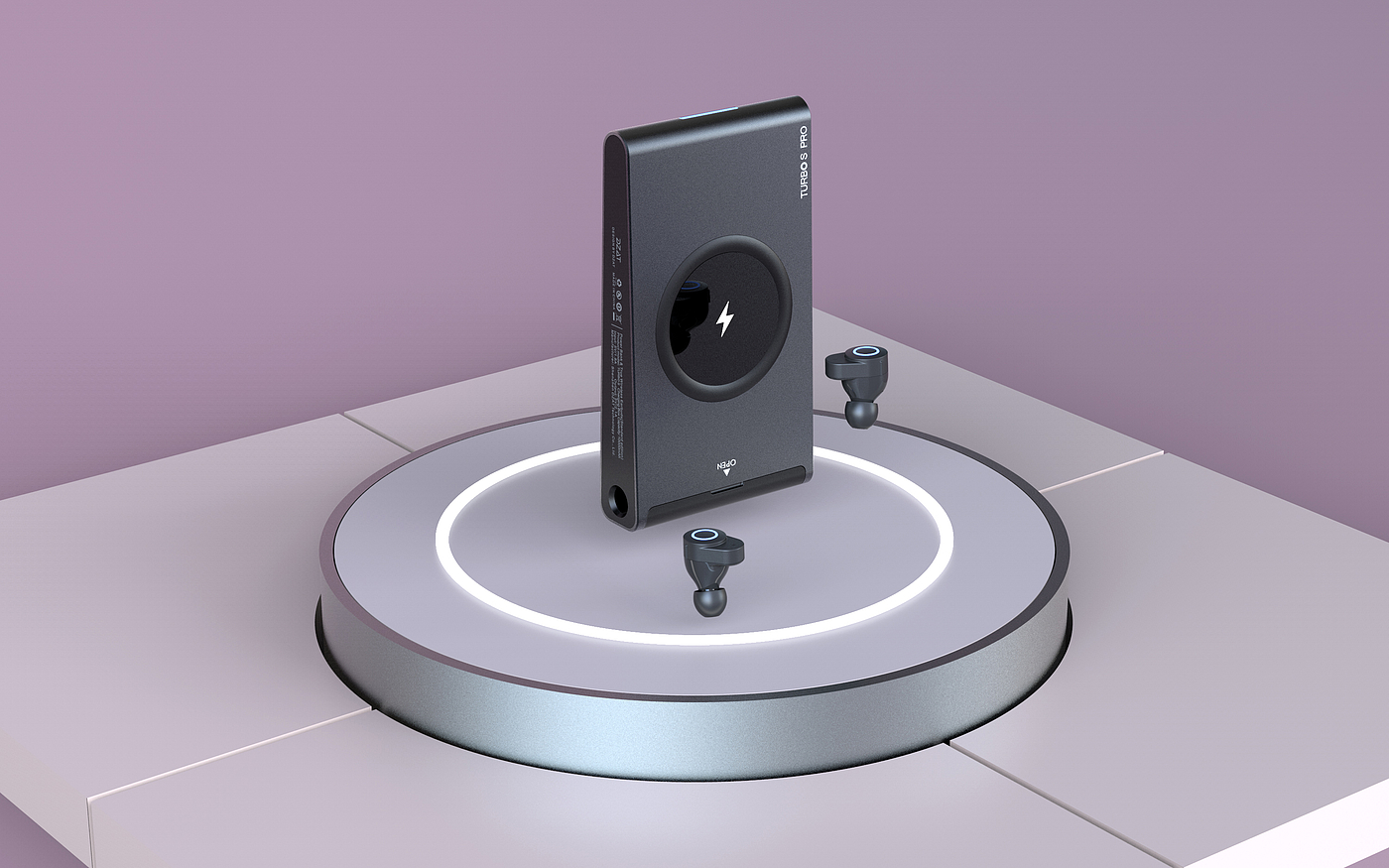

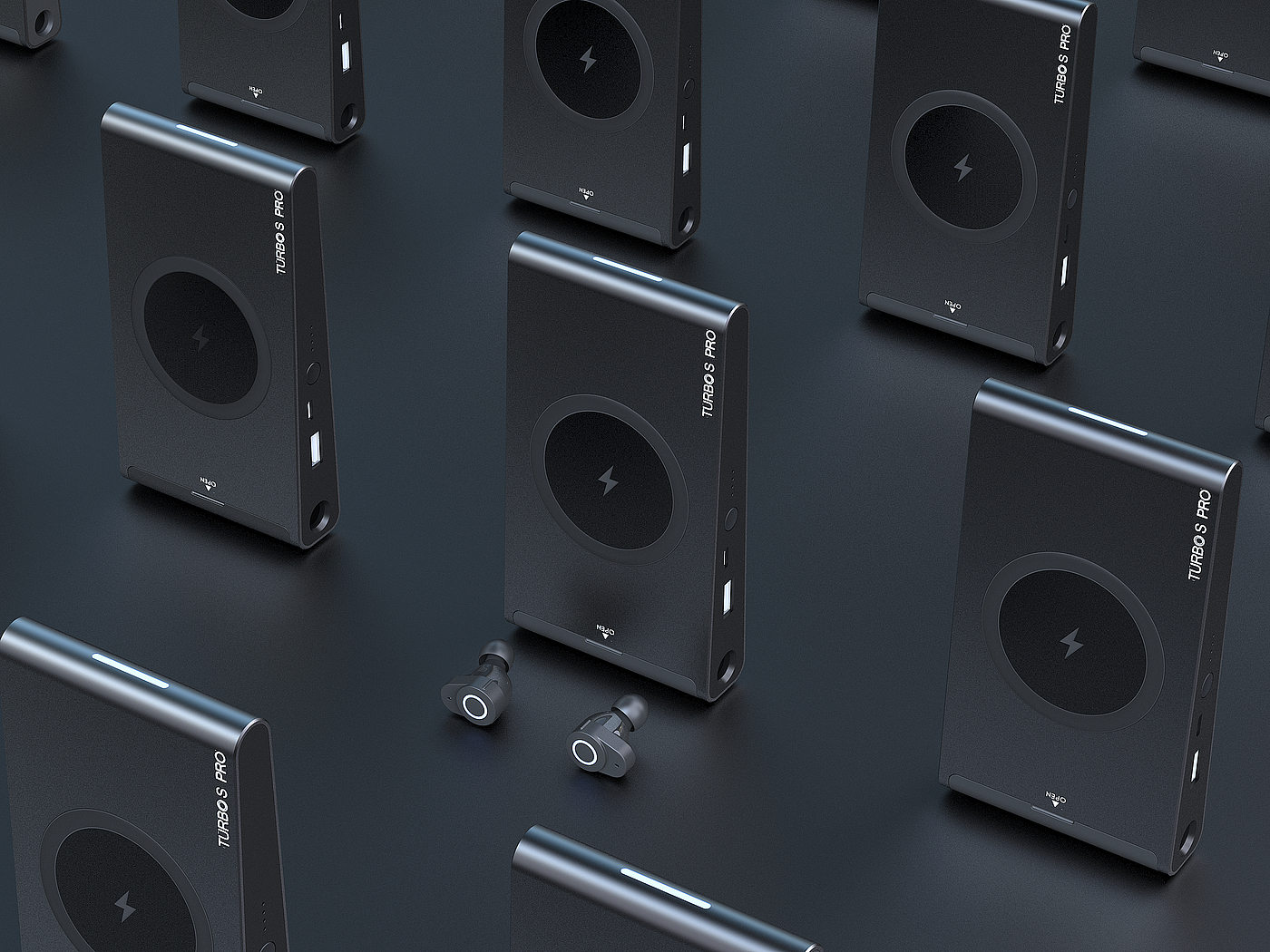

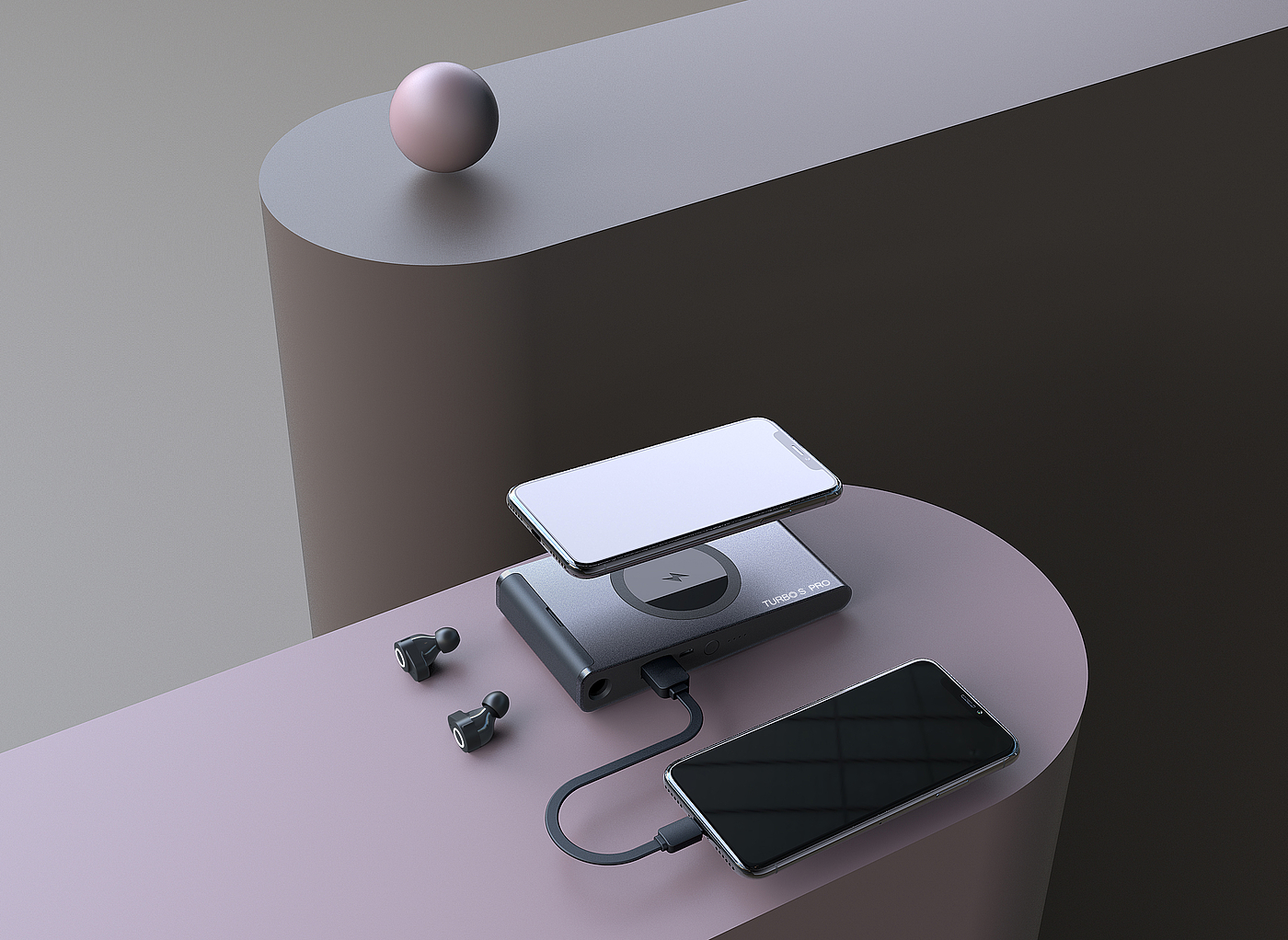

Finally, I have a very vivid rendering.

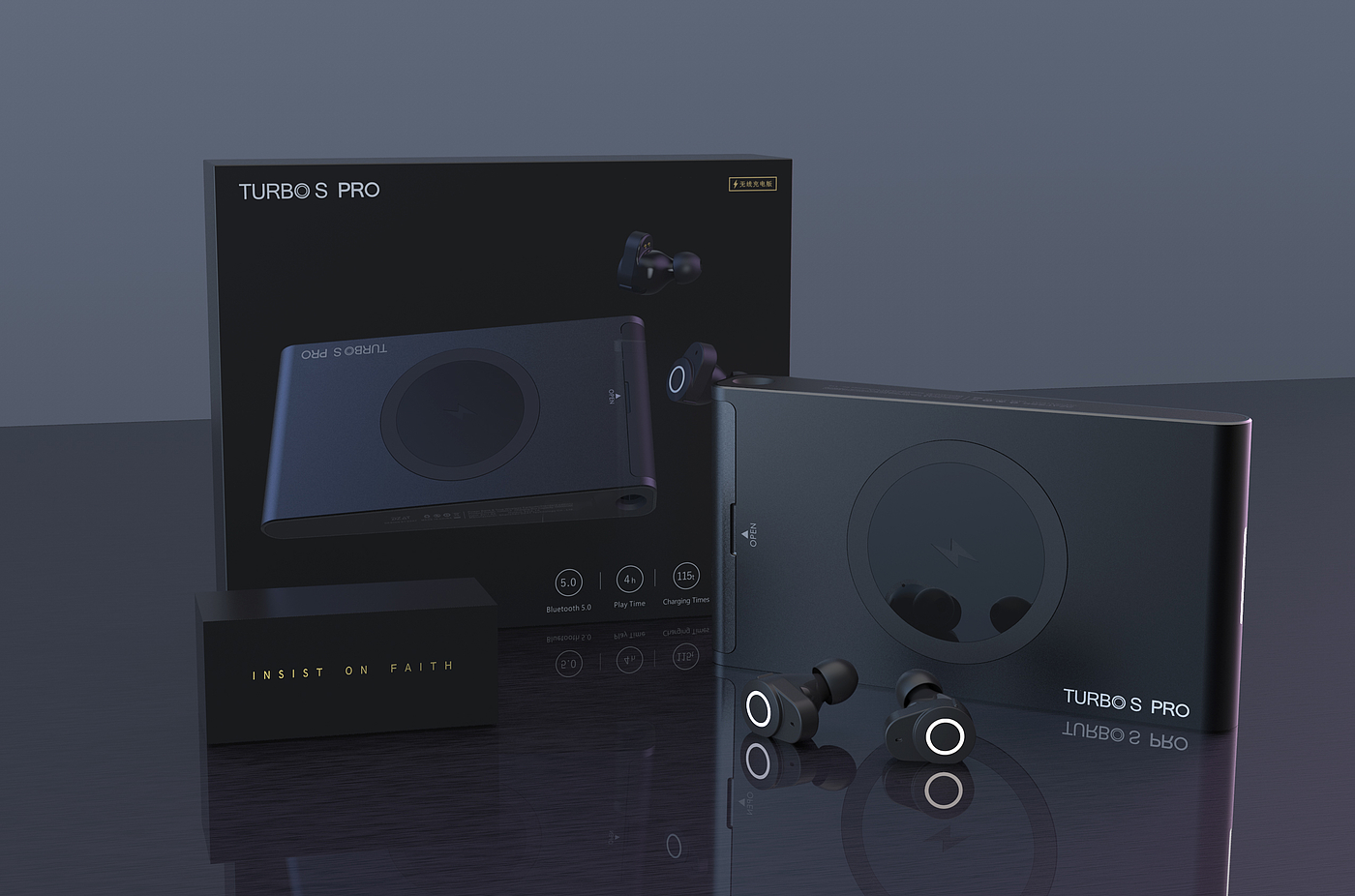

Packaging Design and Display
