Another TWS Wireless Bluetooth Headset Design

Pluto.

China · Digital Intelligence

The aircraft draft is rendered again and the 2020 is placed.

Days

This design was quite short of time at that time. I remember it seemed to be within a week. I put down the previous design. In fact, the process of ID production is very smooth, without any struggle or suffering.

Because of the limited time, I didn't want to make too much change in the shape of the block, and the topic was also a design imitating the Pro head of the AirPods. The products on the market didn't change much either. I just wanted to make a little change in the shape of the cross section.

Then I drew a picture, suddenly!
One of the hands of God!
The shape is settled.
Ha, ha, ha, it's really easy.

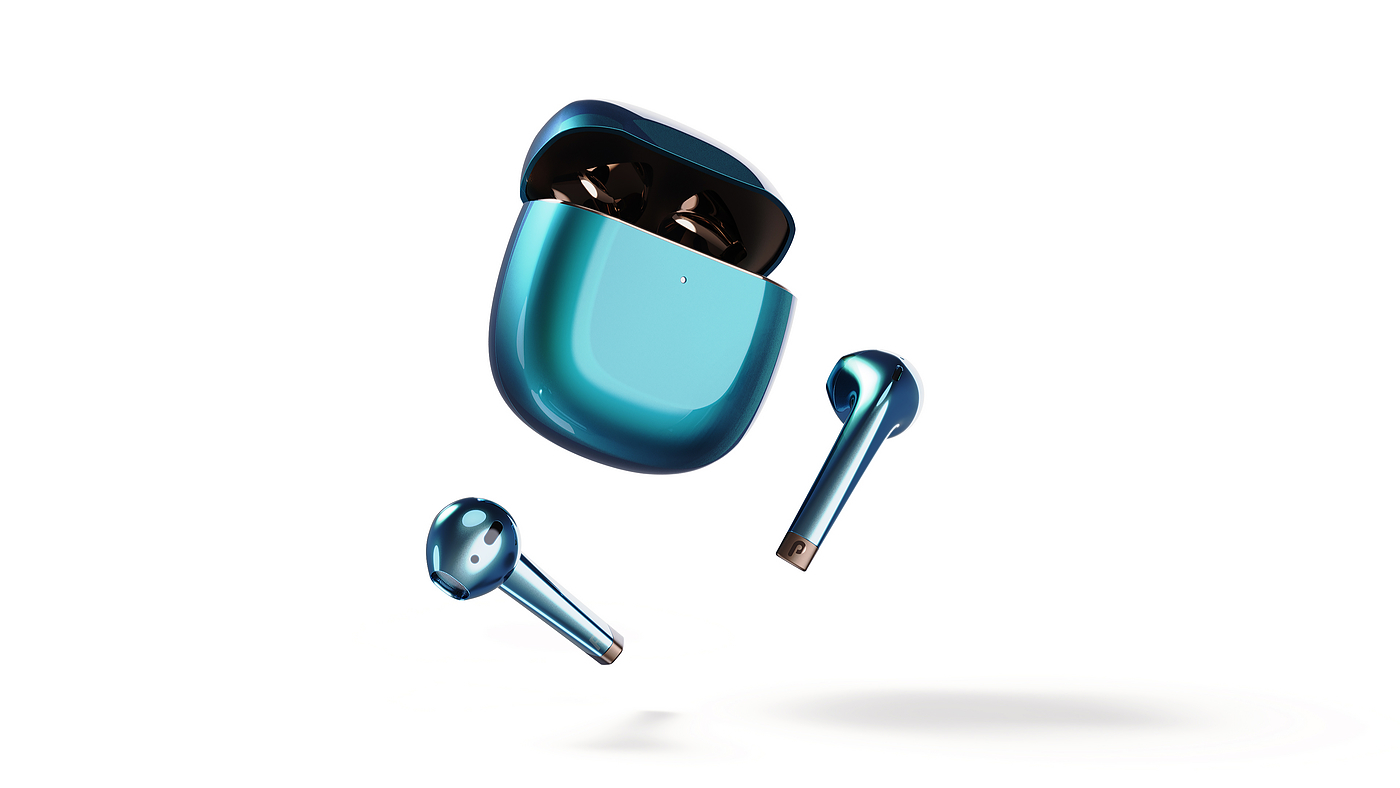

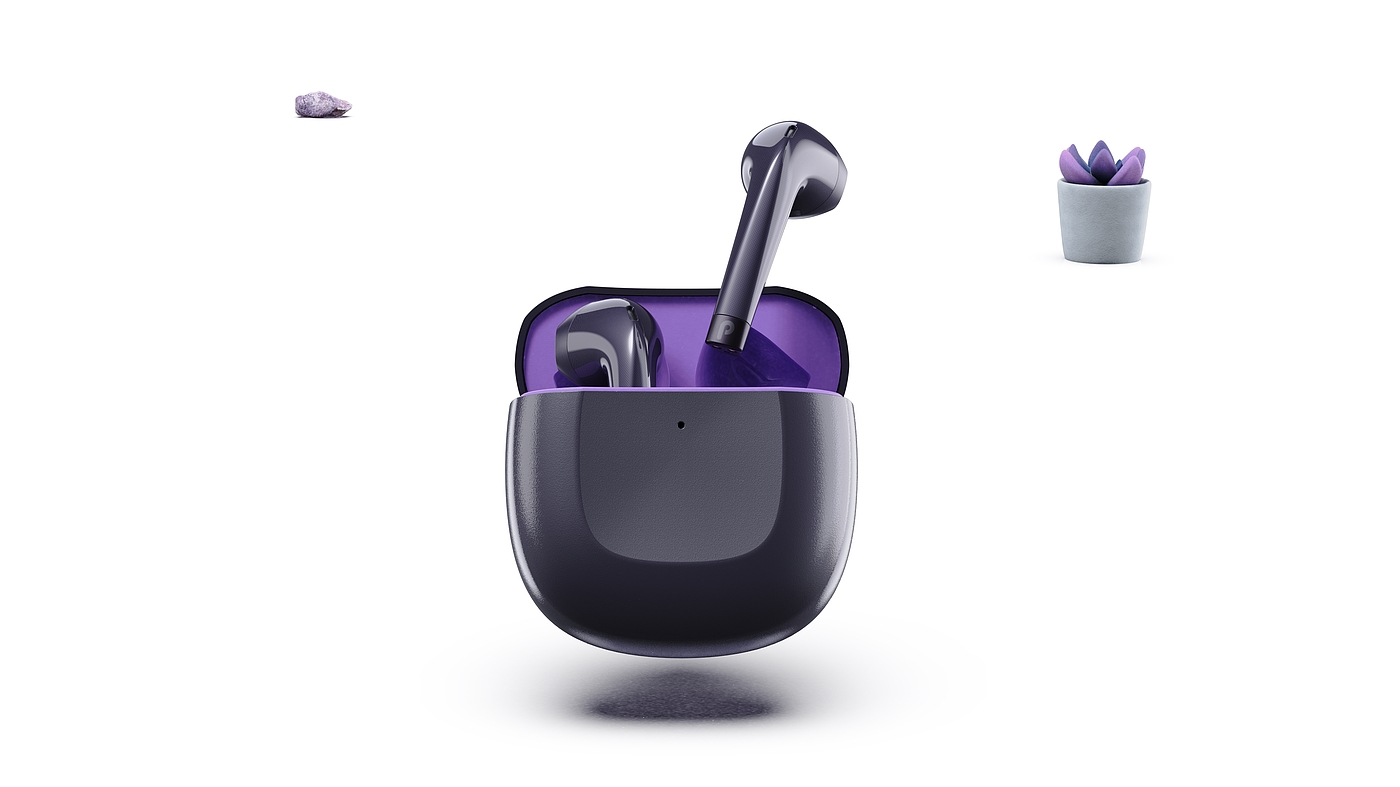

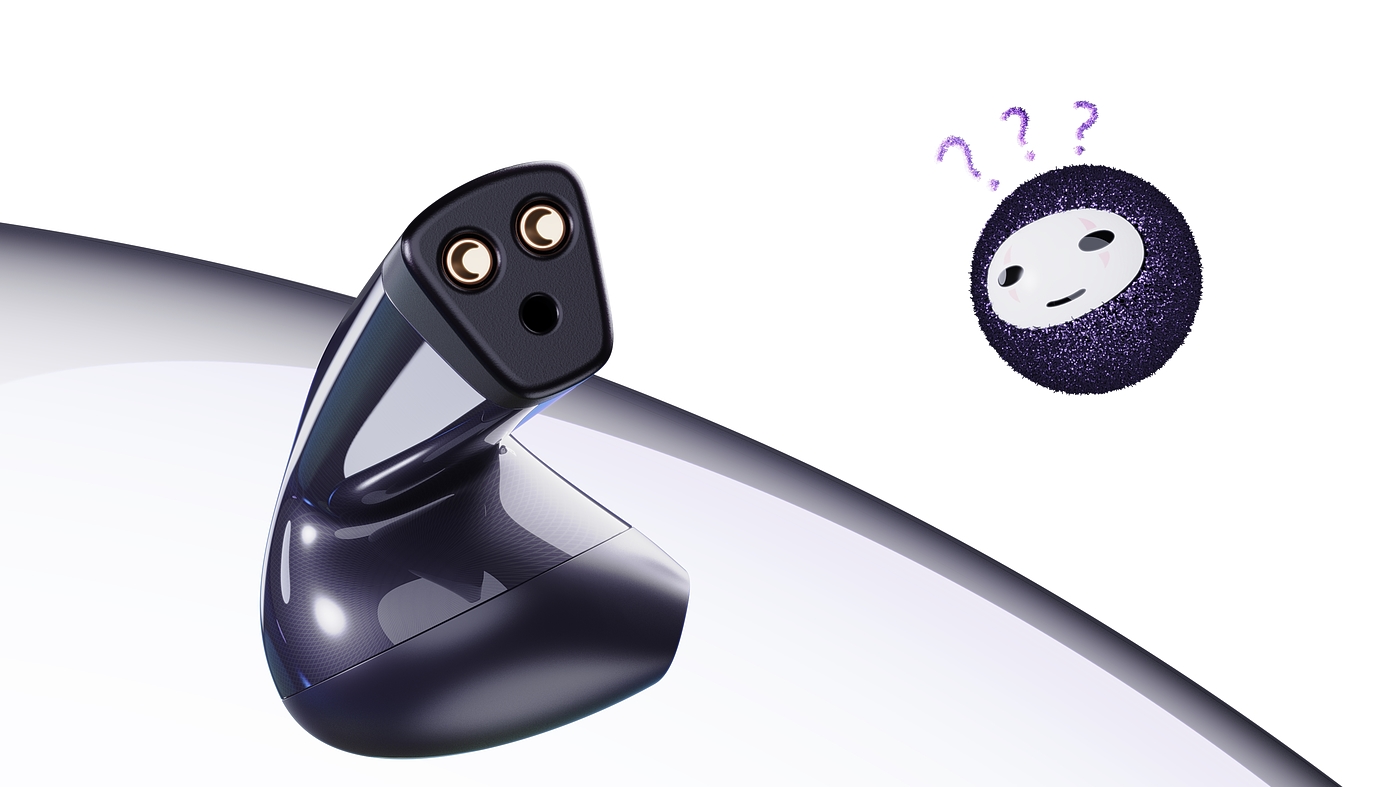

Of course, this picture is not the normal color matching at the time of the proposal, with a little noble purple (tut tut tut tut), originally wanted to make a cyberpunk color matching... purplish red

▲ LOGO was changed by myself and used the resources of www.worldvectorlogo.com. This is a good website!

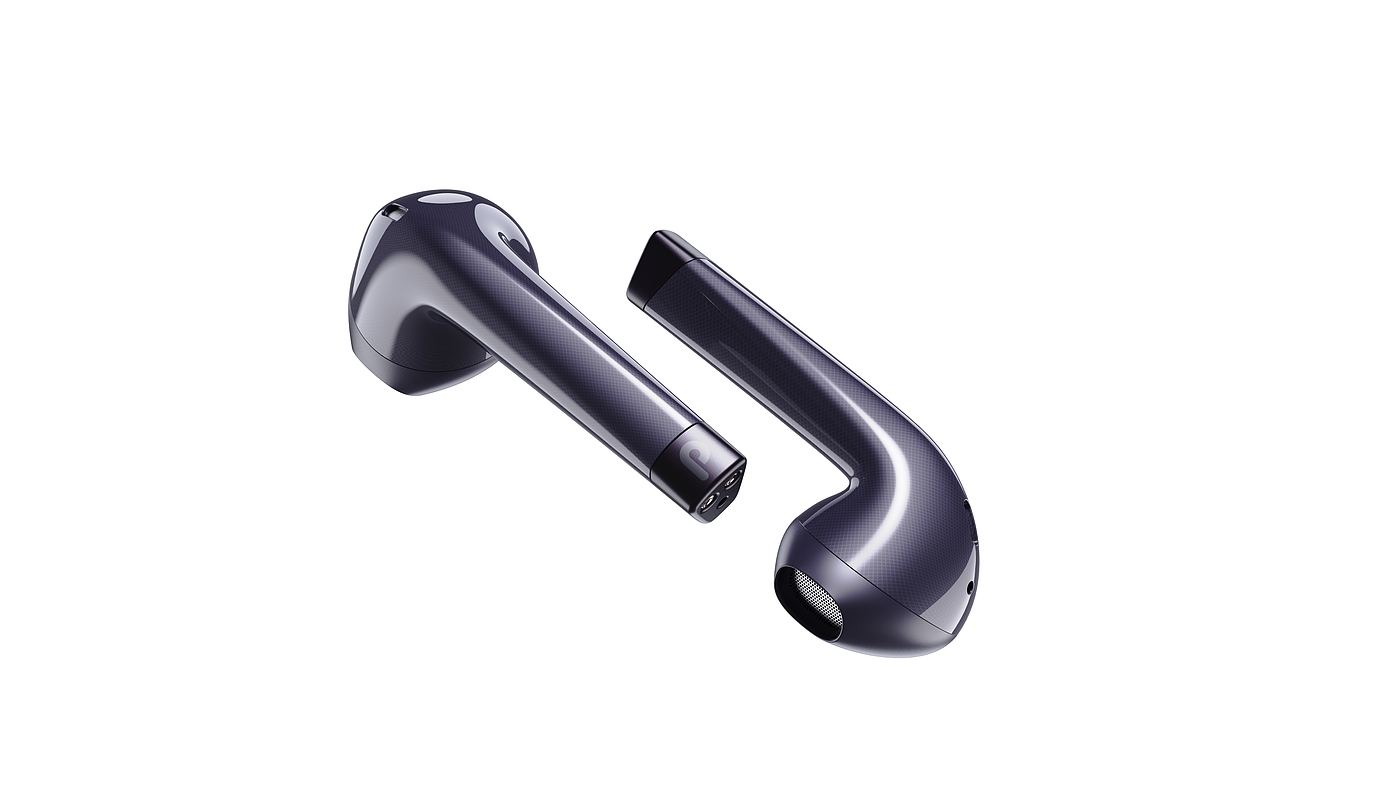

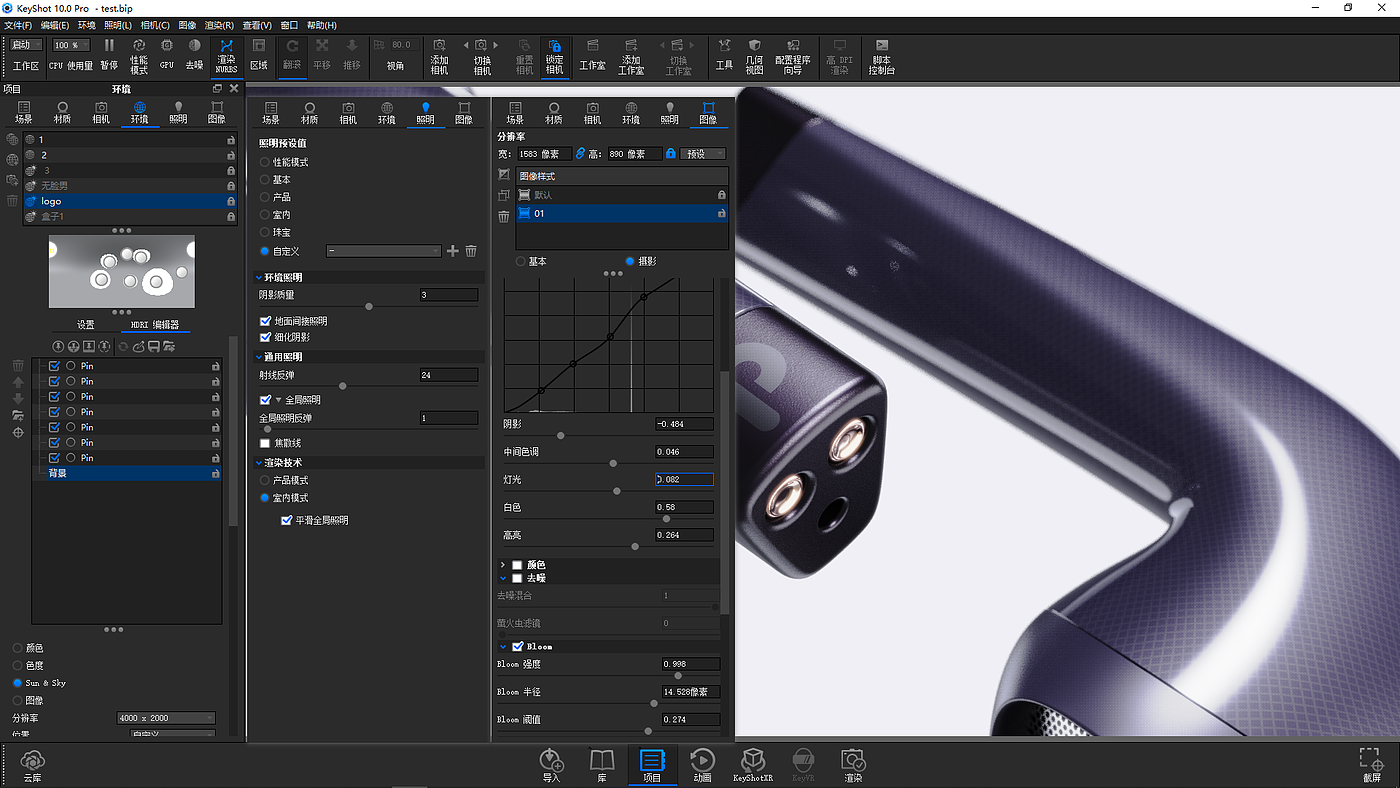

In the past, I was afraid of lighting up the earphones at the beginning. I thought it was very difficult, troublesome, complicated and difficult to adjust. However, I slowly practiced and found that my heart could not sink down. In the same way, I started with three points of face light and side light contour light, distinguishing a little weight from left and right. Of course, I was patient with this level.

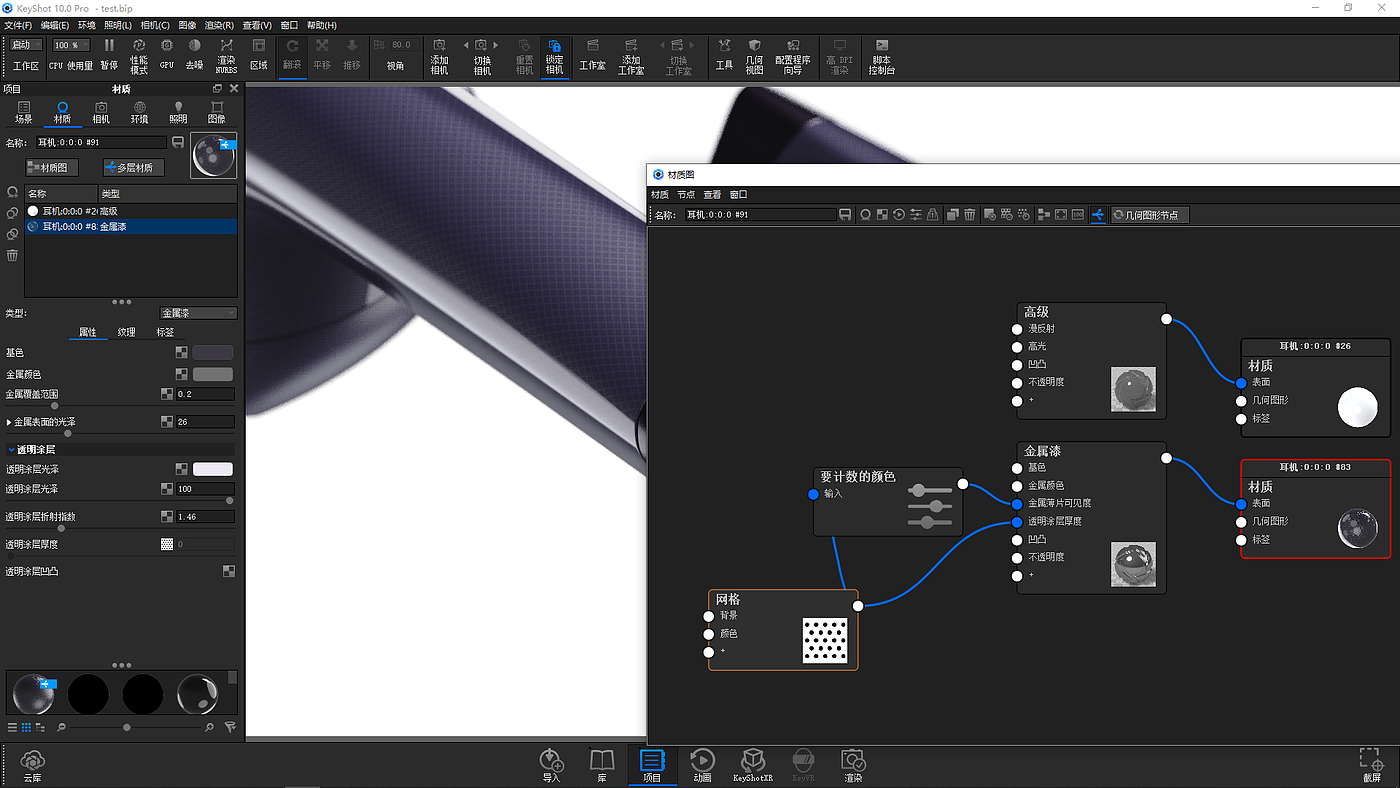

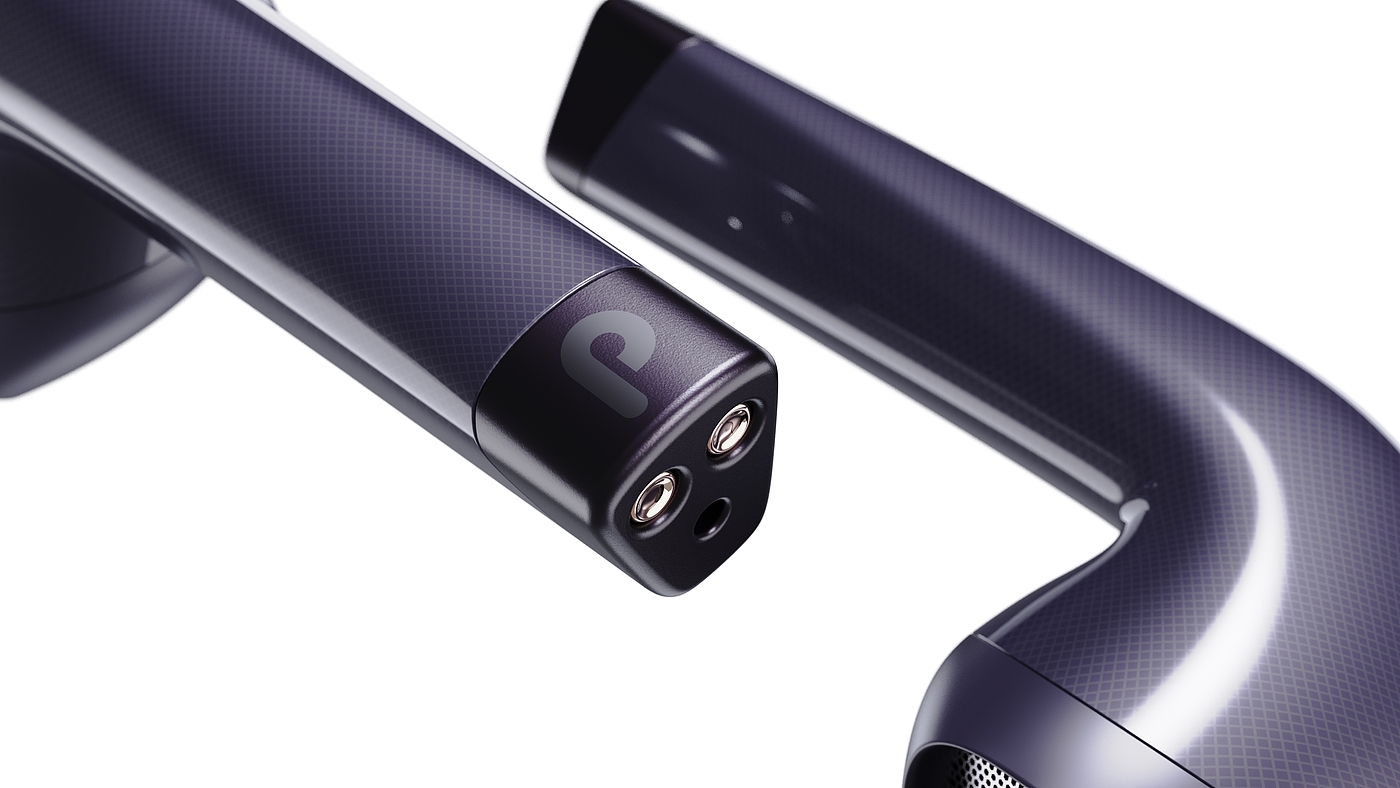

▲ Mesh texture is a temporary idea. At first, no texture was made. During the waiting process of real-time rendering, there are fine lattice texture on the screen, which looks good, so it is added. The implementation methods are also very simple and varied. It is enough to change roughness or reflection or color contrast. What I'm trying here is two nodes that I don't touch at ordinary times. The effect is actually the same. The literal meaning can actually be understood. They are all proportion problems, so it is good to change the proportion with maps!

▲ It is also very important to have a good computer, and the mood will be cheerful soon.

Ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha

Days

2020 finally add a few pictures, hope to 2021 a new start, goodbye!

tws，Bluetooth headset design，Headphone rendering，

74 109

Faraway 2021-04-29

I tried, the steps are the same, there is no texture, I don't know where the parameter is wrong

Pluto.作者 2021-04-29

I have just tried it, it should be the adjustment of the color of the transparent coating, of course, it can directly link the easy-to-effect nodes such as roughness without linking the thickness of the transparent coating

我也说一句

法国蜗牛 2021-04-15

Why did I do it your way without this texture

Pluto.作者 2021-04-17

What texture are you? you can choose the shape of

法国蜗牛 2021-04-22

It's the dark lines of the grid ~

Pluto.作者 2021-04-22

It is estimated that it is the size and type of texture. according to my method, it is possible

It can link nodes that are easy to produce effects such as the roughness of the transparent coating. In fact, the purpose is easy to achieve. The previous effect is that the color of the transparent coating needs to be adjusted.

007 2021-03-29

What is the production process called when the earphone is textured?

Pluto.作者 2021-03-29

If you really want to do this, it is water transfer printing, which does not rule out many other more expensive production methods

Carol 2021-01-08

This kind of patterning process is good or not.

Pluto.作者 2021-01-08

It is estimated that it is difficult and costly to do it on headphones, but I certainly didn't ask if I class = "expression-icon expression-type7" title = "shy">
