The charging gun is an electric vehicle charging interface and an important supporting charging equipment to promote the development of the electric vehicle industry. With the rapid development of the electric vehicle industry, the charging pile, charging gun and other supporting charging equipment industry also prospered. At present, there are many charging gun products with different shapes, simple and beautiful appearance, safe and comfortable use in the market, which provide users with more and more high-quality charging experience. Below we briefly outline the characteristics of charging gun design from the level of industrial design.

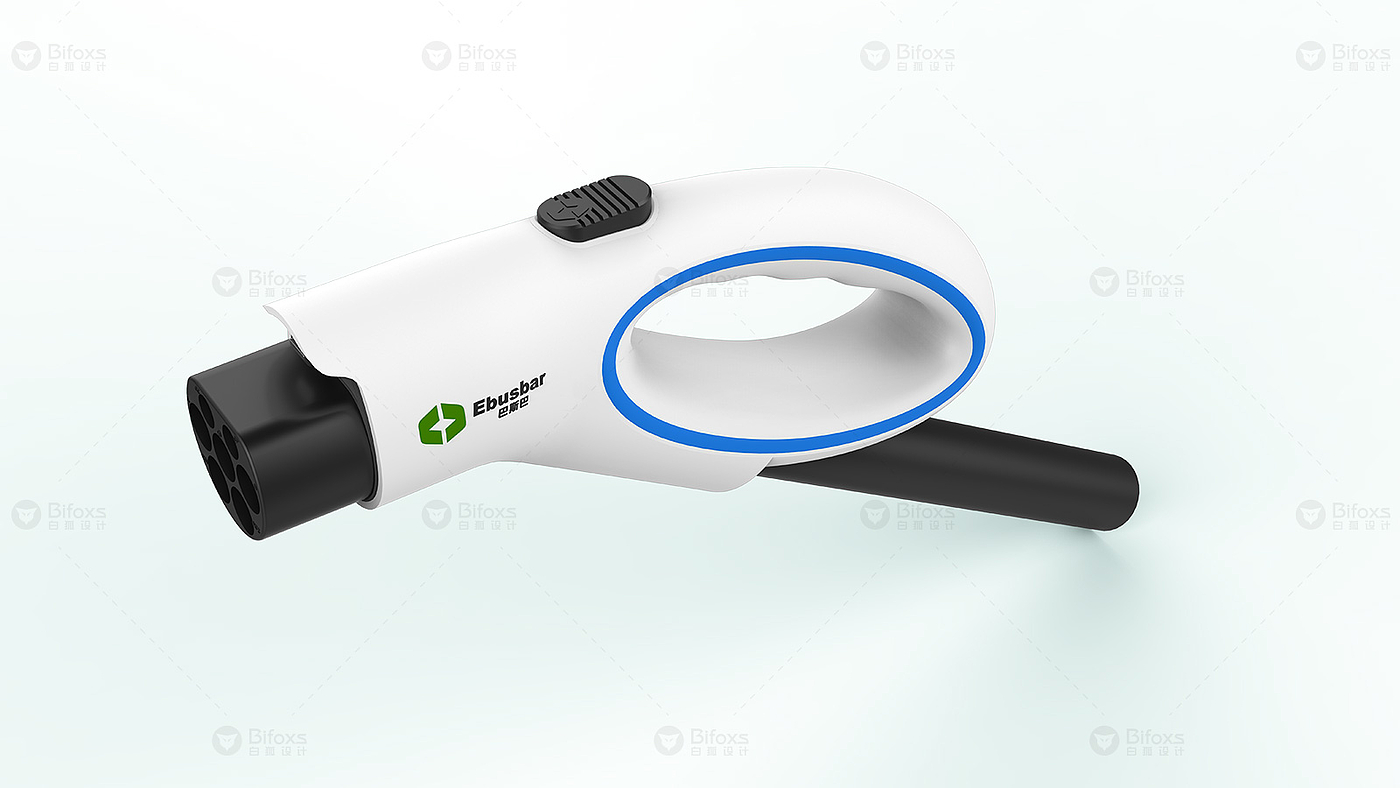

(Basbar Charging Gun Design)
There are many kinds of designs for 1. charging guns.
Professional industrial design companies, through the charging pile, charging gun conduction charging system, conduction charging connection device, AC charging interface, DC charging interface, communication protocol and other standards research, clear charging pile, charging gun design national standards, and combined with ergonomics, research and design different types of charging guns, DC charging guns, AC charging guns, slow charging guns, fast charging guns, U.S. standard charging guns, European standard charging guns, and national standard charging guns.

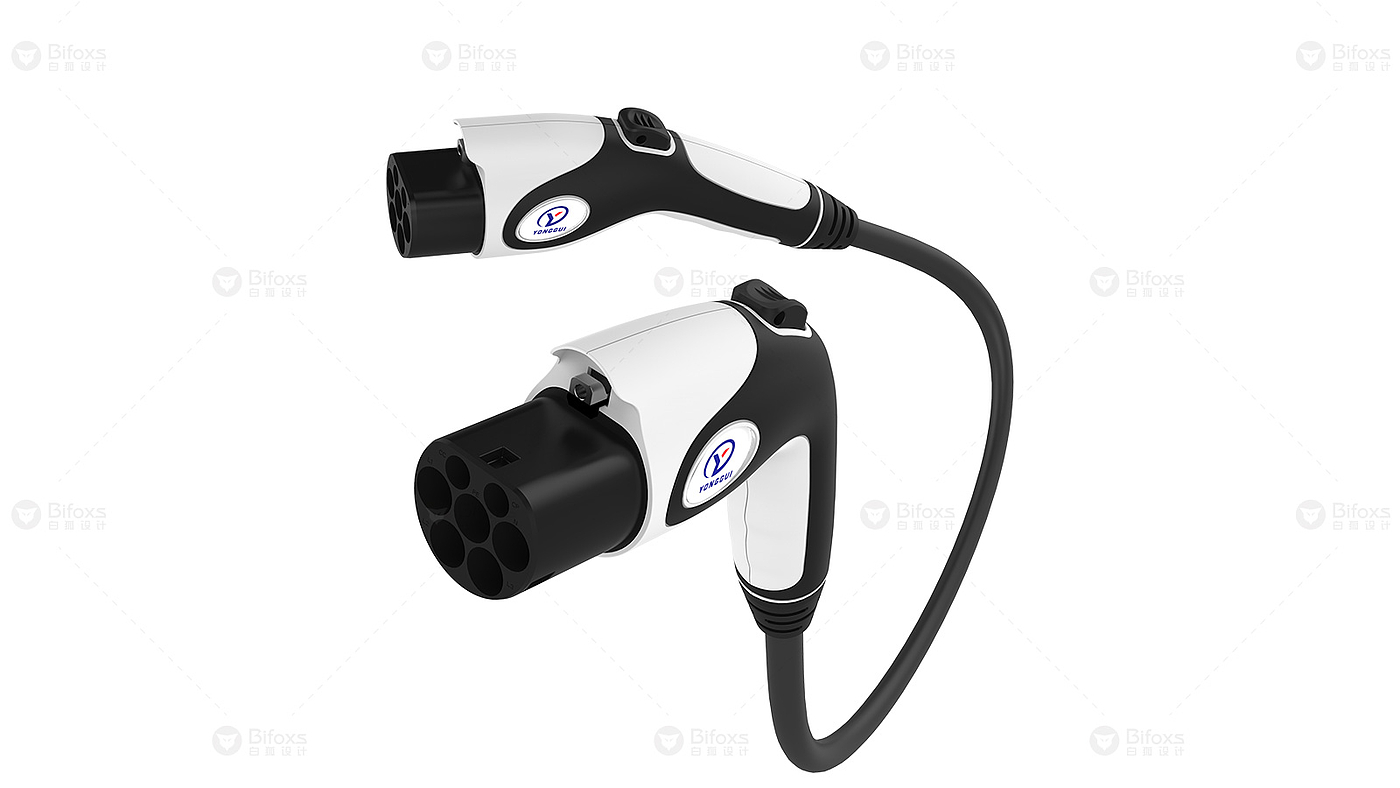

(Design of Yonggui Charging Gun)
Humanization of 2. Charging Gun Design
1. The structural scheme of the charging gun can be designed into two different forms according to different requirements: A. Separate structure (convenient assembly, rich shape and slightly poor strength);B. integrated structure (waterproof performance and overall strength will be better than split type, and assembly convenience is inferior to split type)
2. Ergonomic, the key is flat, and the position is set at a convenient operation position; the handshake part adopts a <75 ° angle design to avoid interference between the charging gun and the charging pile or vehicle during operation. In terms of hand type, it is designed according to the different hand sizes of Asia and Europeans and Americans, and the size is between 85mm and 100mm.
3. In terms of material selection, most of the gun bodies are made of outdoor PC and PC PPT, and the gun head is mainly made of PPT and PA66. The whole gun body is resistant to high temperature, low temperature, rolling, and will not fade after 10 years of outdoor use.
4. Use simulation analysis to discover possible design defects in the production or use of the product in advance, and improve the quality and efficiency of product development.

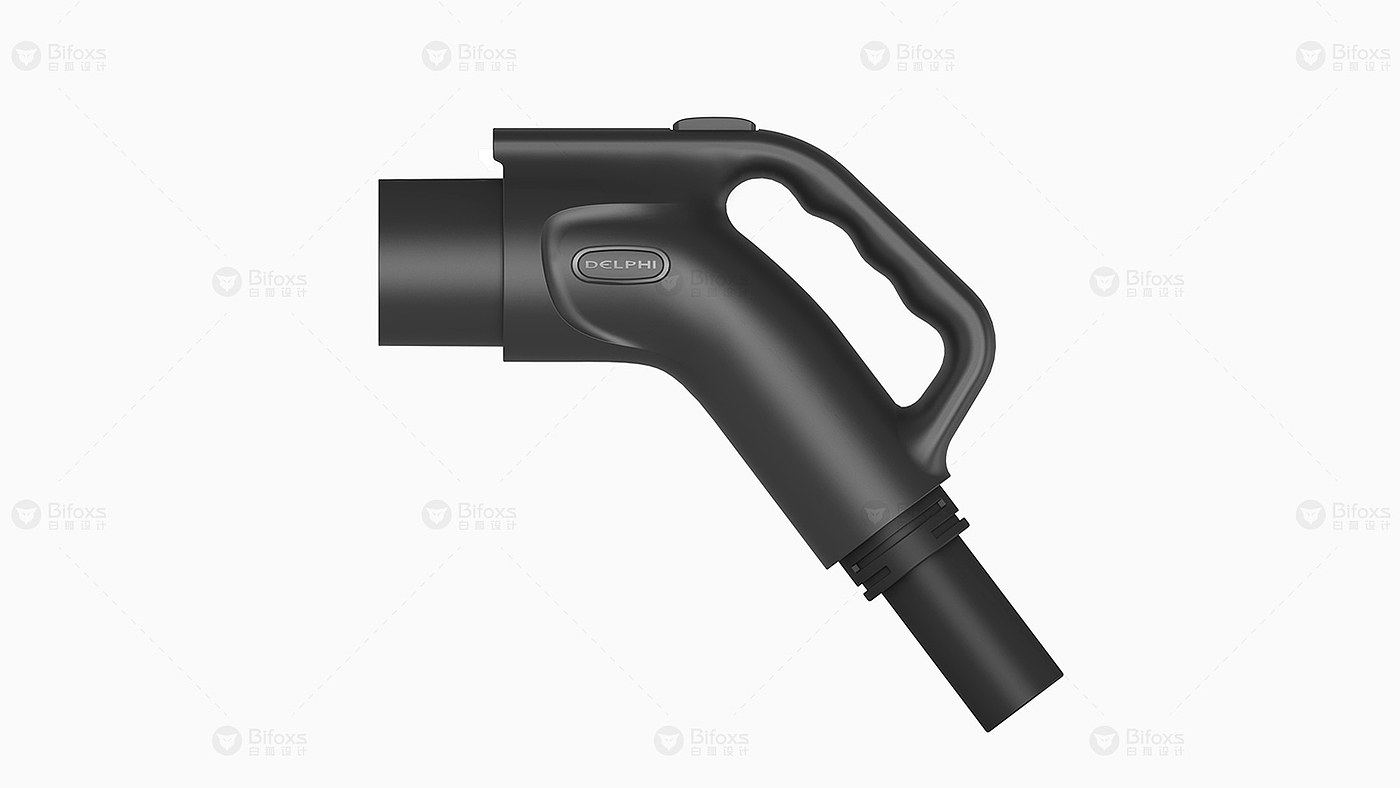

(Delphi AC Charging Gun Design)
The shape of 3. charging gun is novel and beautiful.
With the increasingly fierce competition in the charging gun market, the problem of market homogenization inevitably appears. More and more companies regard the design of charging guns as a breakthrough point in the market, and pay more and more attention to the novelty and beauty of the appearance of charging guns. For example, this streamlined charging gun is inspired by speed. It is based on the morphological curves of animals and people when running. Through abstract and associative design methods, it uses smooth and rhythmic line design to endow the product with fashion and technology. The overall style gives people a fast and modern visual experience, reflecting the functional characteristics of safe and fast charging of the charging gun.

(Leading DC Charging Pile Design)
