With the development of new energy electric vehicles being accepted and recognized by more and more people, people have higher and higher requirements for charging guns, charging piles, charging stations and other infrastructure matched with electric vehicles. there are higher requirements for the precision, safety and convenience of charging guns. The charging gun is the charging interface of an electric vehicle. It is divided into a DC charging gun and an AC charging gun according to different charging methods and speeds.

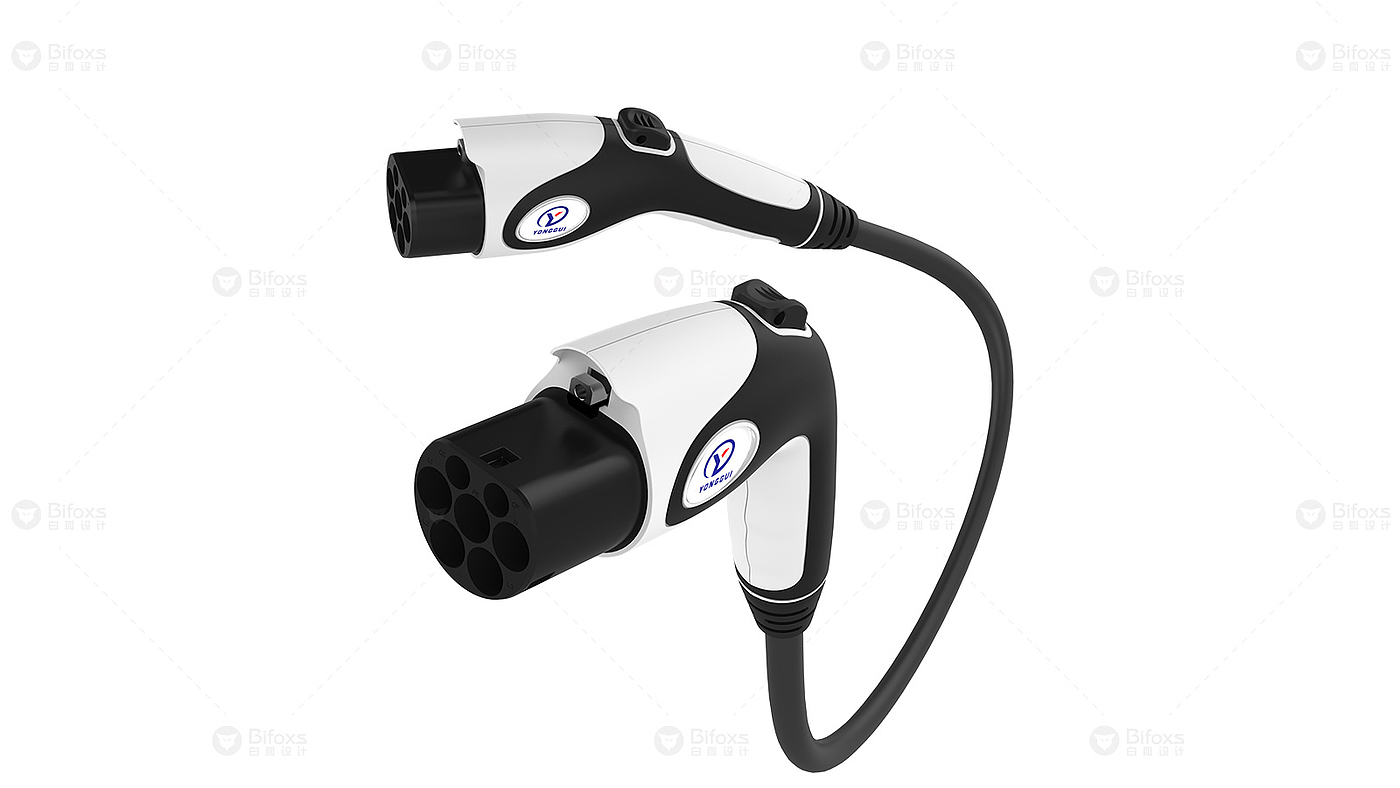

White Fox Design is entrusted by customers to develop a double-headed charging gun that can charge multiple electric vehicles at the same time. The designer is market-oriented and adds a charging gun on the original basis. Design innovation is carried out in terms of appearance design, structural design, material selection, color matching, functional configuration and other aspects to develop a double-headed US standard AC charging gun.

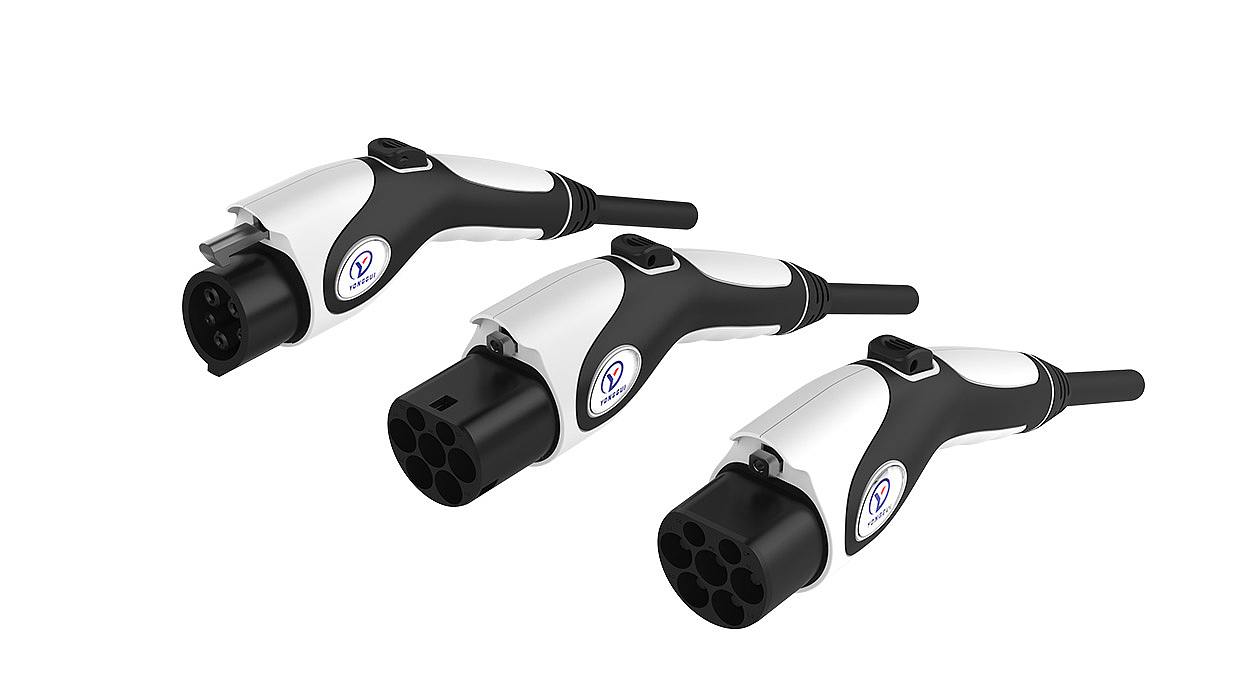

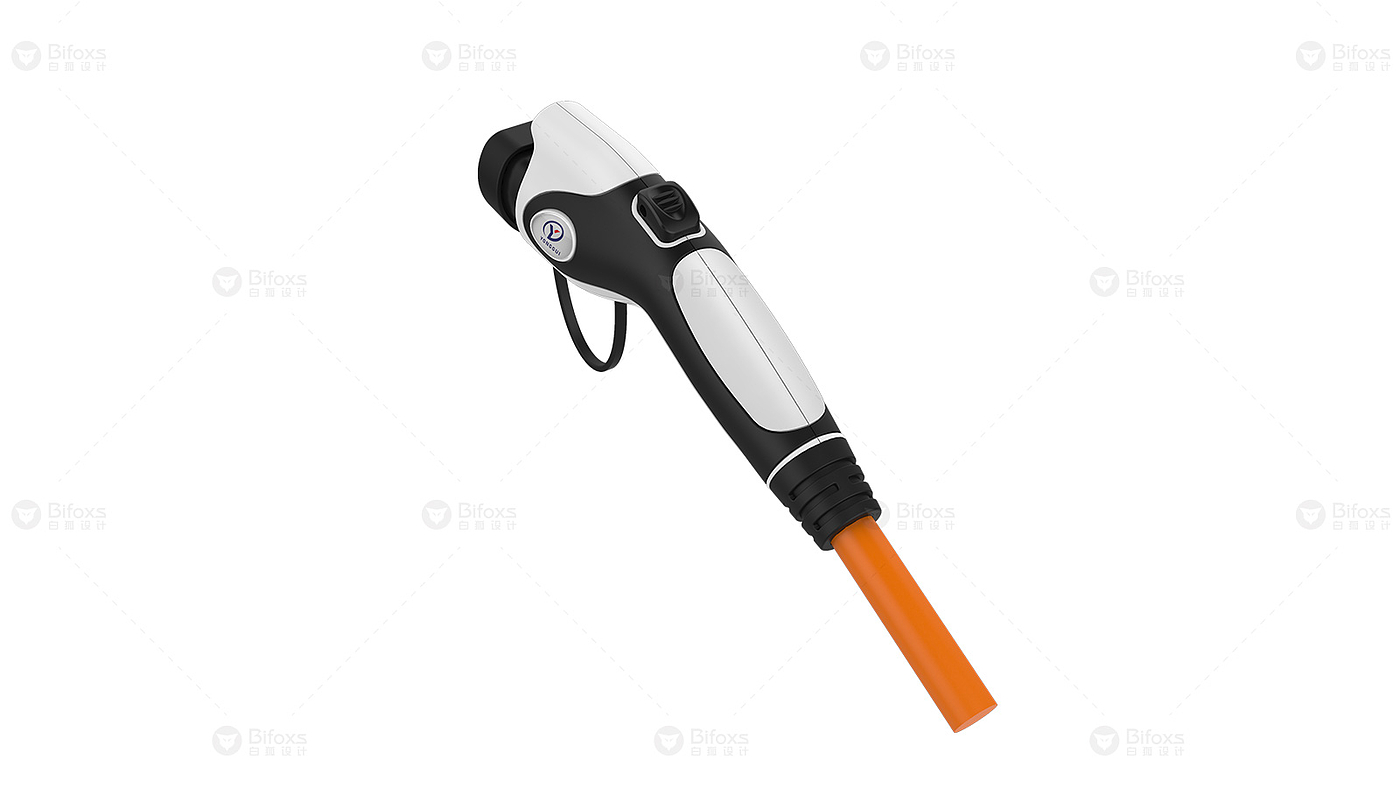

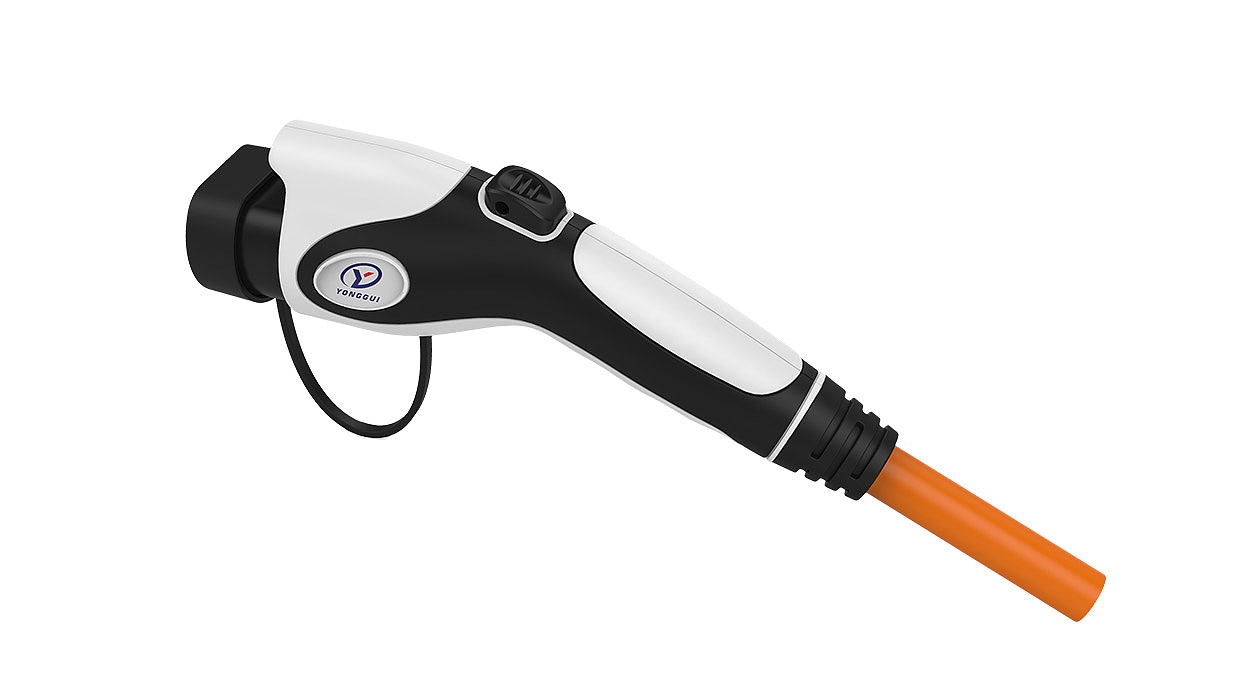

The appearance design of the charging gun is simple, the design inspiration comes from the white crane, the body structure is compact, the one-piece design is adopted, and the round shape is outlined with curves; the shell is mainly matched with black and white, and the two-color injection molding; pay attention to detail treatment, The surface process is exquisite; pay attention to the man-machine experience, the hand-held position is designed with soft glue, and the hand feel is comfortable, which; the logo of the charging gun body integrates corporate culture elements to highlight the brand image of the enterprise; the charging gun is fully coated with a waterproof magnetic lock, and the tail line is designed in yellow, which has a warning effect and reminds people to pay attention to safety and use it carefully.
The charging gun has a high protection level and can reach IP67. It has flame retardant, insulation, wear resistance, undervoltage protection, lightning protection, output short circuit protection, leakage protection and overcurrent protection devices. If leakage occurs during standby or charging, it can be tripped in time to protect the personal safety of users.
