Easy-to-clean palette

2020-12-10 Office Products 5921 4 38

周红超

China · Digital Intelligence

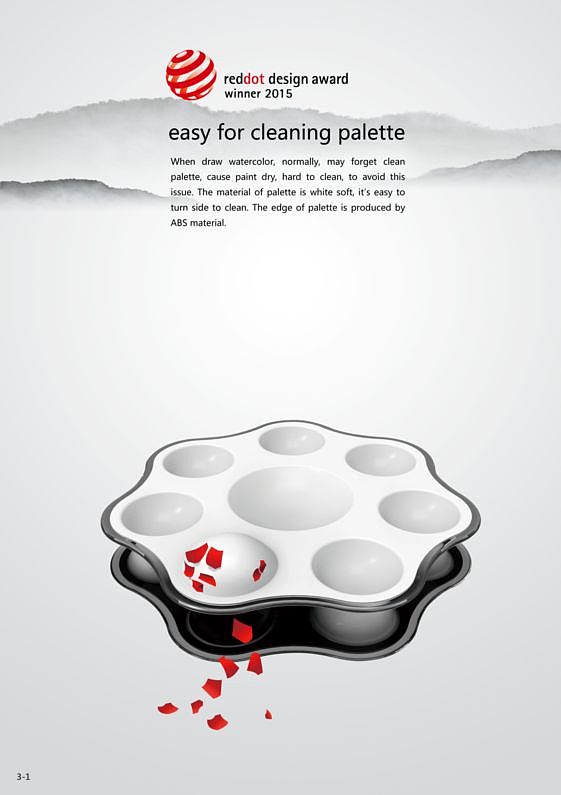

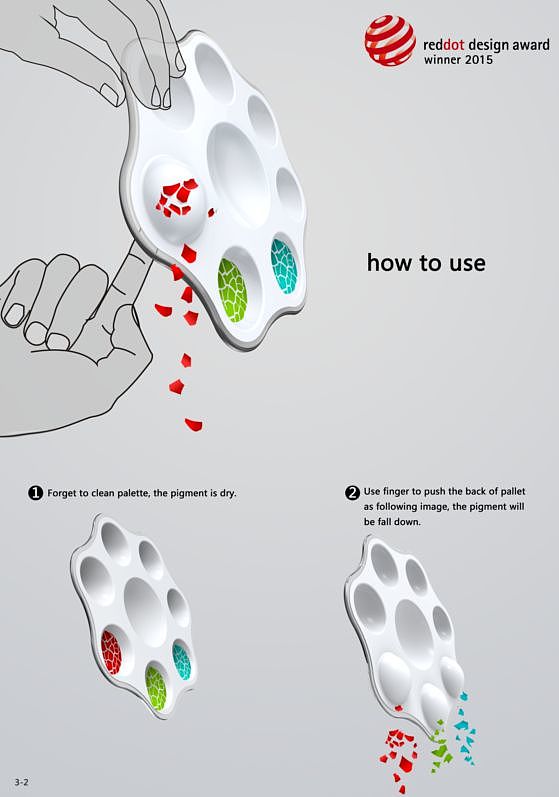

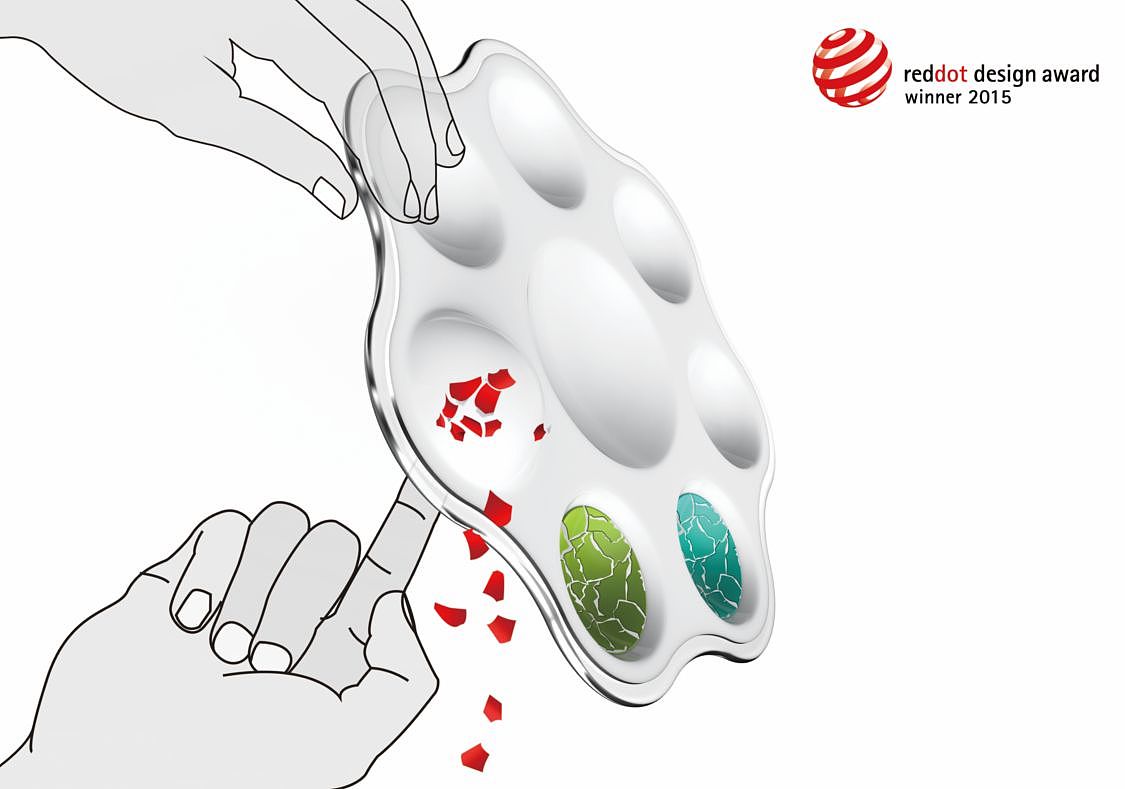

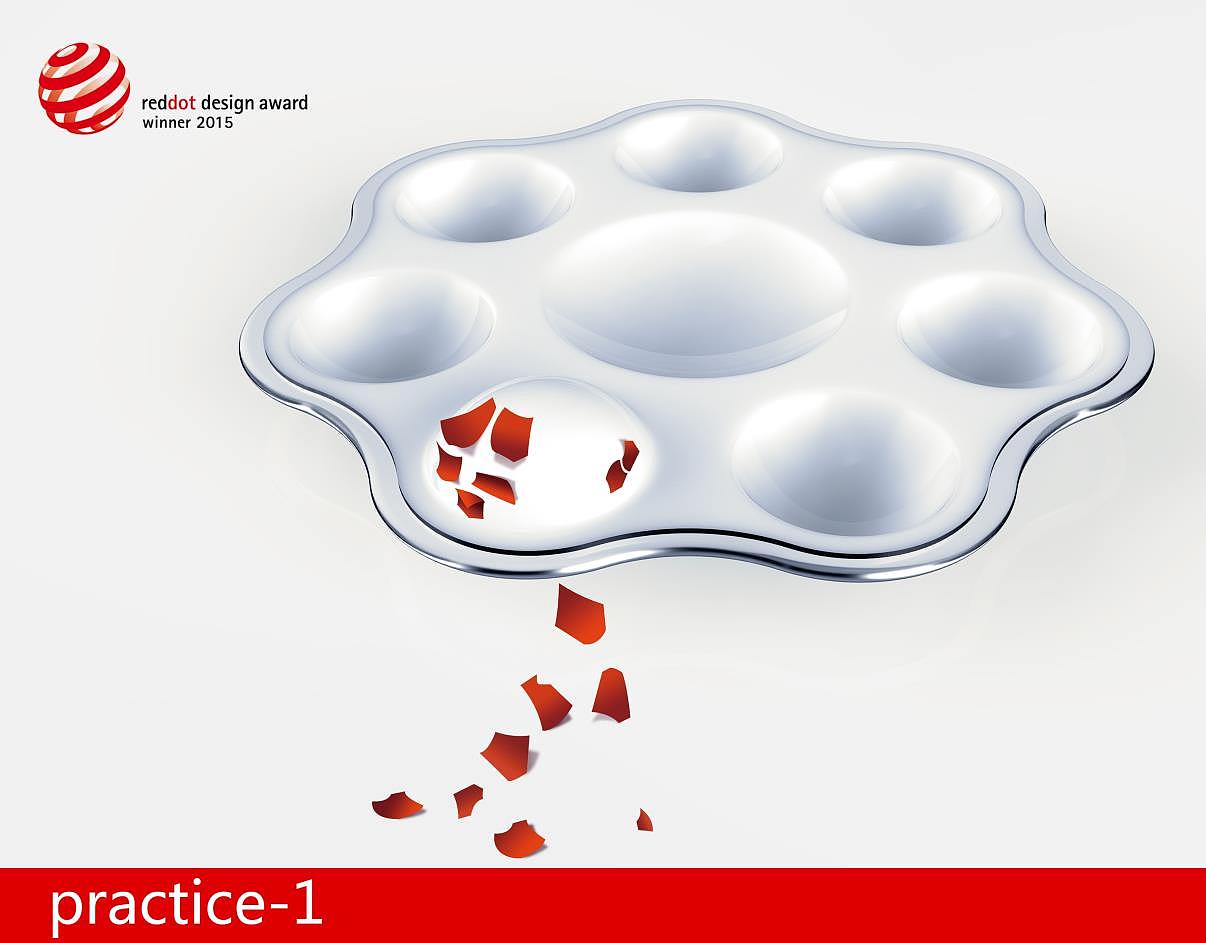

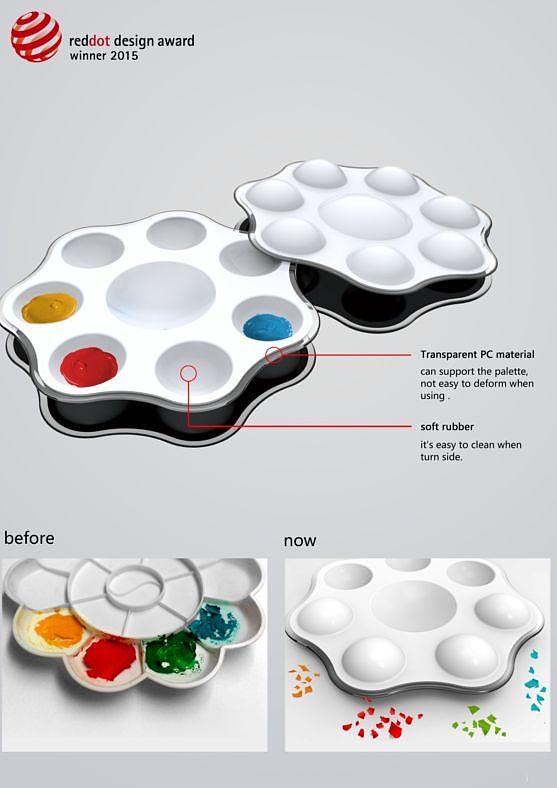

When painting Chinese paintings, I usually forget to clean the palette, causing the paint to dry up. It is difficult to clean the corners of the palette. In response to this problem. The new design uses secondary injection molding. The inside is white soft rubber, 60% softness, which can be easily convex and cleaned. It is convenient and economical to use water. The edge provides support for transparent A B S and is not easy to deform. After cleaning the front, you can use the reverse side.

Red dot award, cultural innovation,
Red dot award, cultural innovation,
Red dot award, cultural innovation,
Red dot award, cultural innovation,
Red dot award, cultural innovation,
Red dot award, cultural innovation,

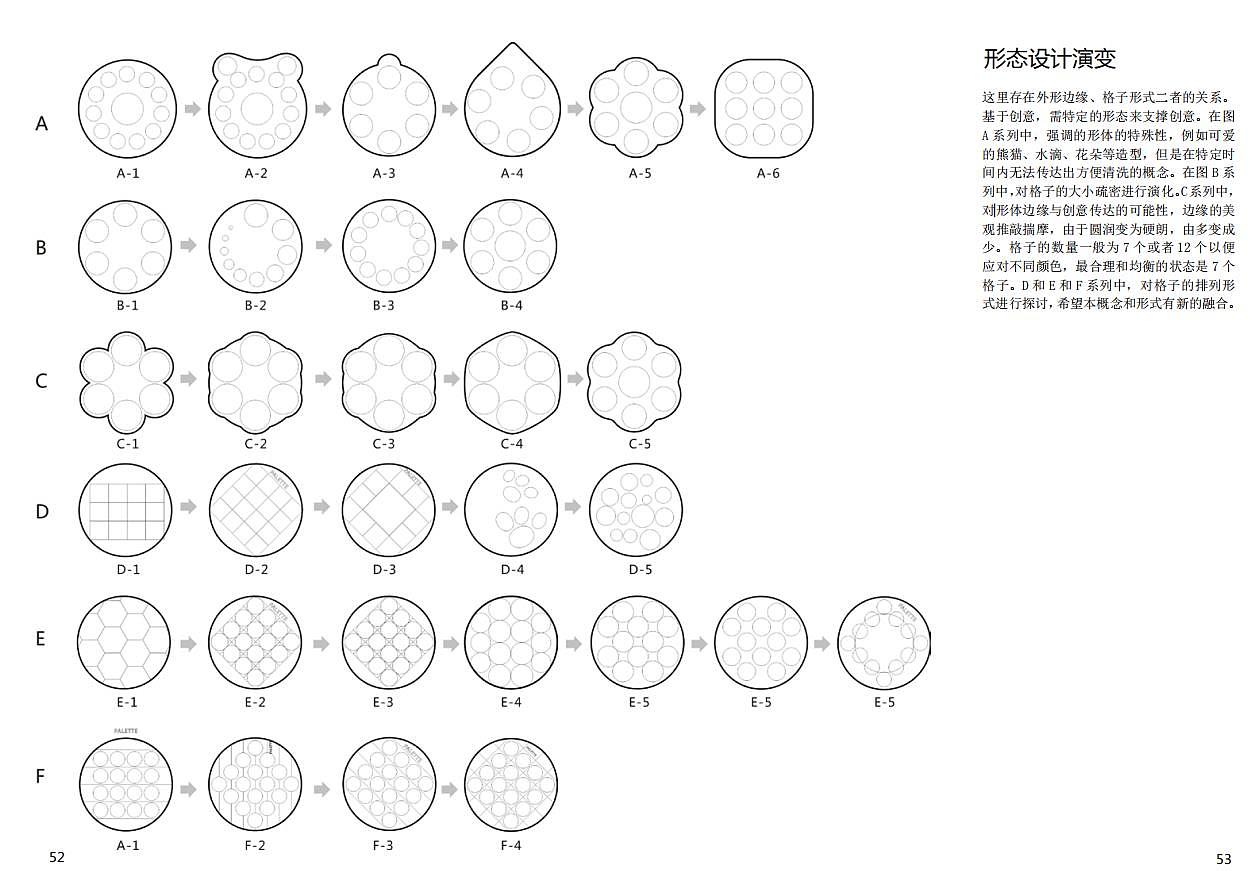

Morphological design evolution
There is a relationship between the edge of the shape and the grid form. Based on creativity, specific forms are needed to support creativity. In the Figure A series, the particularity of the body is emphasized, such as cute pandas, water droplets, flowers, etc., but the concept of convenient cleaning cannot be conveyed within a specific time. In the Figure B series, the size density of the lattice is evolved. In the C series, the possibility of body edge and creative communication, and the beauty of the edge are considered and pondered. Due to the roundness, it becomes hale and hearty, from more to less. The number of grids is generally 7 or 12 to cope with different colors. The most reasonable and balanced state is 7 grids. In the D and E and F series, the arrangement form of the grid is discussed, hoping that there will be a new fusion of this concept and form.

Red dot award, cultural innovation,
Red dot award, cultural innovation,
38 78
用户其他作品 查看更多
评论

留言板 (4)

芒果 2020-12-11
回复

The Pain Point of Art Students

胡同巷子 2020-12-11
回复

Convenient cleaning and good design, is the cost a bit high, or pigment is aggressive to soft glue or something

Chameleon🔥 2021-06-06
回复
I think the cost is good, that is, there are restrictions on the types of pigments. Traditional pigments will crack and acrylic pigments will not. This method is probably impossible to get rid.
我也说一句
静月虽好memory 2020-12-11
回复

Such an excellent work, when will it become a product.
