Air Purifier-5000 TO-B

2022-01-03 Tools&Equipment 8262 19 67

Air Purifier-5000 TO-B

2022-01-03 Tools&Equipment 8262 19 67

This air purifier is a 2D phase design scheme provided by XX company. please understand that this product is the main service for end B users. the scheme is still available. Since it has not been selected, let it go for a walk...

Drawing Steps & Drawing Effect & Design Style for Everyone to Communicate
-YOUNG DESIGN STUDIO 20180125HQ

industrial design，Electrostatic precipitator，Empty clean Tob，2D proposal effect，

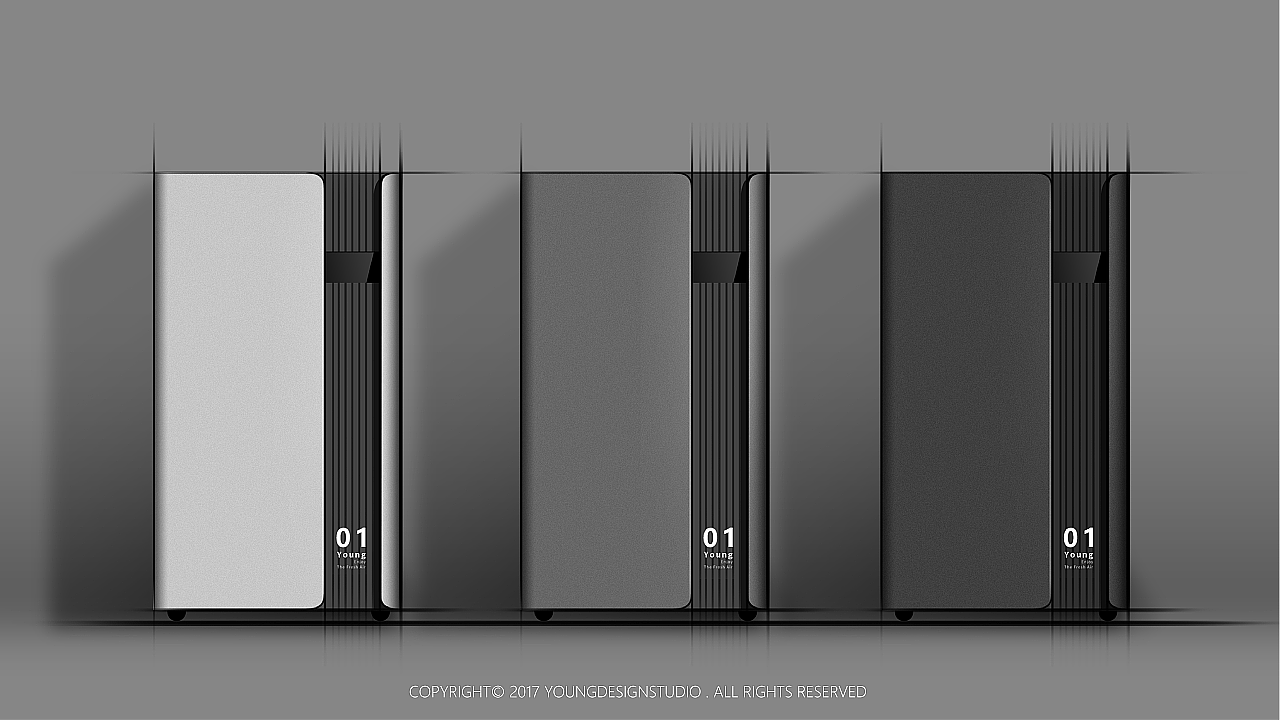

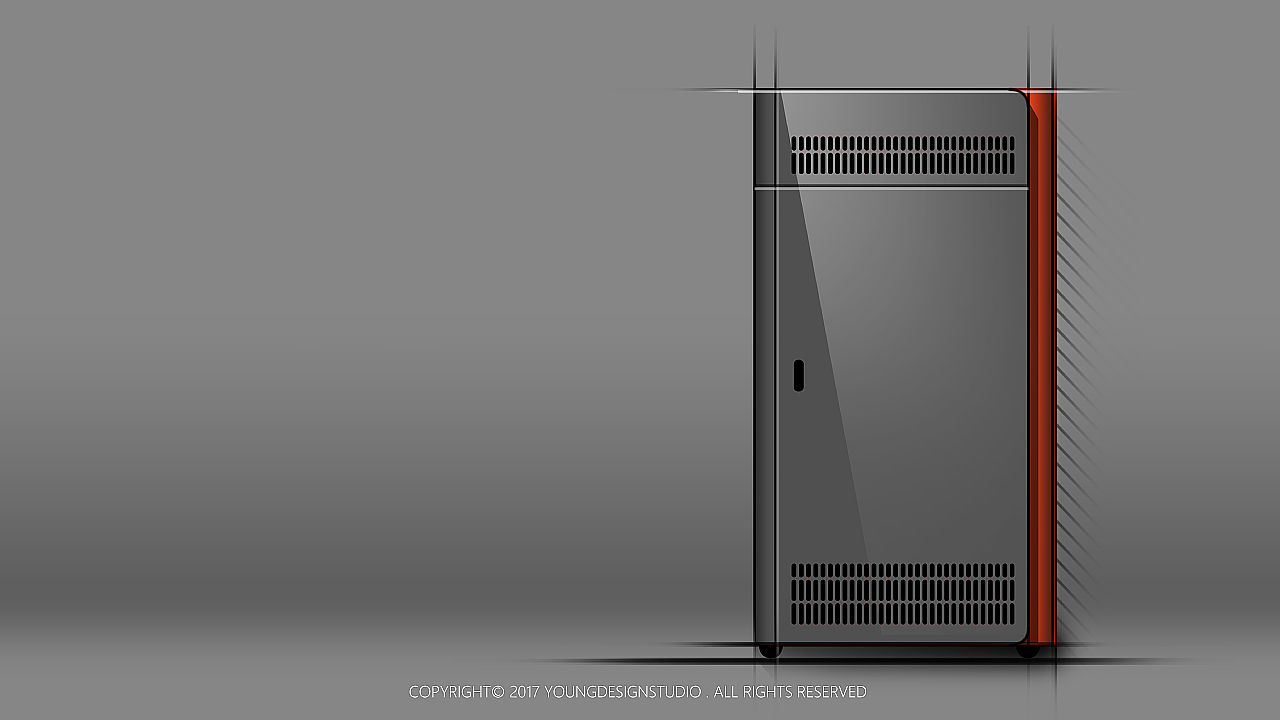

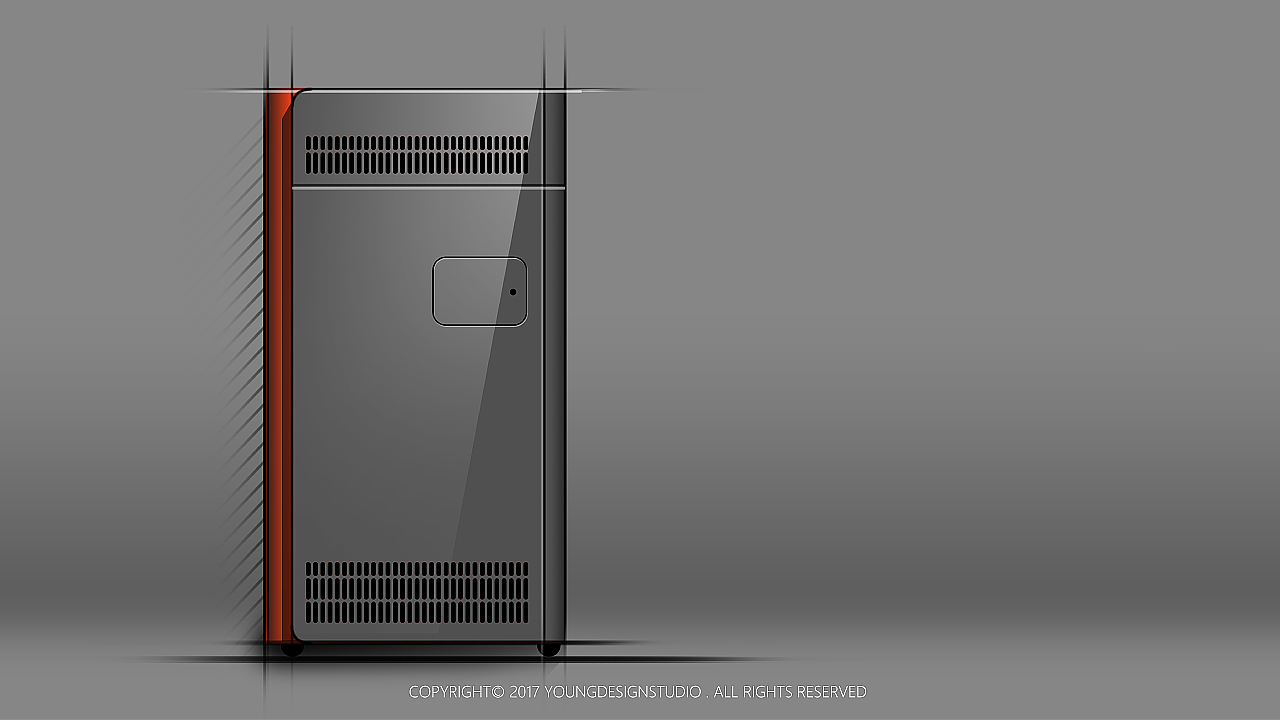

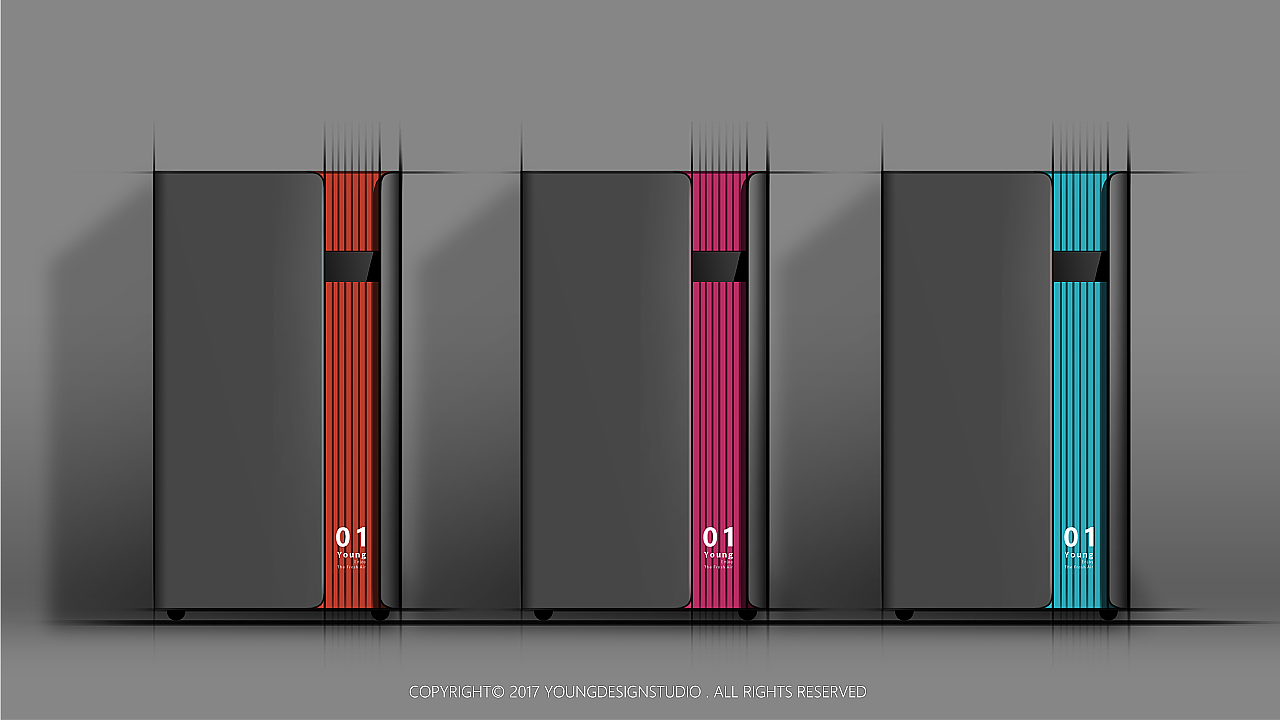

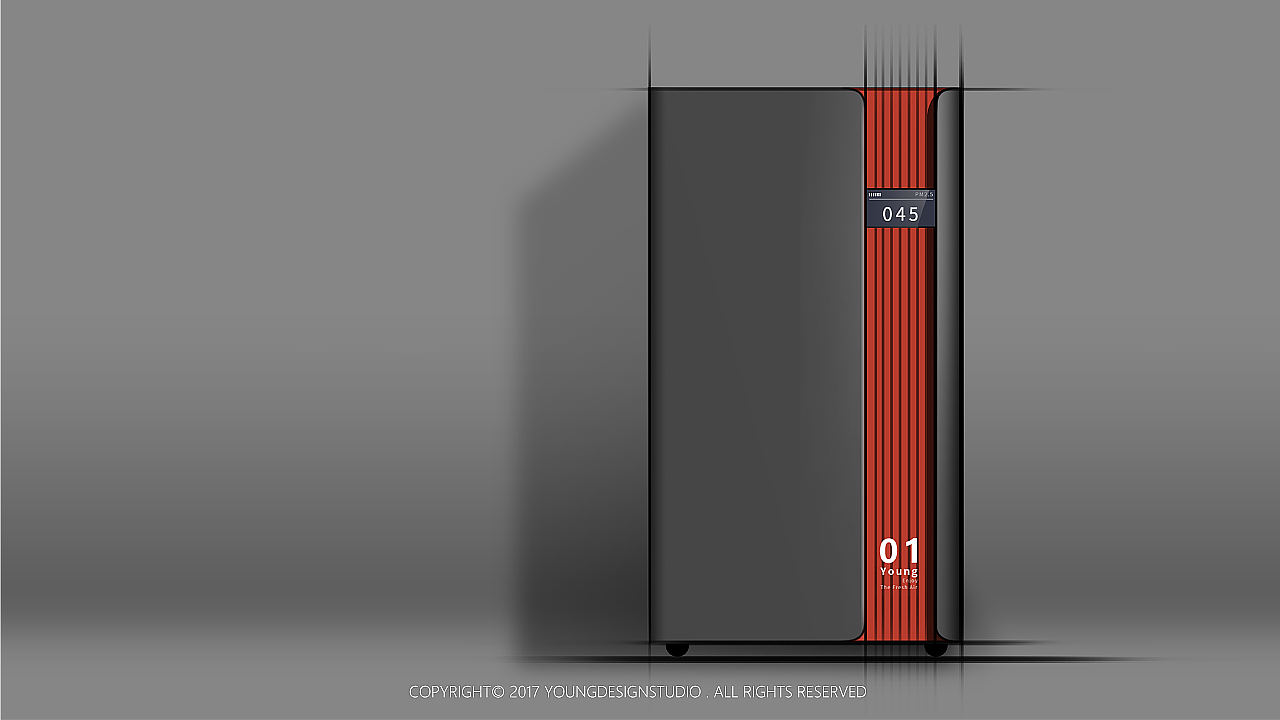

2D effect rendering process

67 169

用户其他作品查看更多

SMART LOCK-Cloud Time

留言板（19）

GEORGE 2022-01-05

npnp

手残练手速 2022-01-04

Your appearance is very good. I guess it is that you can't reach the failure in technology. It is very difficult to make the corner appearance on your right side, and there is a big problem with the coordination with the back plate.

NVIDIA 2022-01-04

All right, it's not a big problem. I feel that the cost of a large mold with two more shells will be higher.

手残练手速 2022-01-04

Is this a sheet metal part? When I didn't say plastic

手残练手速 2022-01-04

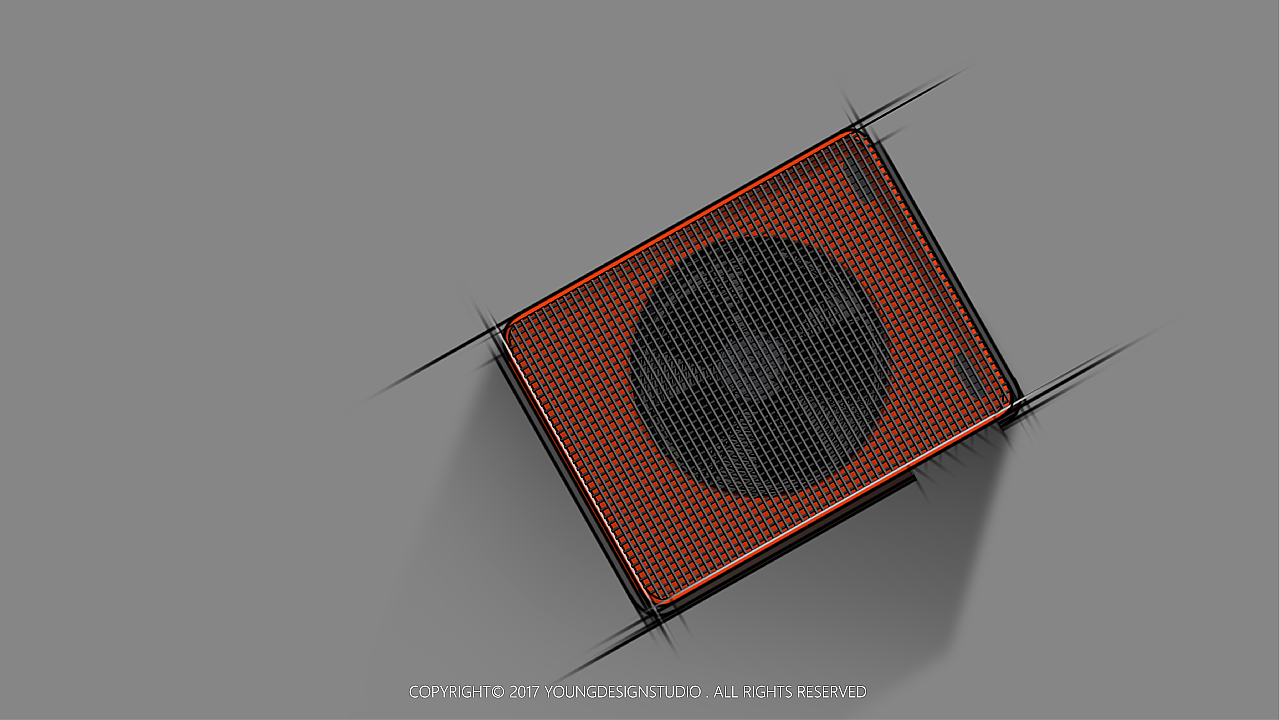

Looking at the top view, I feel similar to sheet metal equipment, and I usually do more. I have always thought that you are made of sheet metal.

NVIDIA 2022-01-04

Plastic bar.

馒头稀饭作者 2022-01-04

Professional sheet metal parts can be matched with profiles to complete mass production cost evaluation. Another scheme was selected and released for 2D display and sharing.
