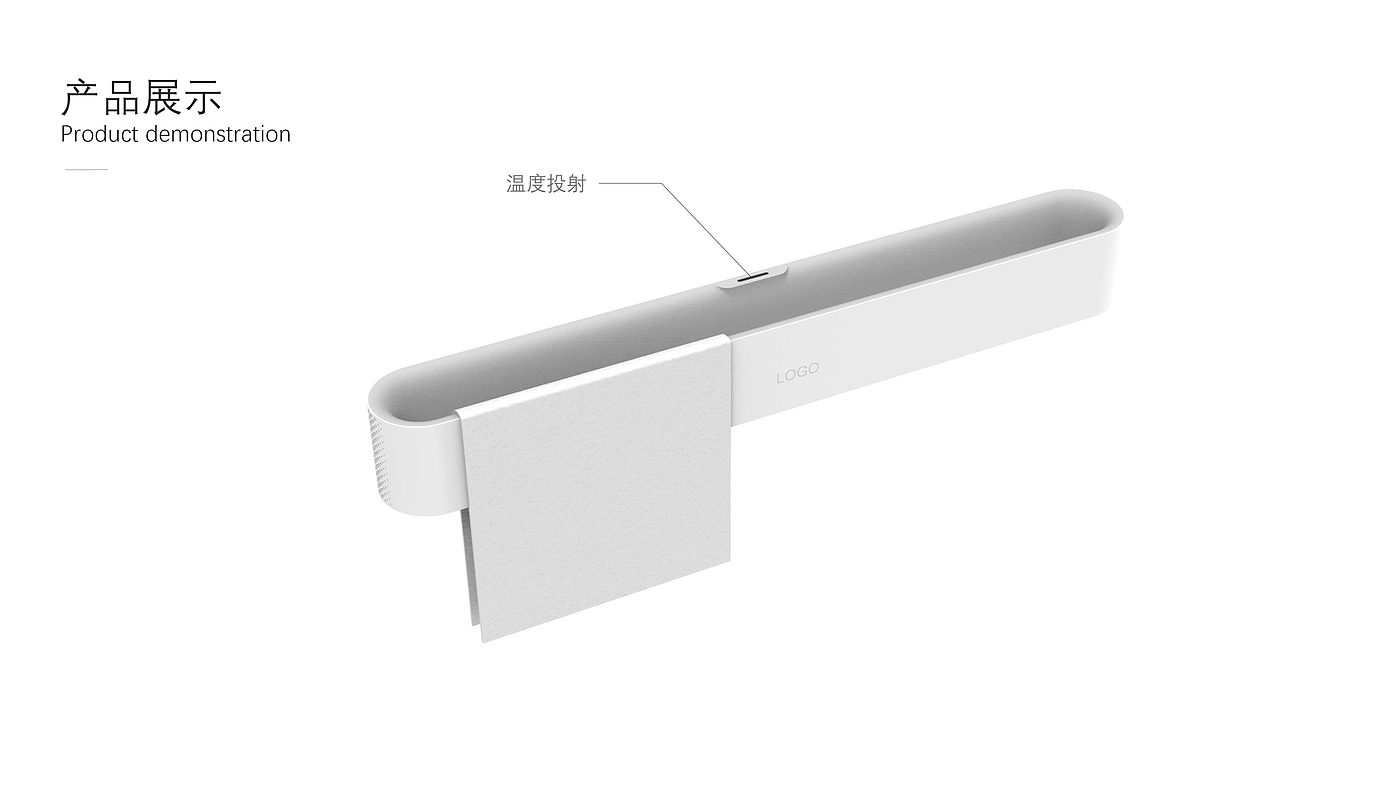

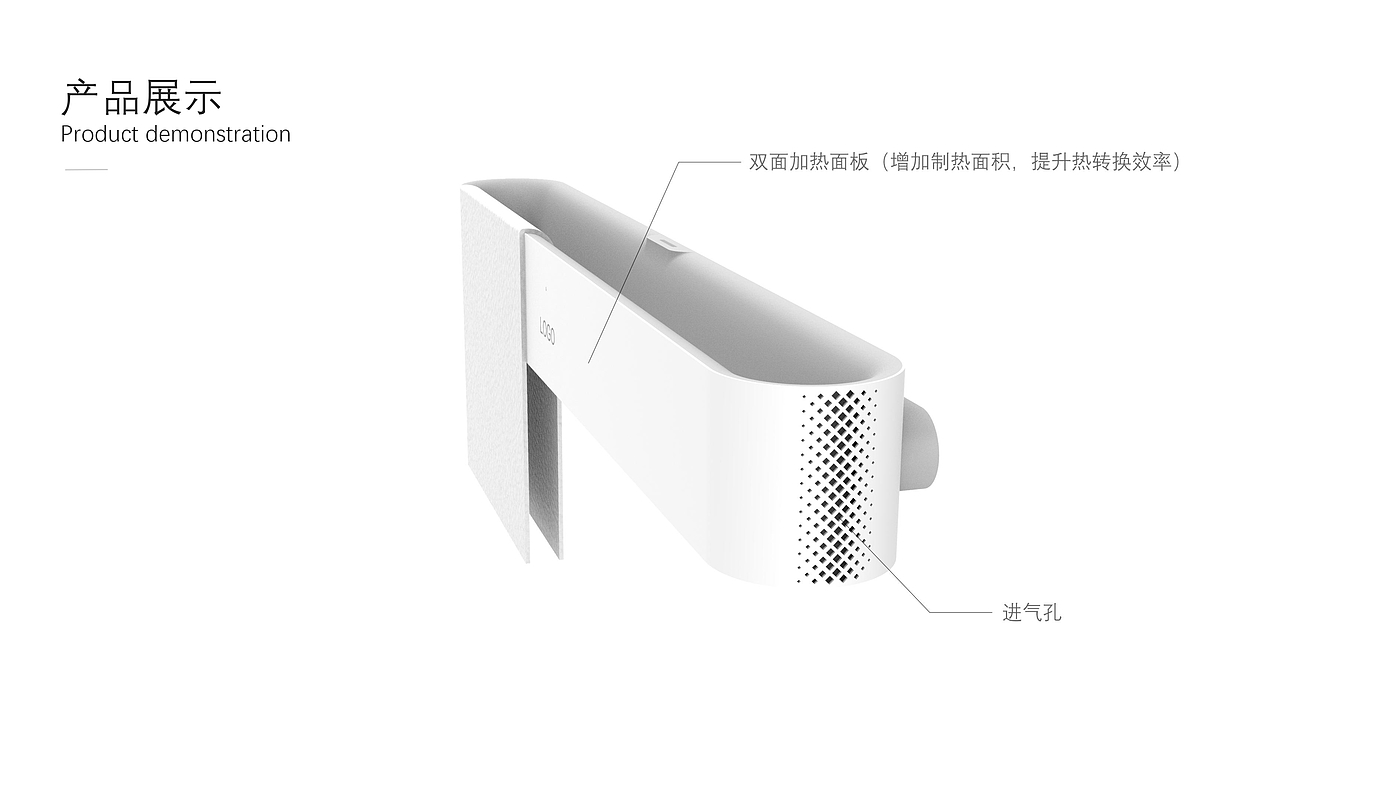

The product uses graphene heating hot air drying to combine, vertical panel double-sided heating, wet towel hanging on the shelf can increase the heating area, hanging towel using blowing hot air for dehumidification. Dehumidification is performed at the same time by UV irradiation. The temperature is displayed by projection, showing the sense of science and technology.

According to the calculation of Ren Zeping, chief economist of Evergrande, there are 0.311 billion existing housing units in China. In addition, we also have a large number of non commercial housing units, such as rural homesteads and small property rights houses. The vacancy rate is about 21.4%, which means that 80% of the houses have been renovated and used. Therefore, the 80% of the houses used are basically equipped with ordinary towel racks. From the point of view of these potential users or consumers, when choosing to buy towel drying racks, they tend to be small in size and can adapt to the products of existing towel racks.

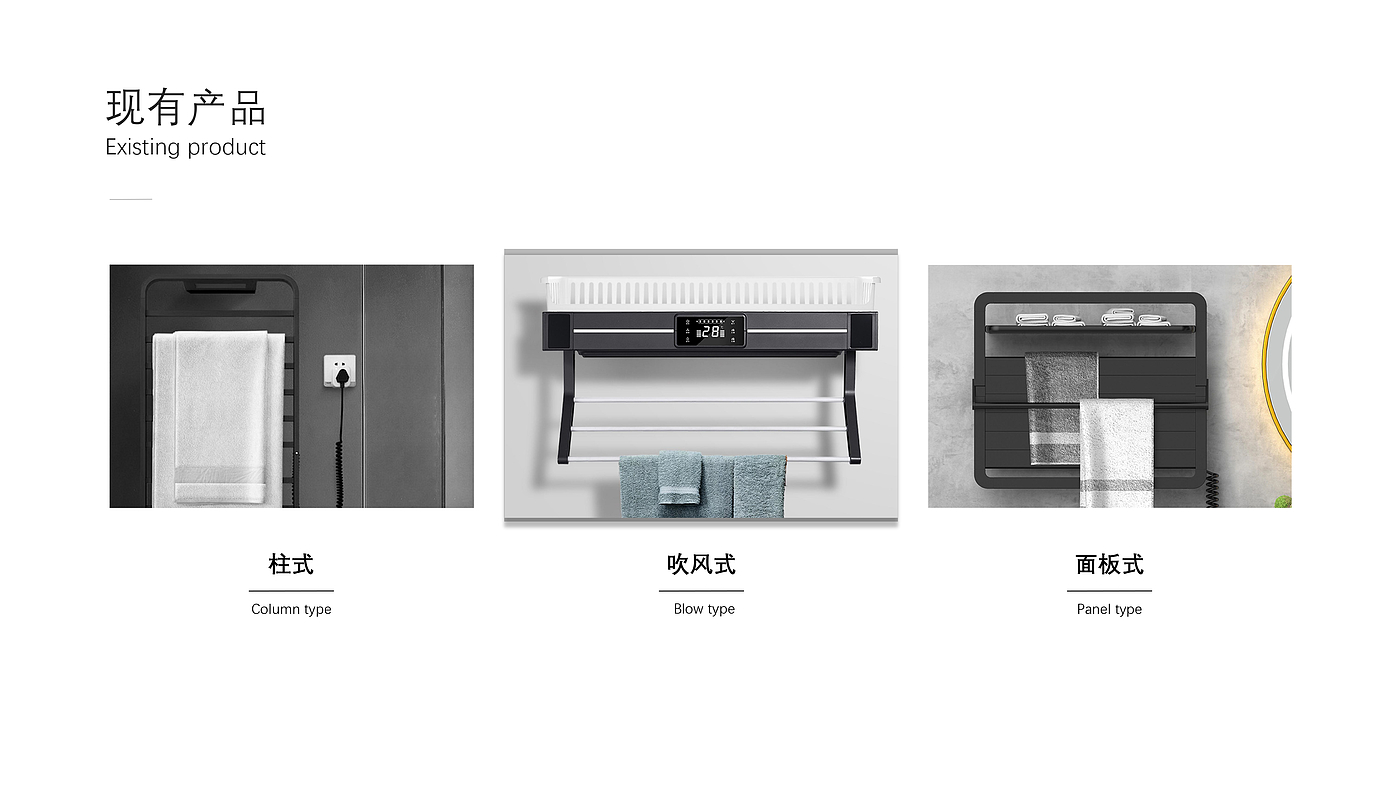

The existing towel drying products on the market were not considered in the design, and there are already ordinary towel racks in the home. The existing products are roughly divided into three types: column heating, blowing drying and panel heating. These products are large in volume and come with towel racks, which cannot be used in conjunction with the original towel racks when installed on the wall. Most of the ordinary towel racks that have been installed are perforated, and it is not easy for users to disassemble them. There will be a situation where ordinary towel racks and intelligent drying towel racks appear on one wall at the same time. Not only is it unsightly but it takes up space.

So I designed this towel drying rack that can be adapted to 80% existing decorated users. The product is small in size and uses a combination of face plate heating and blowing drying to eliminate the sagging towel bracket.

The installation adopts a hole-free installation method, which can adapt to the situation where ordinary towel racks are already installed in the home. Even if it does not cooperate with the original towel rack, it can be used independently.

The first innovation is: self-induction towel position, zone heating. Due to the different weights of wet and dry towels, the pressure sensor above the product can capture the area where the wet towel is hung. And send work instructions to the heating module in this area.

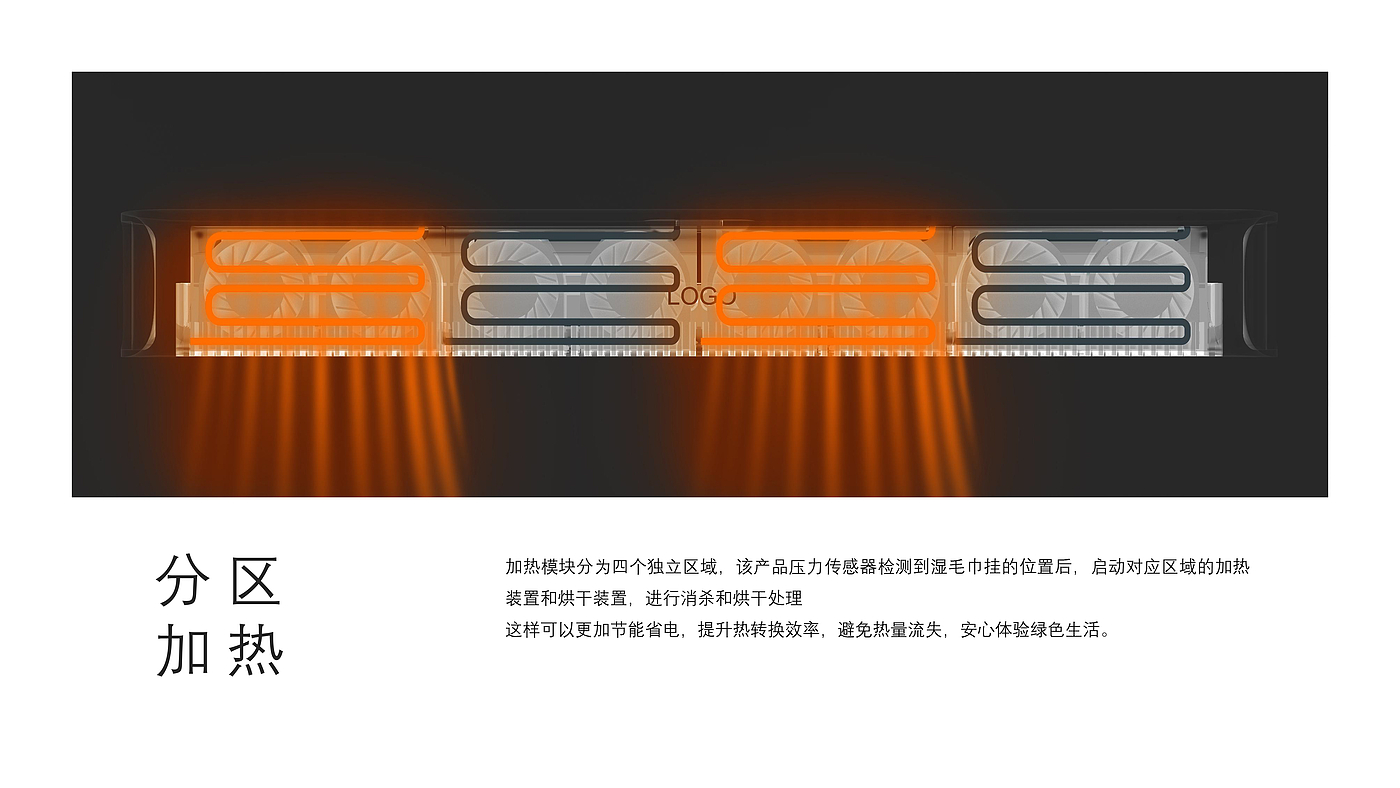

The heating module is divided into four independent areas. After the product detects the position of the wet towel hanging, it starts the heating device and drying device in the corresponding area to carry out killing and drying treatment, which can save energy and electricity, improve the heat conversion efficiency and avoid heat loss.

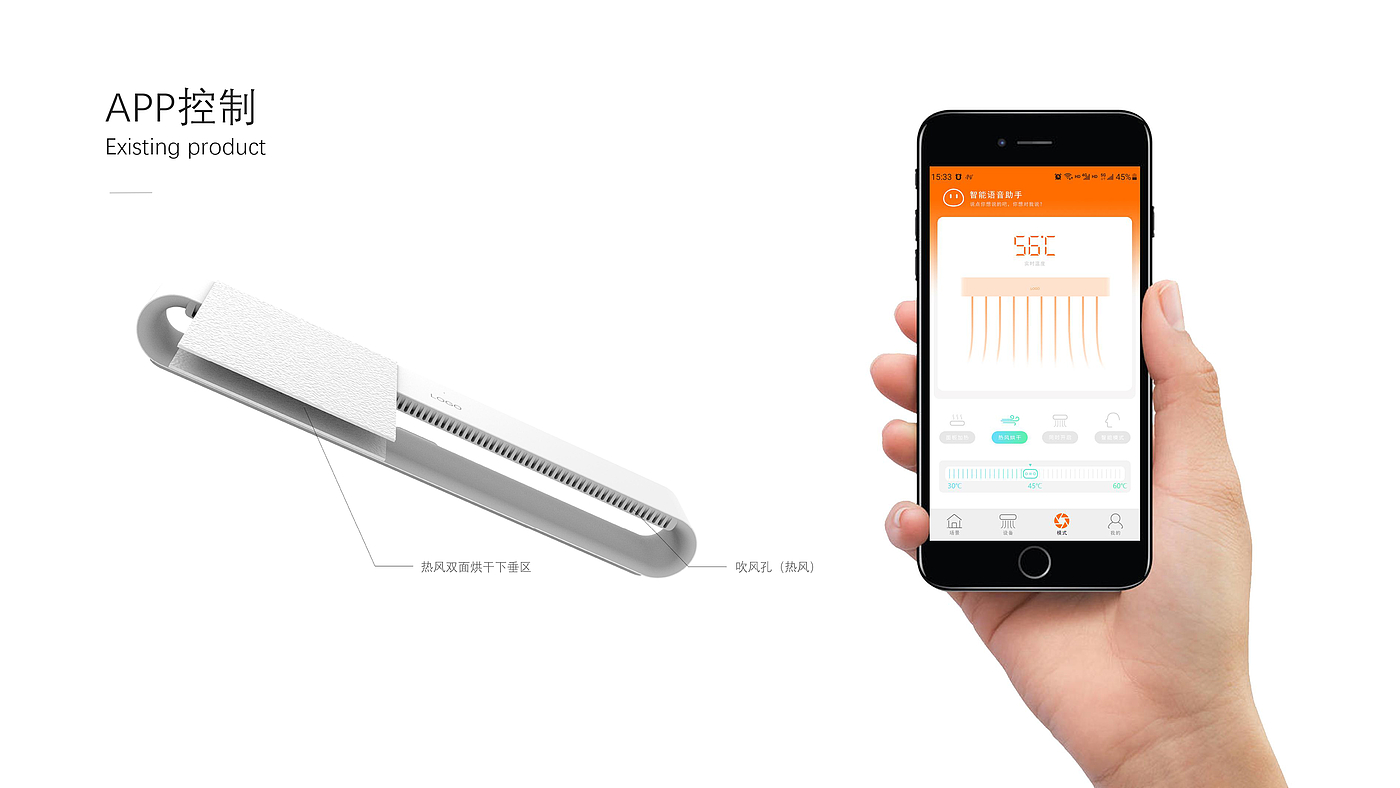

At the same time, the product can also be connected through APP to monitor and control panel heating, hot air drying, custom temperature settings, heating areas, etc.

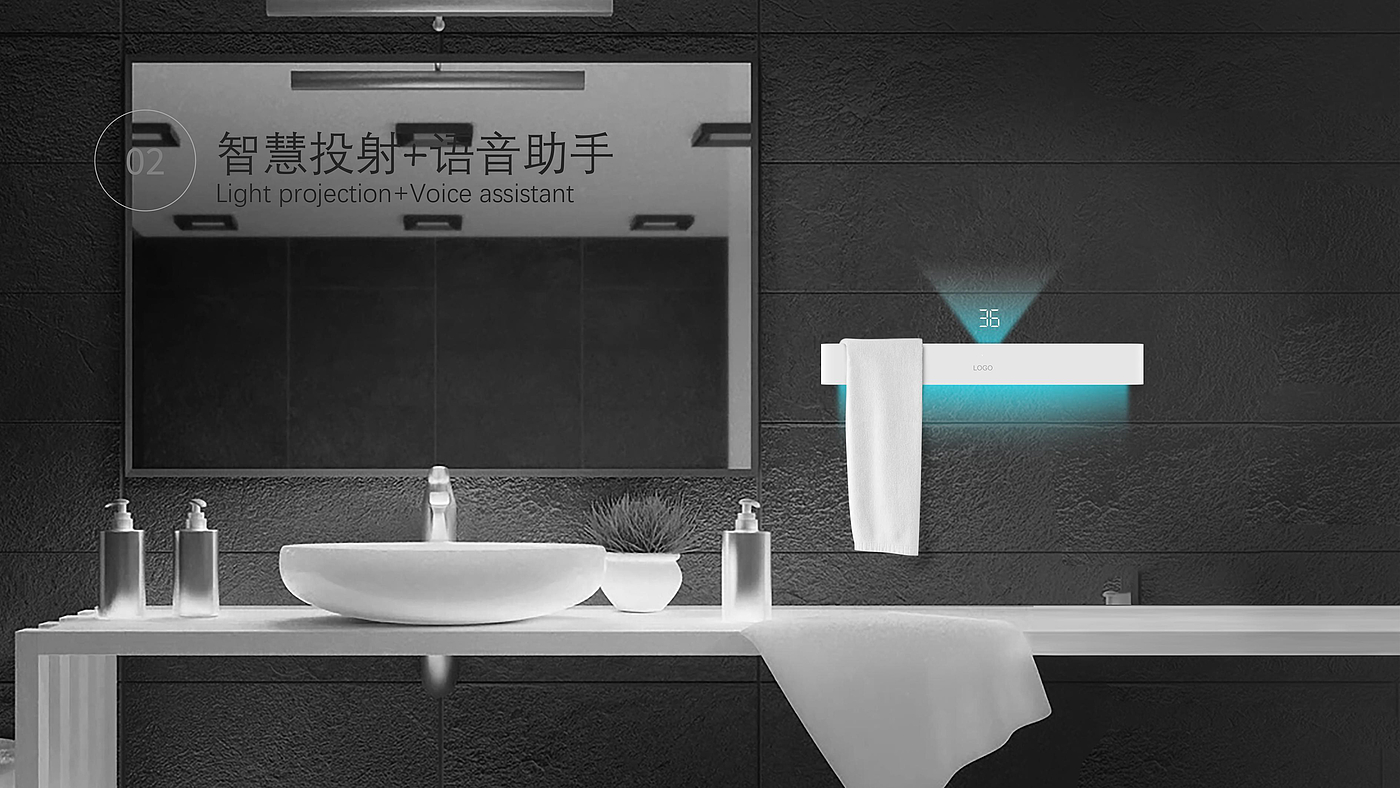

The second innovation is: wisdom projection plus voice assistant. The product can project information to the wall by projection. When the product is working, the real-time temperature can be observed through projection. In addition to temperature projection, it can also display the time and the temperature of the day. For office workers, being able to see the time and the climate of the day when washing can effectively avoid procrastination of time and entanglement. The product can also broadcast the headlines of the day when you wash up through the Internet. Emotional immersion experience shows intelligent life.

The third innovation is that one machine can be used for multiple purposes.

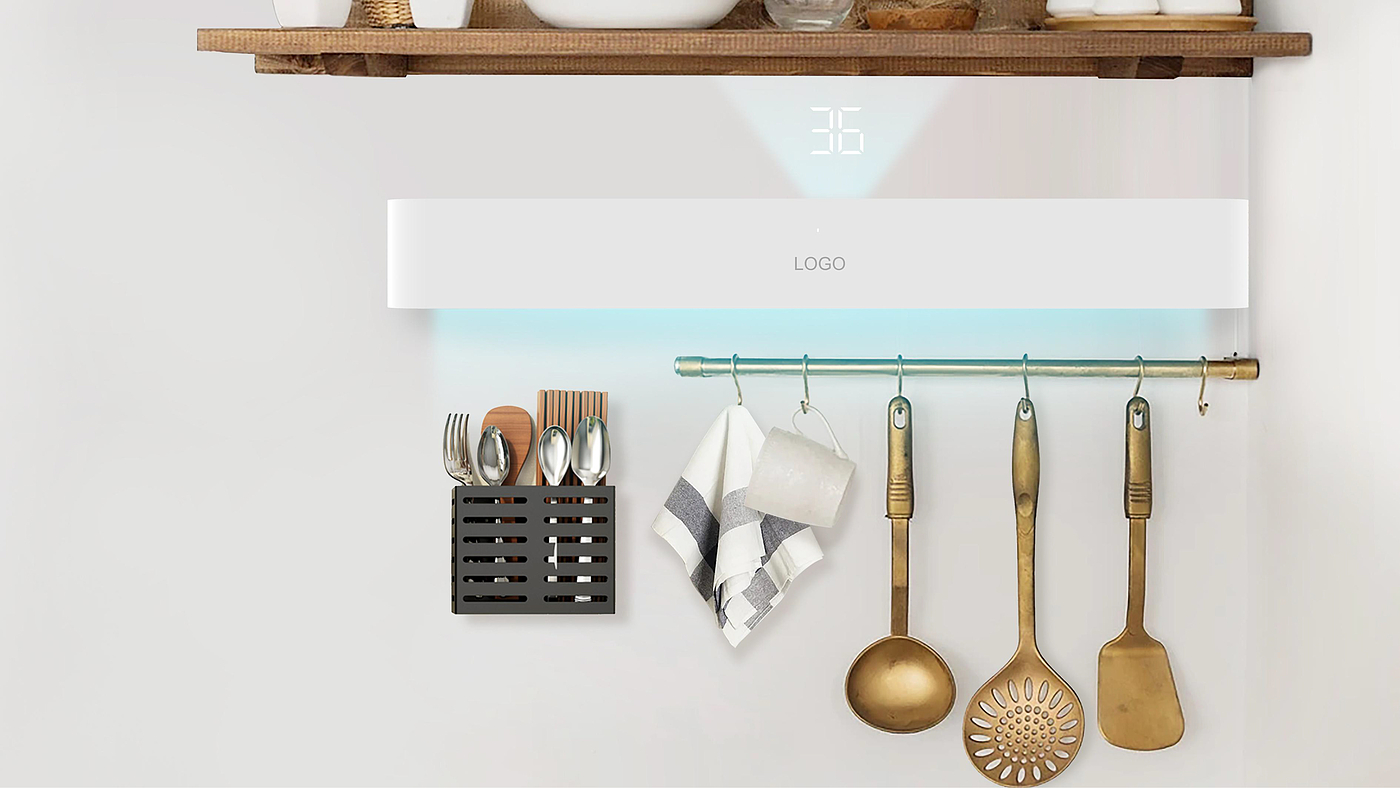

Due to the small size and convenient installation of the product, in addition to toilet towel drying, it can also be adapted to the drying, dehumidification and elimination of kitchen wall-mounted kitchenware storage supplies.

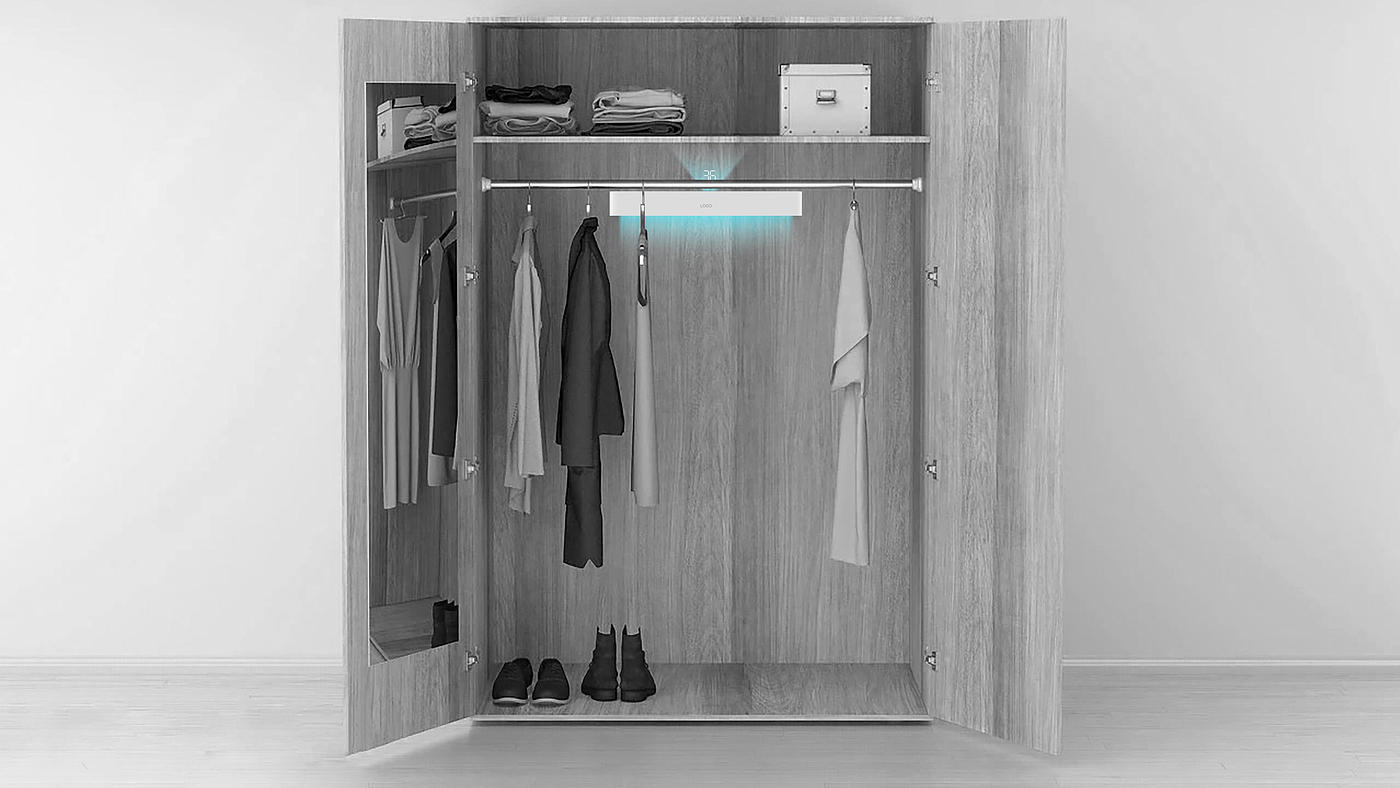

As well as the dehumidification and drying of the wardrobe. One machine can be used for multiple purposes.

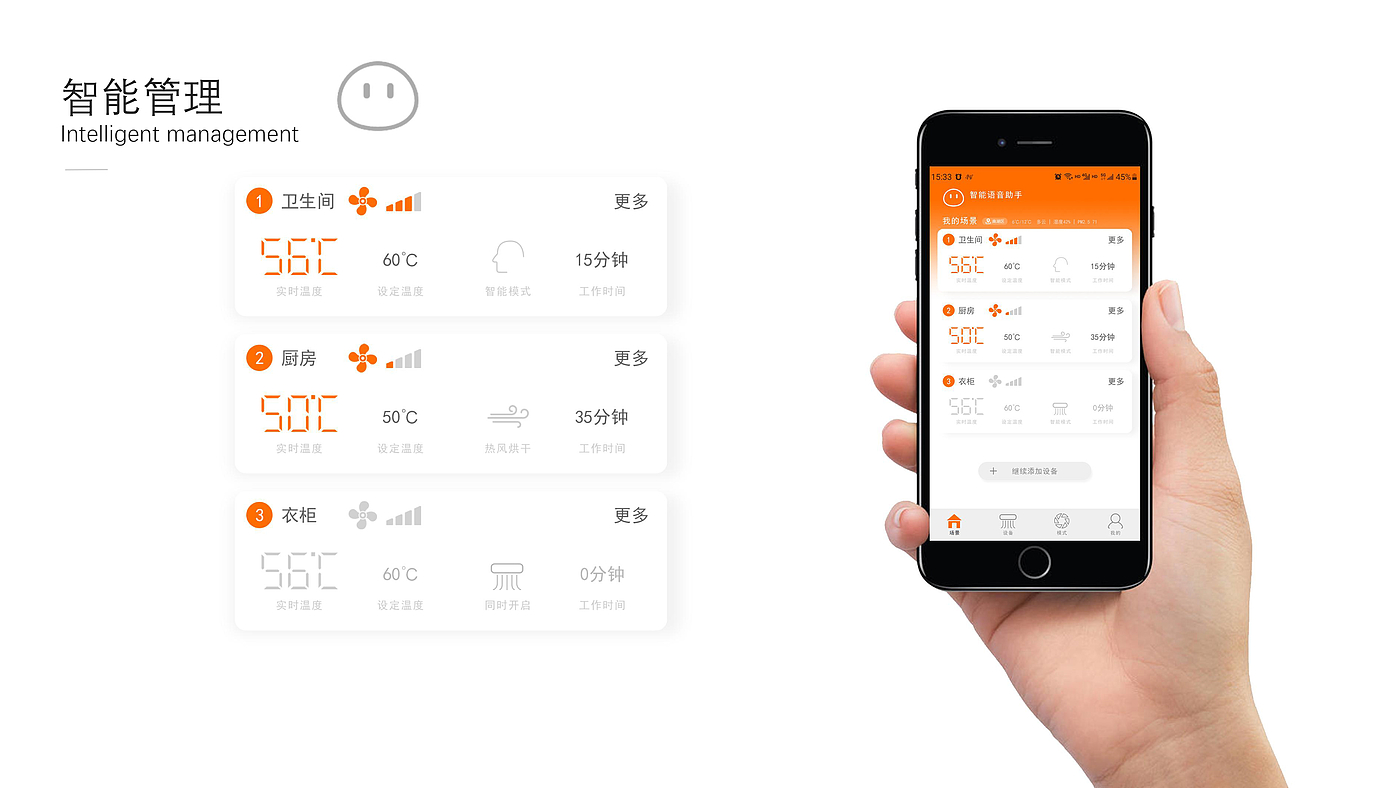

Manage each scene through APP and switch between scenes. Temperature, wind power, heating time, mode and other information are mastered by one hand. Realize intelligent management.
