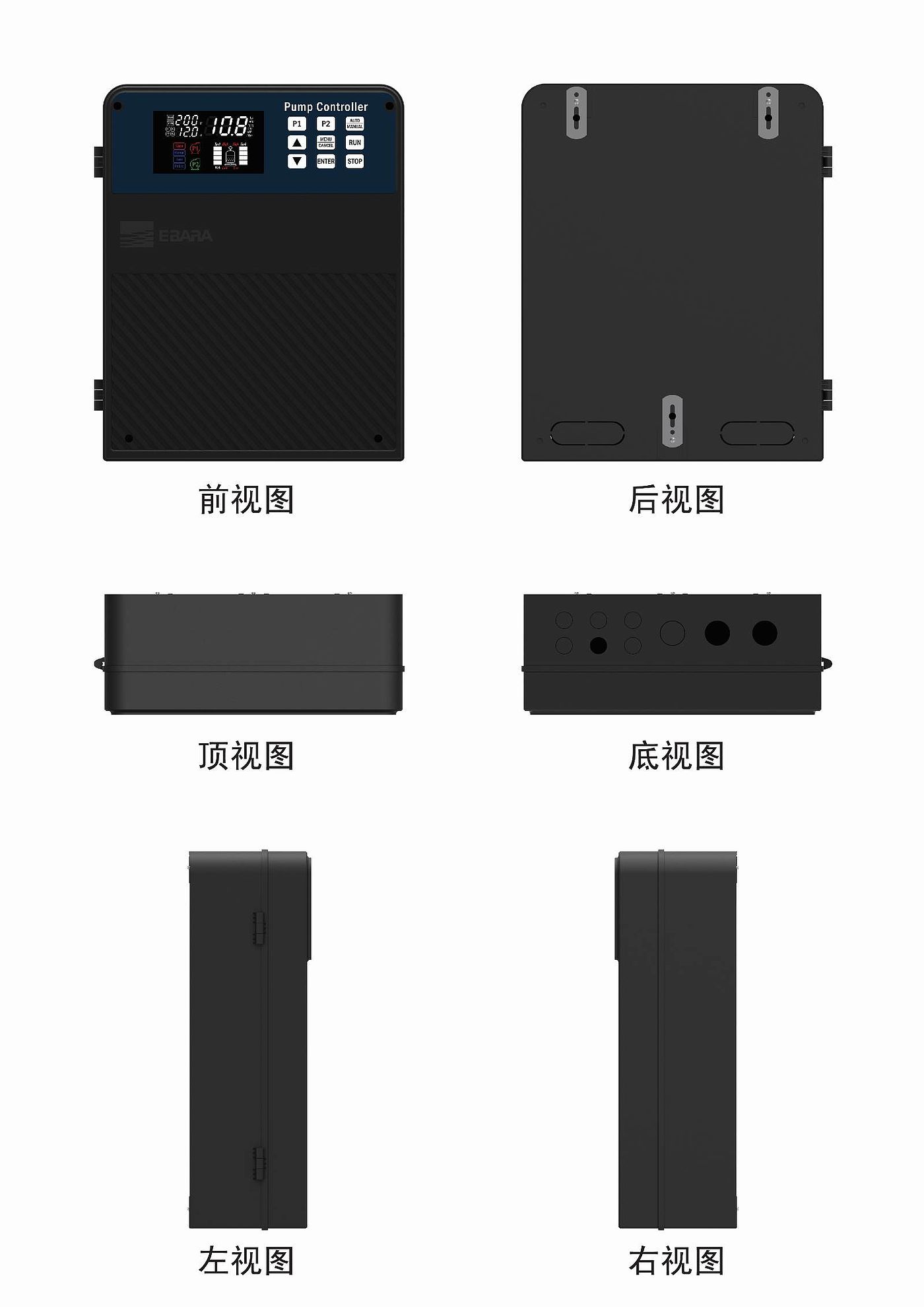

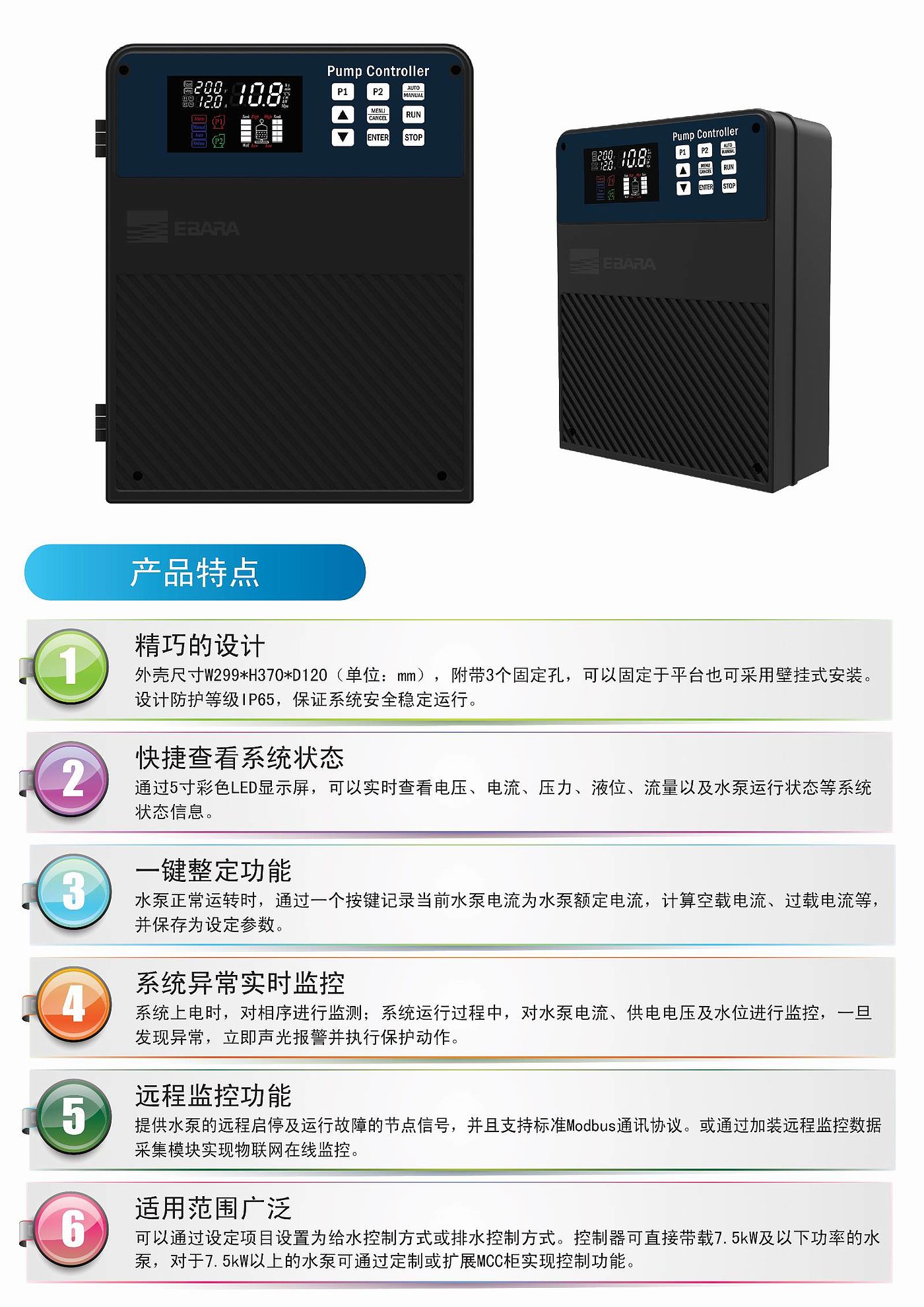

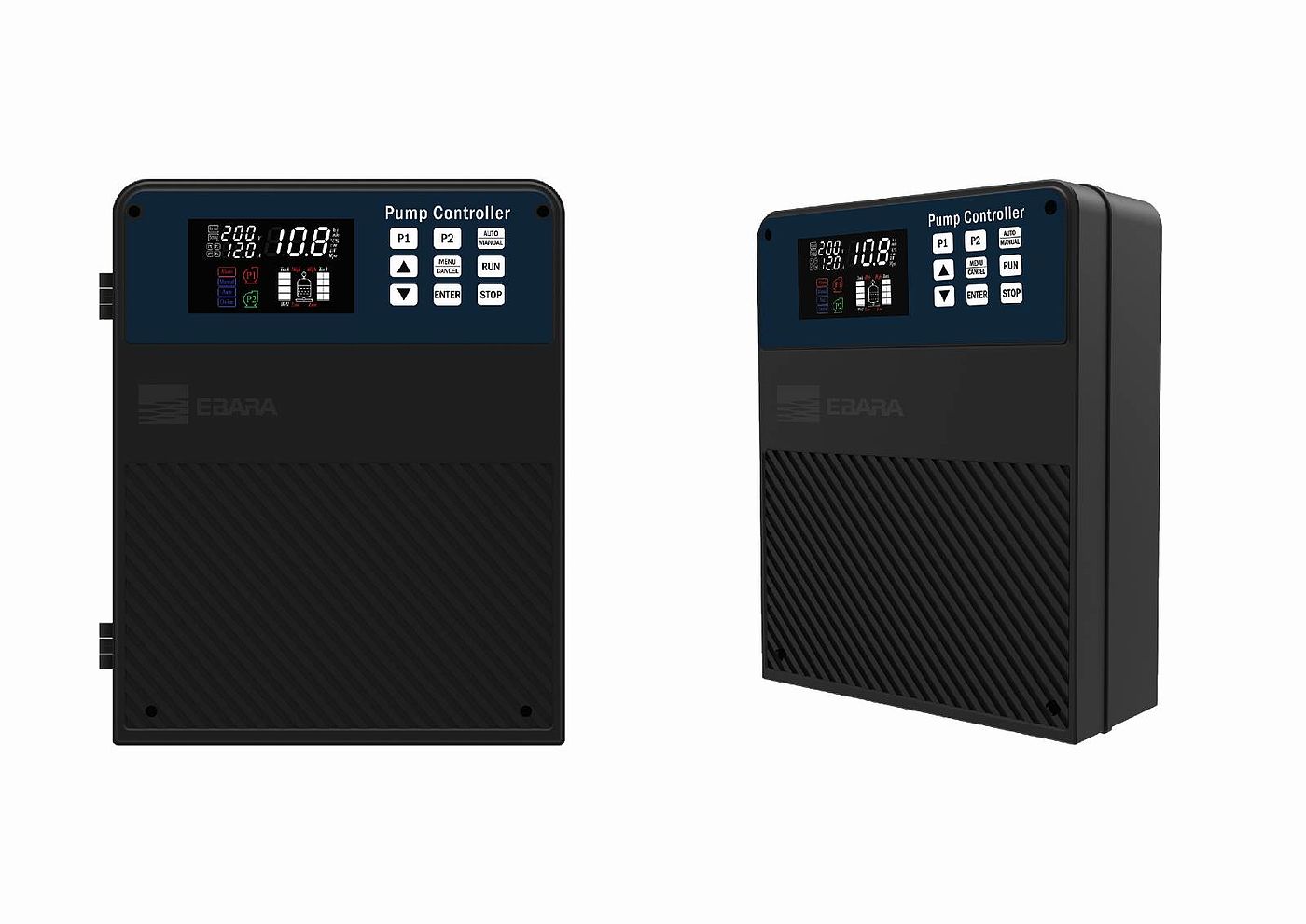

1. Exquisite design shell size W299 * H370 * D120 (unit: mm), with 3 fixing holes, which can be fixed on the platform or wall-mounted installation. The protection level IP65 is designed to ensure the safe and stable operation of the system. 2. The remote monitoring function can realize the online monitoring of the Internet of Things through the remote monitoring data acquisition module. Provide remote start-stop switch, provide digital DO signals such as pump operation and failure or standard Modbus communication protocol, which is convenient for users to realize remote monitoring. 3. Quickly check the system status. During the operation of the system, the voltage and current values are displayed in real time, and the current system status information can be quickly obtained through the status indicator light, alarm indicator light and buzzer on the panel.

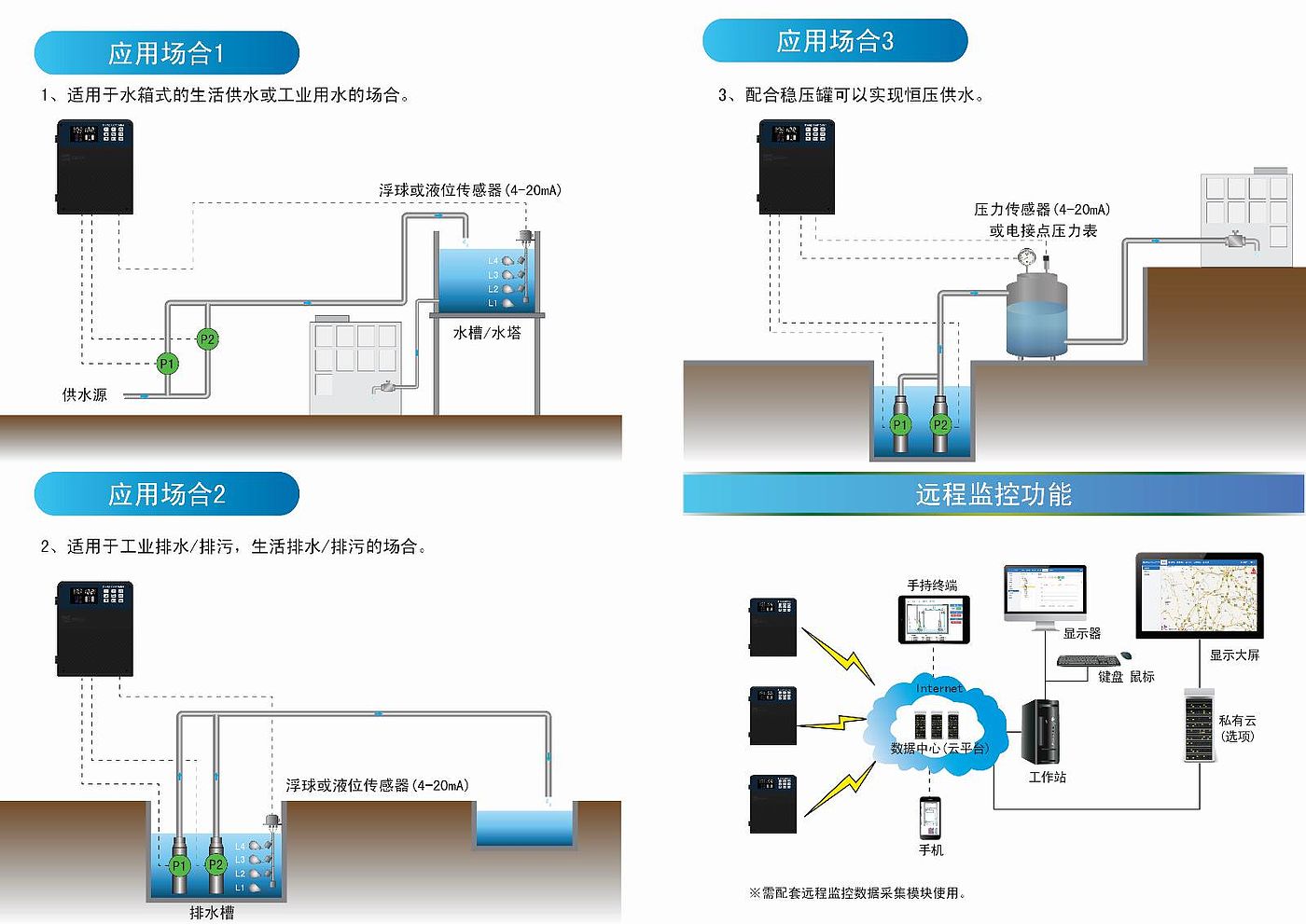

4. When the water pump with one key setting function operates normally, the current water pump current is recorded as the rated current of the water pump through one key, and the no-load current and overload current are calculated and saved as set parameters. 5. Real-time monitoring of system abnormalities When the system is powered on, monitor the phase sequence; during the operation of the system, monitor the pump current, power supply voltage and water level. Once an abnormality is found, immediately alarm and perform protection actions. 6. The scope of application is wide. The project can be set as water supply control mode or drainage control mode. The controller can directly carry water pumps with power of 7.5kW or less. For water pumps above 7.5kW, the control function can be realized by expanding MCC cabinet.
