IES heating electric water heater

产品创新创意设计

China · Digital Intelligence

☞Phase 7: The SmartHeat adopts IES electromagnetic induction heating technology to directly heat the metal tube through the eddy current effect of high-frequency magnetic field, realizing the separation of physical-grade water and electricity, with a thermal efficiency of 95.7, which is 38% energy-saving compared with traditional electric heating. The three-dimensional spiral pipe and the dynamic temperature control chip work together to ensure uniform heating in the whole area, with a temperature deviation of ≤ ± 0.5 ℃, and fast heating to the set temperature in 3 minutes. The AI system deeply integrates the TensorFlow Lite framework, learns users' water usage habits (time period, temperature and season), predicts demand through LSTM algorithm, dynamically matches peak and valley electricity prices, and reduces invalid heating by 72%. The five-fold safety protection covers IPX6 waterproof and 12 kinds of fault self-inspection, and supports OTA upgrade.

There are more than a dozen different water heater ideas. Those who are interested are welcome to exchange and discuss.

heater，Electric water heater，conceptual design，household electrical appliances，Home appliance design，Home appliance innovation，

19 1

产品创新创意设计作者 2025-04-09

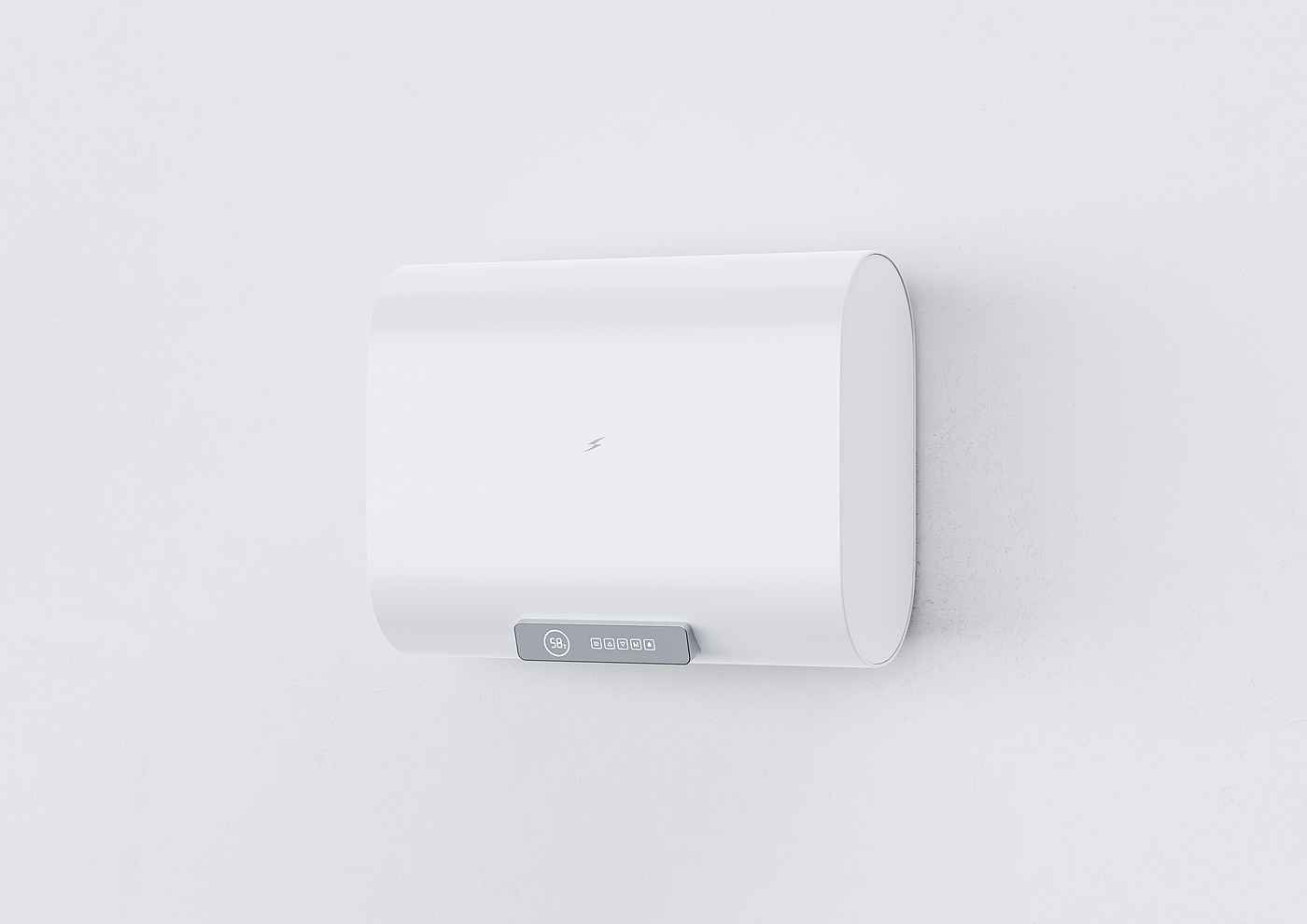

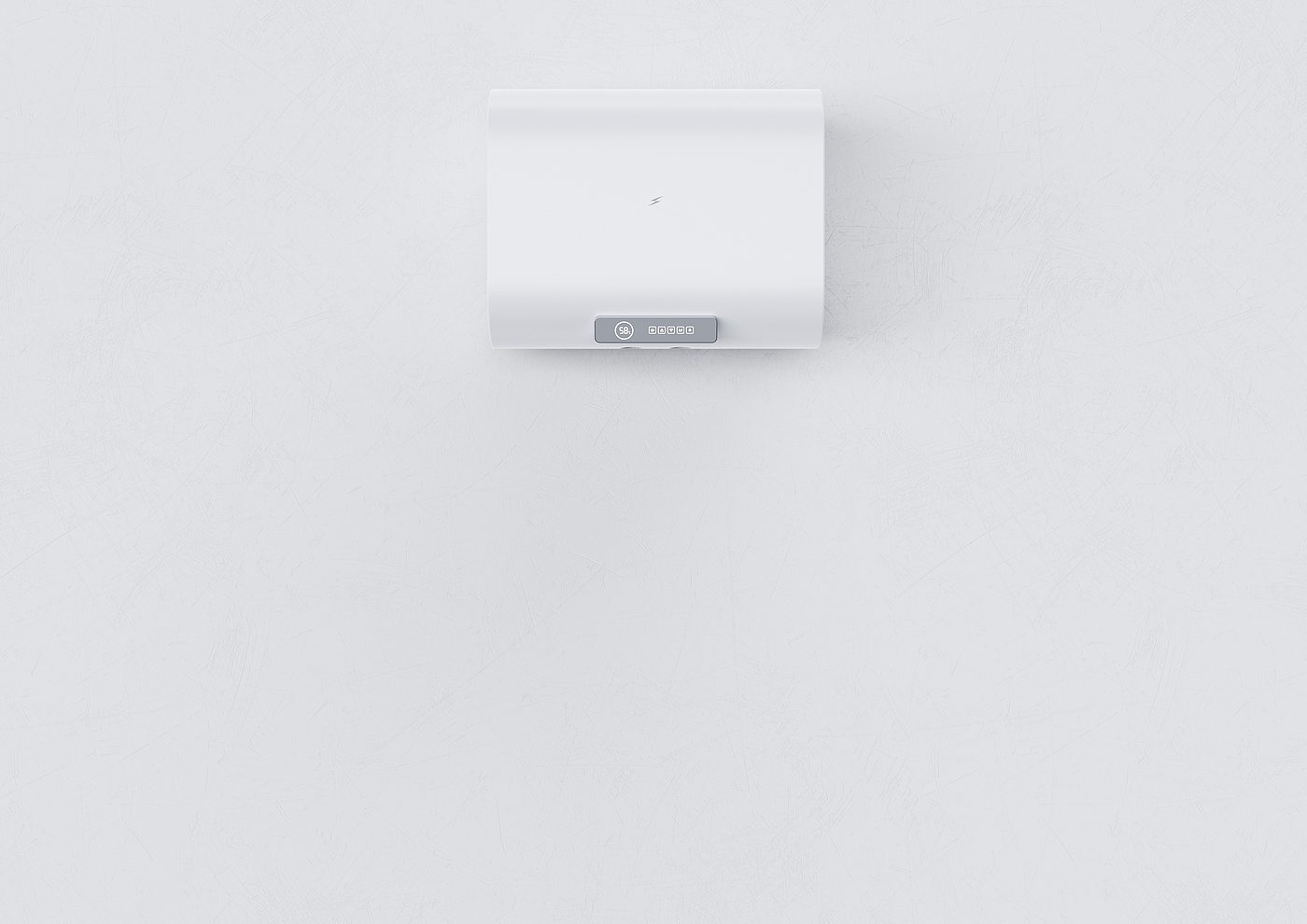

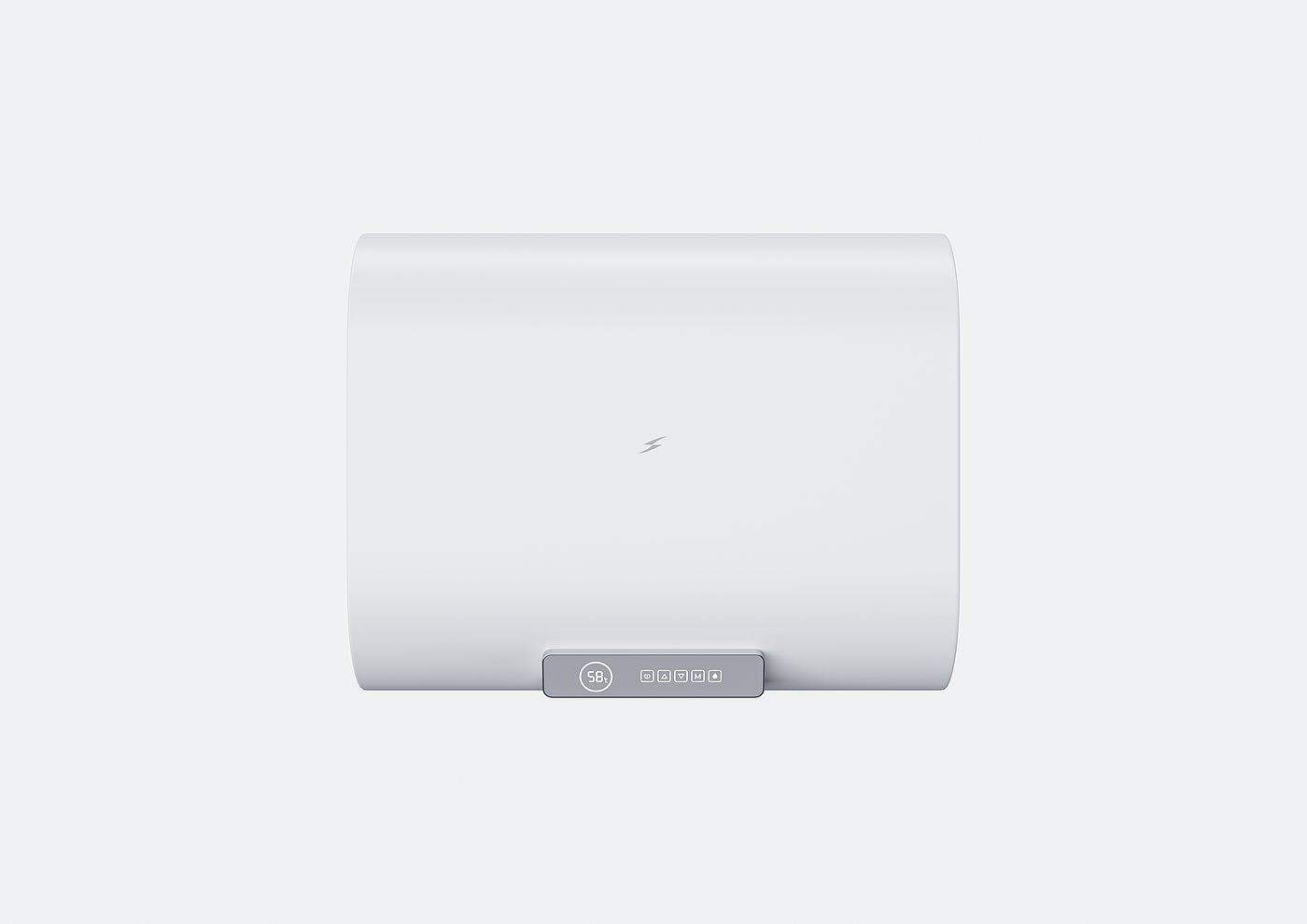

It's not a double-tank design, nor is it a tankless water heater. The main purpose of these cases is to have a visual appearance of the solution. The appearance of the water heater is also the appearance of a flat barrel for the physical-grade water and electricity separation solution of the electromagnetic induction heating water heater. The main purpose is to express the solution. For various reasons, the appearance of each case is very rough. This water heater has side end caps. Probably for some reason inconspicuous.

PHDesign 2025-03-05

It should be that I have not touched the design of water heater, which is not in line with the market.

产品创新创意设计作者 2025-03-05

Conceptual design, this is only one of the oldest of more than a dozen water heater conceptual designs, in case it will be a selling point sometime.
