From the first plan to the final completion of the 2020 unmanned sweeper, the design time is four and a half months, so that the heart collapses.

Artificial intelligence, transportation，Driverless，

First Draft Concept (Internal No Number Modulus and Hardware)

The first draft of the concept (replacement painting) ended and the result was not good.

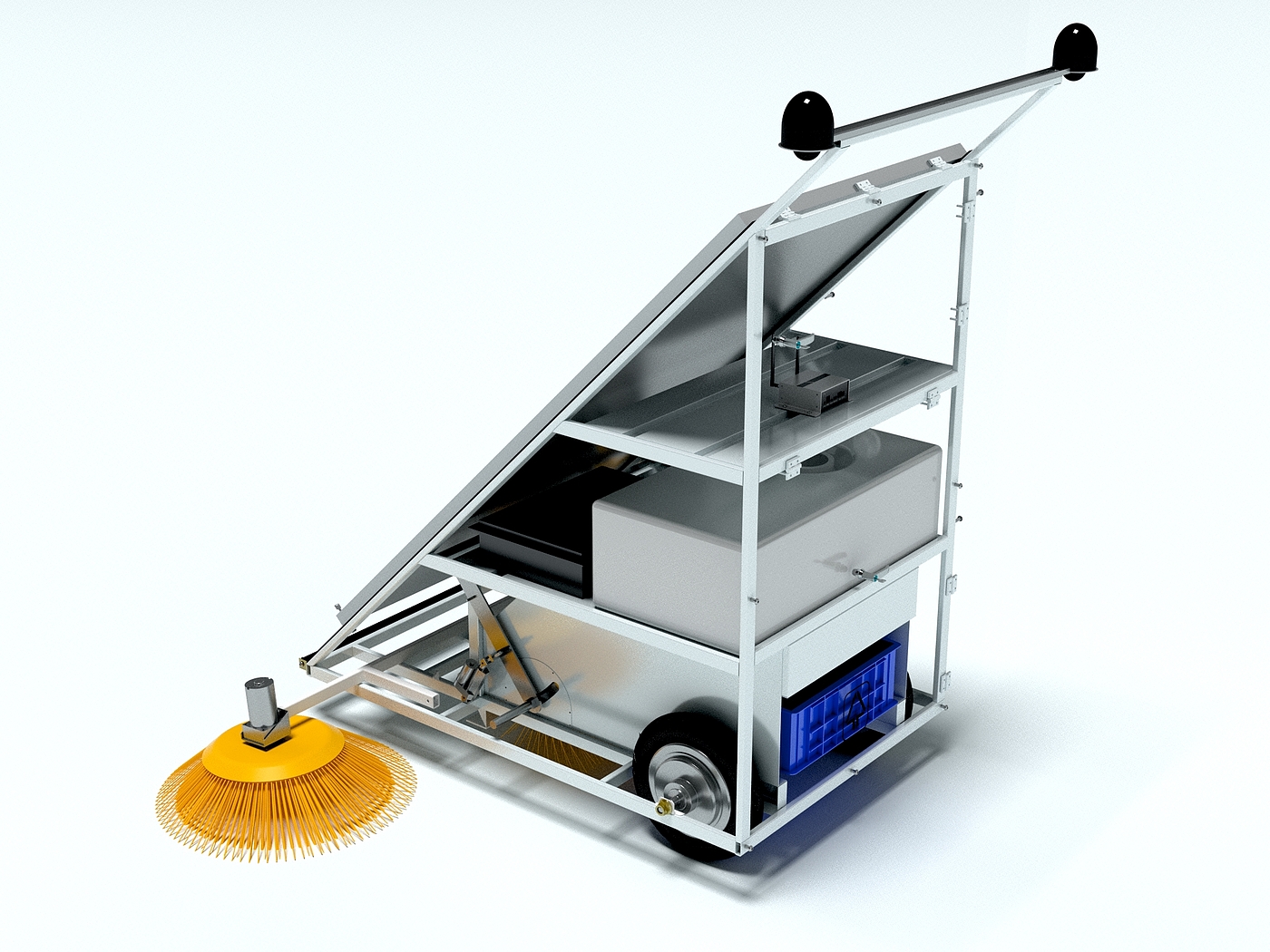

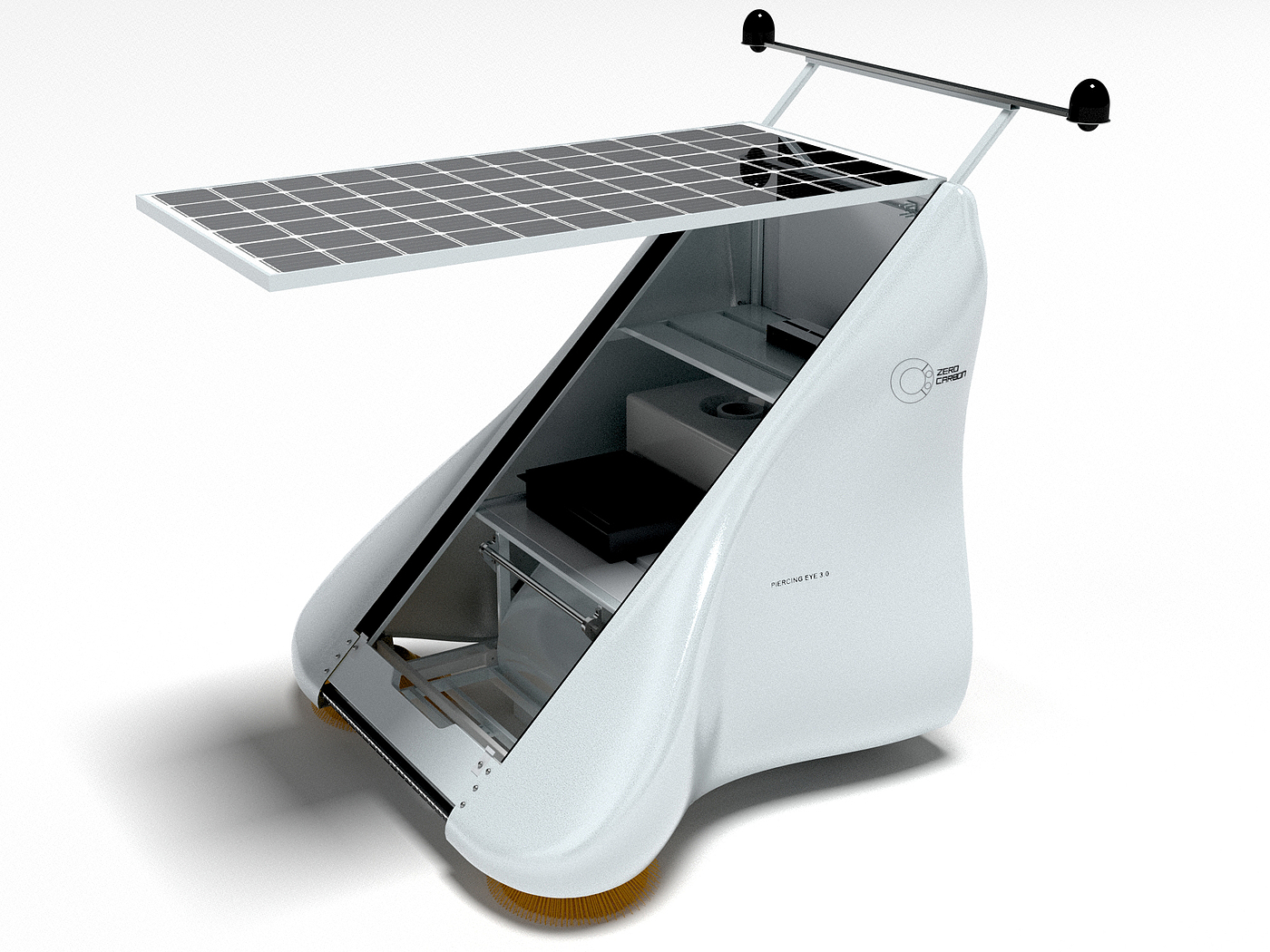

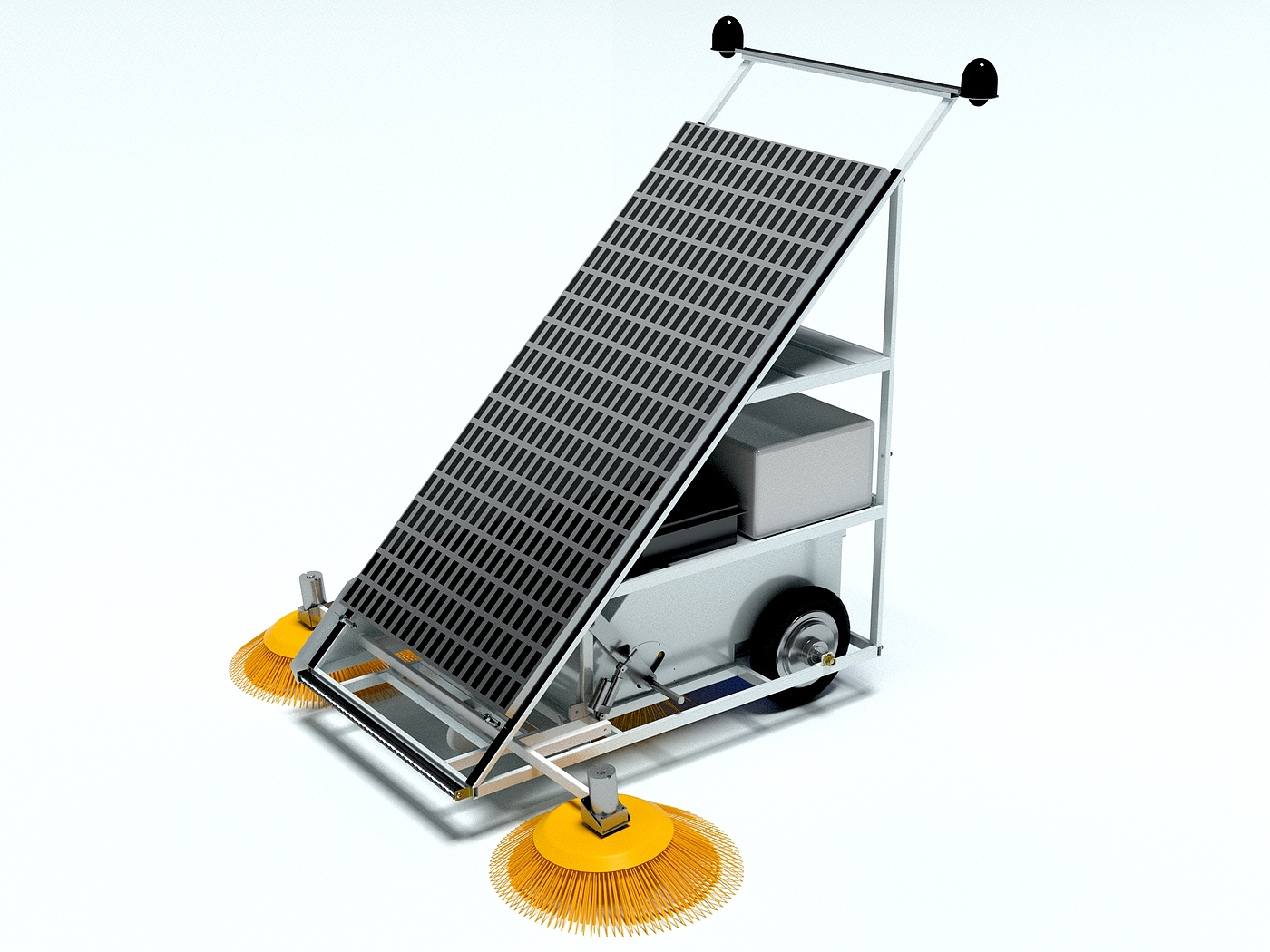

Each hardware of the internal prototype imported subsequently (if it is missing its own modeling completion)

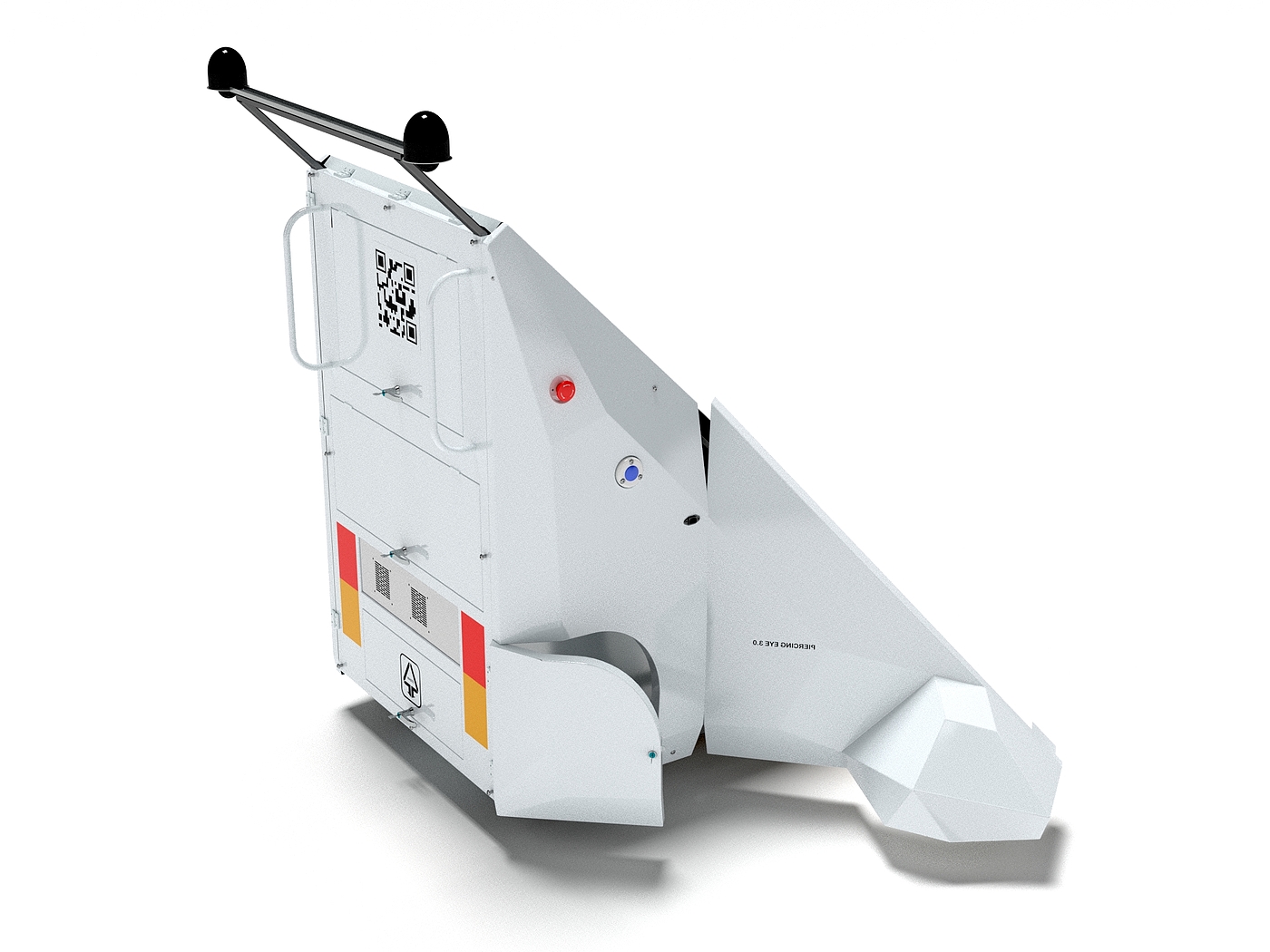

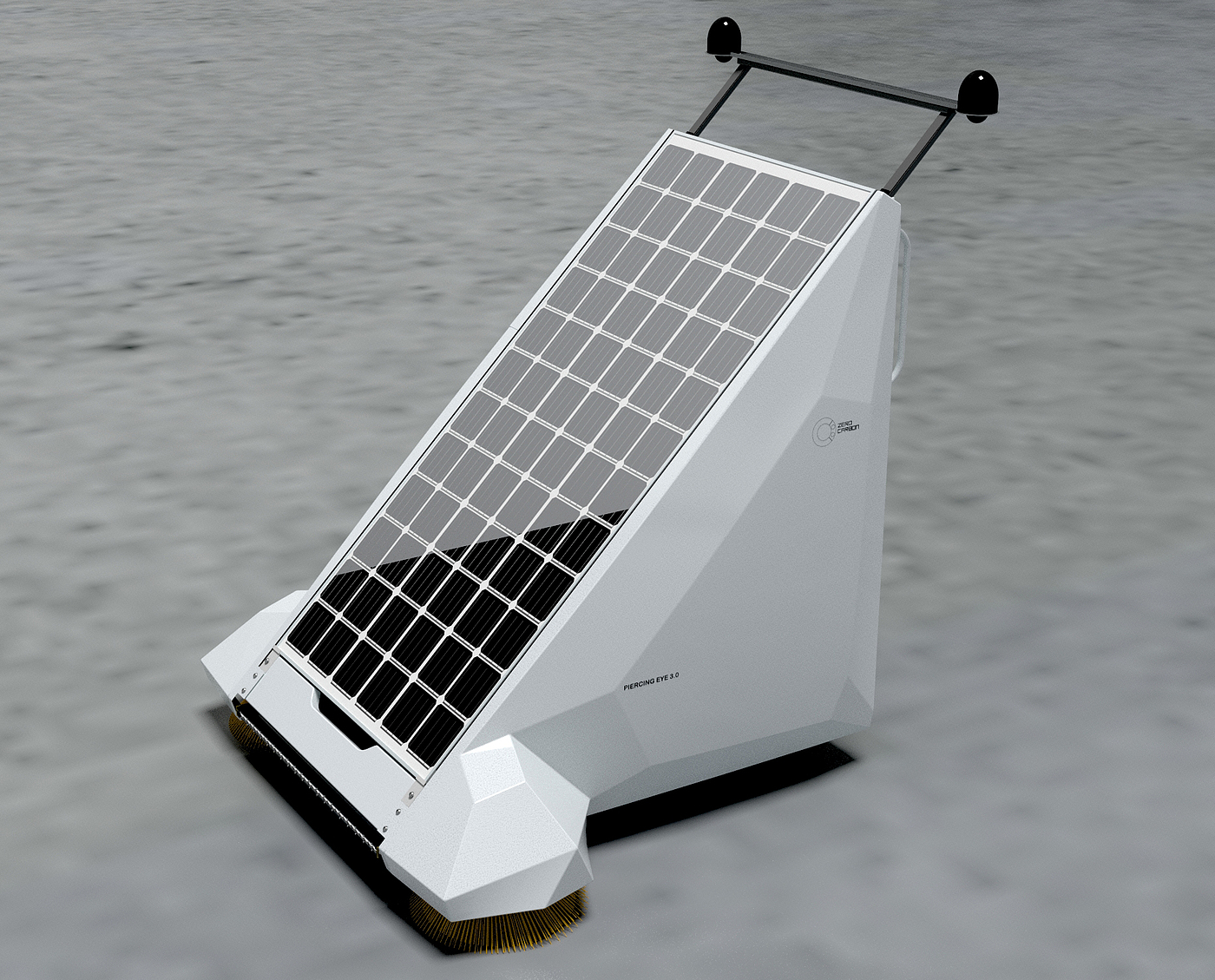

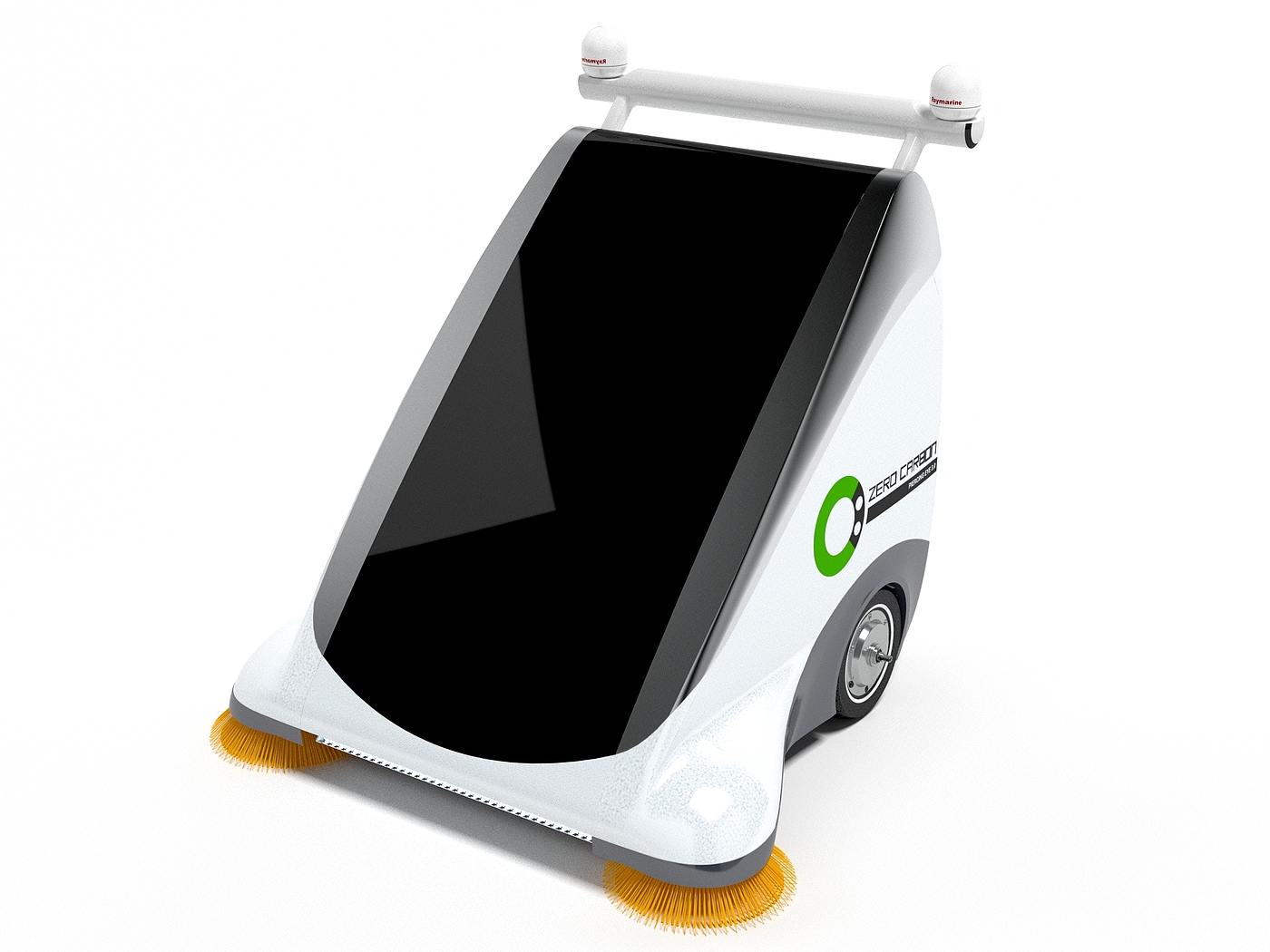

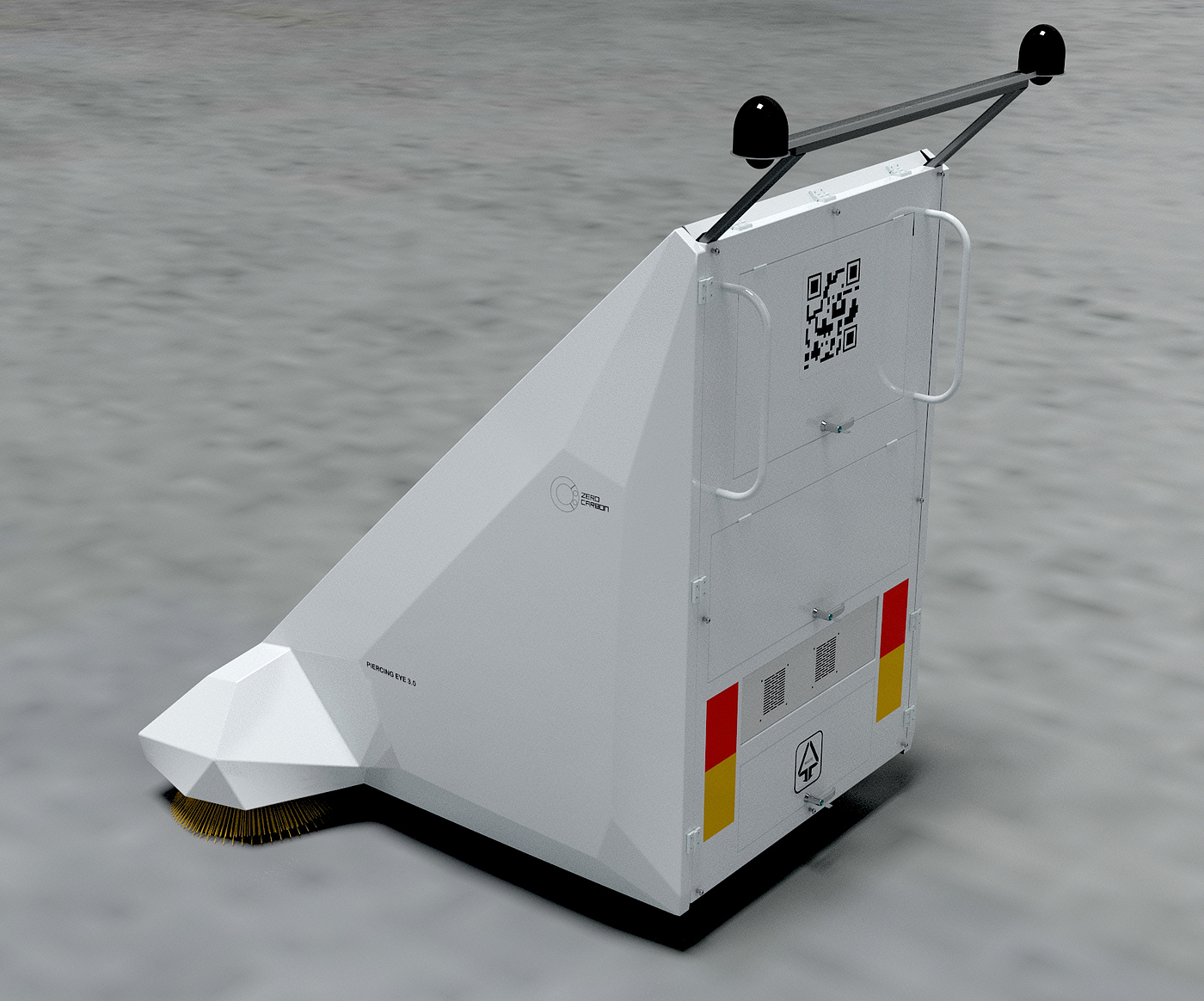

The second draft artificial intelligence diamond section modeling, including various functions.

The third draft is hand-drawn, planning to use cloth. (At that time, I didn't know why the boss wanted to use cloth, but in retrospect, the main reason is that the density of cloth technology is relatively low, about 1kg/m, which is not very clear.)

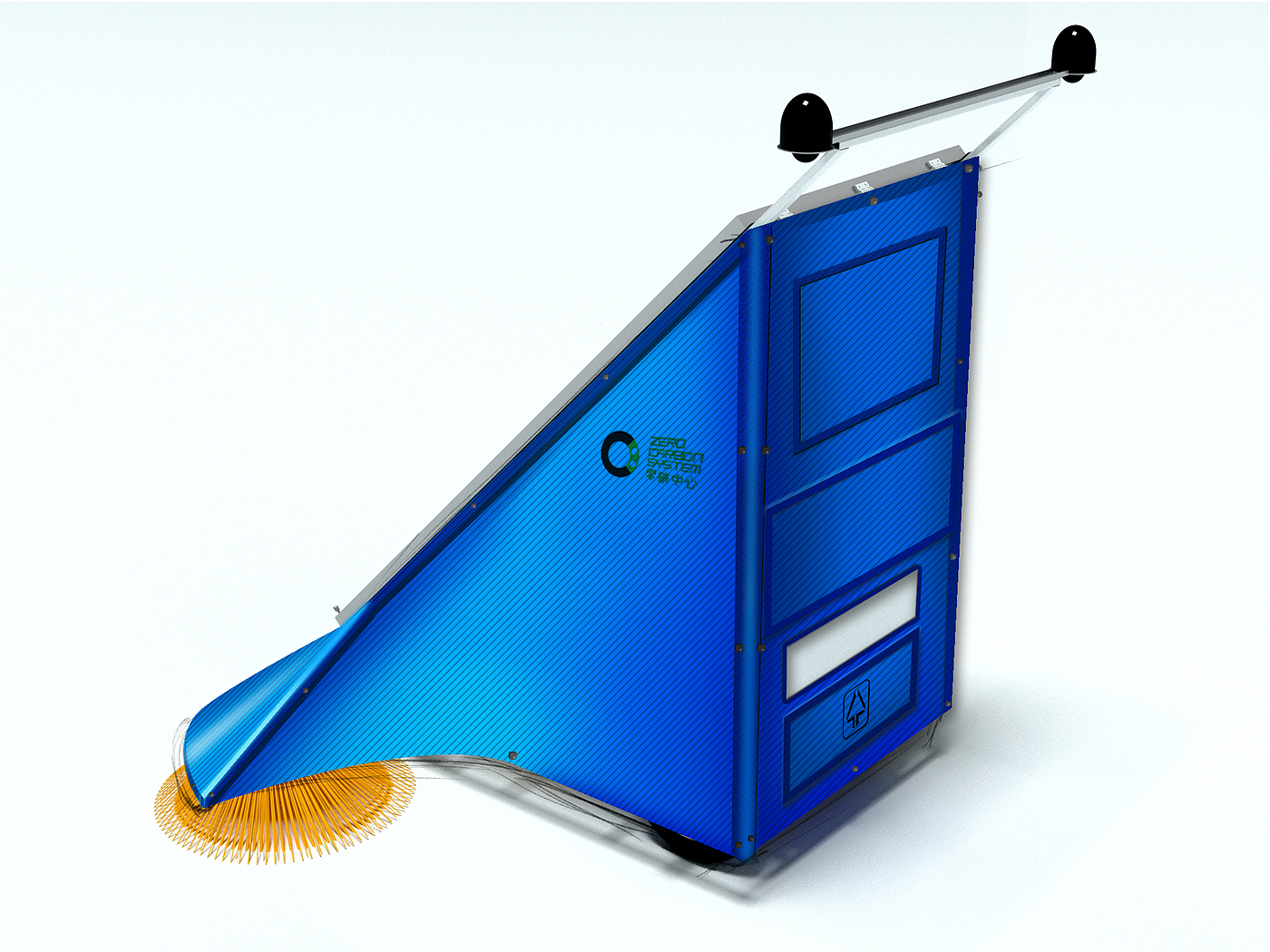

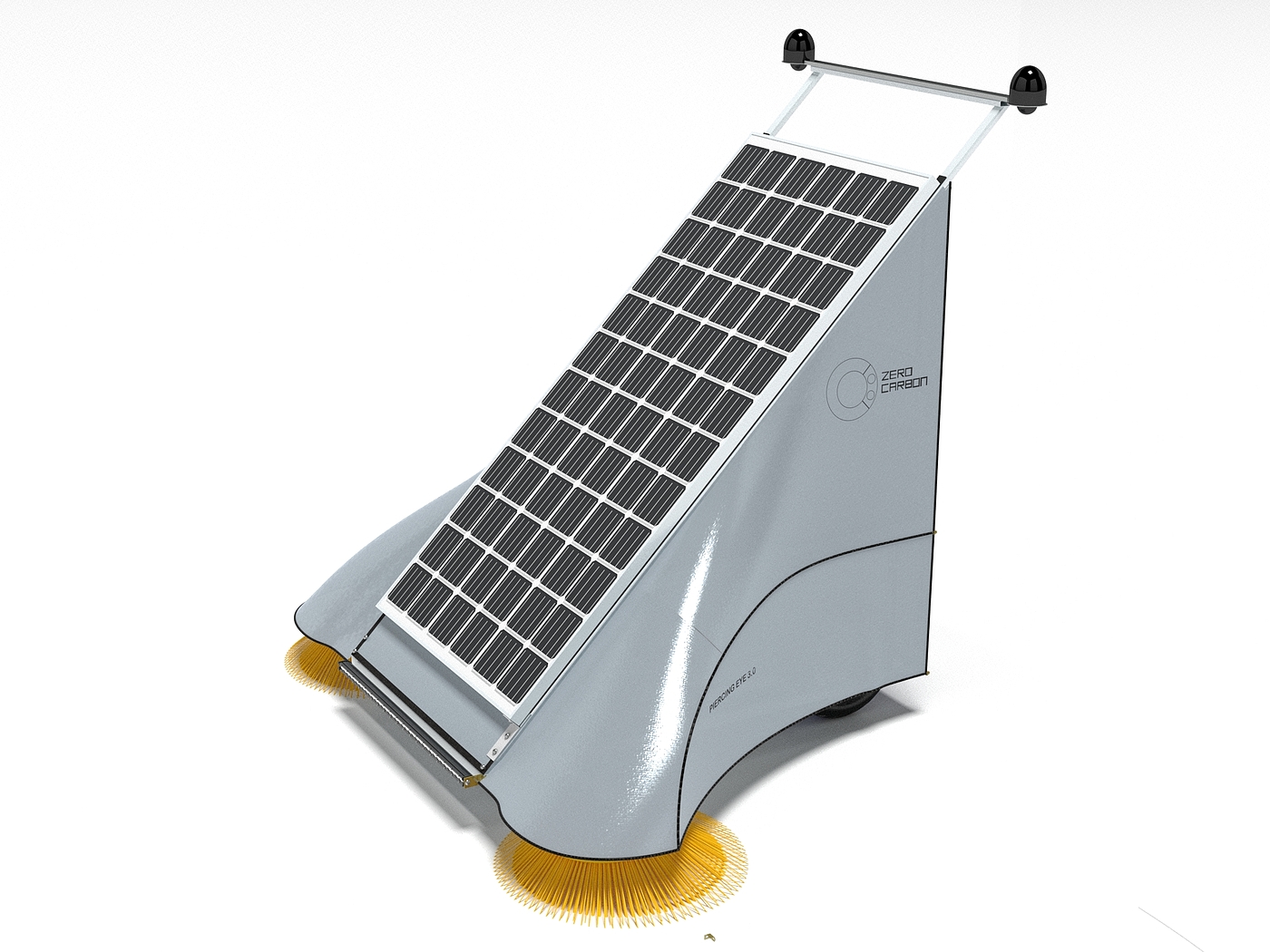

In the third draft, the fabric process is finished, and the fabric seems to be infeasible.

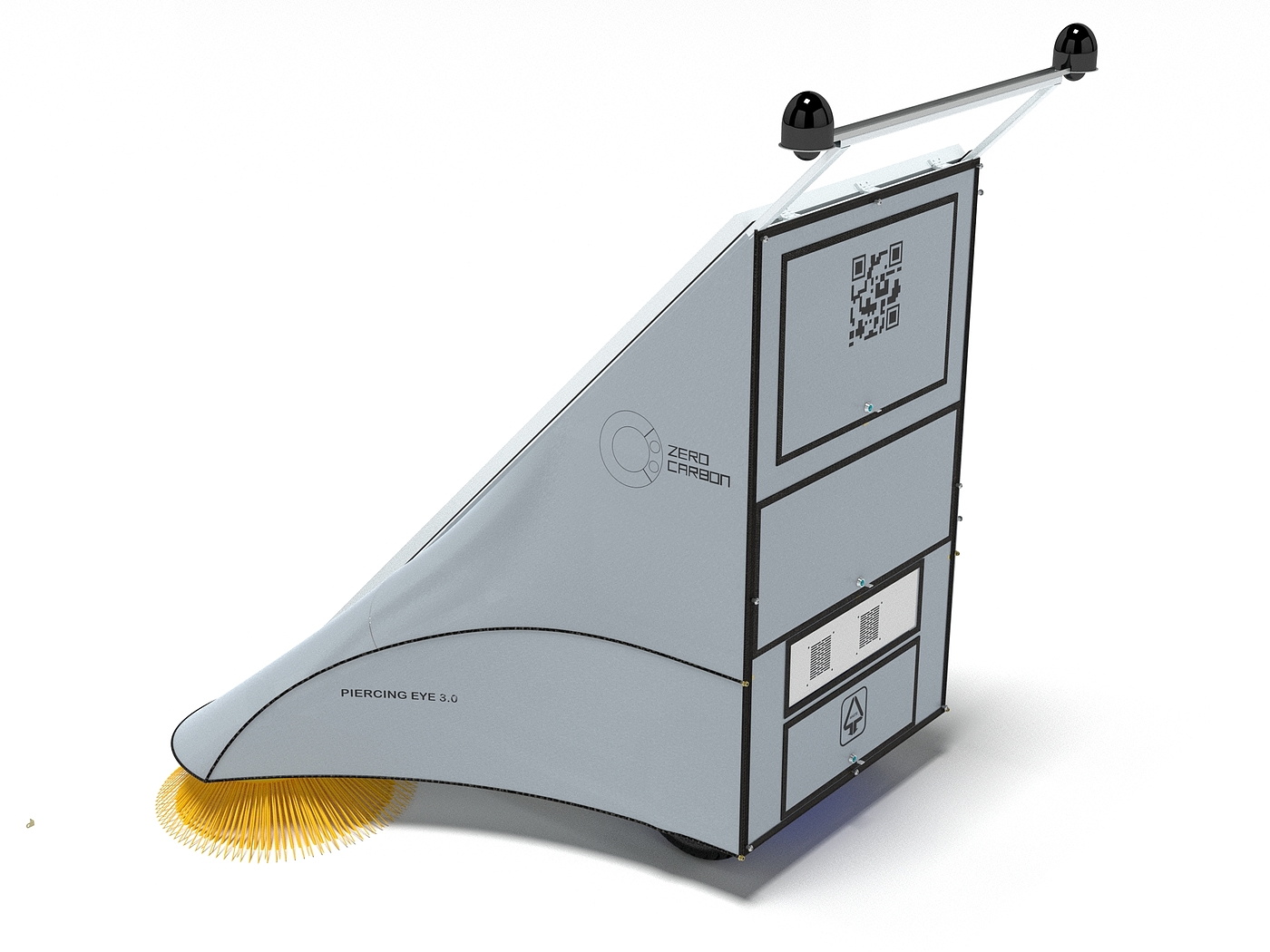

The third draft is another fabric craft.

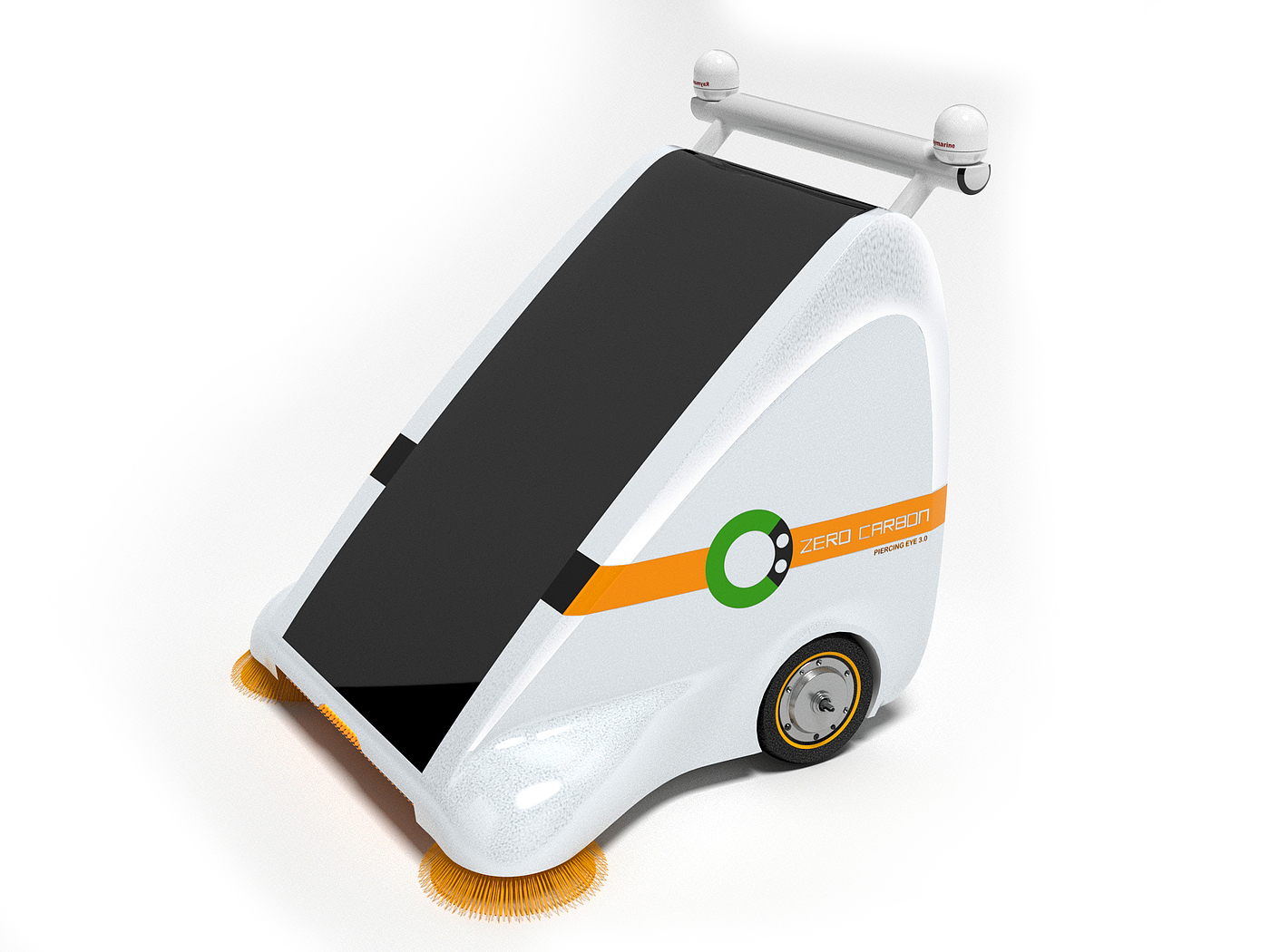

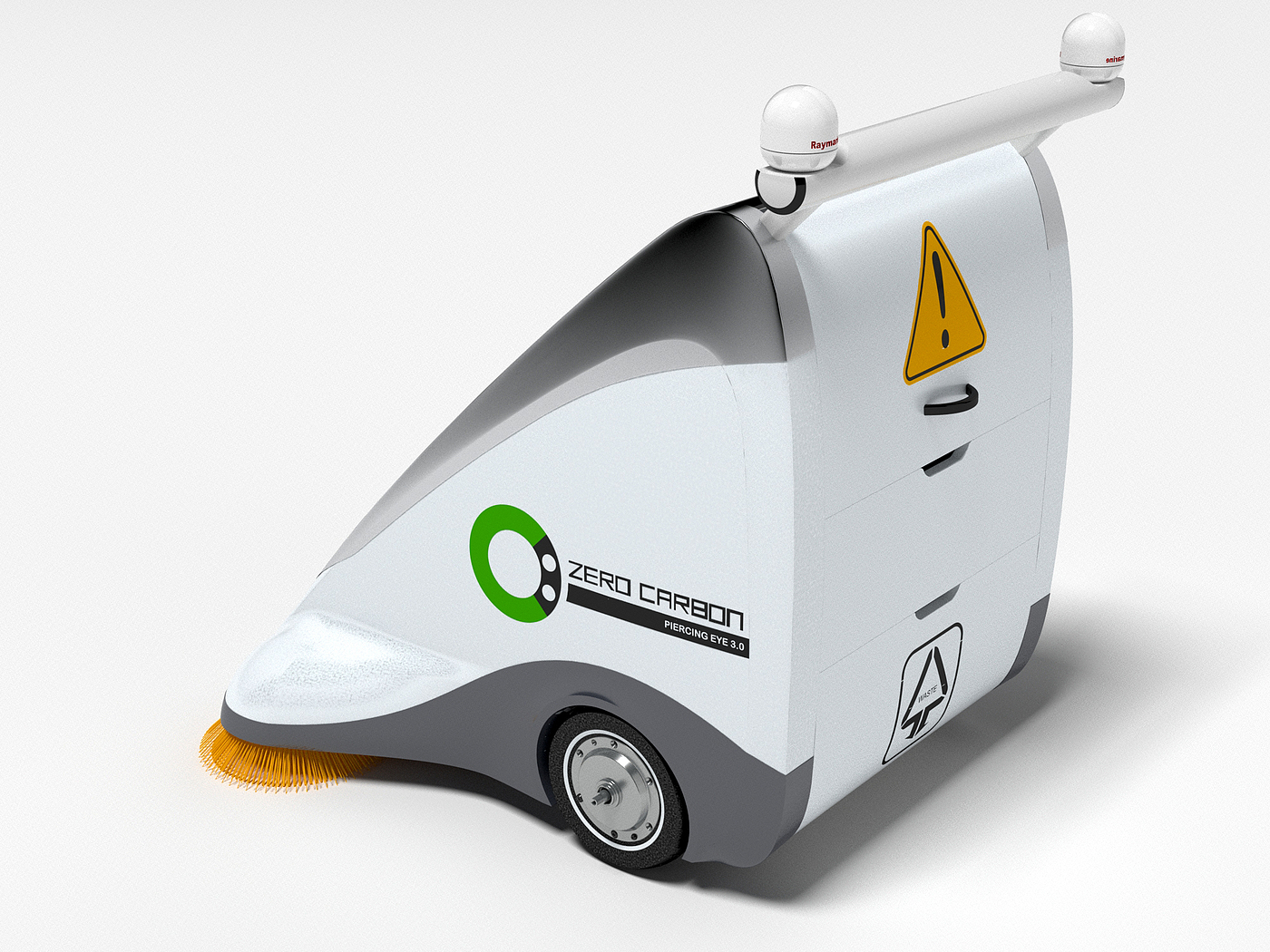

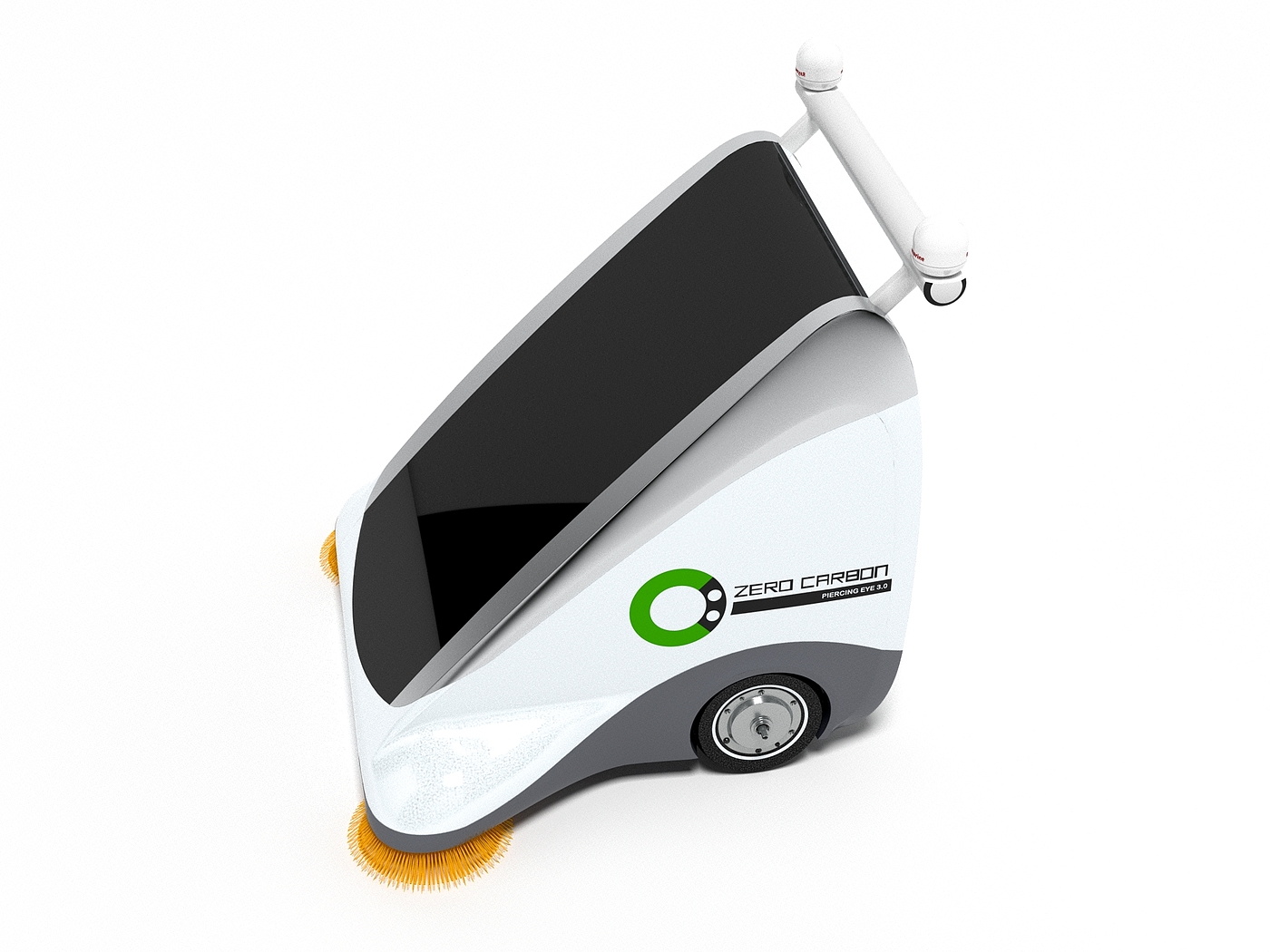

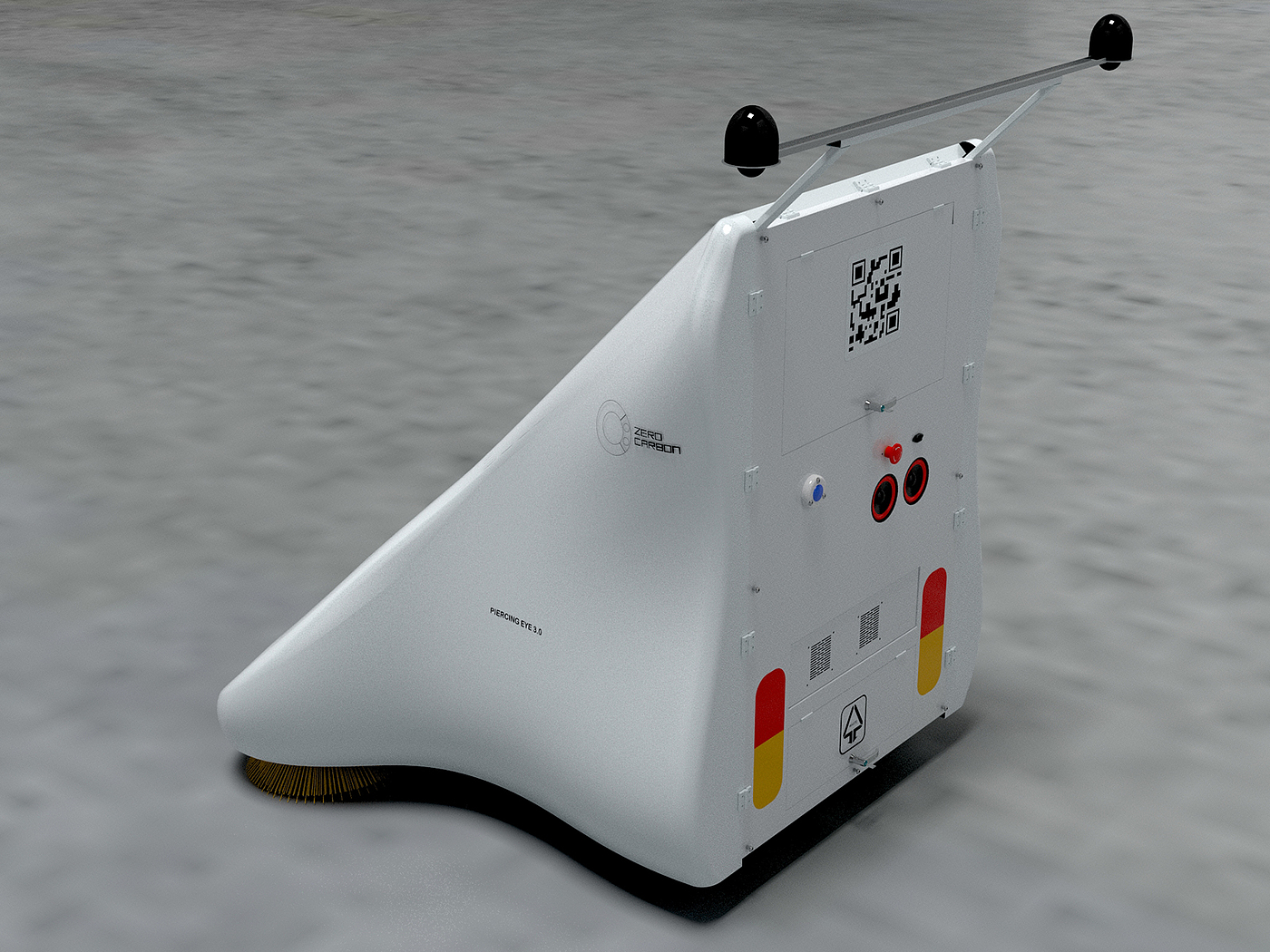

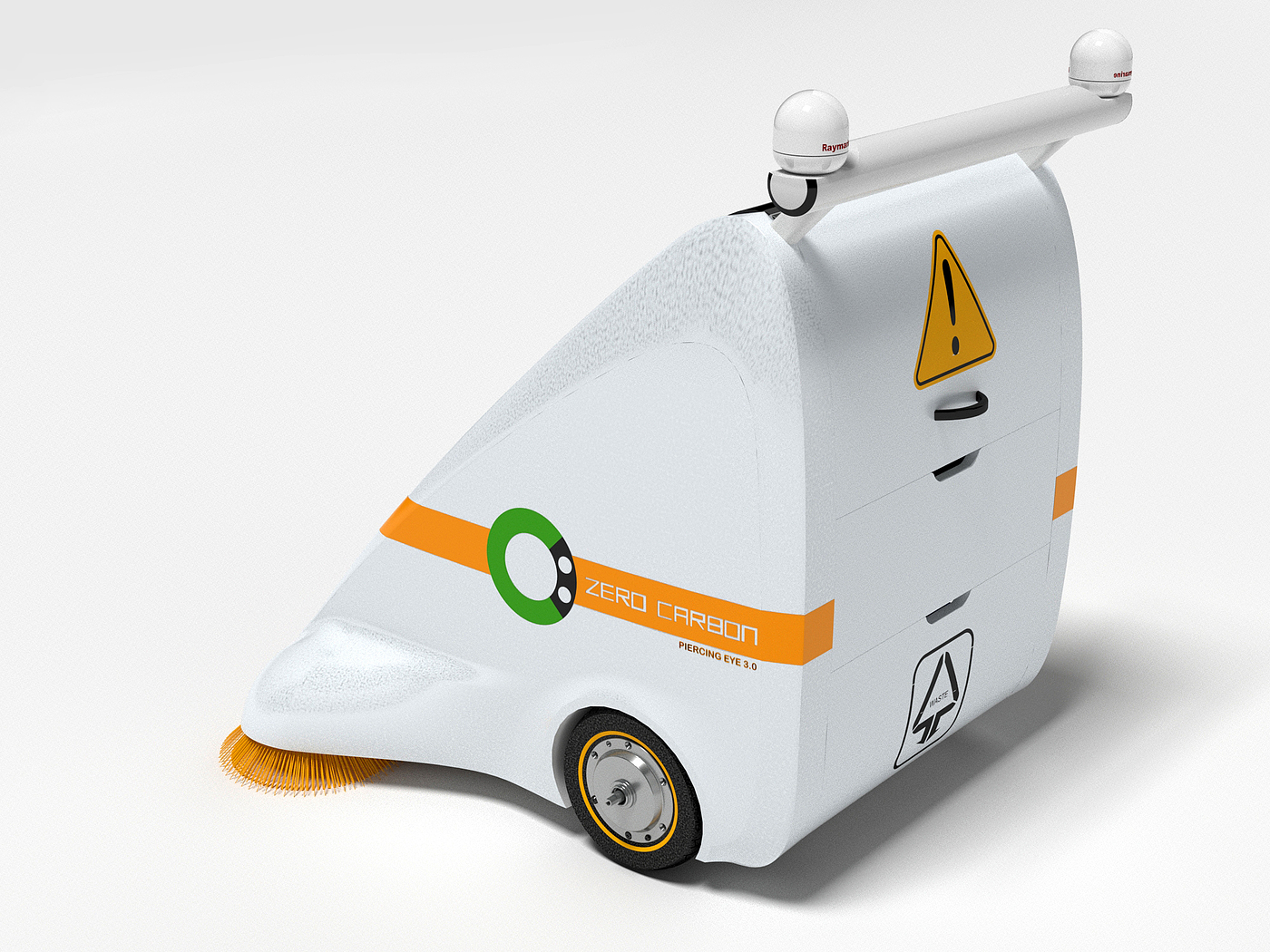

The fourth draft artificial intelligence white dolphin modeling. (It already smells like the finished product)

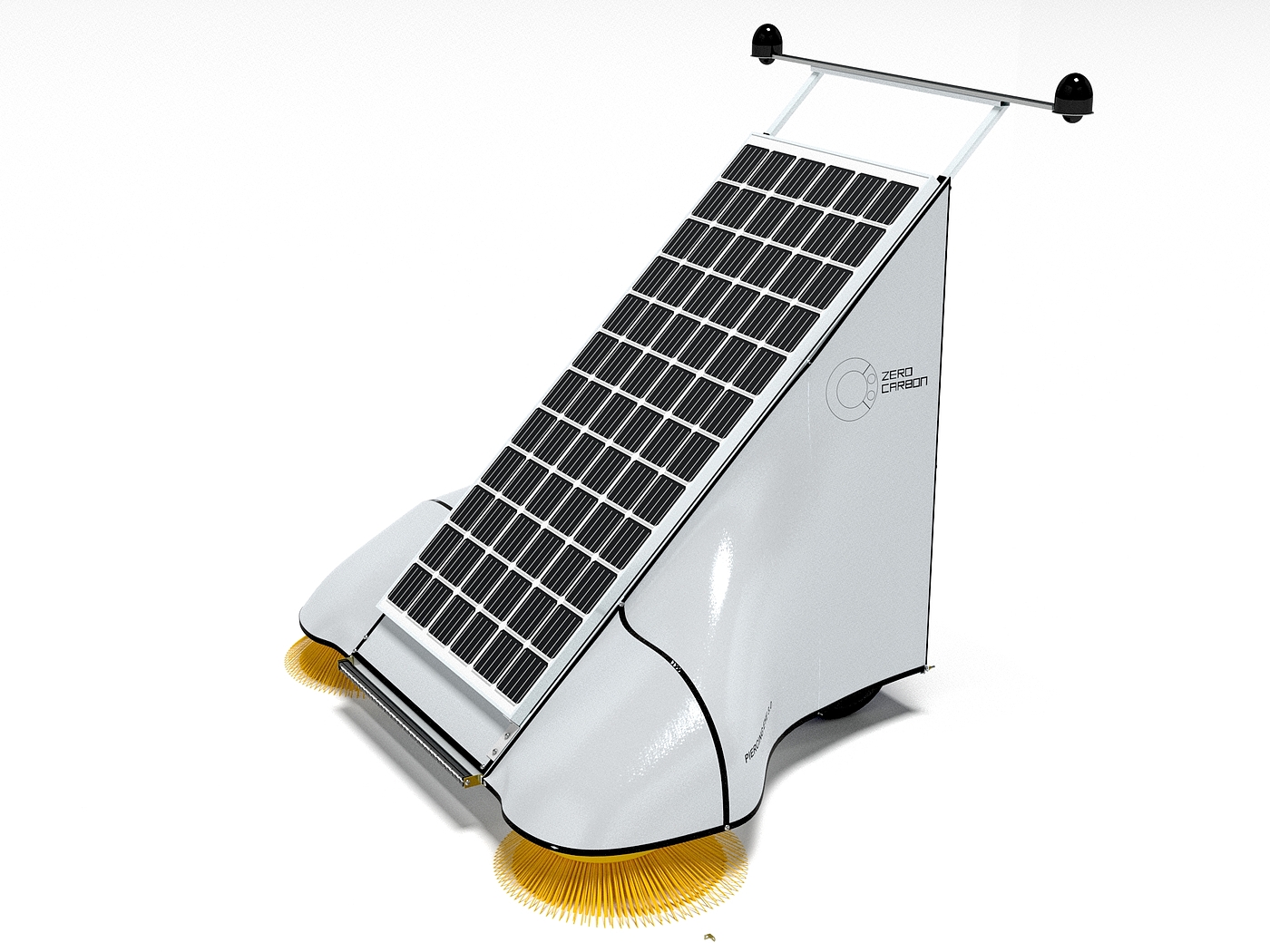

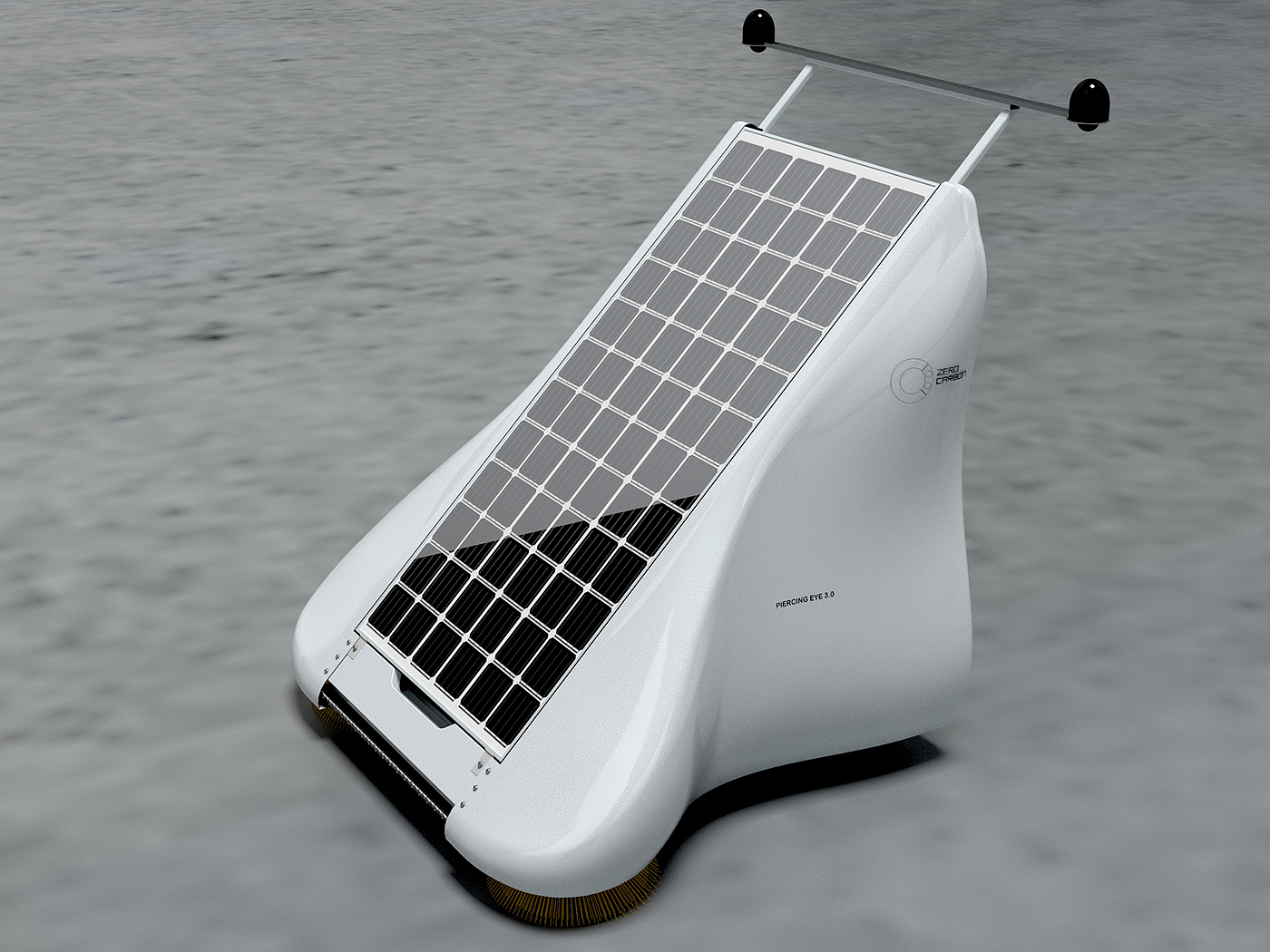

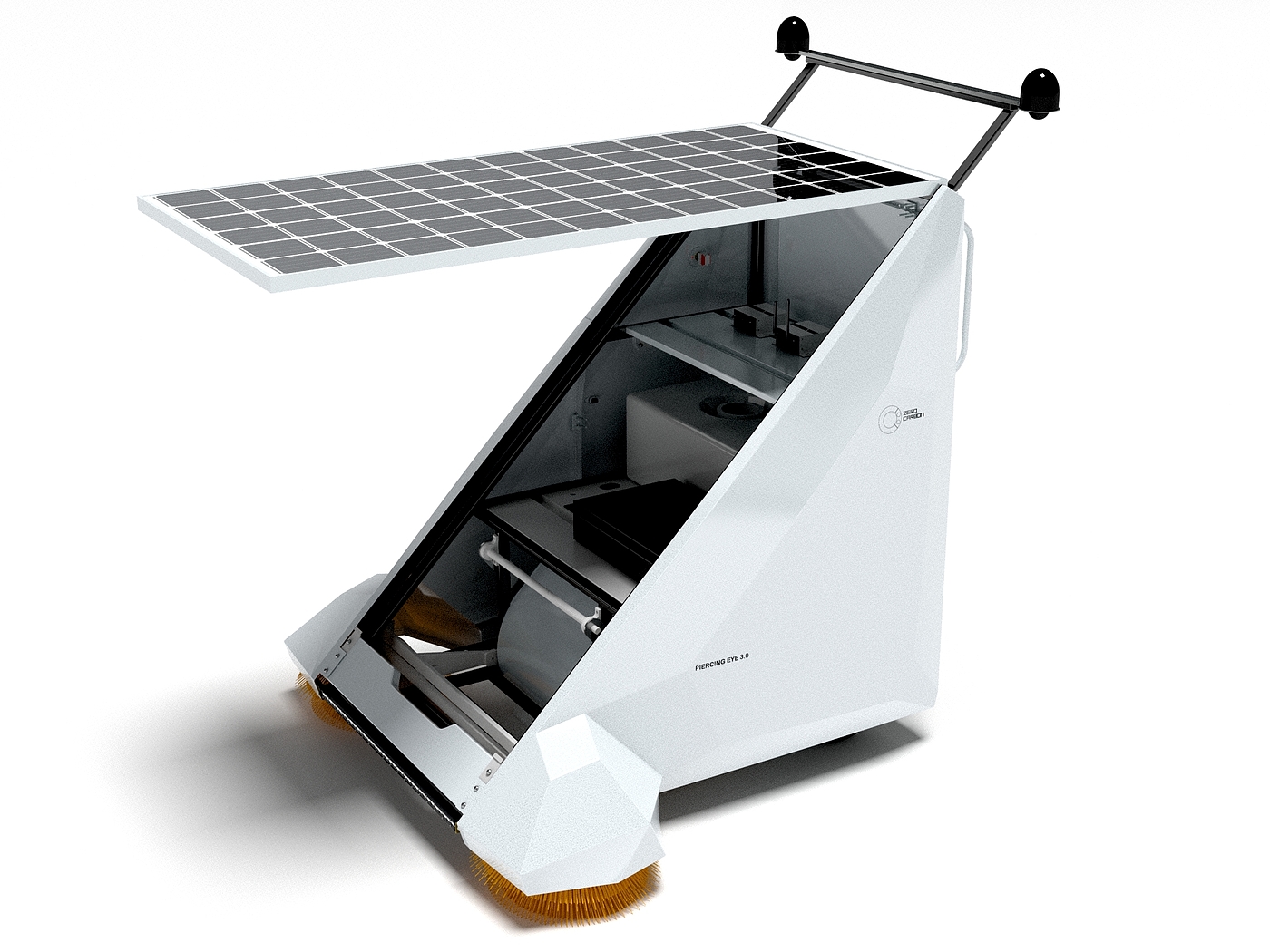

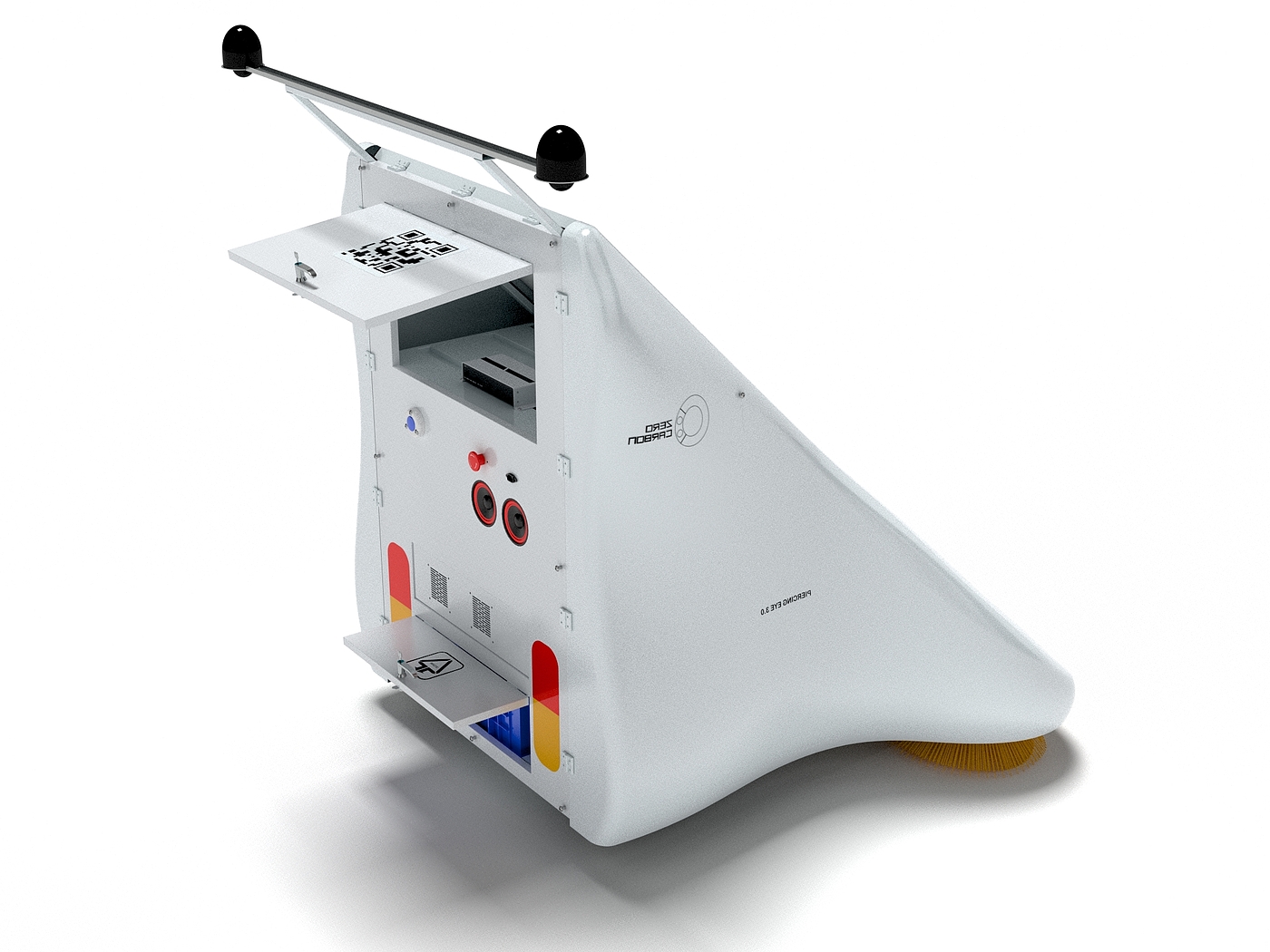

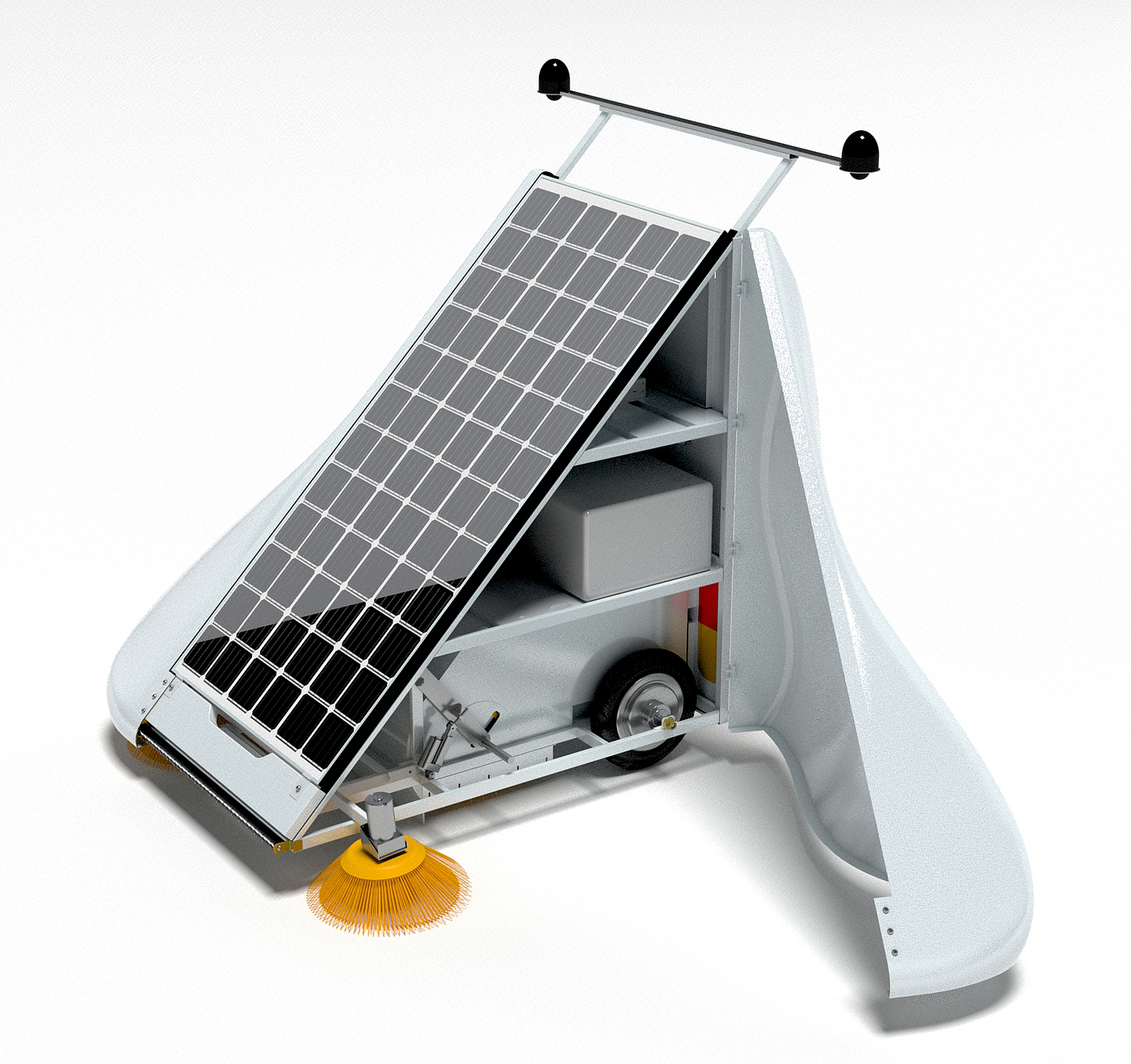

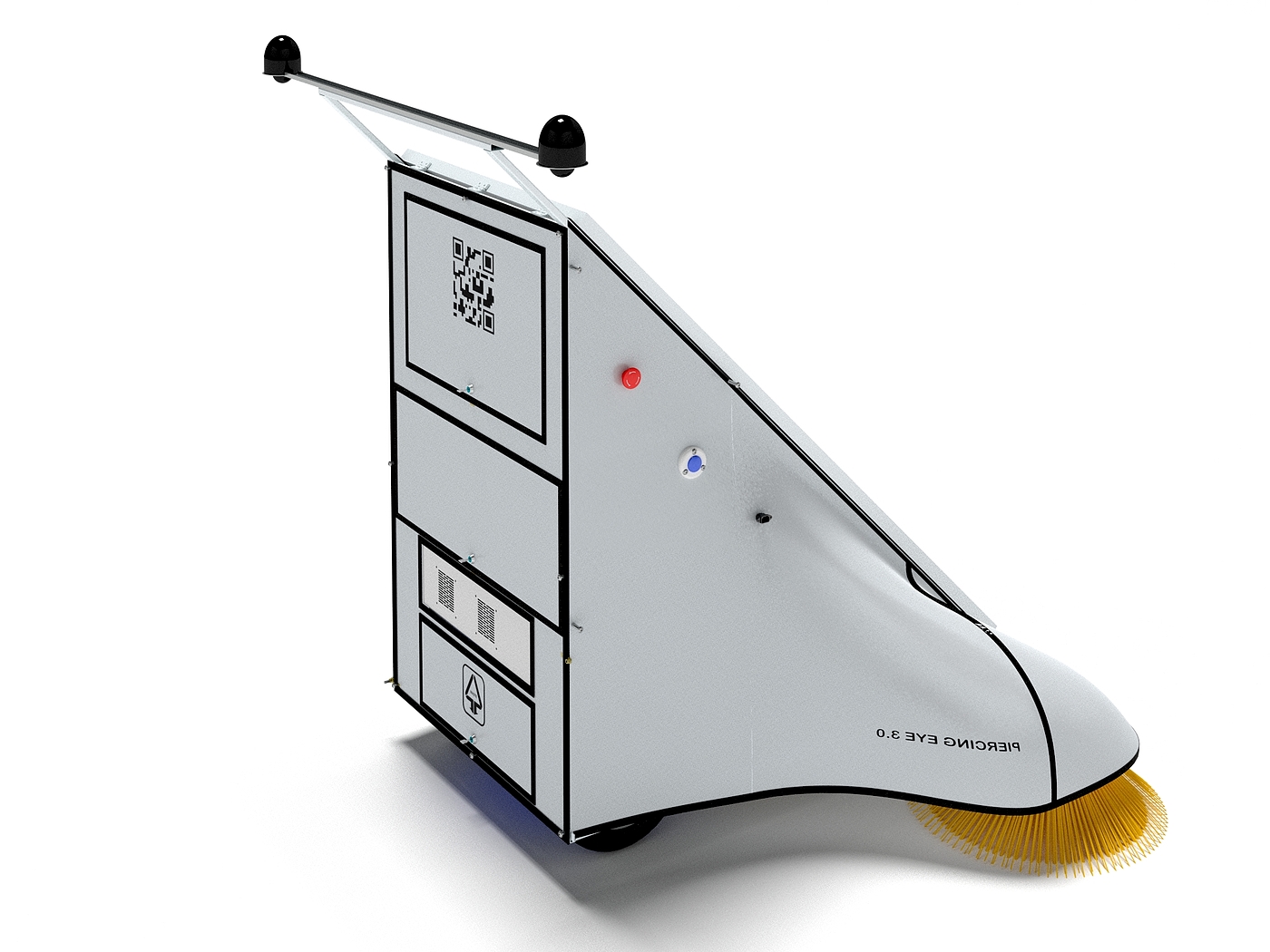

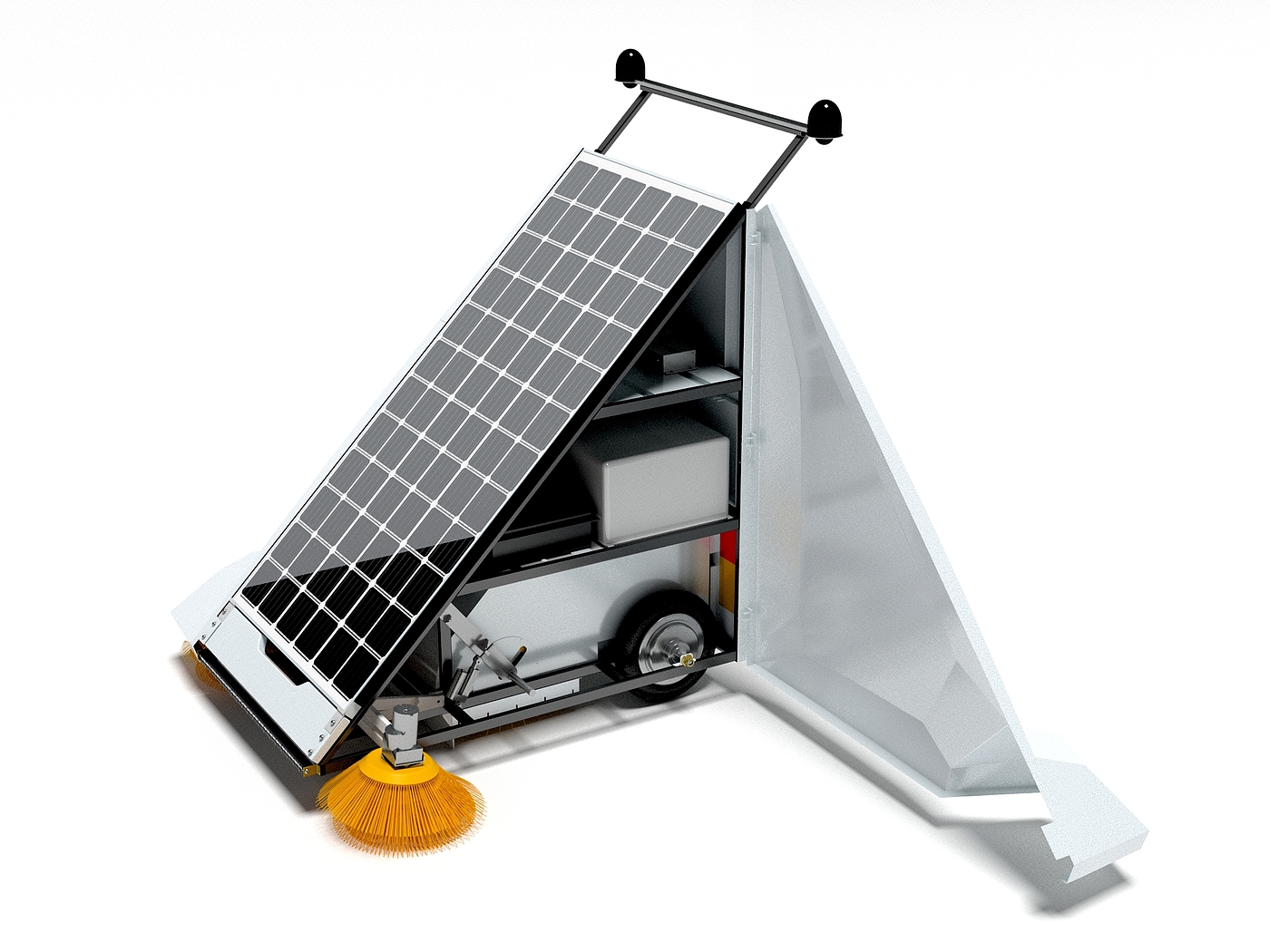

Fifth, because of the replacement of the internal structure, try to restore it through the new internal structure. And added a hundred million points of detail. After finishing, my heart has collapsed, but there are still too many deficiencies.

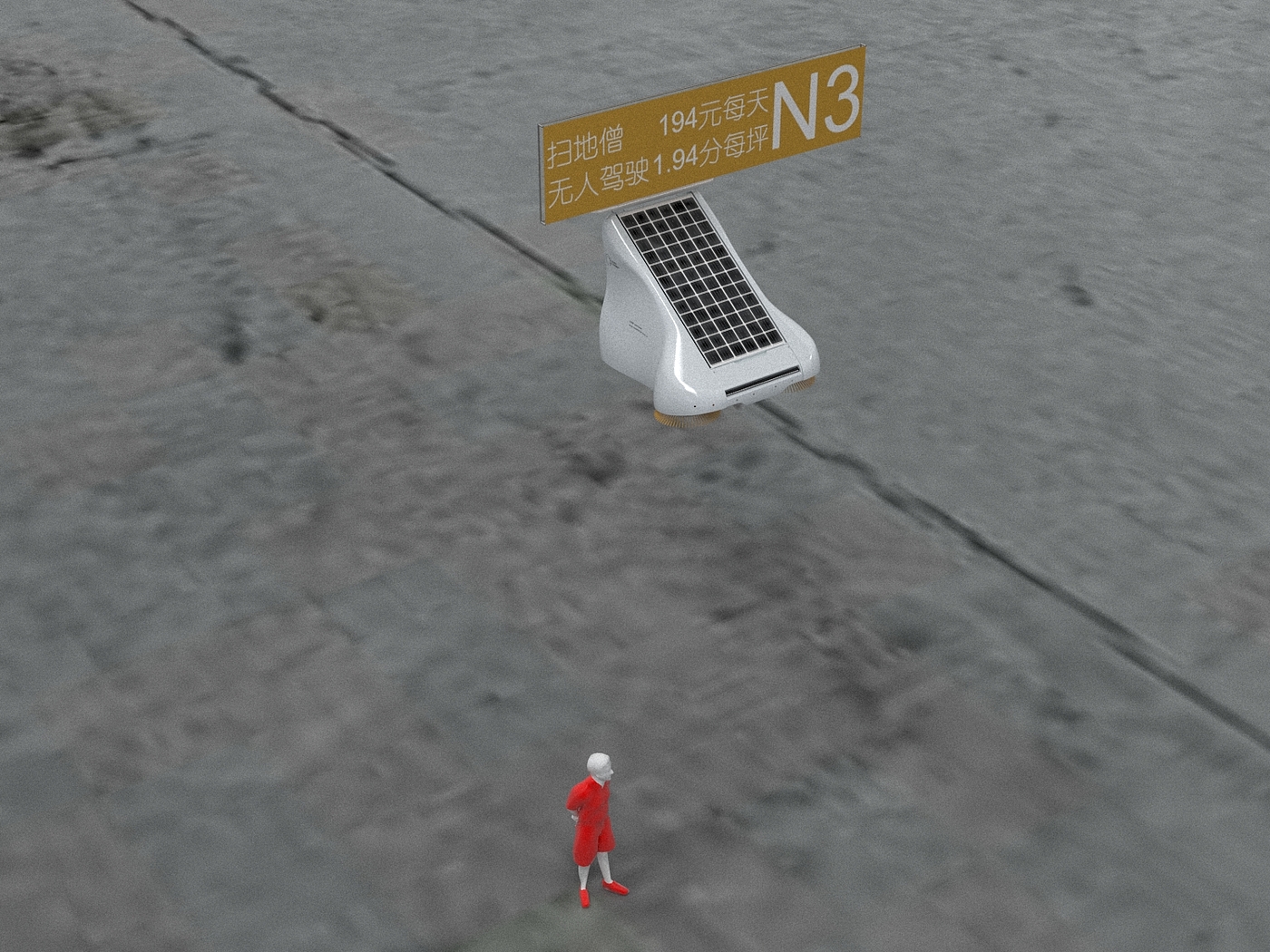

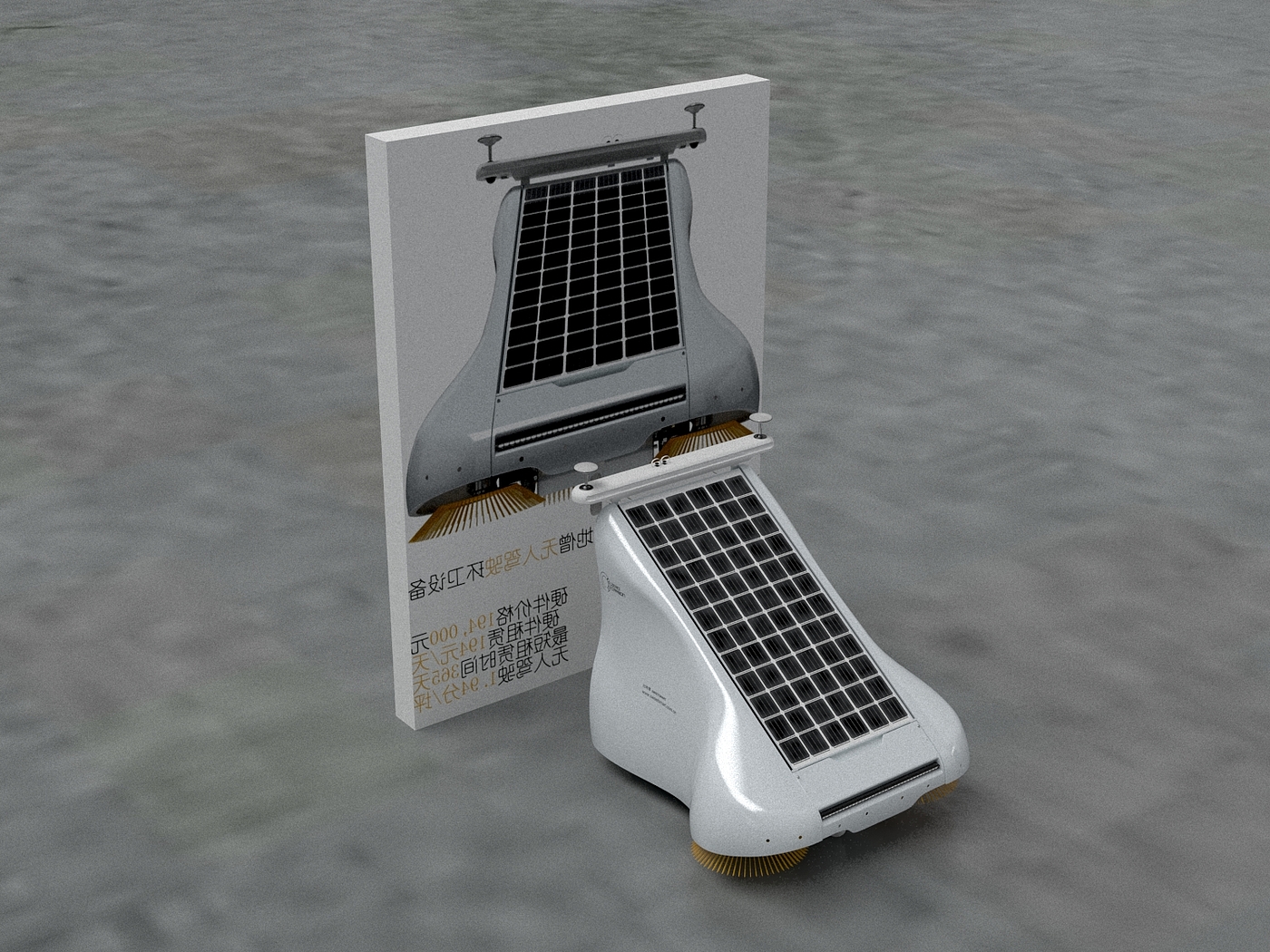

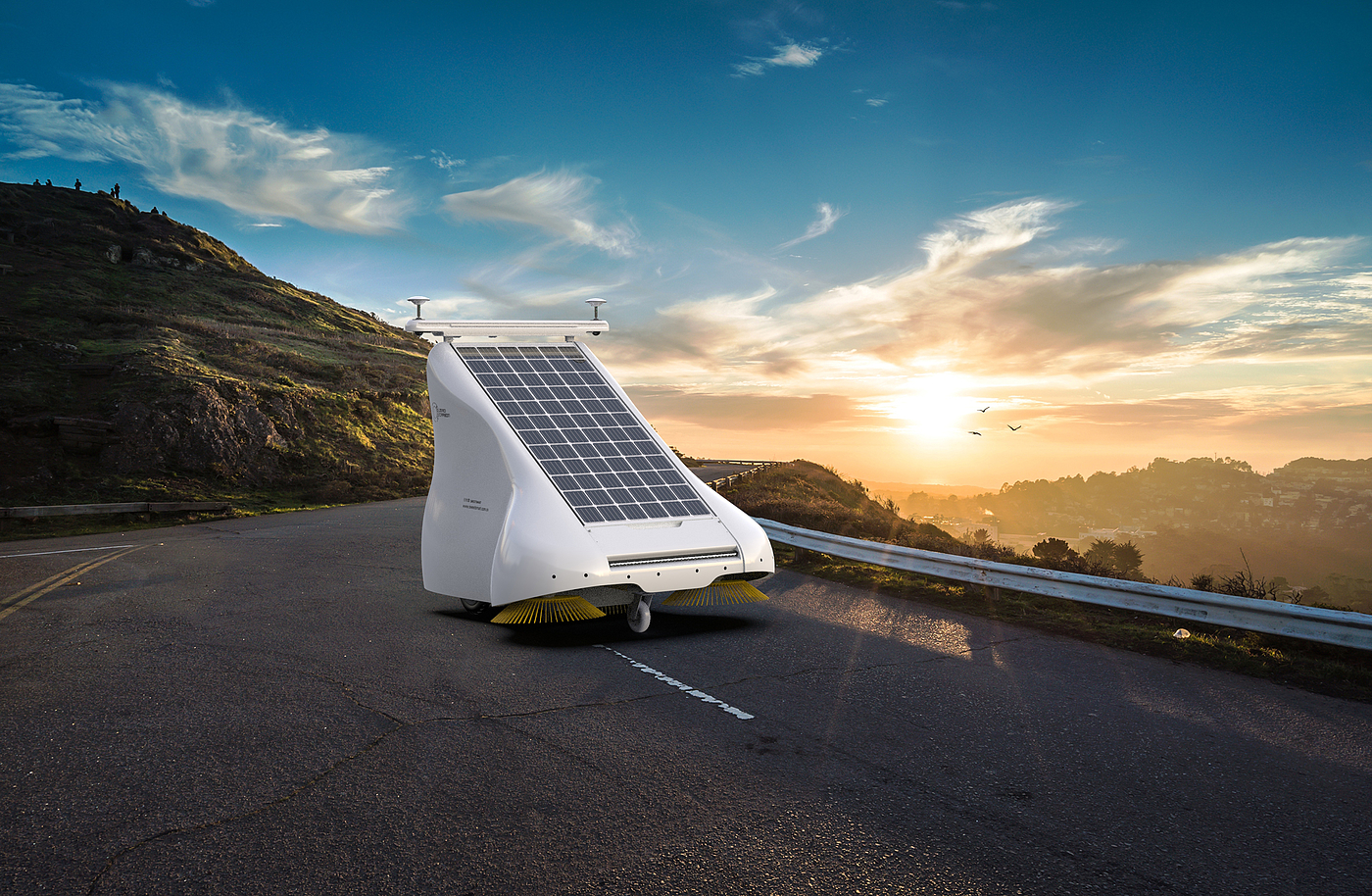

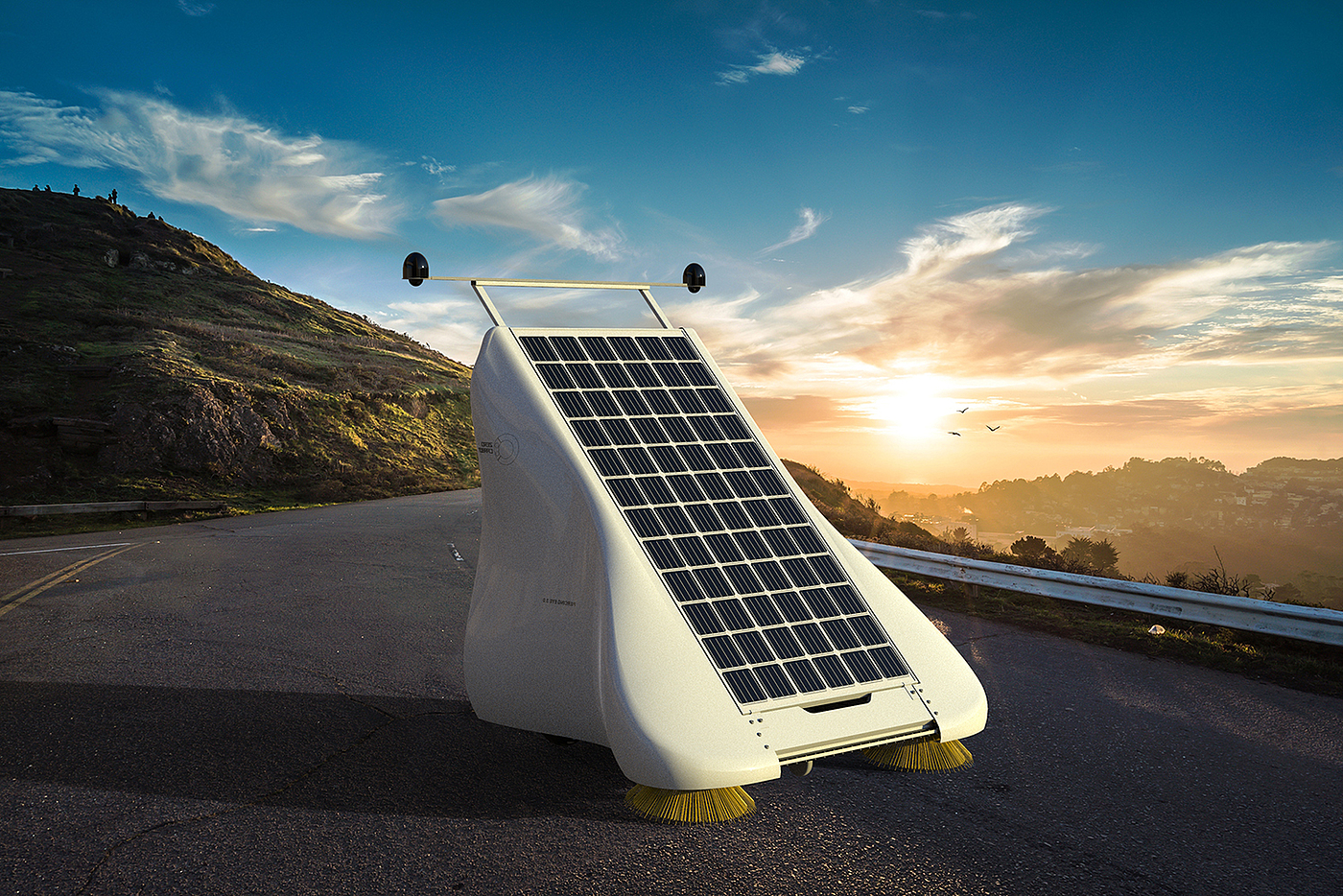

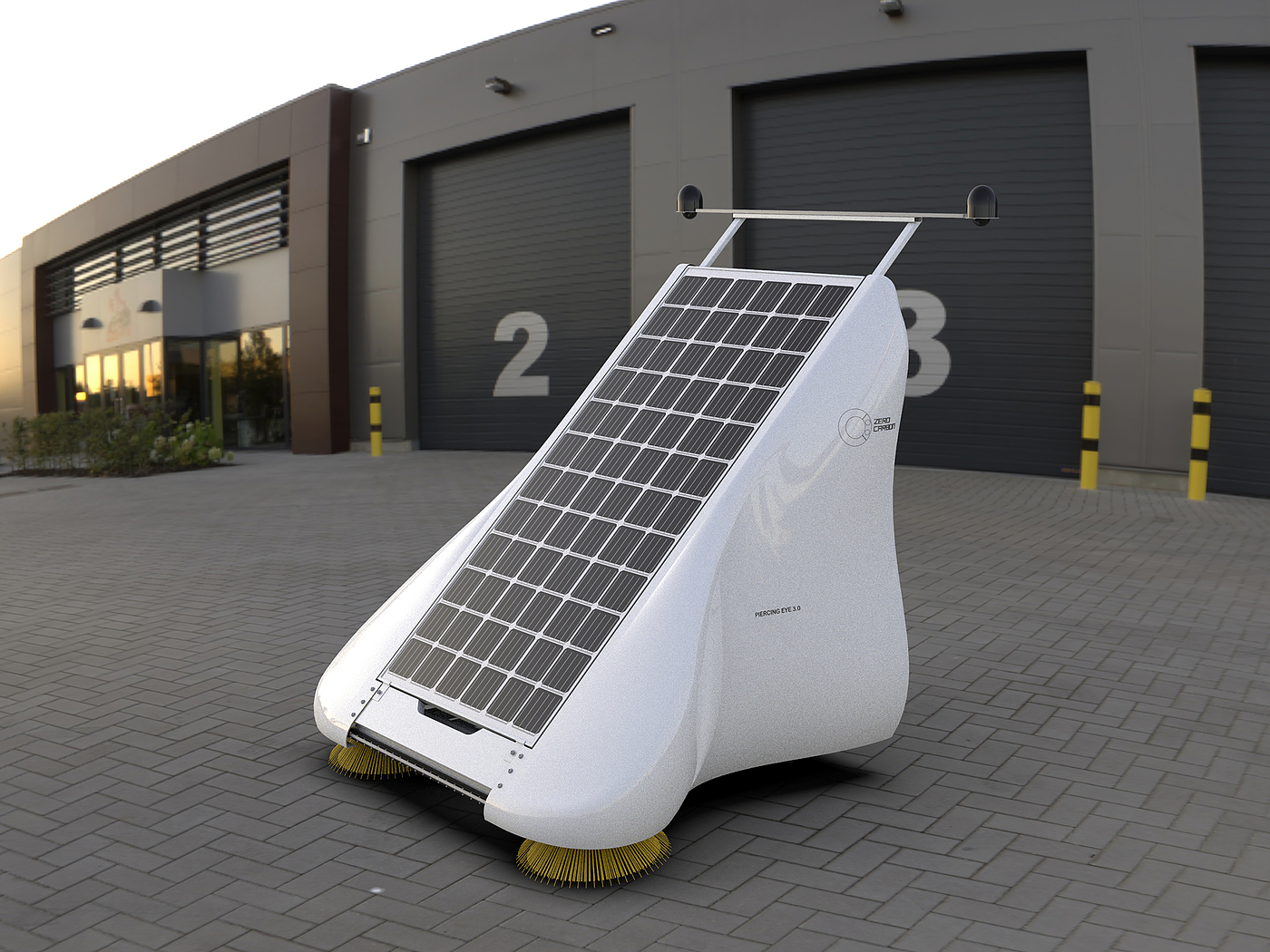

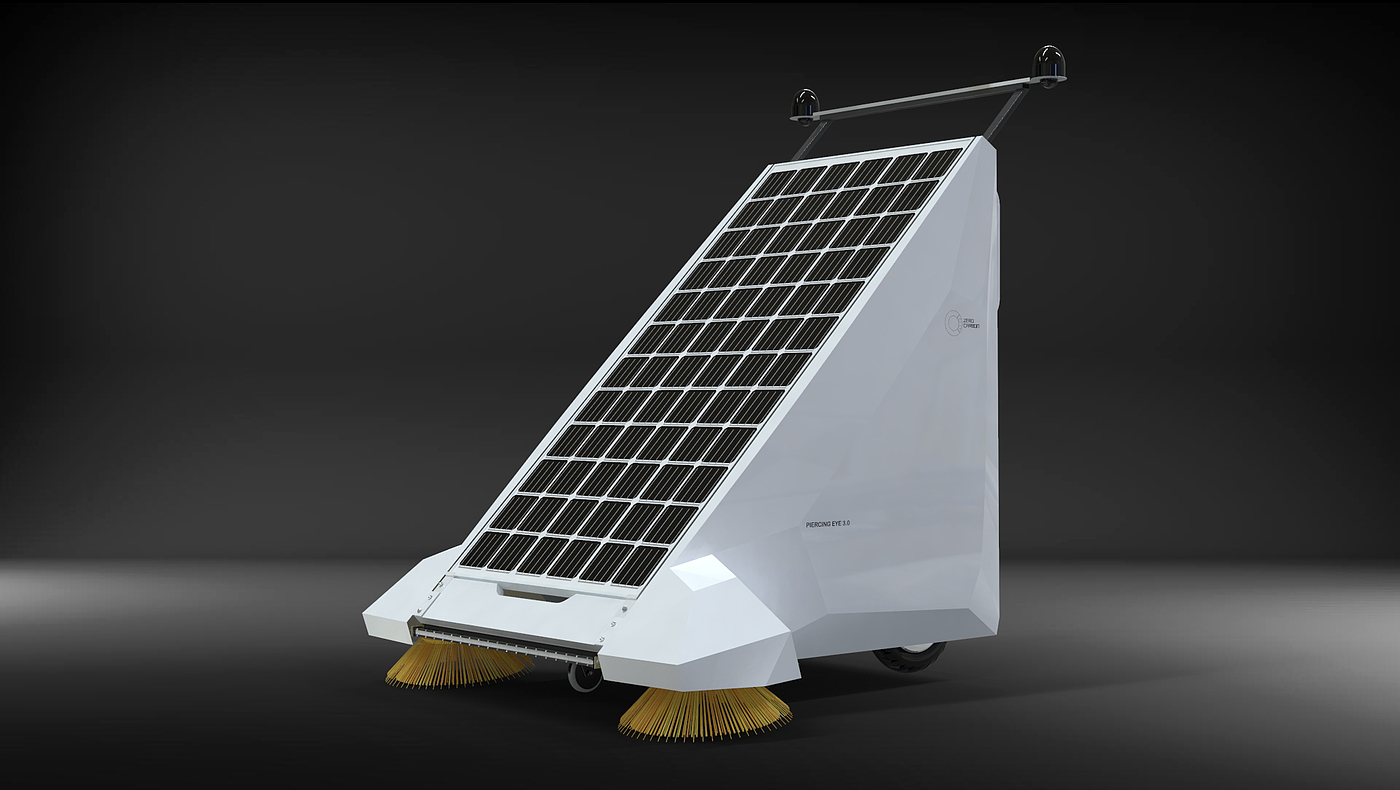

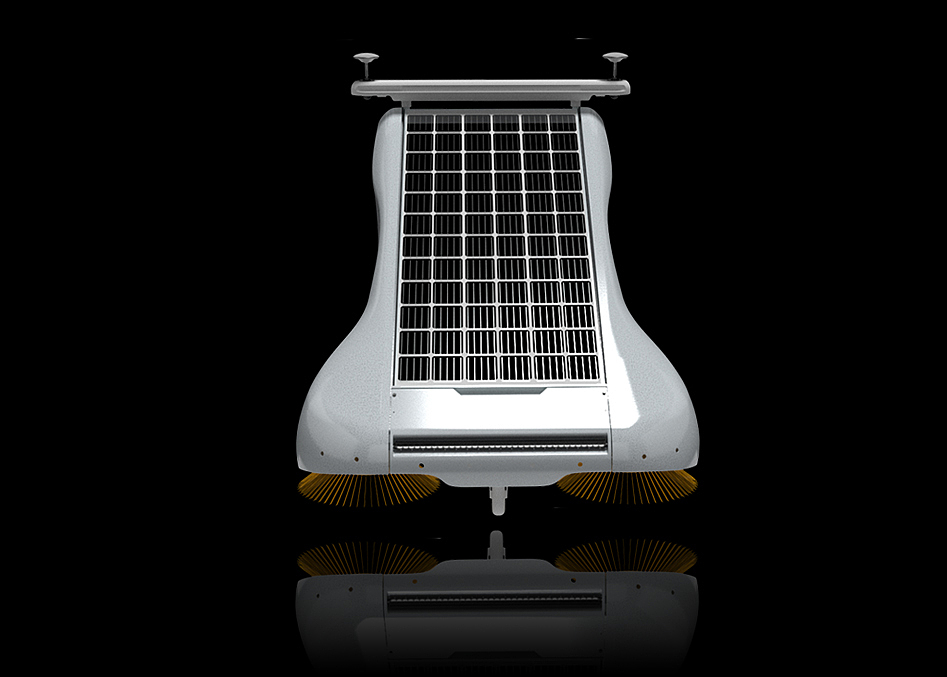

Several renderings of magic realism

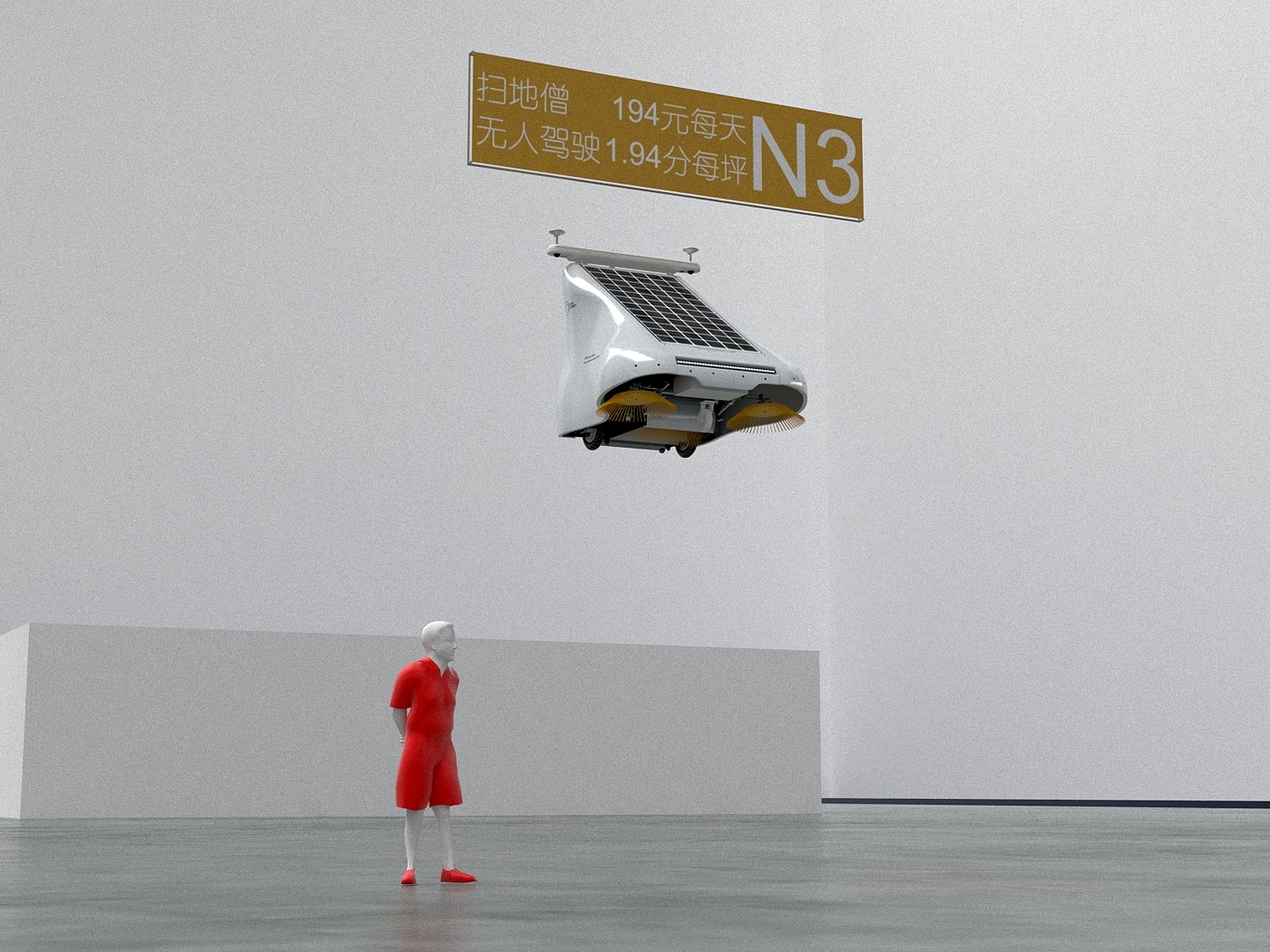

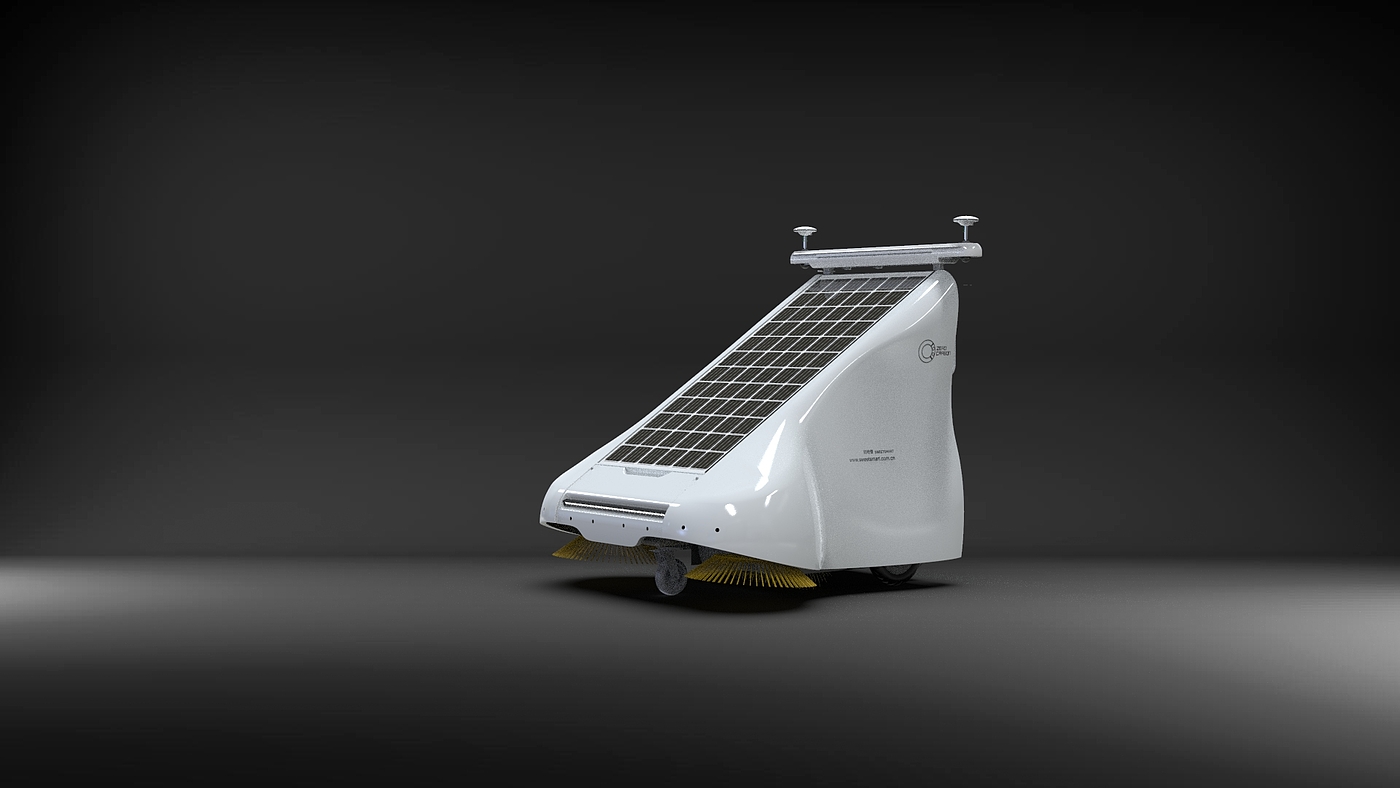

The rendering of the unmanned sweeper for secondary publicity found later. (It seems that the design is getting uglier and uglier)
The result of this design is quite good. 11 sets were produced, three sets were sold, two sets were used for sweeping and cleaning in a city in the Yangtze River Delta, and one set was used for scientific research and education test programming in a university. The price of each set is almost 500,000 or more.

54 81

时珂设计 2022-05-24

The Yangtze River Delta city is Yangzhou, and the landing is Qilihe Park. It cannot be called landing, which is a test. There is no ugliest industrial waste, only uglier industrial waste. The solar panel is charged for 24 hours and used for 15 minutes. Visual navigation is completely useless. You must follow two people after using it. You can't spit it out.

太空大菠萝作者 2022-05-24

First of all, I want to say, are you a bomber. I don't think I 've offended anyone. In the end, the product is not decided by the industrial designer. With so many links to overcome, I can only achieve the concept and scheme stage. It is impossible to do all the links. Have you ever been addicted to your mouth.

I said there were many deficiencies, and I didn't say I was a big boss. It also expresses the pain in my design.

Forget it, forget it, to be honest, when designing these two driverless cars, I felt a little suicidal. Just say whatever you want.

To understand the difficulties of designers, the boss's brain circuit that provides concepts is also unique. It is basically to cheat government subsidies.
