I accidentally received Mijia LED intelligent desk lamp, which is the first desk lamp product after the cooperation between yeelight and Xiaomi. Obviously, the sales of this desk lamp were very successful, and it was also a product that helped Xiaomi win the first German IF gold award.
There are four selling points in the official announcement: no visual strobe; Brightness, color temperature, stepless adjustment; Specialized scenes; Simple design.

The packaging is still the same as before, and the shock absorption treatment design has been made, but there is still a little waste of space for such a large box with a small desk lamp.

Remove the shock-absorbing structure table lamp and it will come out. The whole table lamp is integrated and does not need to be assembled again.

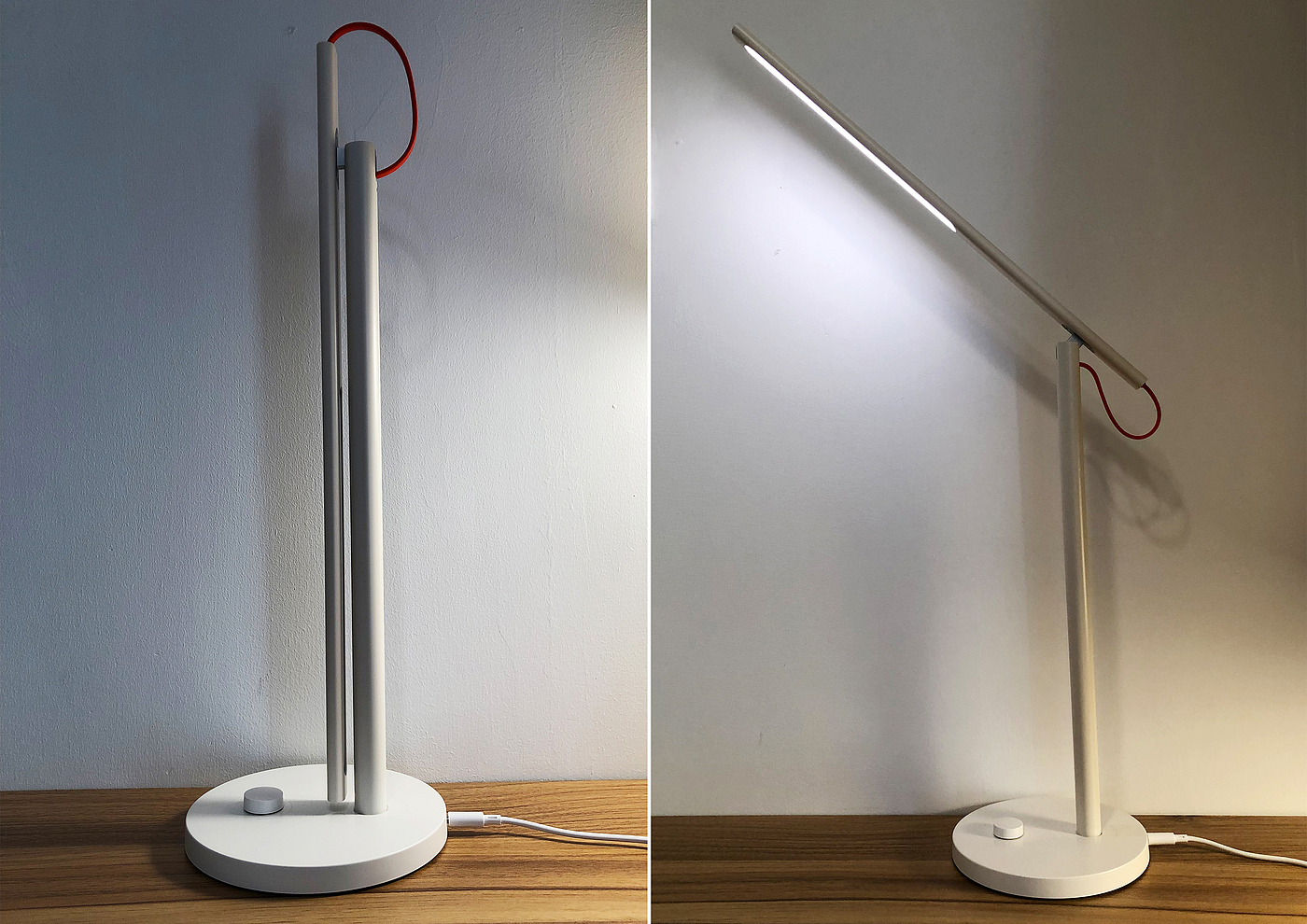

The rotation angle of the light pole is about 0-135 °.

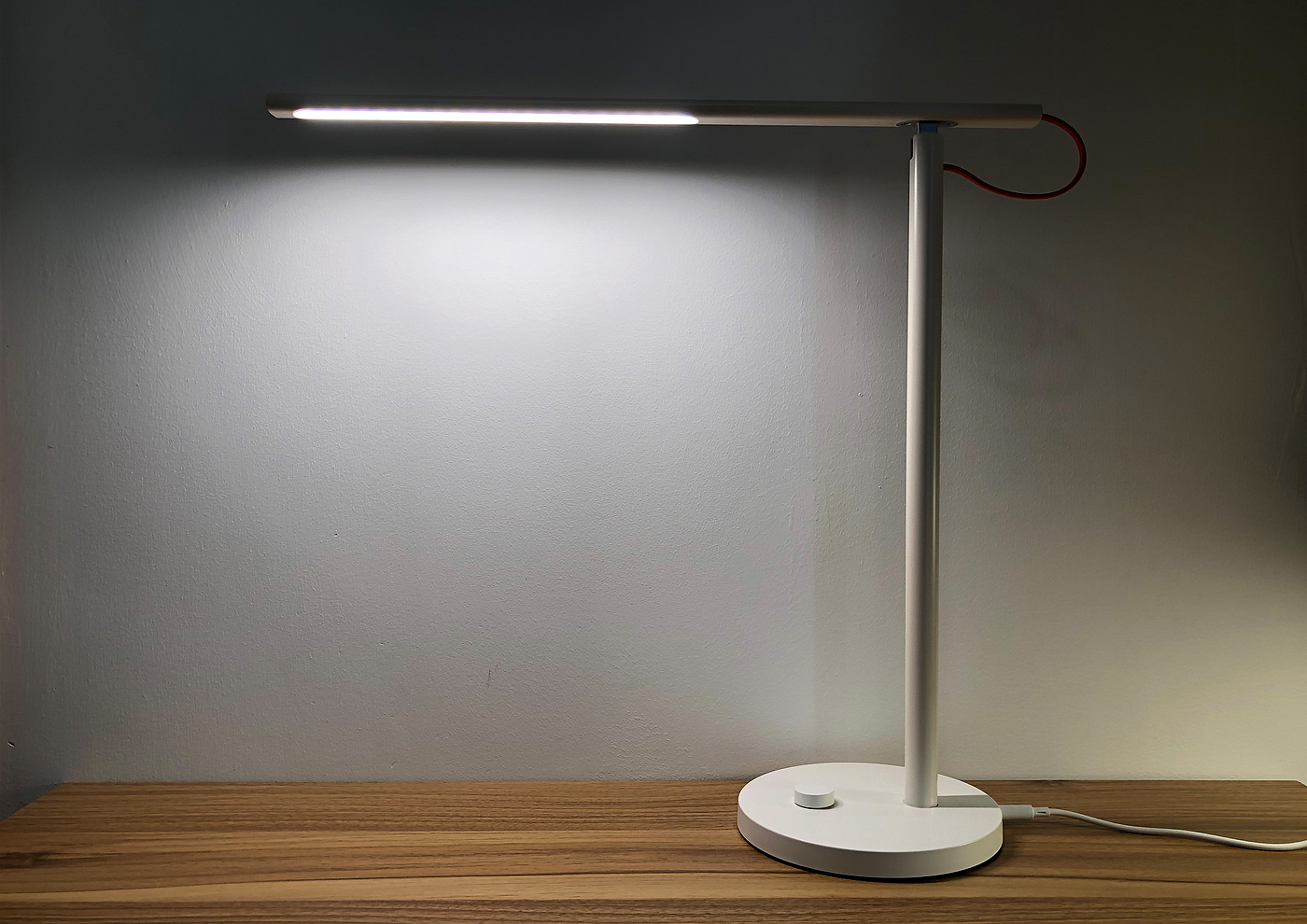

The mobile phone shooting light cannot capture the strobe effect. The knob can adjust the brightness and color temperature of the lamp. The official nominal luminous flux is 300 lumens.

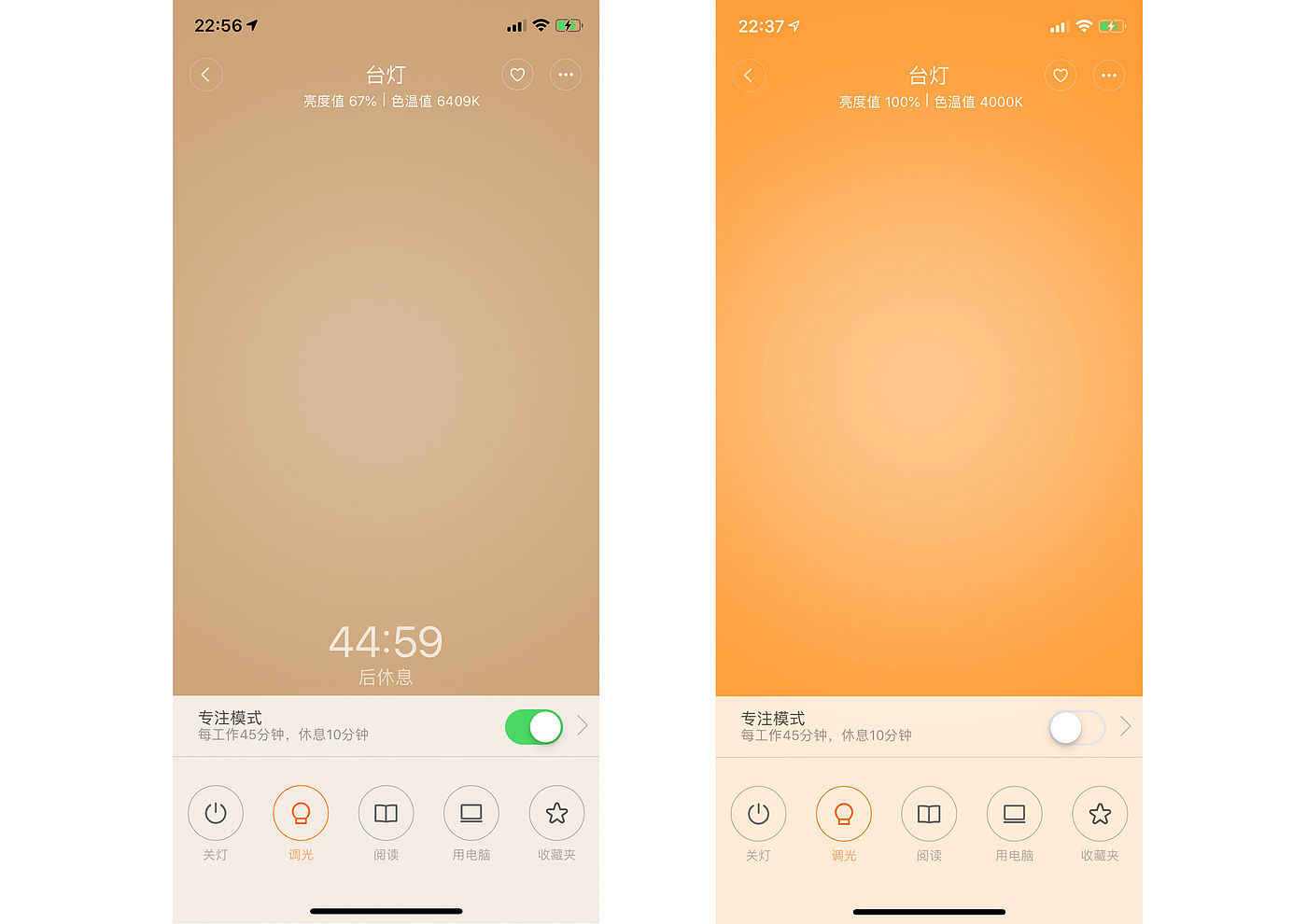

Only through app can the promise adjustment of publicity be realized. The light switching is still relatively mild, providing yellow and white lights, 2700k-6500k color temperature adjustment.

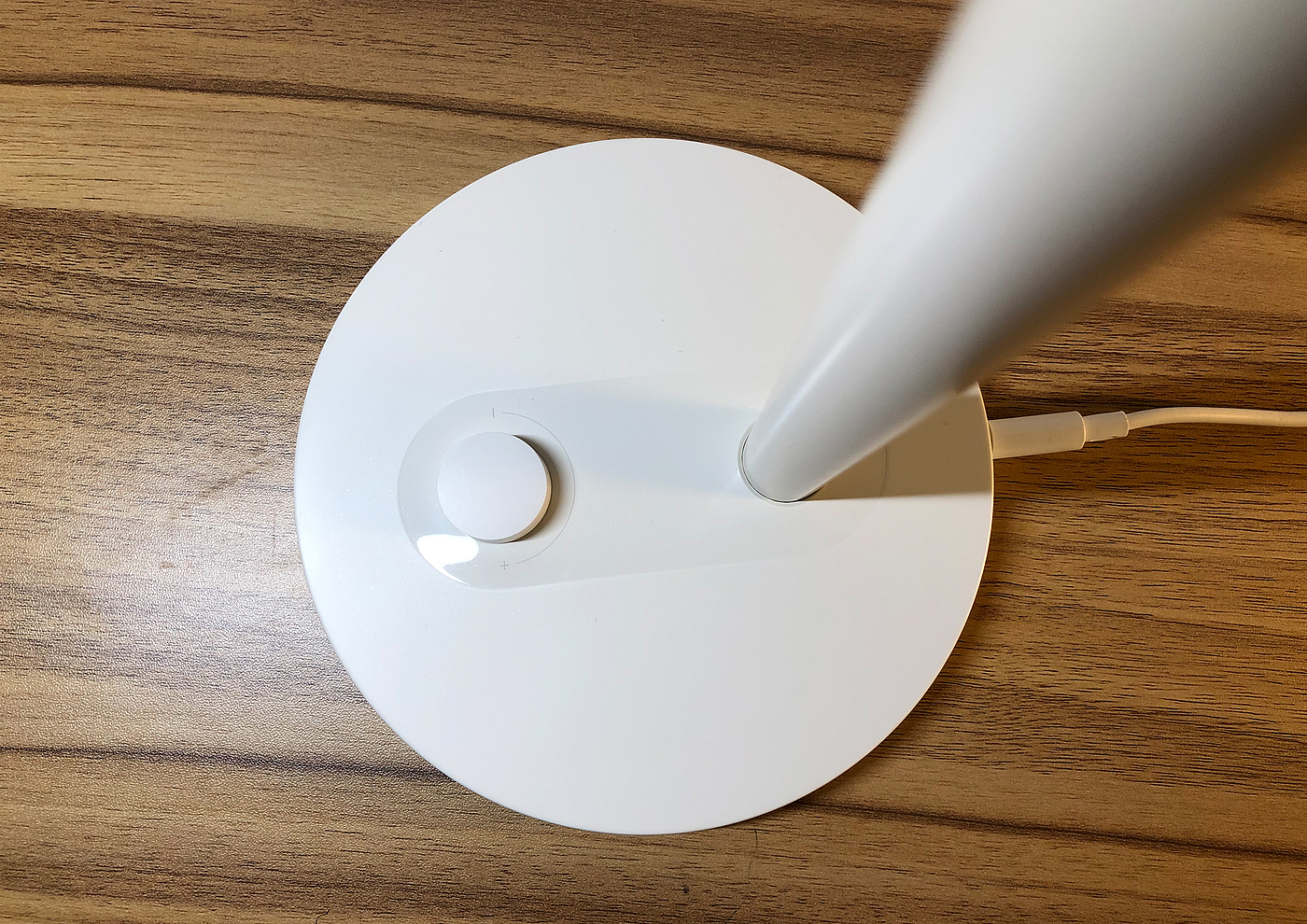

The round base is very geometric wind, and the knob area has been compared with bright surfaces. The knob integrates all operation modes 1. Single-safety knob to switch lights; 2. Rotate left and right to adjust the lumens of the light; 3. Press the knob and rotate at the same time to adjust the color temperature of the light; 4. Quickly double press the knob to enter the focus mode. However, the experience when the knob is used as a press button is not good, and the feedback of the noise is not simply a bit uncomfortable.

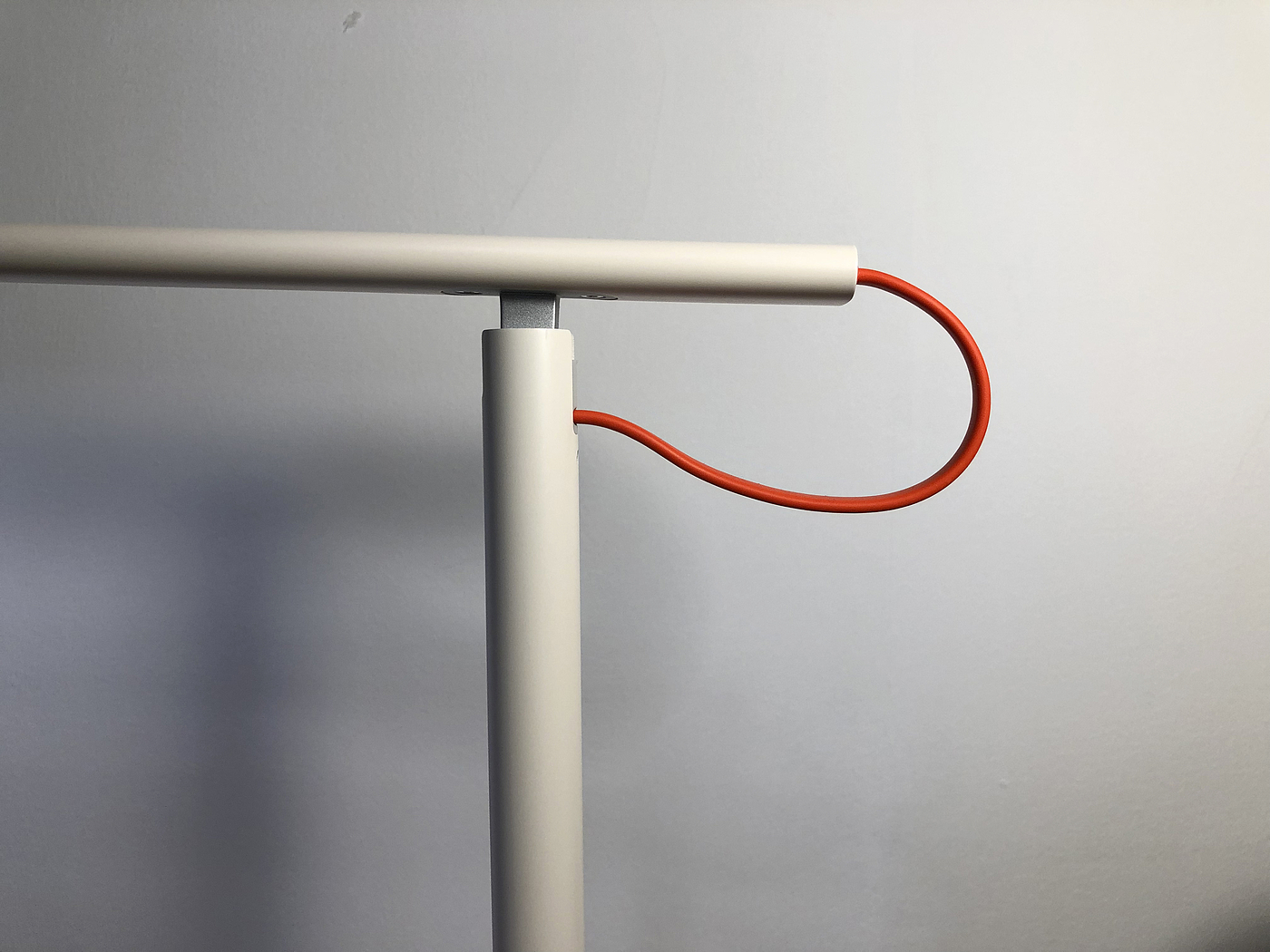

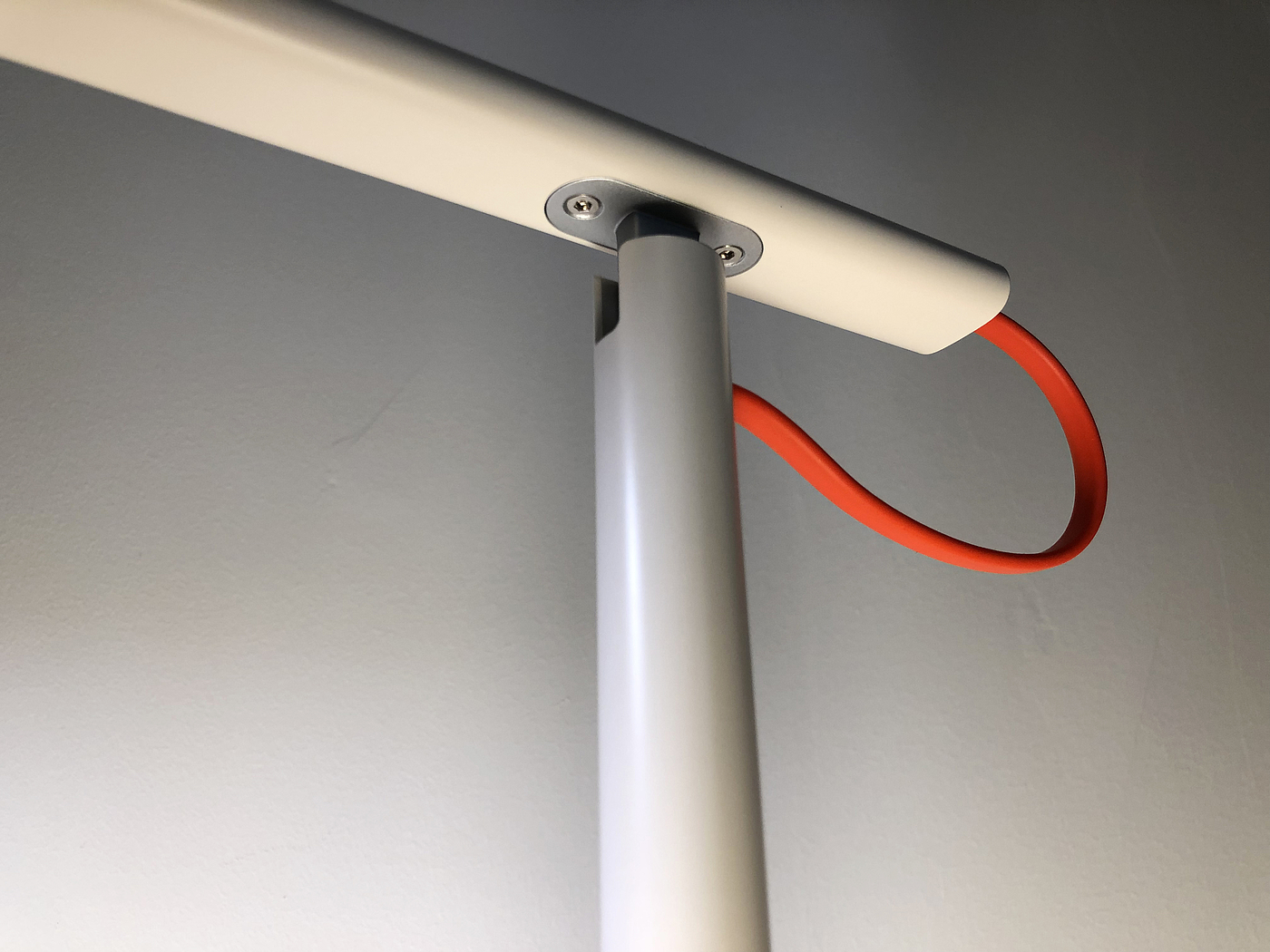

It seems that the red line is the most discussed topic of this lamp. Of course, there is no standard whether it looks good or not. After all, aesthetics is subjective.

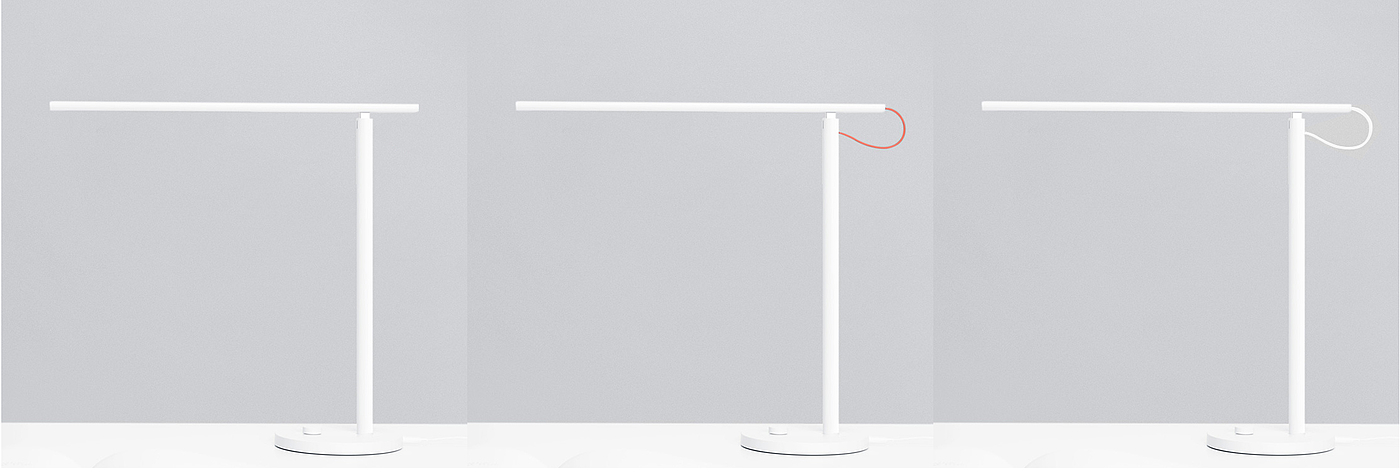

After reading the comments, there are probably three topics. 1. Red line 2. Replace with white line 3. Hidden line.

Judging from the simulation effect, 1. I always feel that the lamp tube will fall forward. 2, eyes will be attracted by the red line, coordinating the balance between left and right; 3, very plain, no focus attraction.

Hinge is also a key publicity point of this desk lamp, which claims to have more than 10,000 opening and closing tests. In fact, the frequency of opening and closing in the actual desktop scene is quite low, assuming opening and closing twice a day, it will take about 13 years, uh

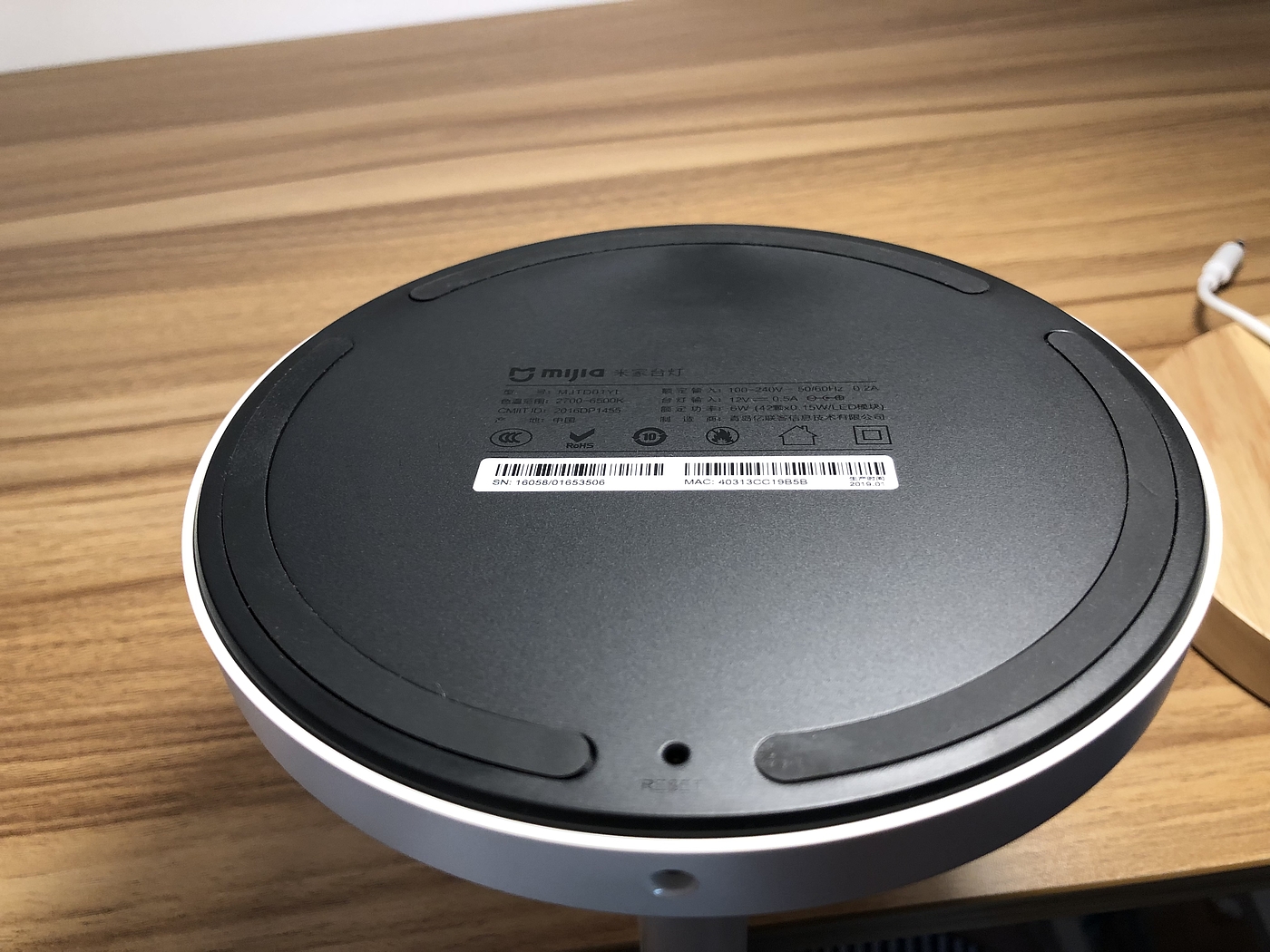

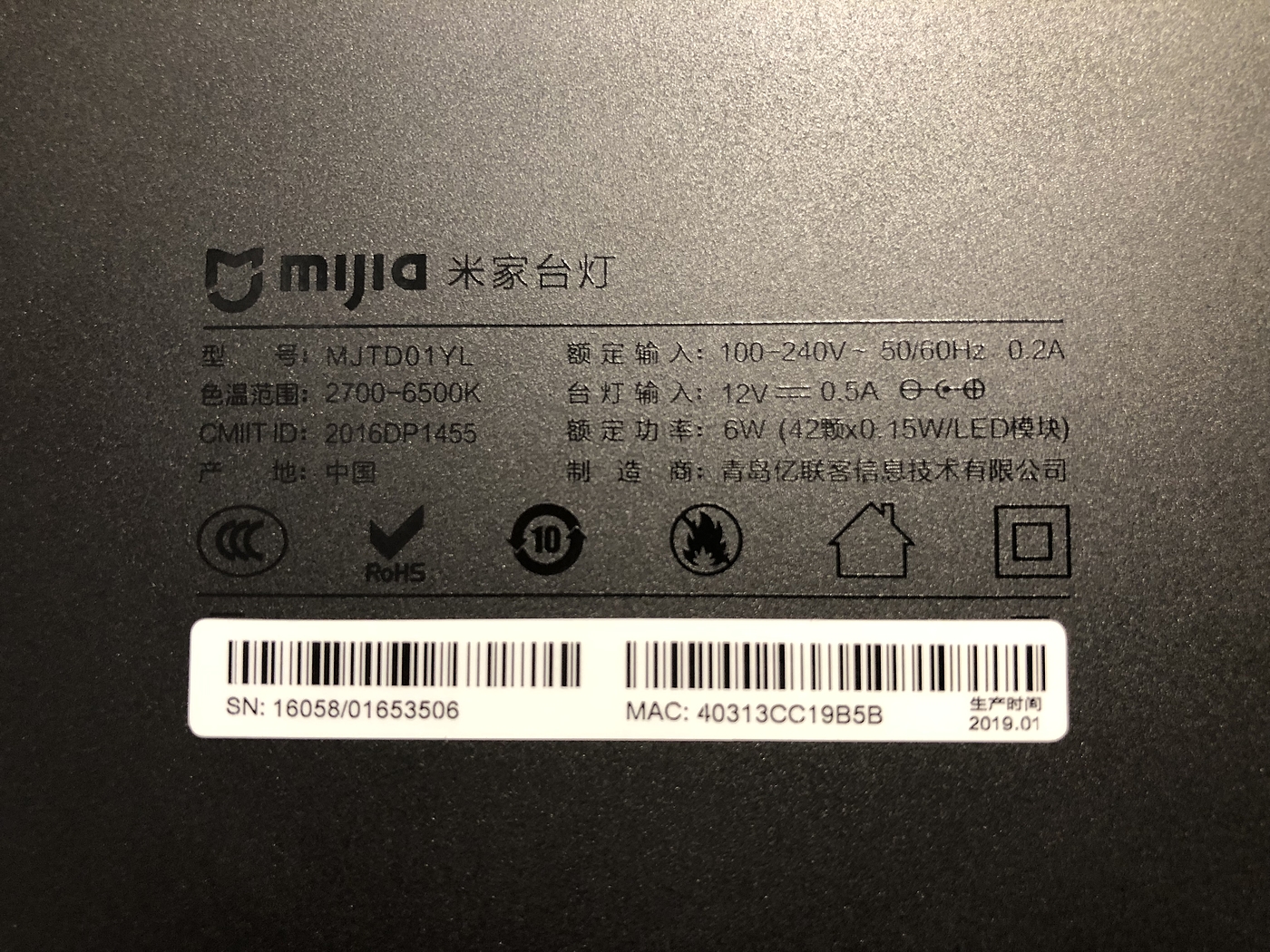

There is information about this product on the base.

It can be seen that the desk lamp itself uses a 12v DC power supply, which is to eliminate the stroboscopic problem caused by DC power supply. This is also one of the core indicators for evaluating the health of desk lamps.

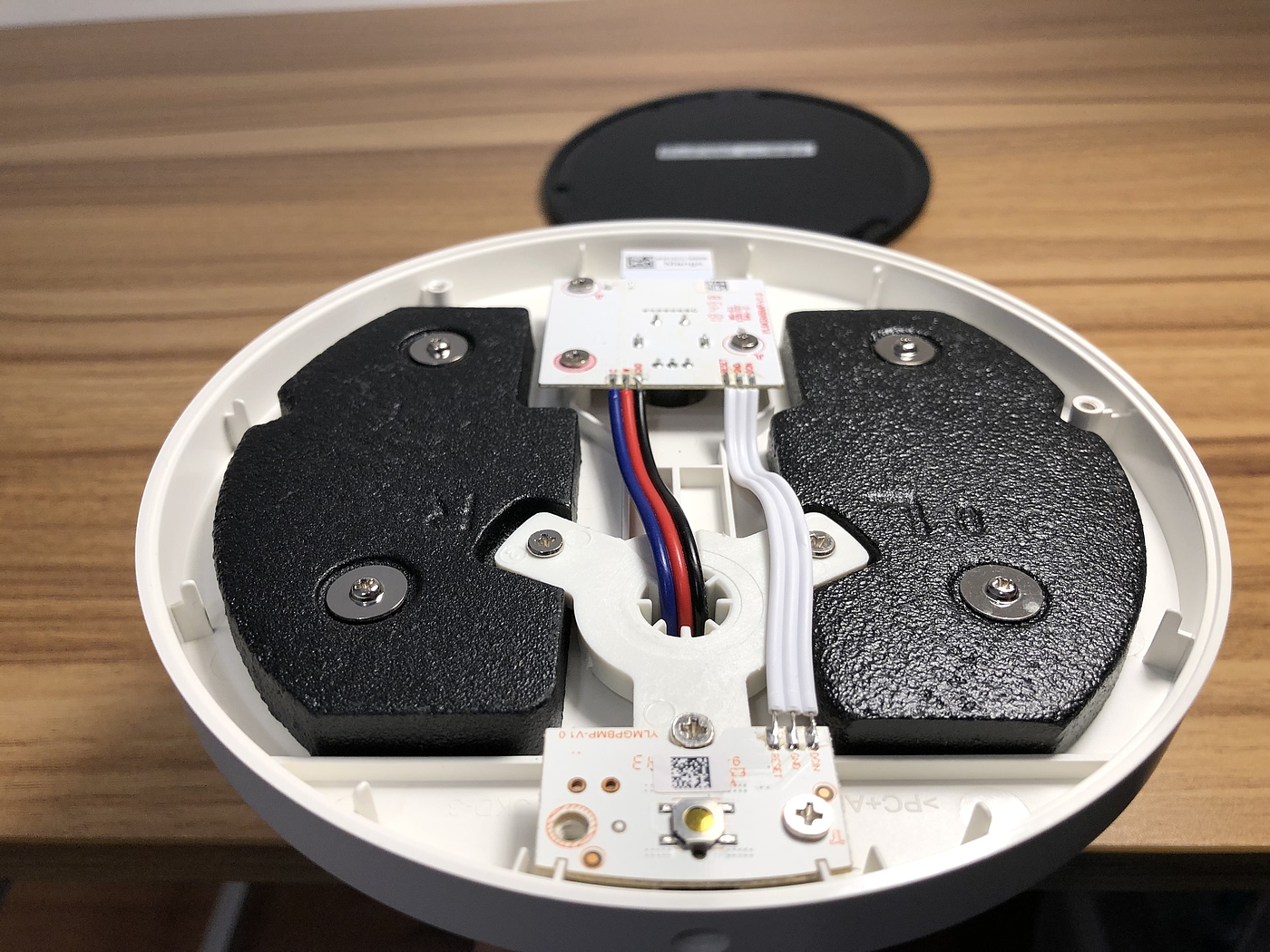

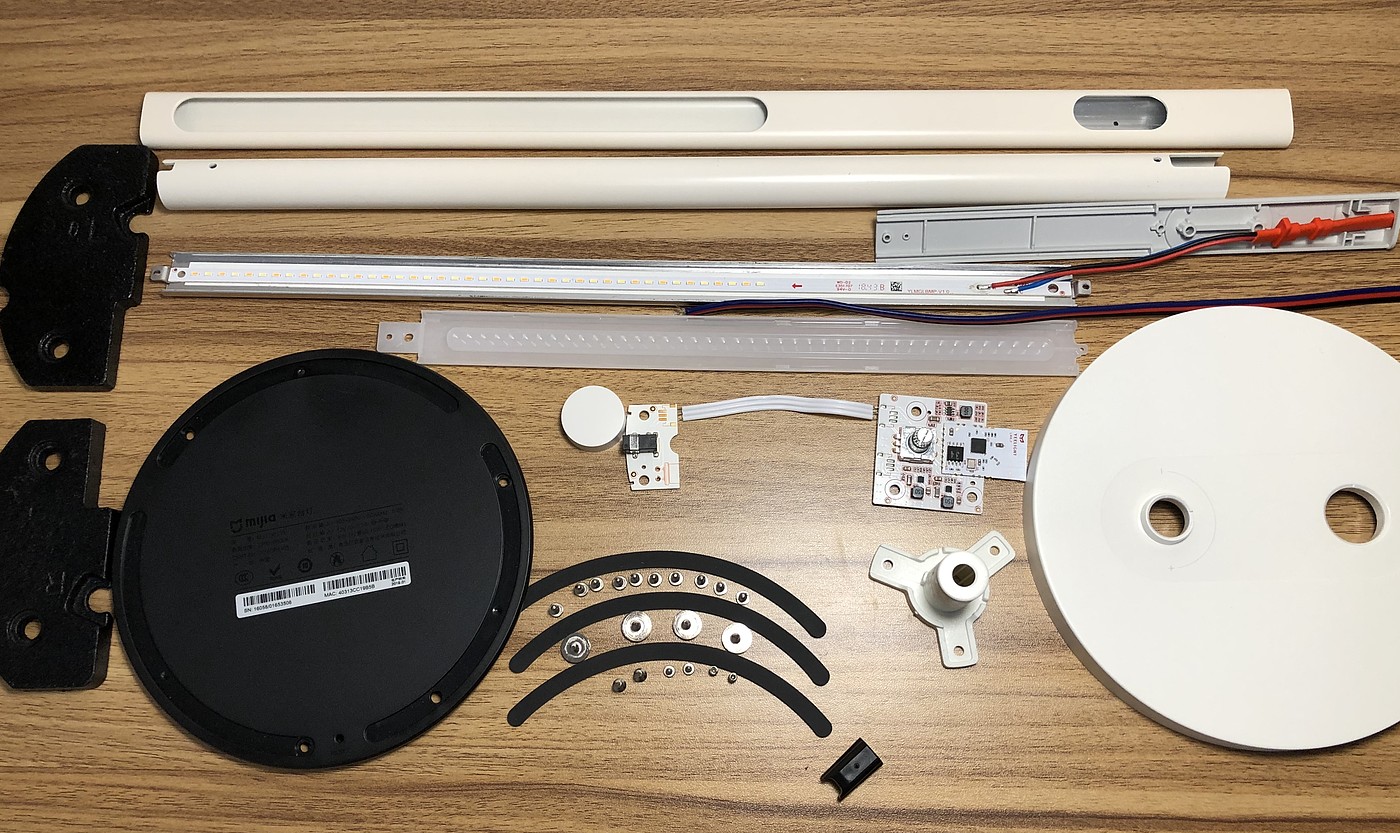

Remove the lower shell of the base and you will see the inside of the base. The inside is very refreshing. Including two counterweights (divided into left and right), main board and auxiliary board, it is worth mentioning that pcb uses white and red characters, which are quite millet.

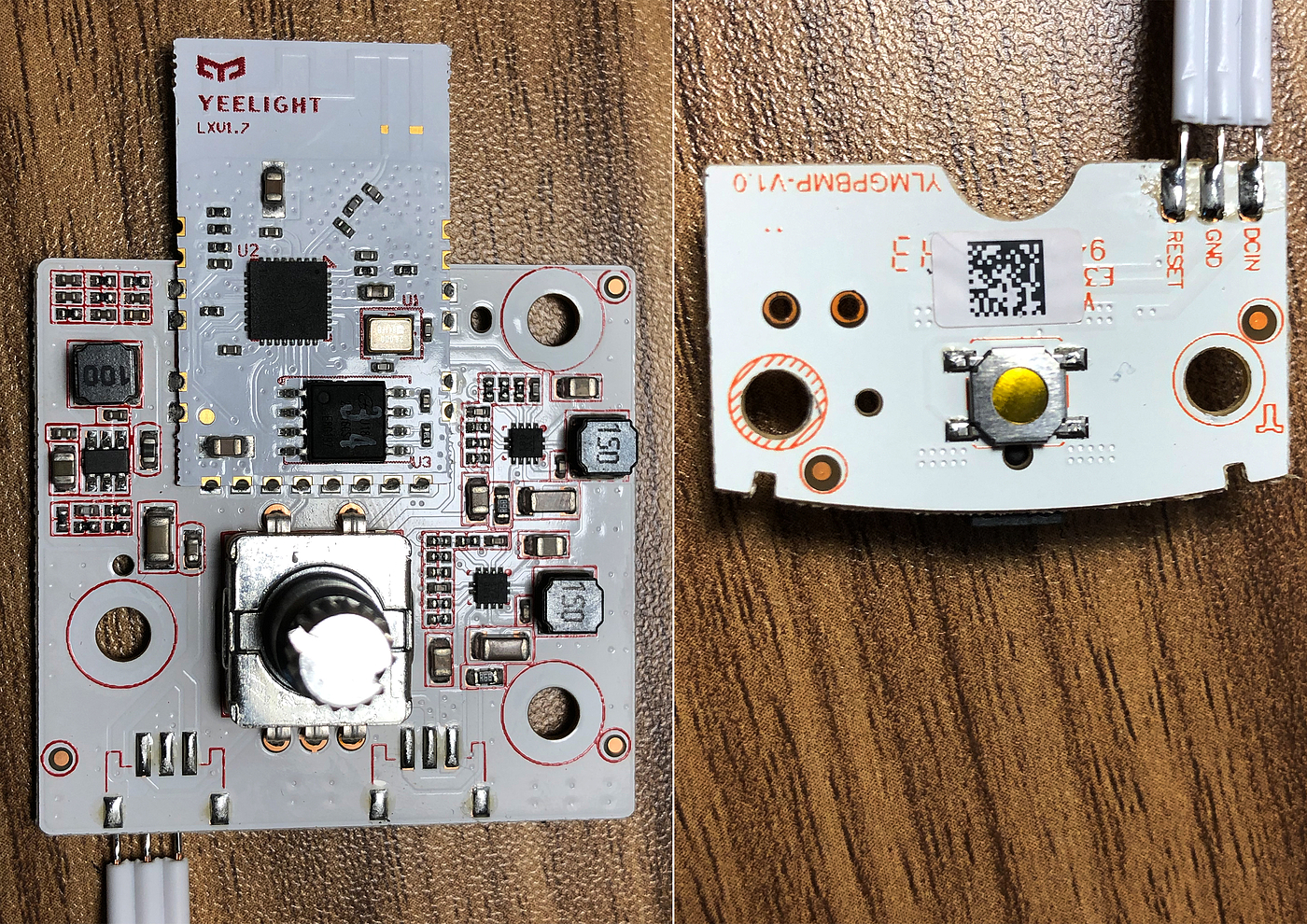

Motherboard: mainly includes wifi module ESP432017, two sets of 3YG265 dimming chips, and rotary coding switch.

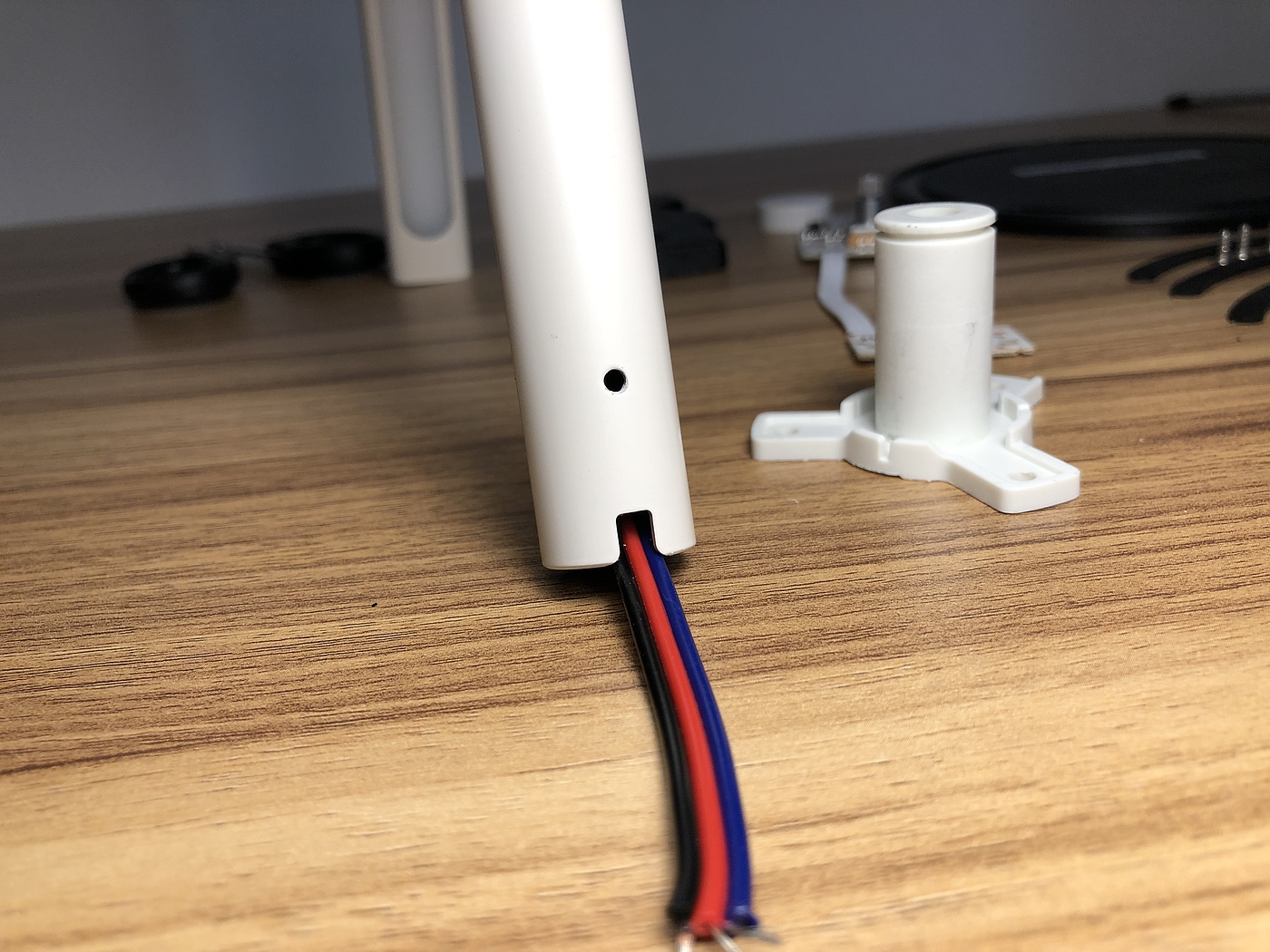

Here you need to use a soldering iron to separate the red, black and blue wires on the motherboard. Then drop an inner hexagon top wire on the base and completely detach from the base.

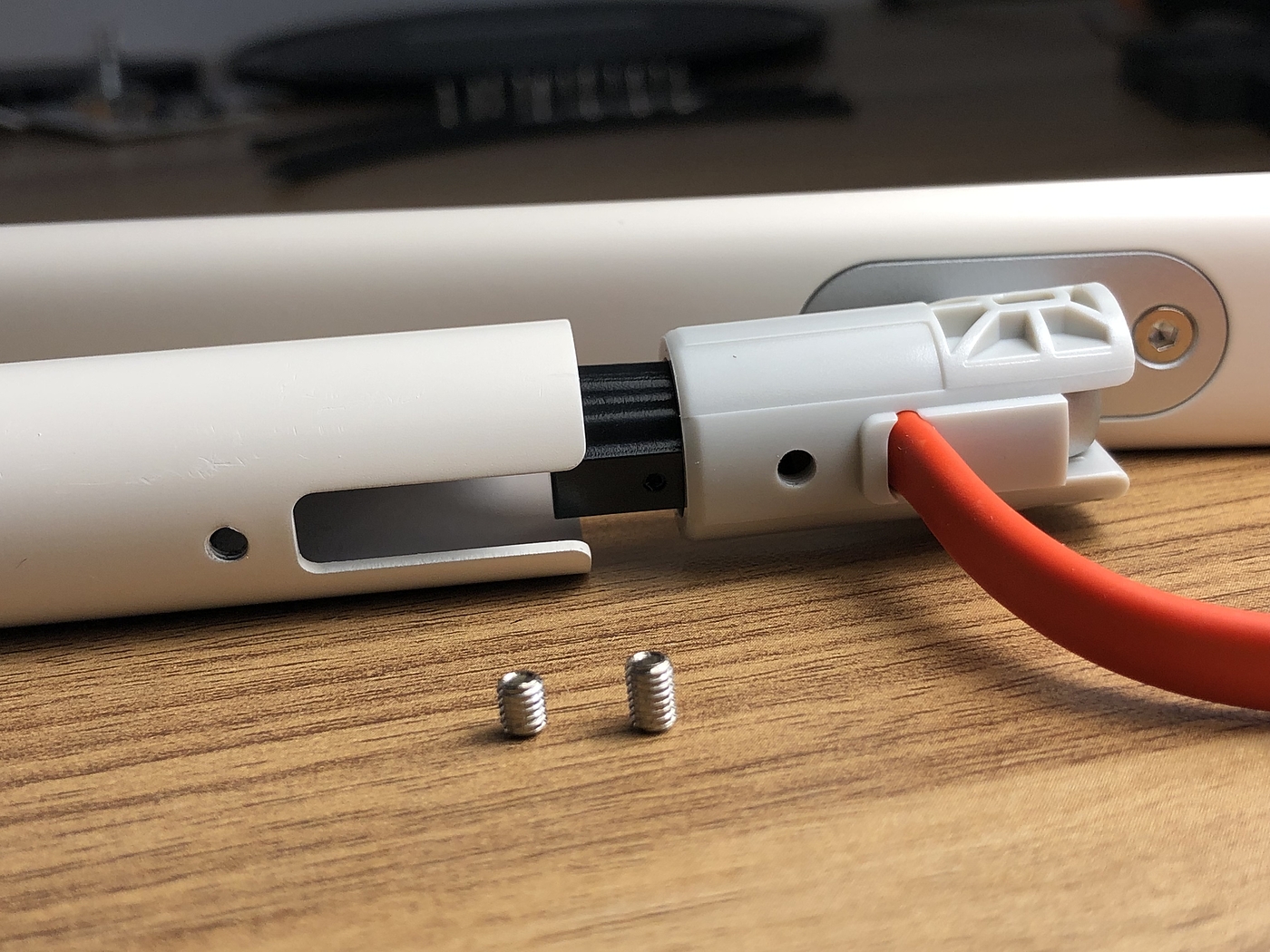

The aluminum alloy tube can be removed by removing an inner hexagon top wire from the connection. However, I am curious that the two hexagon socket threads are the same but have different lengths. They should be screws of the same model that can be designed to reduce the misoperation rate during factory assembly.

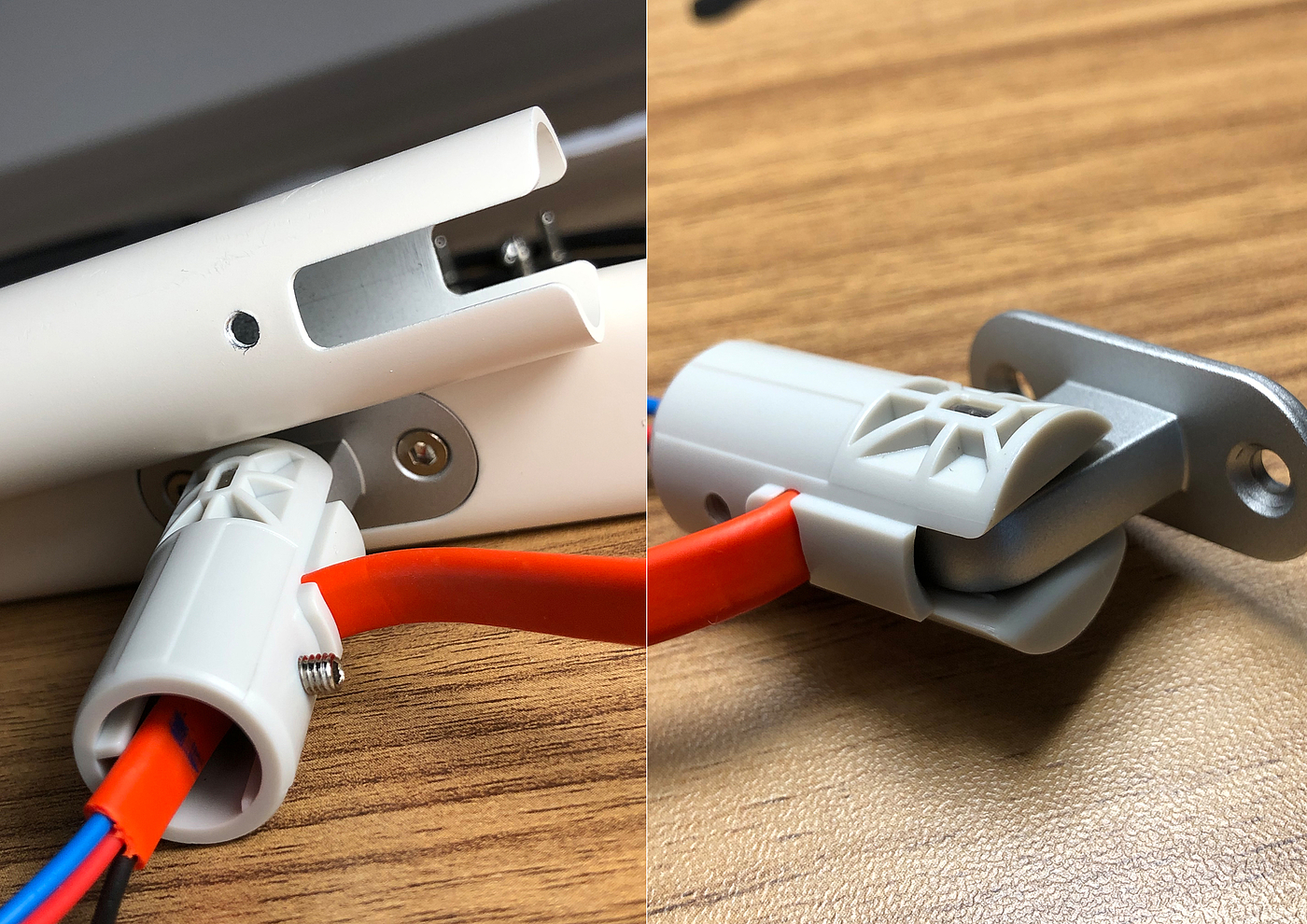

Remove the two screws on the hinge and you will see the true face of the shaft. It seems that it is not as tall as advertised.

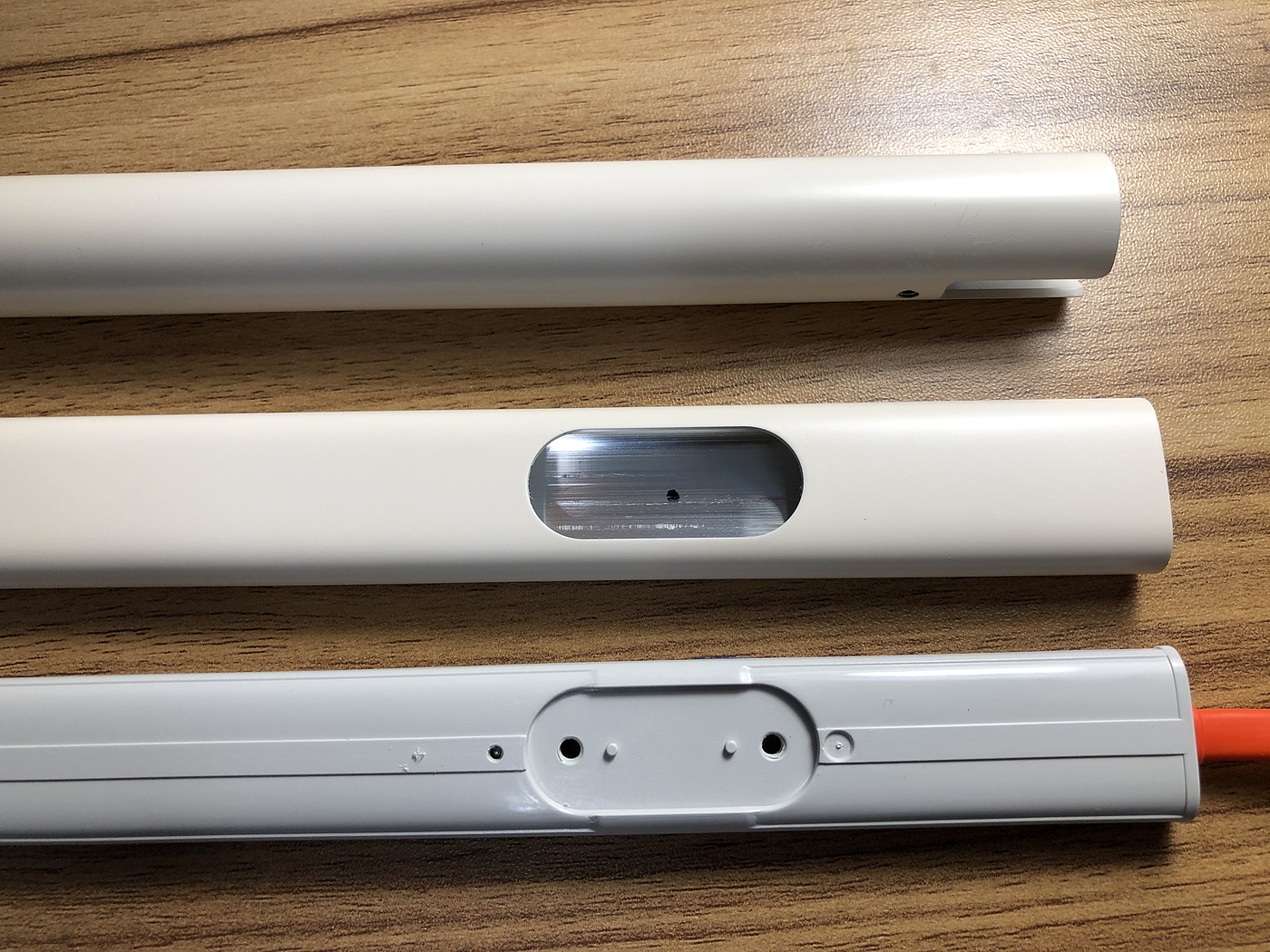

Pull out the lamp tube, you can see that it is also processed by aluminum profiles. The white paint sprayed on the surface is very uniform and delicate, and you can see that the workmanship is very exquisite.

The LED light board is fixed on the metal plate, and the metal plate is close to the aluminum tube, which is for better heat dissipation effect, which is also a more conventional method.

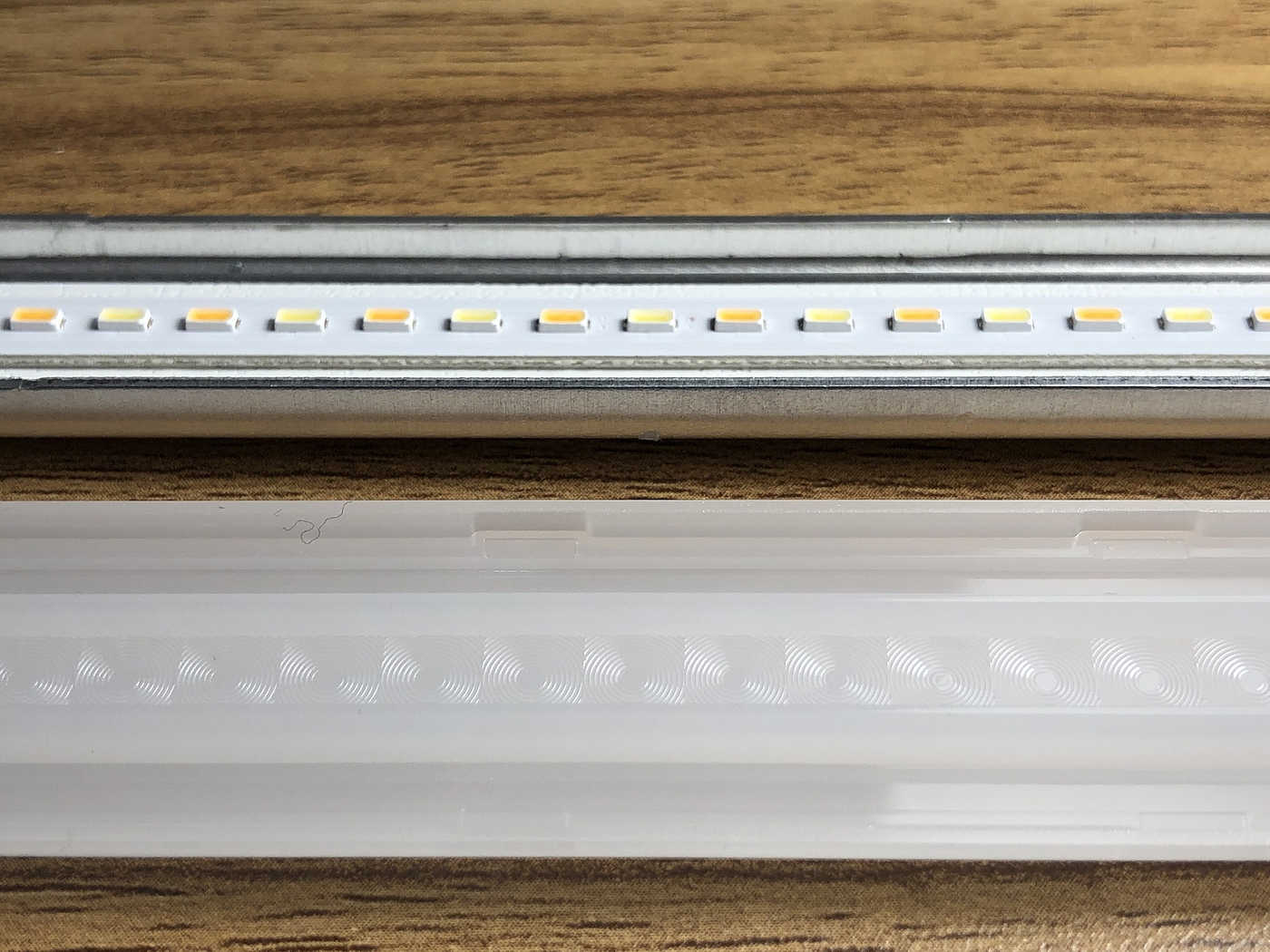

It can be seen that the lamp beads are evenly distributed in white and yellow. The change of color temperature is realized by controlling the brightness of yellow and white led respectively.
Each lamp bead below corresponds to a concentric circle to make the light scattering more uniform.

At this point, Yeelight X Mi Xiaomi's LED desk lamp is almost understood.
Spoiler, a higher price product will be disassembled in the next period, and there is no relevant disassembled evaluation product on the market ~
