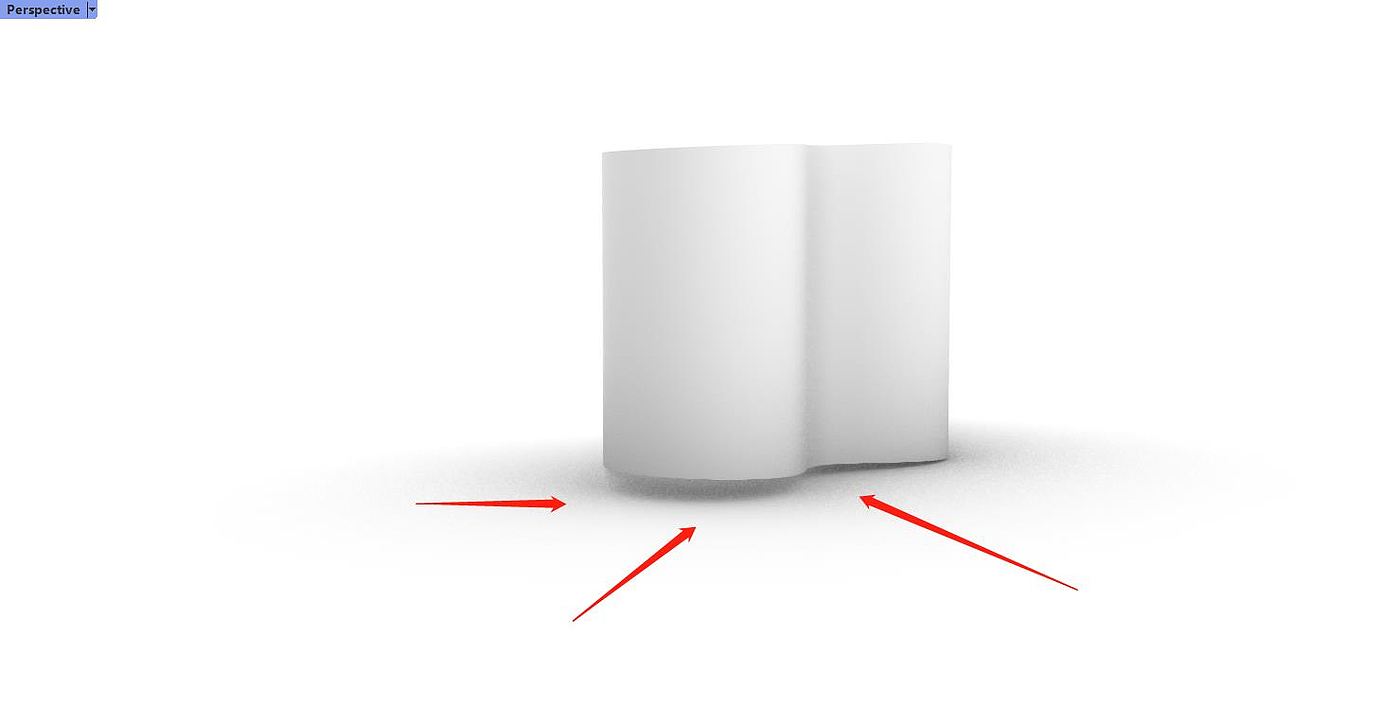

What should we do when we build such a model with the wrong size?

Rhinoceros modeling,

What we will definitely think of is single-axis scaling, but this method is a little undesirable.

Rhinoceros modeling,

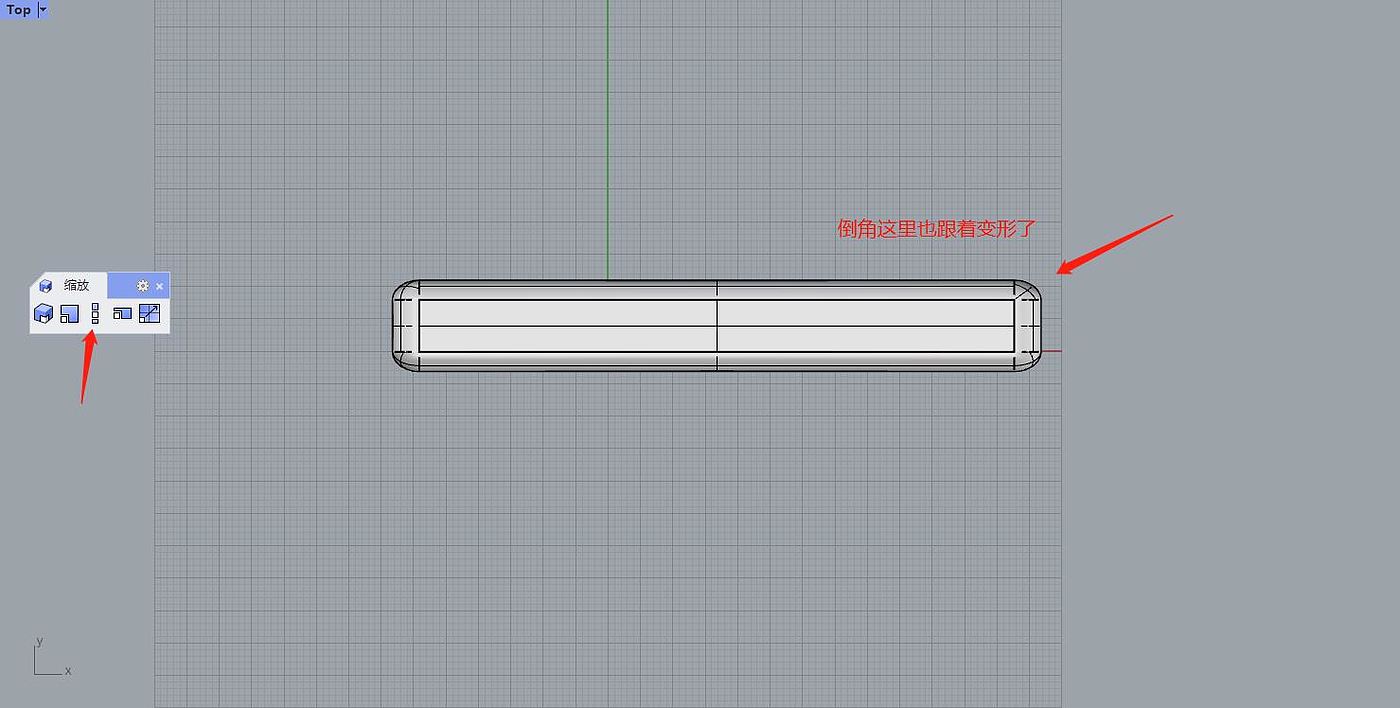

Chamfer will deform

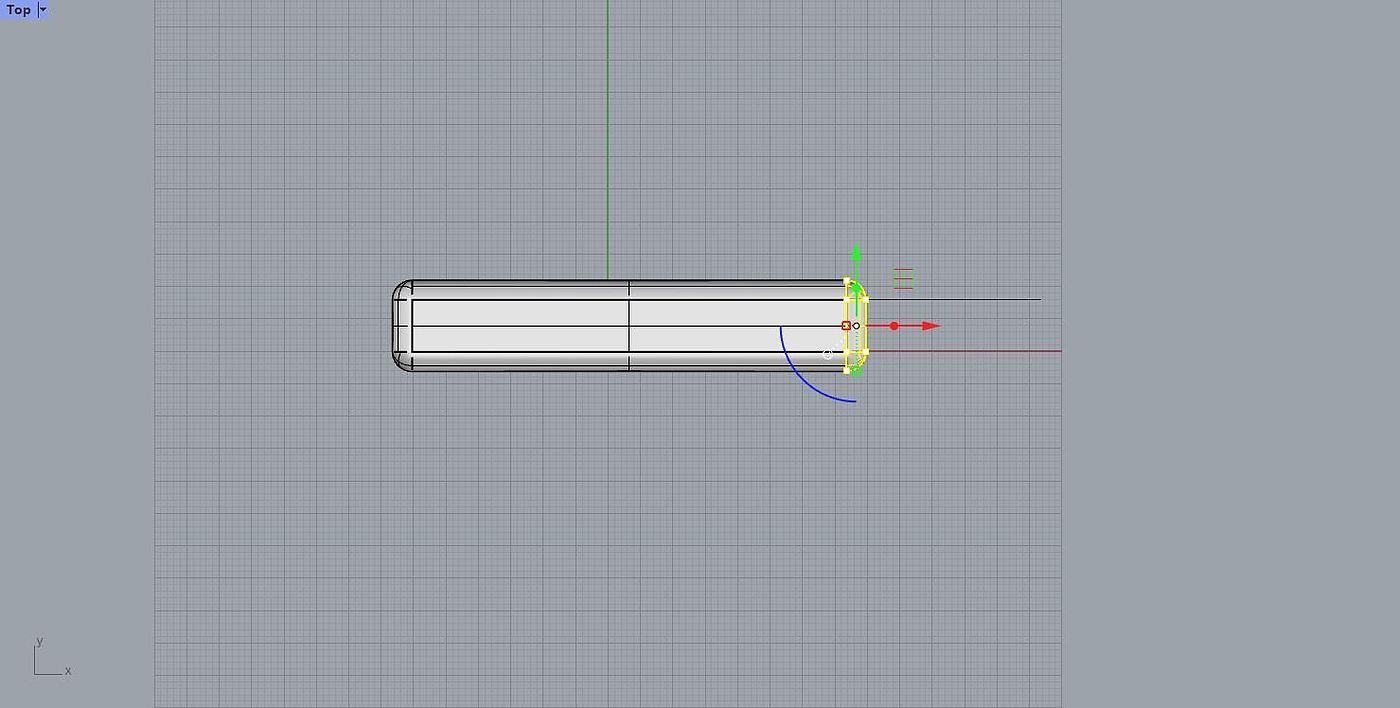

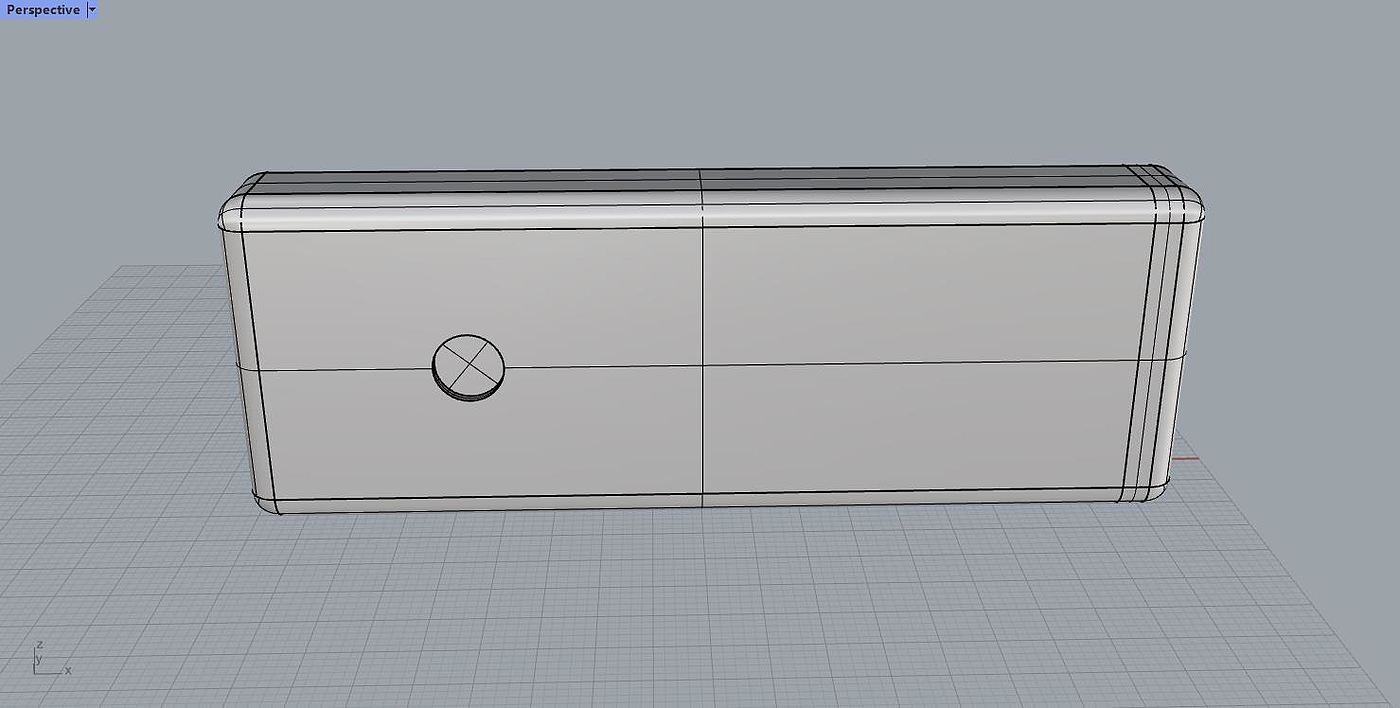

1. Here is a method to share, of course, this method has limitations. We all know the super choice (Ctrl Shift) with subd. Here hold down the Ctrl Shift box to select the operation axis movement.

Rhinoceros modeling,

The chamfer is not deformed after the change here.

Rhinoceros modeling,

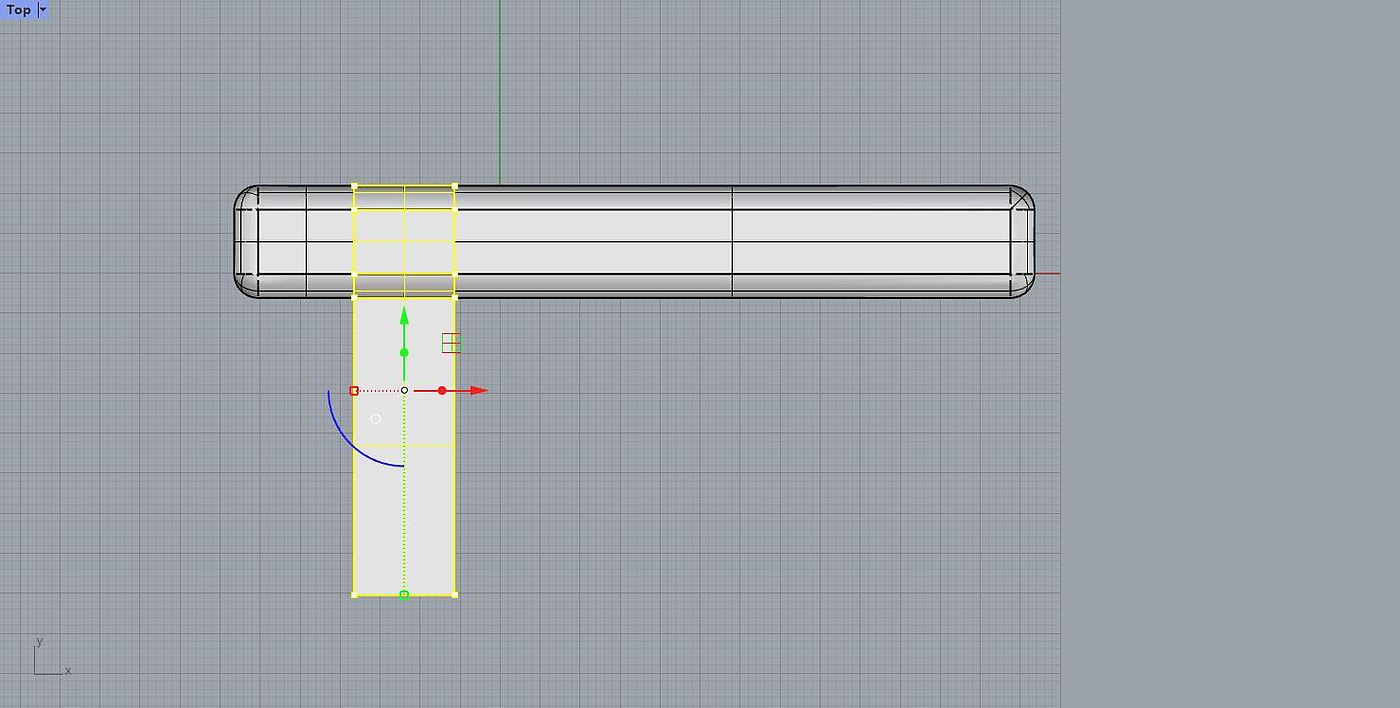

Of course (Ctrl Shift) super selection can also move the combined objects and round holes.

Rhinoceros modeling,
Rhinoceros modeling,
Rhinoceros modeling,
Rhinoceros modeling,

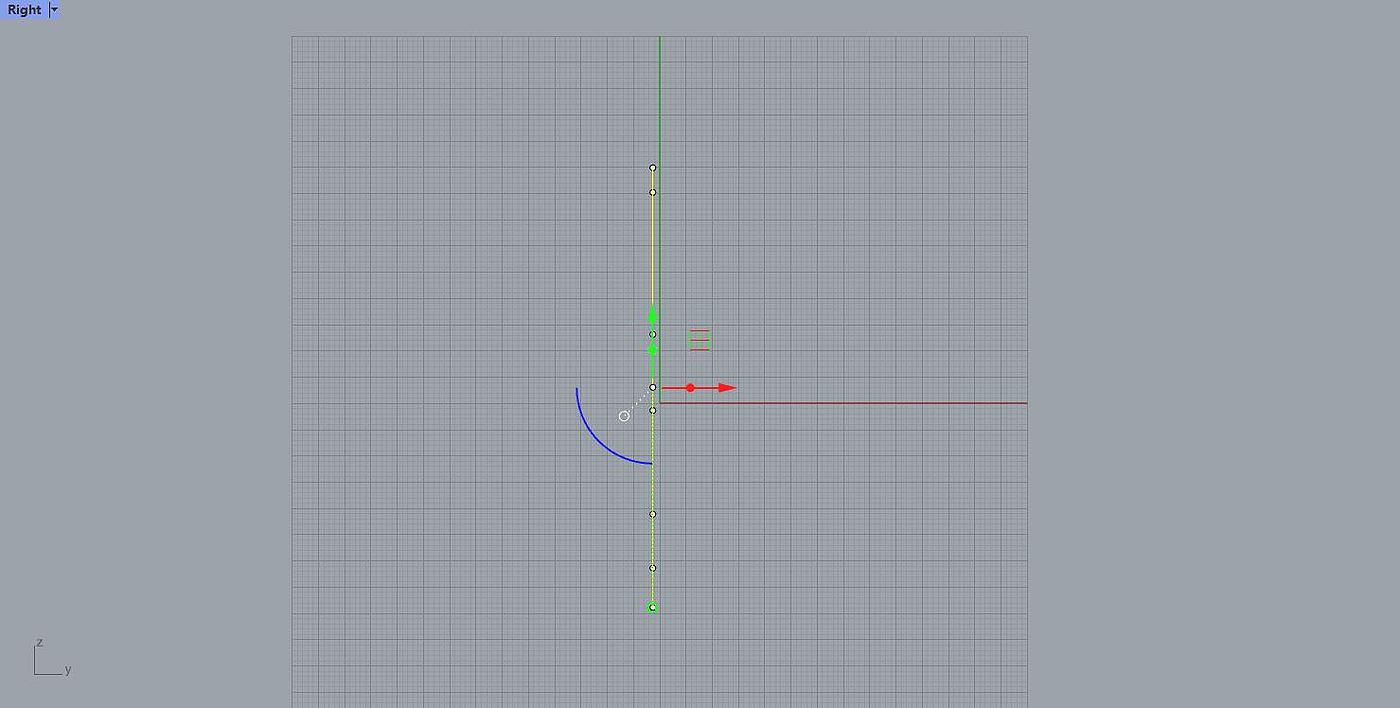

2. What is shared here is a very useful method of operating the axis, alignment or flat. Of course, this method is used according to personal habits, and I think it is easy to use.

Rhinoceros modeling,

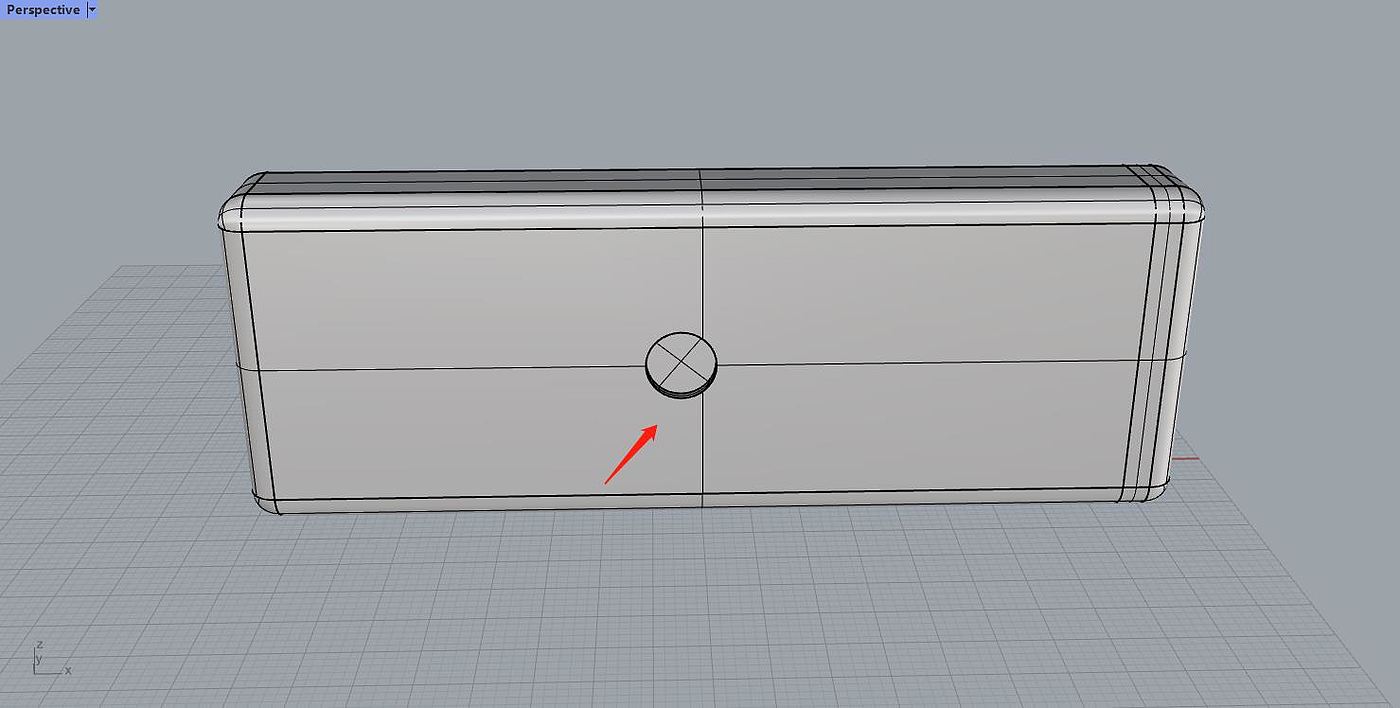

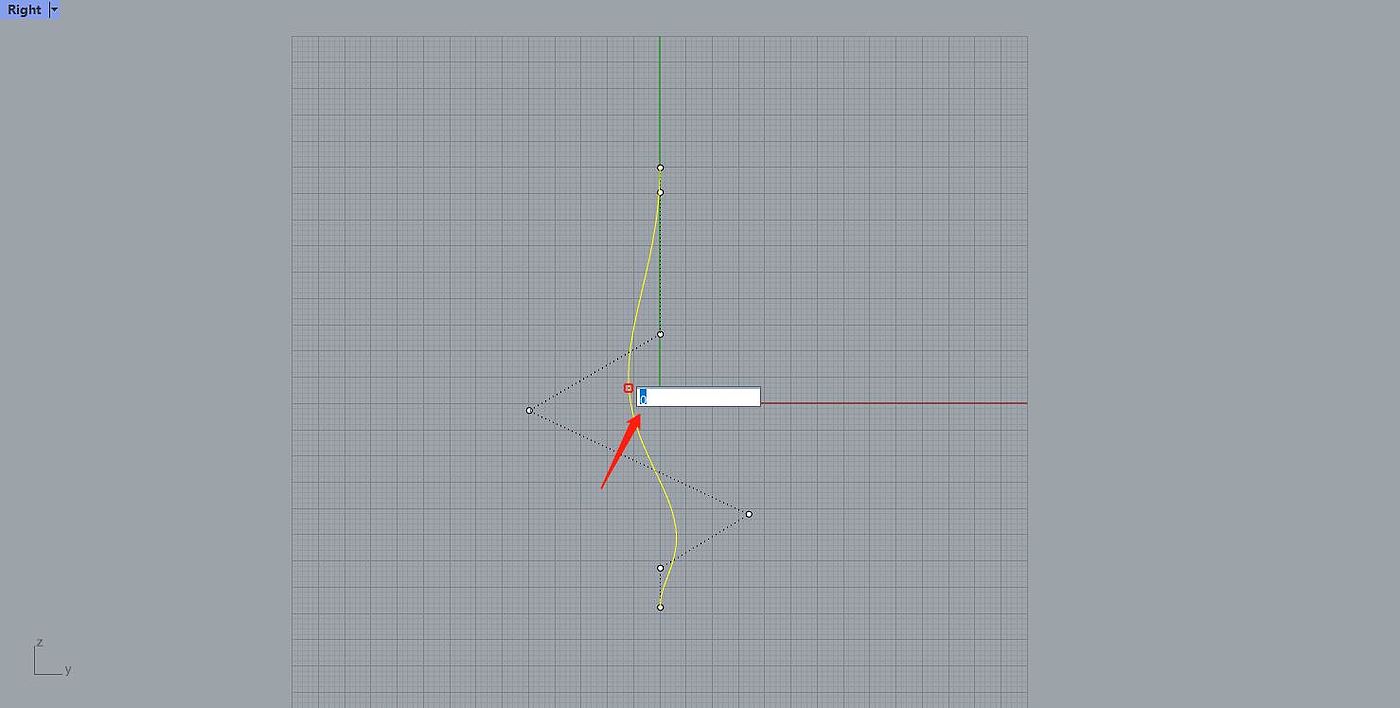

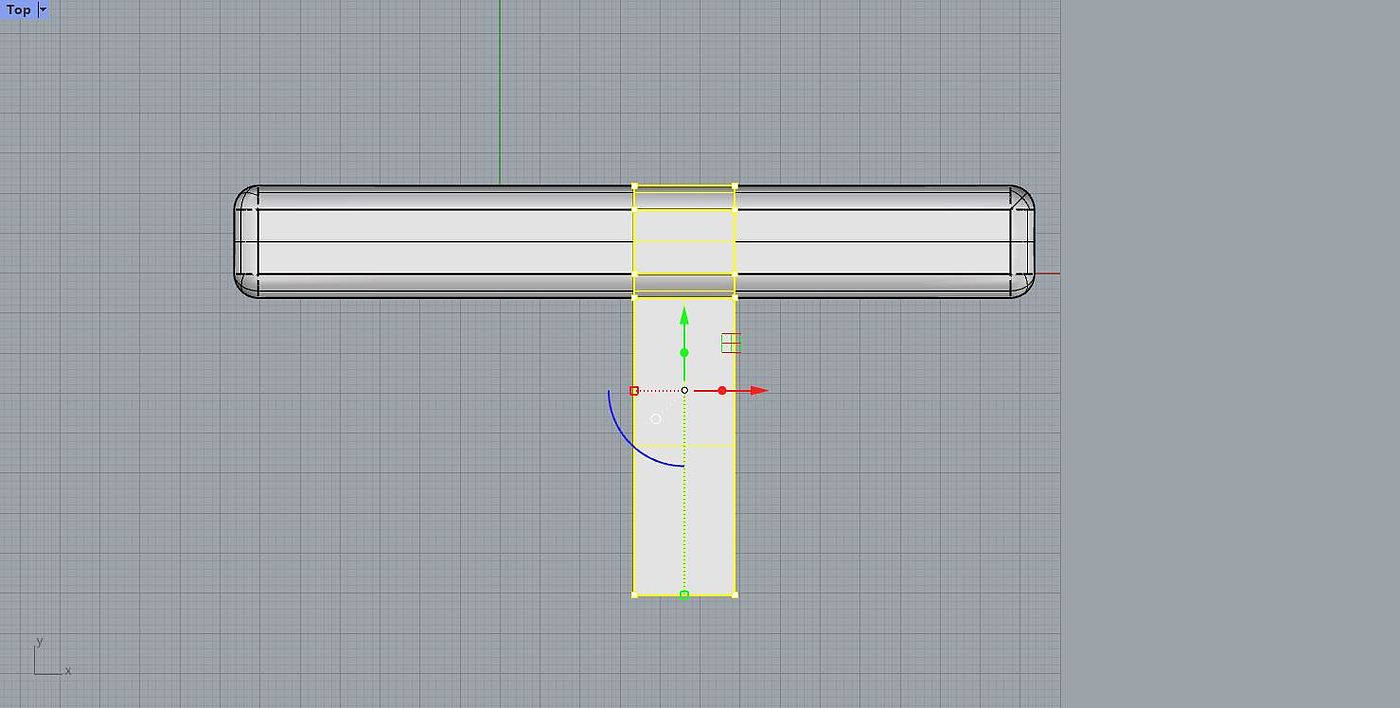

Enter 0 in the following small box

Rhinoceros modeling,
Rhinoceros modeling,
Rhinoceros modeling,
Rhinoceros modeling,

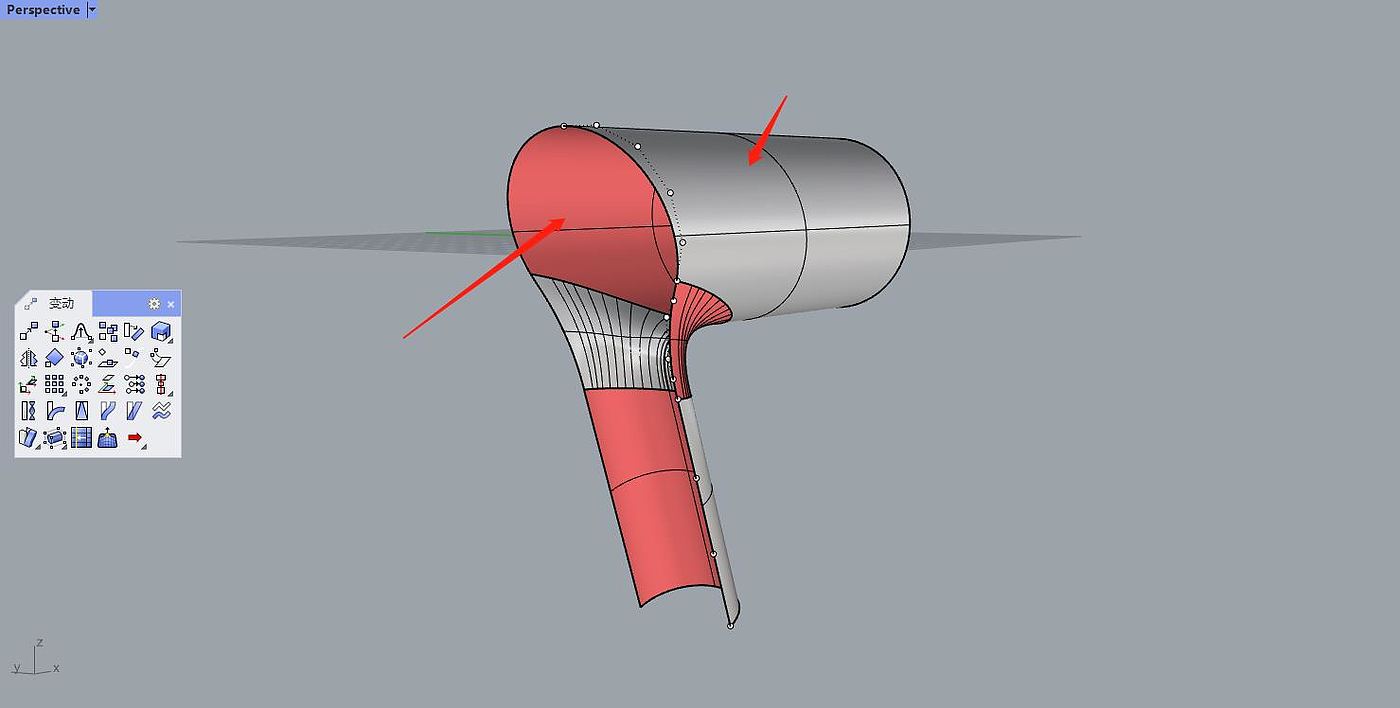

Here are tips for tilting tools.

Here we have a model.

Of course, this method is a skill to pursue those simple surfaces.

Rhinoceros modeling,

First of all, we see that this model will definitely use cutting tools to cut off the back.

Rhinoceros modeling,

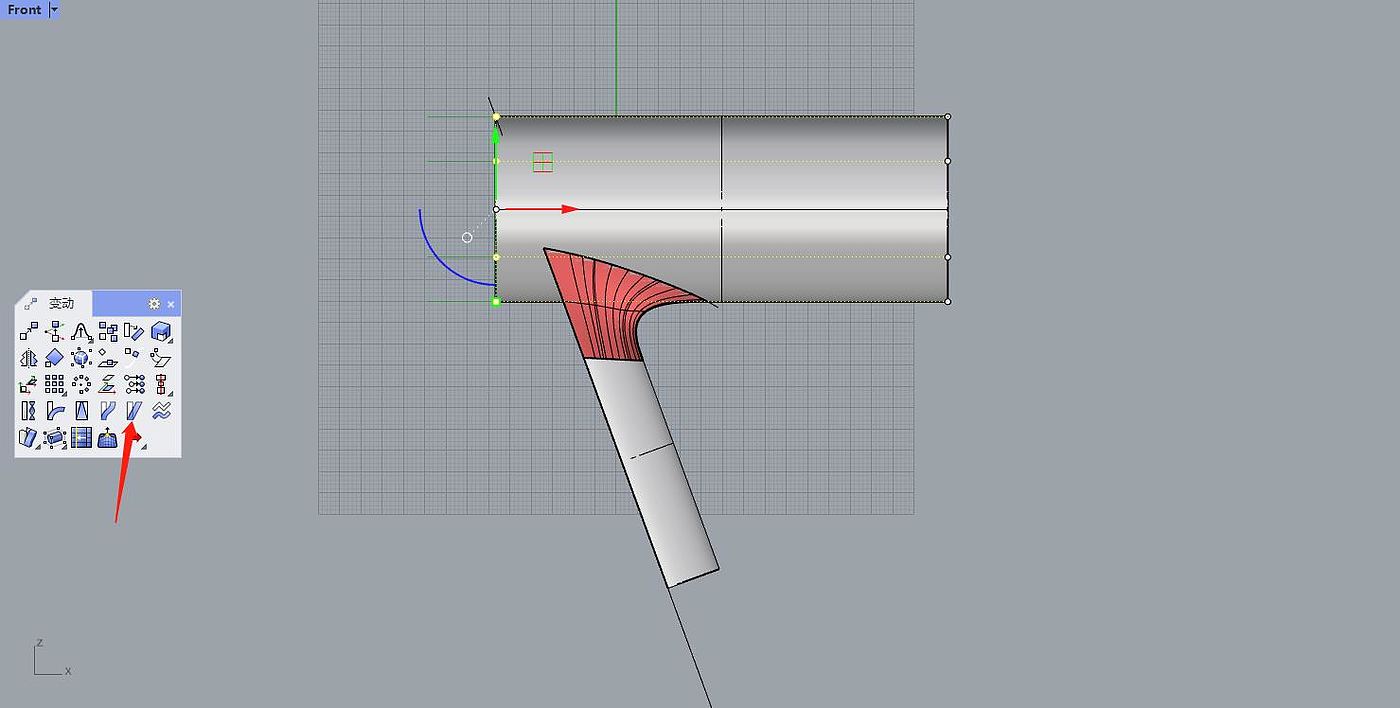

Here we use tilt tools.

Rhinoceros modeling,

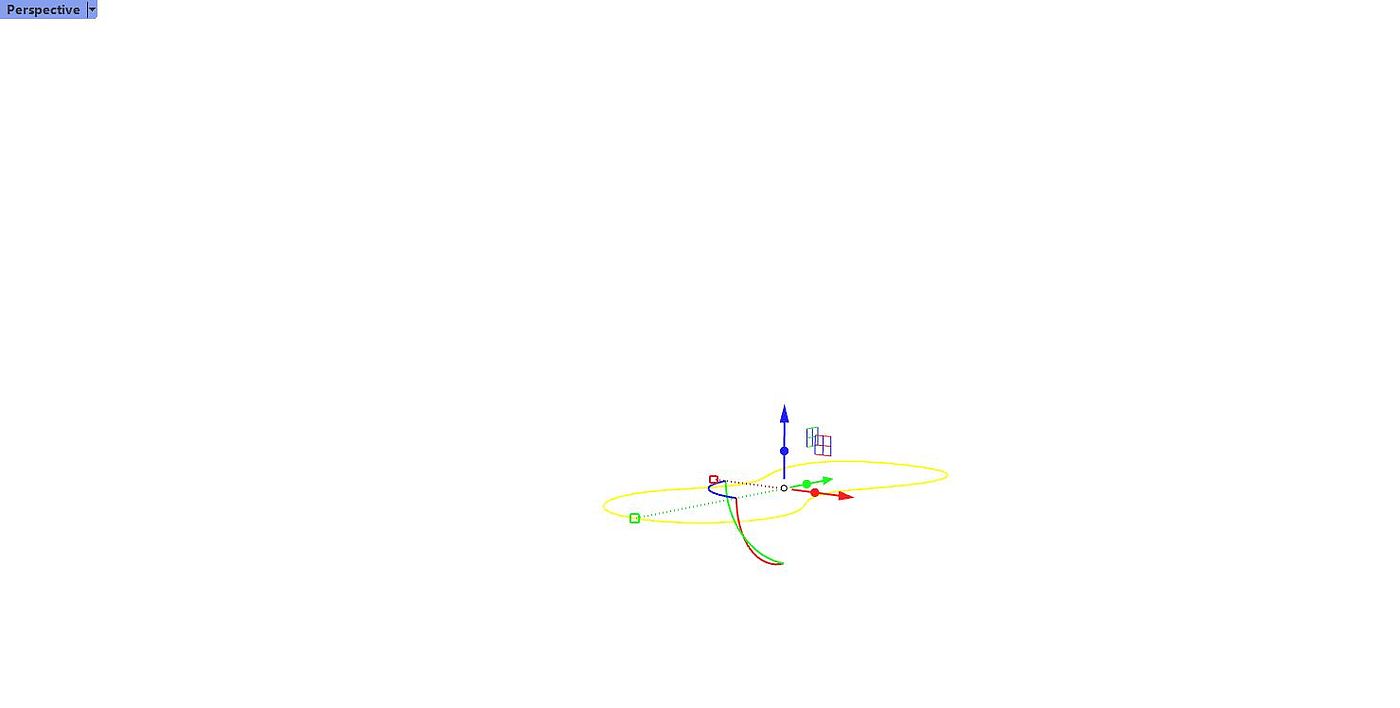

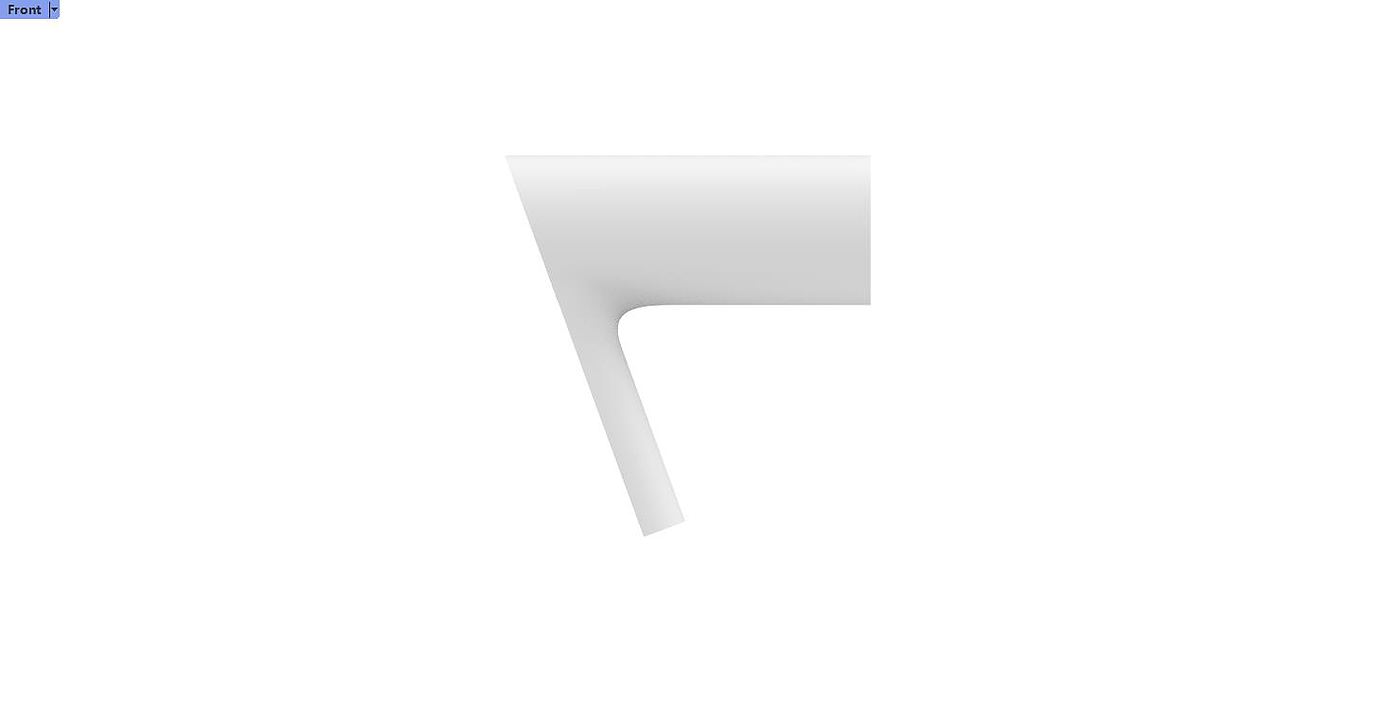

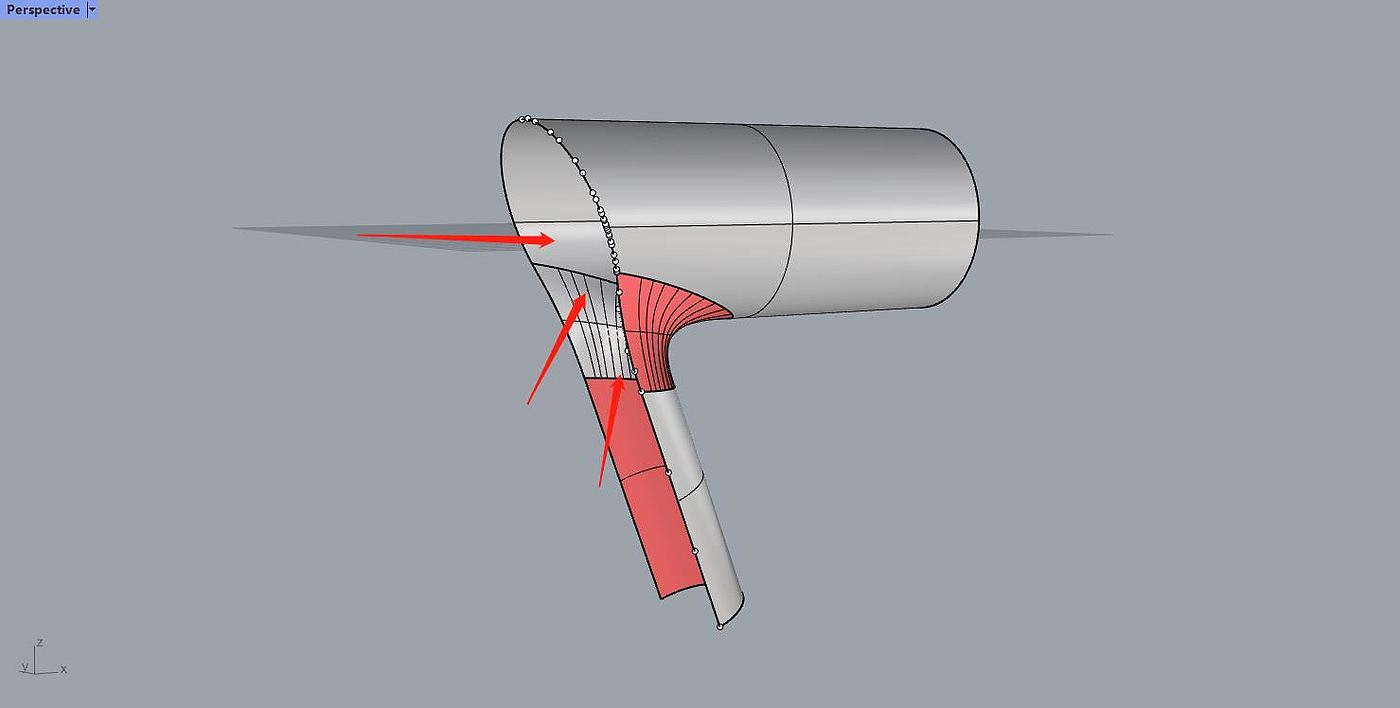

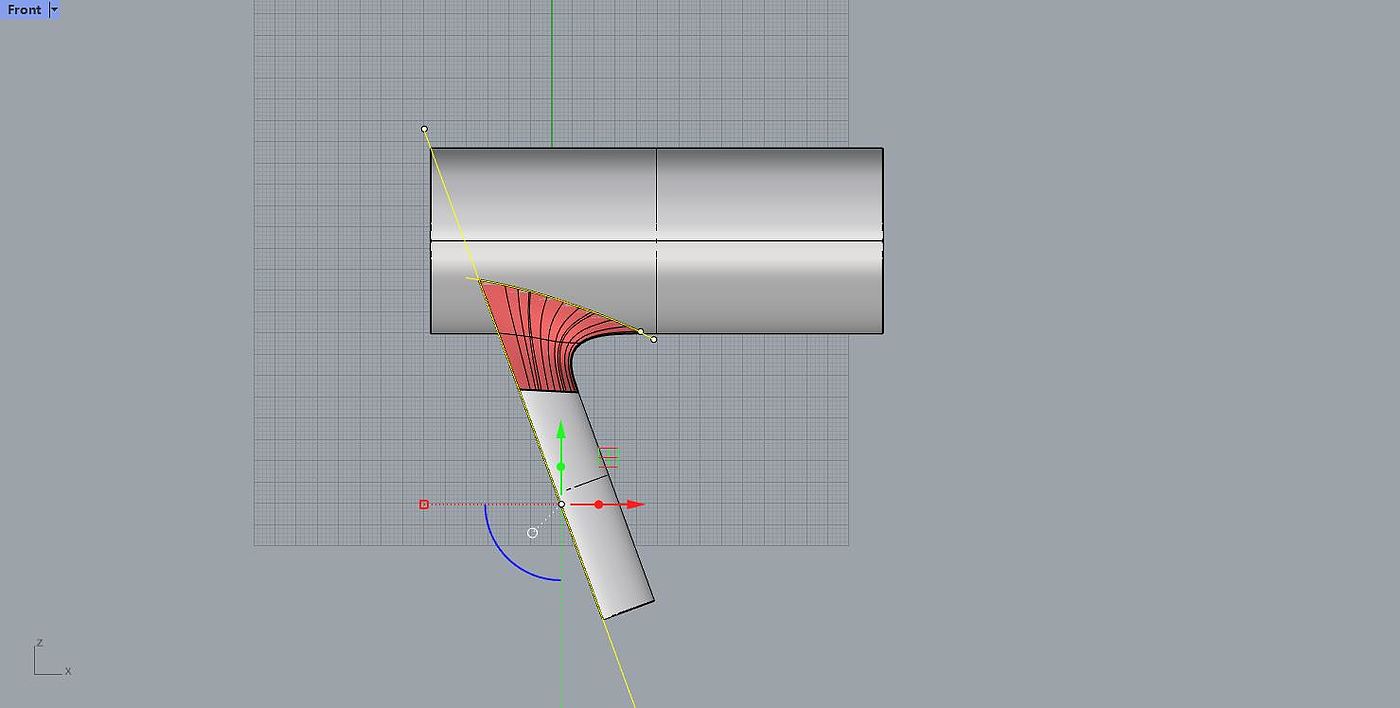

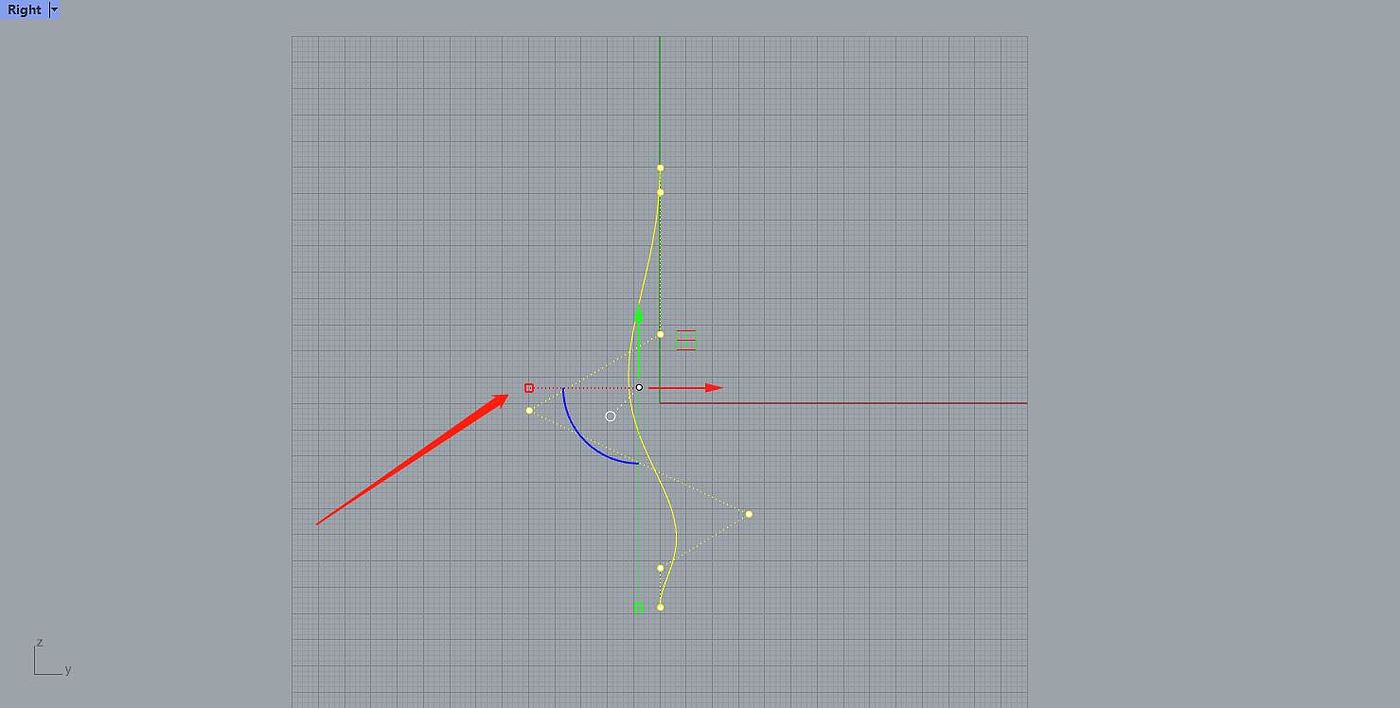

The control points are complex.

Rhinoceros modeling,
Rhinoceros modeling,

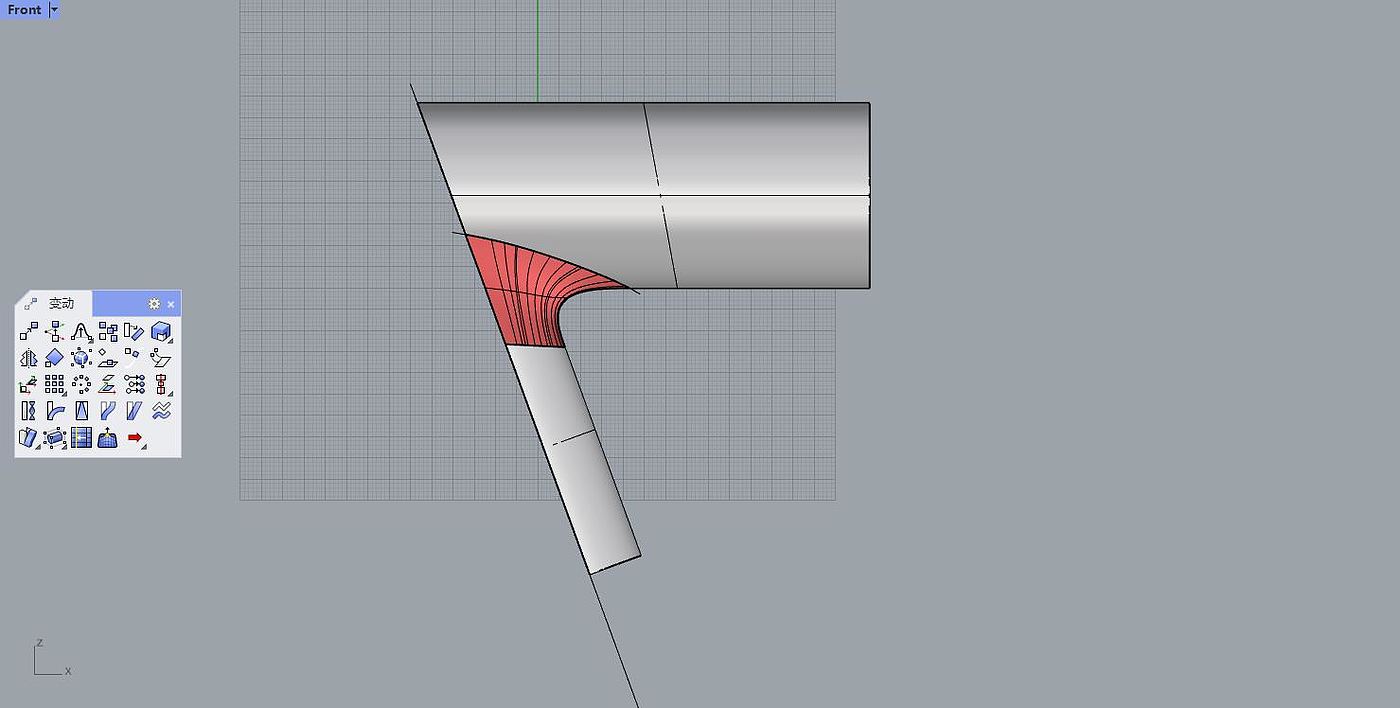

Control points are few

Rhinoceros modeling,

4. here is a usage of Ctrl C Ctrl V, which is only known how cool it is in your own practical modeling.

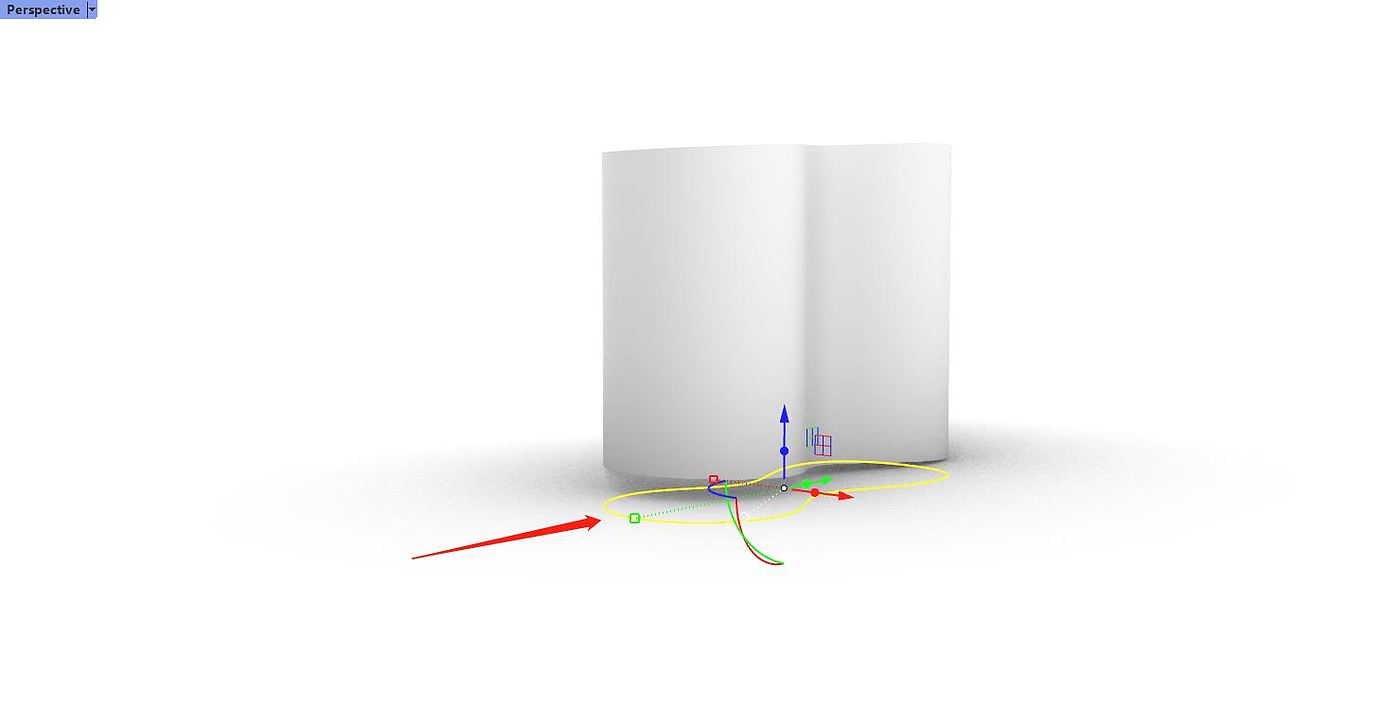

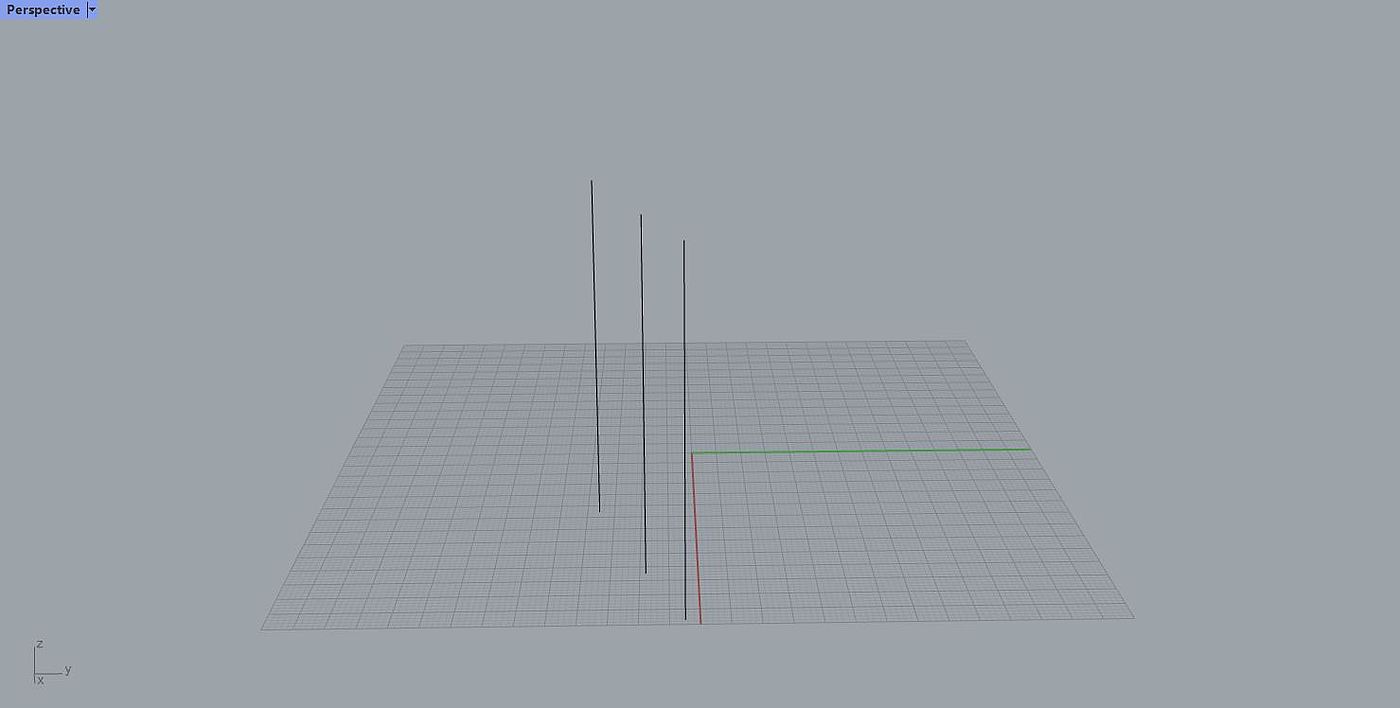

Here I want to use the original curve, but I have just deleted it. What should I do?

Rhinoceros modeling,

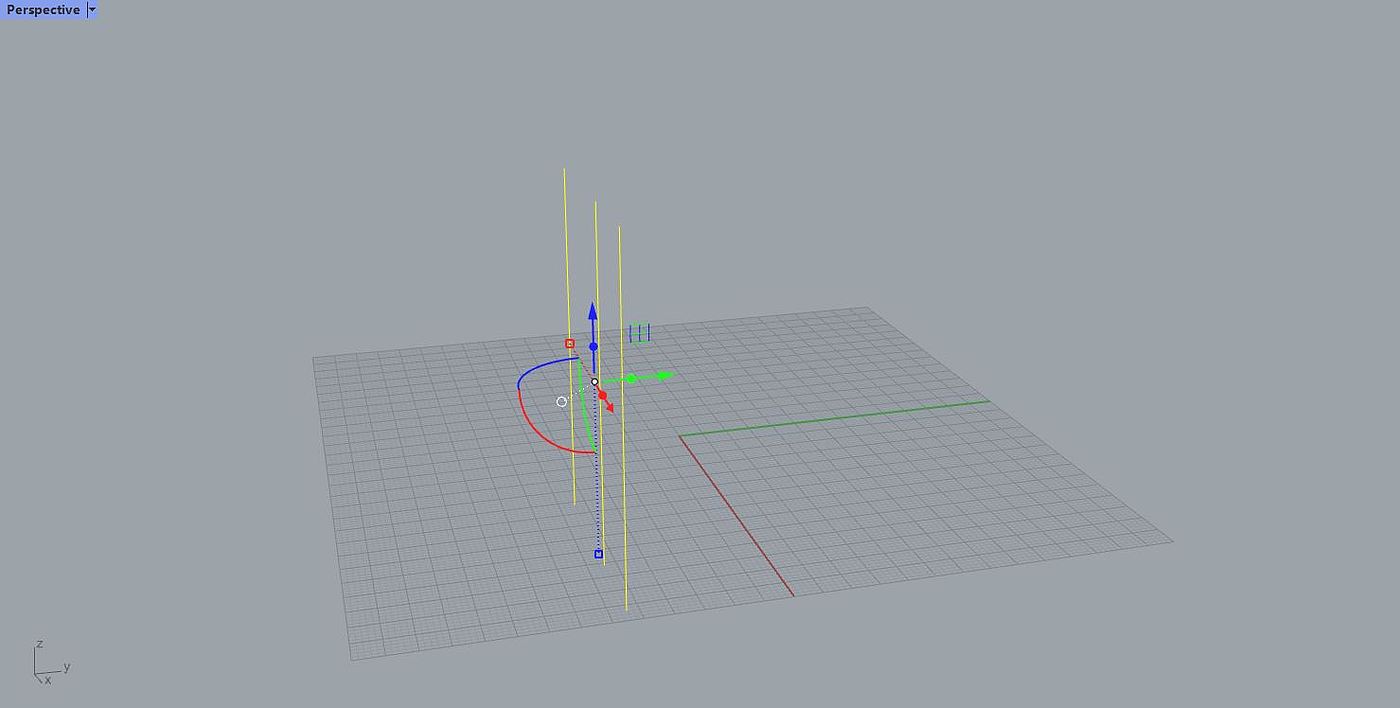

At this time, we cooperate with Ctrl z to go back to where to draw the line at the beginning and then Ctrl c to copy.

Rhinoceros modeling,

Ctrl v paste, then we have found the curve. But the Ctrl v c function is much more than that.

Rhinoceros modeling,

5. Here is the tool usage of projection.

Rhinoceros modeling,
Rhinoceros modeling,

Mobile capture endpoint

Rhinoceros modeling,

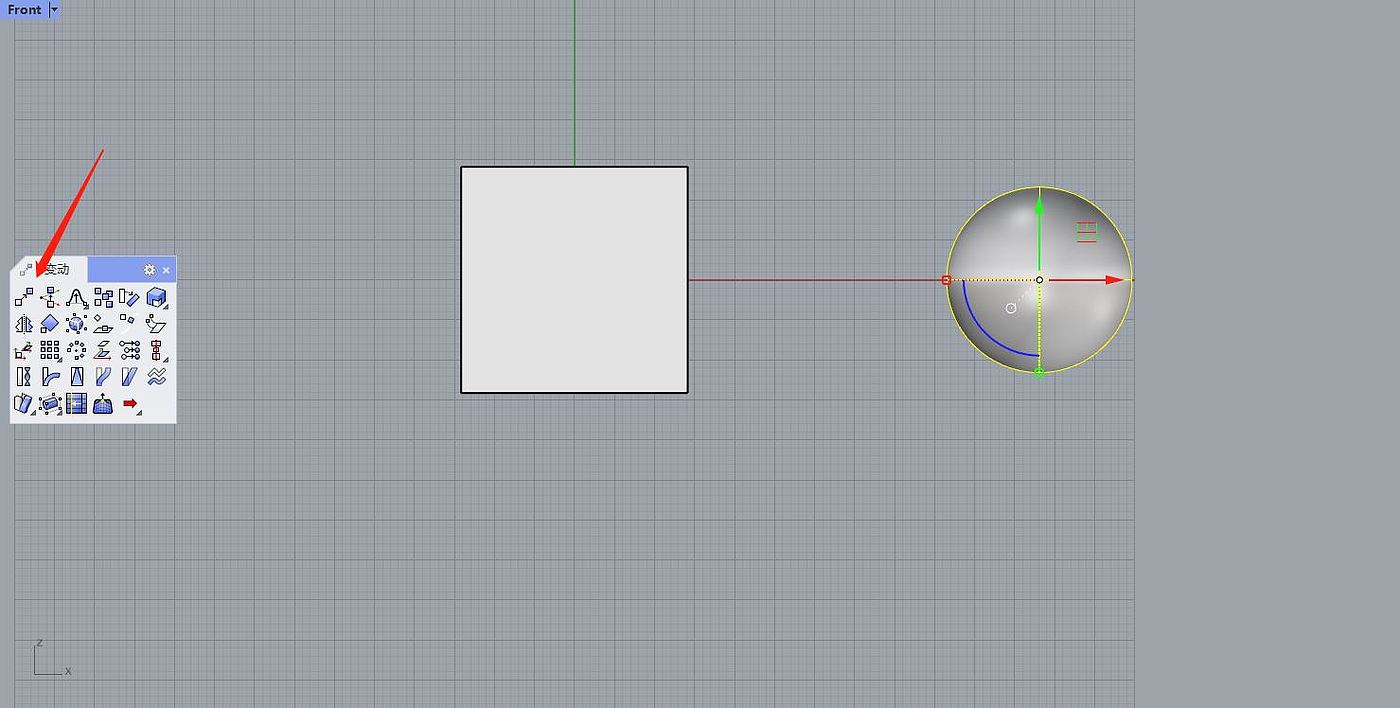

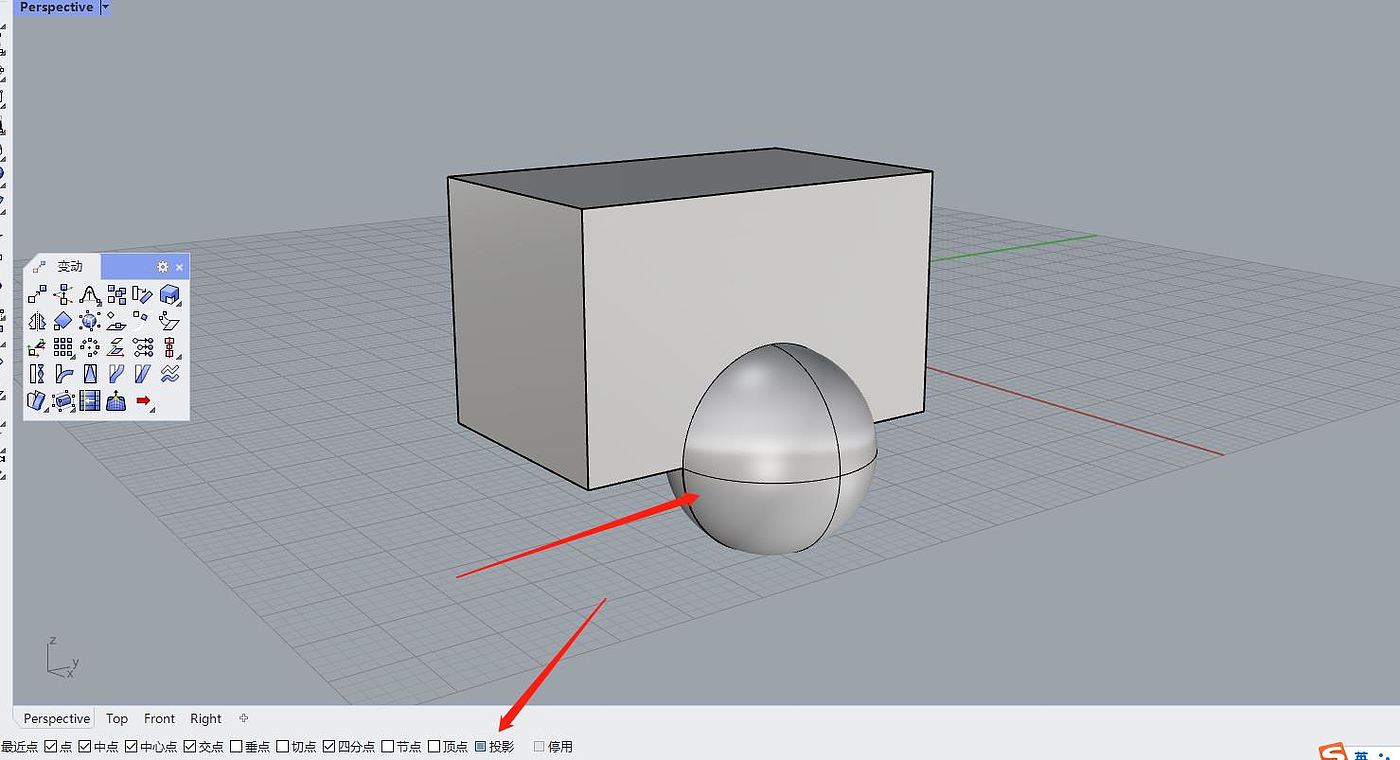

I want to move this ball here, but I just want this ball to move in this plane.

Rhinoceros modeling,

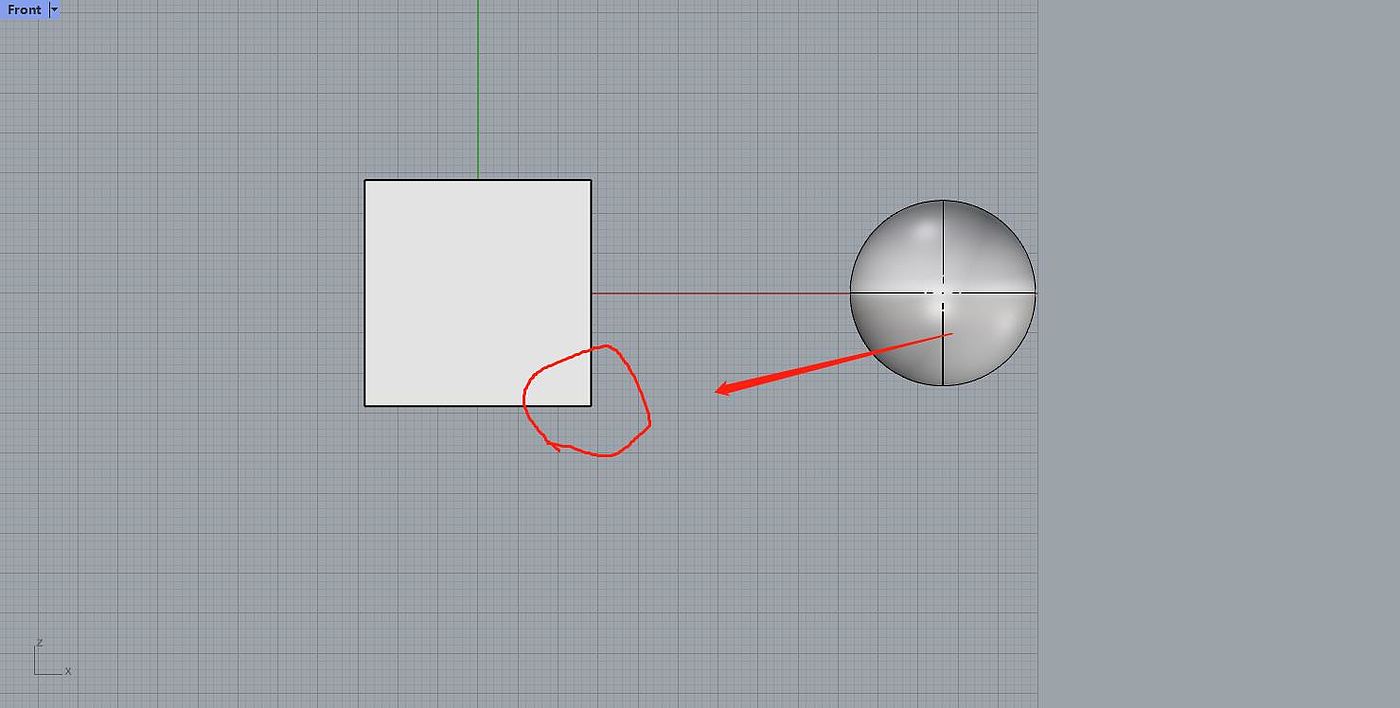

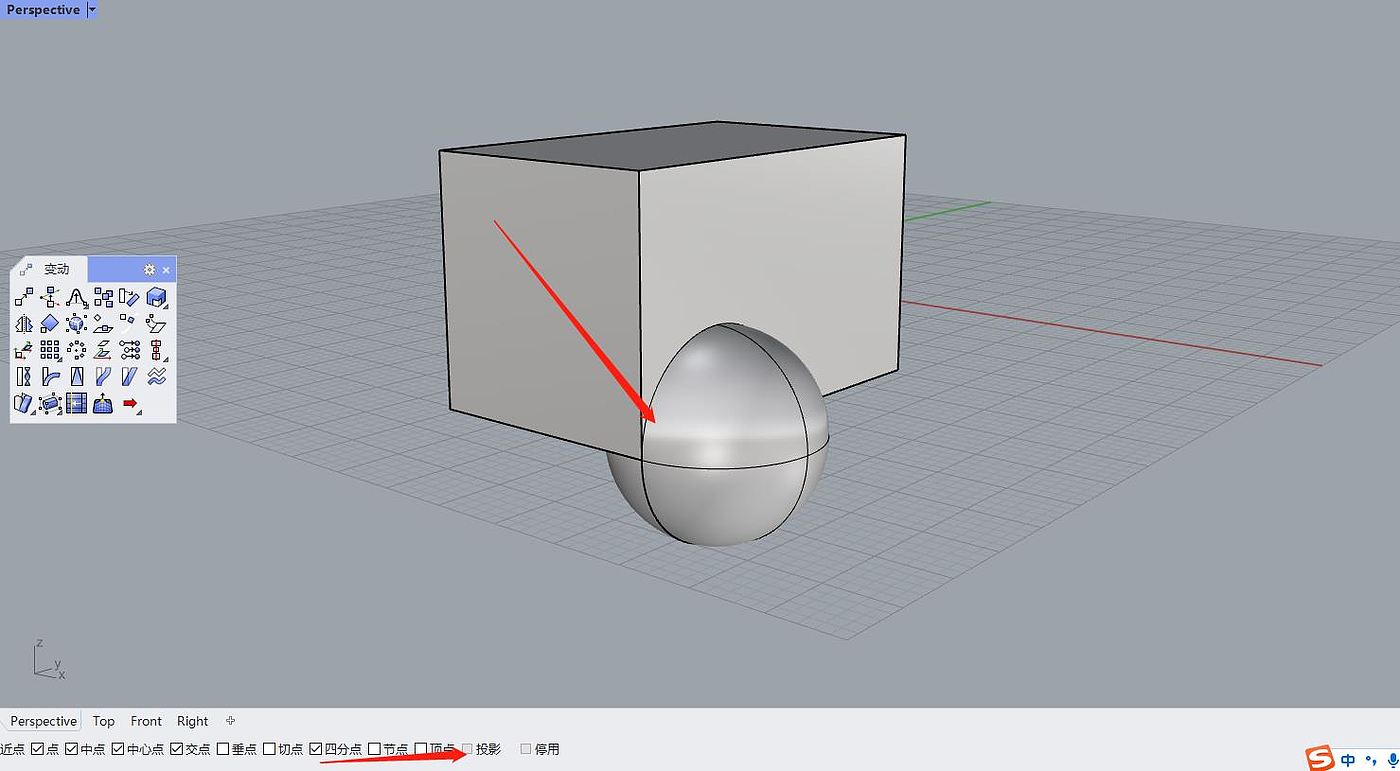

Projection is not checked here, and you will find that its endpoint on one side has moved.

Rhinoceros modeling,

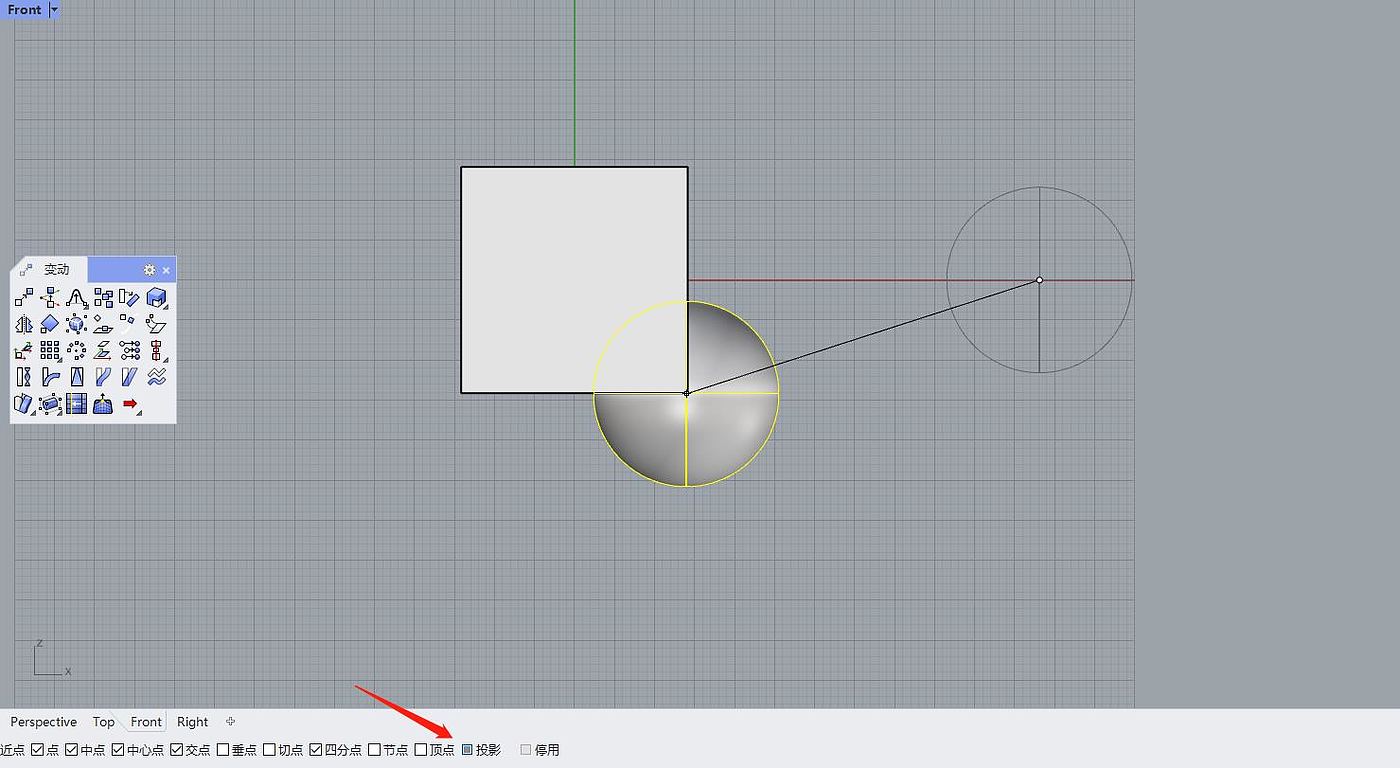

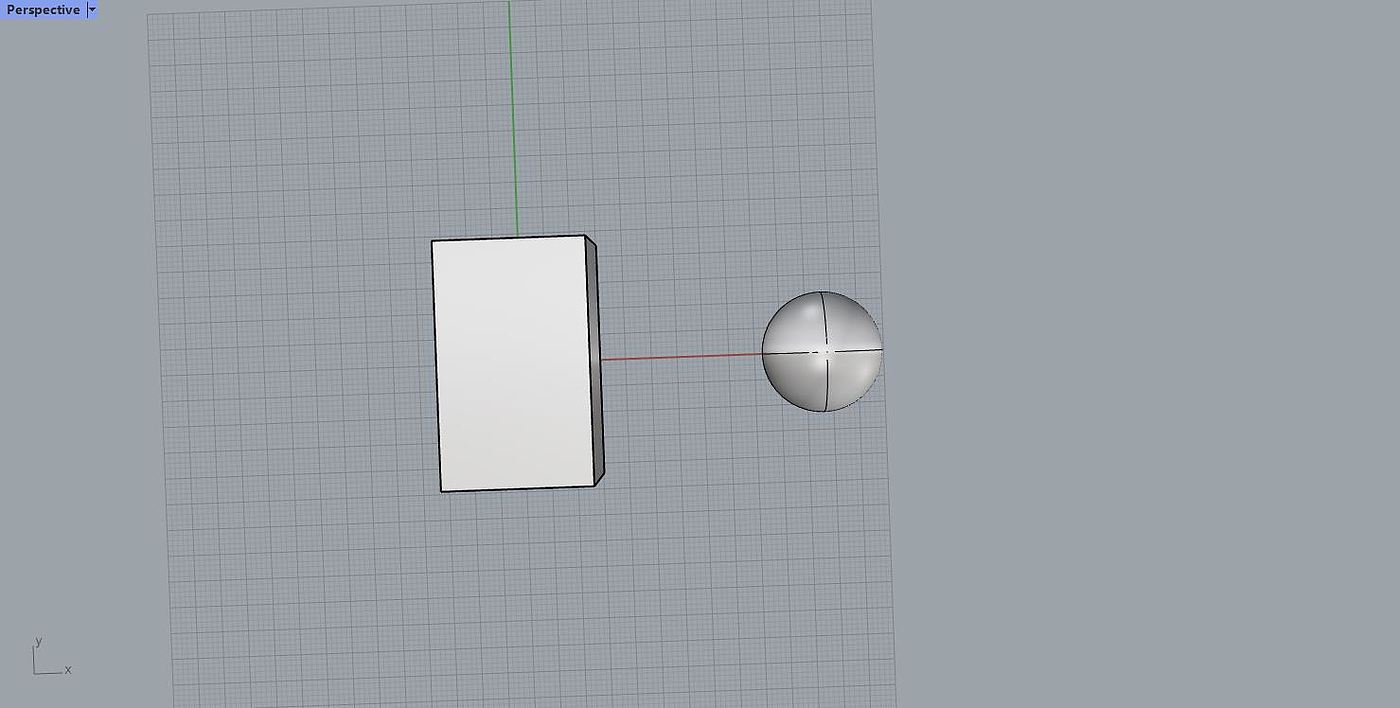

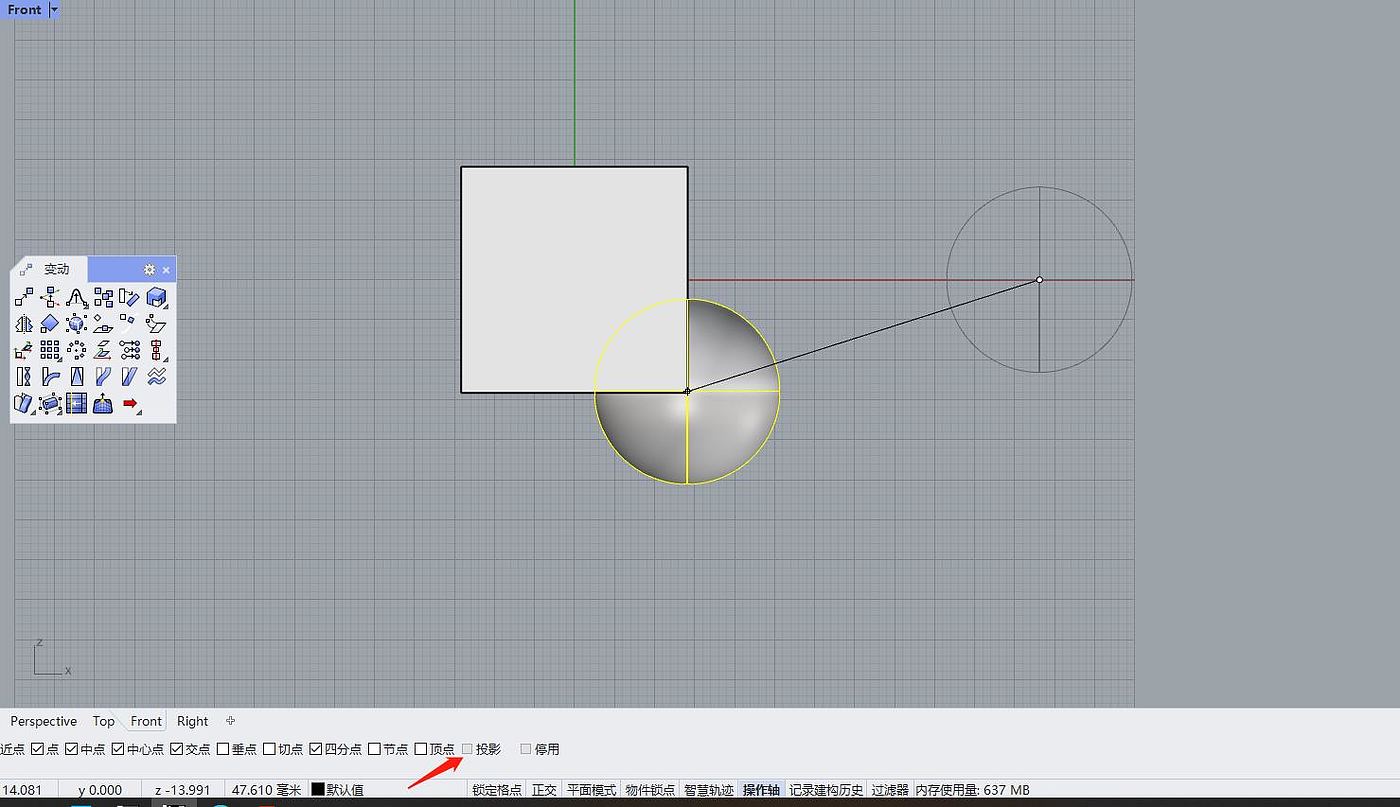

Also catch the endpoint

Rhinoceros modeling,

The ball is exactly where the midpoint is. The other planes did not move.

Rhinoceros modeling,
