Project Name: Design Proposal for the Second Generation Cart (Scheme B)
Cooperation content: design analysis | appearance design | structural design | prototype production | accompanying running assistance

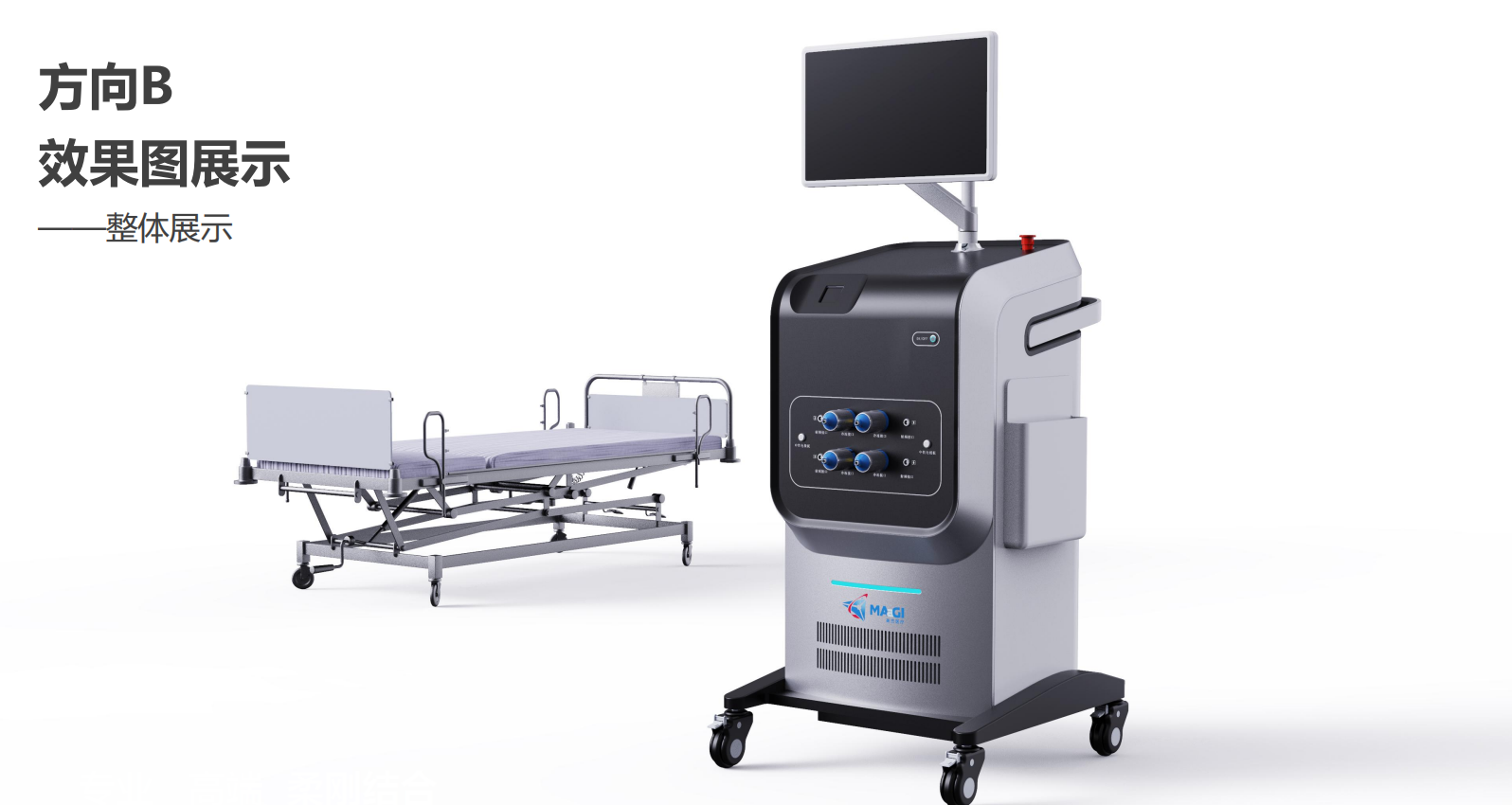

As a professional equipment for clinical diagnosis and treatment scenarios, this medical cart (direction B) takes "design continuity professional high-end sense" as its core, achieving a precise balance between functional rigor and operational friendliness. Through the rhythmic form of three large partitions, refined functional details and humanized ergonomic optimization, it enables professional medical equipment to have a sense of clinical reliability and provide efficient and comfortable use experience in high-frequency mobile operation, becoming a typical example of "inheritance and innovation" in medical cart design.
1. Design Analysis: Efficient Mobile Carriers in Clinical Scenarios
The core design positioning of direction B is a professional medical carrier for high-frequency mobile scenarios such as clinical diagnosis and treatment and rehabilitation treatment. The design starts from "the whole process of mobile diagnosis and treatment": it should not only meet the portability requirements of medical staff in the ward and clinic, but also adapt to the core functions such as parameter adjustment and pipeline connection during treatment operation. At the same time, through the visual language of "soft and rigid combination", the cold feeling of medical equipment can be weakened and the psychological pressure of both doctors and patients can be relieved. This positioning determines that the design is not a single function stack, but a deep unity of "professional performance mobile efficiency affinity experience.
2. Design Language: Professional Aesthetics of Soft and Rigid Combination
The design language of direction B takes "the combination of three large partitions and flexibility" as the core, and conveys professional and high-end visual experience through the combination of form, color and material:

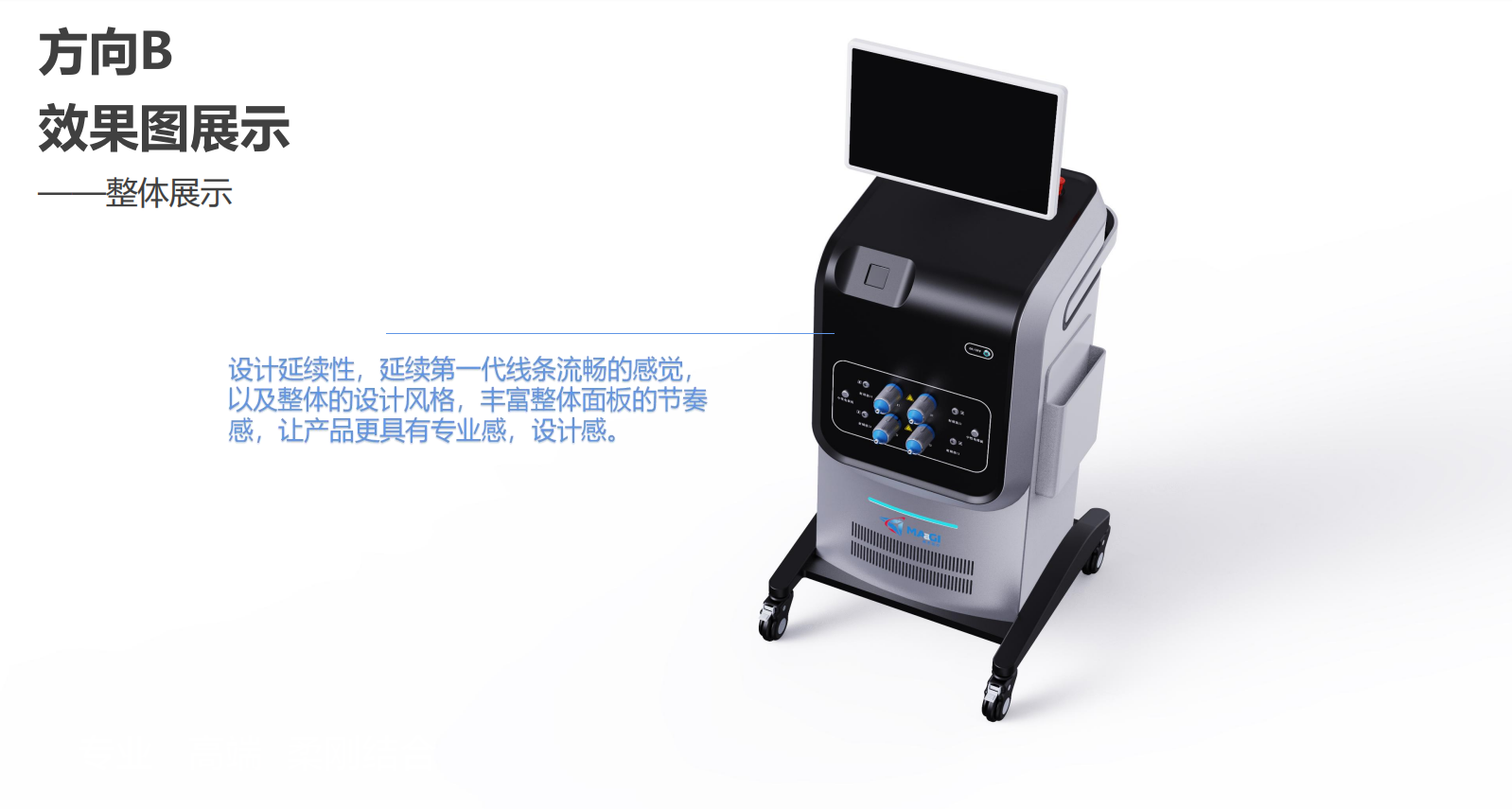

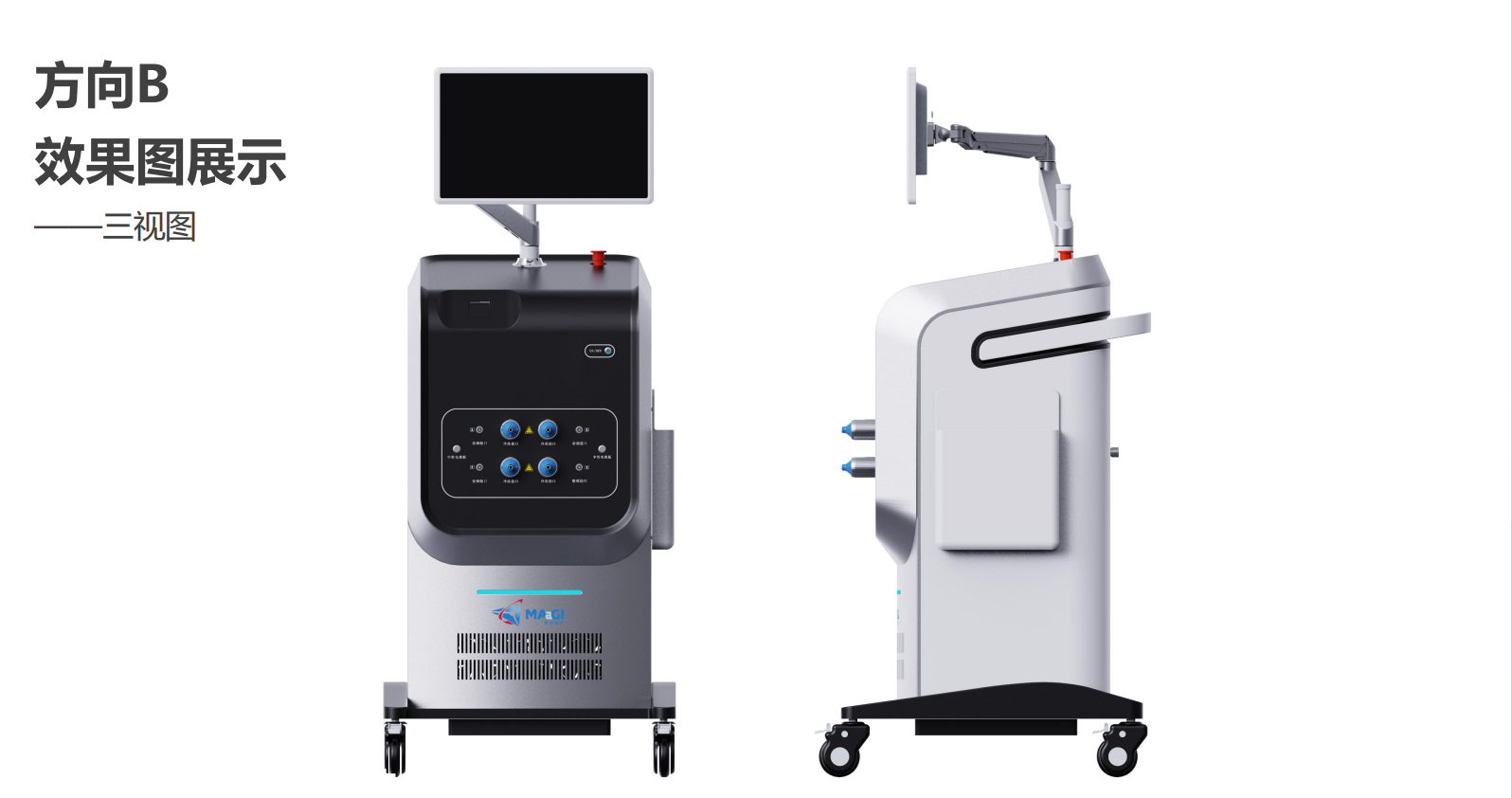

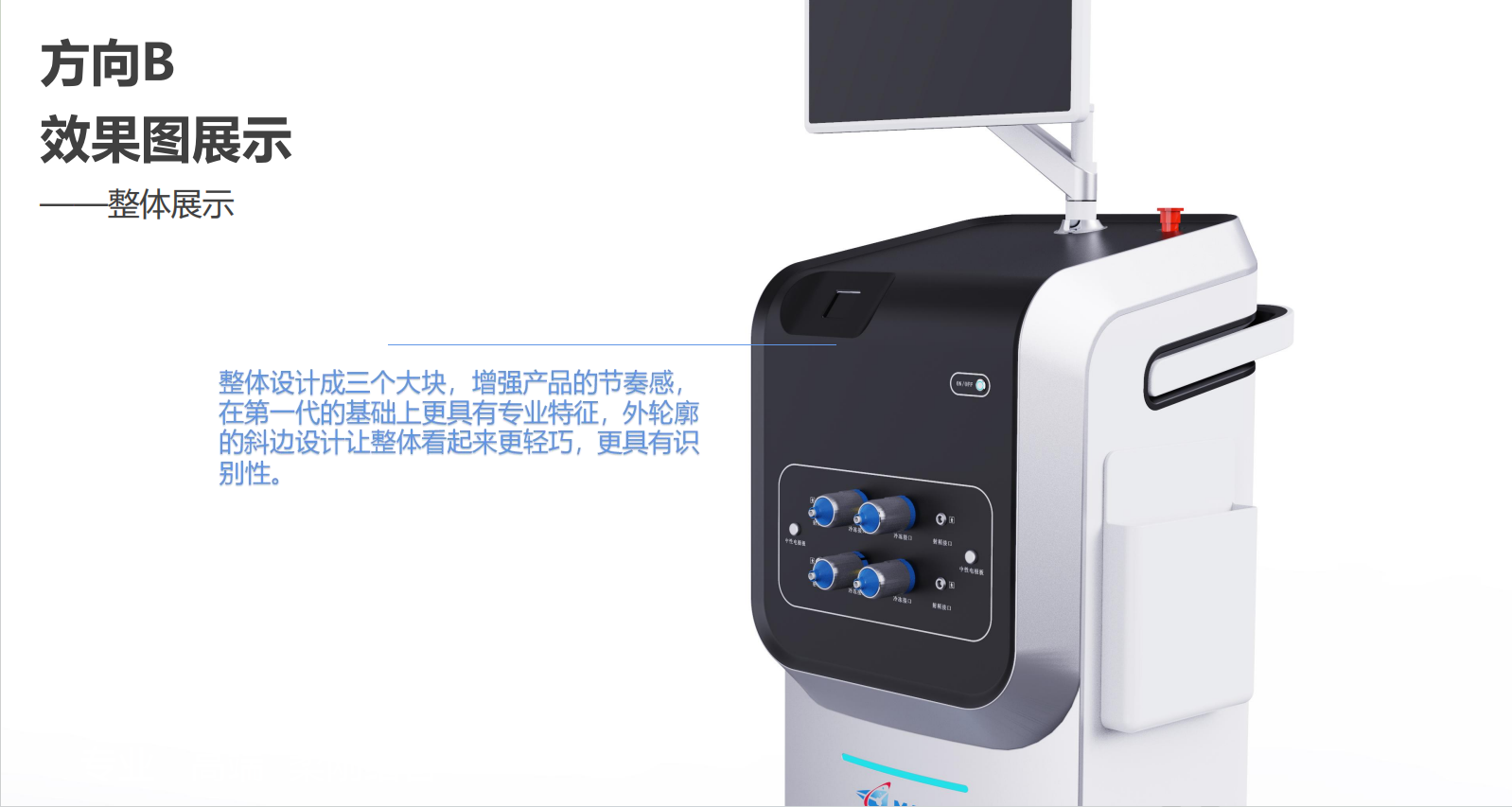

Morphological language: the whole adopts the shape of "three large partitions". the top black operation area, the middle silver transition area and the bottom white body form a clear visual rhythm, which not only continues the smooth line gene of the first generation of products, but also makes the equipment look lighter and strengthens the identification of the products through the hypotenuse design of the outer contour. The transition between tough hypotenuse and round corners, to achieve the "professional atmosphere" and "friendly" balance.
Color system: medical grade white is used as the base, with black operation area and silver transition area, and the main color of low saturation conveys the clean and professional feeling of medical equipment; Blue interface logo, red emergency stop button and cyan atmosphere light are used as functional prompts, which not only form visual focus, but also make the core operation area clear at a glance and improve operation efficiency. The brand logo "MAAGI" is embedded in the central area with red and blue colors to strengthen brand identification, without interfering with operational vision.
Material logic: the main body is made of medical-grade ABS plastic, and the surface is matte and frosted to improve skid resistance and durability. The interface of the operation area adopts a blue knob with metallic texture, which forms a material contrast with the black panel and highlights the functional zones. The bottom casters are made of silent rubber material to reduce noise interference during movement and adapt to quiet environments such as wards.
3. design details: function-oriented fine landing
The detail processing of direction B embodies the design thinking of "taking clinical needs as the core" everywhere, and every detail serves the actual diagnosis and treatment scene:
Interaction and operation details: the four blue knobs in the front operation area are clearly marked with functions such as "flushing interface" and "radio frequency interface". the damping feeling of the knobs is optimized, and the adjustment is accurate and smooth to avoid misoperation. The red emergency stop button at the top adopts a convex design, which can be triggered accurately when wearing gloves to improve the safety of diagnosis and treatment. The cyan atmosphere light and status indicator light in the middle feed back the running status of the equipment in real time, allow medical staff to quickly identify without looking down.

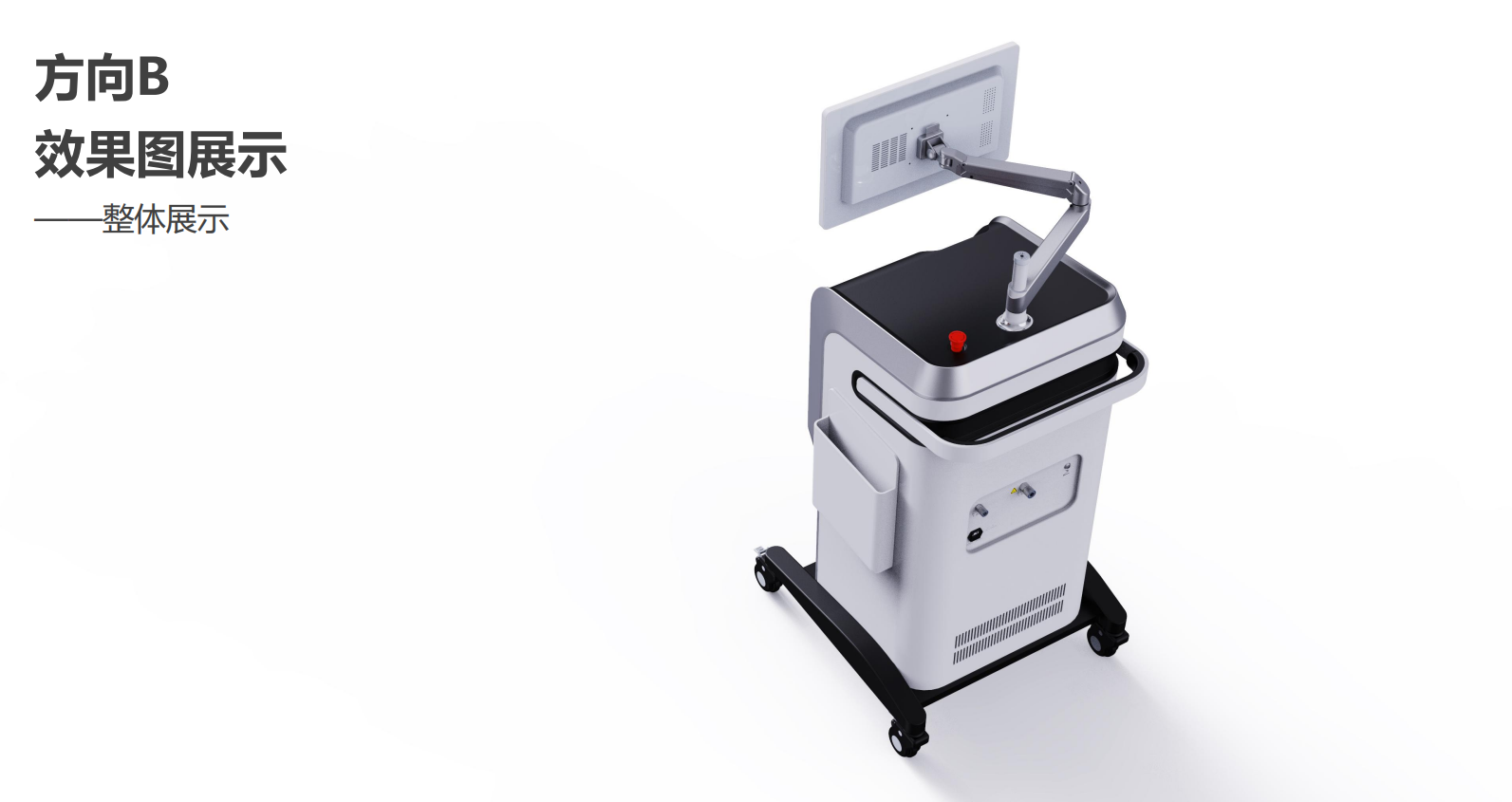

Details of movement and storage: the bottom is equipped with four silent casters with brakes, so that medical staff can easily push the equipment to realize ward transfer, and the stability of treatment can be ensured after the brakes are locked. The hidden storage box on the right side can place pipes, consumables and other items to avoid clutter and interference during operation. The adjustable display bracket at the top supports multi-angle rotation and adapts to the operating viewing angles of medical personnel of different heights.
Details of heat dissipation and maintenance: the large-area grille ventilation holes at the bottom ensure the heat dissipation efficiency of the equipment for long-term operation; The gap of the fuselage is controlled within the medical-grade standard, which is convenient for postoperative high-temperature disinfection and meets the requirements of aseptic management in clinical scenarios. The dust-proof design at the interface avoids dust pollution and ensures the treatment accuracy.
4. Ergonomics: Experience Optimization for Adapting Clinical Operations
The ergonomic design of direction B is deeply in line with the needs of the "mobile operation" dual scene, optimizing the experience from the three dimensions of grip, vision and operation:
Mobile operation adaptation: the arc-shaped handle on the right side fits the natural force posture of the palm, and the medical staff can easily push the equipment with one hand, and it is not easy to fatigue when moving for a long time. The smoothness of the casters has been optimized to move smoothly even on different floors such as carpets and floor tiles, reducing operation resistance.
Treatment operation optimization: the height of the operating area knob and the display screen is ergonomically calculated, and the parameter adjustment and data viewing can be completed without bending over during standing operation. The adjustable display support supports pitch and rotation, adapts to the viewing angle requirements of different treatment scenarios, and improves operation efficiency.
Safety interaction design: the high recognition degree of the emergency stop button, the brake lock of the caster wheel, the rounded corner treatment of the fuselage and other details further reduce the operation risk of both doctors and patients; the silent caster and the soft atmosphere lamp reduce the interference to the patient and improve the comfort of the diagnosis and treatment process.
From the rhythmic design of the three large partitions to the detailed optimization of the silent casters, the medical cart in direction B has always focused on the "practical value of clinical scenarios. It conveys professional high-end feeling with soft and rigid aesthetics, solves operation pain points with fine details, optimizes mobile experience with humanized design, and finally realizes the symbiosis of "professional medical attribute" and "affinity use experience", which provides a practical paradigm for the design of clinical medical equipment. Sogo Design: www.soogot.com
