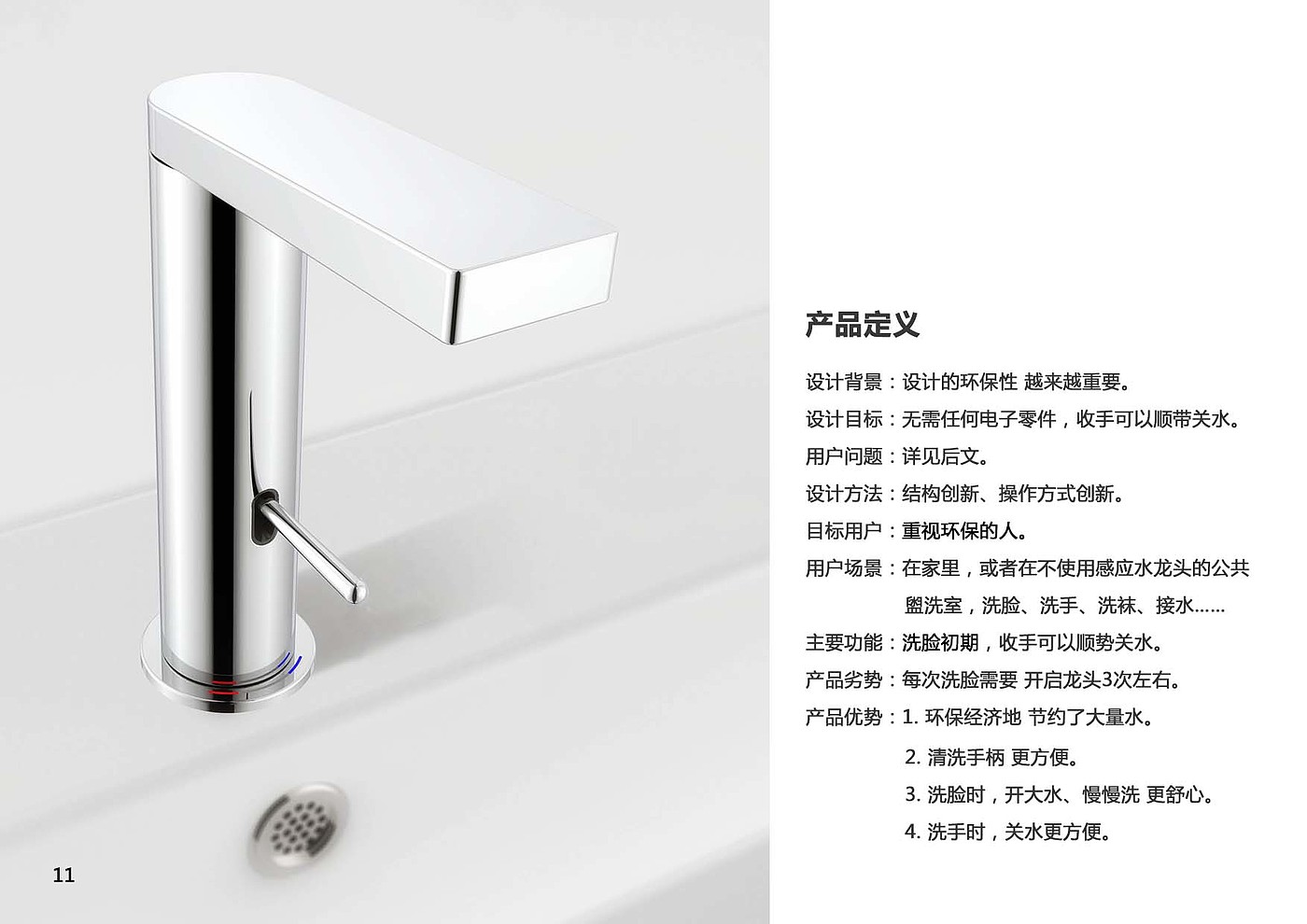

█ Most families do not use inductive faucets. At the beginning of washing face (clean water washing face stage), when wiping face with water in hand, the faucet is still running.
█ Solution: At the beginning of washing your face, turn off the water when you stop. In the later stage of washing your face, the water is not turned off when you stop. Reason: In the initial stage, it takes a long time to scrub your face (massage your face), and it is not only scrubbed once, which wastes more water. In the later period, users want to quickly wash off the foam, scrub quickly, and waste less water.
█ Since there is no copyright of a certain picture, I have to omit some pages. It has been patented.

Creative design,water tap,environment protection,
Creative design,water tap,environment protection,
Creative design,water tap,environment protection,
12 23
评论

留言板 (9)

ZYX 2020-05-15
回复

Switch bubbler to understand
https://item.taobao.com/item.htm?spm=a230r.1.14.39.12e07237YbKKvl&id=618330123305&ns=1&abbucket=9#detail

Morris作者 2020-06-15
回复
I thought about it. I didn't choose this plan at the beginning because it is not suitable for some scenes.
我也说一句
云青. 2020-04-17
回复

It is feasible in theory, but the difficulty lies in the fact that the valve core itself is in the middle of the main body. How to connect the waterway with the water outlet is a small problem. Unless the valve core bias of 25 is not concentric with the main body, it is possible to pass through a copper tube with a smaller diameter.

Morris作者 2020-04-17
回复
the spool diameter is 25, not offset, and the distance from the inner surface of the inner tube is 10. This is the data I adopted.
Morris作者 2020-04-18
回复
Sorry, it's not 10, it's 7. I remember wrong.
我也说一句
荔枝肉 2020-04-14
回复

If you adjust the temperature left and right, how can the main body of the faucet be fixed on the table?

Morris作者 2020-04-15
回复

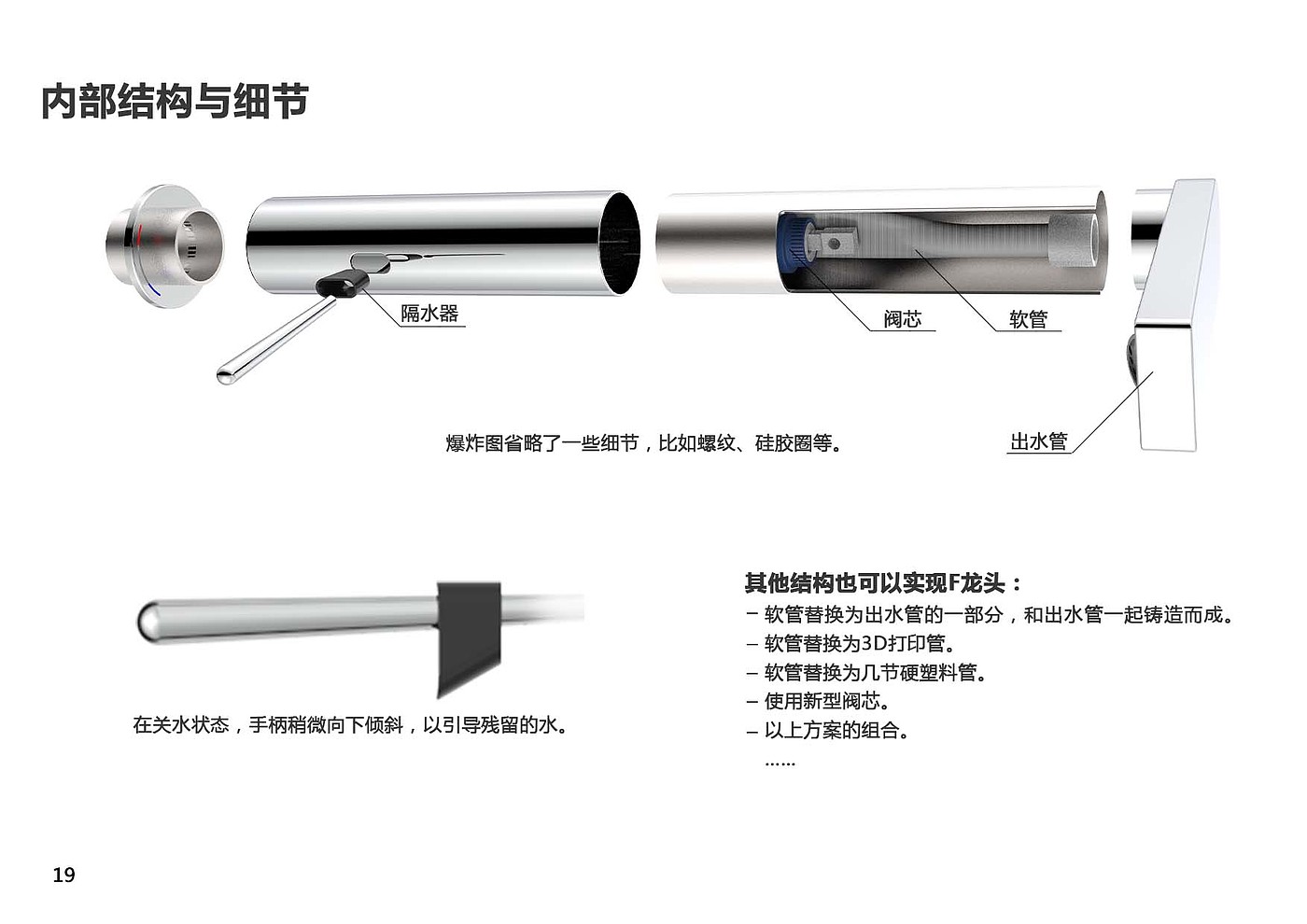

The inner shell, the base (the part with the temperature printed) and the outlet pipe are tightly screwed together and cannot be fixed.

The shell is loosely placed on the base, loosely sleeved with the inner shell, and the silicone ring is anti-friction. It rotates with the handle.

See Figure 3 for details.
我也说一句
三人与歌 2020-04-13
回复

This can also save water, and it is also convenient to 666 after washing.

生命一旅程 2020-04-13
回复

Creative awesome
