Forests are natural resources that we human beings should protect well, take good care of the environment and improve the world with design (this is my wish, although it is still far away)

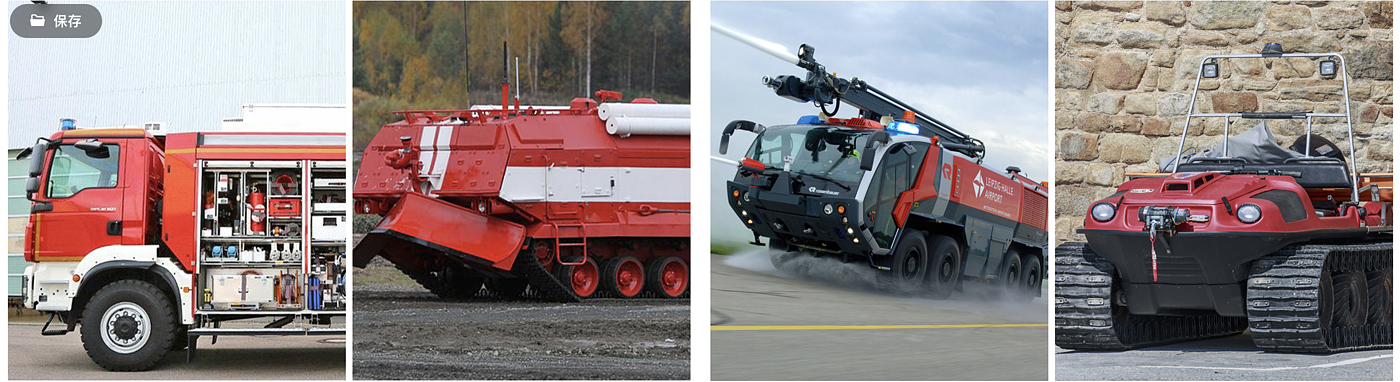

90 The total area of China's forestry is about 0.1446 billion hectares, accounting for about 9.8% of the earth's surface area. Therefore, in the aspect of forestry fire protection, it needs to be paid great attention. The development of domestic forestry fire protection is relatively late, and the active fire engines are all modified from military tanks. This kind of equipment is huge and heavy, slow, and does not conform to ergonomics, and has no designed appearance and single function, which are all big problems.
The main protective measures of forestry fire control are: assessment of forest status through forestry patrol. In case of forestry fire, the fire fighting is mainly carried out by forestry fire engines, fire fighting aircraft and a large number of firefighters carrying fire fighting equipment. The existing fire fighting engines are large in size, the domestic forest land is narrow, and the fire fighting engines are huge, so they can only let the firefighters carry out manual patrols. In this way, when the fire fighting personnel encounter a sudden forestry fire, it is not easy for the fire engines to arrive at the fire scene in time.
In view of these two major pain points, I thought about designing an all-terrain modular fire truck.

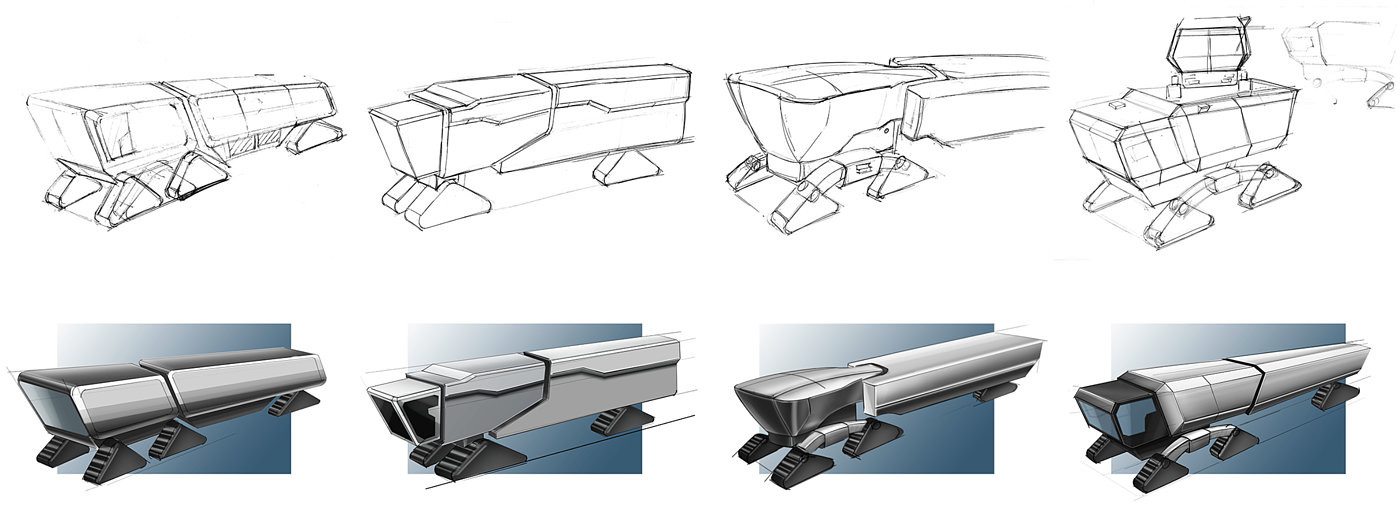

My final concept is to divide the entire car into a patrol car body and three modular car bodies with different functions. These modular car bodies will be able to quickly and arbitrarily form fire engines with different functions with the patrol car body.

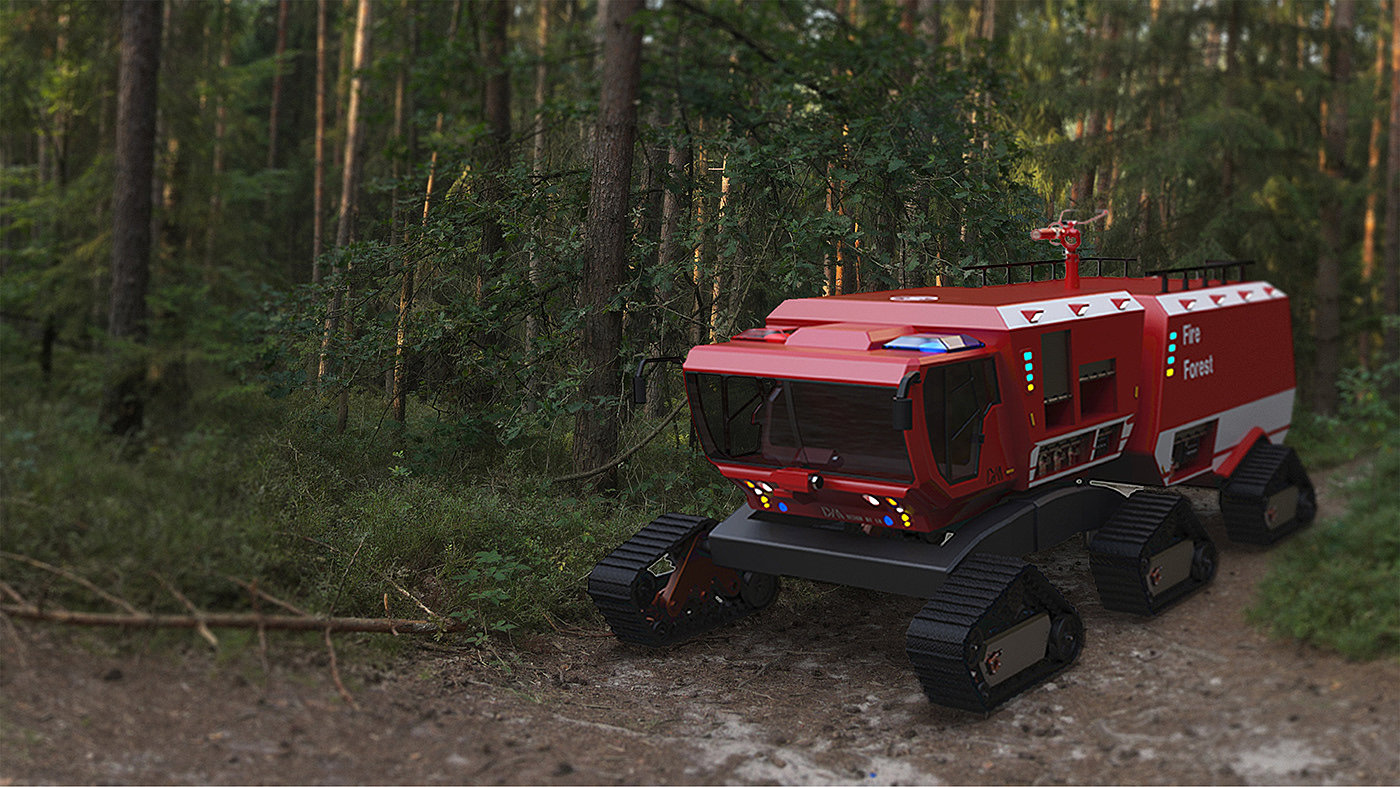

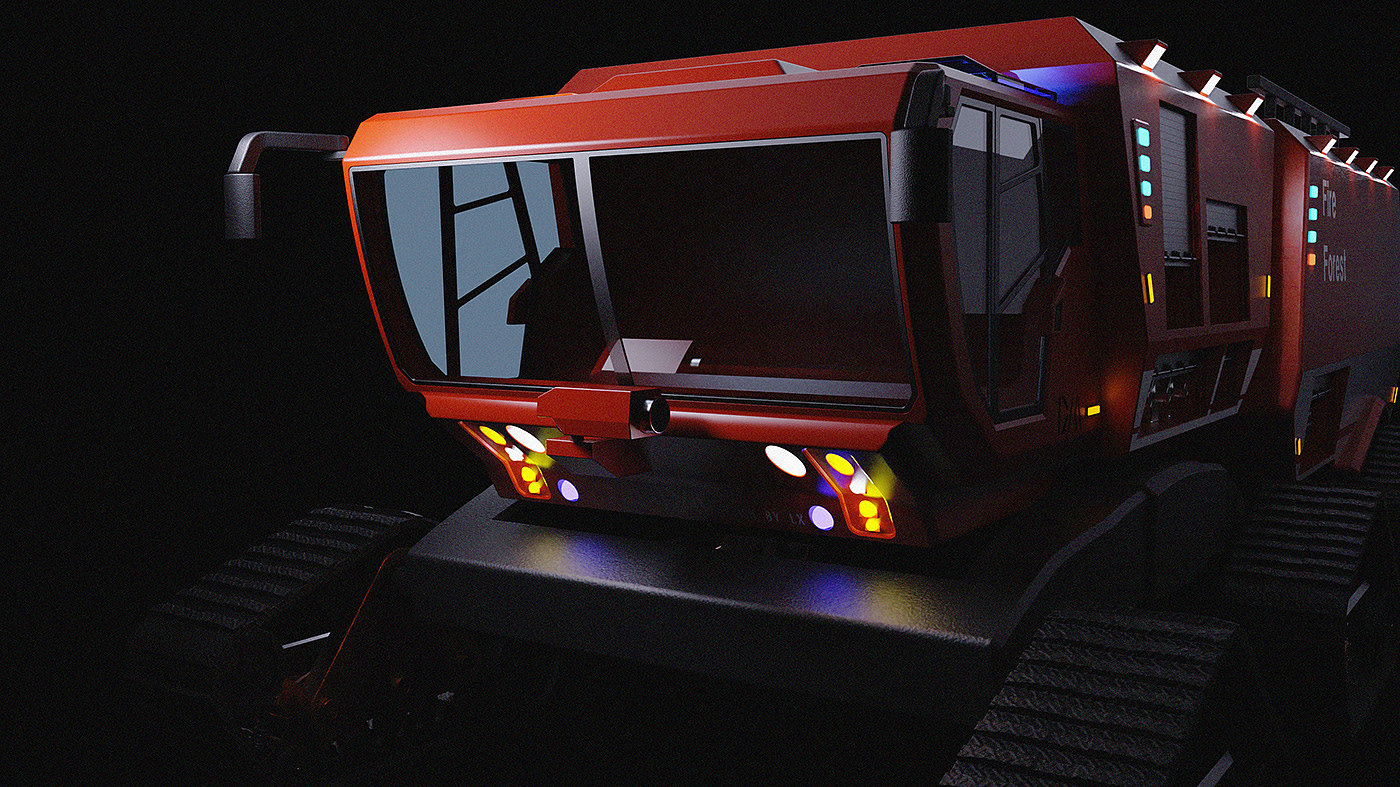

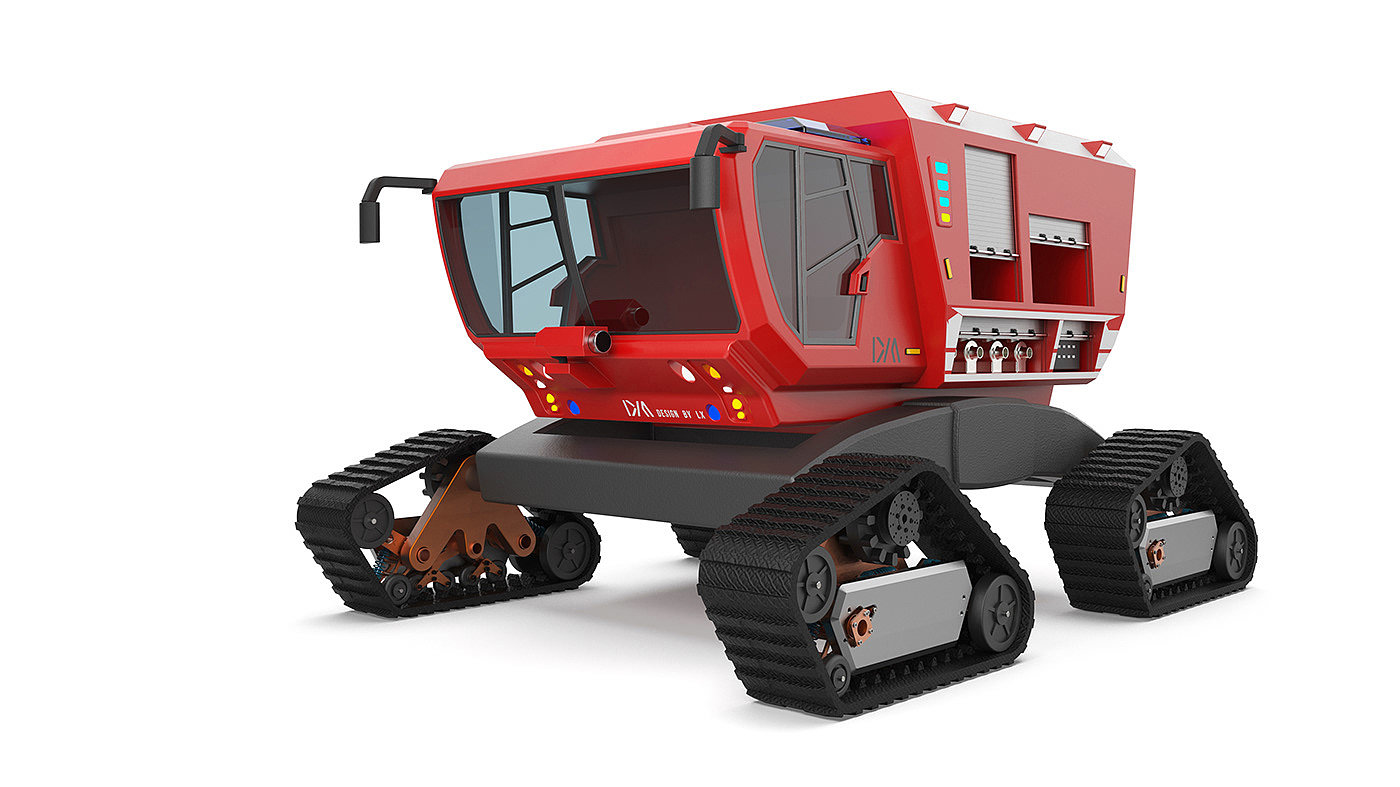

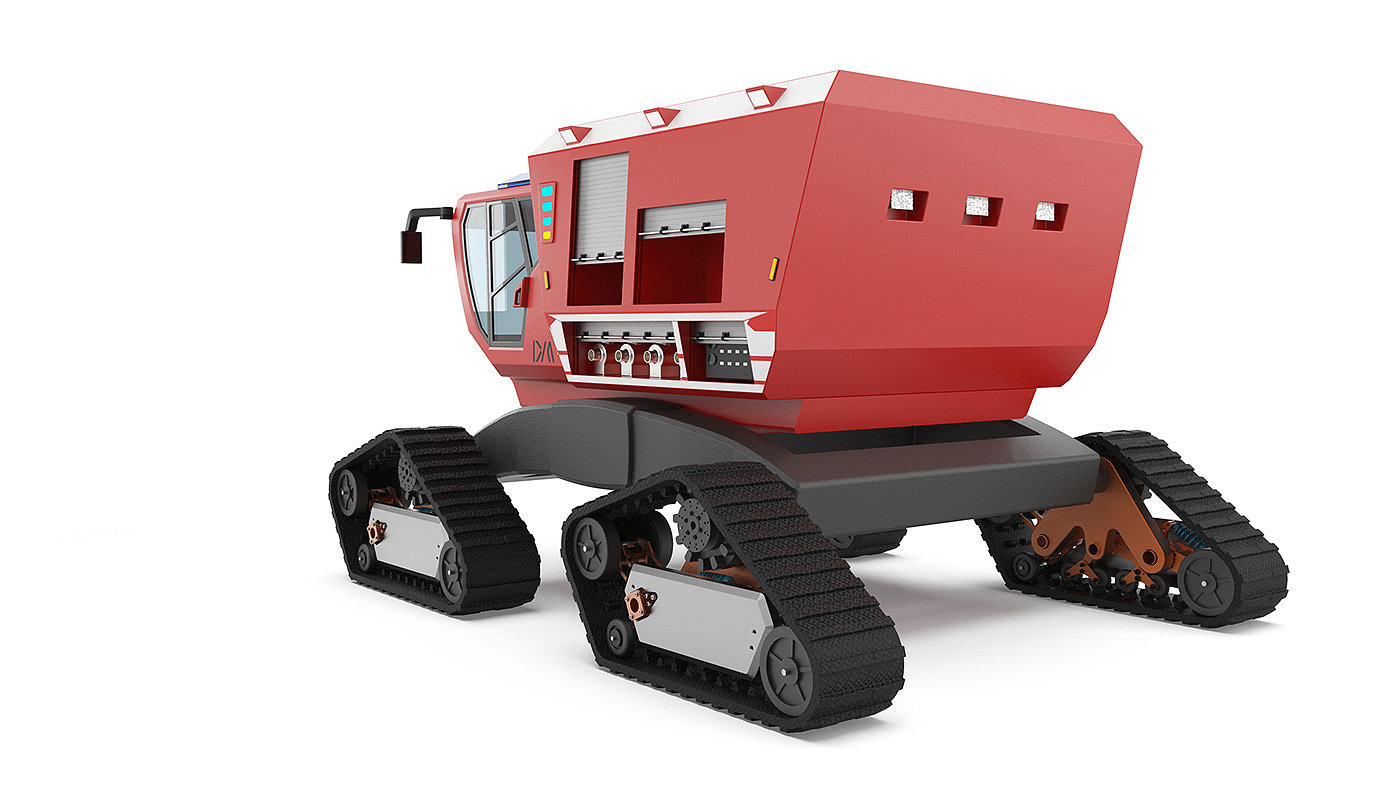

Patrol car

Equipped with all-terrain rubber tracks to meet most of China's forest terrain. The storage space and fire extinguishing equipment of the patrol vehicle can meet the needs of daily patrol personnel, the front space can meet the operation of 4 patrol personnel, and the drone on the roof can assist patrol personnel. In case of small-scale fire, the automatic fire extinguishing water gun at the front of the patrol car can be used to extinguish the fire. In case of large-scale fire, the patrol car body can be assembled with the nearby assembly car body to form a large-scale fire truck with different functions and rush to the scene to extinguish the fire, providing rescue guarantee for higher and longer-distance fire sources and complex fire environment.

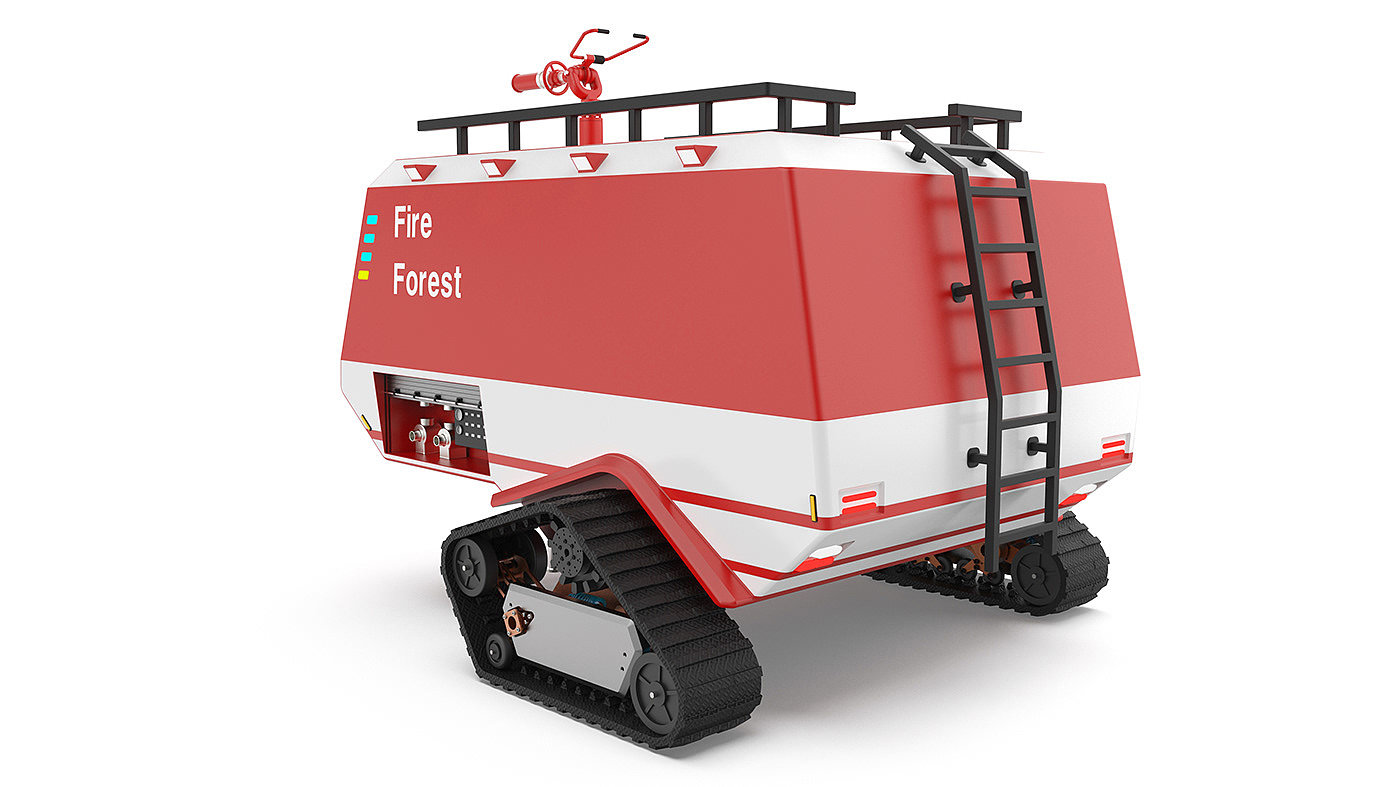

Water storage car body

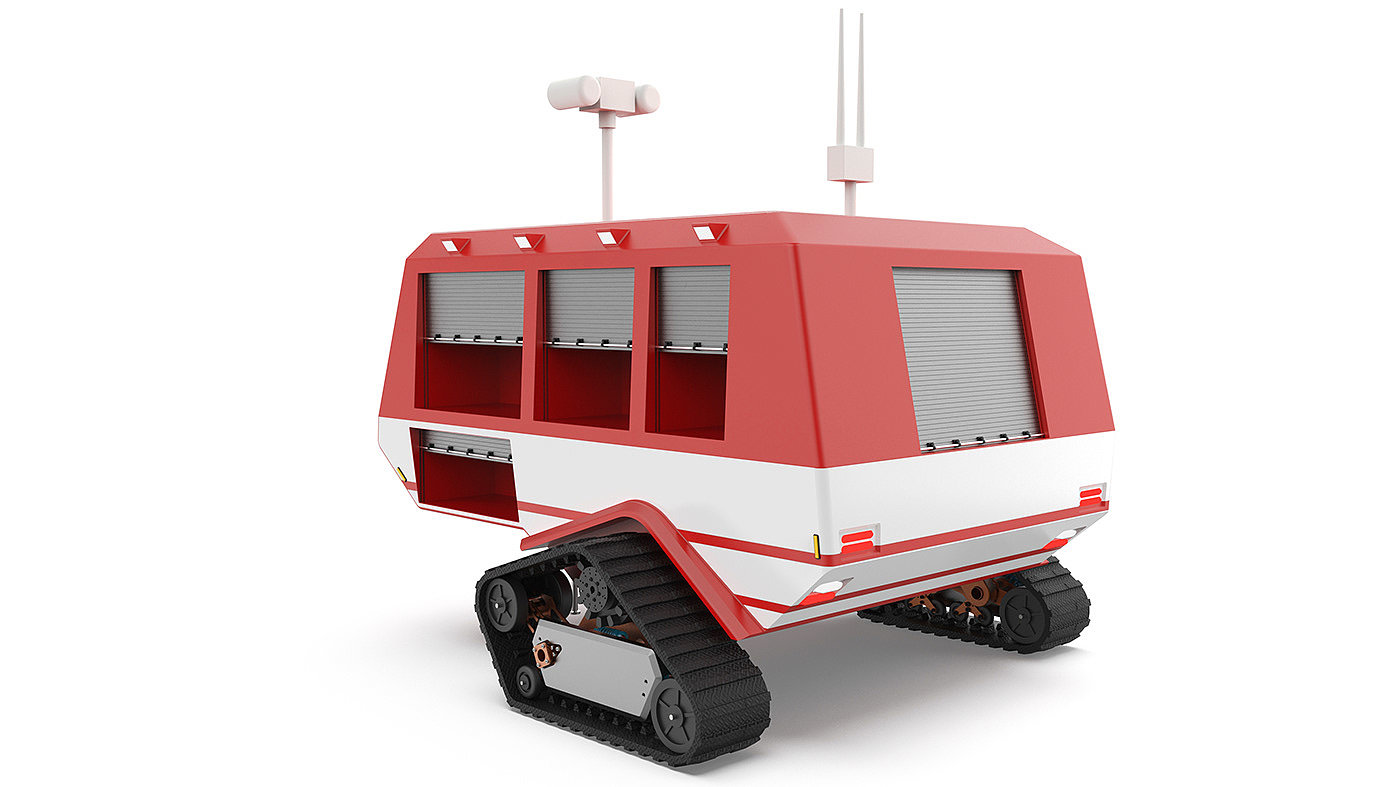

Carrier communication car body

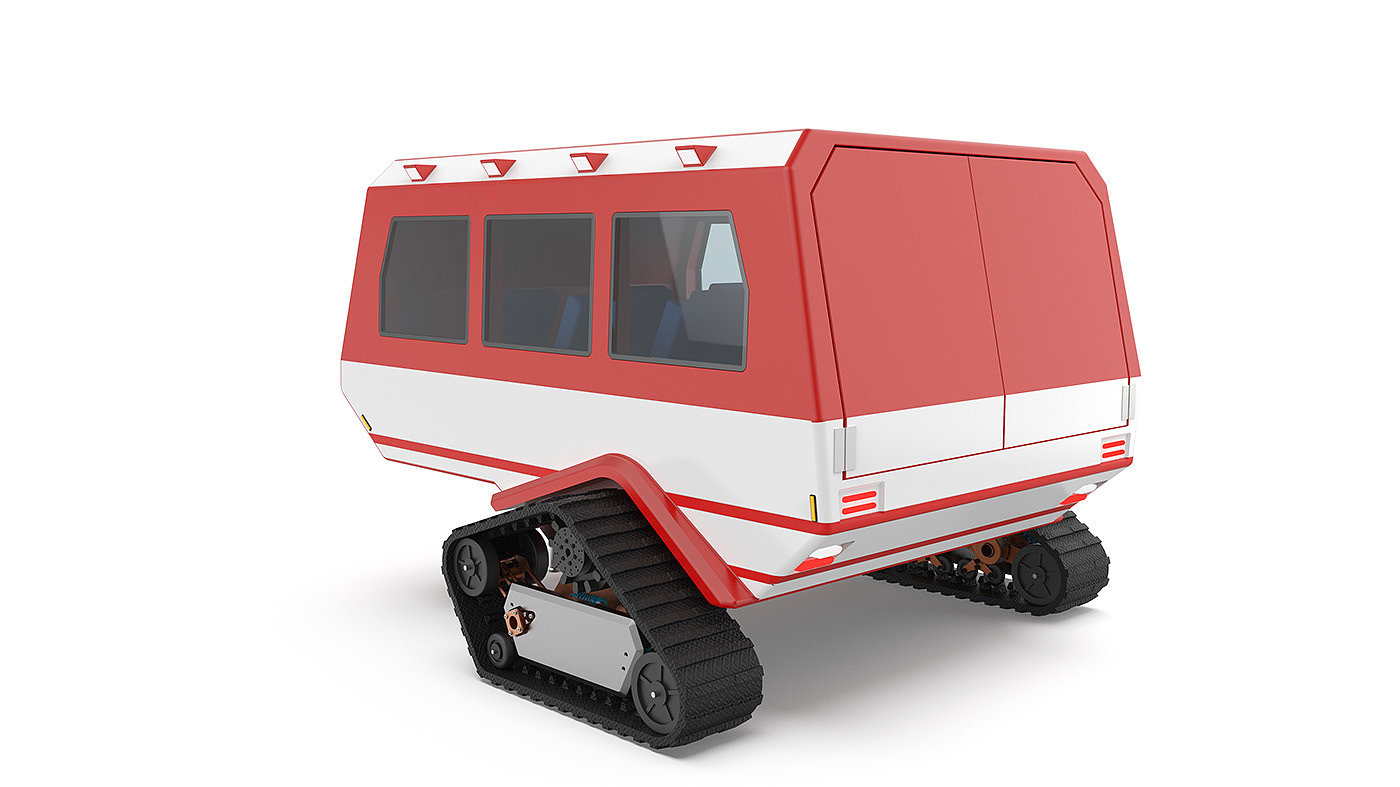

Manned car body

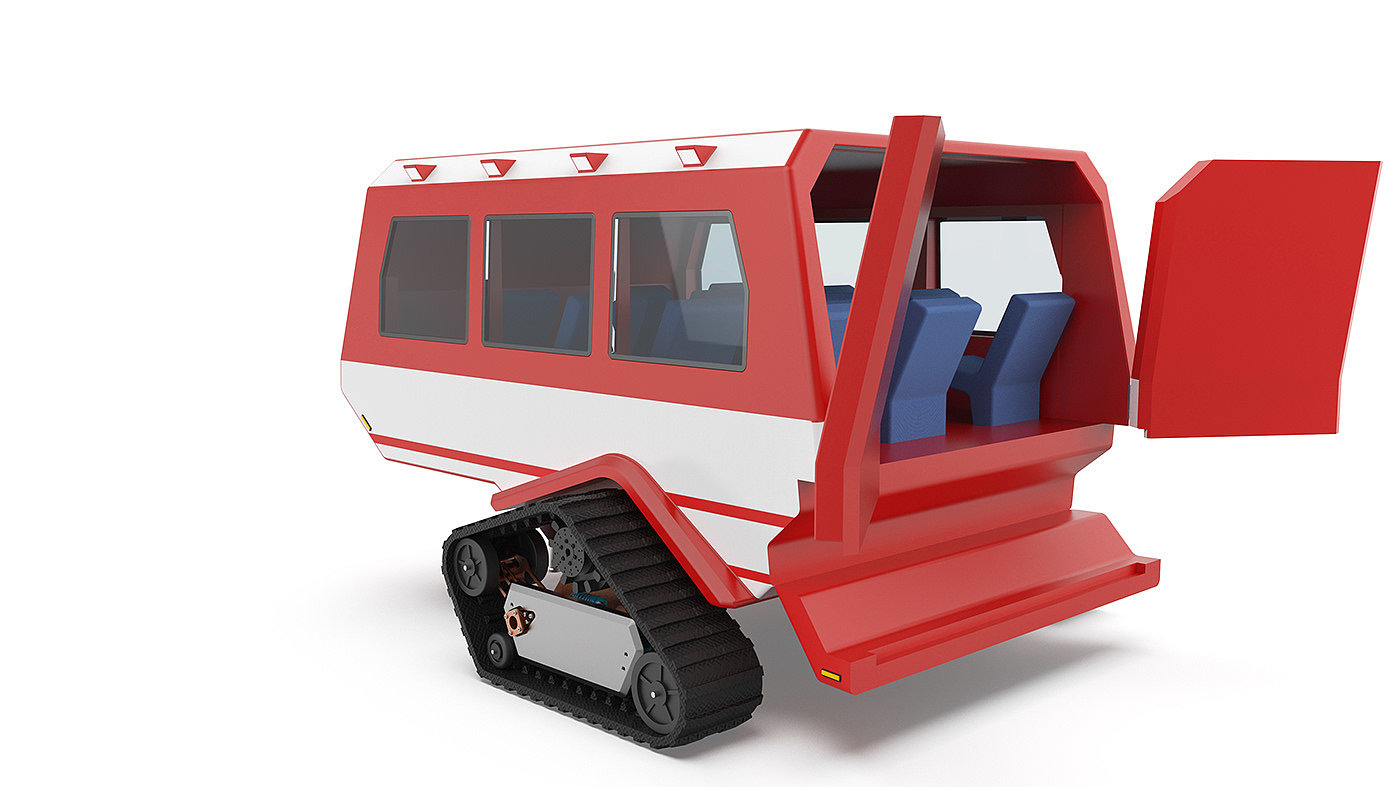

Manned body (open)

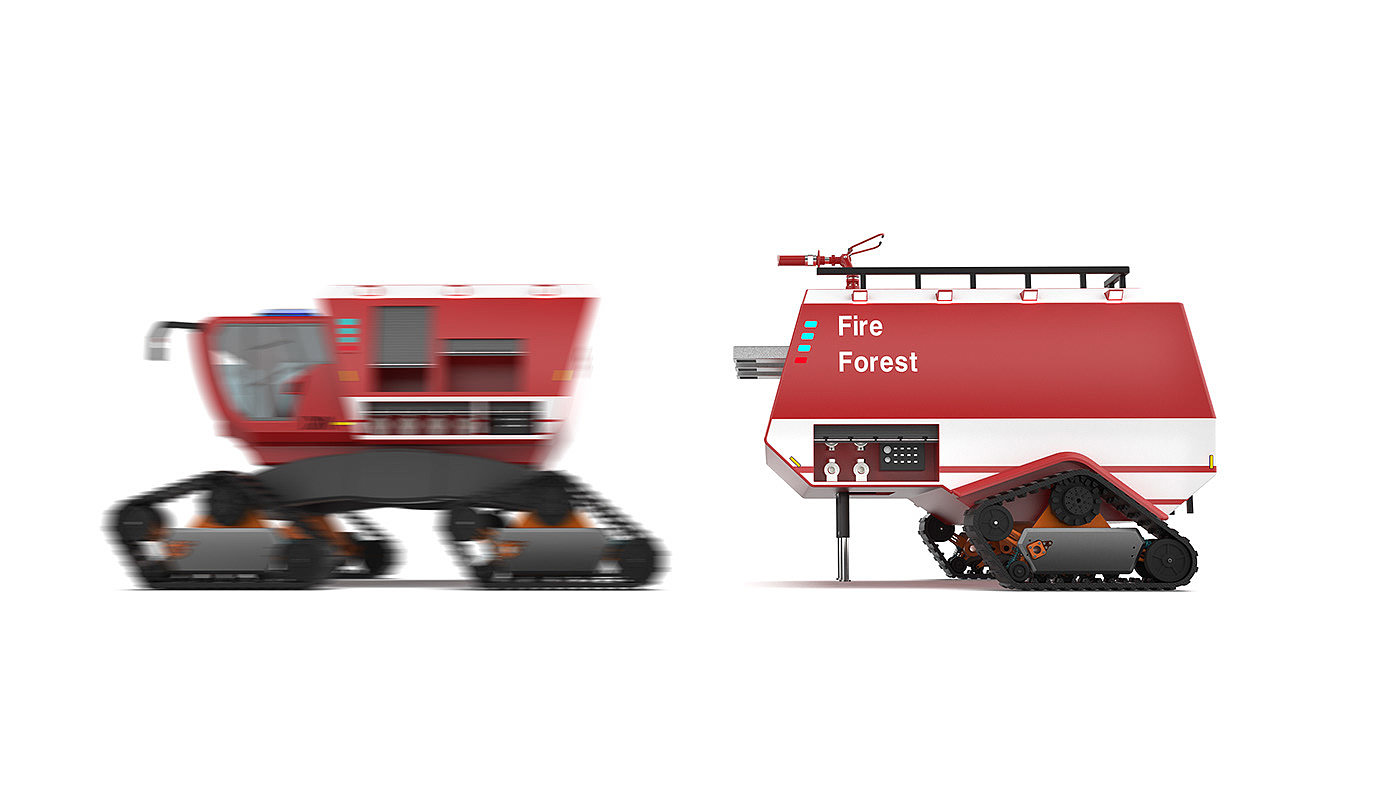

The patrol car body is connected to the functional car body

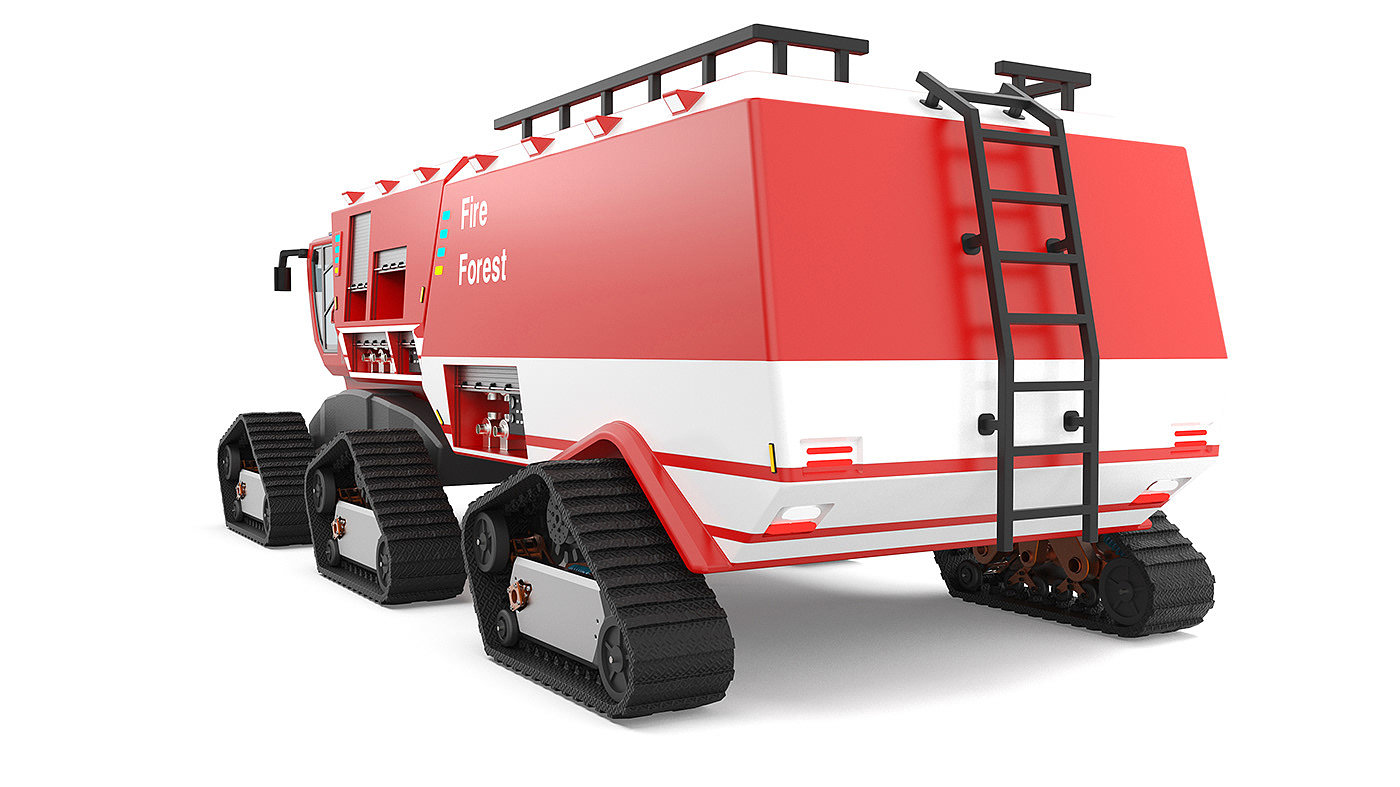

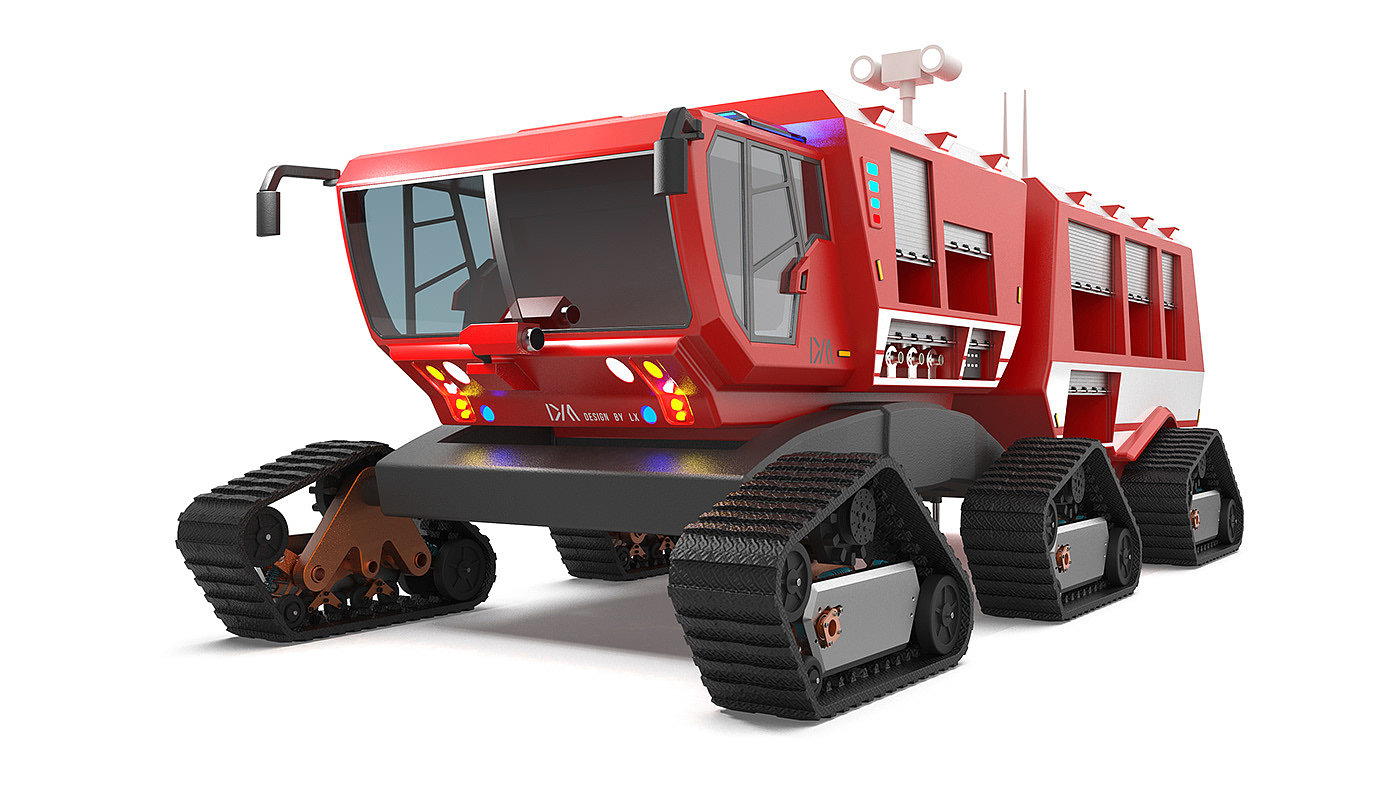

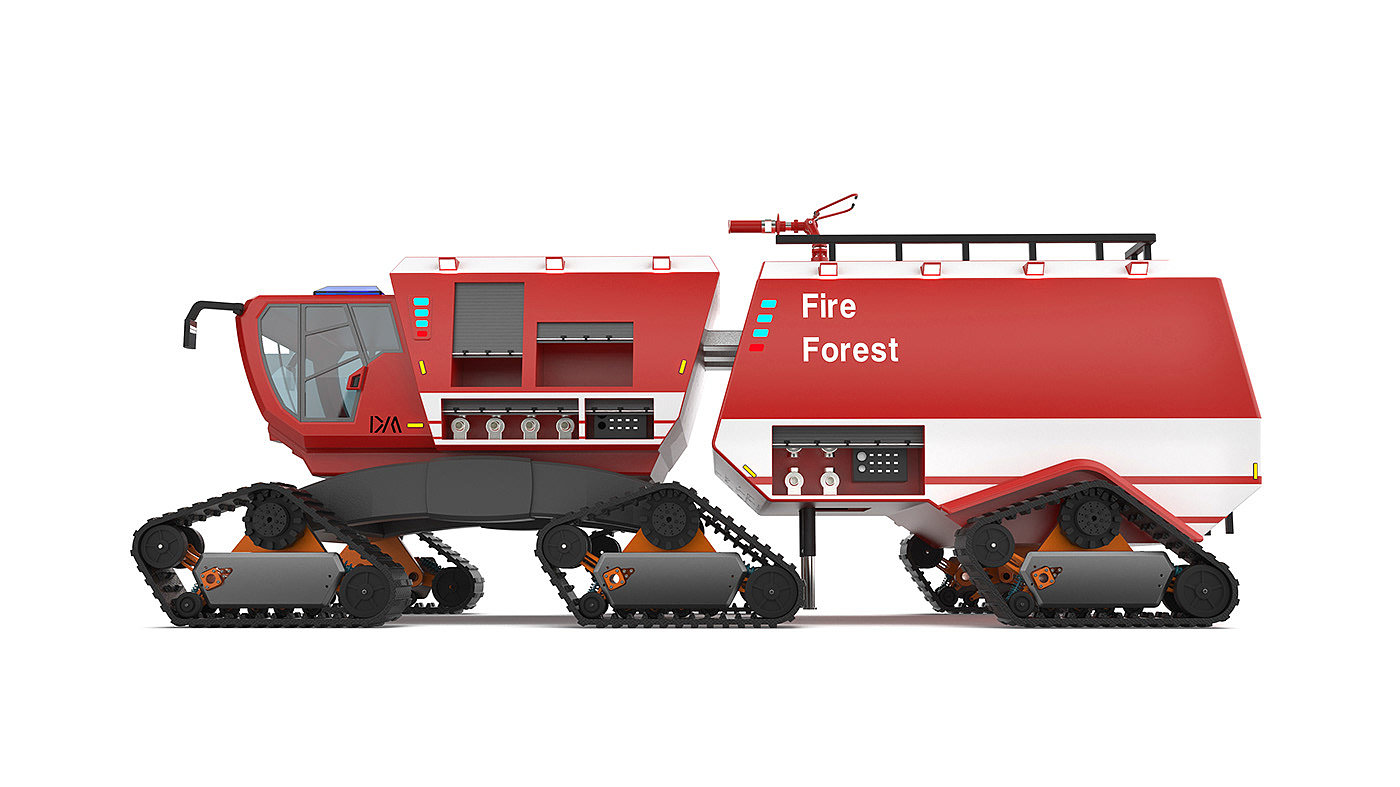

Water storage truck

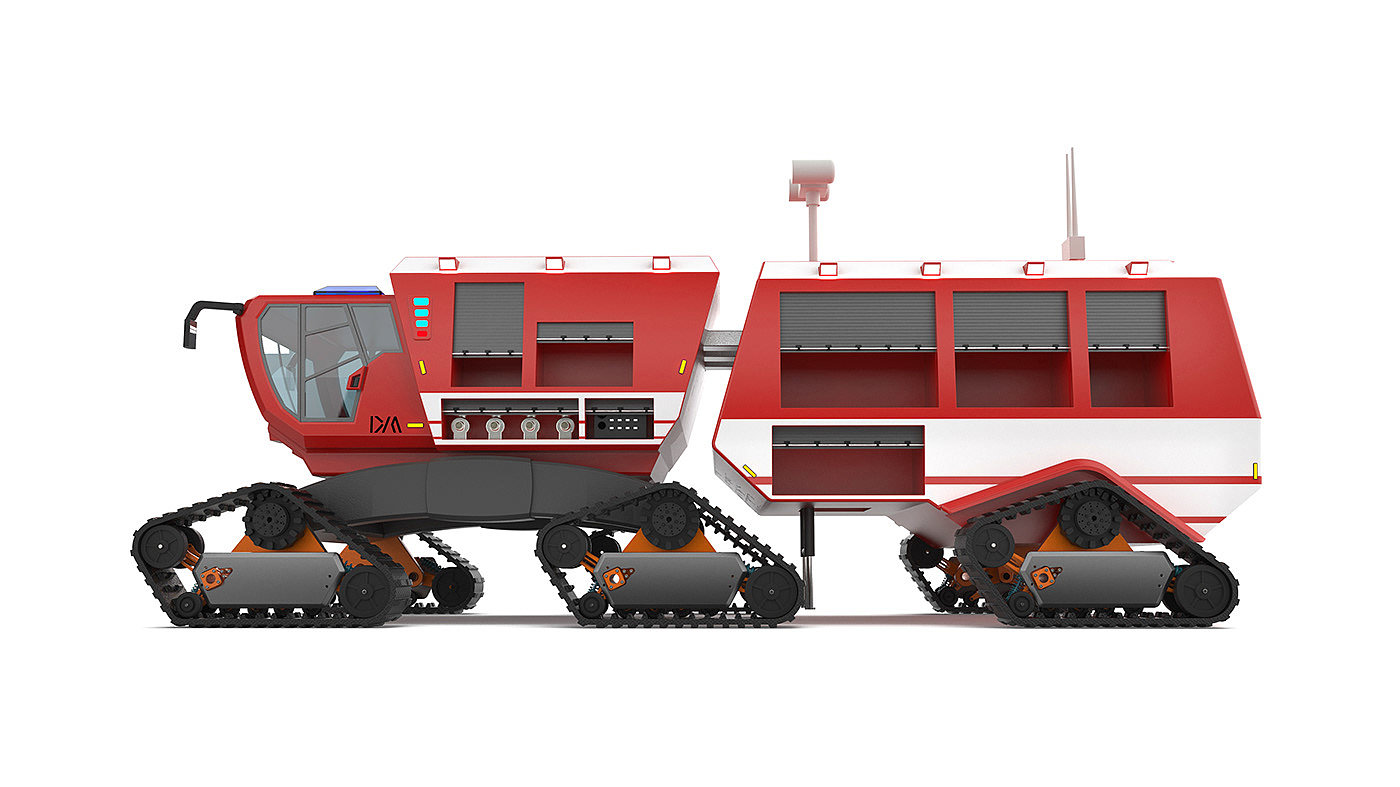

Carrier communication vehicle

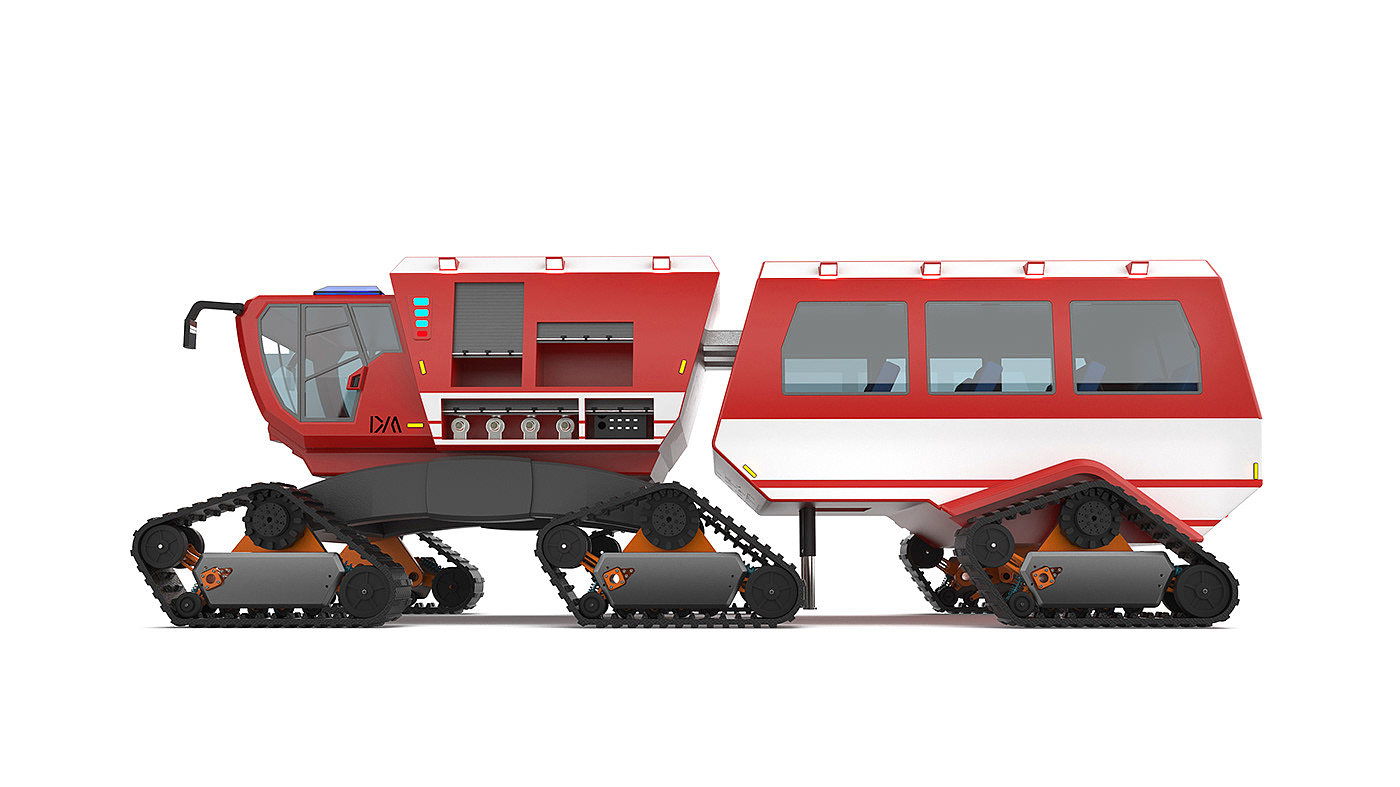

Manned vehicle

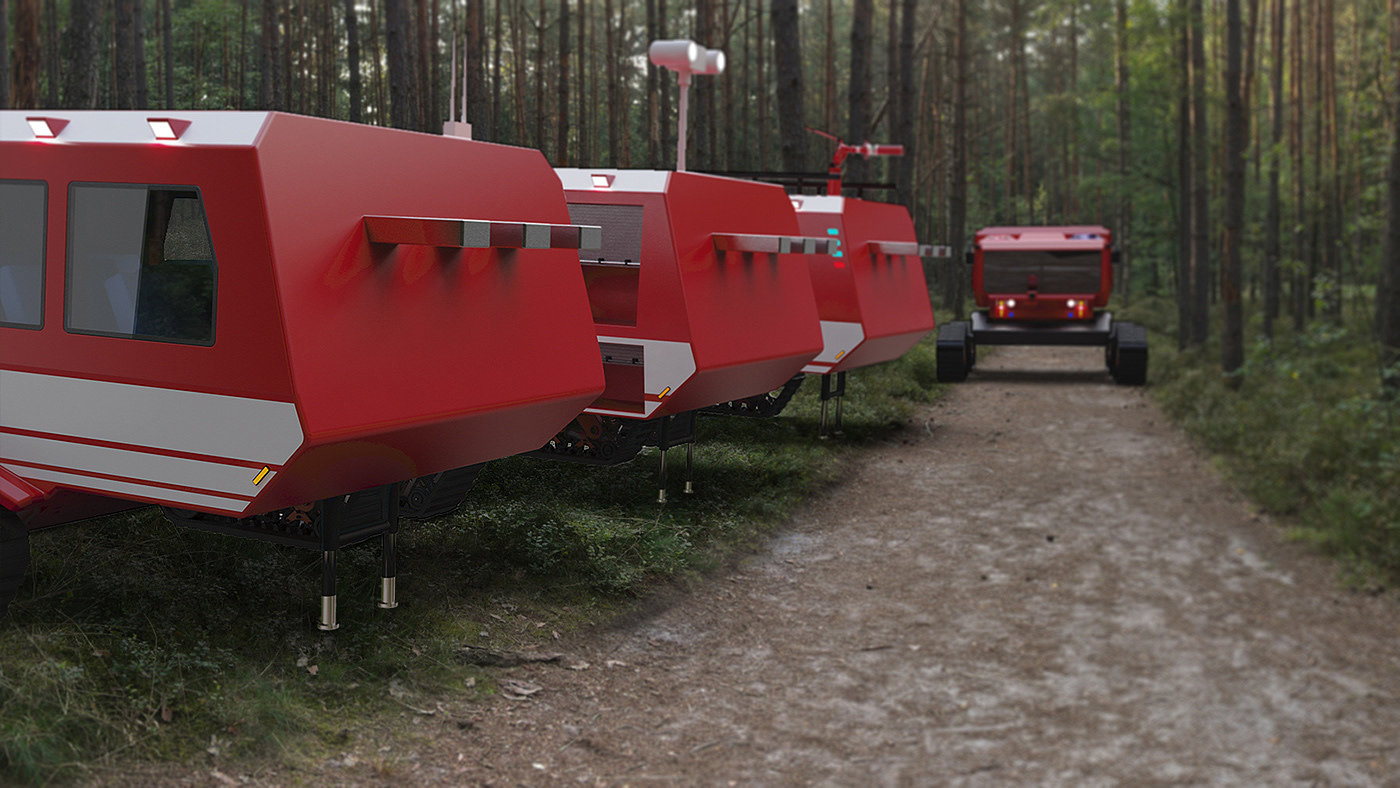

Park the functional car body on the side of the road. In case of a fire, the patrol car on patrol can be quickly assembled with the functional car body for fire fighting tasks.
