Project background:
In order to solve the problem of indoor and outdoor smart home equipment function separation, a multi-functional unified interactive terminal: Moore super screen series products is designed. The product mainly integrates: video intercom system, smart home ZigBee central control system, owner communication platform, voice interaction terminal and other functions.
According to the user portrait of the actual residents of the owner's family, the smart home control function is designed. Users can control the smart home equipment in the home through interactive screen and voice, and can also demand audio and video resources through voice, just like a detachable tablet computer, to complete more practical home use scenarios.
Combined with the daily management needs of the property, the property management platform is designed to facilitate the information communication process between users and property managers, and the owner communication information channels such as owner repair, call housekeeper, visitor registration, property notice release, etc. are established, aiming to improve the property information reach rate and improve the efficiency of property services.

2 RJ45 interface, support 10M/100M adaptive
1 network port for community video intercom LAN, 1 network port for home LAN;
The system supports TCP/IP, SNMP, SIP, RTSP and other network protocols,

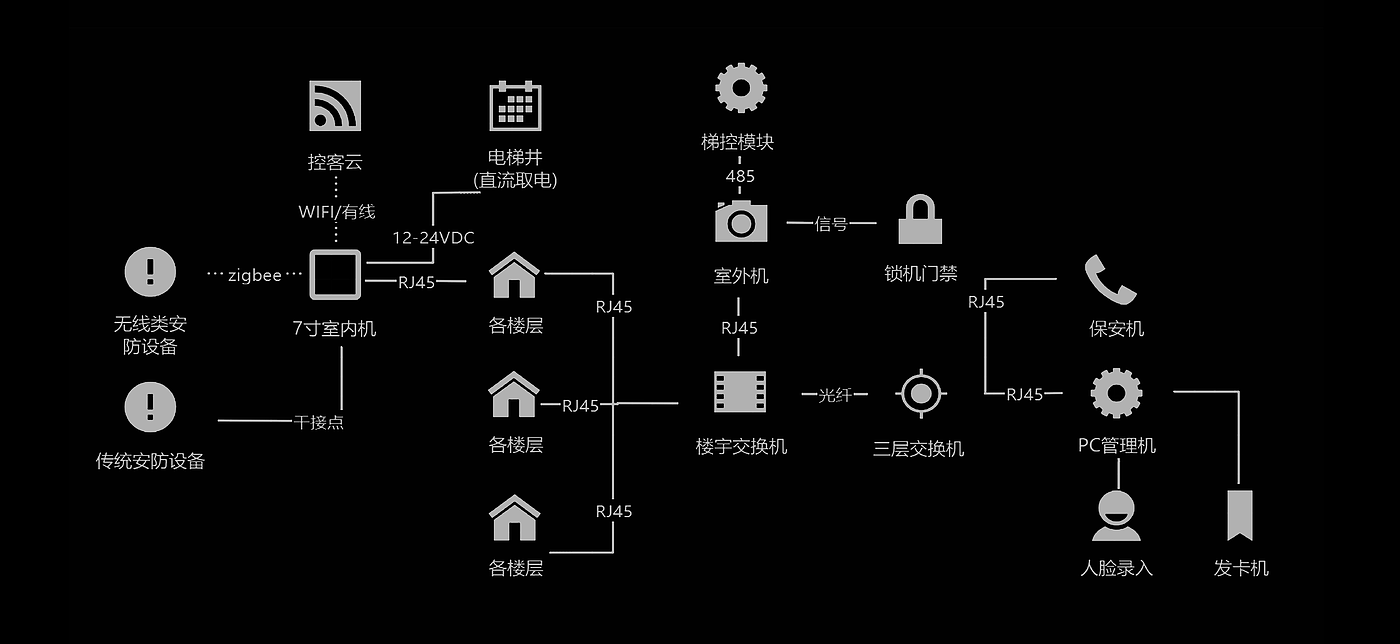

It is used to access the visual intercom network of the residential area, and can carry out two-way intercom with the unit door machine and the central management machine. The typical application topology is detailed, and the unit door machine of different manufacturers can be flexibly adapted according to the project requirements;

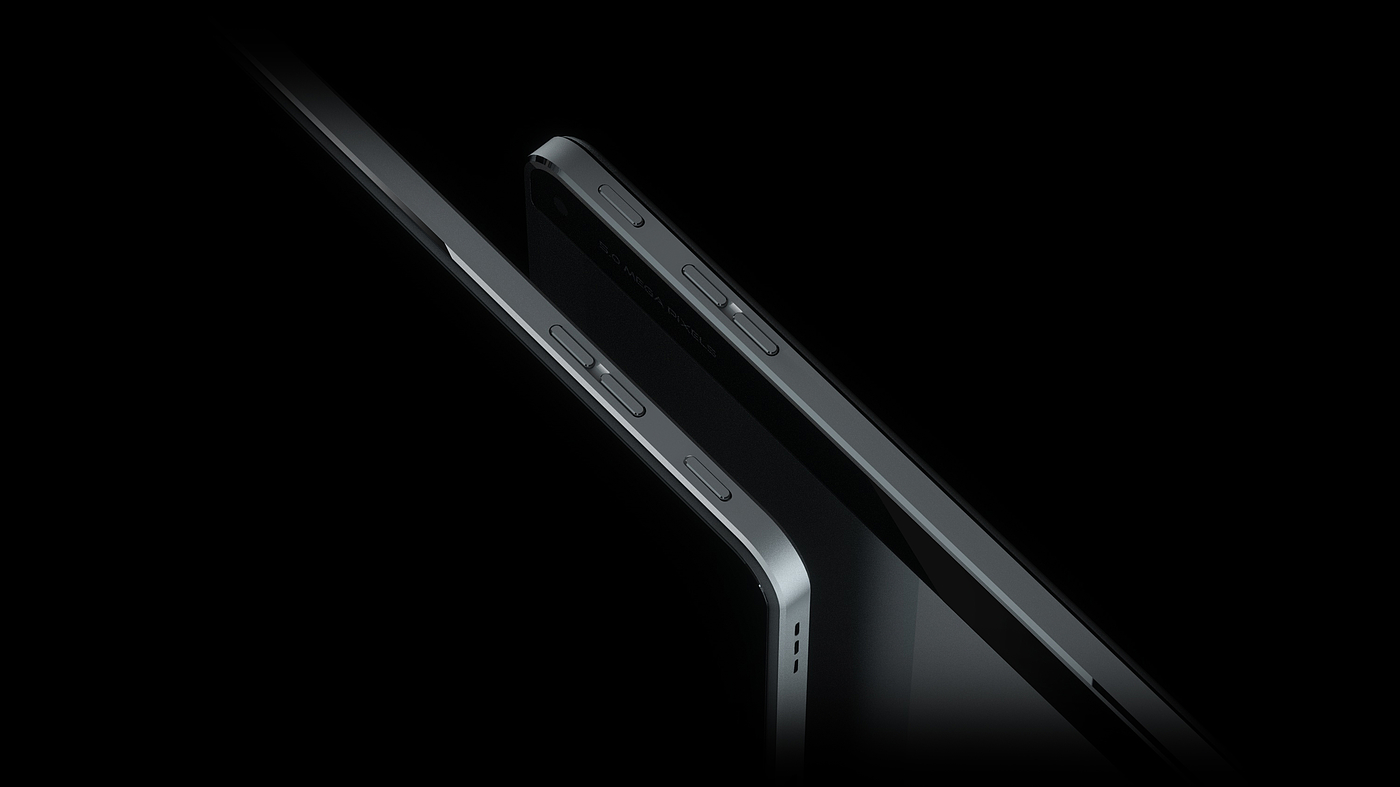

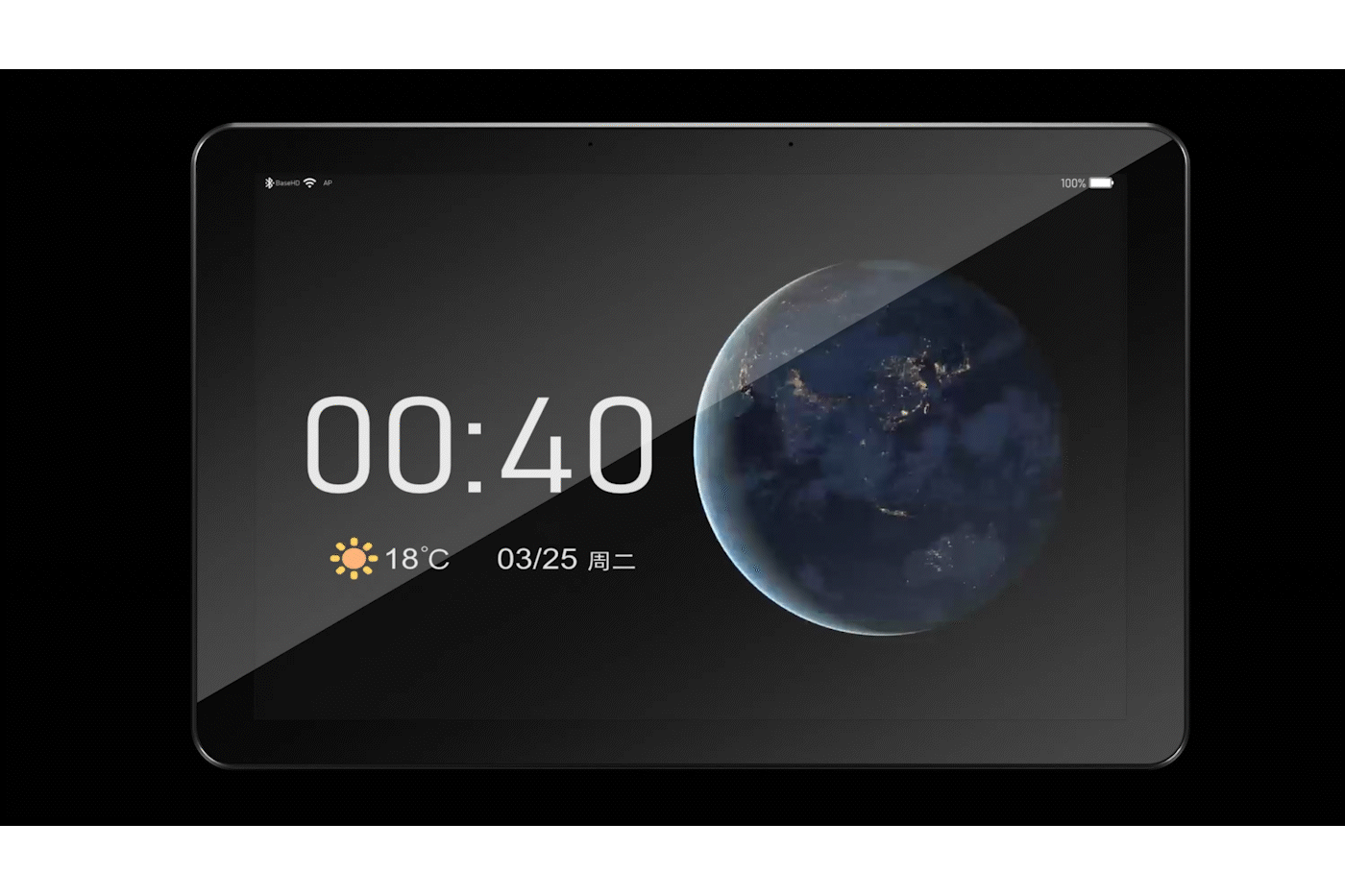

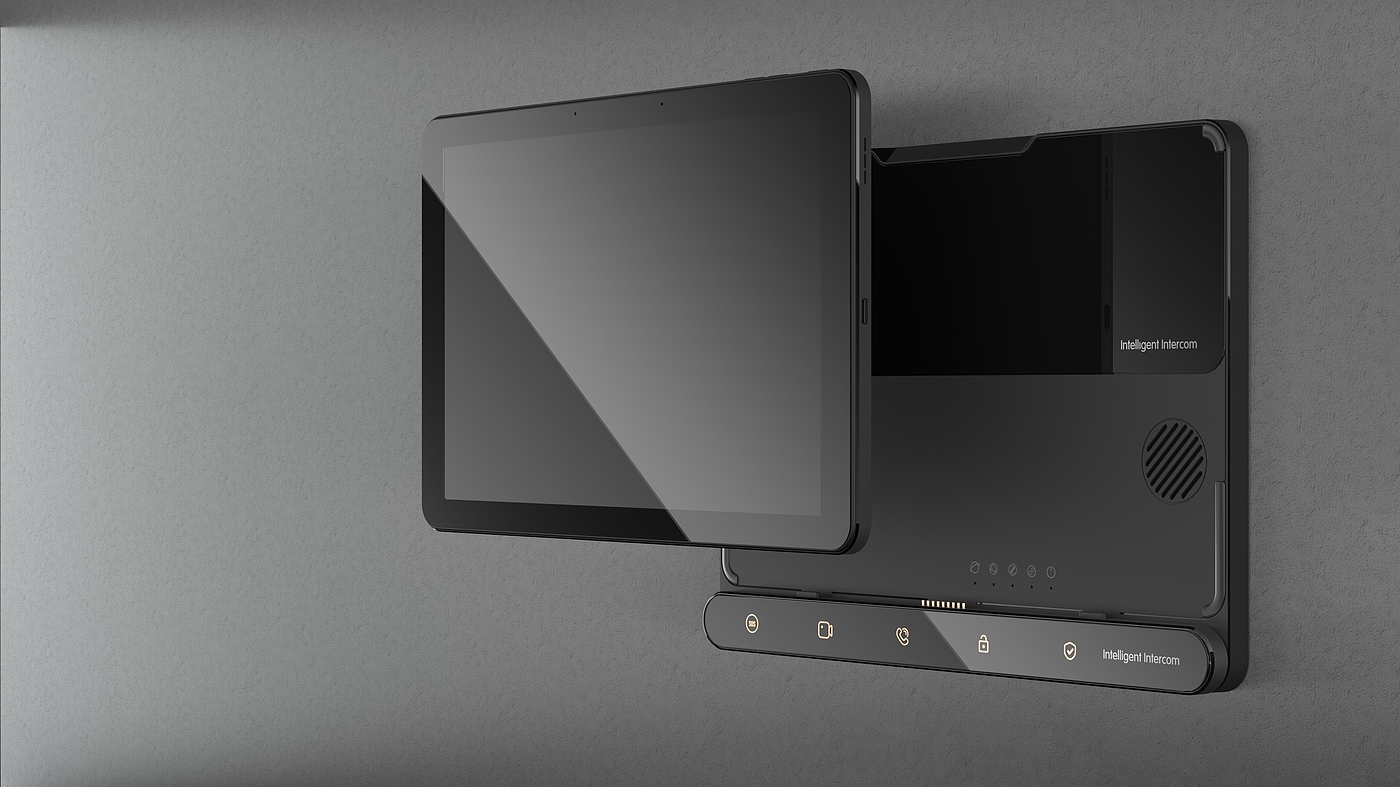

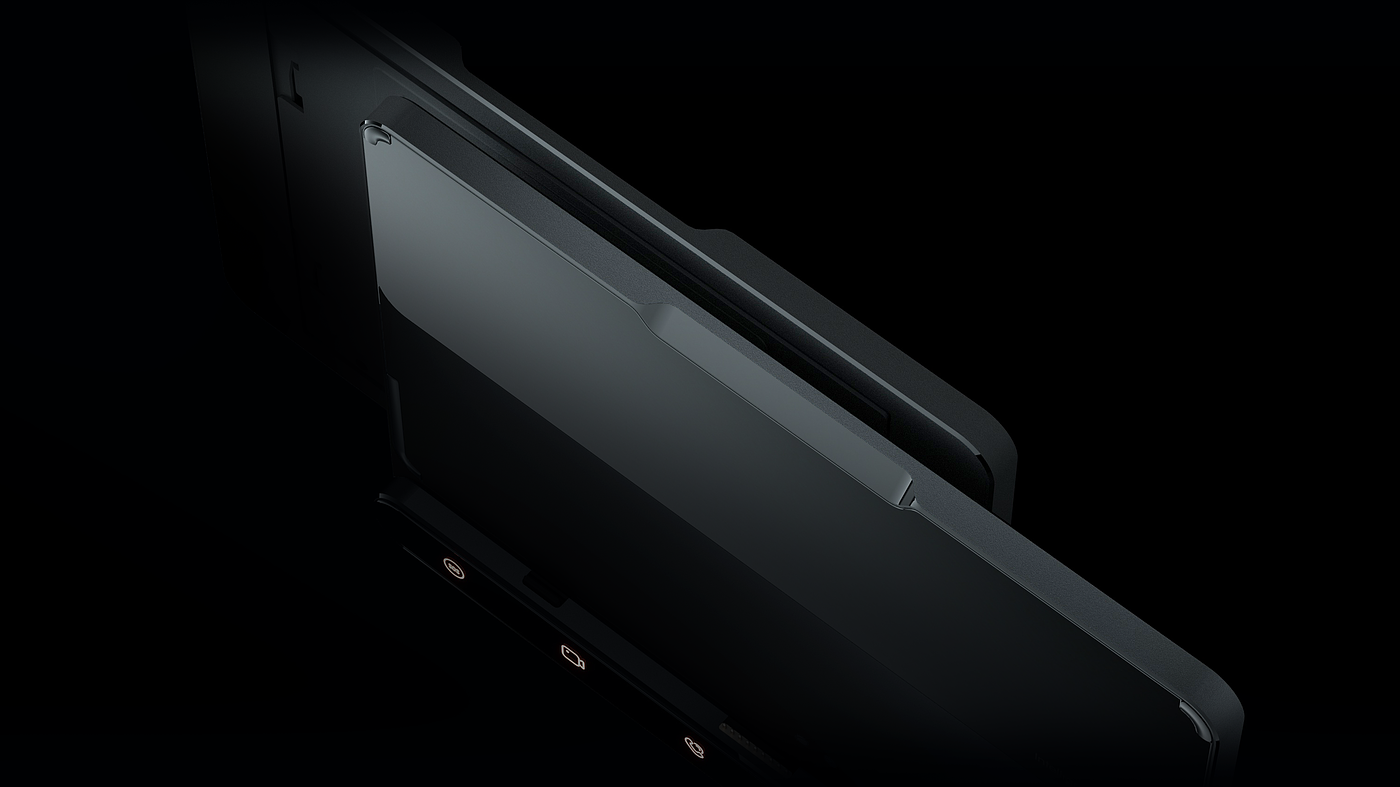

Moore X pad
-Operating temperature:-10°C to +55°C
-Working humidity: 5% ~ 85% RH
-Storage temperature:-30°C to +90°C
-Storage humidity: 5% ~ 85%
-Operating System: Linux
-Wi-Fi:2.4GHz,802.11 B/g/n, used to connect to home Wi-Fi router
-Product form and size: 10-inch dual microphone array tablet
-Touch method: capacitive touch screen, multi-touch
-Screen resolution: 1024*600
-Screen type: color display

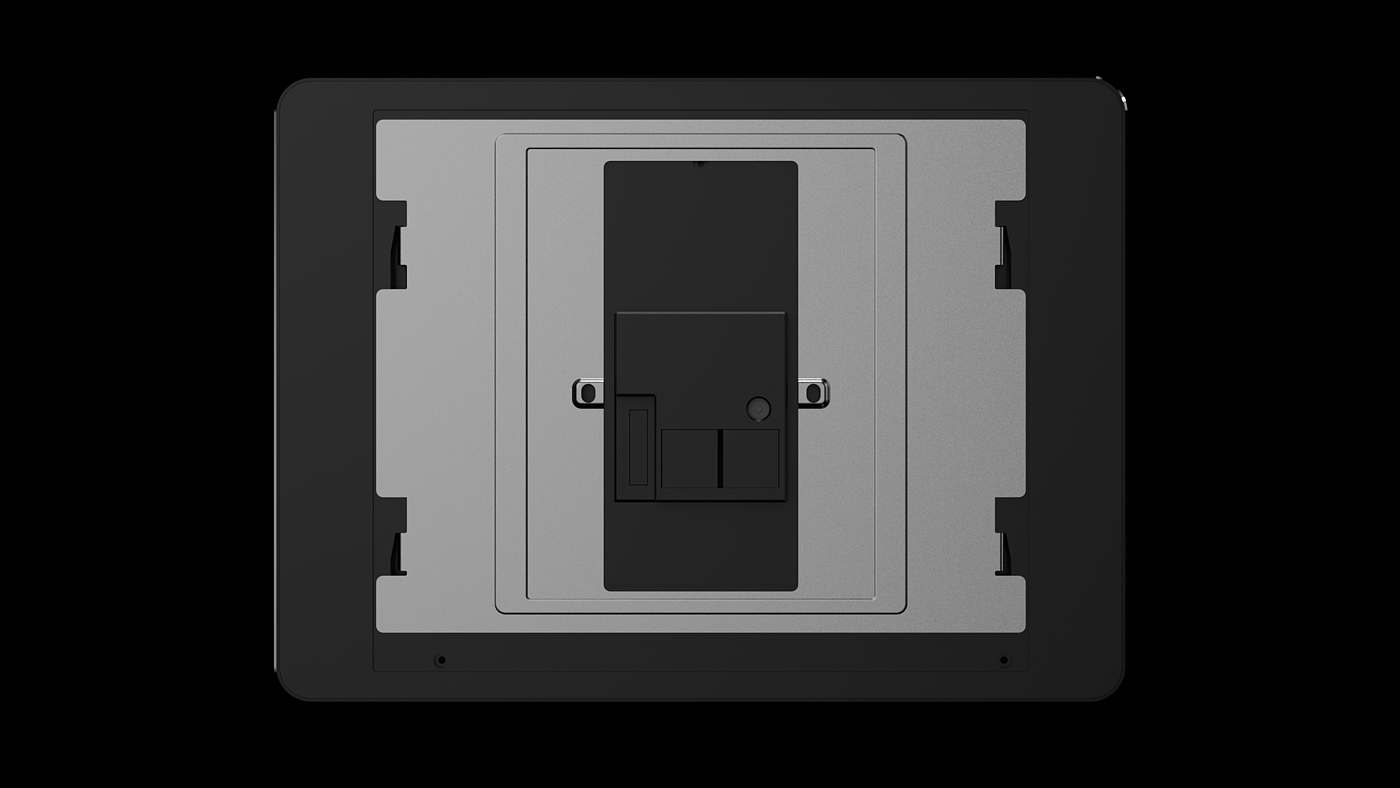

-Installation method: wall-mounted embedded installation
-Color: Coral Grey
-Design: split type
-Appearance material: metal frame, PC shell, glass screen
-CPU: Dual-core Coretex-A7
-External power supply: DC 12-24V
-False wake-up rate:<4 times/48 hours
-Quiet environment wake-up success rate: ≥ 95%
-Quiet environment recognition success rate: ≥ 95%

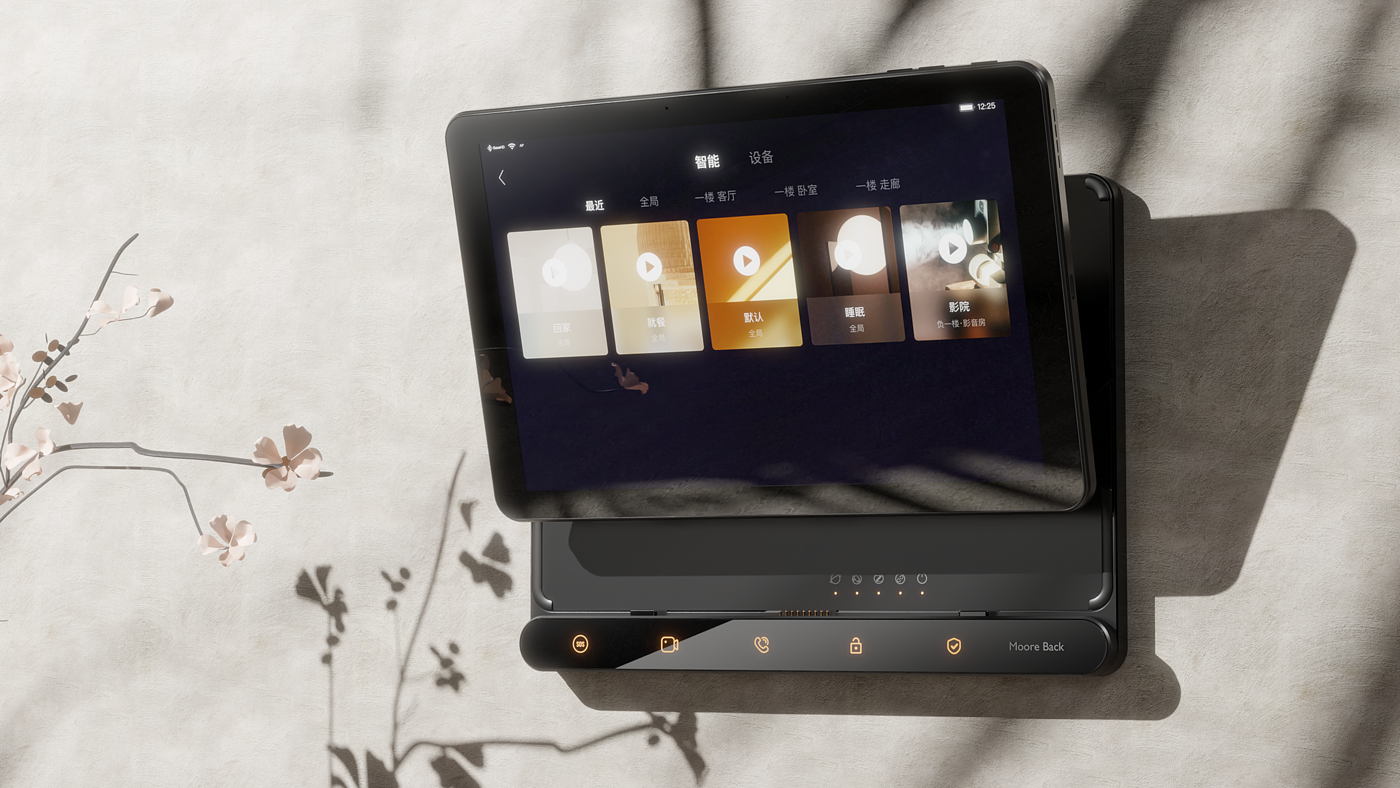

1) Important screen interaction entrance, equipped with HomeUI smart home brain system, carrying a wealth of Internet home services.

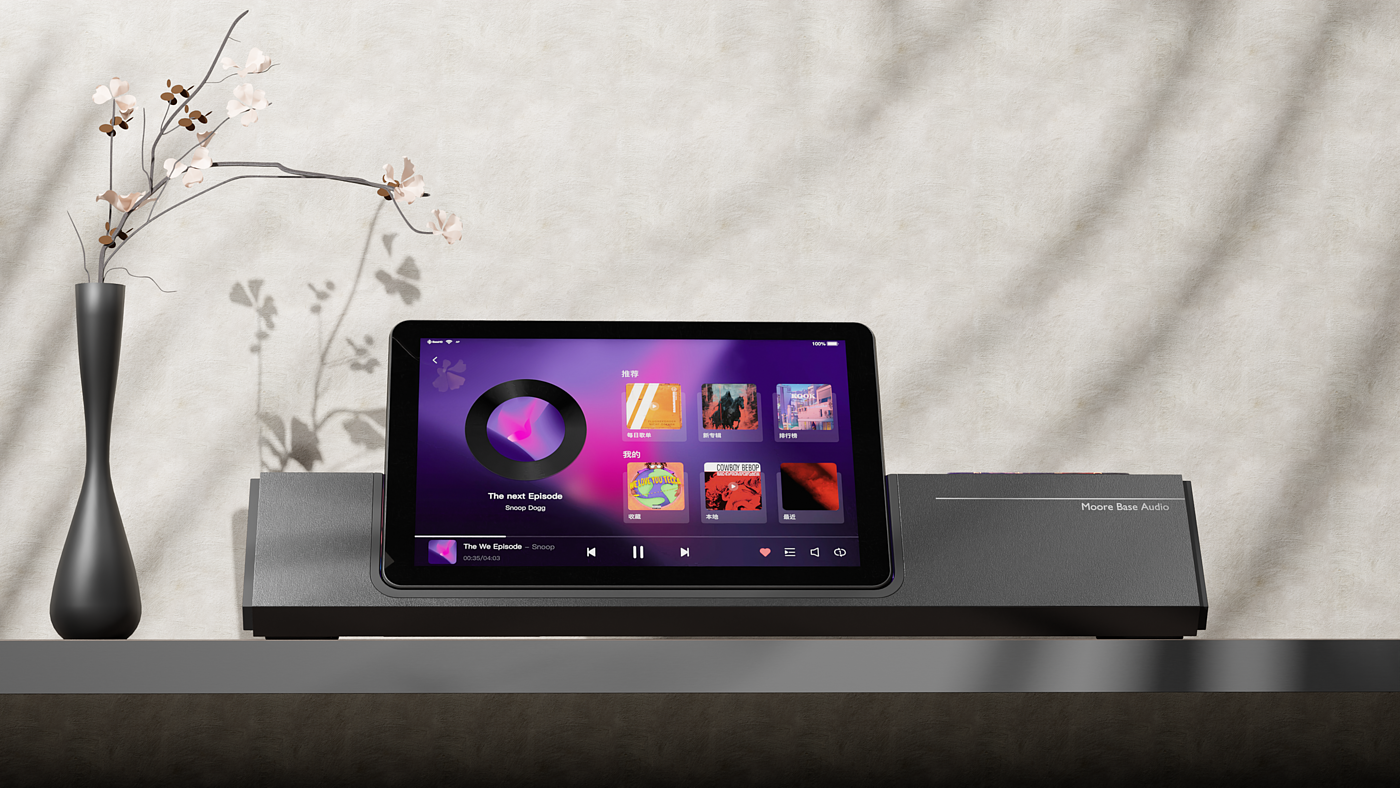

2) Equipped with multimedia system and Bluetooth 4.0 (or above version), support audio and video playback function, can be used as a supplement to family content services.
3) The design supports more Bluetooth device connection function expansion.
4) Dual microphone speech recognition system, DSP noise reduction, connected to the Dharma Academy cloud.

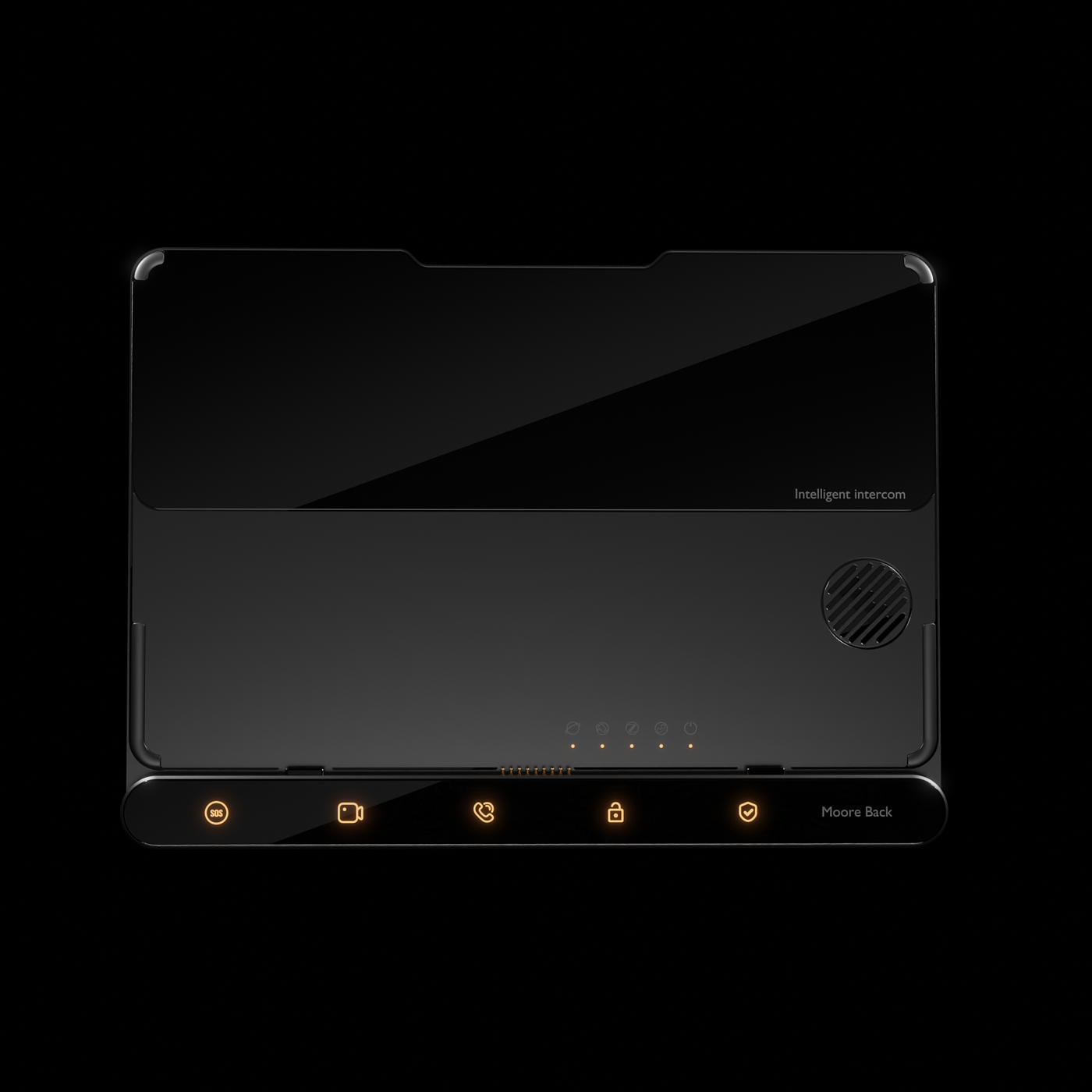

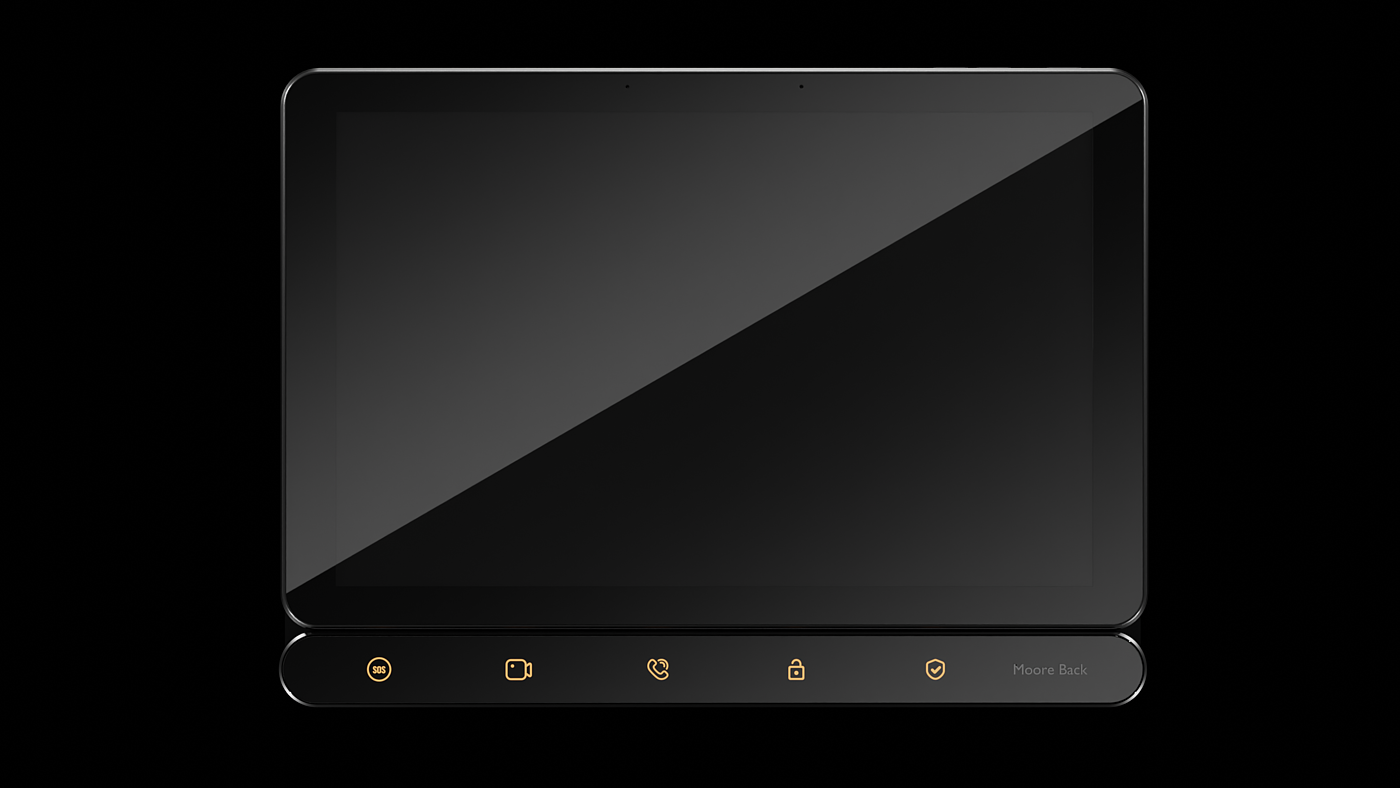

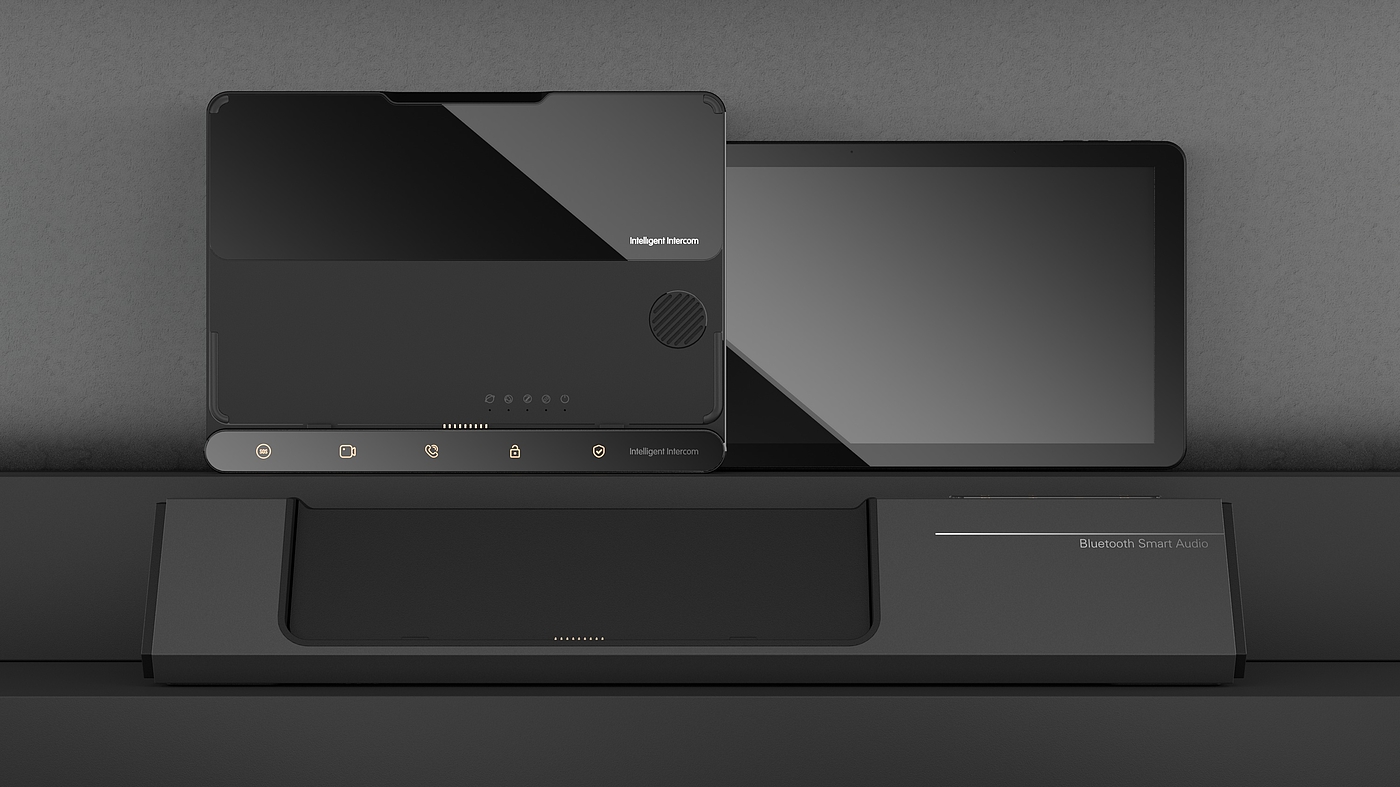

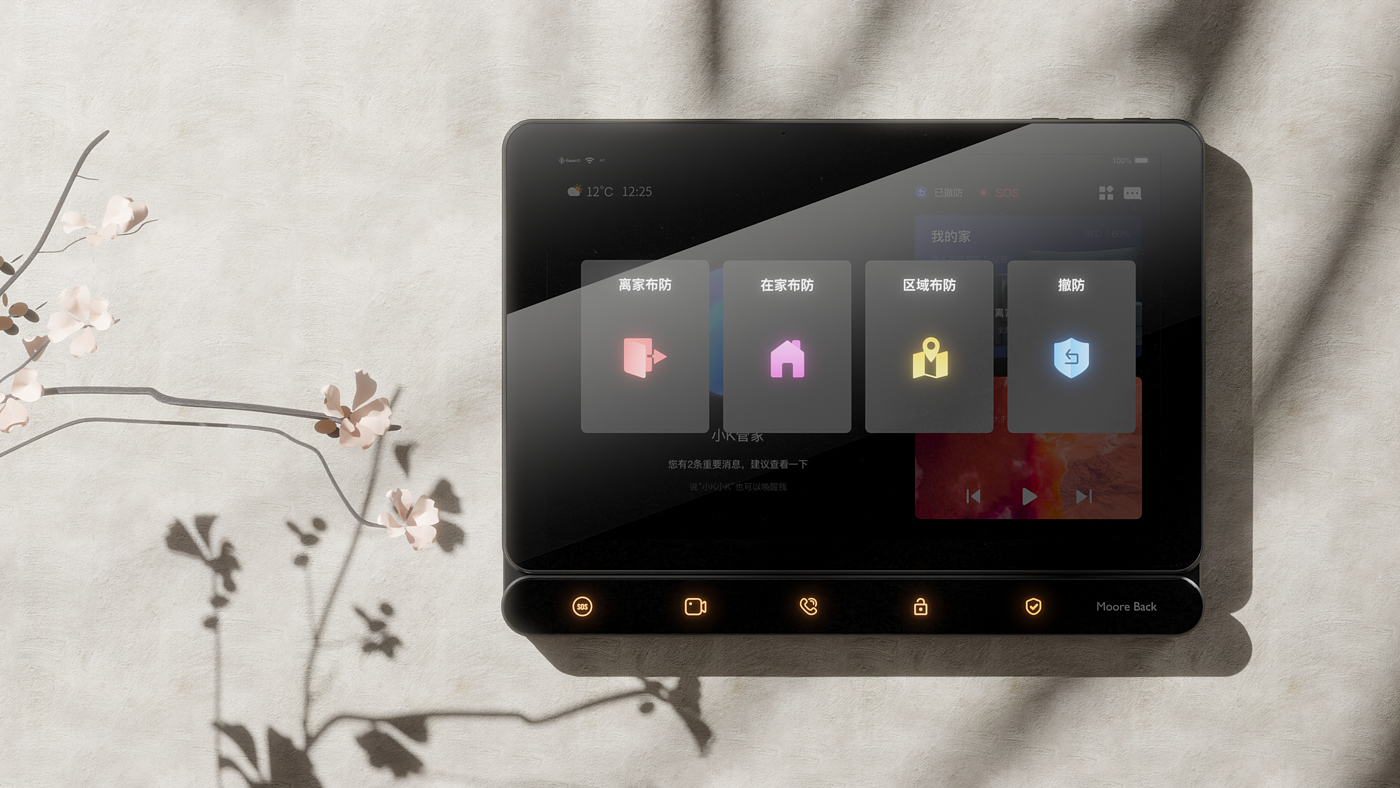

The device contains 5 touch buttons with a yellow monochrome backlight. The five buttons are: answer/hang up, monitor, unlock, SOS and one-key arming function.

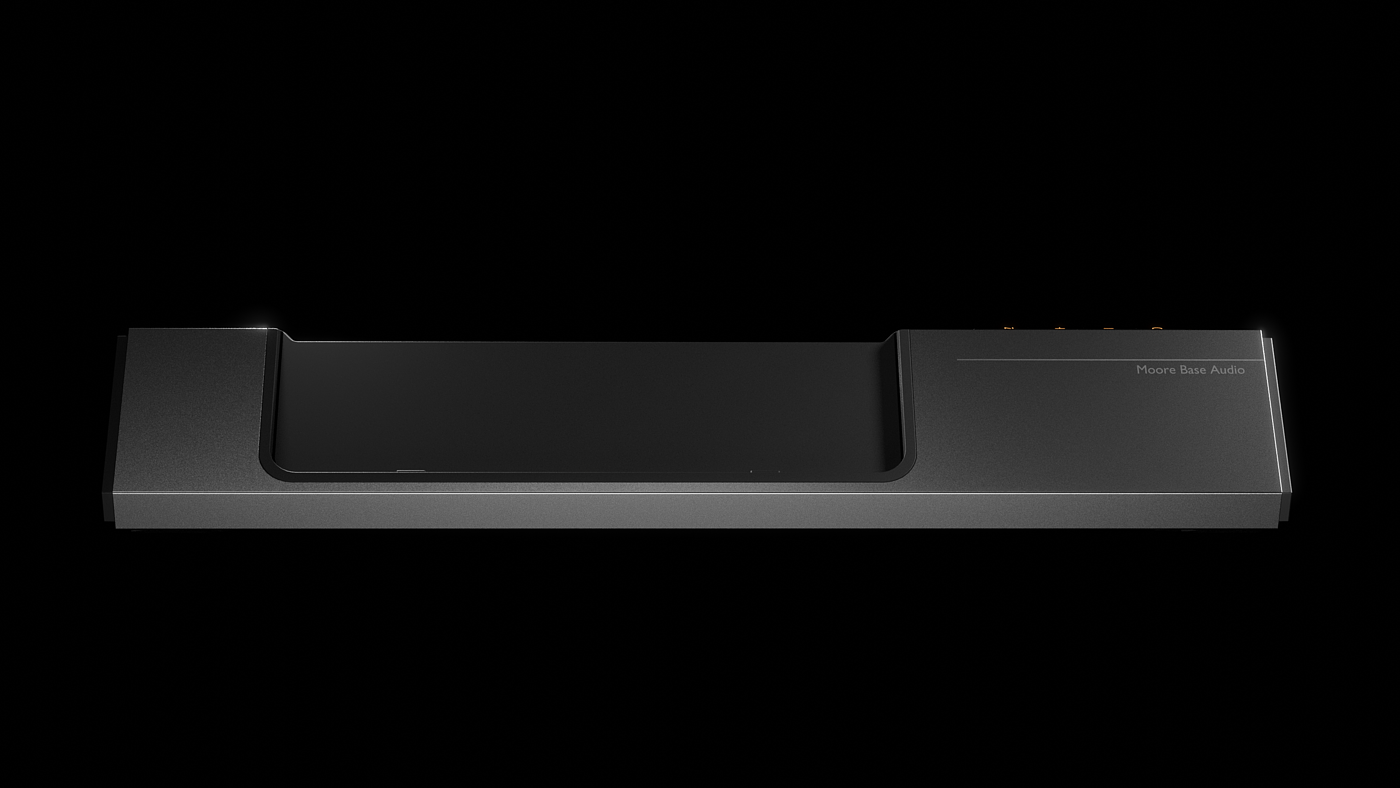

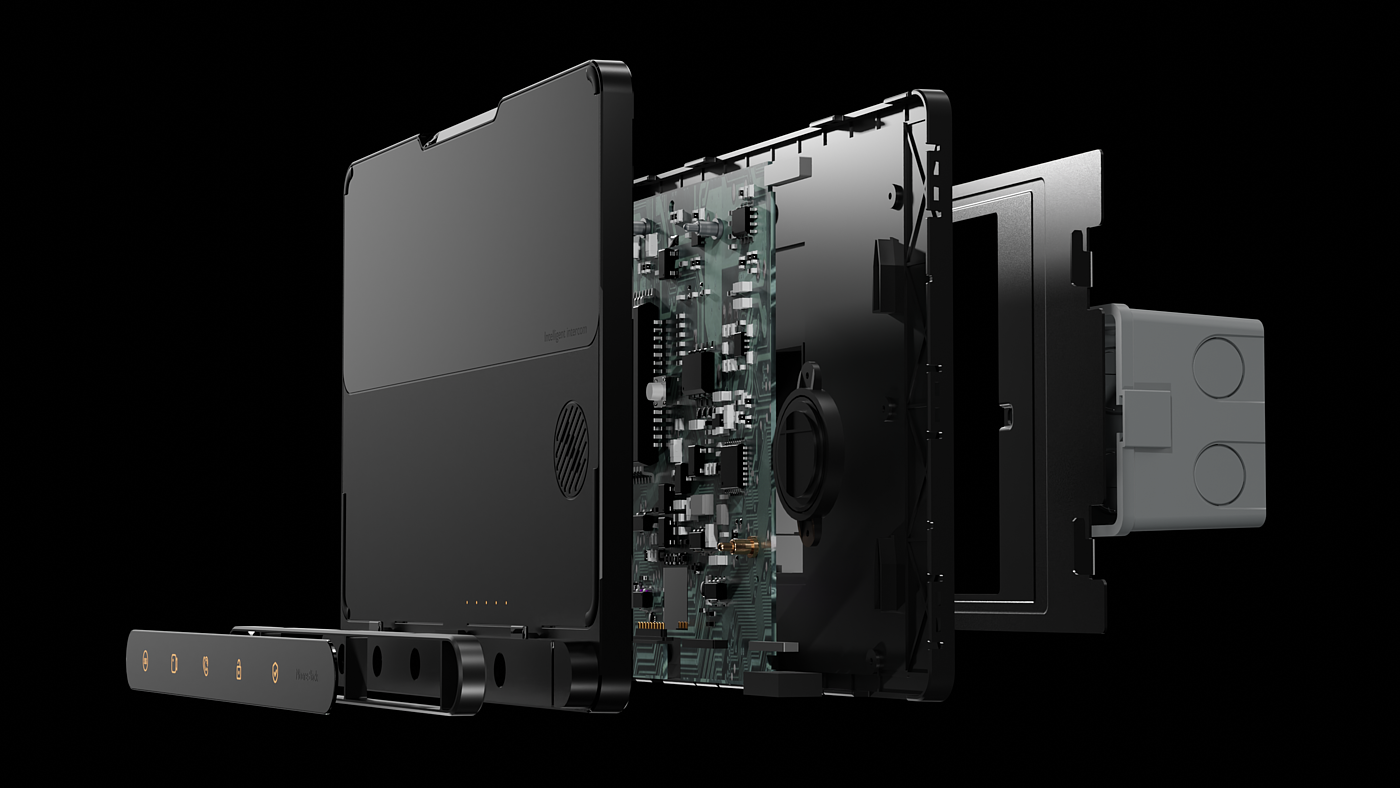

1) Video intercom indoor unit, including video intercom decoding and communication data processing, access to video intercom intranet. After being separated from Moore X tablet, the local pure voice building intercom function can be realized, which is convenient for project construction and delivery.
2) Meet some requirements and specifications of the visual intercom industry, including 8 dry contact signals in the defense zone, which can be connected to non-intelligent fire sensors to support the operation of arming and disarming.
3) The base contains a ZigBee host communication module, which is responsible for handling the communication and control functions of pre-installed smart home devices. The ZigBee host takes into account the delivery of the scene function of the device, the heartbeat of the sub-node and the management of the communication process, the delivery of the action instruction and the communication with the smart home cloud.
4) It contains 5 function keys, which is convenient for users to complete simple function operations such as SOS alarm, answering intercom, and disarming when they are away from the screen.

Wi-Fi 2.4GHz,802.11 B /g/n;
Used to connect the home Wi-Fi router;
Support WIFI AP connection function;
Zigbee supports Zigbee 3.0 gateways

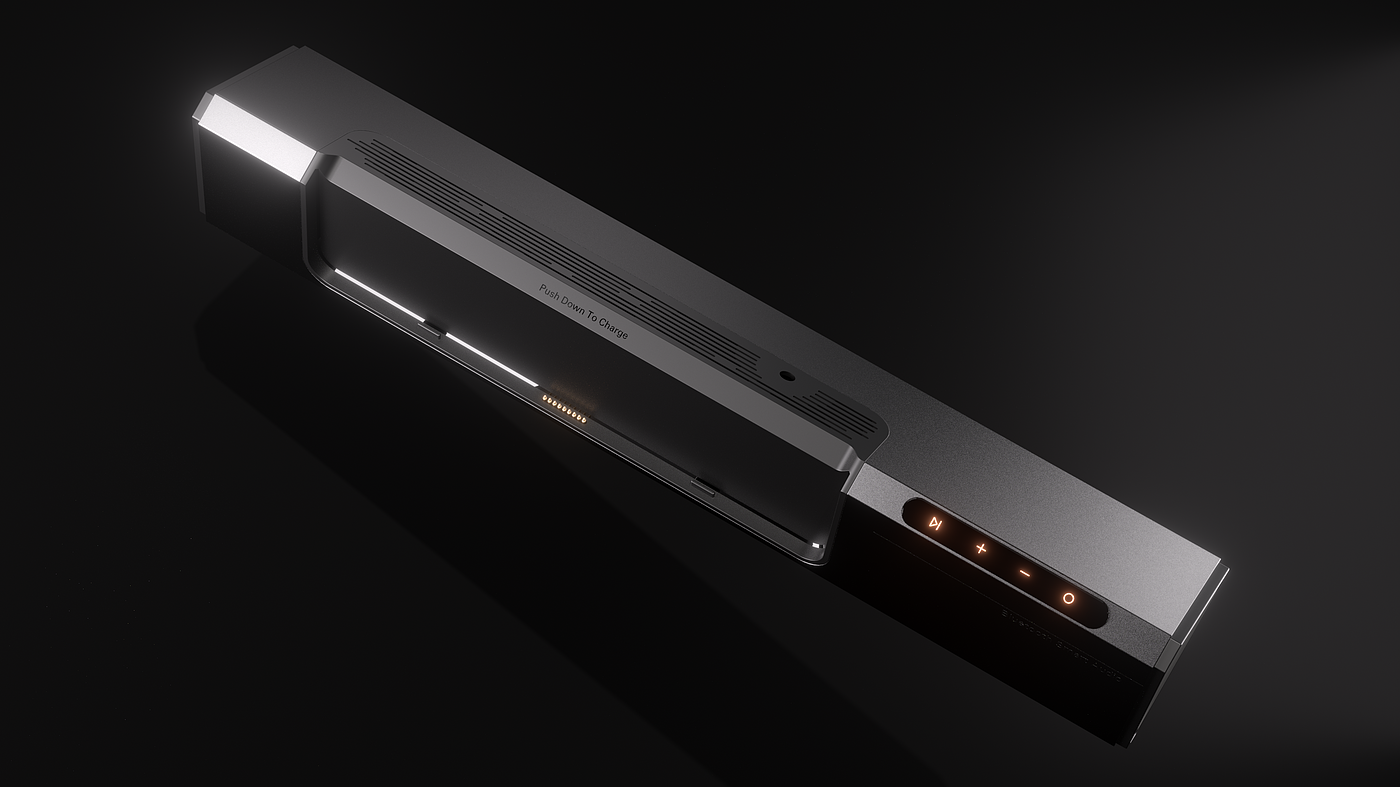

Size 470*90*80.5(mm)

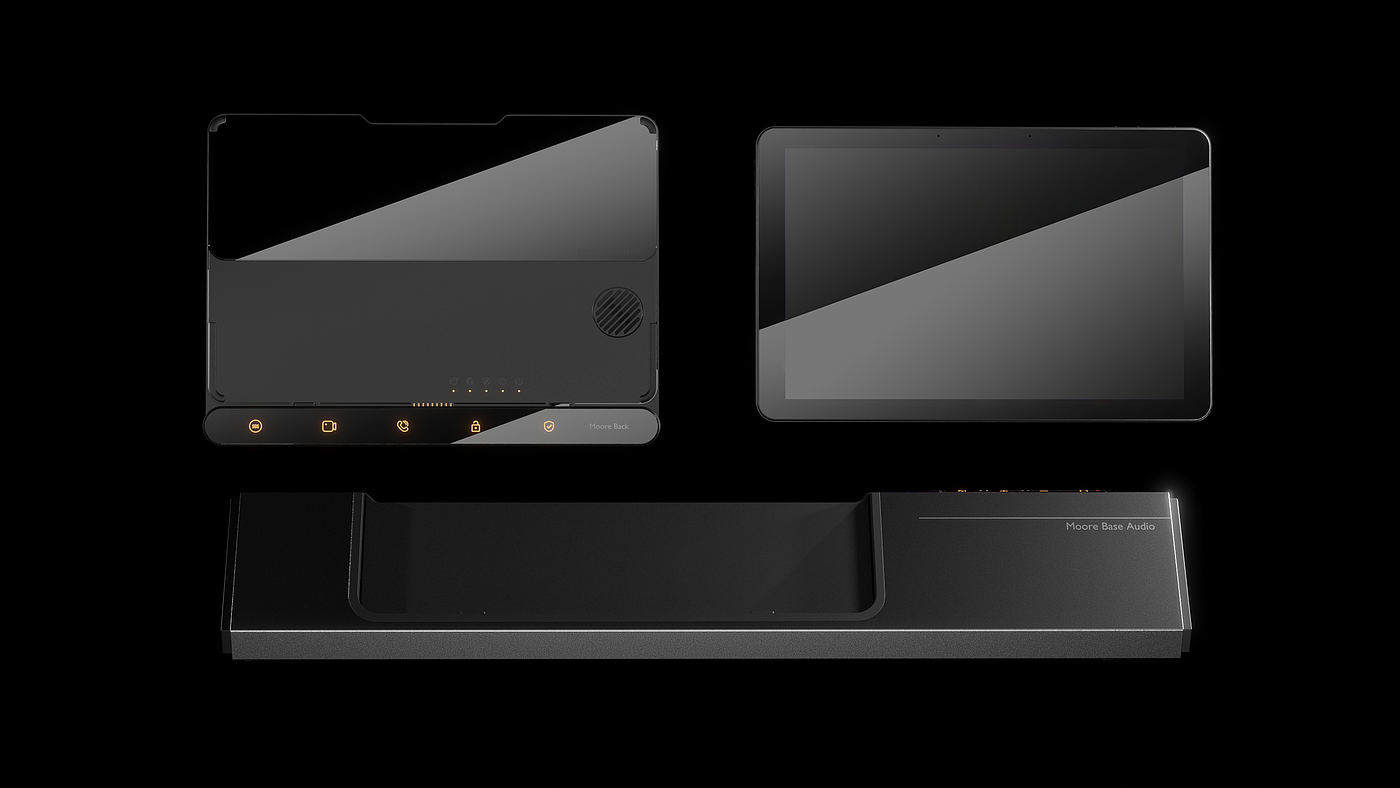

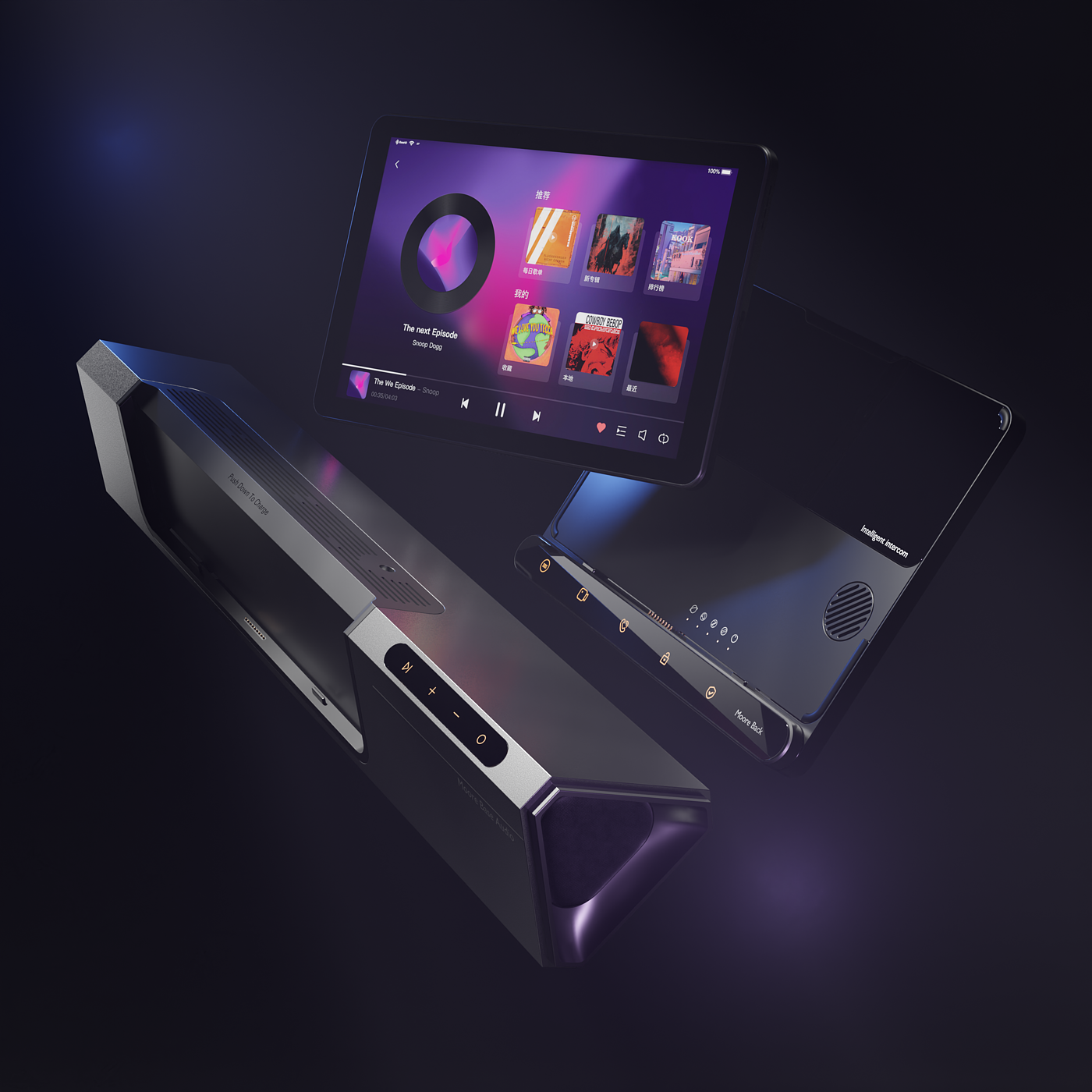

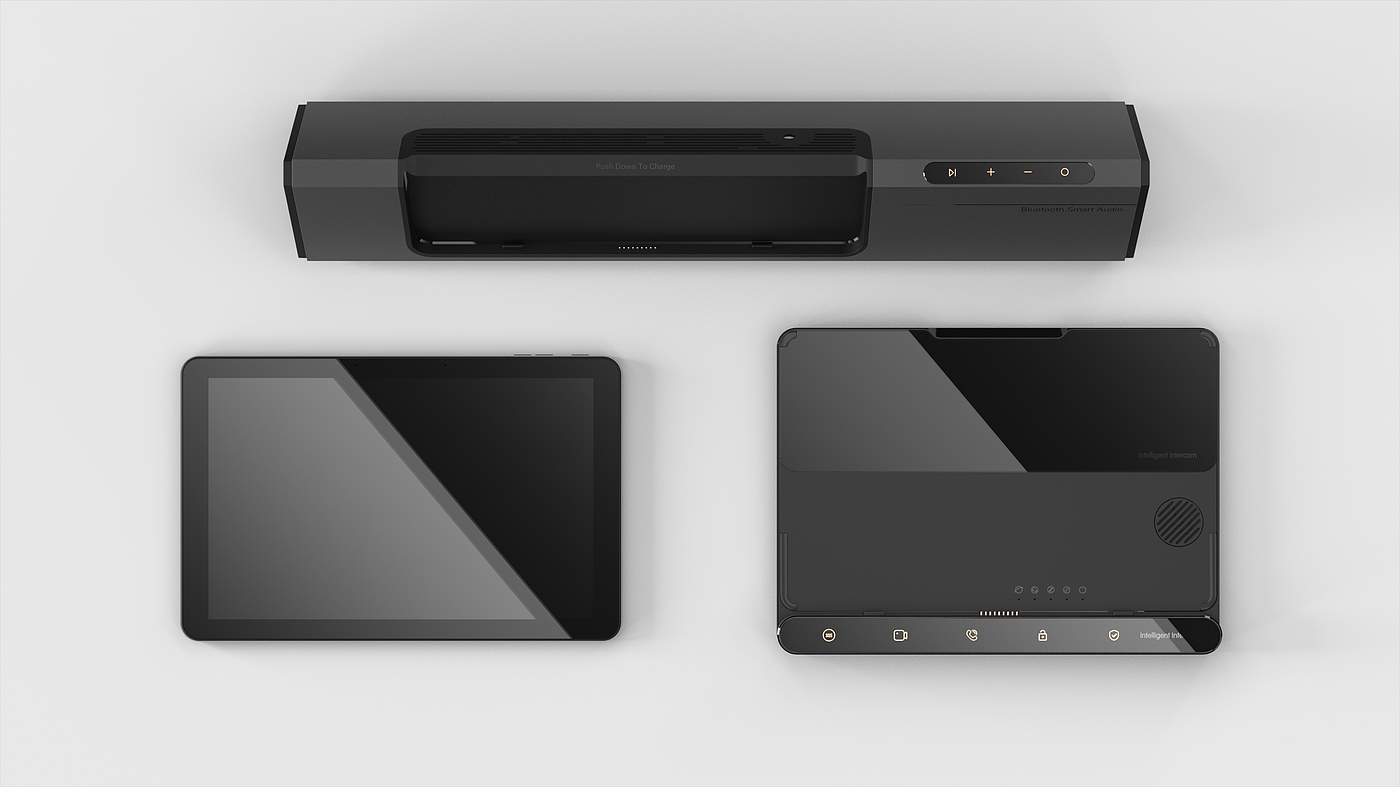

Moore Full Series Super Screen
Home Intelligent Hub | Multi-family Full Scene Adaptation | Video Intercom | AI Voice Control | Multi-dimensional Interactive Form

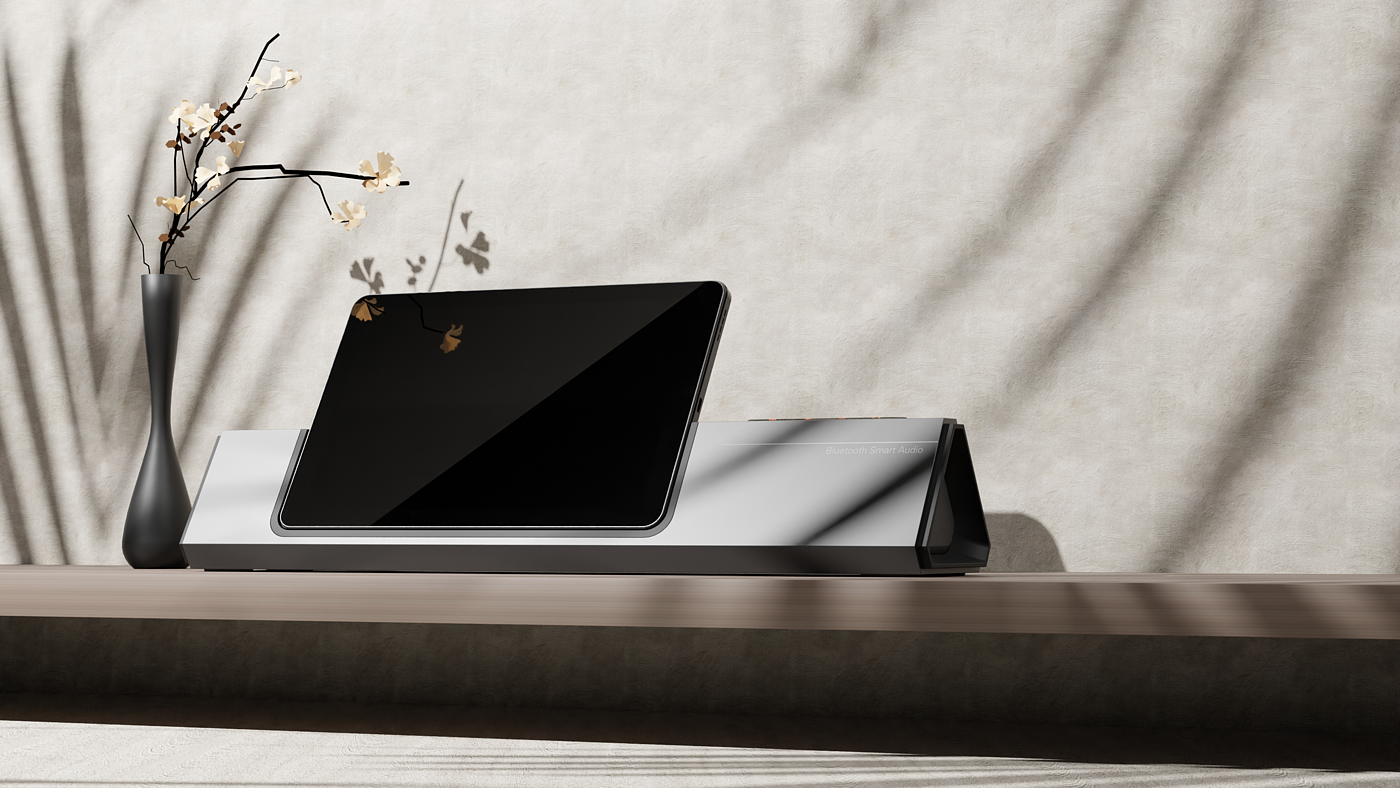

It has the functions of visual intercom, voice assistant, smart home central control, etc., and can realize visual intercom and smart home touch interaction through external Moore X.
