TOGIC ONE

TOGIC ONE.
Multi purpose projector

FUFU BY DESIGN l 2021

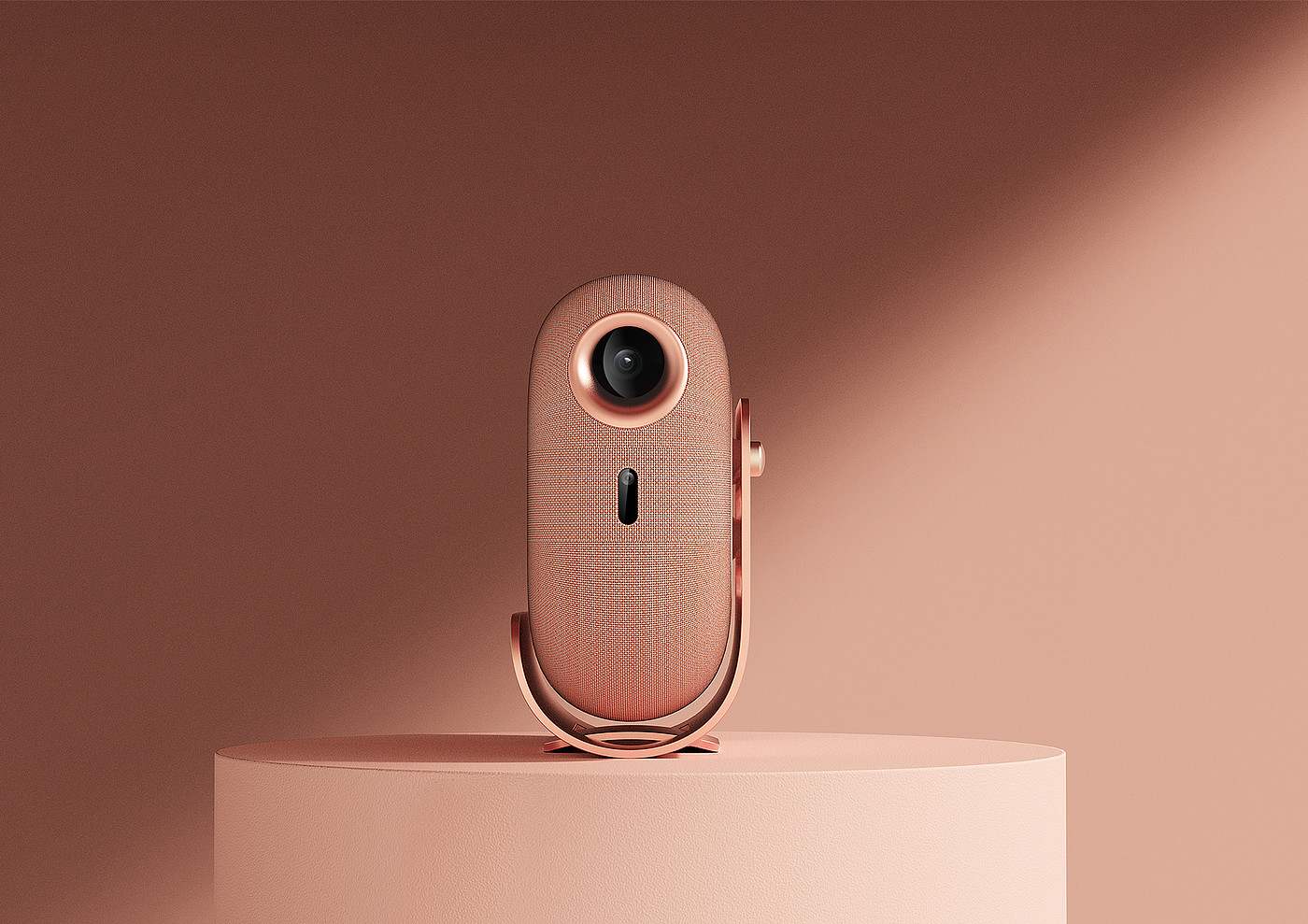

TOGIC ONE is a fashion projection product specially designed for generation z. Its unique design enables it to flexibly adjust the direction of the lens without the need for an external bracket. This functionally improves the user experience in daily scenes and aesthetically meets the fashion and personalized needs of generation Z users.

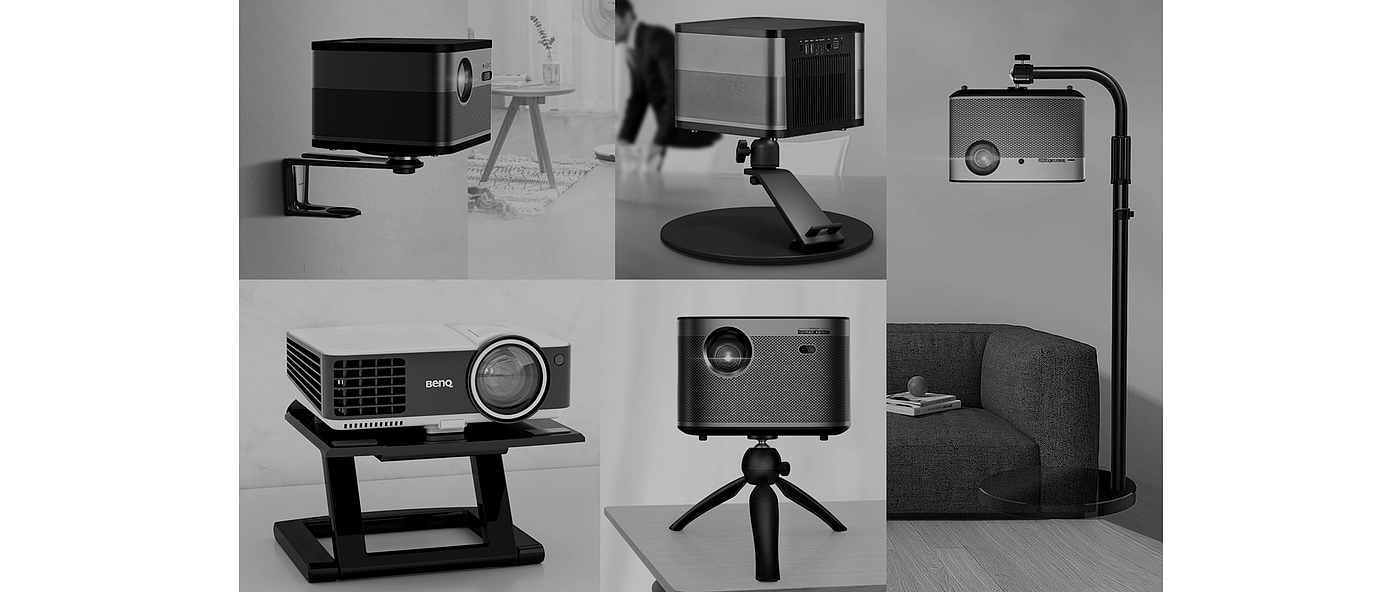

Everyone may have their own bedroom or living room. When they need to add a projector there, the table or cabinet where the projector is placed may not perfectly match the projector to project the image to the most suitable area. Therefore, (as shown in the figure), we often see users select various auxiliary supports, such as folding frames, tripods, hangers, etc., to adjust the placement of the projector for the projector and help the projector point to the position of the projector. The right area.

product design，industrial design，Projector，Consumer electronics，

Generally, the design of the projector will focus on the projector body itself. However, after being set indoors, the "must-have" auxiliary bracket often destroys the integrity of the product design. Therefore, we think this is a good product opportunity gap to design products for generation Z users who pay more attention to personality and aesthetic expression.

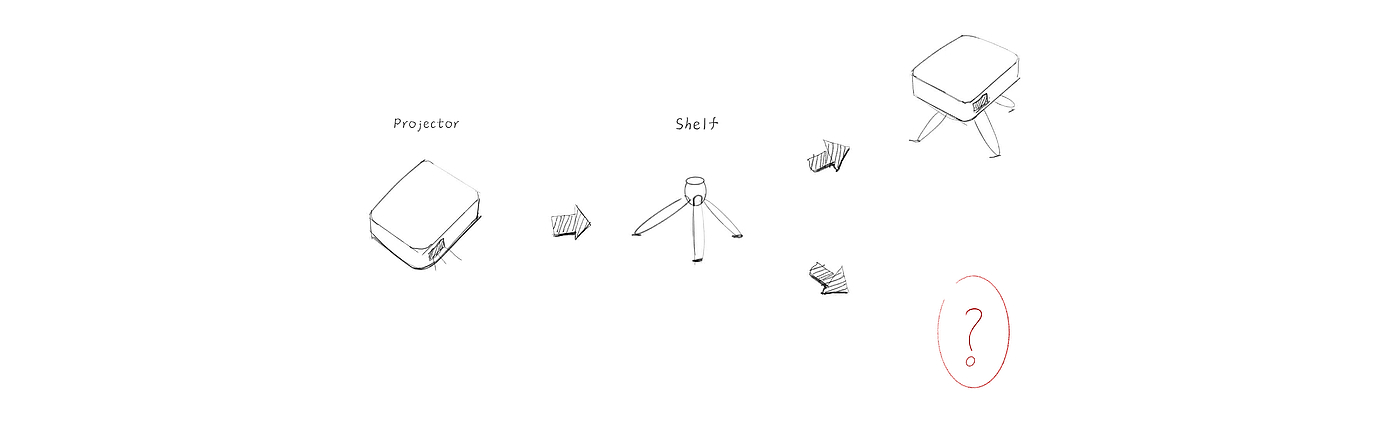

How to integrate the "necessary" bracket and conveying quality aesthetic performance and user experience with projector product design?

Our solution is TOGIC ONE projector, which has a unique design bracket part.

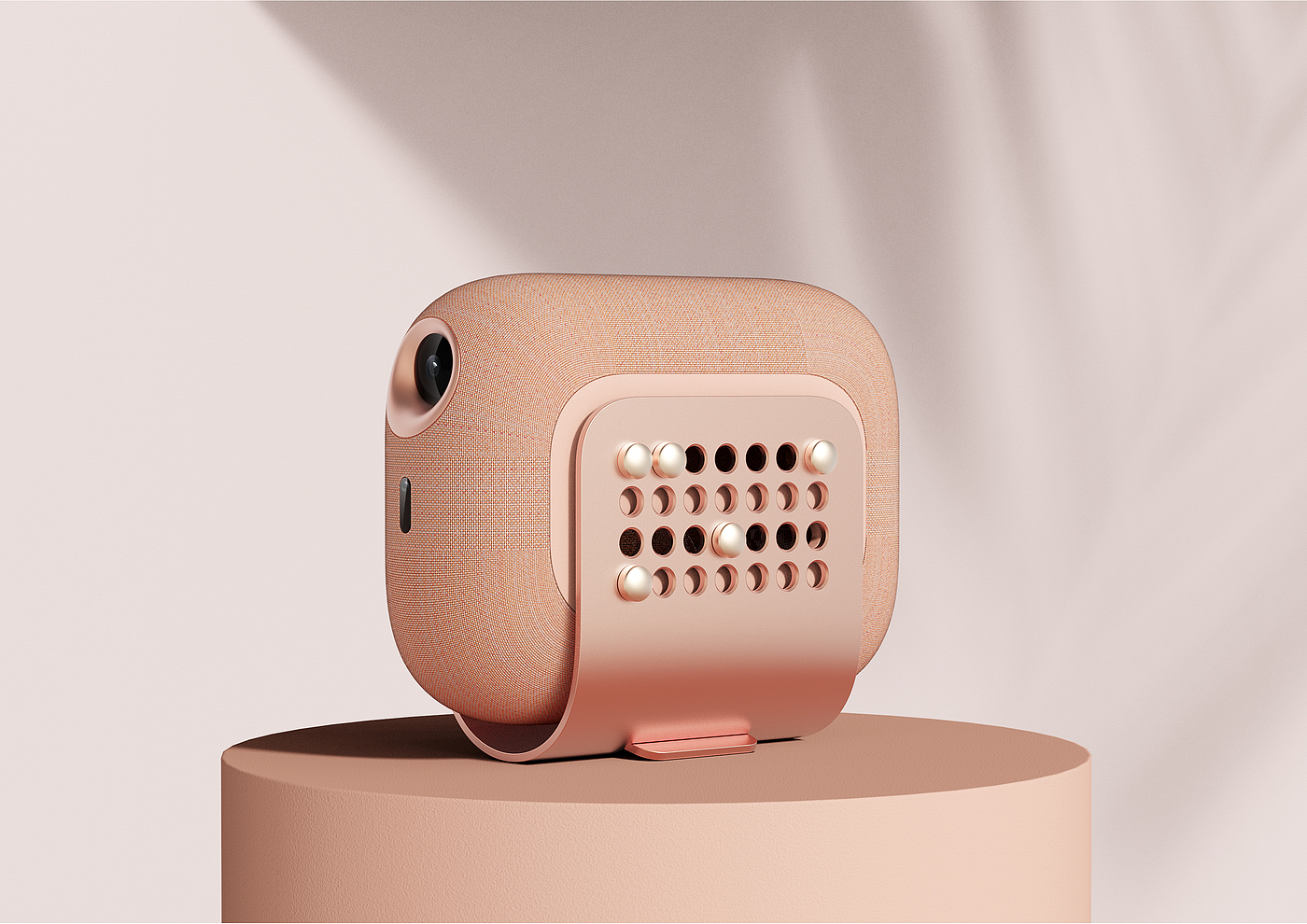

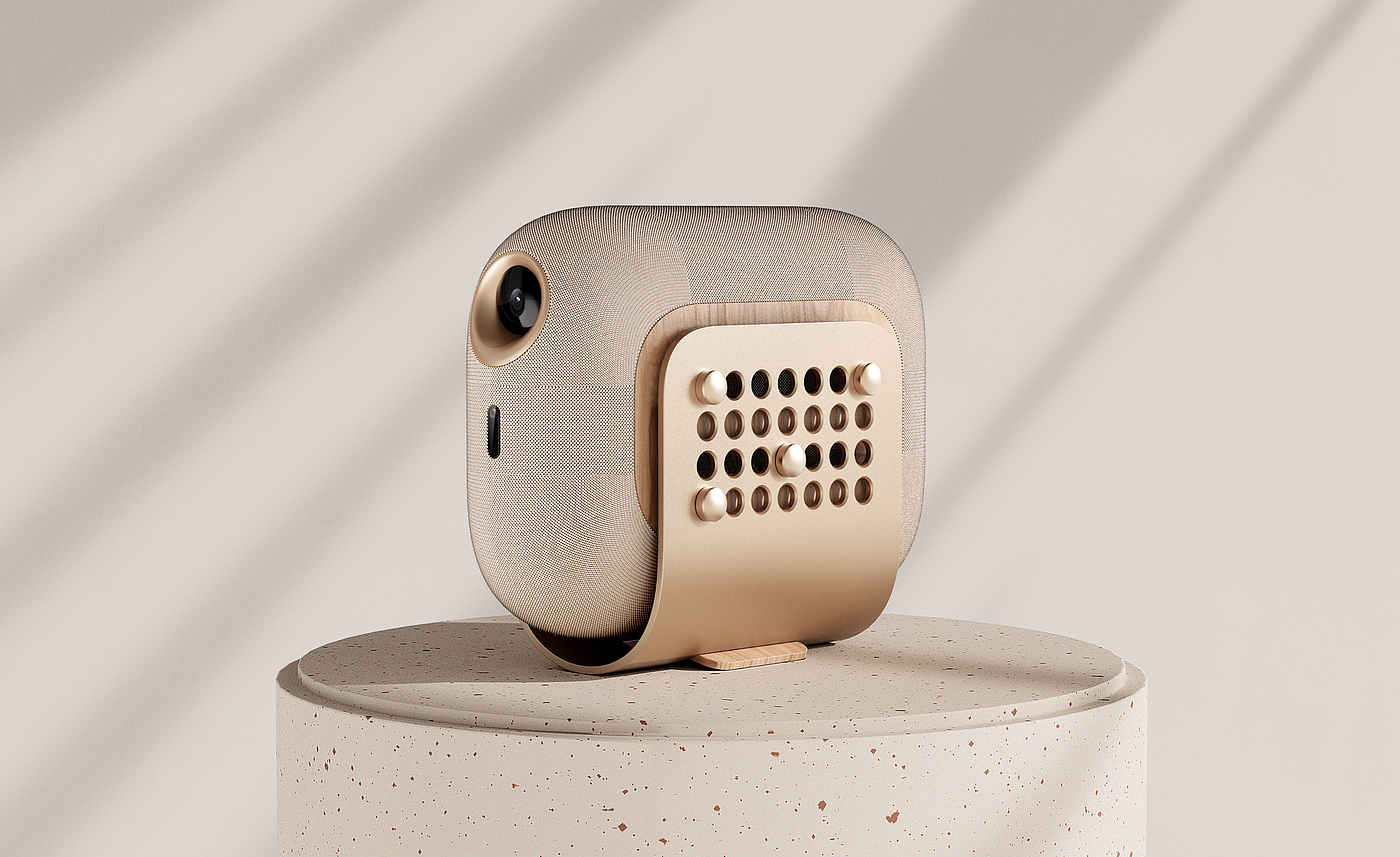

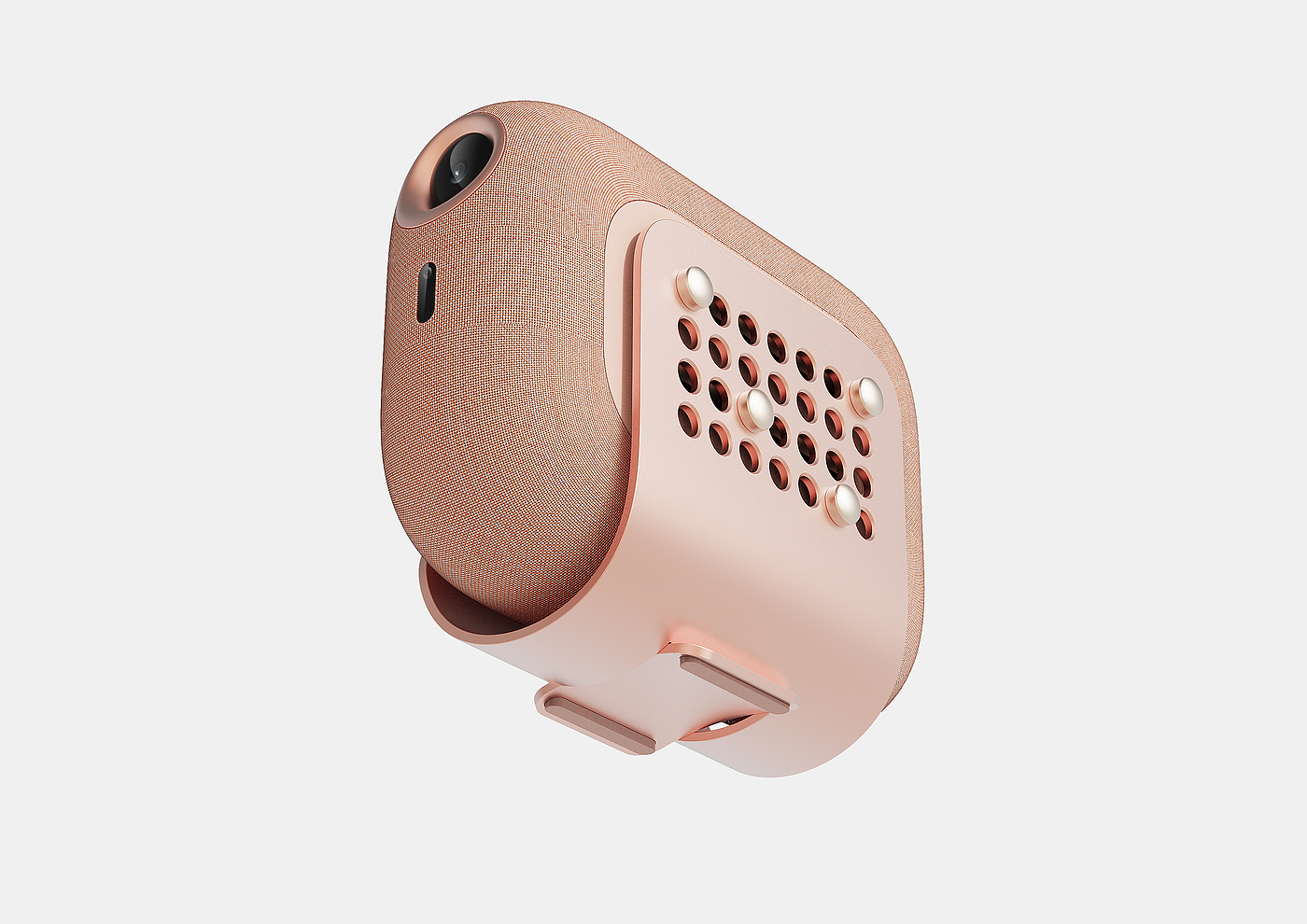

The decorative FIX PIN can be pressed into and locked on the rail designed on the projector body through the "orifice plate" bracket. By using 2-3 FIX PIN, the projector body can be firmly fixed in a certain position.

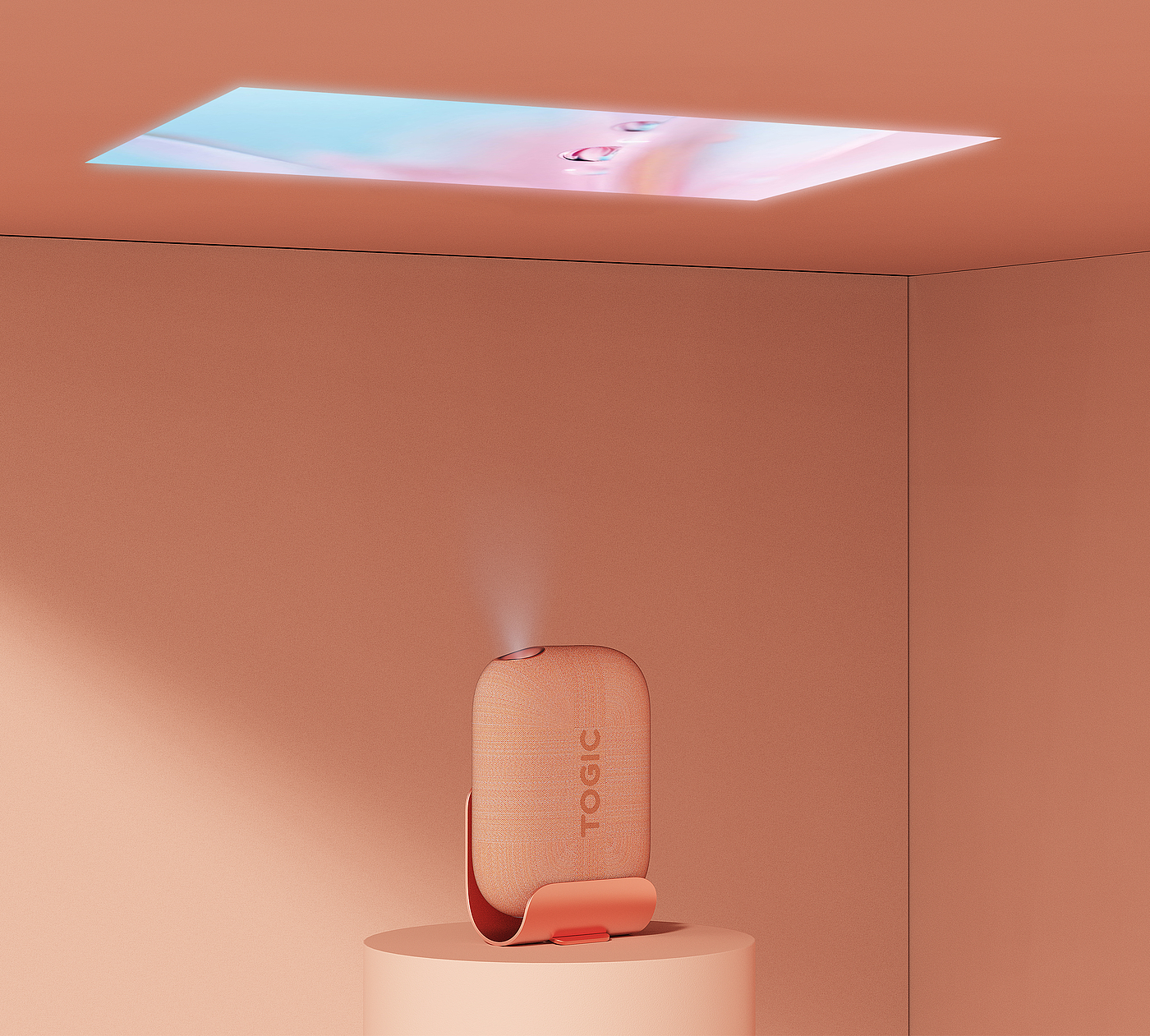

By fixing the projector in different holes, the user can rise or lower the body to a certain extent, and can adjust the direction of the lens up or down. Even upright bodies project images onto the ceiling.

At the same time, the mode of user fixing PIN code can also become a way for users to express their personality.

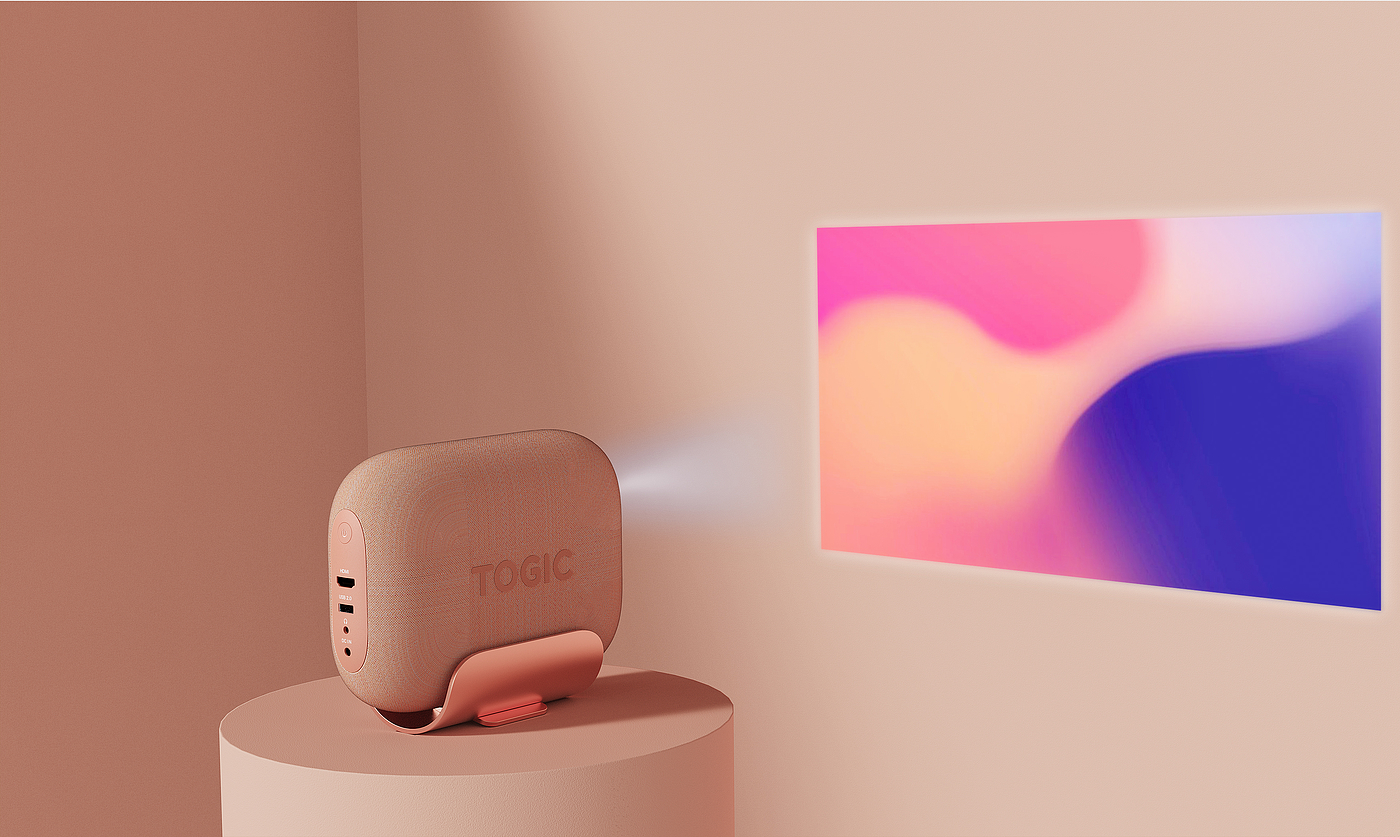

TOGIC ONE's design emphasizes the thinking of putting products into actual use scenarios to provide high-quality user experience and convey high-quality product functions and aesthetics for Generation Z.

423 635

玩物SHAWN制 2022-01-19

The adjustment method of the bracket is really bright at the moment. The only thing I want to ask is whether the splicing effect of the cloth pattern is a rendering problem or the effect you want.

FU FU作者 2022-01-19

Lazy

我也说一句

驴哥产品设计ID 2022-01-14

Simplicity is not simple

ASCE 2021-12-31

The UV map feels unnatural and then add some fried wool fibers.

兼职奶爸 2021-12-27

Which product needs convection for projector heat dissipation?

木白工设 2021-12-27

The parting line on the cloth is really not very good-looking in the middle.

FU FU作者 2021-12-27

The parting line should be wrapped in cloth on the inner surface.

What about the stitching area on the cloth?

The cloth cover is equivalent to a piece of clothing, which is understandable.

I know, that is to say, will the connection of the cloth surface be more obvious ~ ~ is this a graph rendered by GPU?

Yes

Lip 2021-12-27

The stitching of the cloth surface can be hidden in the assembly position of the exposed parts.

I don't know if I can make the four big corner turns.

Lip 2021-12-28

Looking at the cost, it is completely achievable. The stitches/stitches are hidden in the assembly position of the exposed parts, and the exposed parts can be covered with another cover.

木白工设 2021-12-28

I have designed a stereo before, which is also made of cloth ~ ~ your turning point is bigger than mine . I don't know if there is a similar turning reference on the market. This is a bit like a twist in the shoulder position of the clothes,

Look at the cost, the effect can be done. It depends on whether the boss thinks it is necessary or not and whether he is willing to spend money.
