Project Name: Balloon therapeutic instrument host handle cart design
Cooperation content: design analysis | appearance design | structural design | prototype production | accompanying running assistance
This balloon therapeutic instrument host handle cart designed and built by Suoguo is a design model for the deep integration of "functional practicality" and "user experience" of medical mobile equipment. As an auxiliary equipment for clinical interventional therapy, its design not only meets the efficient operation requirements of the operating room, but also transmits the humanistic temperature of medical equipment through details and forms. The following is an analysis from the four dimensions of design analysis, design language, design details and ergonomics.
1. Design Analysis: Functional Modularity in Mobile Healthcare Scenarios
The core scenario of the balloon therapeutic instrument cart is the mobile operation of the operating room/consultation room, and the underlying logic of the design is based on the "mobile medical function partition" as the core:
The functional module is clearly adapted to the scene: the whole machine is divided into three modules-the top is the interaction and operation module (integrated display screen and handle interface), the middle is the storage and equipment module (carrying the main machine of the therapeutic instrument), and the bottom is the mobile and stable module (cart base with casters). This partition fully meets the clinical needs of "medical staff mobile operation and quick access", allowing the device to realize the integrated function of "interaction-operation-storage" in a compact space.
The medical attribute expression of the material: the combination of "white medical grade plastic black matte panel" is adopted, and the white color transmits the "sterile and clean" medical scene attribute, which meets the environmental requirements of the operating room. The black panel not only highlights the brand logo and functional area, but also is resistant to dirt and easy to clean, and is suitable for the hygiene standards of medical scenes. Metal-textured handrails and casters enhance the device's "durability" perception and meet the needs of frequent movement.
2. Design Language: Rationality and Lightness of Medical Mobile Devices
The design language of this cart is based on "professional lightness". Through the combination of form and color, the bulkiness of traditional medical carts is eliminated:
Lightweight expression of form: the whole machine adopts "trapezoidal structure with narrow top and wide bottom". the compact design of top operation area and wide bottom base form visual balance, which not only ensures the stability of the equipment, but also avoids the depression of "large cart. The straight lines of the fuselage are combined with rounded corners. The straight lines strengthen the "rigor" of medical equipment, while the rounded corners soften the visual experience and convey a "non-aggressive" sense of professionalism.
Functional orientation of colors: the matching of white and black main colors is very clever-white is used as the base to strengthen the clean attribute of medical scenes; Black is used as the embellishment of the functional area, which makes the display screen and brand logo more eye-catching, and is convenient for medical staff to quickly identify the operation area. This low-saturation color combination not only meets the visual comfort of the medical environment, but also does not interfere with the focused atmosphere of the surgical scene.
3. Design Details: Medical Care Hidden on the Move
Excellent medical cart design, the details of the care for the operation of medical staff:
The details of the operation area are clever: the handle interface beside the top display screen adopts "embedded design", which not only avoids the messy winding of cables, but also can accommodate the handle when not in use, thus reducing the interference of the operation space; The frame of the display screen has been "anti-glare treated" (visible from the brightness of the interface) to adapt to the lighting environment of the operating room and ensure the clarity of parameter reading.
The details of the mobile module are optimized: the bottom caster adopts a "silent universal wheel braking device" (inferred from the base structure), which not only meets the flexible movement requirements of the cart, but also can quickly fix the equipment during operation to avoid the cart sliding during treatment. The widened design and curved edge of the base reduce the risk of collision of the cart in the narrow corridor and improve the movement safety.
4. Ergonomics: Precision and Comfort in Mobile Operation
The ergonomic design of the balloon therapeutic instrument cart is completely optimized around the scene of "standing operation of medical staff:

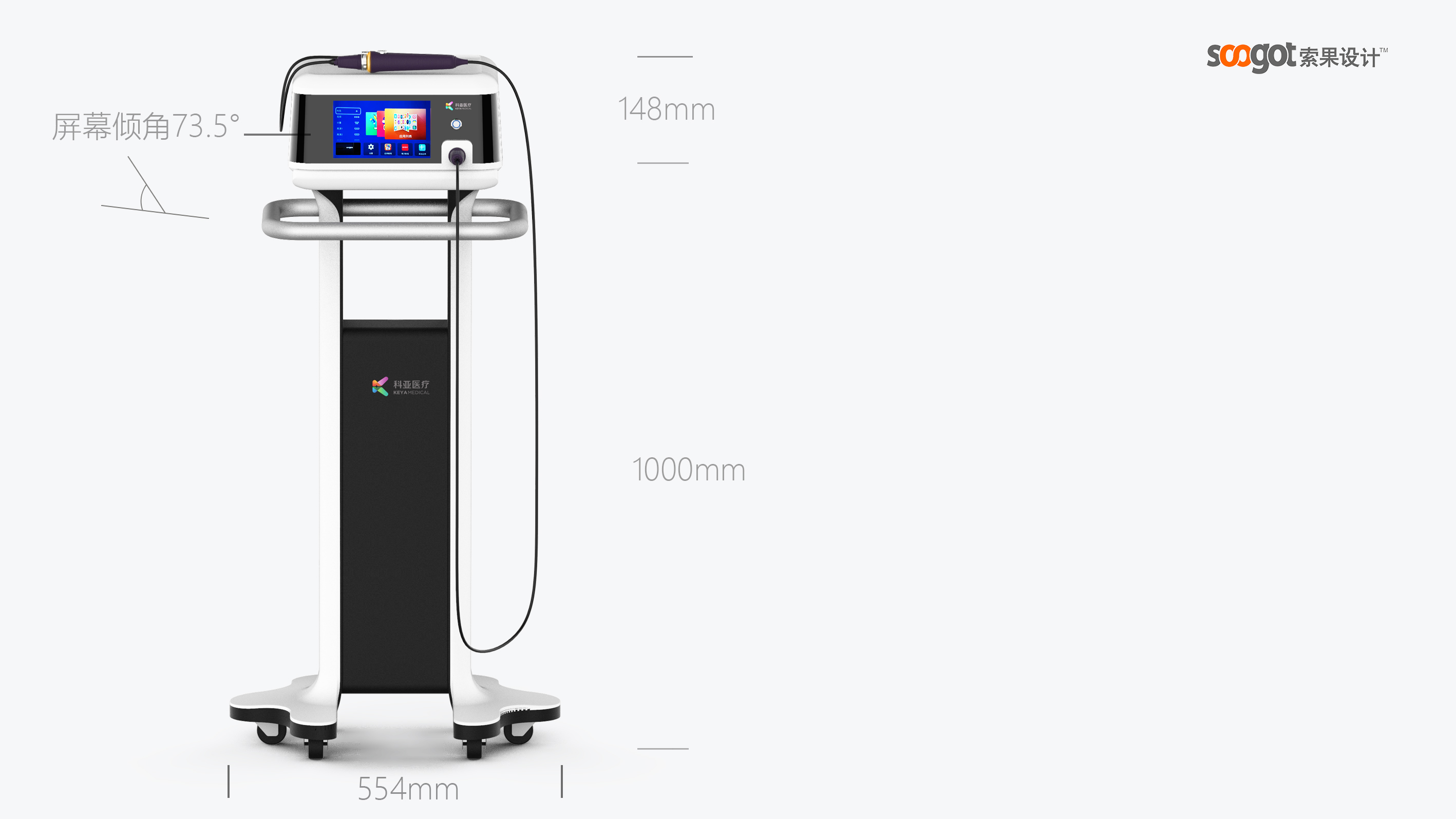

Accurate adaptation of operating height: the height of the top operating area (combined with the body size of 1000mm) conforms to the "standing head-up height" of medical staff, and the display screen and handle can be operated without bending down or raising hands, thus reducing muscle fatigue caused by long-term operation; The 73.5-degree screen inclination angle is the key design-after ergonomic calculation, this angle can avoid screen reflection and keep the neck of medical staff in a natural posture.
Human body adaptation for mobile operation: the height and width of the middle armrest are adapted to the hand posture of the medical staff "pushing and supporting the cart", and the wrist naturally relaxes when holding it; The overall weight distribution of the cart (heavy at the bottom and light at the top) not only ensures the stability during movement, but also makes the pushing process more labor-saving, meeting the needs of frequent mobile devices in clinical practice.
Conclusion: "User-centered" Design of Medical Mobile Devices
The design of this balloon therapeutic instrument is a symbiotic sample of "functional efficiency" and "humanistic experience" of medical mobile devices. It takes functional modularity as the skeleton and adapts to the core requirements of clinical mobile operation. Lightweight design language is used as texture to eliminate the bulkiness of medical equipment. Take detail design as nerve to protect the operation safety and comfort of medical staff. With ergonomics as the blood vessel, the equipment can truly serve "medical operators".
With the increasing refinement of clinical medical equipment, this design not only improves the operation efficiency of balloon therapy, but also redefines the value of "medical cart"-it is no longer a simple "equipment carrier". But the "efficient partner" in the clinical work of medical staff ". This concept of "adapting to the scene by design and caring for users with details" also points out the direction for the innovation of medical mobile devices: only by deeply integrating the "rationality of medical functions" with the "sensibility of user experience" can we create medical products that really help clinical practice. Sogo Design: www.soogot.com
