Project Name: Appearance Design of Optical Biology and All-in-One Testing Equipment (Scheme B)
Cooperation content: design analysis | appearance design | structural design | prototype production | accompanying running assistance
As a differentiated scheme of all-in-one instant detection equipment for light biology, Scheme B takes "professional dynamic and efficient operation" as the core design logic, and achieves a deep balance between professional medical attributes and operational convenience in scenarios such as primary medical care and clinical rapid detection. Compared with the round affinity of Scheme A, Scheme B, through dynamic form, color contrast design and fine functional details, enables multi-indicator testing equipment to have both clinical-level professional reliability and adapt to high-frequency, fast-paced testing scenarios, becoming a typical example of professional medical testing equipment design.
1. Design Analysis: Professional Carrier for Efficient Detection
The core design orientation of Scheme B is an all-in-one professional testing tool for serving high-frequency, fast-paced scenes such as primary clinics and emergency testing. The design starts from the "rapid detection of the whole process", not only to meet the medical staff in a short time to complete the multi-index detection of operational efficiency needs, but also to deliver professional and reliable medical temperament, while taking into account portability and durability. This positioning determines that the design is no longer limited to the sense of affinity, but more emphasis on the balance of "professional sense of operation efficiency", so that the equipment is stable and reliable in high-frequency use, and can simplify the operation process.
2. Design Language: Professional Medical Aesthetics of Dynamic Colors
The design language of Scheme B takes "dynamic flow line and color contrast stratification" as the core, and conveys professional and dynamic visual experience through the combination of form, color and material:

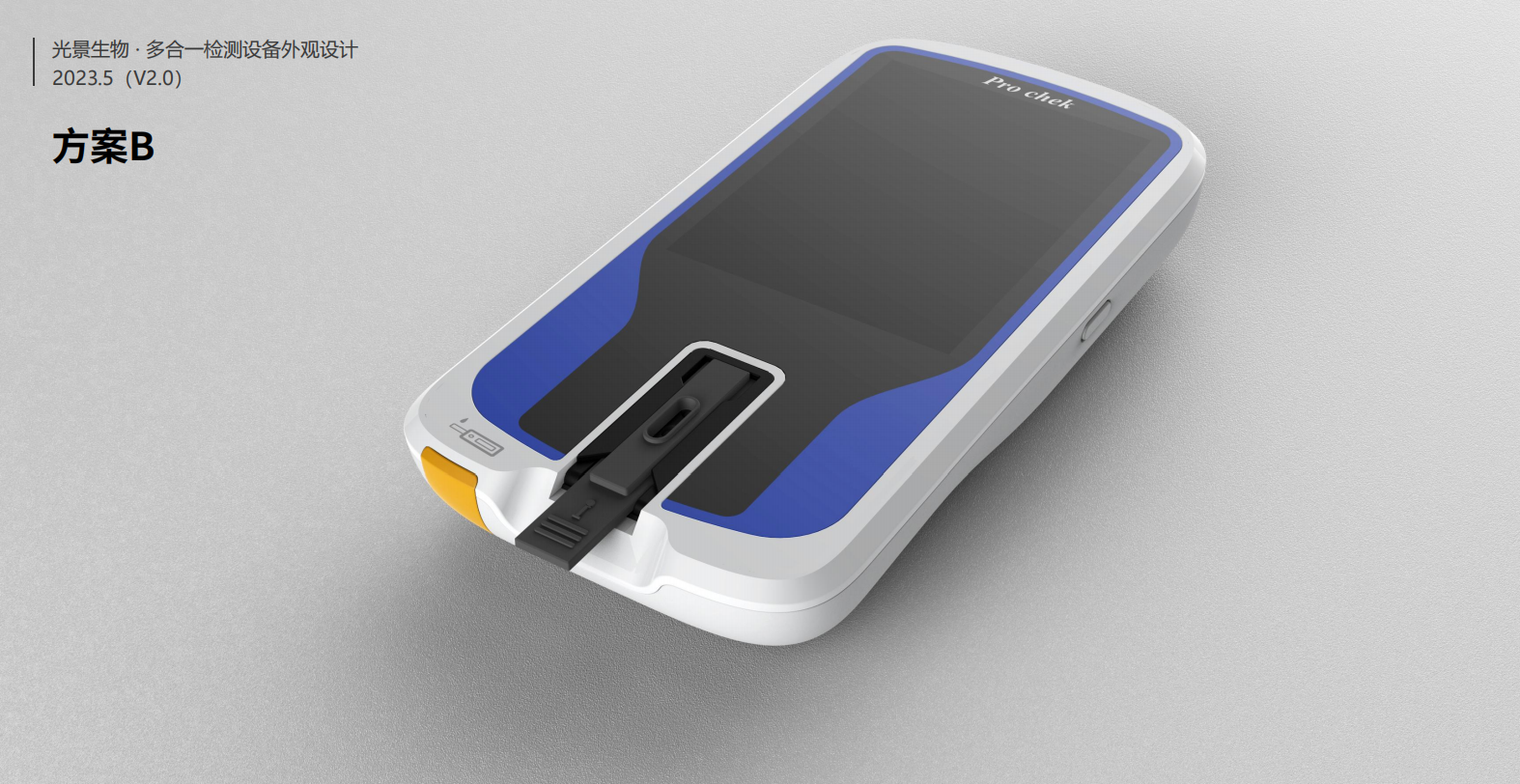

Morphological language: the whole adopts streamlined dynamic modeling, the fuselage lines are smooth and full of tension, and the edges are rounded, which not only avoids the risk of collision, but also weakens the heaviness of medical equipment through neat curves, and conveys the "efficient and agile" product temperament; The V-shaped blue area on the front of the fuselage forms a morphological contrast with the black screen area, which not only strengthens the visual level, but also highlights the core position of the detection function area.
Color system: medical grade pure white is used as the base, with medical professional blue, function-focused black and suggestive yellow to form clear color logic: white conveys clean and reliable medical attributes, blue V-shaped area strengthens professional identification, black screen and detection card slot highlight the function core, and yellow key is used as function prompt (such as test paper ejection key) to make the core operation area clear at a glance and improve operation efficiency.
Material logic: the main body adopts medical grade ABS matte plastic to improve slip resistance and durability while avoiding fingerprint residue; The screen area is made of high-permeability tempered glass to ensure clear and visible detection results. The blue decorative area is made of high-gloss plastic, which forms a material contrast with the matte body and enriches the visual level. The detection card slot and yellow keys are made of wear-resistant plastic, which is suitable for high-frequency operation requirements.
3. design details: function-oriented efficient landing
The detail processing of scheme B embodies the design thinking of "taking operation efficiency as the core" everywhere, and every detail serves the actual demand of rapid detection:

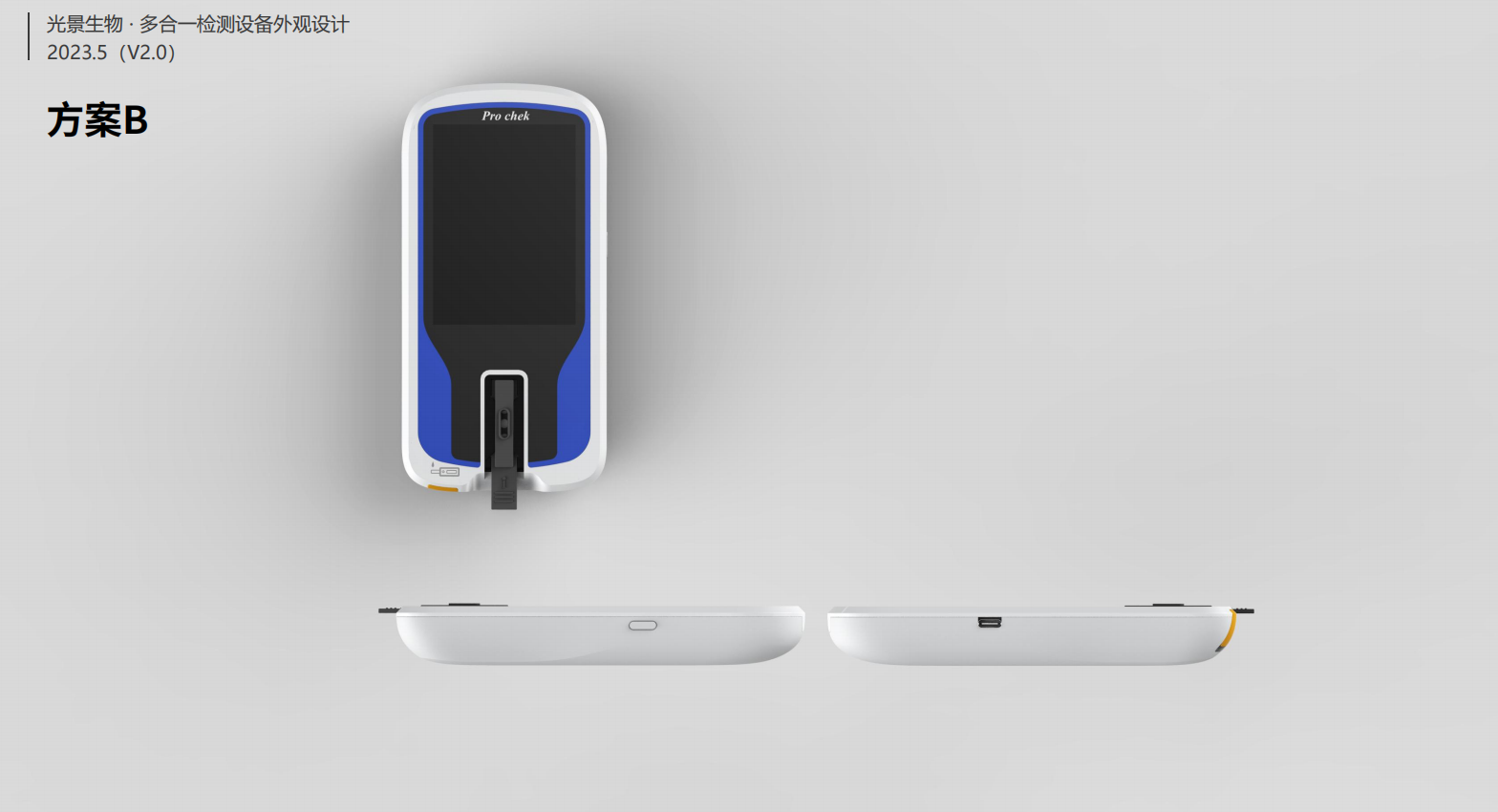

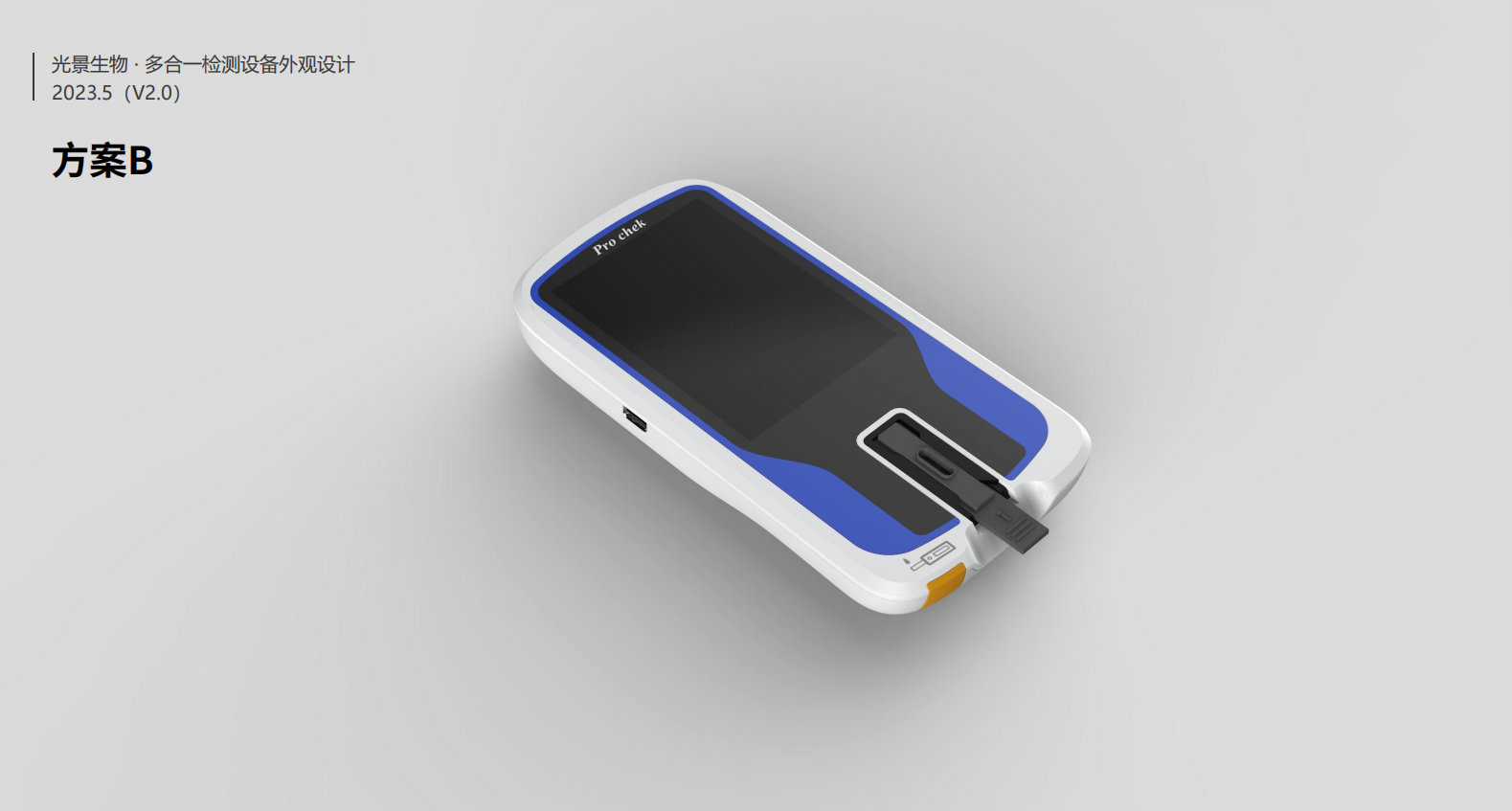

Detection card slot design: the front black plug-in card slot adopts a guided structure, which can automatically position the test paper when it is inserted, thus reducing misoperation. The logo beside the card slot clearly indicates the insertion direction, while the dustproof structure design avoids dust pollution and ensures the detection accuracy. With the yellow test paper return button at the front end, the test paper will pop up with one key to simplify the post-detection process and improve the overall efficiency.

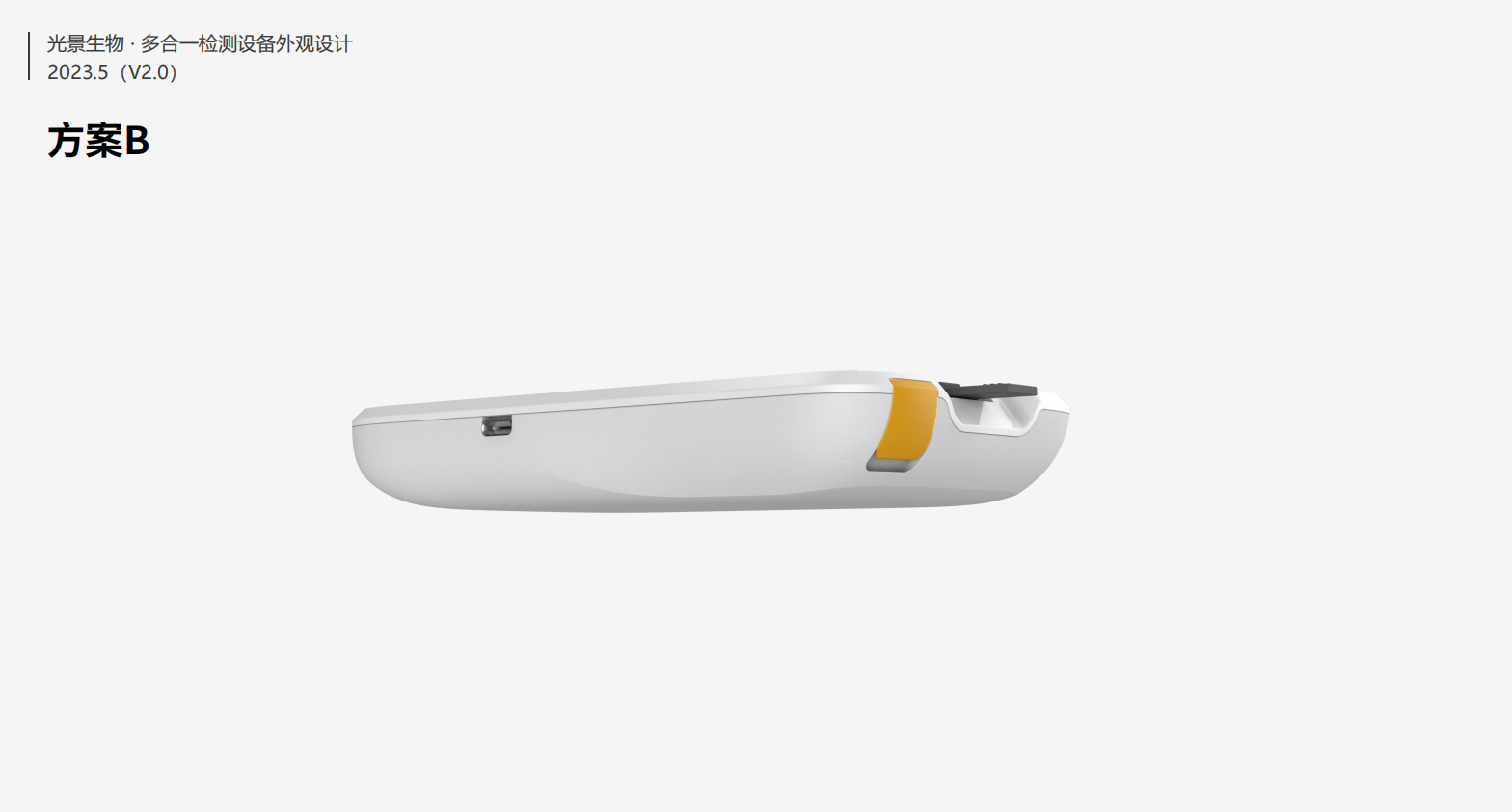

Interaction and functional details: the side Type-C interface takes into account the requirements of charging and data transmission, adapts to the general standards of modern equipment, and improves portability; The physical keys (such as power/function keys) on the side of the fuselage are of moderate size, clear touch, and can be triggered accurately when wearing gloves. The brand logo "Pro chek" is placed at the top of the screen in simple fonts, which not only strengthens brand identification but also does not interfere with the operation vision. Rounding at the bottom of the fuselage, ensure stability during placement.
Protection and portable details: the integrated sealing structure has basic dustproof and waterproof performance, and can cope with the complex environment of primary medical treatment; The light and streamlined body is easy to hold and carry, meeting the requirements of mobile detection, bedside detection and other scenes. The gap control of the fuselage is rigorous, the cleaning dead angle is reduced, and the sterile management requirements of medical scenes are adapted.
4. ergonomics: experience optimization for high-frequency operation
The ergonomic design of Scheme B is deeply in line with the scene requirements of "fast hand-held operation" and optimizes the experience from the three dimensions of holding, vision and operation:
Optimized holding experience: streamlined body fits the natural radian of palm, matte frosted material improves holding friction, body weight is controlled within portable range, and long-term high-frequency operation is not easy to fatigue; The detection card slot and yellow key are located at the front end of the fuselage, and the thumb can naturally touch them when holding them. The whole process of "inserting test paper-operating-withdrawing test paper" can be completed with one hand, thus greatly improving the operation efficiency.
Optimization of visual and operation interaction: large-size display screen occupies the core area of the front of the fuselage, and graphical detection results and large font display design (preset) enable medical personnel to quickly interpret the data; The color contrast between the blue V-shaped area and the black screen makes the functional area easier to identify and reduces the visual search time. The layout of side keys and interfaces is reasonable to avoid blocking the screen during operation and ensure the smoothness of the detection process.
Scene adaptation optimization: streamlined modeling and professional color contrast design not only adapt to the professional atmosphere of clinical medical scenes, but also can be quickly identified in environments such as primary clinics. The combination of portability and efficient operation allows the equipment to be flexibly applied to multiple scenes such as bedside detection and mobile free clinic to meet the needs of different detection environments.
From dynamic streamline modeling to efficient detection card slot design, the design of Scheme B has always focused on the core goal of "professional and efficient scene adaptation. It transmits professional medical sense with visual language of color contrast and stratification, improves operation efficiency with fine details, optimizes high-frequency detection experience with ergonomics, and finally realizes the symbiosis of "all-in-one detection function" and "fast operation experience", providing a new paradigm with both visual tension and practical value for the design of professional medical detection equipment. SOGOT DESIGN: www.soogot.com
