Architectural designer genius zaha designed the city sculpture seats for milan design week, with flowing curves and winding levels similar to the naturally formed glacier cracks. The seat is supported by two continuous curves connected to the ground, showing the beauty of sculptural order and full of unique interpretation of space.

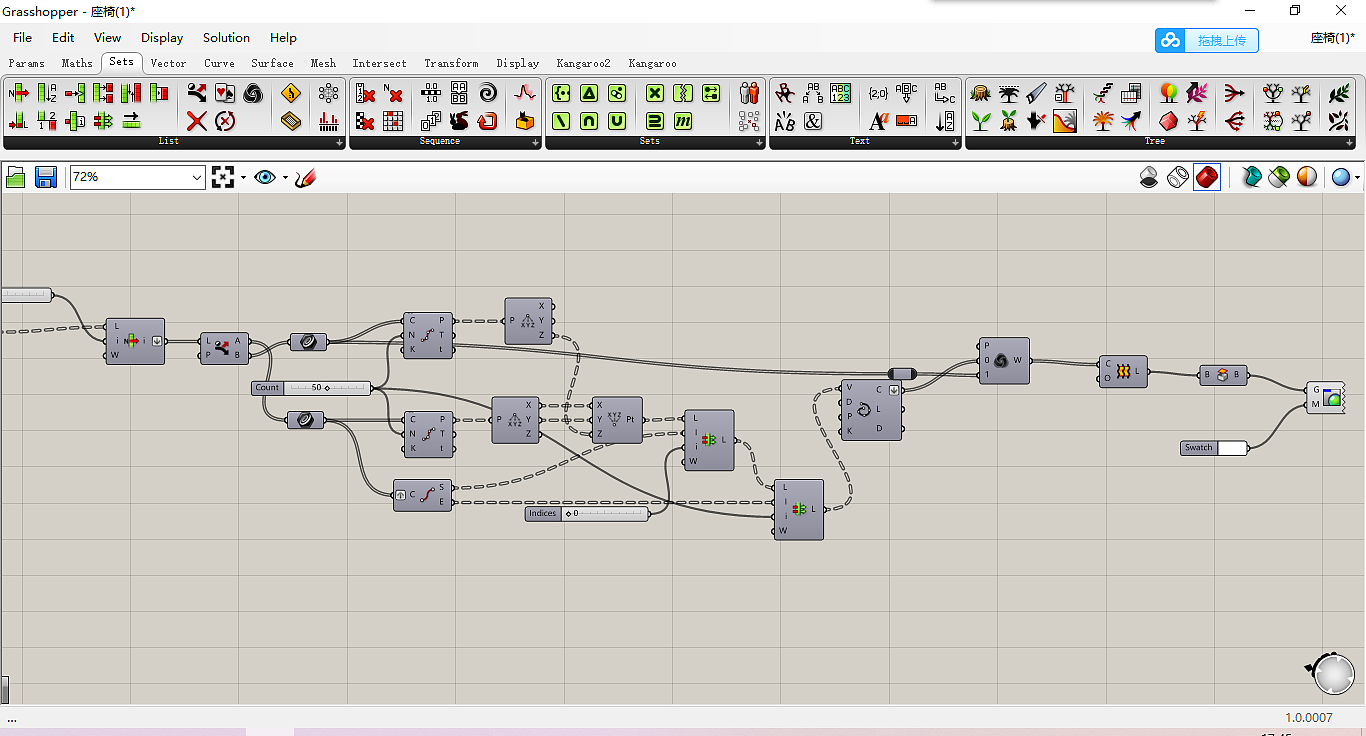

build the basic structure of curve modeling, loft lofting obtains the basic shape, and the interval division makes one of the modeling surfaces of u v subdivide horizontally, and one direction remains unchanged. Subdivide the completed surface, extract the edge of tree data 1, dispatch the data, divide the edge data into two groups, bisector segments to obtain equal points, extract the x y z value of the point, replace the z value of one group of data with the z value of the other group of data, and draw lines for the interpolation points of each group of point data.

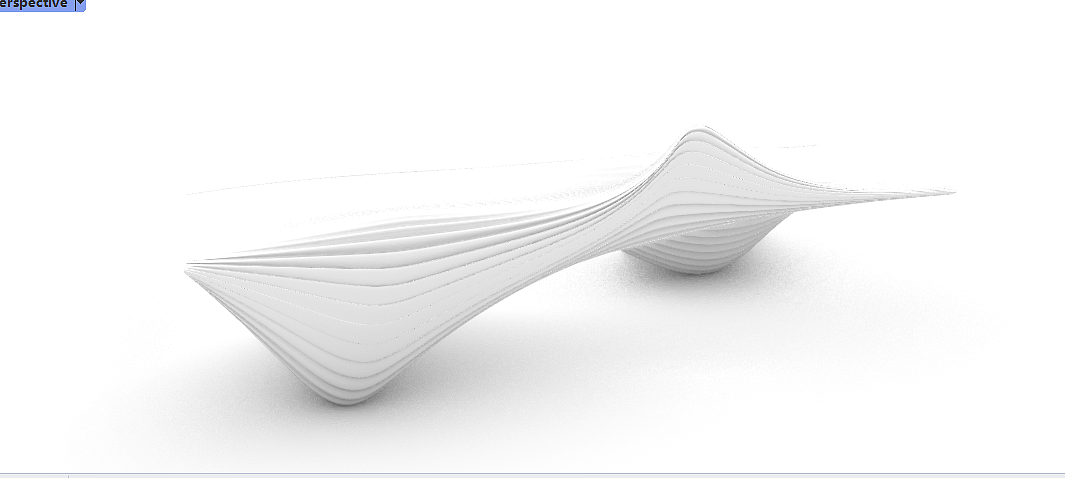

Weave the original structure of the two groups of dispatch lines, so that one group of the lines obtained is consistent with the separated lines in the height of the z value. loft is lofted and the entity is closed.
