# TOP No. 3# "Bring Your Own Data Cable" Plug-in Board

2017-09-25 Office Products 5818 21 15

侘寂

China · Office Products
data line,usb,patch board,

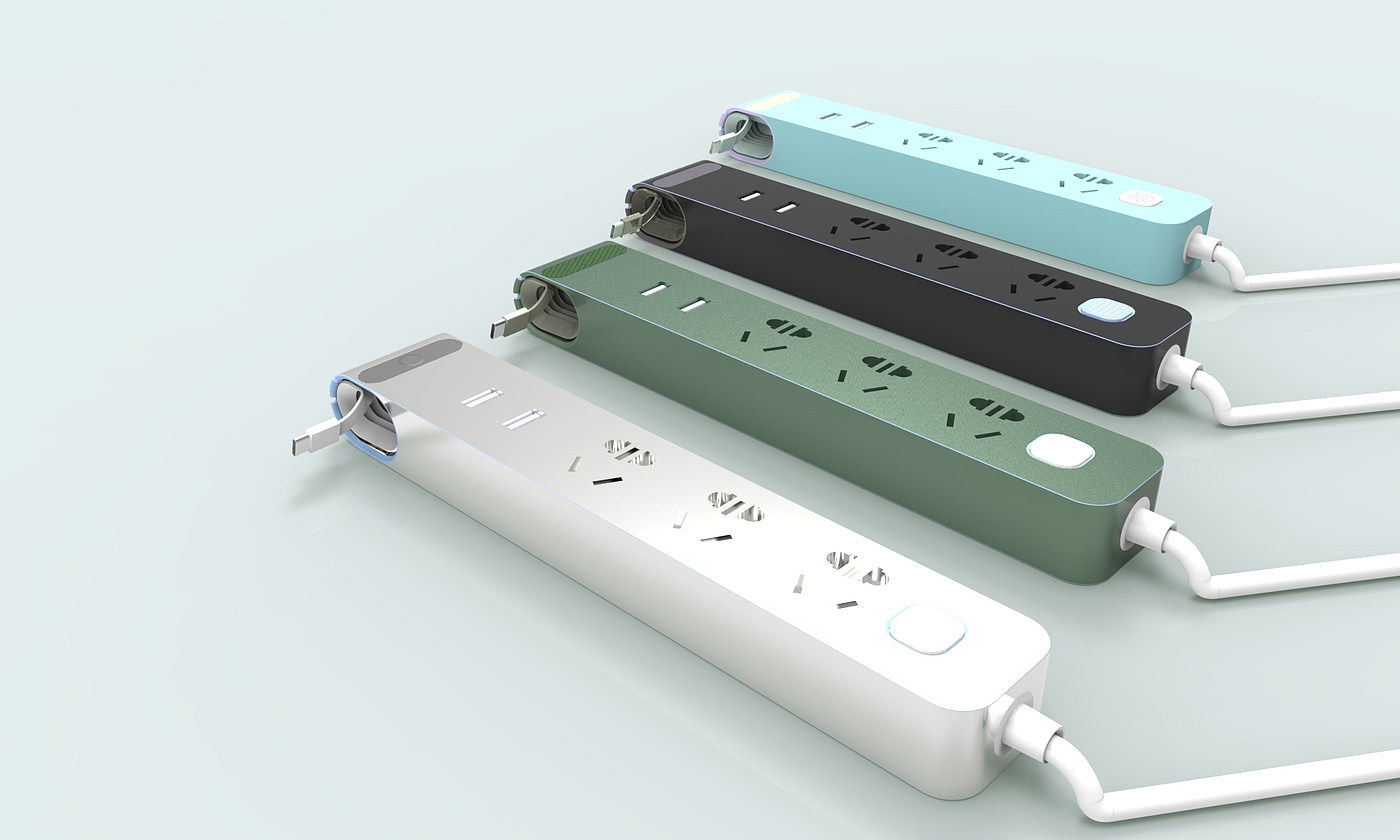

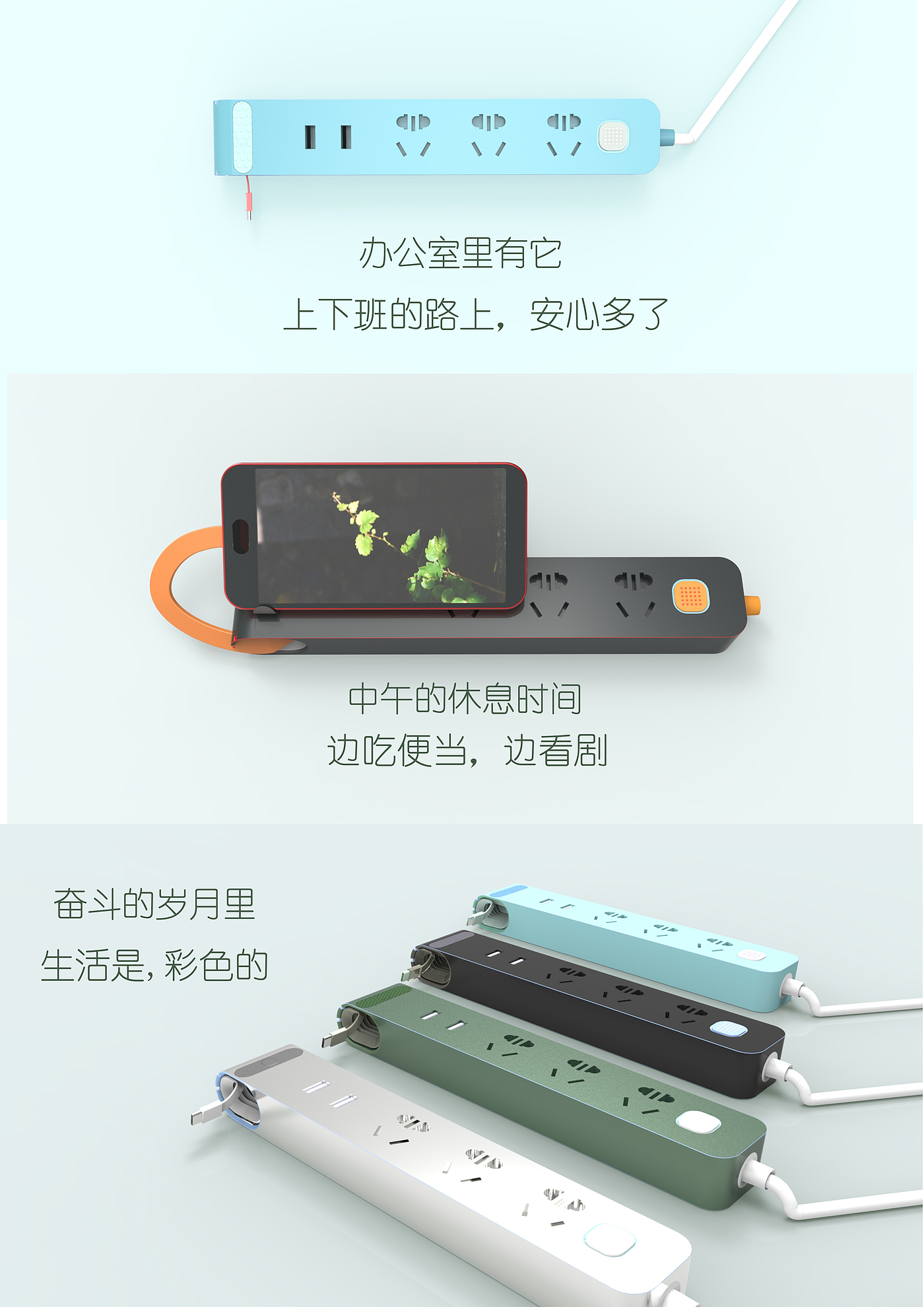

The plug-in board with its own data cable allows charging in one step.

data line,usb,patch board,

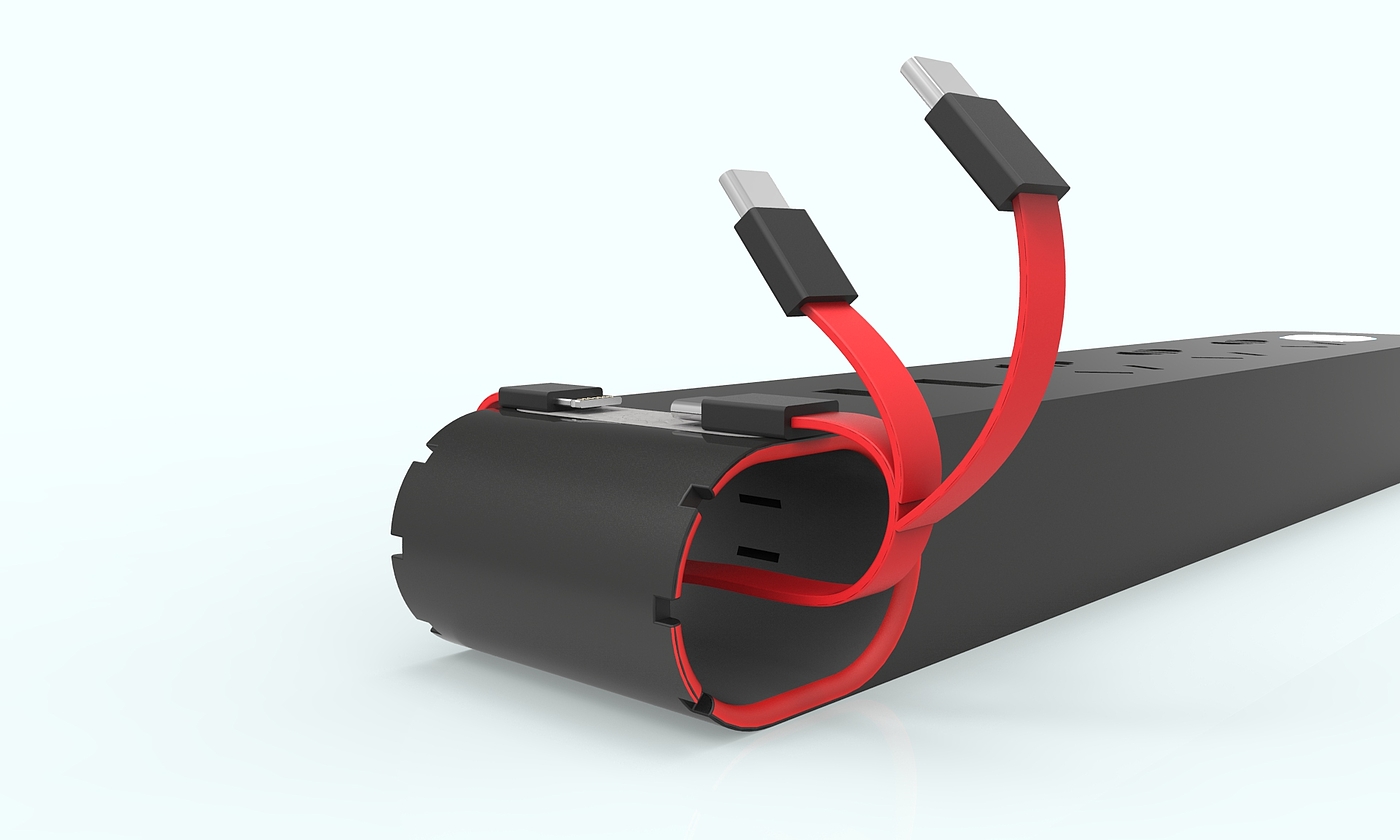

Charging cable storage and take out

data line,usb,patch board,

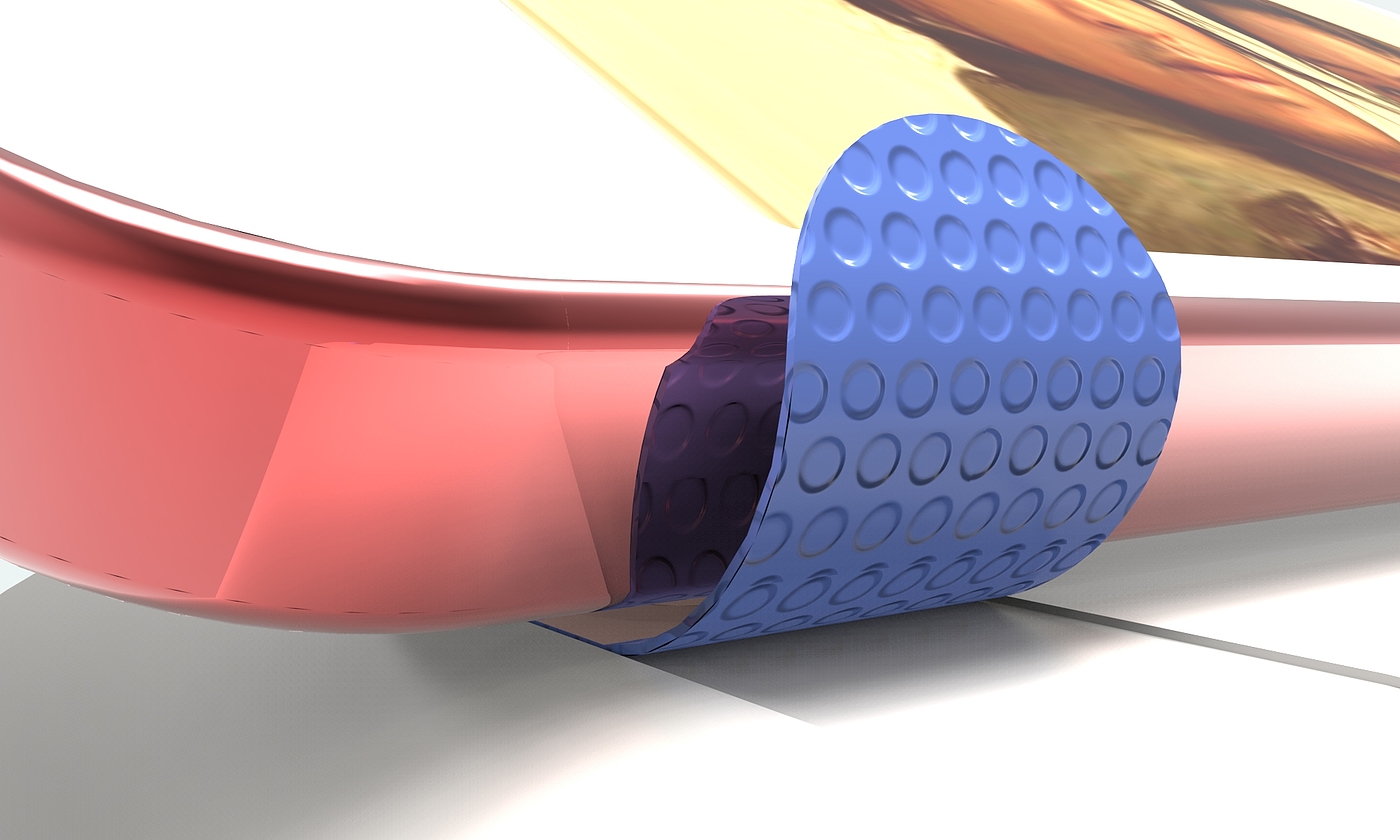

The flexible shrapnel on the patch panel can fix the mobile phone

data line,usb,patch board,

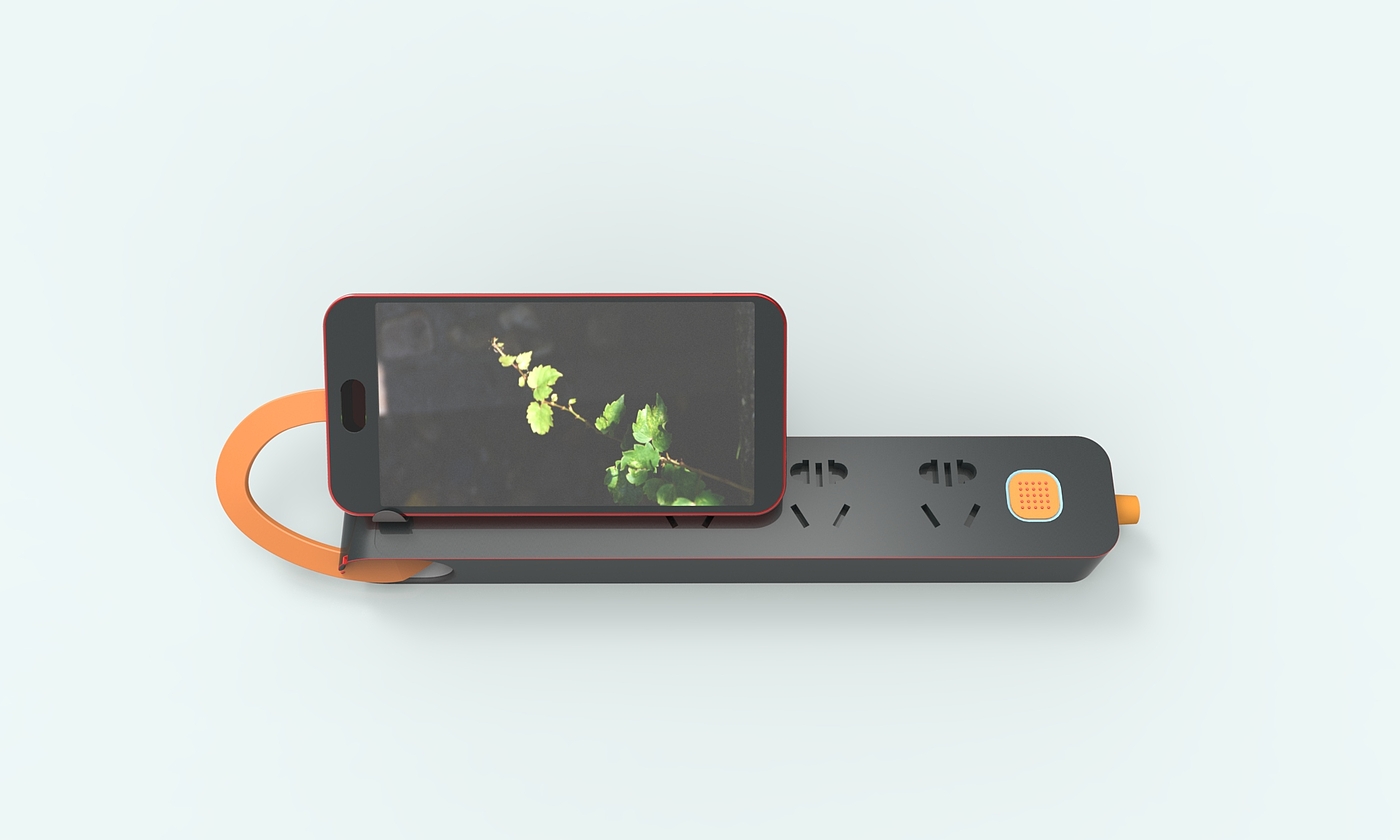

Watch while filling

data line,usb,patch board,
15 27
用户其他作品 查看更多
评论

留言板 (21)

YphetS_Z 2017-10-11
回复

When the mobile phone is on top, will the other slots be occupied? So is the utilization rate of this board too low?

侘寂作者 2017-10-15
回复
Thank you, this is indeed a problem.
我也说一句
YphetS_Z 2017-10-11
回复

It is worth encouraging to be able to express one's original ideas, but there is nothing novel in the design. At present, there are many mature products in the patch panel market, not to mention the functions. In contrast, the appearance is a bit rough. I personally don't think it will be a problem. I can look at similar products and consider what can be improved in combination with my own design. Even a small point is also an improvement.

Sean 2017-10-05
回复

Great design, good idea, can realize this function.

侘寂作者 2017-10-09
回复
Thank you
我也说一句
ljaicy 2017-09-28
回复

Let me give you a blow. I won't say much about the shape. I can't see what the style wants to do. It's really not good-looking. Secondly, USB can exist in terms of function and practicability. However, the charging of mobile phones generally requires 5V voltage. Is there a transformer inside your straight-running data line (that is, the plug-in board comes with it)? Secondly, the basic design point of the plug-in board is to look at the basic specifications of the existing things before making things and after having ideas, so that the things that come out can be seen. At the same time, e-commerce such as Taobao are also good things. The design involves copyright issues. After reading it, you will know if there is any, whether you need to do it yourself, or what new improvements are made after doing it yourself, this one will not waste time,
Also, many people on this website feel that they don't understand the design. They hope you can still distinguish it by yourself with some flattery. The design road is difficult to walk, come on.

侘寂作者 2017-09-28
回复
Thank you, the students have been taught. I have very little experience in production and manufacturing. When doing this design, I think more about solving the problem of mobile phone charging more thoroughly. I hope that with this kind of plug-in, it doesn't matter if you don't bring the charging line and charger (of course, the current wireless charging technology is a better solution). In principle, because there is already a plug-in board with USB interface, you only need to plug in the data cable and connect the mobile phone to charge. So what I understand is to turn this data cable into the plug-in board, and make a space on the plug-in board where the data cable can be stored. So finally formed this design.
半圆角工业设计 2018-03-21
回复
The design is done according to what you want to do, and when you know the production aspect, it will be limited to your idea.
侘寂作者 2018-03-22
回复
Thank you. I have been working on my graduation project recently and have realized this deeply.
我也说一句
因斯坦缺爱 2017-09-26
回复

Great design, when will it be available?

侘寂作者 2017-09-26
回复
This, it is estimated that I will wait until after graduation.
我也说一句
违规账号 2017-09-26
回复

The effect diagram is great ~

侘寂作者 2017-09-26
回复
Thank you
我也说一句
潇潇 2017-09-26
回复

Original flavor! Small and practical design, praise!

侘寂作者 2017-09-26
回复
Thank you
我也说一句
思念断弦 2017-09-26
回复

Great! The design is good ~ it meets the needs of many people while filling.

侘寂作者 2017-09-26
回复
Because his mobile phone holder is too small and easy to fall off.
我也说一句
风中的背影 2017-09-26
回复

Can I charge it with a data cable?

侘寂作者 2017-09-26
回复
The data line is connected to the plug-in row and can be charged.
我也说一句
晨曦光 2017-09-26
回复

Haha, it's the first time I 've seen the green patch panel of the army.

侘寂作者 2017-09-26
回复
Hey hey, I prefer this color.
