A little record
Time to market: 2023
Project start time: 2020
Finally listed! It took about two and a half years from the start of the project to the market. The development cycle is relatively long, because when it comes to children riding, the design needs to consider various regulatory requirements and the comfort and safety of users, and there are many restrictions in all aspects. At the same time, it also needs to pass a large number of impact experiments, dynamic tests, static tests, etc., with strict test standards.

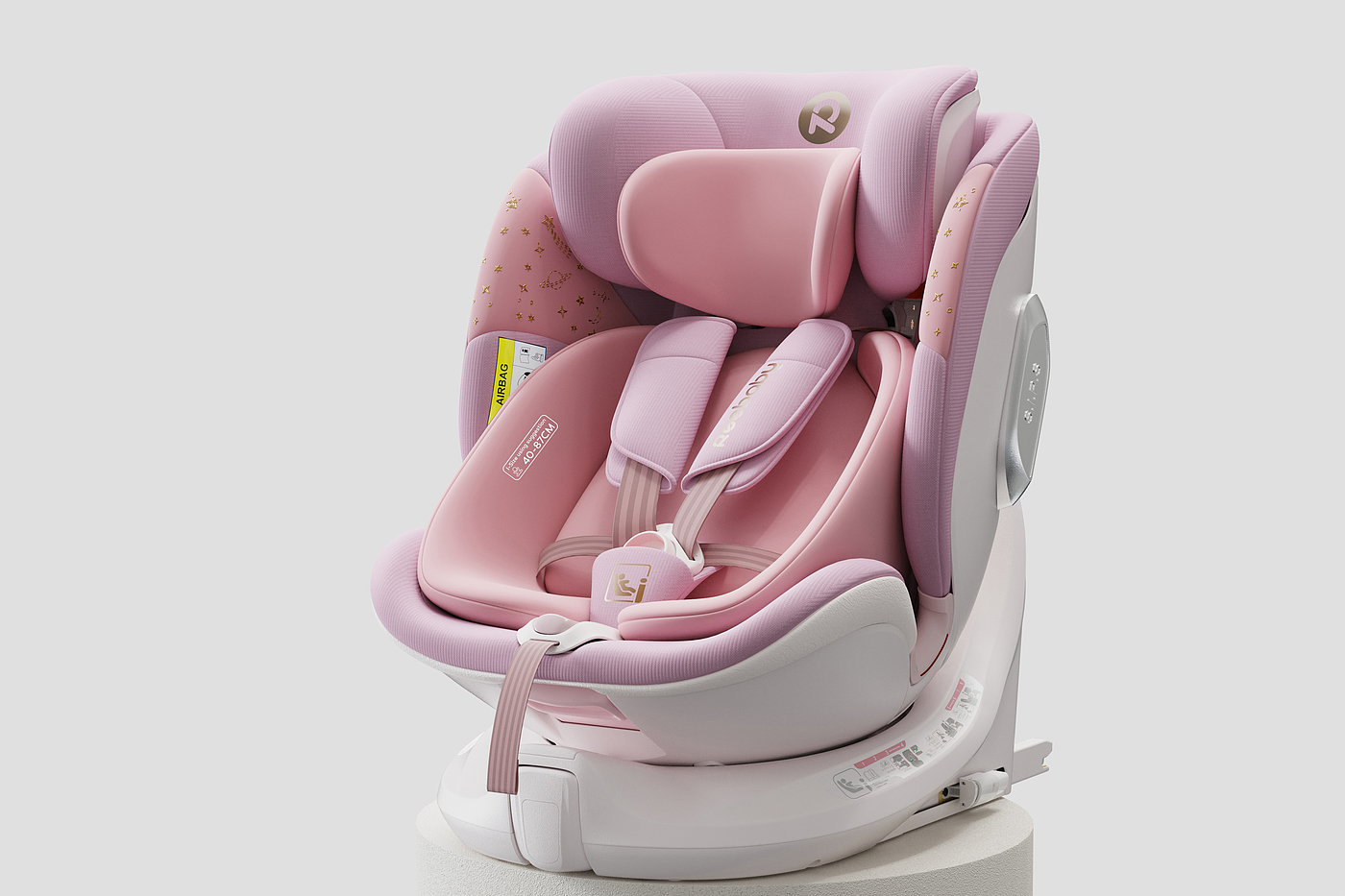

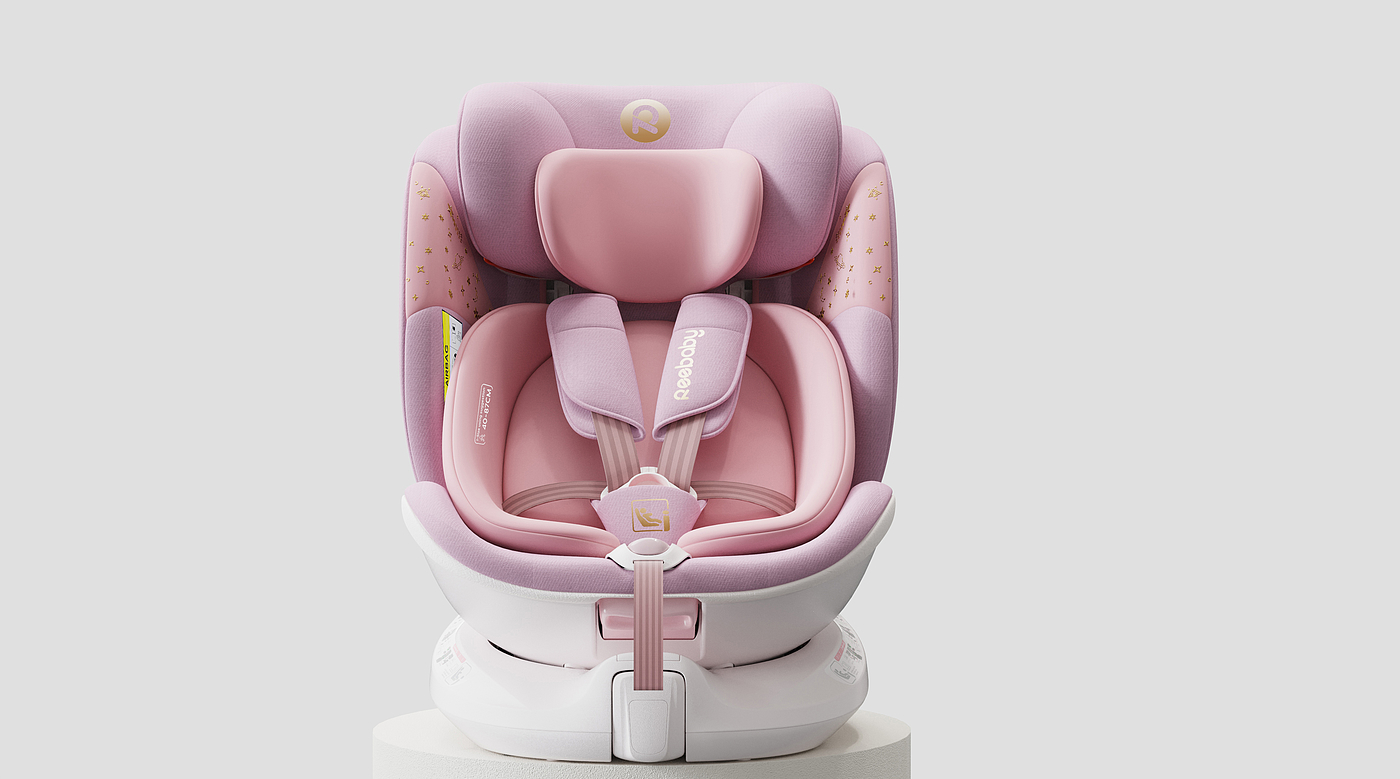

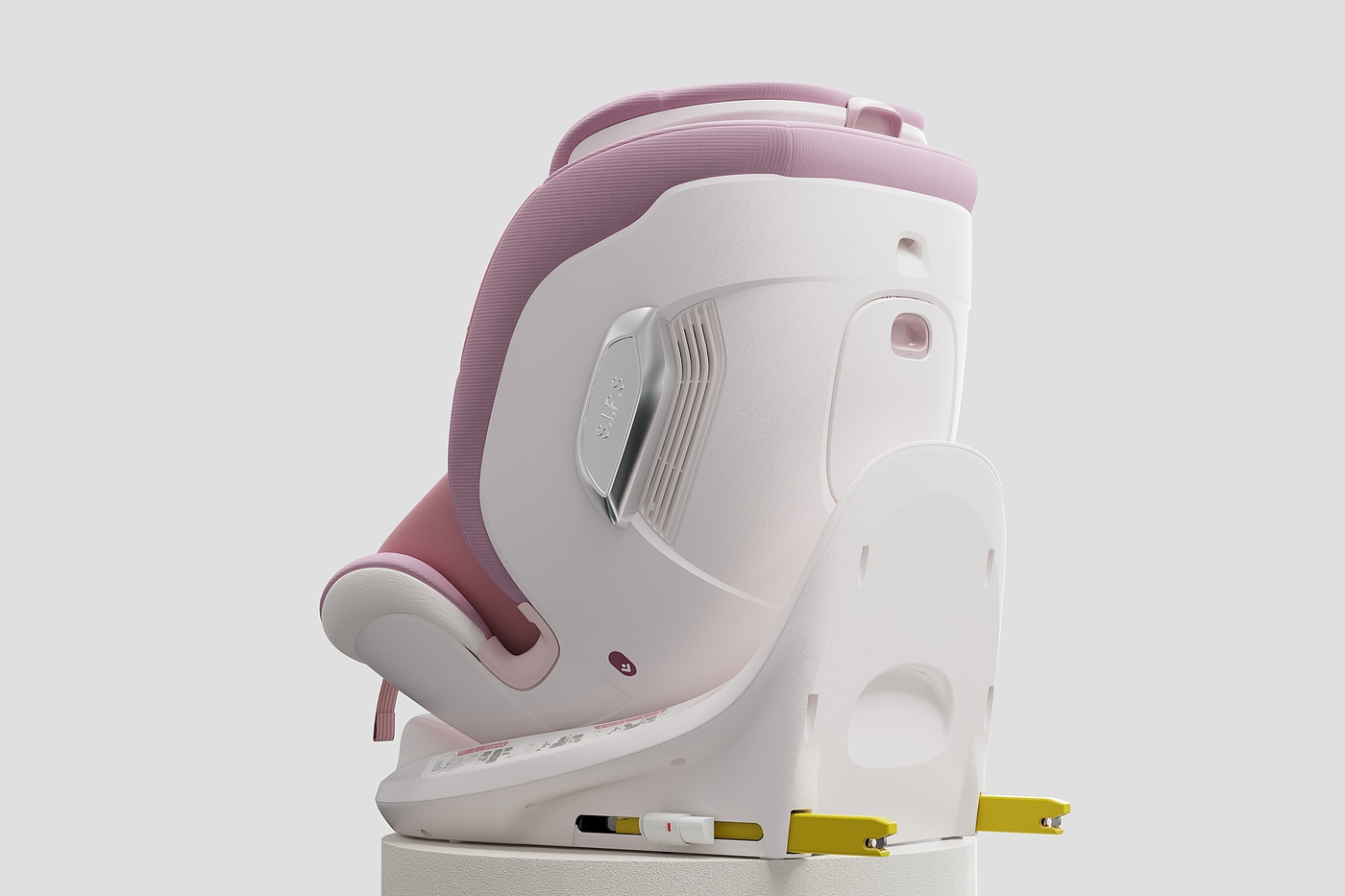

At present, this seat has passed the national standard and European standard ECE R129/03 certification. It is functionally capable of one-hand rotation, ventilation, 360 pan-tilt rotation, hidden anti-reverse support legs, etc. See the product details below ~

Mother and baby，vehicle-use child safety seats，

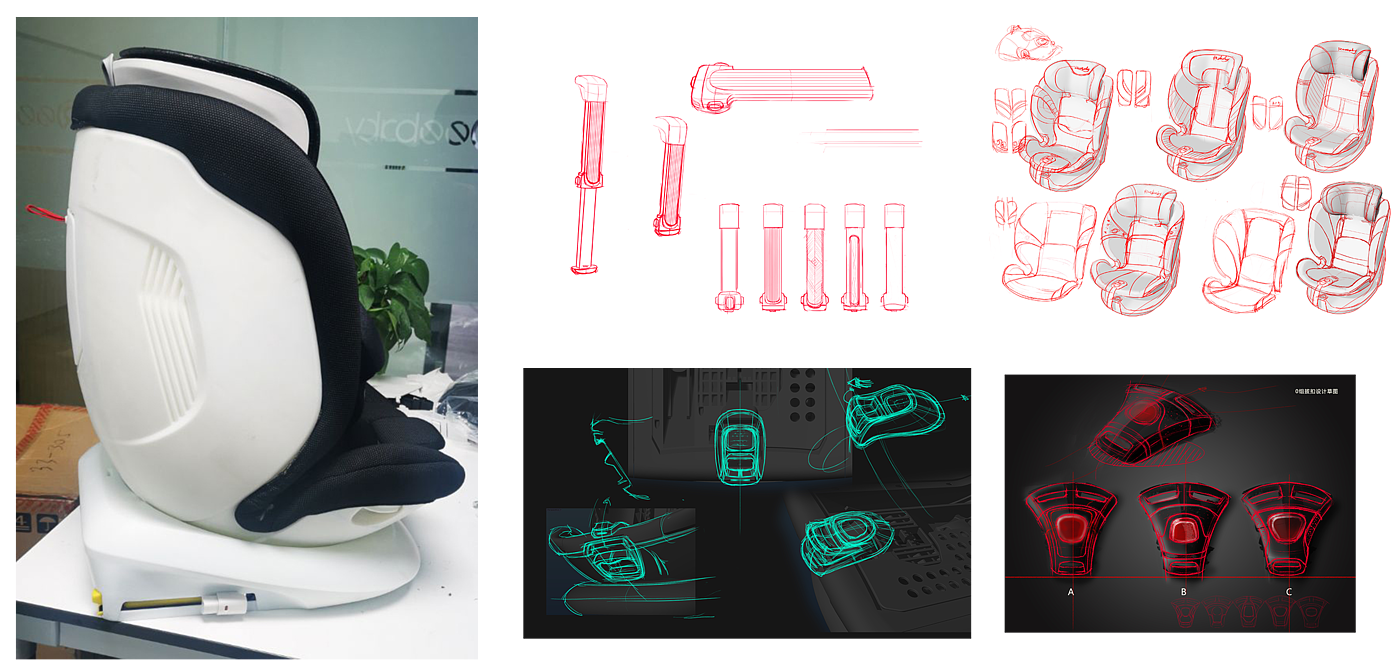

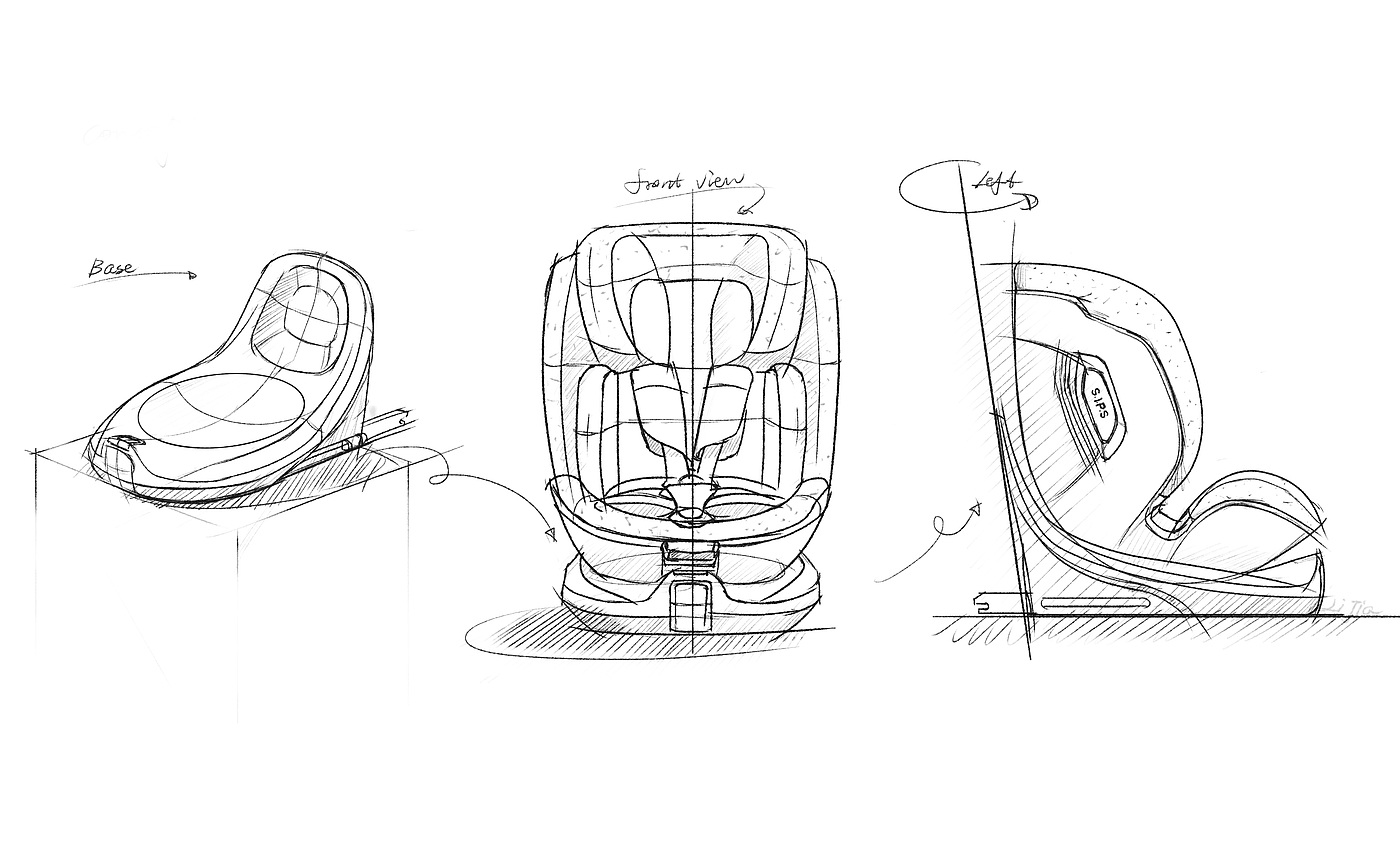

Seat early manual mold and some spare parts design sketch

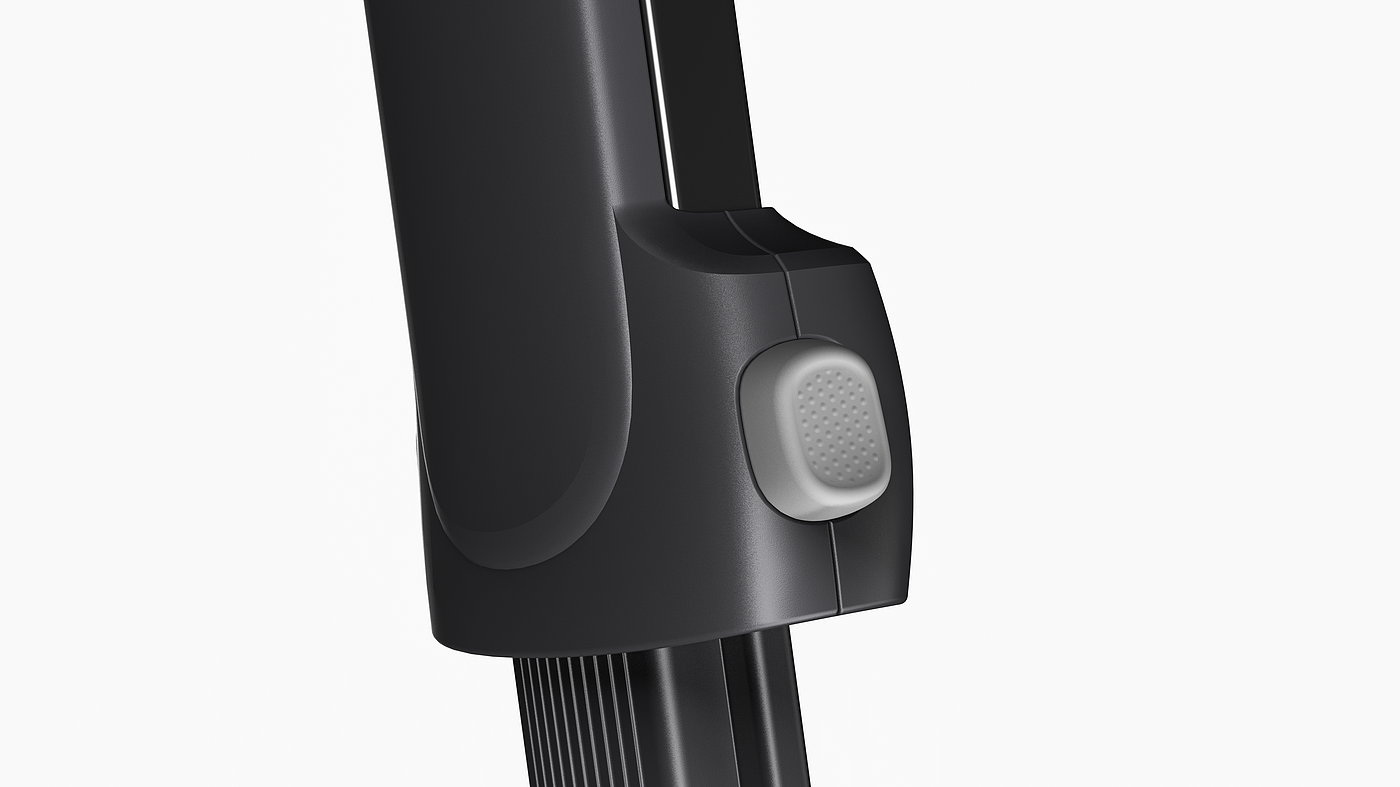

Local details of support leg

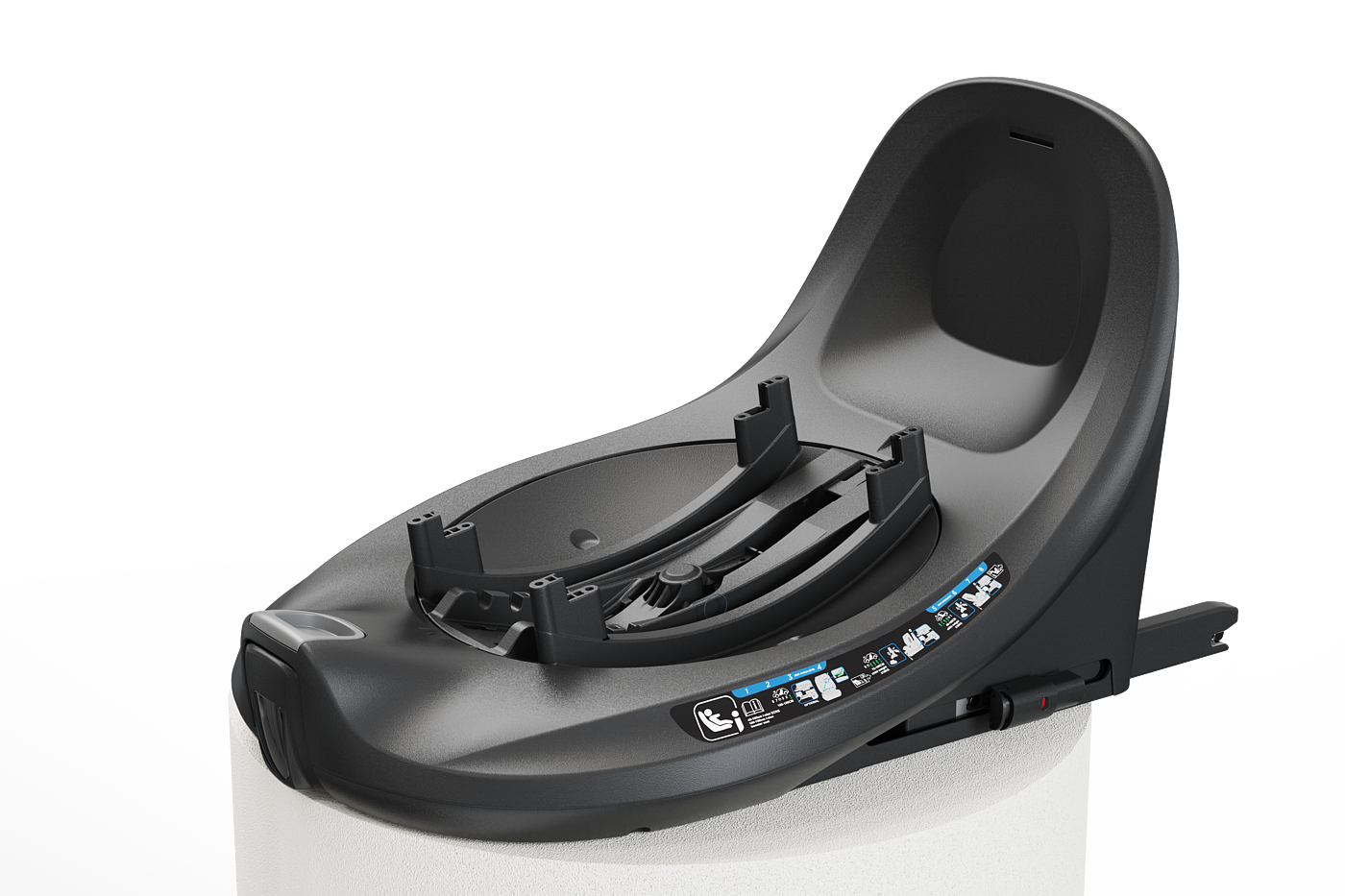

Base design scheme

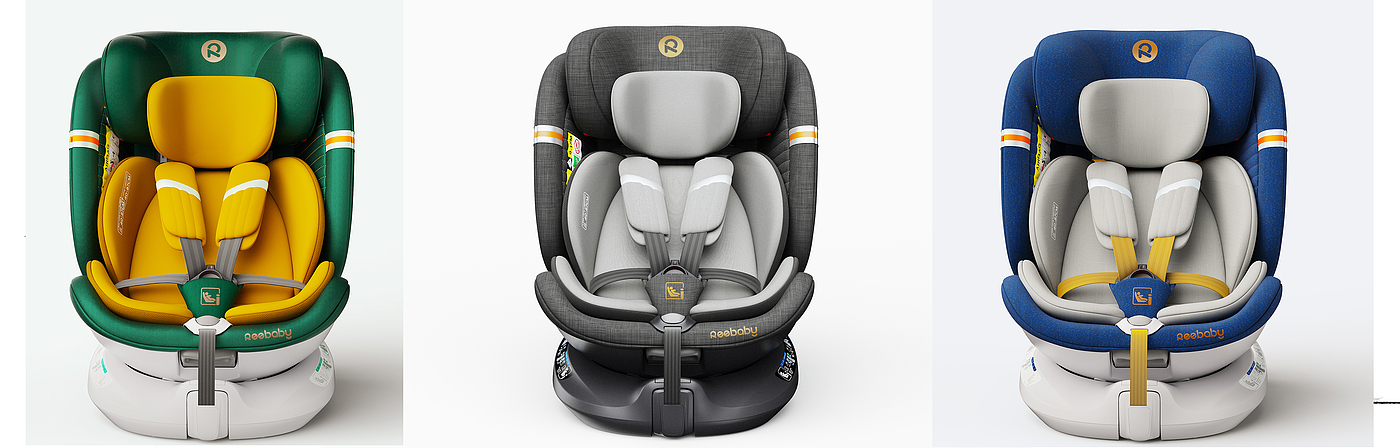

The following are some designs for the layout and color matching of the cloth cover

155 111

用户其他作品查看更多

C004 Sleeve Design

Magic Basket Base Design (Entrained Tips) Edition

留言板（42）

微风不燥，阳光正好 2024-08-23

Strong

啊落 2023-10-12

林界 2023-09-11

Can you share these two parts of the circle, polygon cloth model?

林界 2023-09-11

303484817@qq.com

我也说一句

18 2023-09-09

Two and a half years of product practice

跨次元 2023-09-08

Rhino modeling is done with plug-ins?

Owen 2023-09-08

Very strong!!!

林界 2023-09-07

super awesome

不熬夜的设计师作者 2023-09-07

Thank you. I like it

我也说一句

真鸡儿冷 2023-09-07

I would like to ask whether you are showing uv in rhinoceros or rizomUV. I think you made the sewing thread directly. I have a headache now. This kind of sewing thread tends to show the sewing thread.

不熬夜的设计师作者 2023-09-07

I usually do this for stitches. Select the line you want to do, select the line type on the right attribute object, and then there is a rendered circular pipe point next to the object. Enable, modify the radius, and then enter ExtractPipedCurve in the command bar to generate

真鸡儿冷 2023-10-07

Haha, it turned out to be an unpopular simulation of round tube to grid. Brother, you made it with curved curves with upper and lower punctures. I used to use straight lines and then use foreigner plug-in Surpik3D to generate stitching grid free of charge. The concave model at the edge of the line is simulated. If special texture is needed, UV must be displayed and then the physical model line is not made at all.
