Project Name: Mobile Power Station (Course Homework)
Project time: 2023-02-28
Project definition: electric vehicle charging (no method restriction)

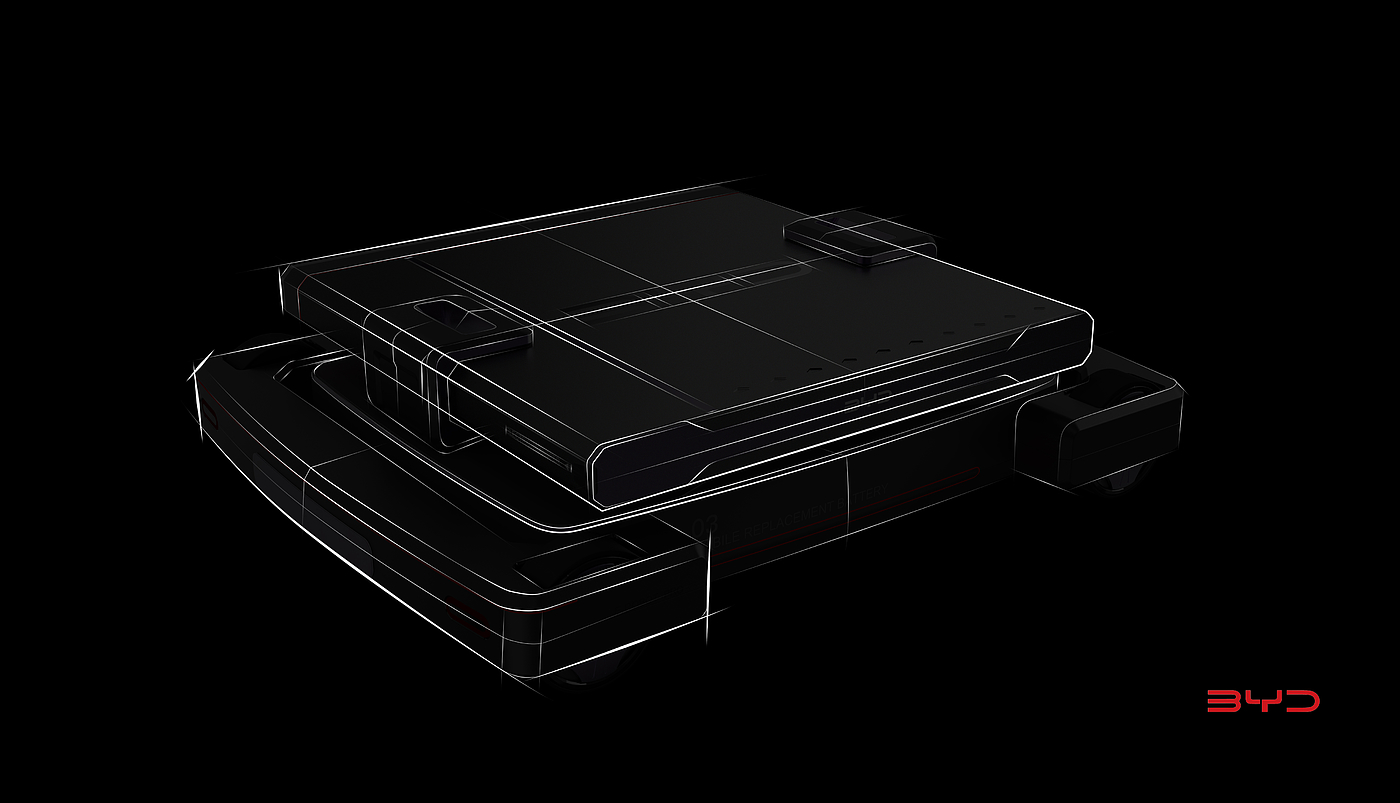

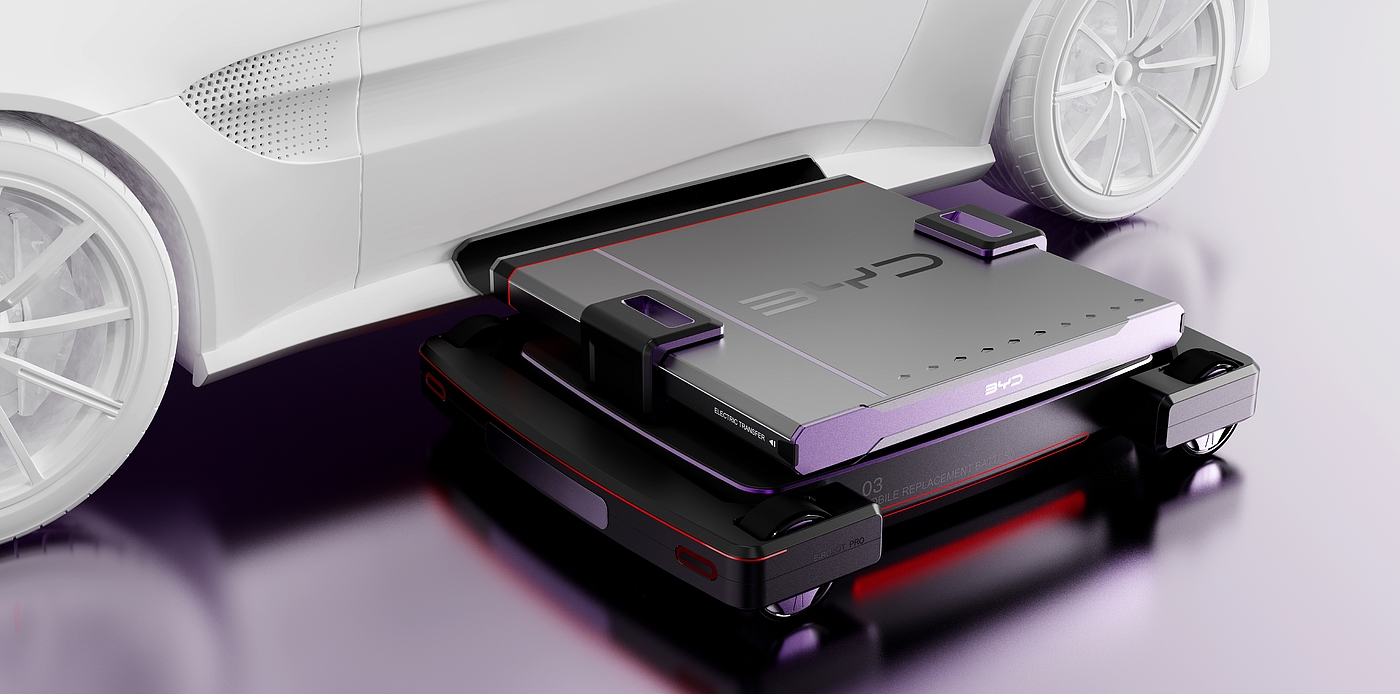

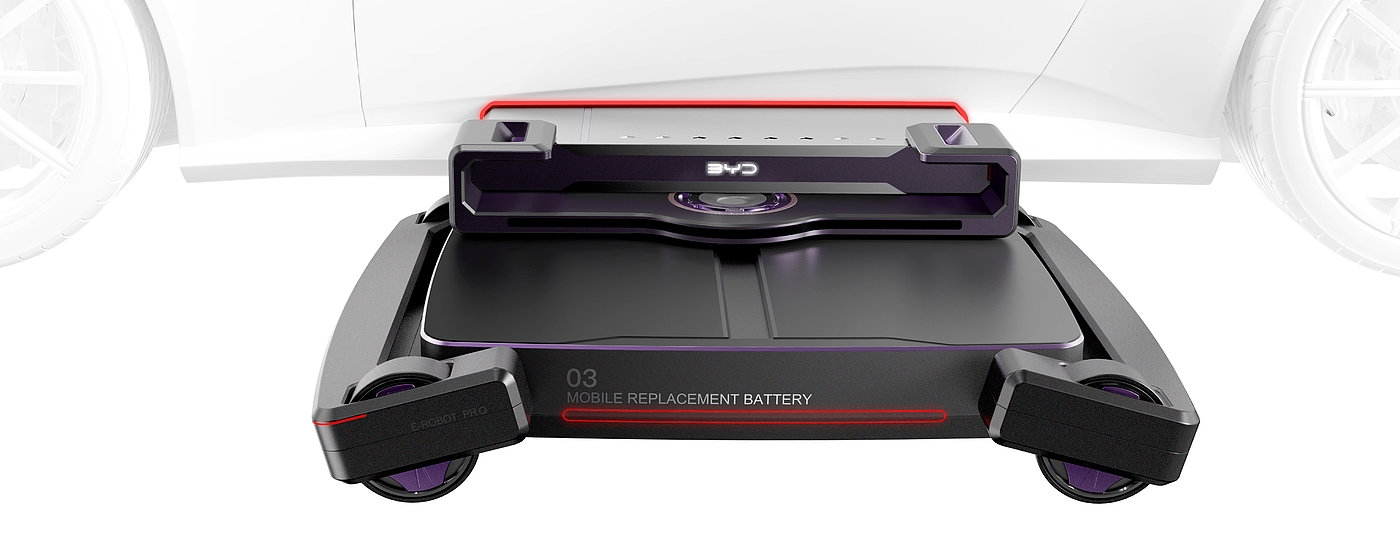

Design Description: This design is a conceptual design that requires changes to the current car battery. The mobile power station is a new energy battery replacement robot with a car as the service center. The solution is to realize the rapid charging of new energy vehicles. Using the robot vision recognition system to carry out battery replacement service for vehicles with power loss within a certain range, the scheme highlights the initiative of replacing batteries, which greatly solves the queuing problem of car charging and the environmental pollution problem caused by battery scrapping.
Designer: LS-design

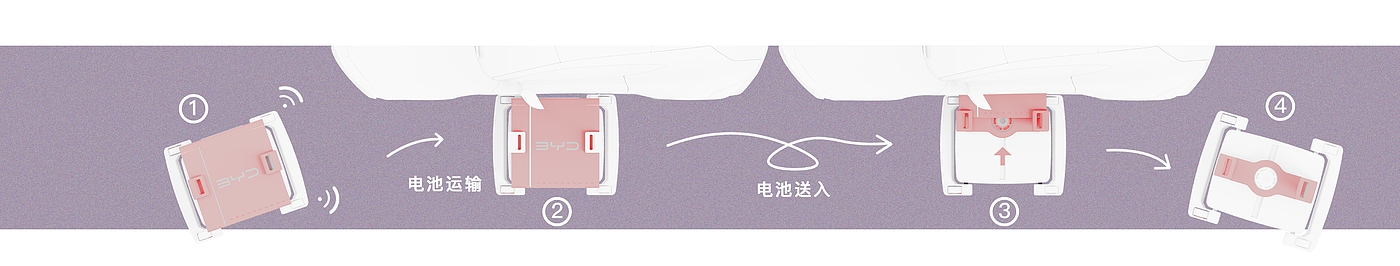

The battery exchange robot completes the position locking of the battery and the car battery compartment by rotating the battery direction, thereby reducing the friction and impact between the battery and the body, and completing the perfect battery replacement.

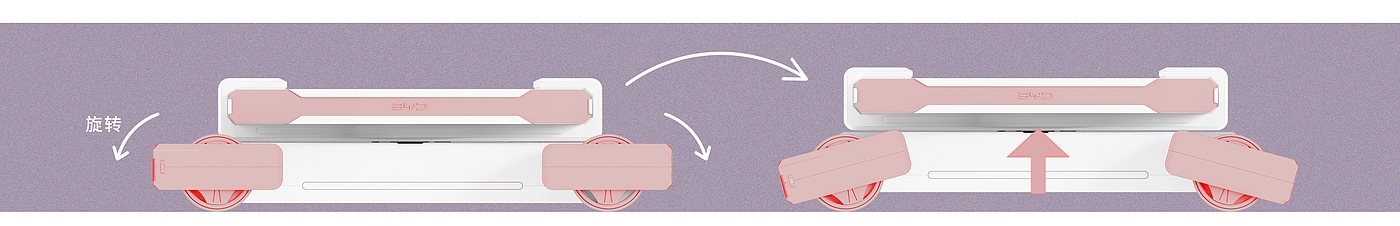

The chassis height of different models is different, and the height of the tram is changed by adjusting the rotation of the wheels to meet the needs of different models.

The battery exchange robot completes the position locking of the battery and the car battery compartment by rotating the battery direction, thereby reducing the friction and impact between the battery and the body, and completing the perfect battery replacement.
