Customer: Oran Bio
Project Name: Automatic nucleic acid detection and analysis system equipment instrument design
Cooperation content: design analysis | appearance design | structural design | prototype production | accompanying running assistance
Design Analysis
The automatic nucleic acid detection and analysis system is designed to achieve efficient, accurate and convenient nucleic acid detection. The device reduces the complexity and error of manual operation through automated processes, and improves the accuracy and speed of detection. The design focuses on modularity and integration, so that the equipment can adapt to different laboratory environments and needs.
Design Language

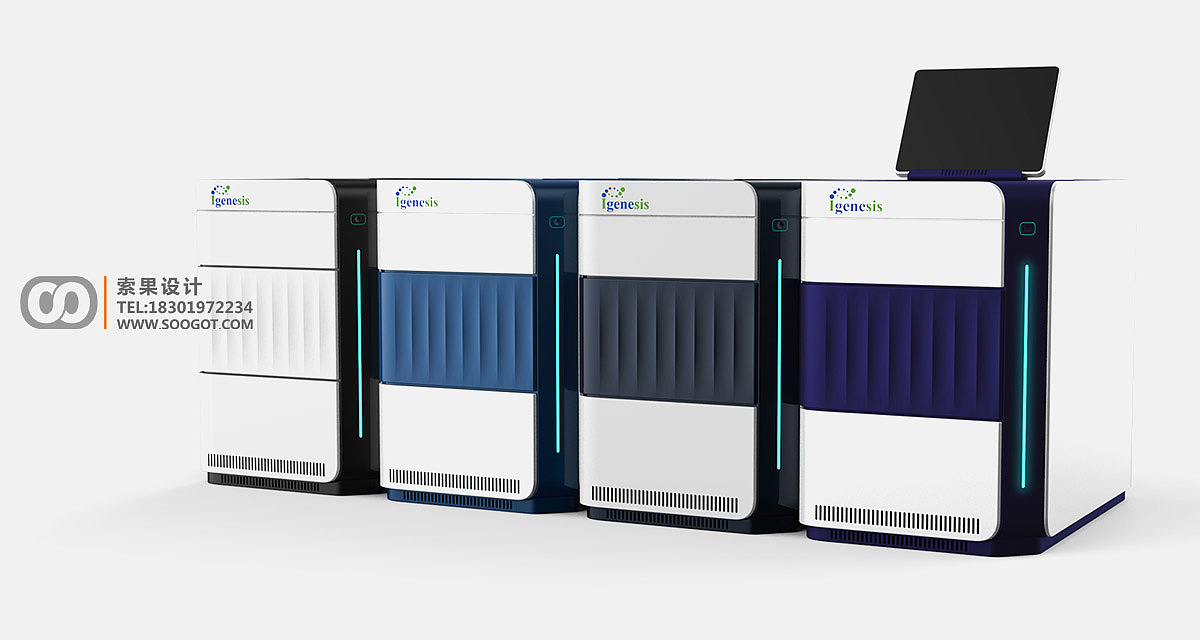

The equipment uses a simple and modern design language, the overall shape is smooth, clear lines. The white and blue color scheme conveys a sense of technology and professionalism, while the blue decorative lines and indicator lights add a sense of visual hierarchy and technology to the device. The appearance design of the equipment is simple and generous, which meets the aesthetic needs of modern laboratories.
Design Details

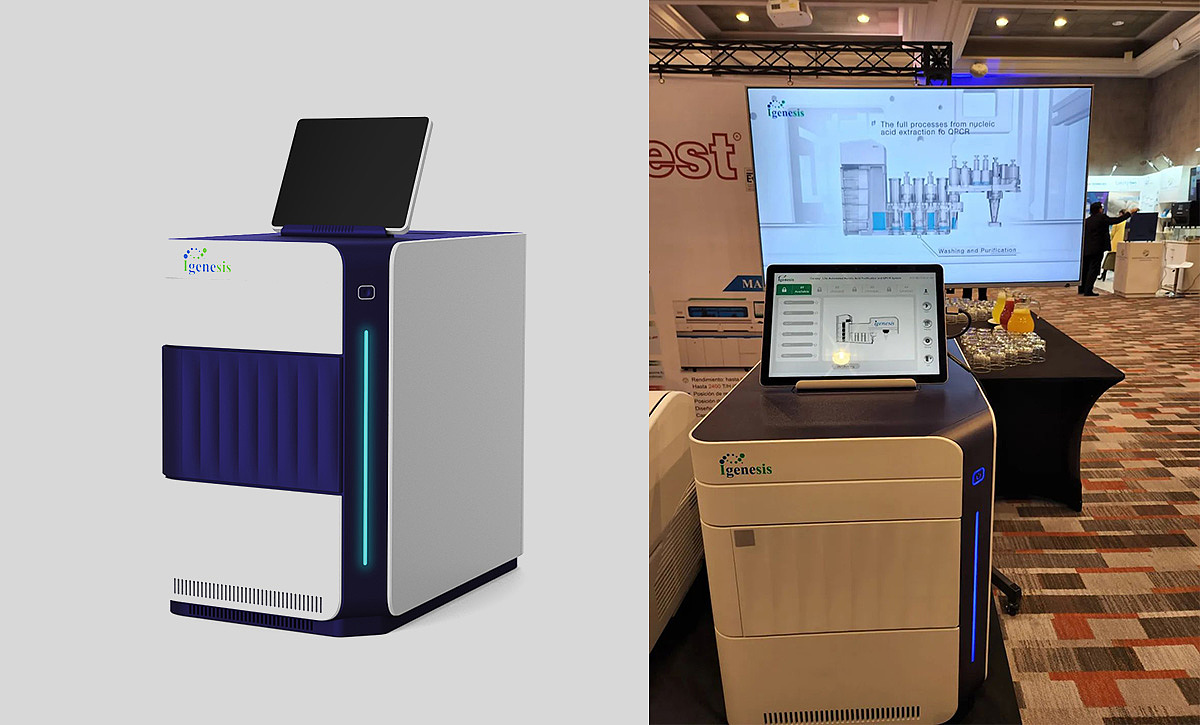

Display: The top of the device is equipped with a touch screen with an adjustable angle, which is convenient for users to operate and monitor. The screen display is clear and the operation interface is friendly. Users can easily set the detection parameters and view the results.
Modular design: The modular design is adopted inside the equipment, and each functional module can be operated and maintained independently, which improves the flexibility and reliability of the equipment.

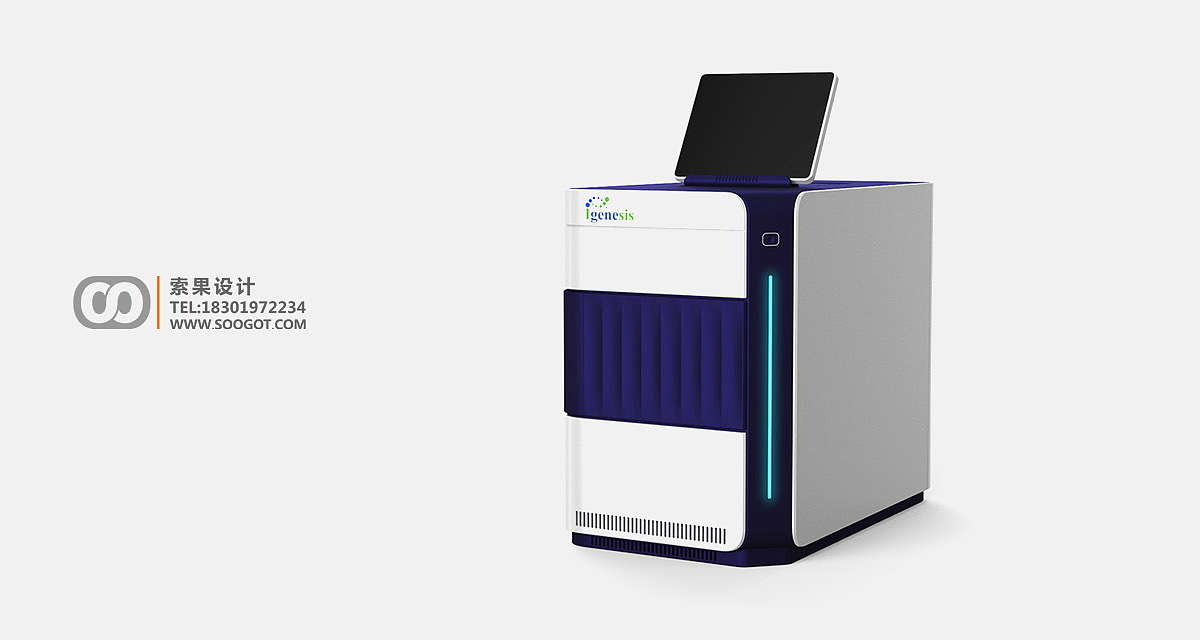

Indicator light: The blue indicator light on the side of the device is used to display the operating status of the device. Users can quickly understand the working status of the device through the indicator light.
Vents: There are vents at the bottom and sides of the equipment to ensure good heat dissipation during operation and extend the service life of the equipment.
Brand logo: the brand logo is printed in a conspicuous position on the front of the device, which enhances the recognition and professional image of the brand.
Ergonomics
Operation interface: The design of the touch screen is ergonomic, and the screen angle is adjustable. Users can adjust the screen angle according to their height and operating habits to reduce visual fatigue.
Equipment height: The height of the equipment is designed reasonably, and the user does not need to bend over or overstretch during operation, which reduces the fatigue of the operation.
Convenient maintenance: The modular design of the equipment makes maintenance and cleaning more convenient. Users can easily remove and install each module, which improves the maintenance efficiency of the equipment.
Mobility: The bottom of the device is equipped with a mobile wheel, which is convenient for users to move the device in the laboratory and improves the flexibility and adaptability of the device.
Summary
The design of the automatic nucleic acid detection and analysis system fully considers the functionality and user experience. Through the simple and modern design language, the detailed design details and the humanized ergonomic design, the efficient, accurate and convenient nucleic acid detection requirements are realized. The device not only improves the detection efficiency, but also provides users with a comfortable operating experience, making it an ideal choice for modern laboratories.
