"SUPER PIPE 」
Question:
Electric screwdriver and electric drill
Although it can already operate on the same body
But their respective original use scenarios
And it often causes trouble to each other.

"Deconstruction" tells me
Why not disassemble their formal structure?
"Modularization" of an electric drill 」
Obviously, it is the most direct solution we have to solve.
However, modularization involves connection, charging, linkage and other problems that need to be solved.

Design description:

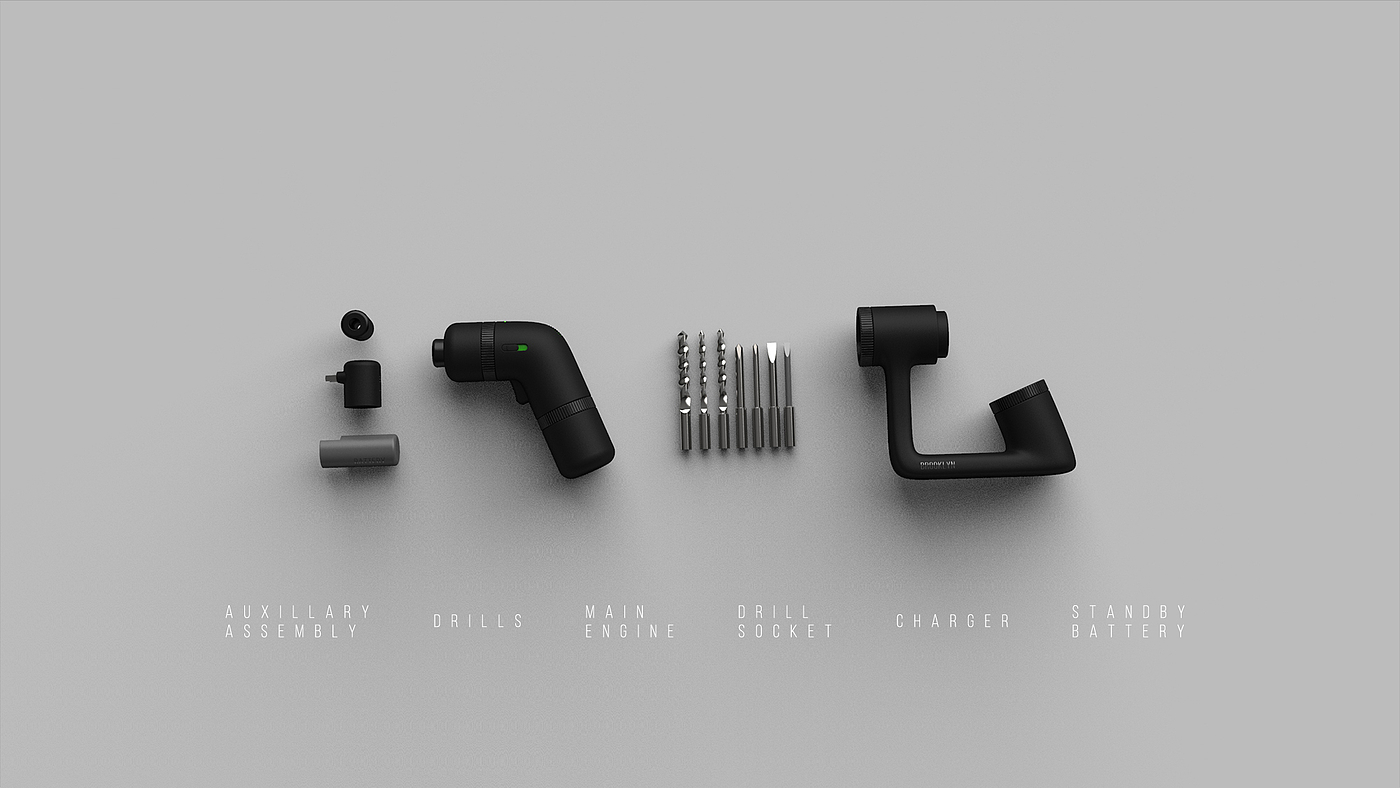

This electric drill is designed in a modular way.
To achieve a unified body under the "one-handed operation" and "two-handed operation" without contradiction.

It mainly refers to "quick removal of pipelines"
The connection method of the module connection
After the assembly is inserted, it is fixed by a screw ring;

The linkage method draws on the connection between the base of the "electric juicer" and the main container;

Considering the assembly problems involved in modularization
Its charging mode adopts the way of disassembling the battery

The charging method should be simpler and easier to understand.
Here is a reference to the charging method of the camera: disassemble and assemble the battery.

"Formal Plagiarism 」
It is in the form of the functional structure of existing products.
Solving the Functional Structure Form of New Products
The designer who pretends to be forced is bored and created by himself.

Formal plagiarism inventory:
01. Combination form: quick removal of pipelines
02. Charging form: SLR camera
03. Linkage form: electric juicer

At first glance, it can solve the problem of modularity.
In fact, for the first time, it was serious.
Contact products other than headphones
I still feel vaguely worried
Even I doubt myself
Will you be happy when you install it?

Designers who love to pretend to force are here to ask the great god for advice.

Human-computer interaction I still hope to be able to be direct
The mode status can be obtained directly from the LED indicator.
It couldn't be better

It is worth reminding
This set of human-computer interaction scheme
It is a reference to an online work called Salley Power Tools.
I changed it slightly according to my own design.

The UNLOCKED indicator light is always on.
Make the user know that the tool still has power.
At the same time, the middle position of the right dial key is LOCKED locked state.
Make each mode conversion process safer
