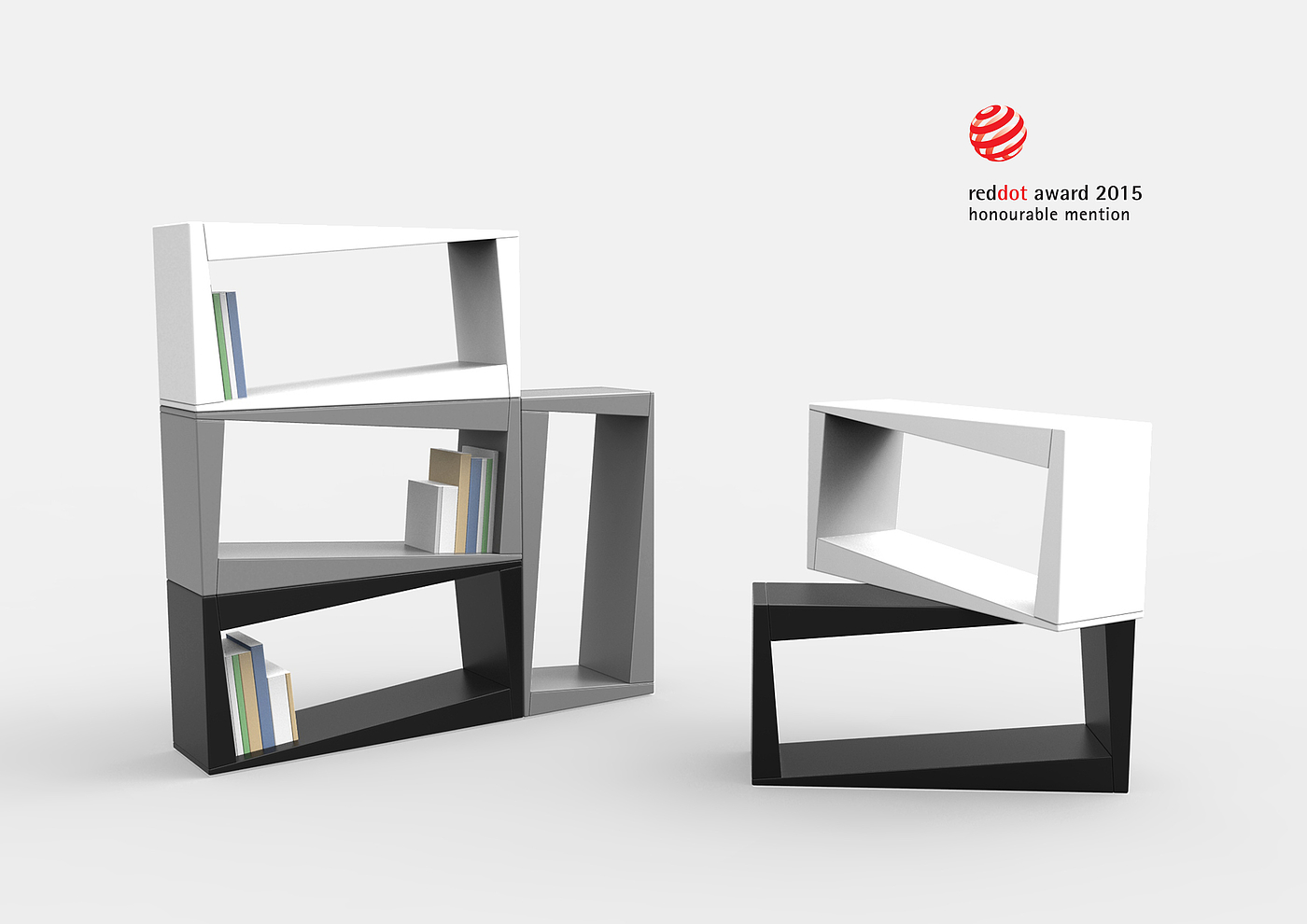

We often encounter this kind of situation-as long as the bookshelf is not full, books are easily dumped. The 5 bookshelf is mainly designed to solve this problem. On the premise of not changing the original shape of the bookshelf, add a small angle to the plane where the books are placed. Under the action of gravity, the books can be placed very steadily. At the same time, the modular 5 ° bookshelf has a simple structure, can be easily disassembled and assembled, and is convenient for transportation; it can also allow people to combine and place according to personal preferences, increasing the interaction between people and products.

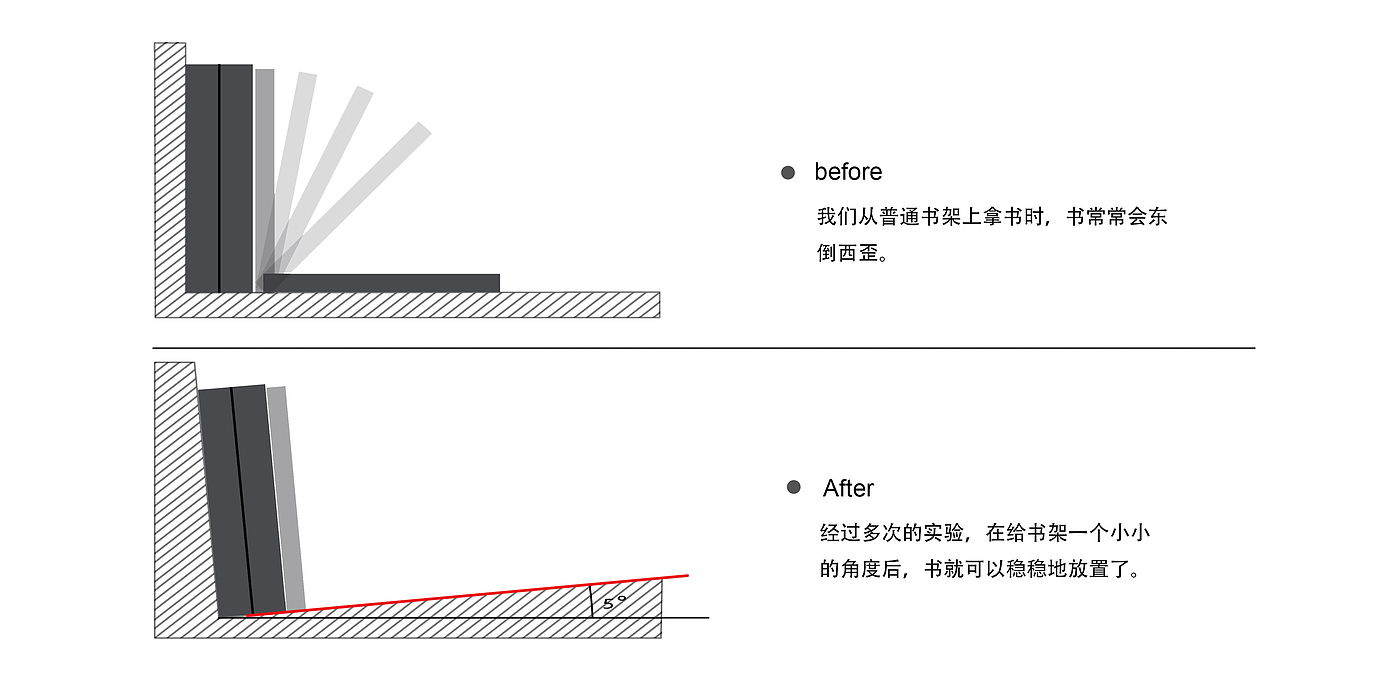

The designer found that when the book is tilted to one side, the book will not fall down and is very beautiful, so he added a small angle to the basic frame of the original bookshelf, using the principle of natural gravity, so that the book can be placed well on the bookshelf without the help of external tools, which not only saves resources but also facilitates the placement and maintenance of the book.

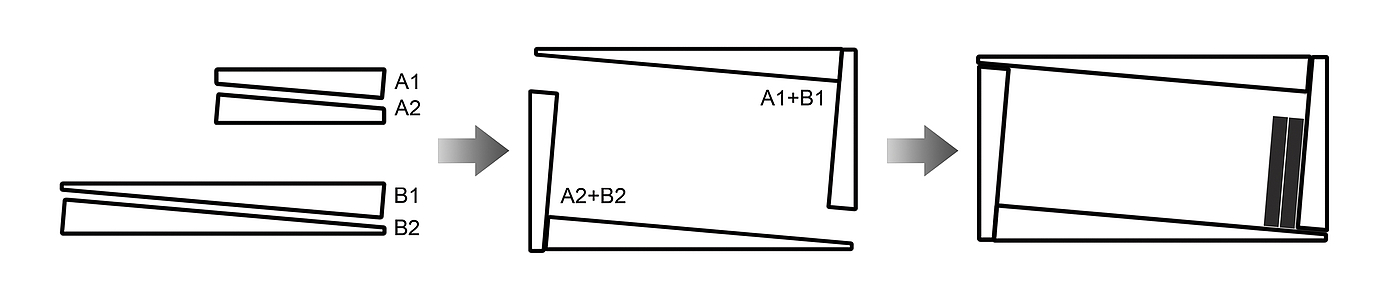

Through modular design, the bookshelf shape design is grown and wide, and two long and wide accessories are required to combine a bookshelf (as shown in the figure). Because it is a flat design, the split bookshelf is very space-saving and easy to transport. The assembly is also very convenient, and the installation can be completed with four sets of screws.

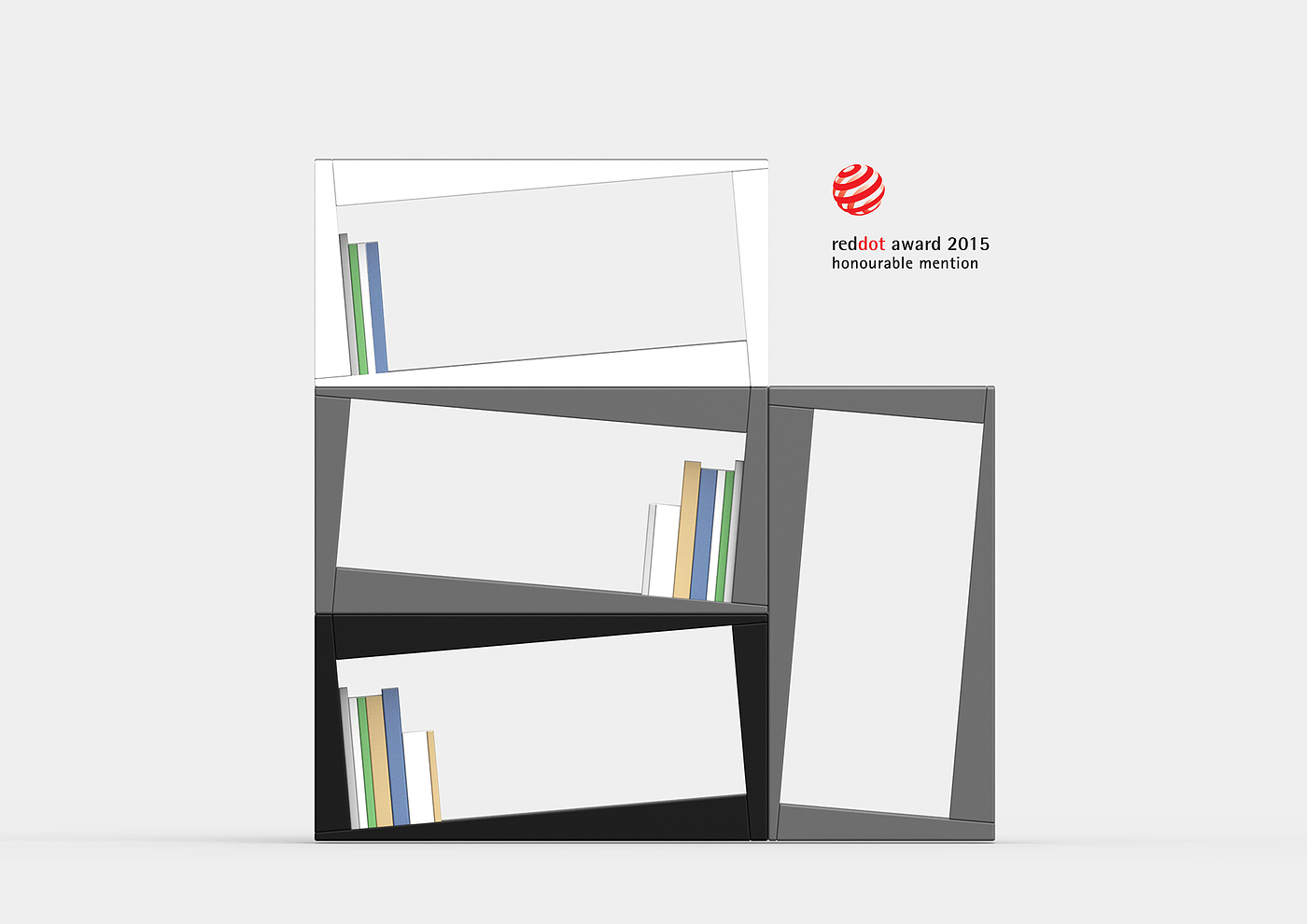

Due to the modular design, when placing the bookshelf, it can be placed according to space and preferences (as shown in the figure). At the same time, the size of the bookshelf is designed. The long side of the bookshelf is twice that of the short side. This size design allows the bookshelf to increase more combination possibilities.

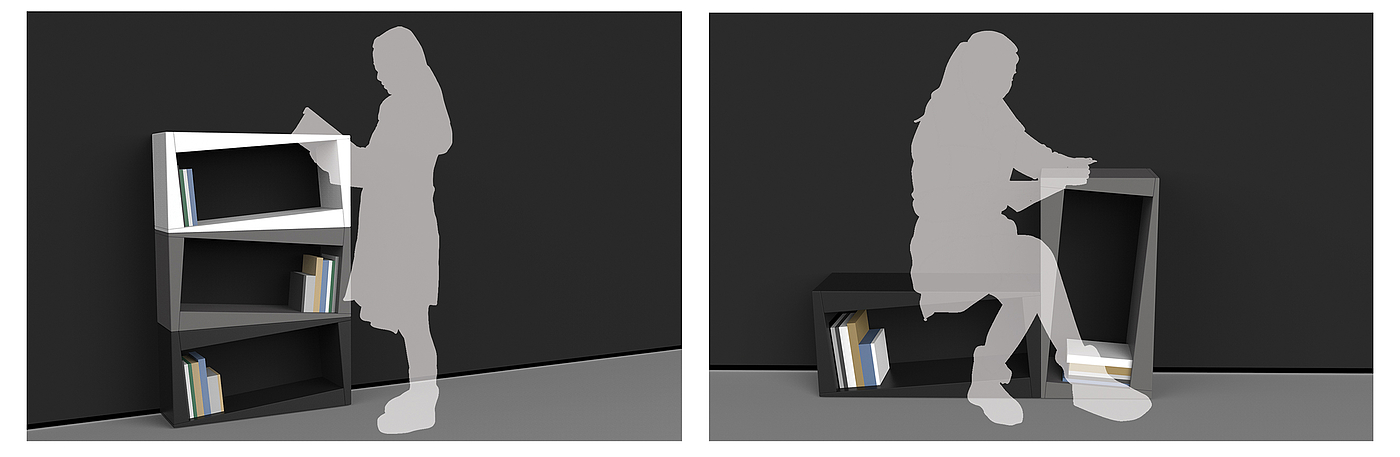

3. We often need chairs and tables when reading books. Wouldn't it be more convenient if the bookshelf has such functions? According to this idea, the bookshelf will be superimposed with new functions. According to ergonomics, we know that the height of the human ischial node is best between 390mm and 420mm, while the table is best between 750mm and 800mm. Therefore, the length and width of the bookshelf are set at 800mm long and 400mm wide. The seemingly simple size setting gives the bookshelf the size of tables and chairs, which also brings new functions to the bookshelf.
