Project Time: 2022
Product Name: Smart Phone Thermal Imager
Project Tools: Rhino 7, KeyShot 11, Photoshop
Industrial design: BIN
Brand copyright: owned by Zichuan Technology
Product Status: Listed
Product Analysis: All objects in nature, whether Arctic glaciers, flames, human bodies, or even extremely cold deep space in the universe, will have infrared radiation as long as their temperature is higher than absolute zero -273 ℃, which is the result of molecular thermal motion inside the object. Its radiation energy is proportional to the fourth power of its own temperature, and the wavelength radiated is inversely proportional to its temperature. Infrared imaging technology is based on the level of radiation energy of the detected object. The thermal image of the target object is processed by the system and displayed in gray scale or pseudo-color, that is, the temperature distribution of the measured target is obtained to determine the state of the object. Therefore, detecting the level of heat emitted by objects is an inherent gene of infrared thermal imaging technology. Thermal imaging is a detection device that detects infrared energy (heat) through non-contact and converts it into an electrical signal, and then generates a thermal image and a temperature value on the display, and can calculate the temperature value.

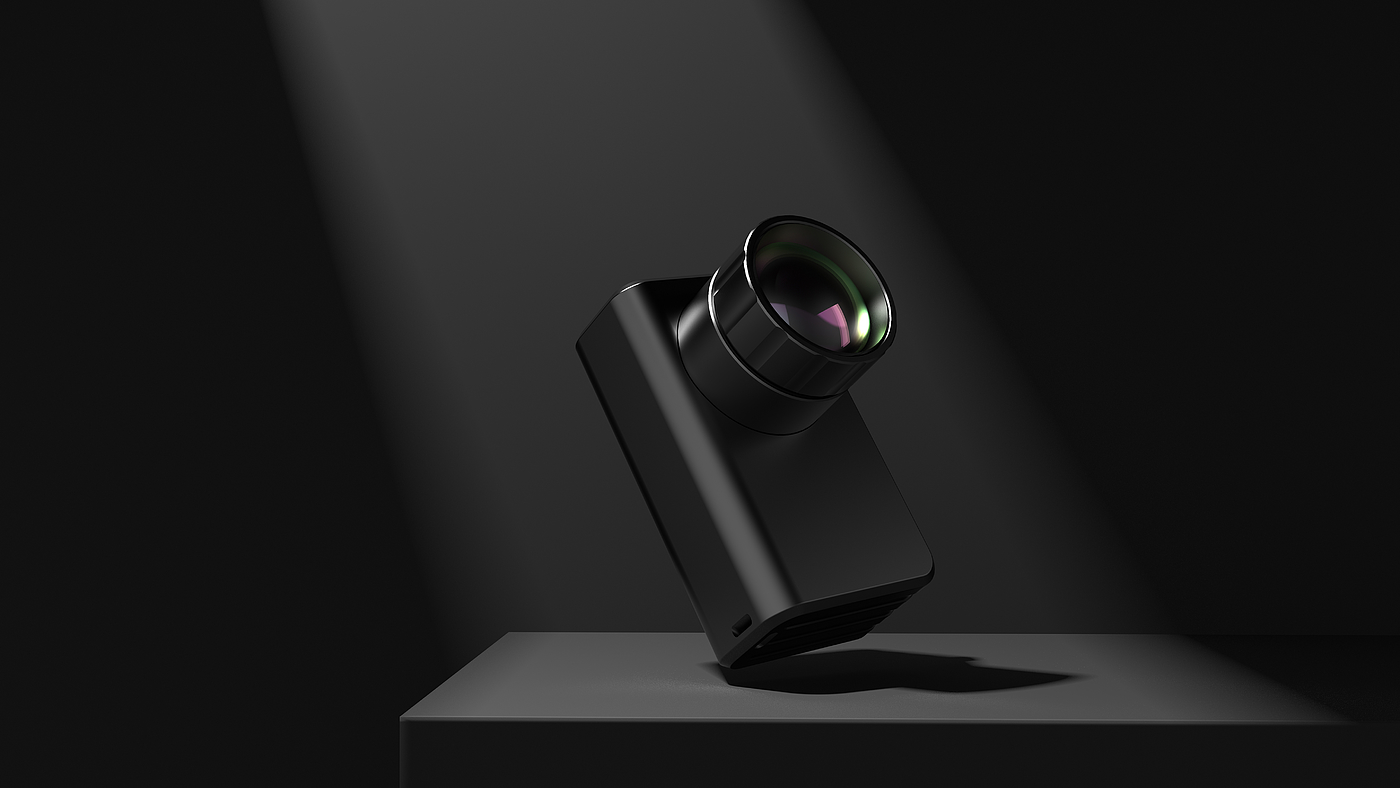

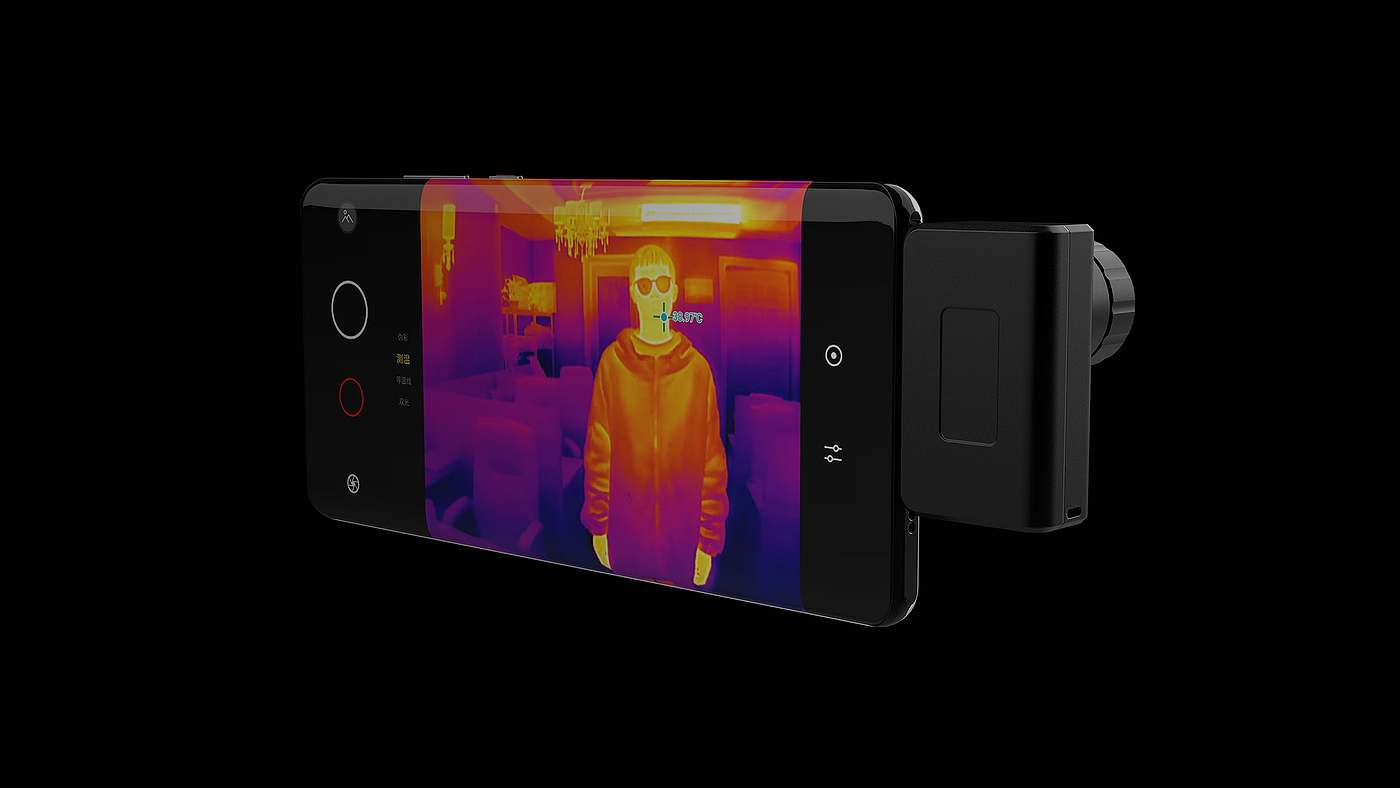

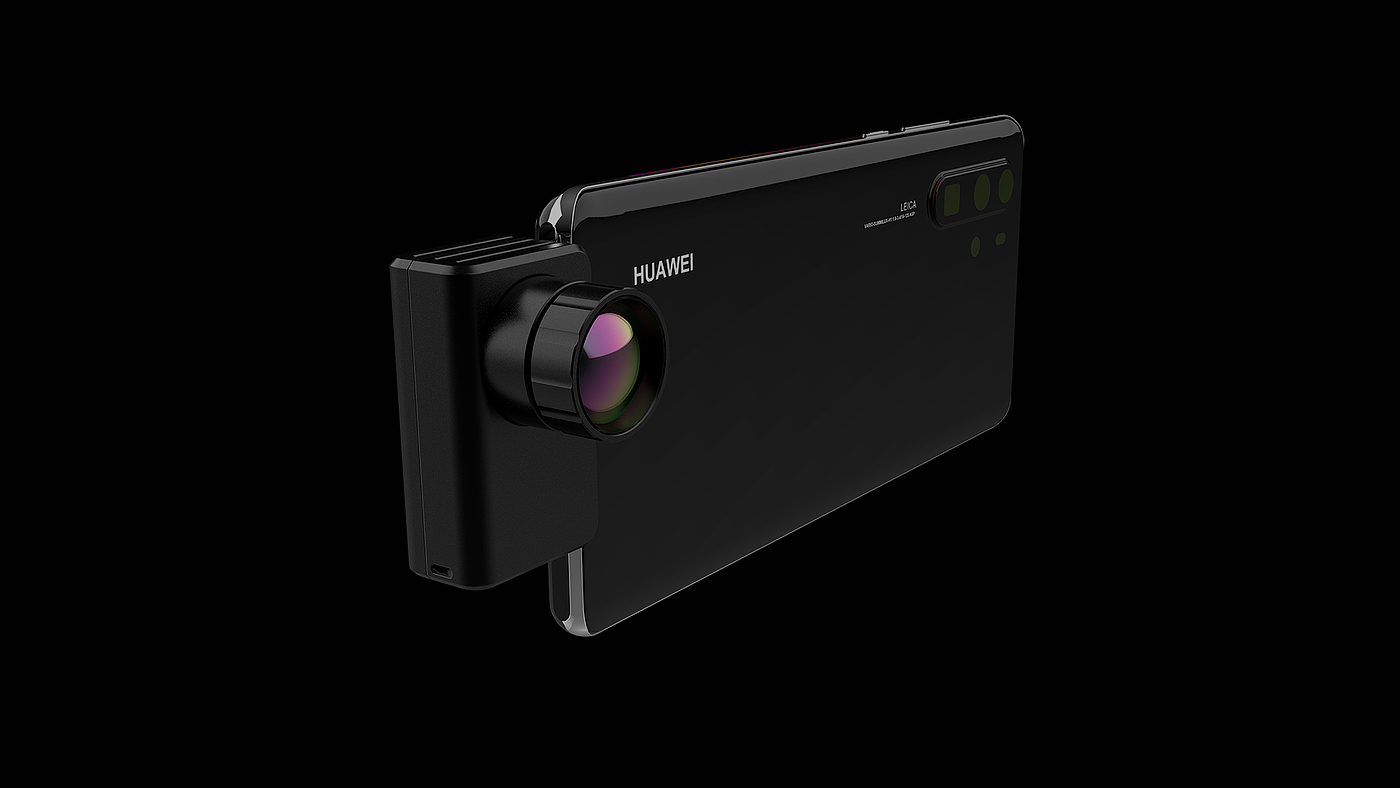

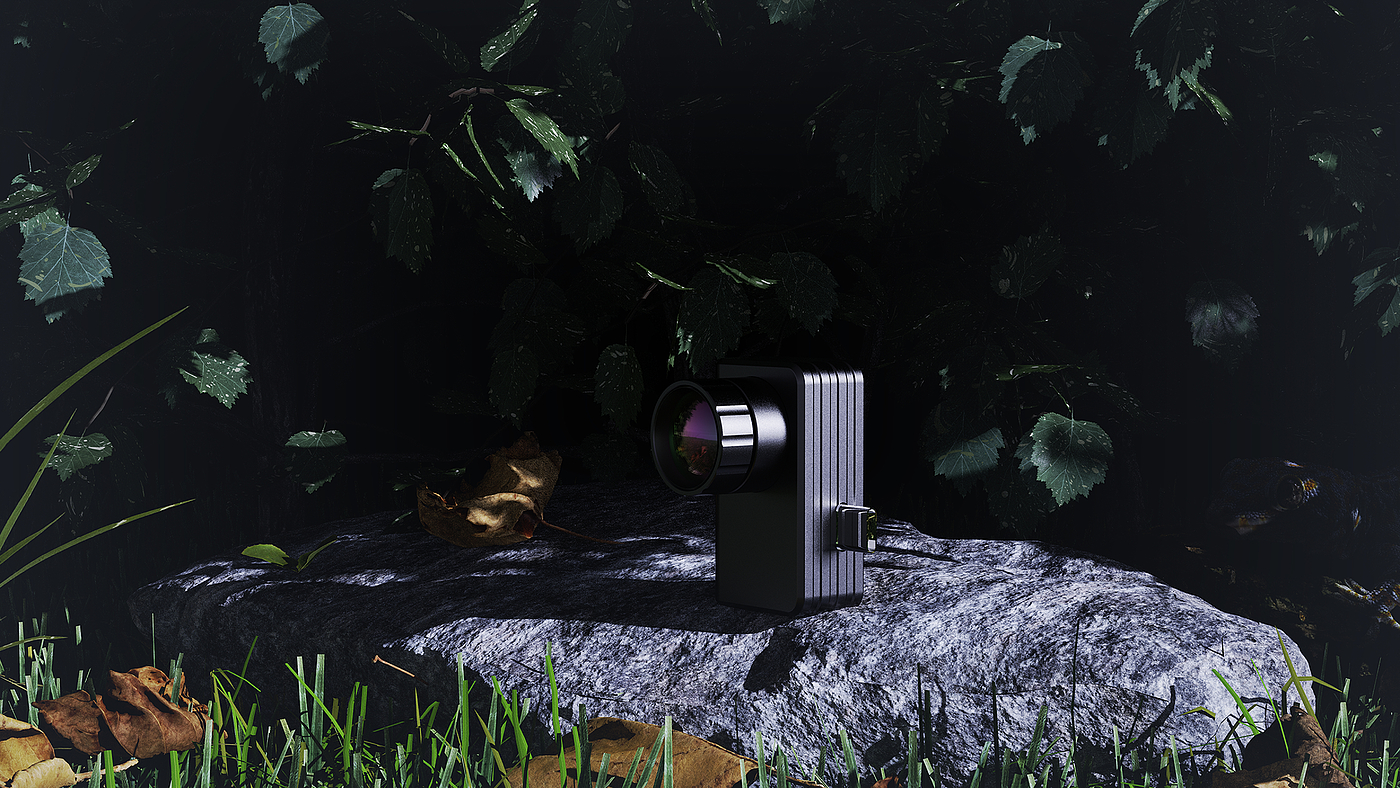

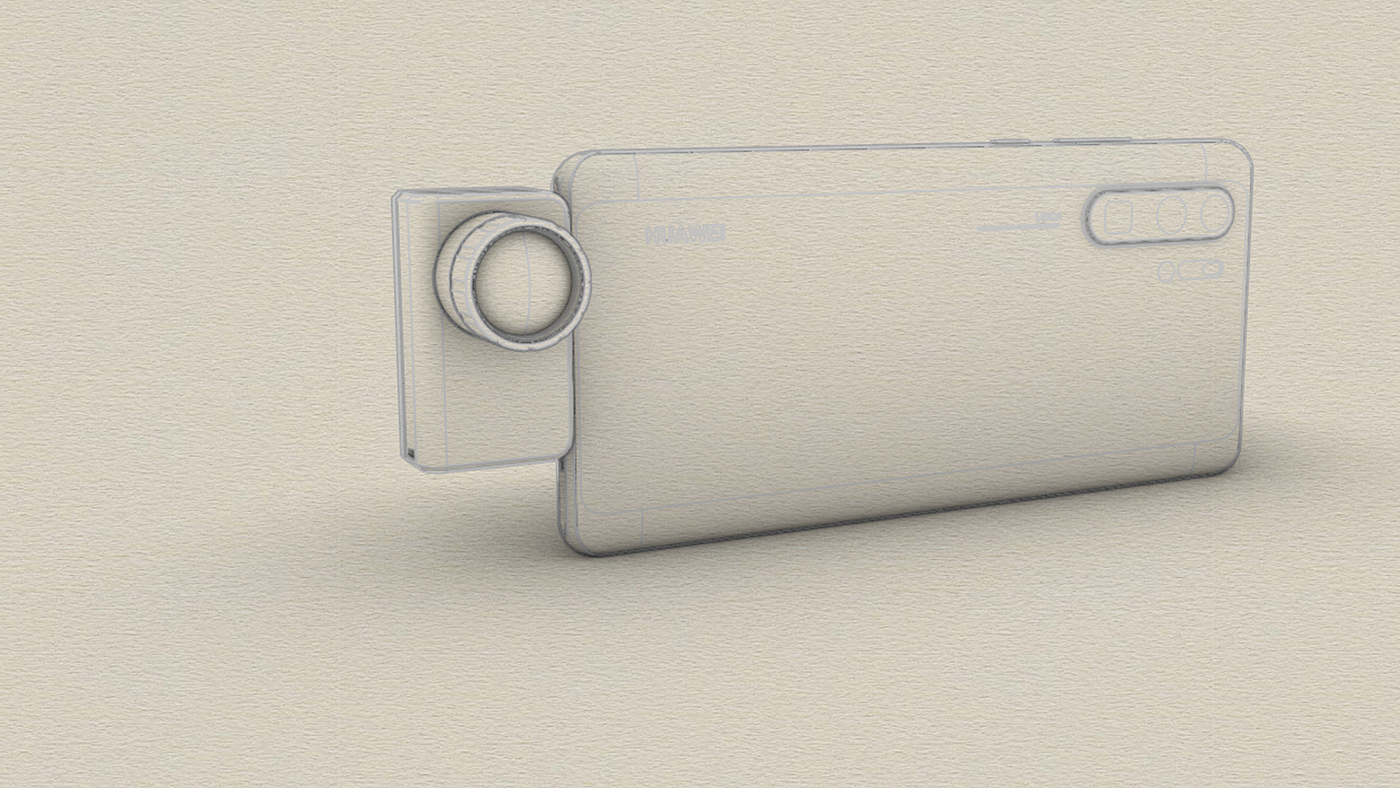

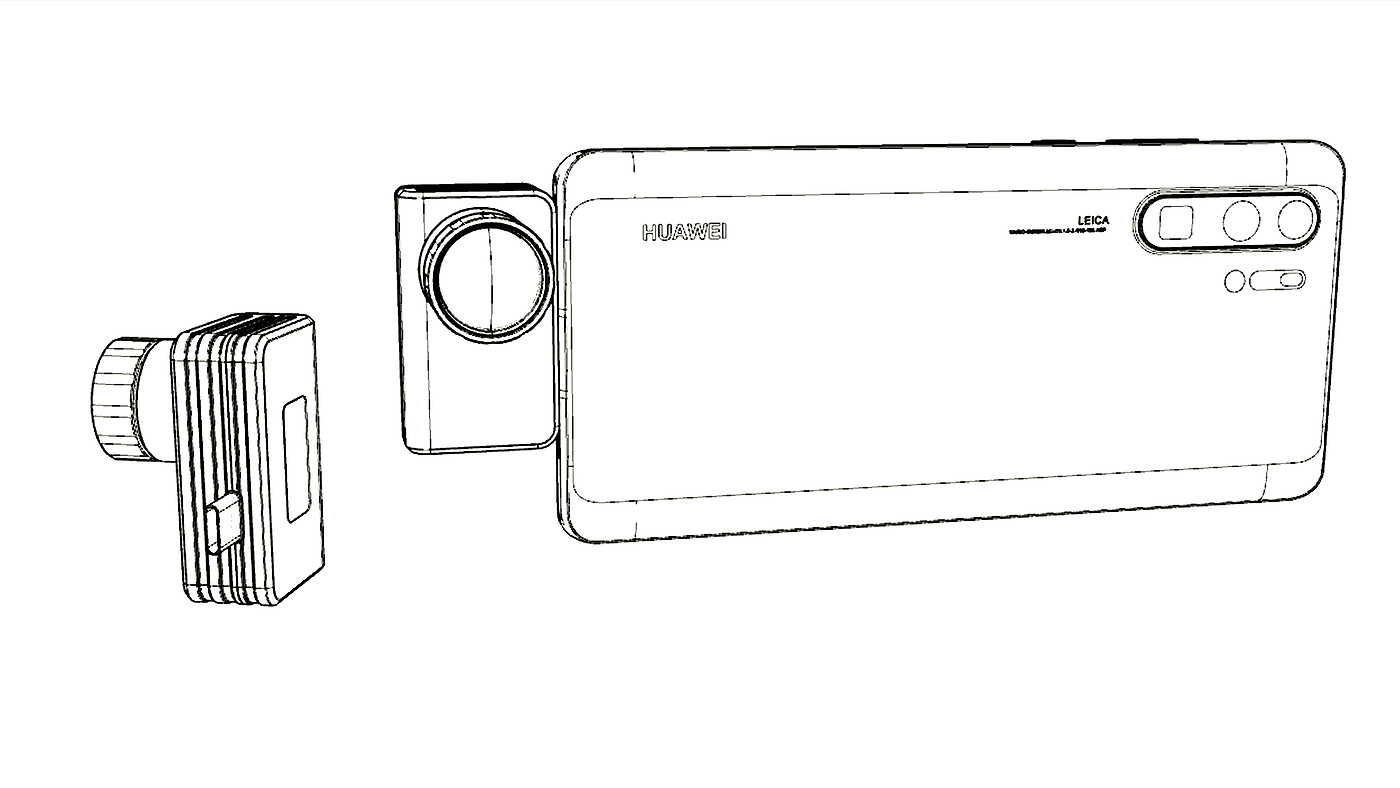

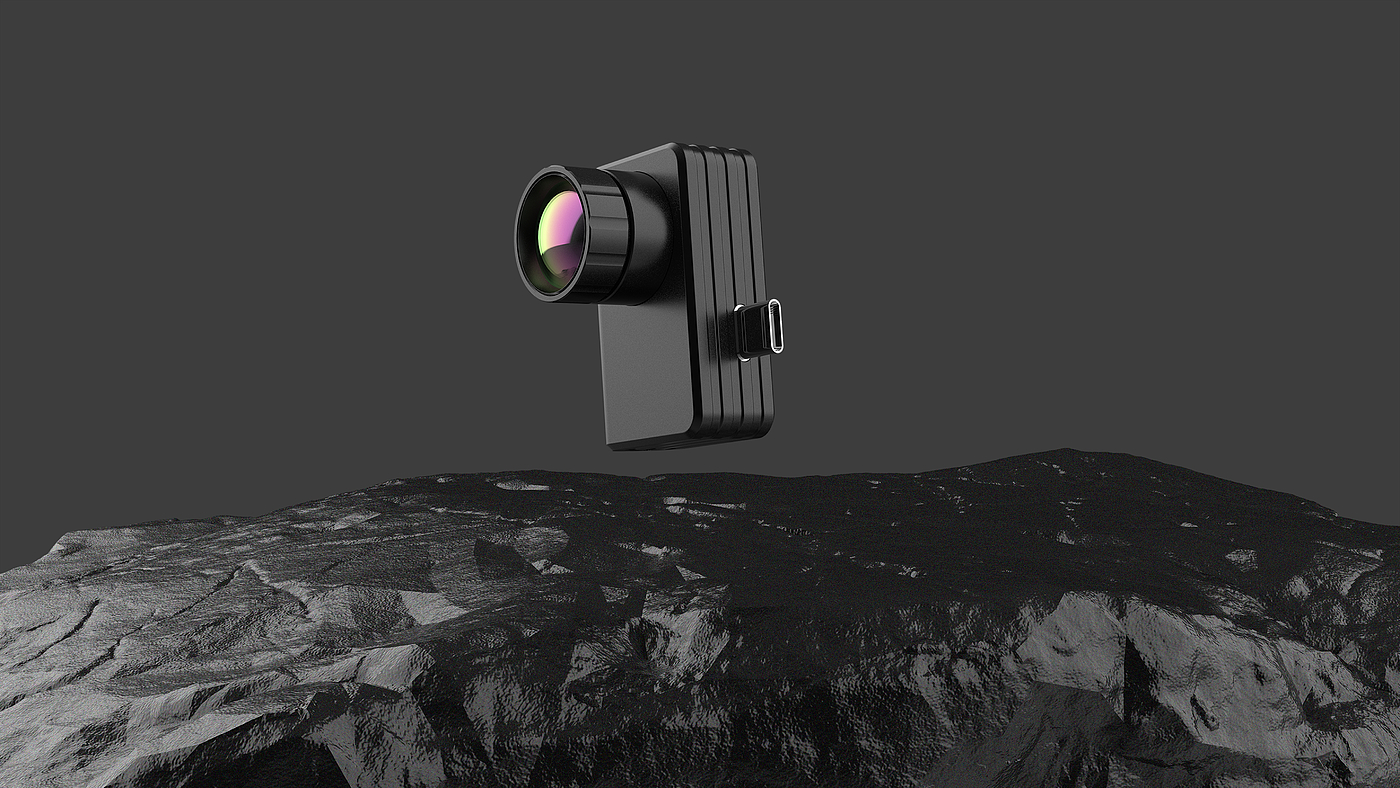

Design Description: This hand-inserted intelligent thermal imaging has strong design innovation. The design inspiration is designed with the letter of the number U. (1) the use of simple lines and smooth curved surface combination, highlighting the product's sense of industrial technology. (2) The design of line texture is easy to plug and plug, which meets the needs of users in terms of ergonomics. (3) From the perspective of product color matching, black can better show the technological texture of the product.
