Ten thousand network splitter
The brand-new appearance design, simple appearance, the biggest selling point is that the product does not have a mold clamping line, but the mold clamping line and the upper cover structure are made together with a yellow nameplate, which is different from the ordinary and cheap feeling of the splitters on the market.
The RJ45 interface adopts a metal shielding layer to effectively block signal crosstalk, make signal transmission faster and more stable, and expand the overall size.
With 10,000-level patent net plug, no first protection is used.
Patent products, infringement must be investigated.
The final effect is subject to the online board
Modeling: Rhino 6
Rendering: keyshot 10.2

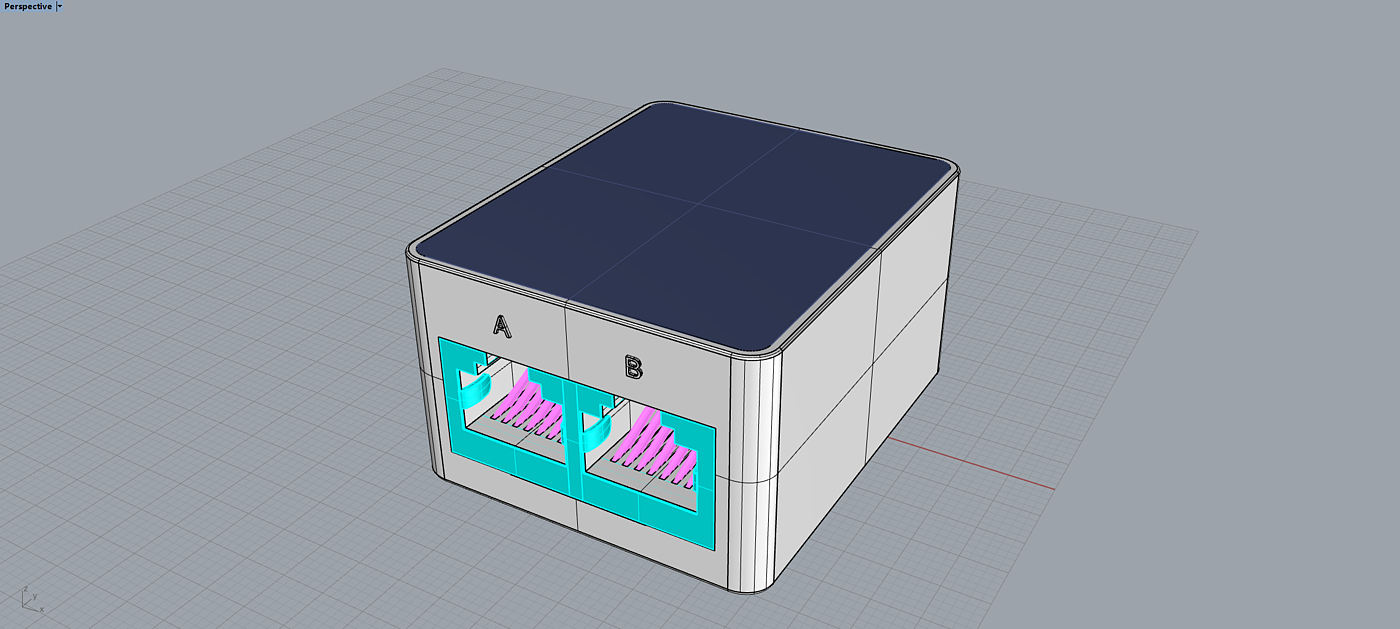

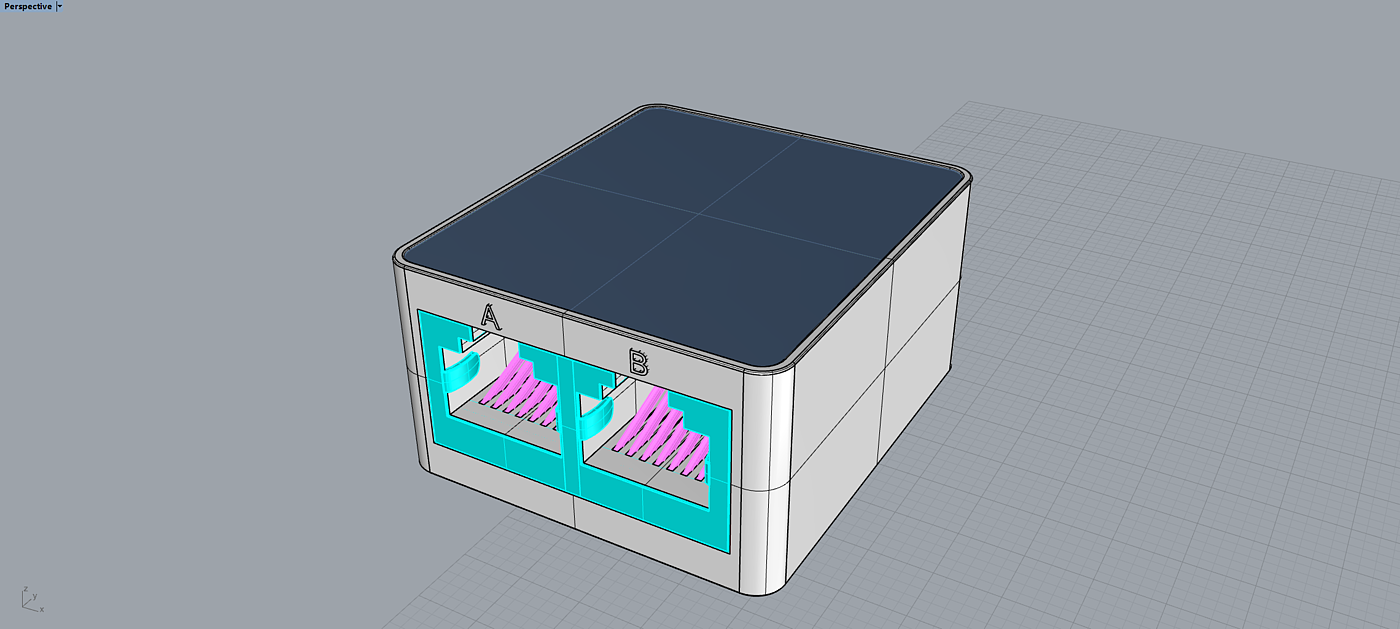

Preliminary plan effect diagram

Plan modification, optimization of product structure, submitted to the touch tool factory for mold test.

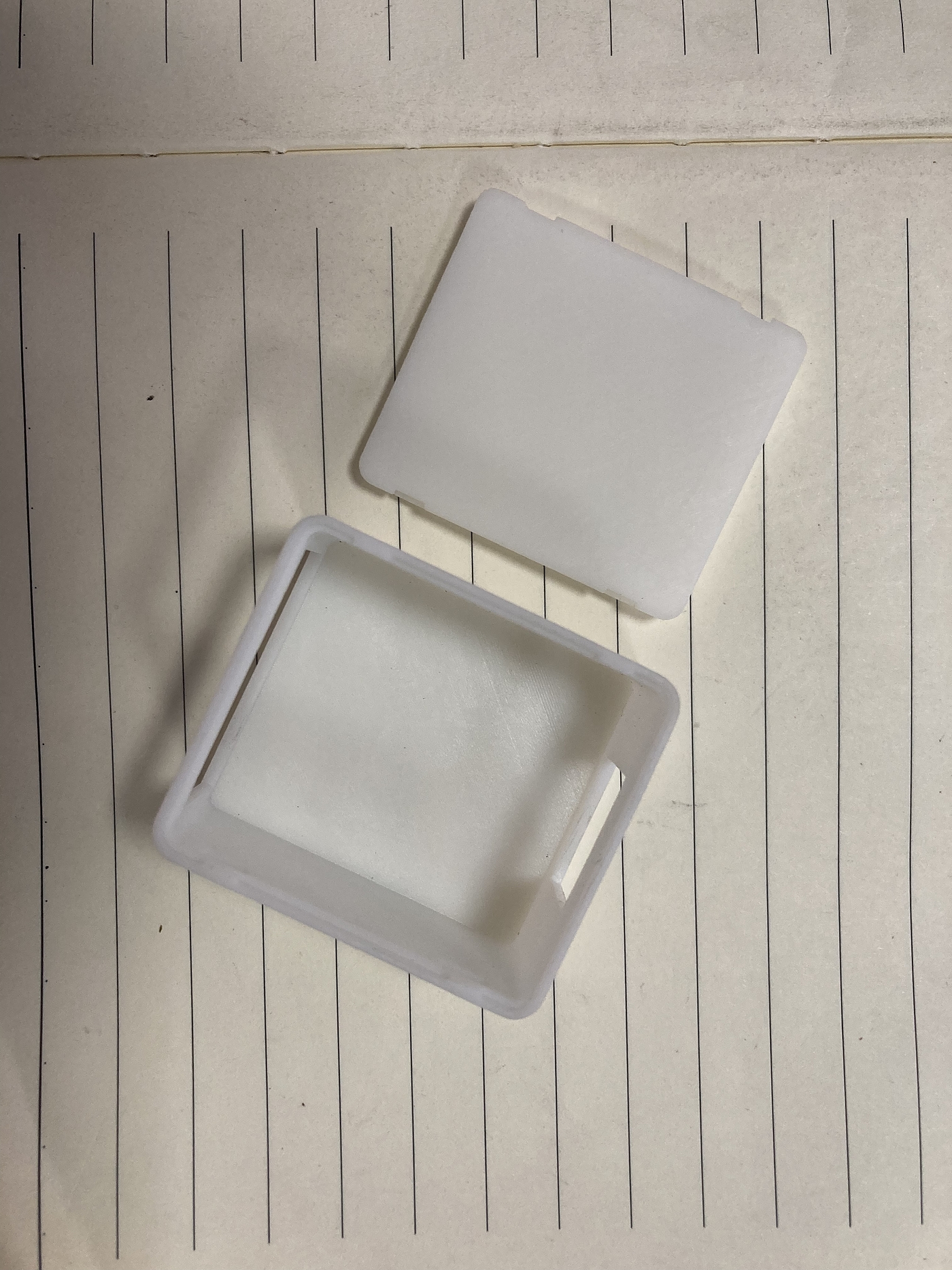

The first test model

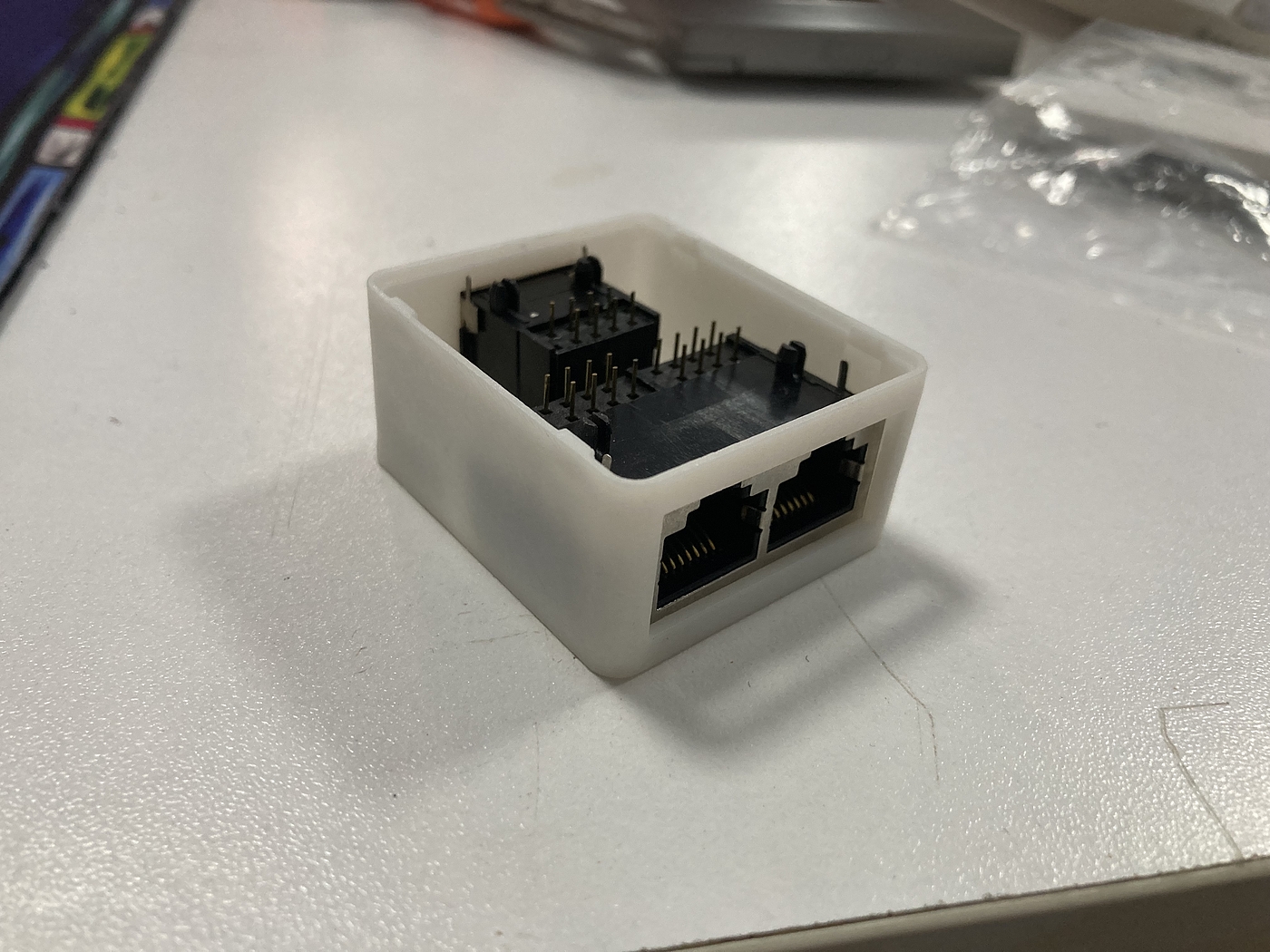

Load RJ45 port, check compatibility, and then adjust the 3D model.

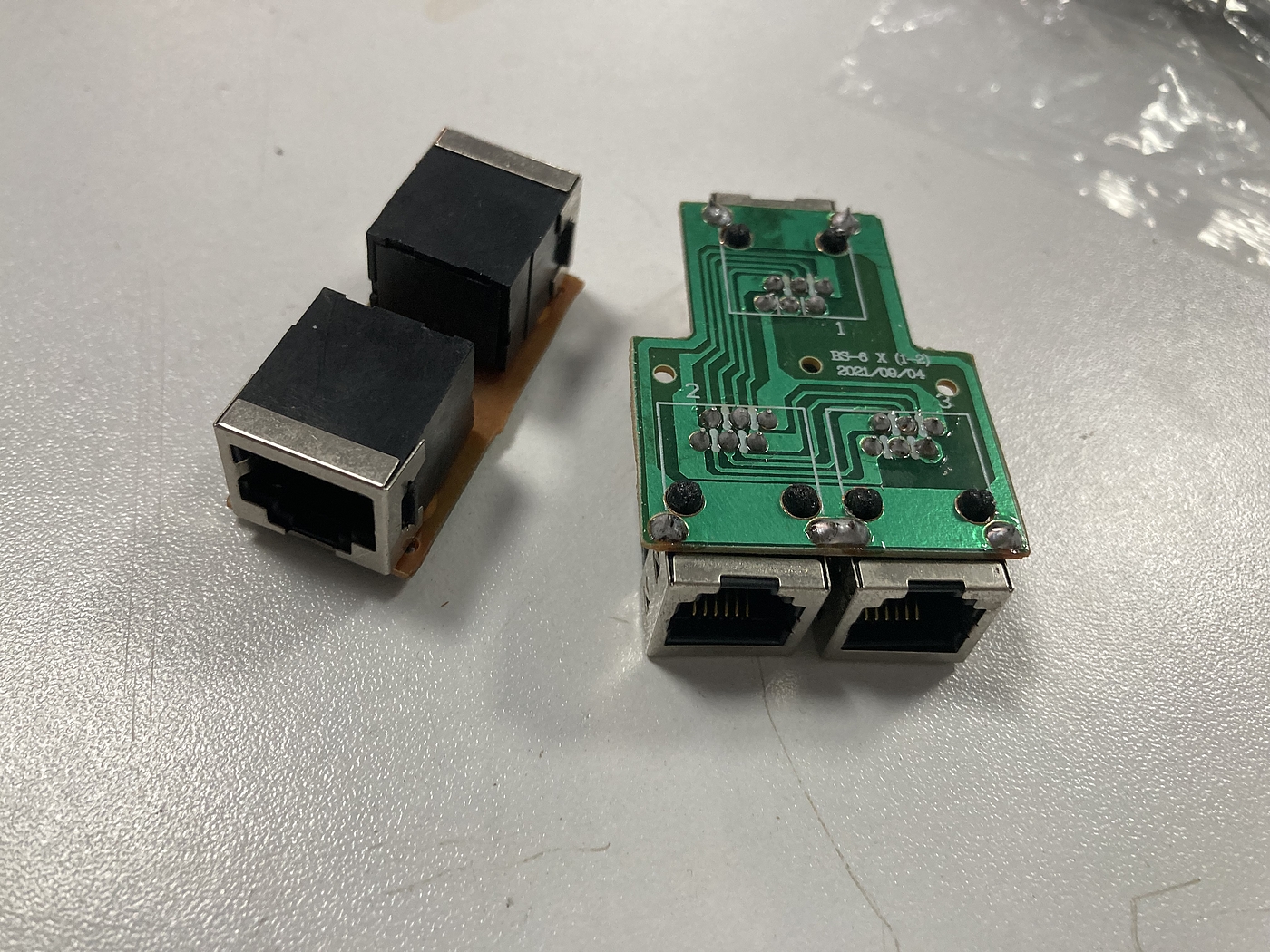

PCB board scheme

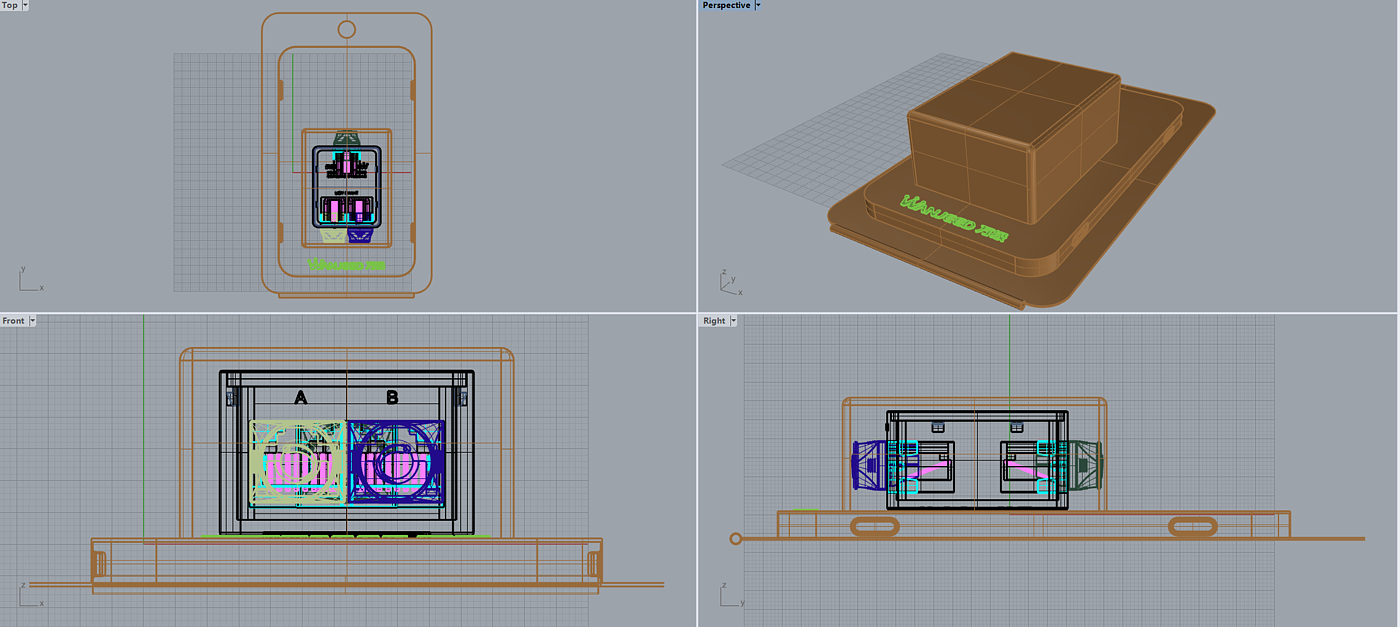

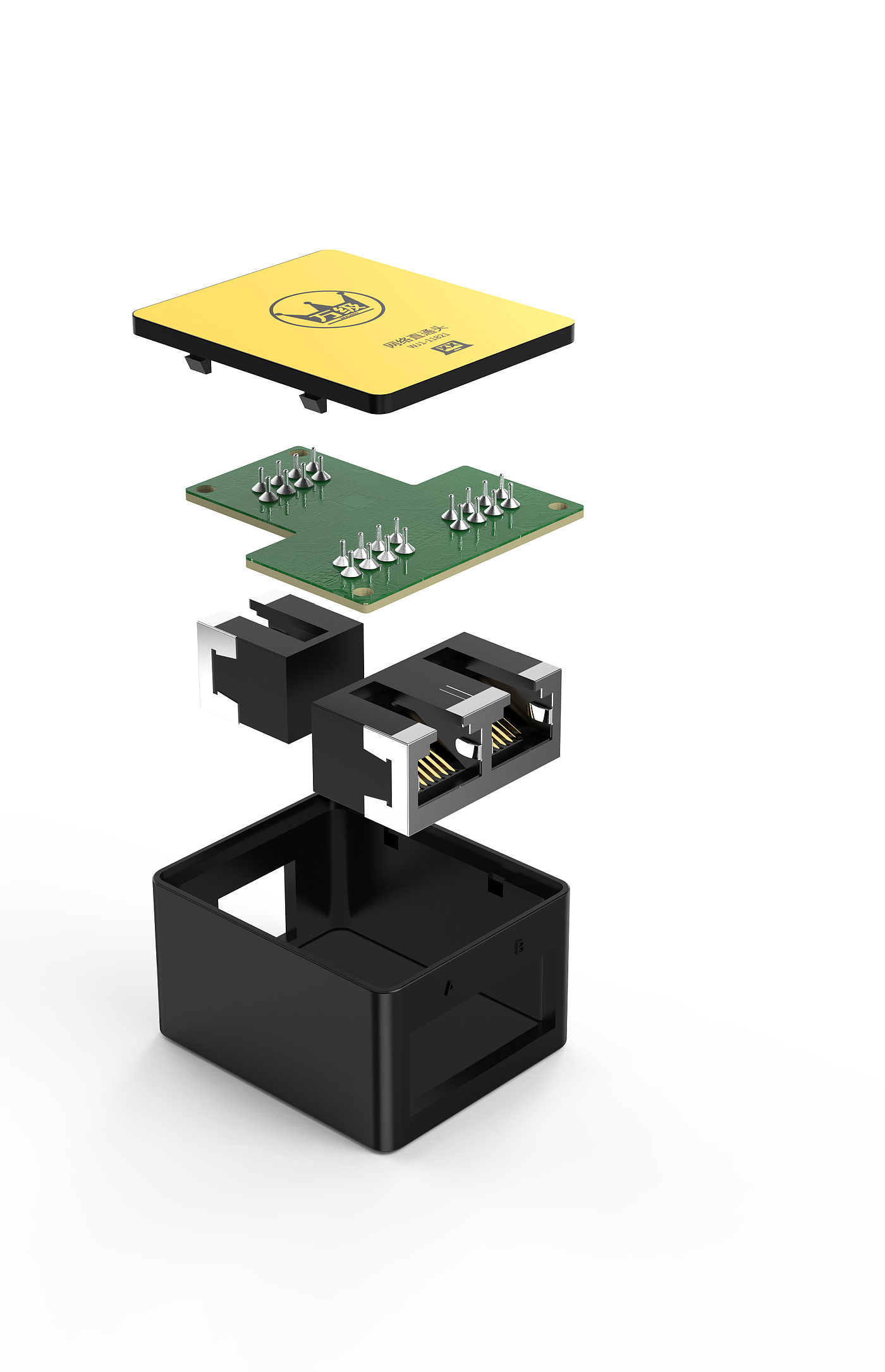

According to the physical mold opening, adjust the three-dimensional model and internal structure of the product, make concessions for RJ45 network port and PCB circuit board, and make a little change.

Blister box modeling, to mold factory to open blister box

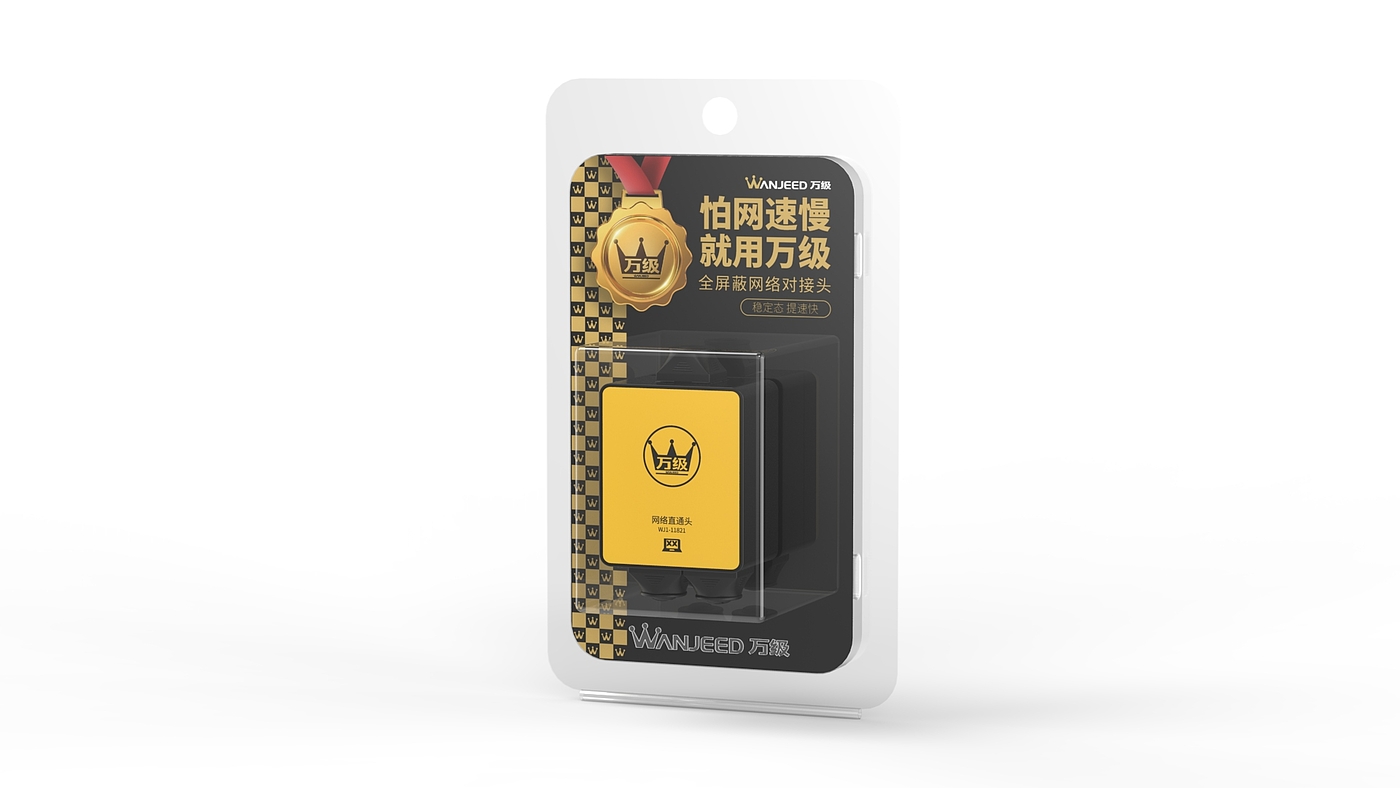

Blister box packaging rendering effect diagram

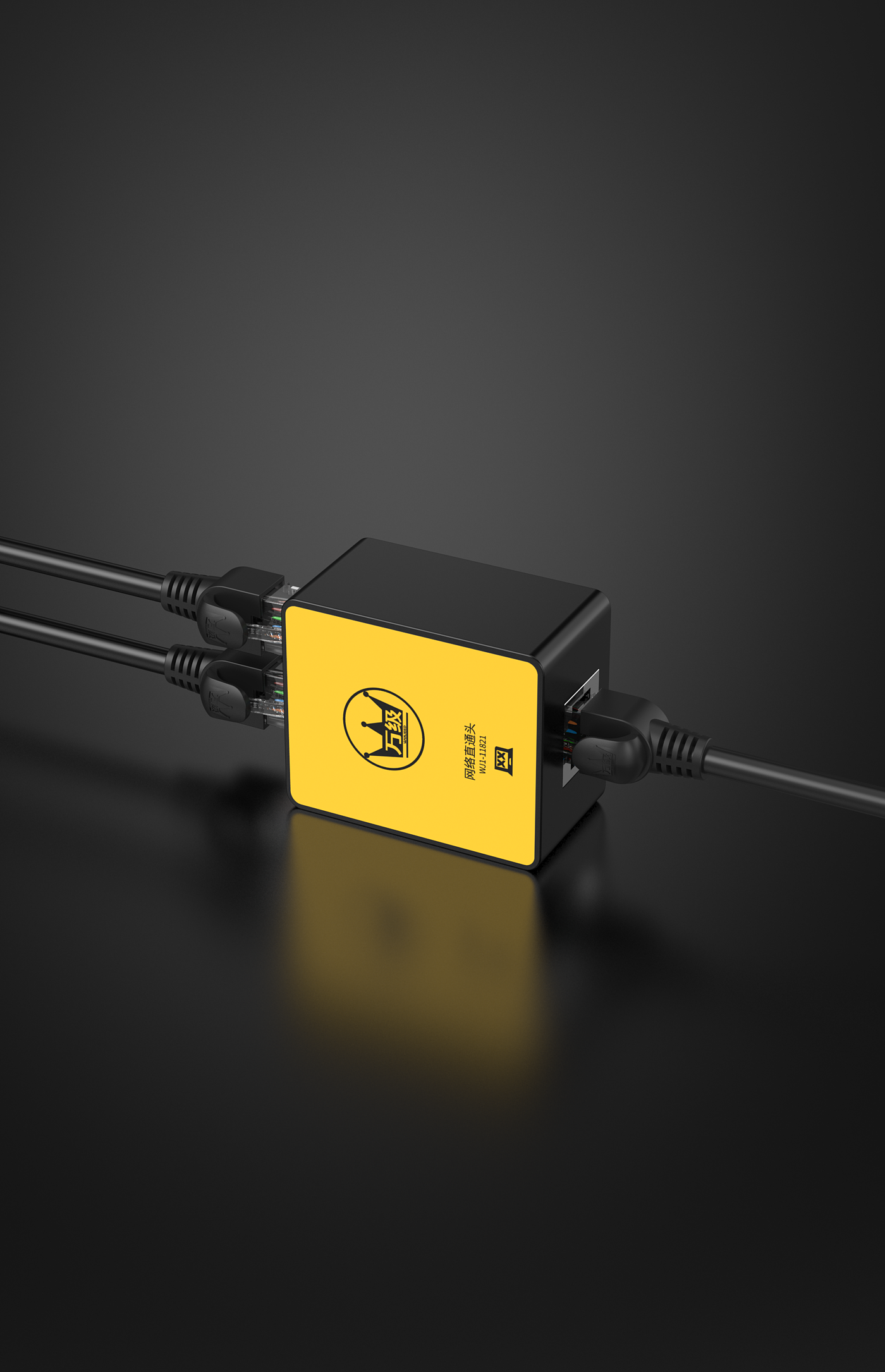

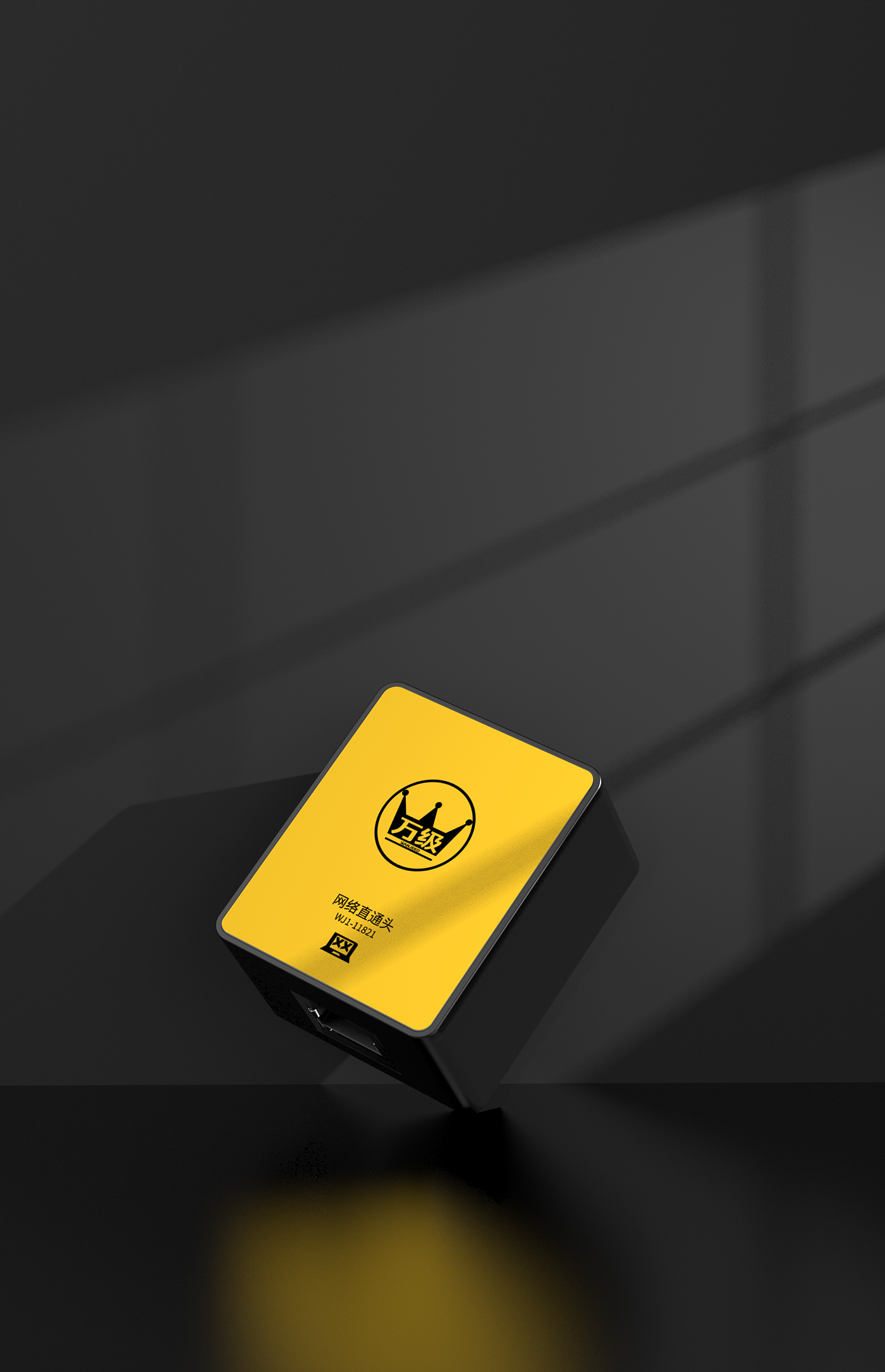

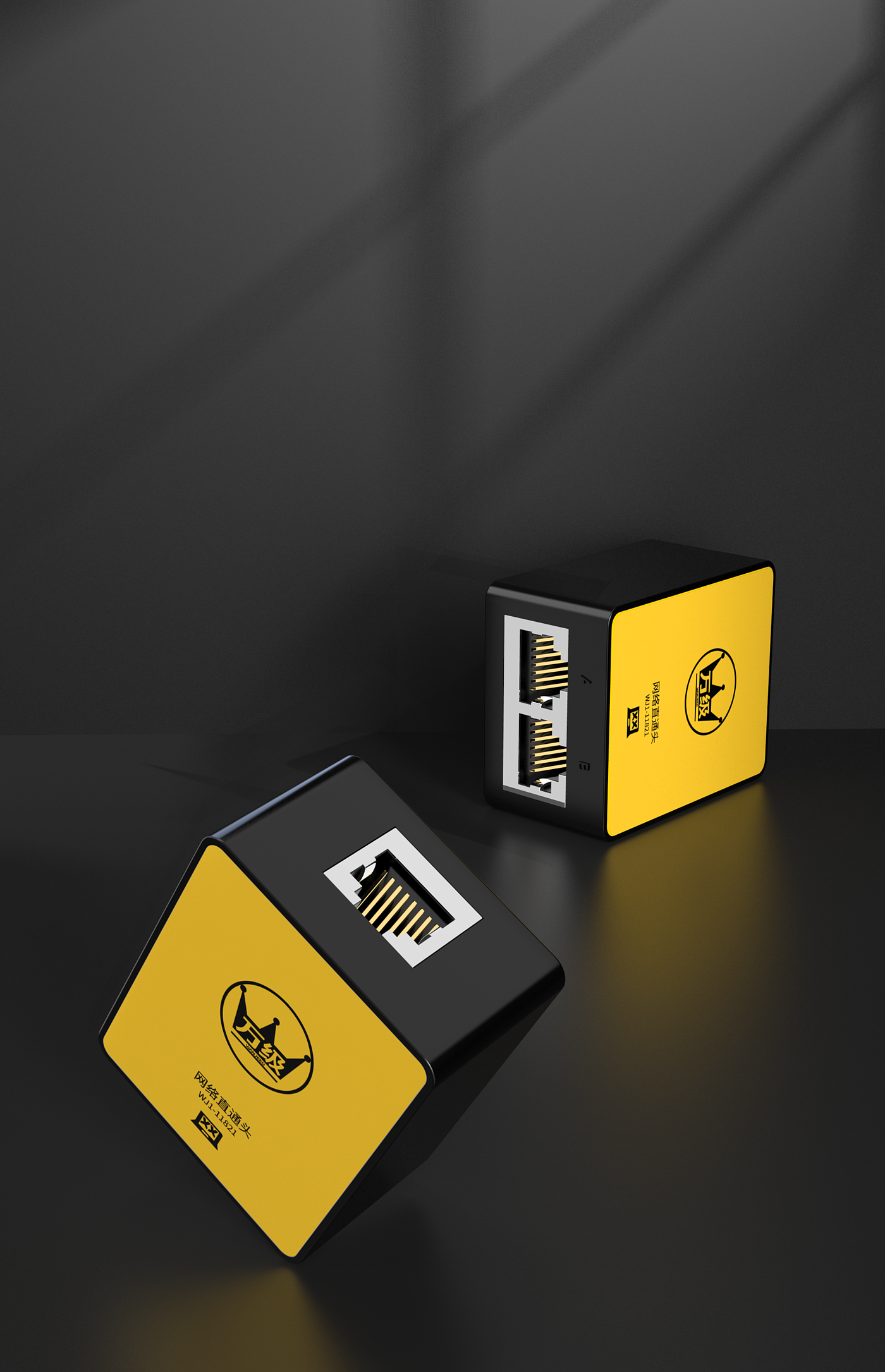

Product rendering effect diagram
