Sogo Design... Ten years of focus on medical health the only track.
Cooperative customers: well-known confidential customers
Project Name: Oral Drug Powder Inhaler
Cooperation content: design analysis | appearance design | structural design | prototype production | accompanying running assistance
1. Design Analysis
Application scenario: dental clinic, home care, used to accurately spray micron-grade pharmaceutical powder such as antibacterial/anti-inflammatory/analgesic to gum pocket, ulcer surface or tooth extraction socket.
Core appeal:
Accurate drug delivery-powder flow is focused by 2 mm to reduce tongue and adjacent drug staining;
• Zero back suction-check valve to prevent the back flow of wet gas, powder does not agglomerate;
Lightweight and portable-the whole machine is 28g, and the patient can operate it for 10 s with one hand.
2. Design Language

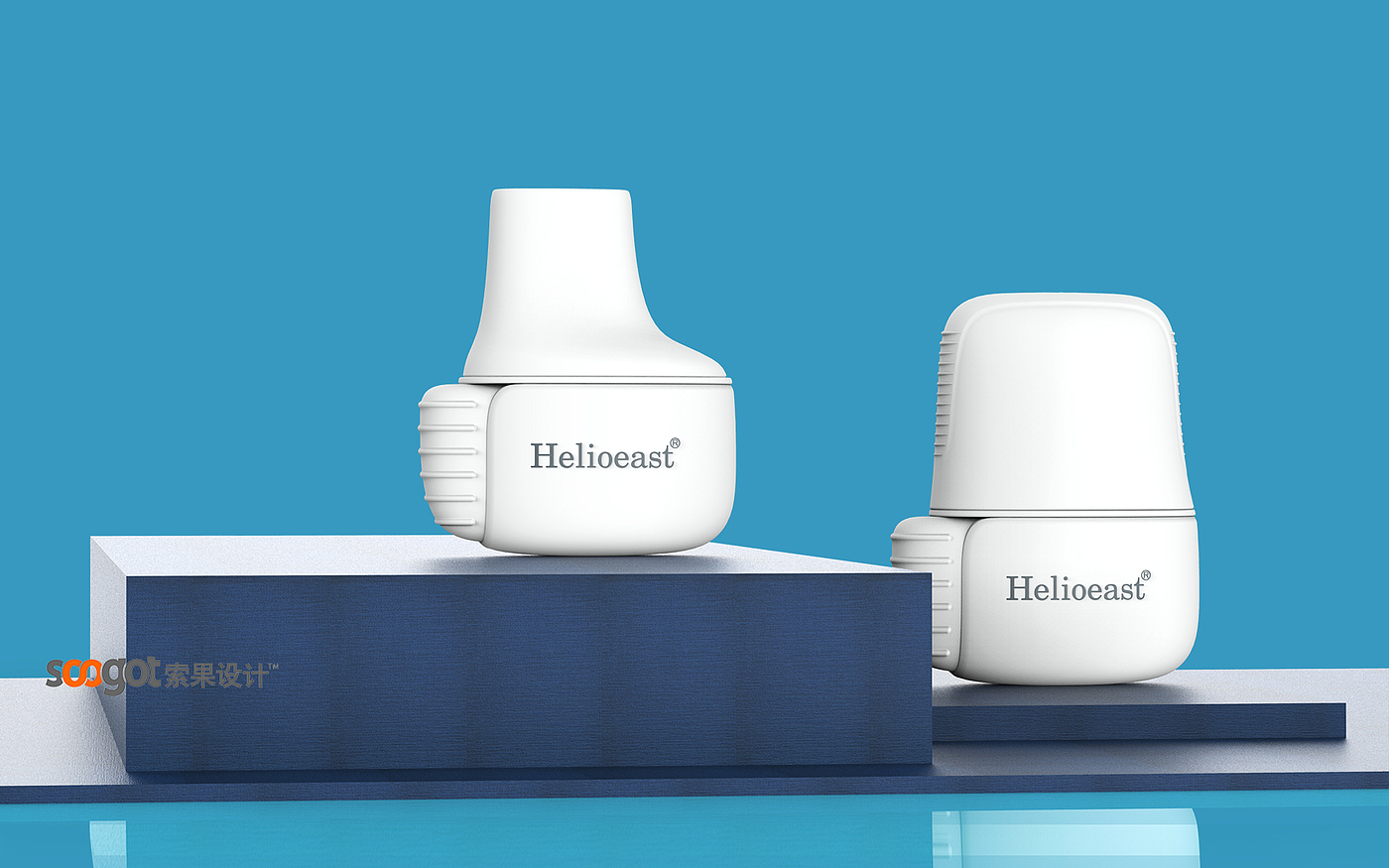

Form: Oriental "sunrise" image-fading elliptical fuselage upturned nozzle, symbolizing the warm healing of Helio (sun) east (east).
Color: medical Bai Chenxi orange button, conveying "gentle, hope" emotion, weakening the cold feeling of oral instruments.
Material: ABS PC antibacterial material, nozzle 316L stainless steel thin-walled tube, can be 134 ℃ high temperature disinfection.

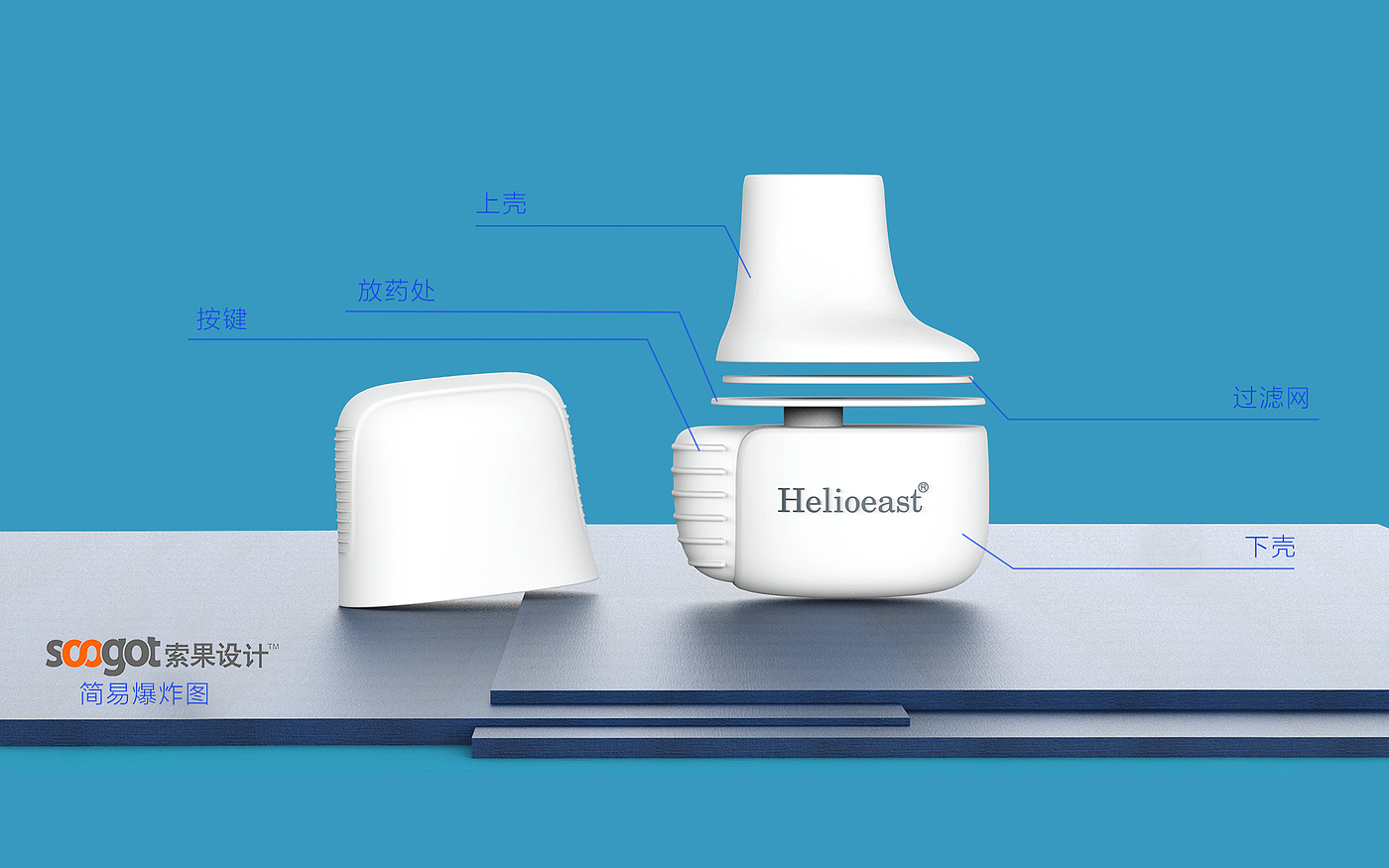

3. Design Details
Fading nozzle:
• 25 ° upwarping angle, the entrance is naturally aligned with the affected tooth, and the field of vision of the lip mirror is not blocked;
The powder outlet shrinks by 0.3mm to form a negative pressure ring, and the powder flow is concentrated with a diameter of 2mm.
Unidirectional Siphon Membrane:
Silicone micro-slit valve, open and close when inhaling, zero reflux of oral moisture, 6 months shelf life of medicine bottle.
morning orange button:
Integrated silicone key, bump 0.5mm, blind positioning with gloves; Key stroke 1.2mm, trigger force 6 N.
Magnetic capsule:
Bottom drawer type medicine warehouse, magnetic self-locking, 1 second powder bottle; The transparent window can see the margin.
Detachable filter cap:
• Top 40 μm PTFE filter to prevent powder leakage, can be washed and reused 50 times.
4. ergonomics
Holding: elliptical section 22 × 18mm, length 120mm, thumb naturally falls on orange key, index finger rests on arc gradually, wrist zero torsion.
Operating height: The patient sits in the dental chair, and the handle naturally droops to align the affected tooth without lifting the shoulder.
Viewing angle: the included angle between the powder discharge area of the nozzle and the lip mirror is 30 °, and the doctor can look directly at the administration point when looking down.
One-handed operation: the whole machine is 28g, and female elderly patients can hold it for 30 s without fatigue.

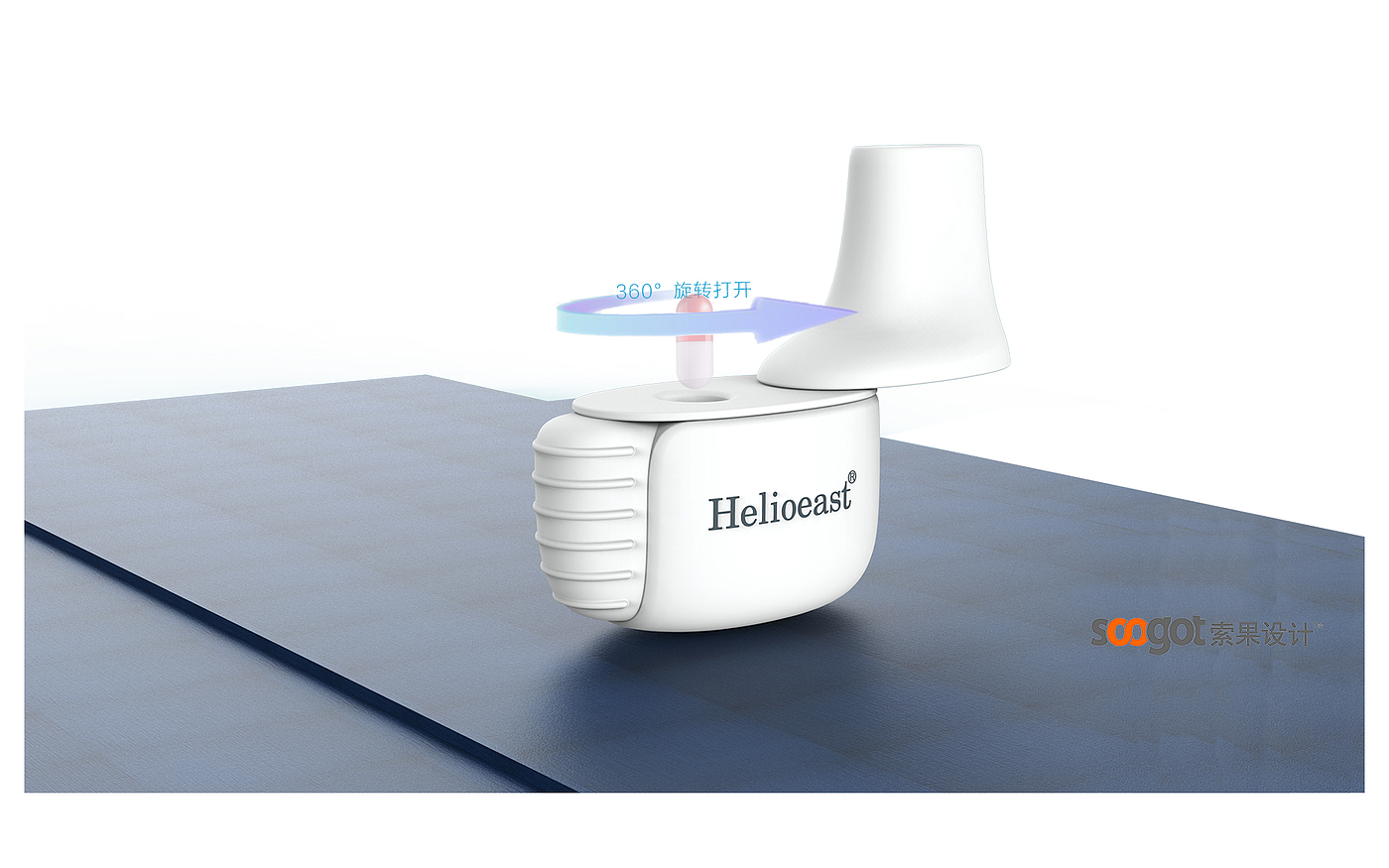

Clean posture: the nozzle can be pulled out by rotating 15 °, which can be sterilized under high temperature and high pressure, and maintained for 10 s.
Summary
Oral powder inhaler-gradually disappearing upturned nozzle, Dawn Orange key and magnetic drug suction bin, allowing 2 mm accurate drug delivery to take only 10 s with one hand; The one-way siphon membrane and filter cap ensure that the powder is dry and pure, and make oral local medication mild, accurate and full of emotional temperature.
