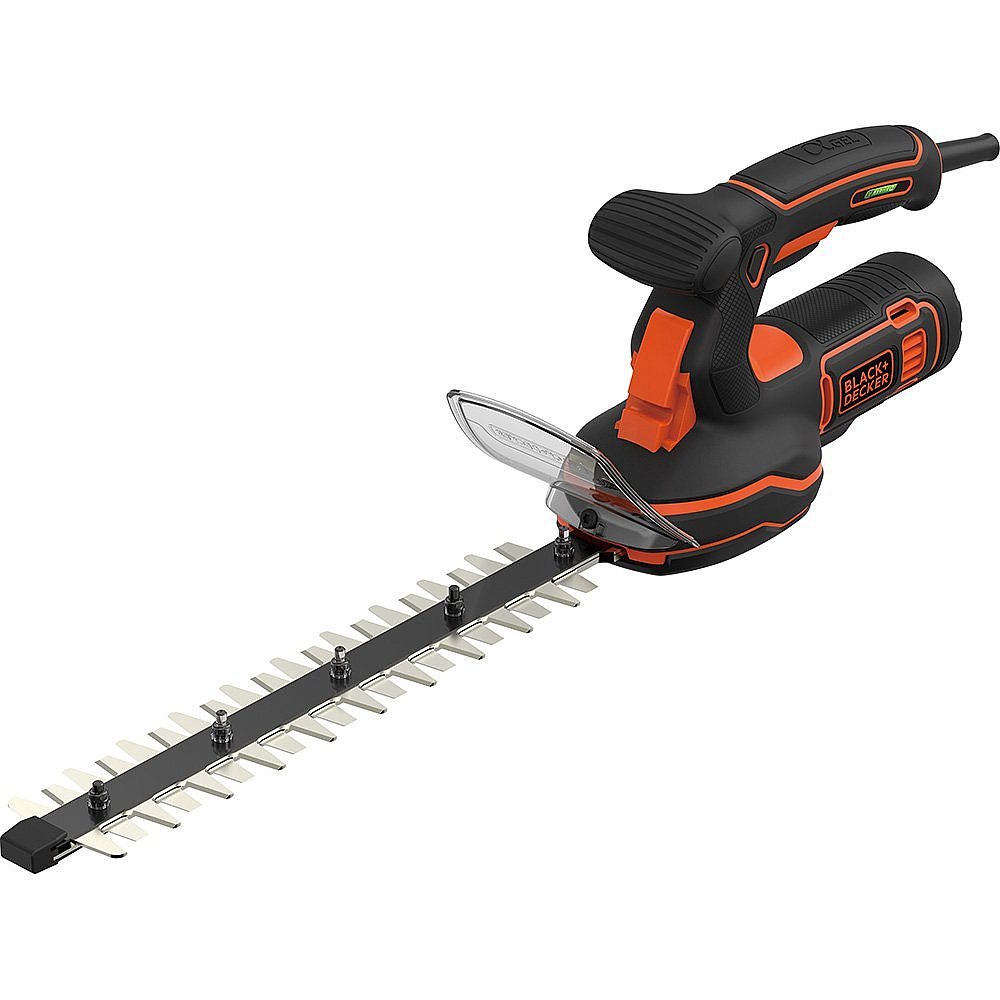

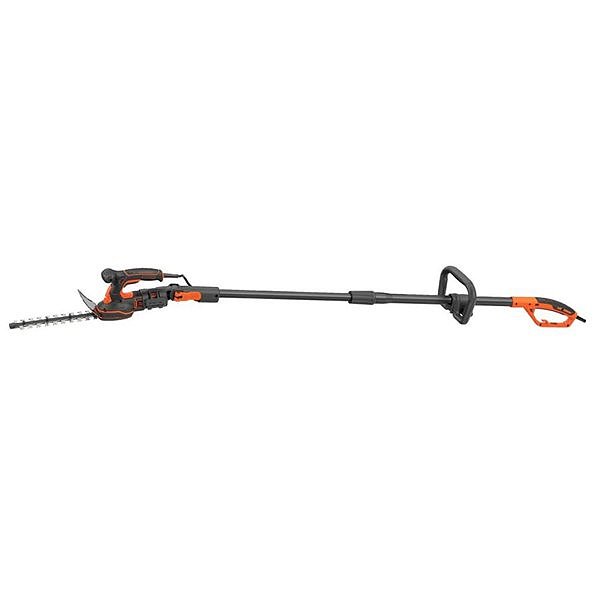

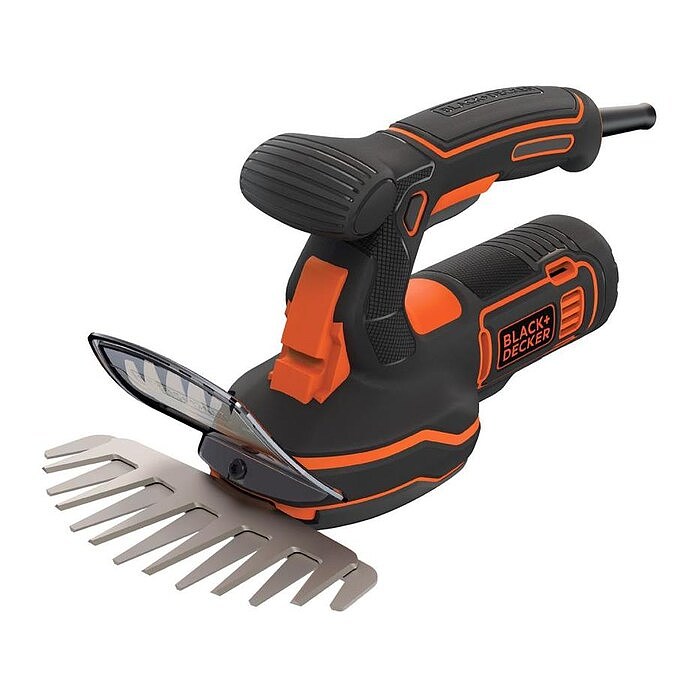

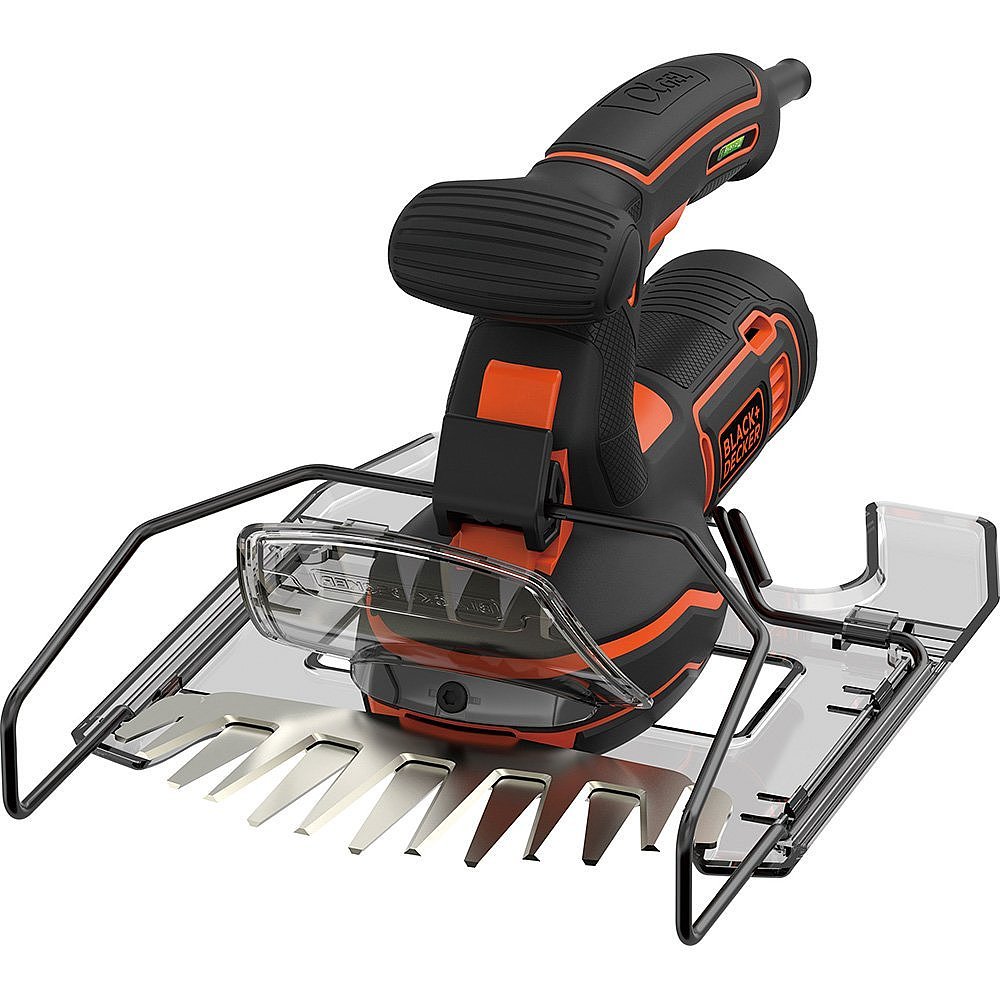

When the project first got the movement diagram provided by the structural engineer, it was found that the motor had been placed vertically (fig. 1) and the center of gravity was placed forward, so it was proposed to change from vertical to horizontal rear, which would help balance the center of gravity of the product and relieve the static fatigue of users when using it. Fortunately, the adoption of the plan also shows that improving interaction and designing to serve people are the most important. The final product is shown in Fig.

The original plan is to place the motor vertically on a similar figure.

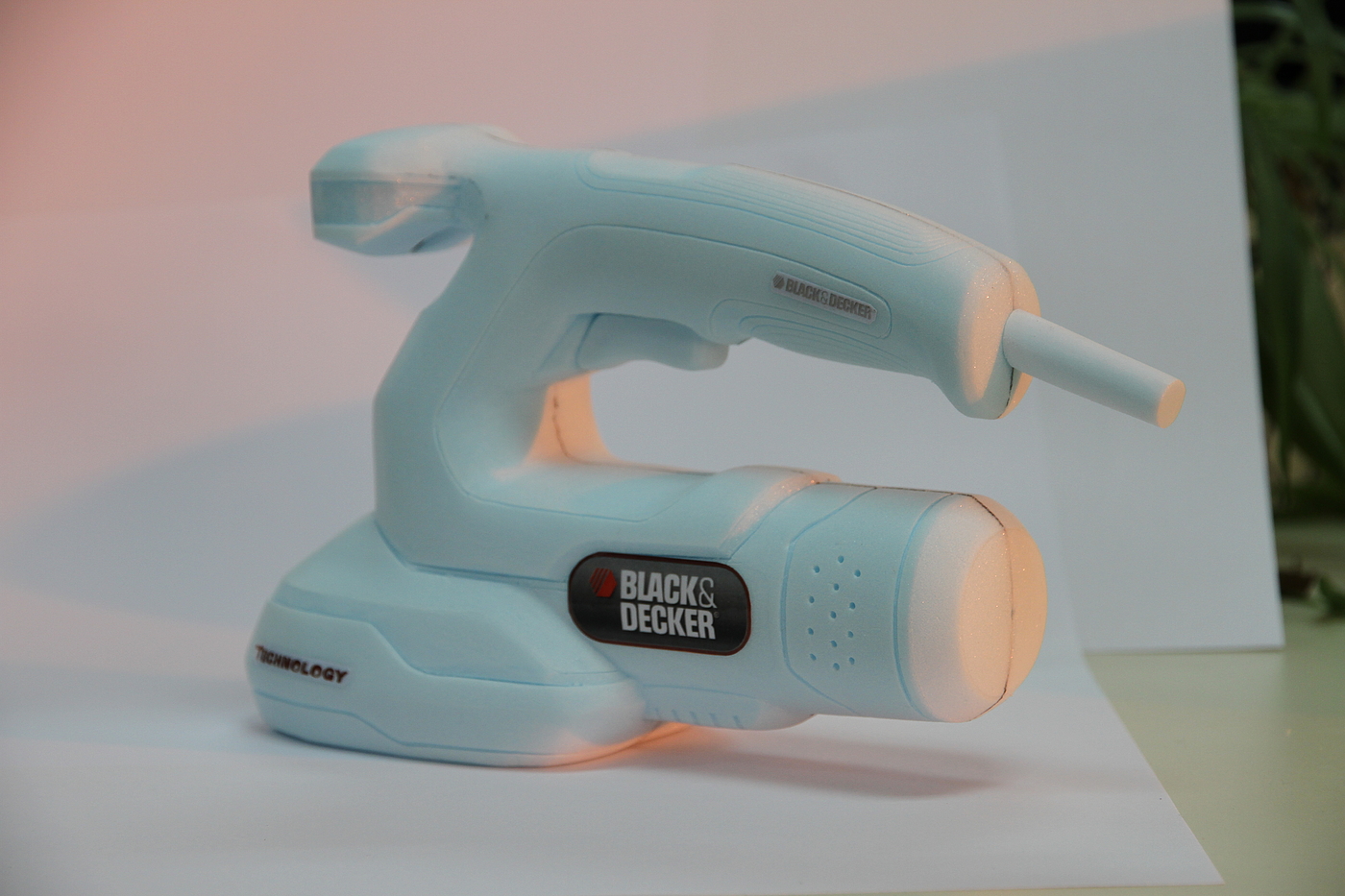

Hand-cut foam model

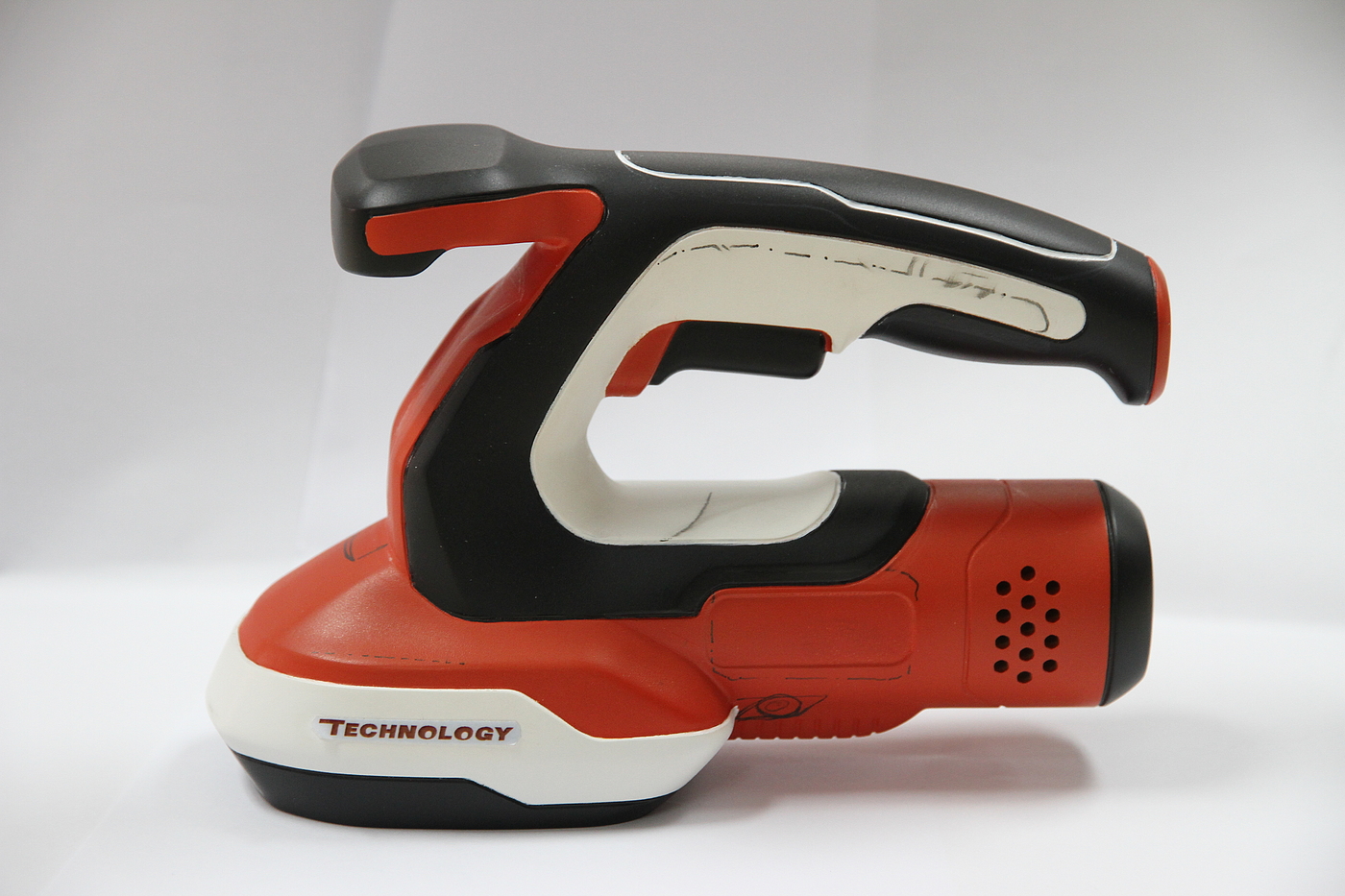

One of the color scheme models, take it out and whip the corpse.

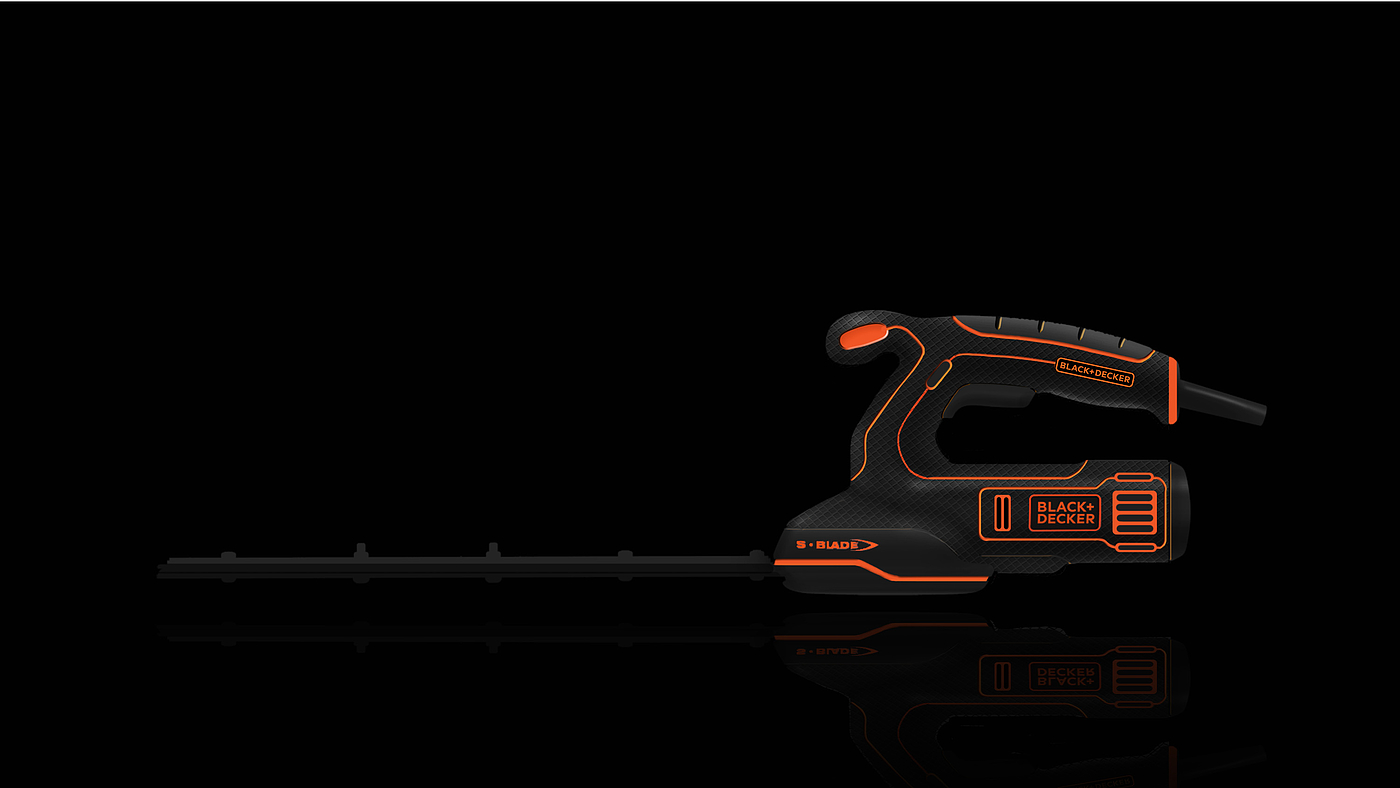

Different color schemes

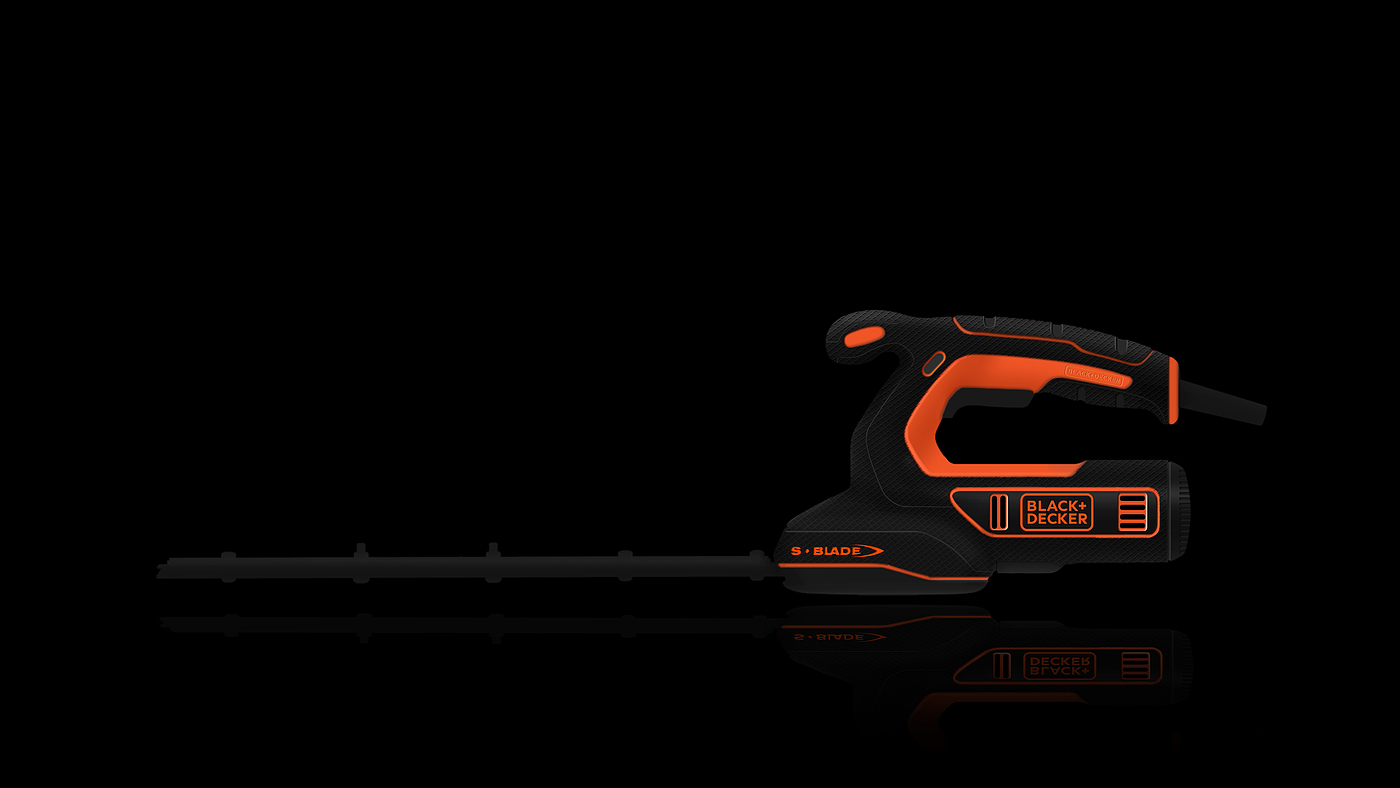

Abandoned version of color scheme

Abandonment 3

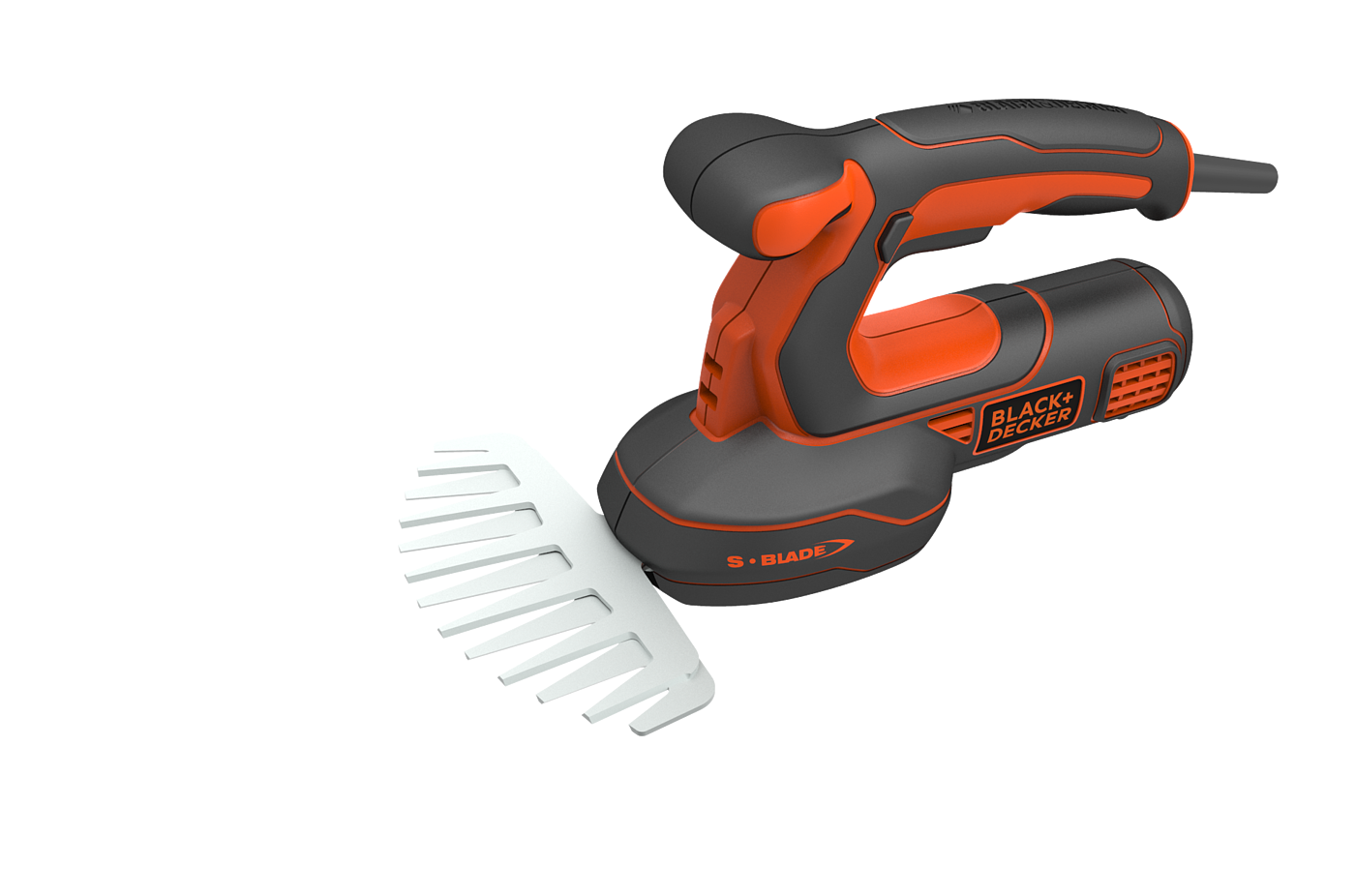

This is the final version, huh
