Industrial design is a comprehensive discipline, which requires designers not only to master aesthetics, engineering, economics, drawing skills and other knowledge, but also to master certain model making ability when necessary. Different professional directions need to use different production tools, furniture design, traffic design, product design model production tools are different, today let's take a look at how designers commonly used power tools are "play bad.

[Power Tools "Played" by Designers]]

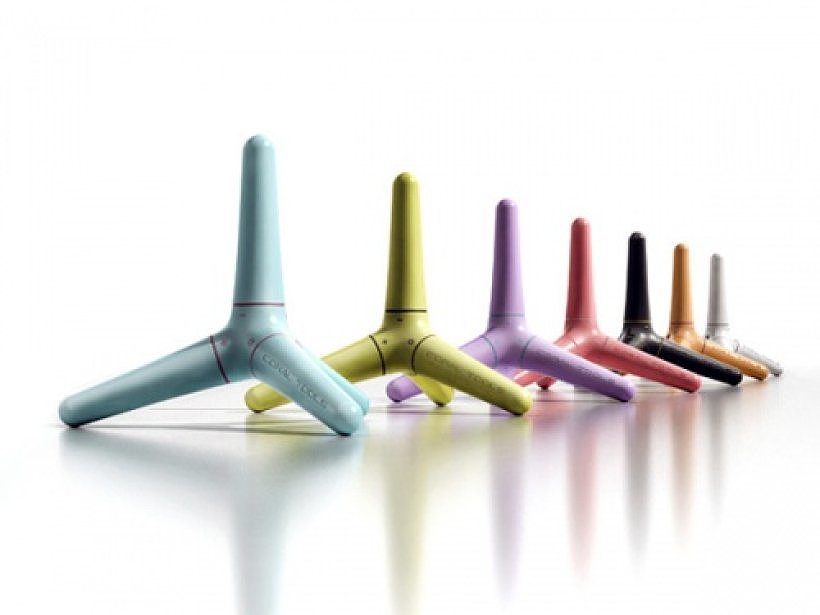

"Coral" that integrates color value and function"

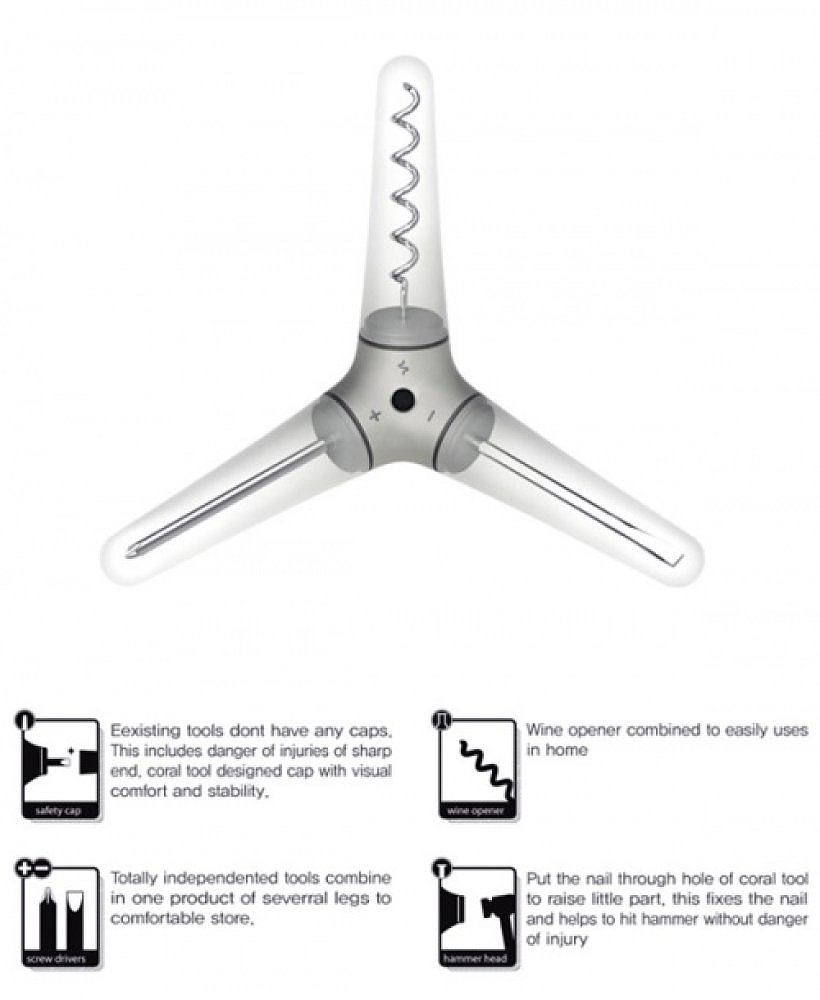

A colorful set of multi-functional tools called "Coral" JinyoungChoi designed by designers can be covered with a hat to protect it when not in use, while the law of triangle can play a greater role when in use. Including screwdriver and bottle opener.

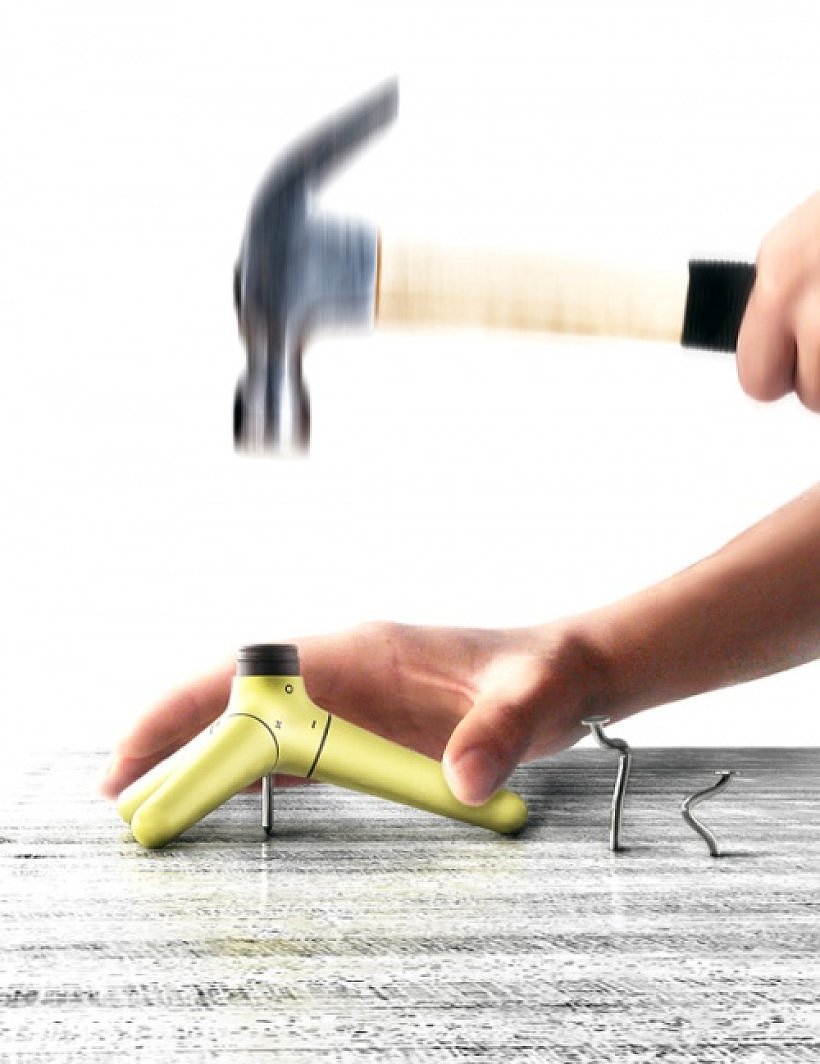

After opening, all kinds. It also comes with a nail front sight hole.

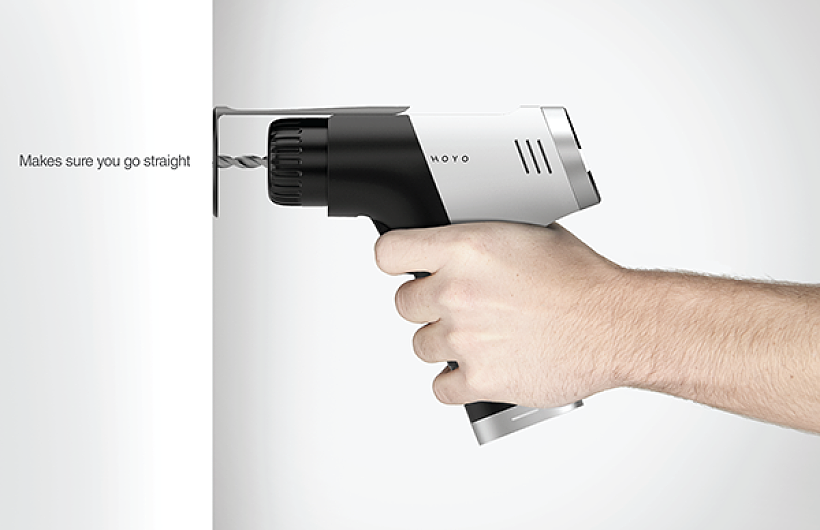

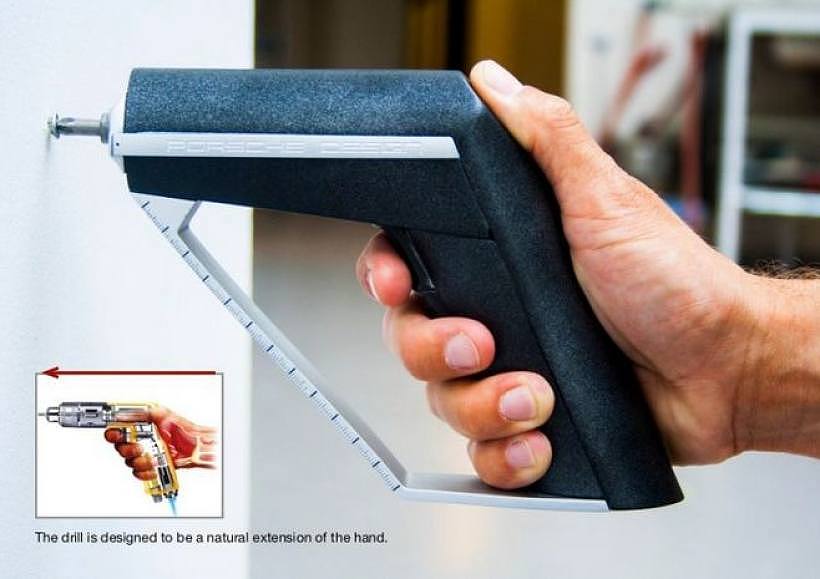

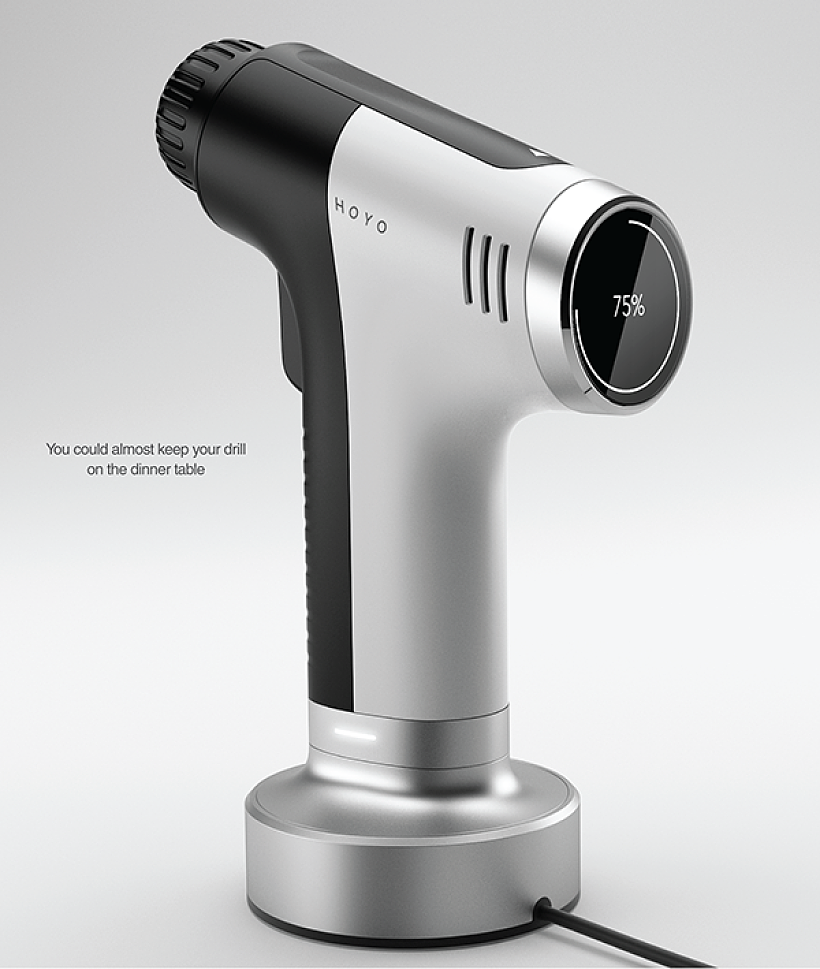

A minimalist and fashionable electric drill

I believe that when you see this product, you have broken your understanding of traditional power tools. Designers design different visual feelings by integrating the design concepts of technology and fashion products.

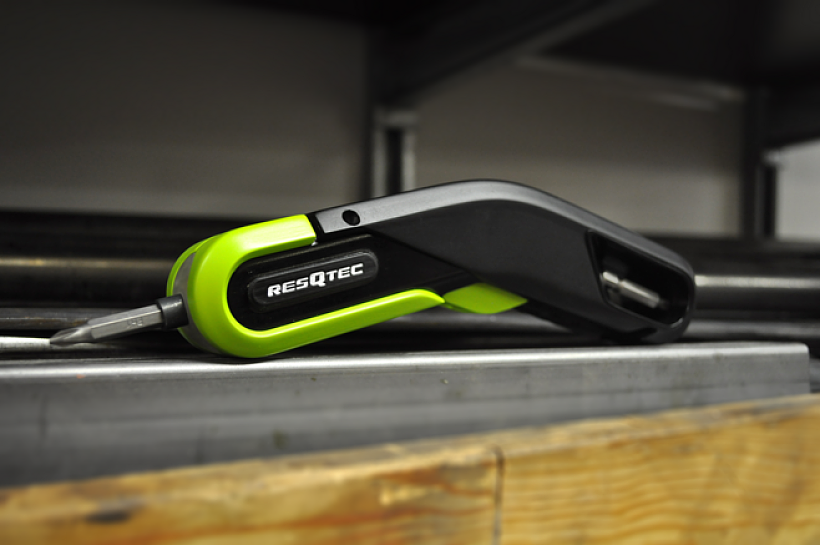

Multifunctional hand tool
The integrated folding design breaks the traditional modeling concept and is lighter and more portable.

Manual tools for geometric modeling

Simple line stitching on the side, dual-function manual force device.

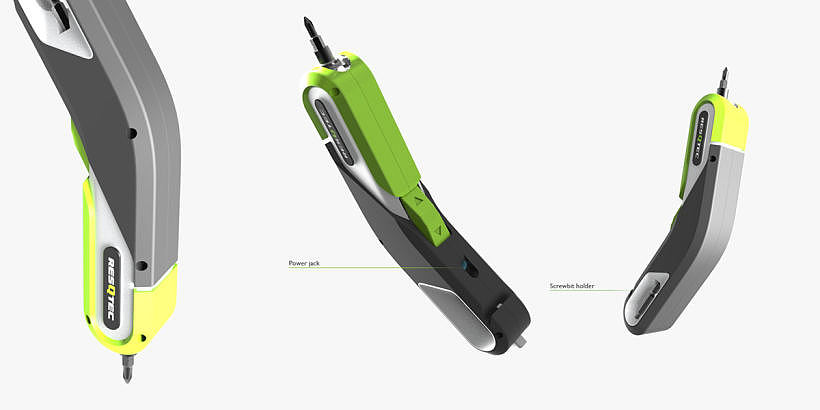

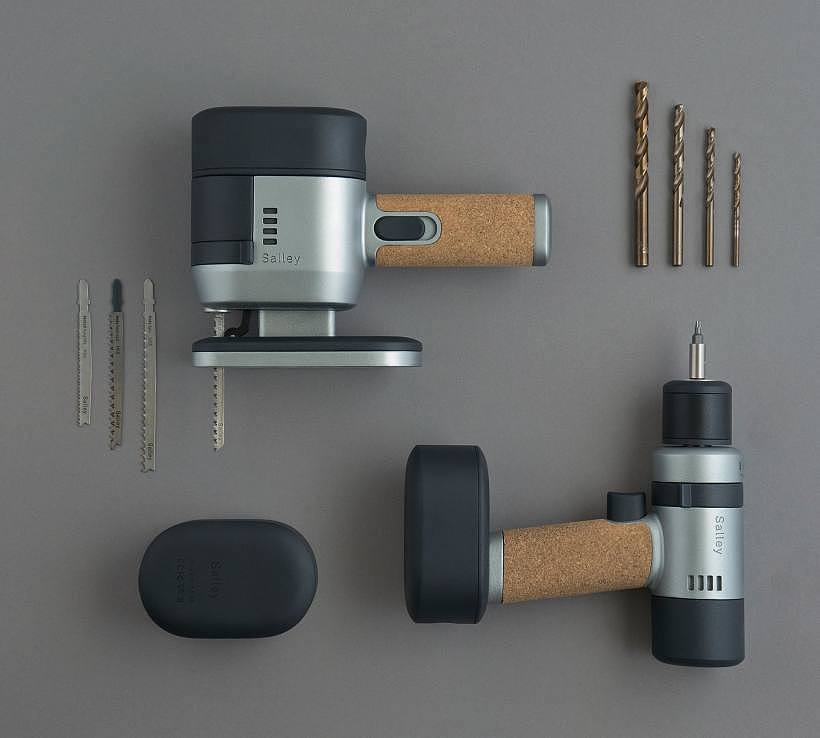

Series electric tools

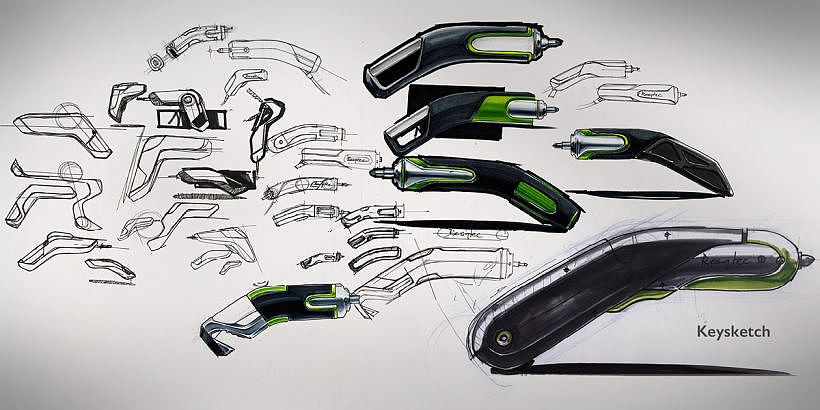

In order to enhance brand awareness, a series of products will be designed with the same design style elements. Manual tools are no exception.

[Mars Brings You to Draw Mini Magic] Chapter 7 Case of "Industrial Products Hand-painted and Innovative Design Expression"

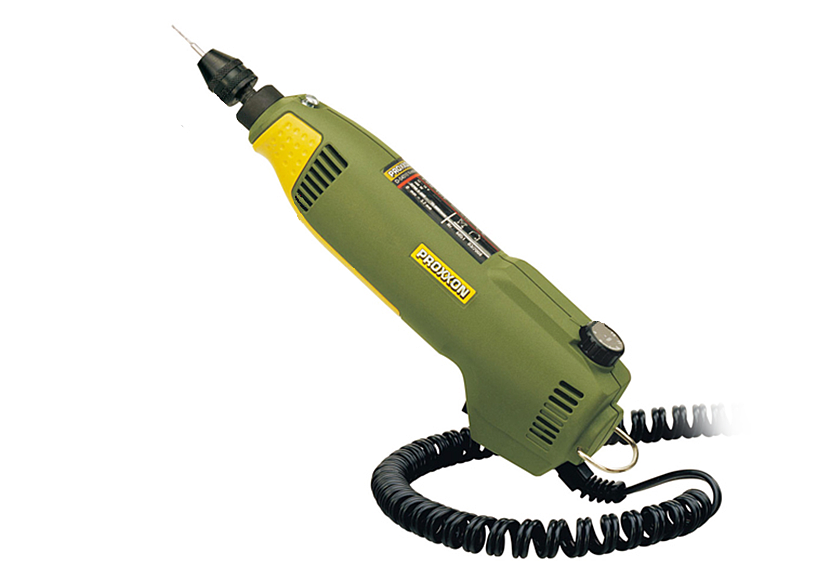

The most famous brand of precision drilling and grinding machine is German PROXXON. Its excellent workmanship and reliable quality are favored by craftsmen. Its working principle is mainly to drive the grinding wheel through the built-in motor to mill, drill, grind, polish, clean, engrave and other processing operations for stone and metal parts. Below we draw to start this machine. (Physical Reference)

[How to Analyze]]

Point 1: First analyze that the product consists of several parts and draw a cylinder with perspective as a reference.

Point 2: Use the "plus" method to draw the basic type of each component on the cylinder.

Point 3: Add shadows to enhance the turning point of the body.

[detailed steps]]

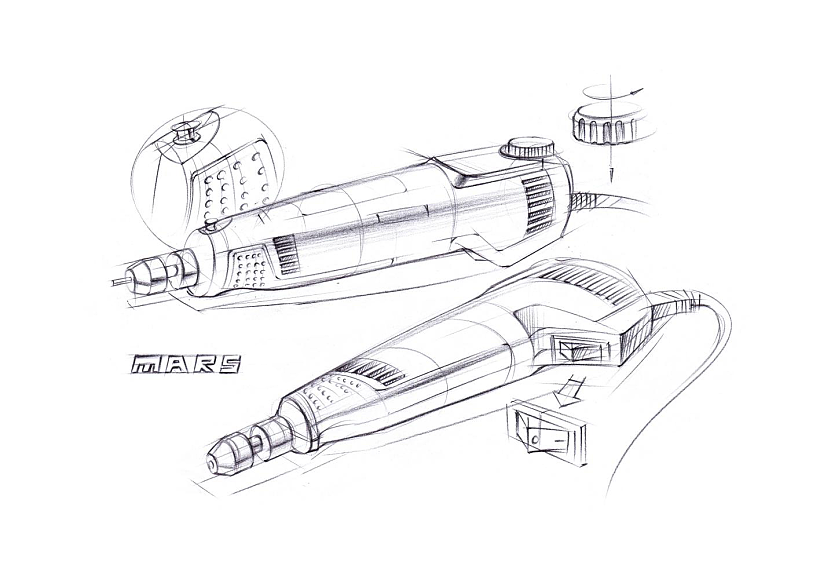

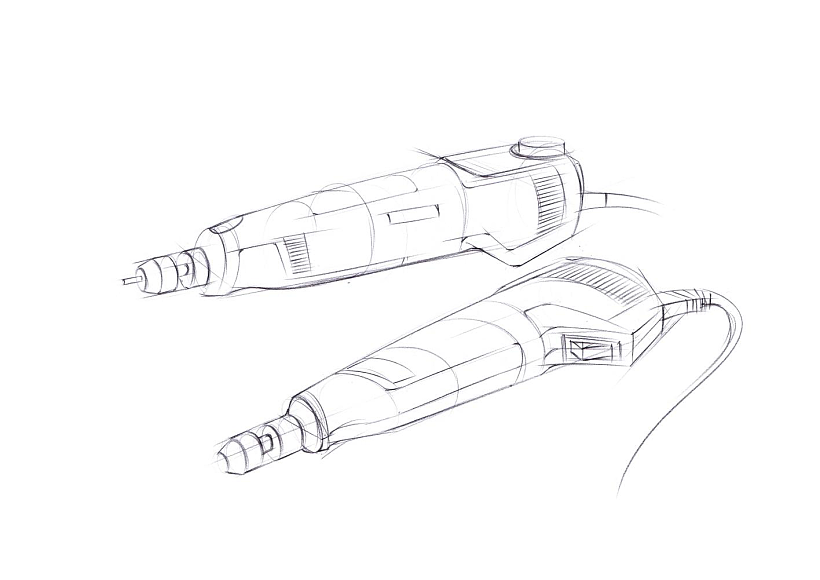

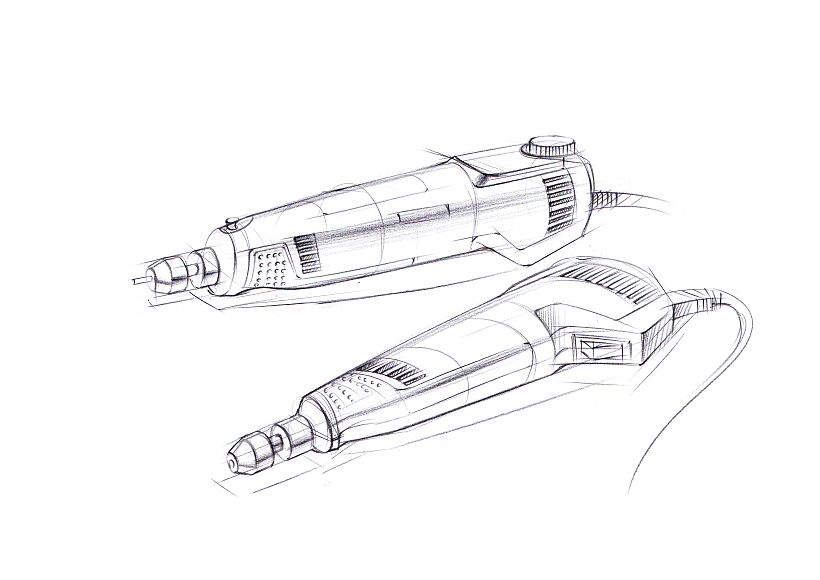

(1) We understand the modeling characteristics of this product according to the previous analysis, so that we can draw this product more easily. First, we use lines to draw the general outline of two products with different angles to determine the general proportion.

(2) Deepen the details of each part, add cross-sectional lines, and express the turning point of the body.

(3) Deepen the details again and add shadows to make the product more three-dimensional.

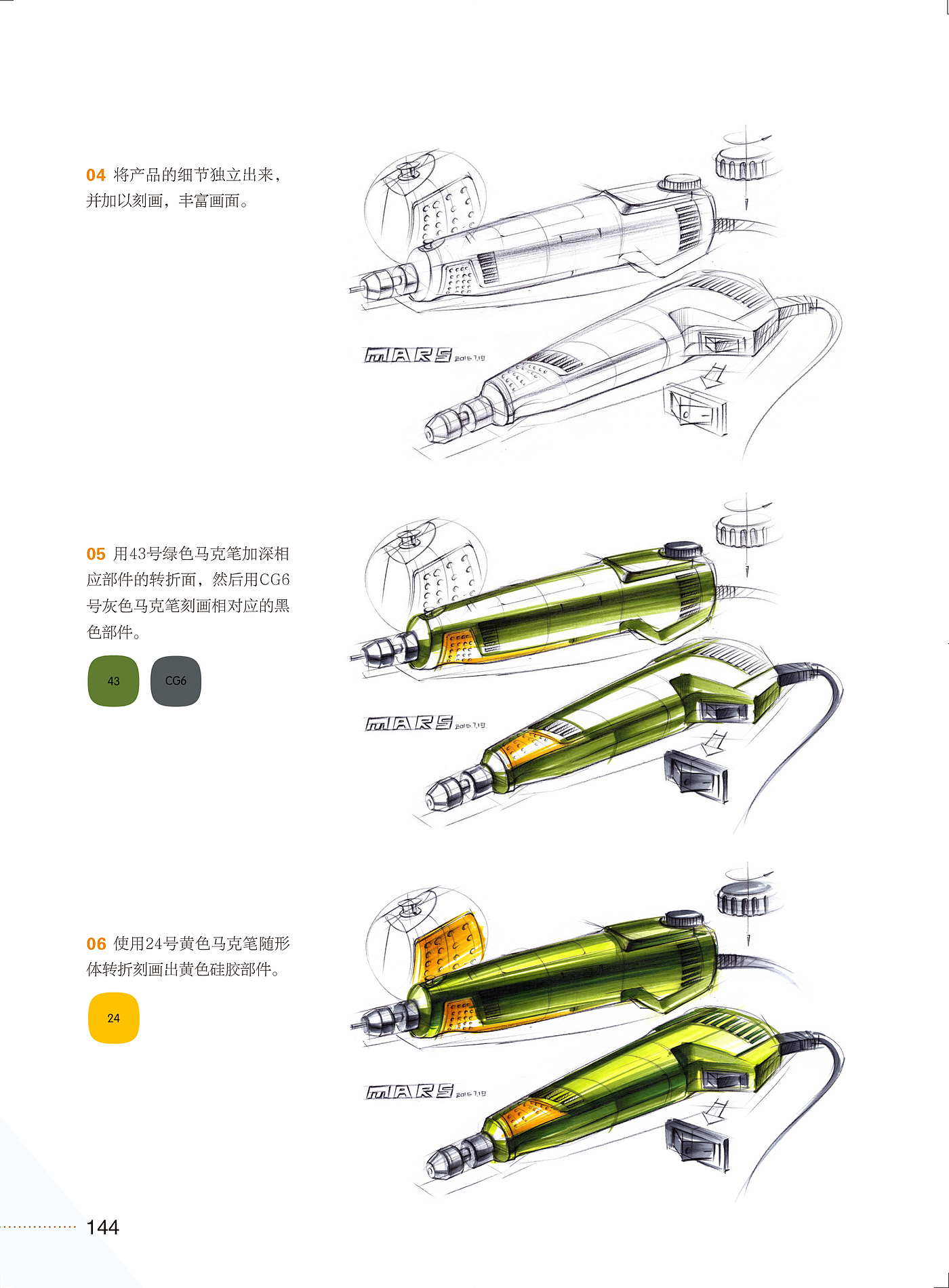

(4) Separate the details of the product and depict it to enrich the picture.

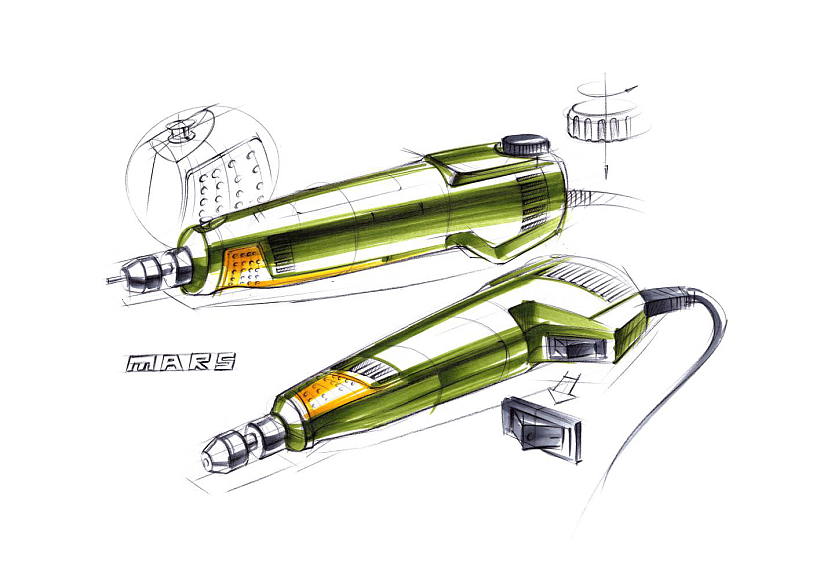

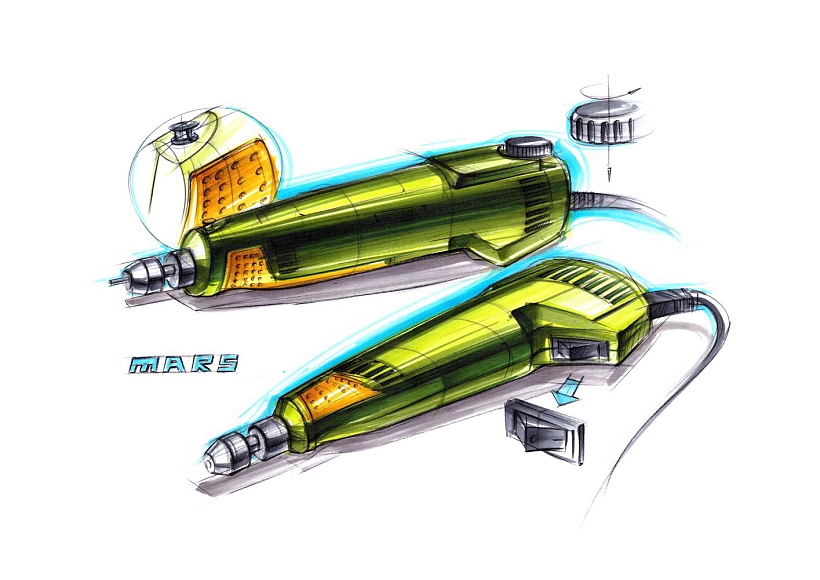

(5) Use No. 43 gray marker to deepen the turning surface of the corresponding part; Use CG6 gray marker to depict the corresponding black part.

(6) Use No. 24 yellow marker pen to turn with the body to depict yellow silicone parts.

(7) Use No. 63 blue and WG4 warm gray marker to draw the background and shadow along with the outer contour of the body, and play a role in setting off the product and enriching the picture.

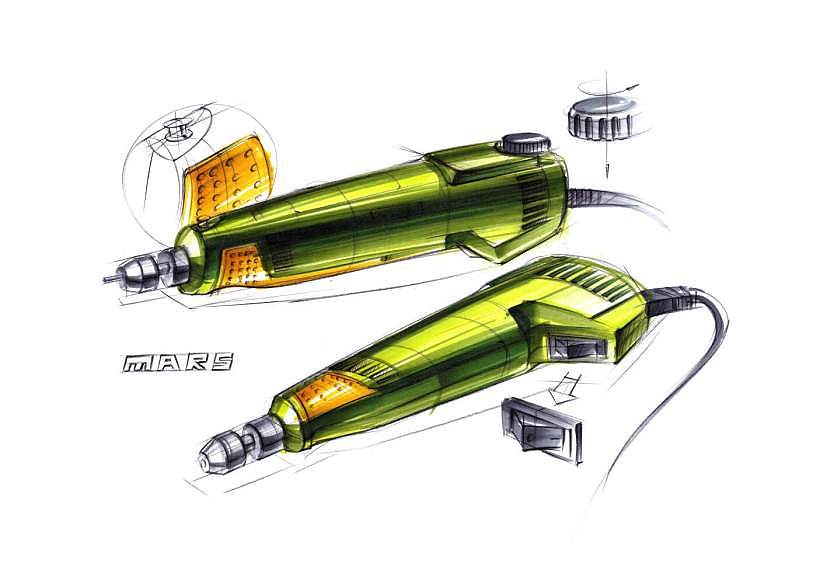

(8) Further enrich the picture and draw the highlight of the turning point of the product with a high-gloss pen to make the whole product more textured.

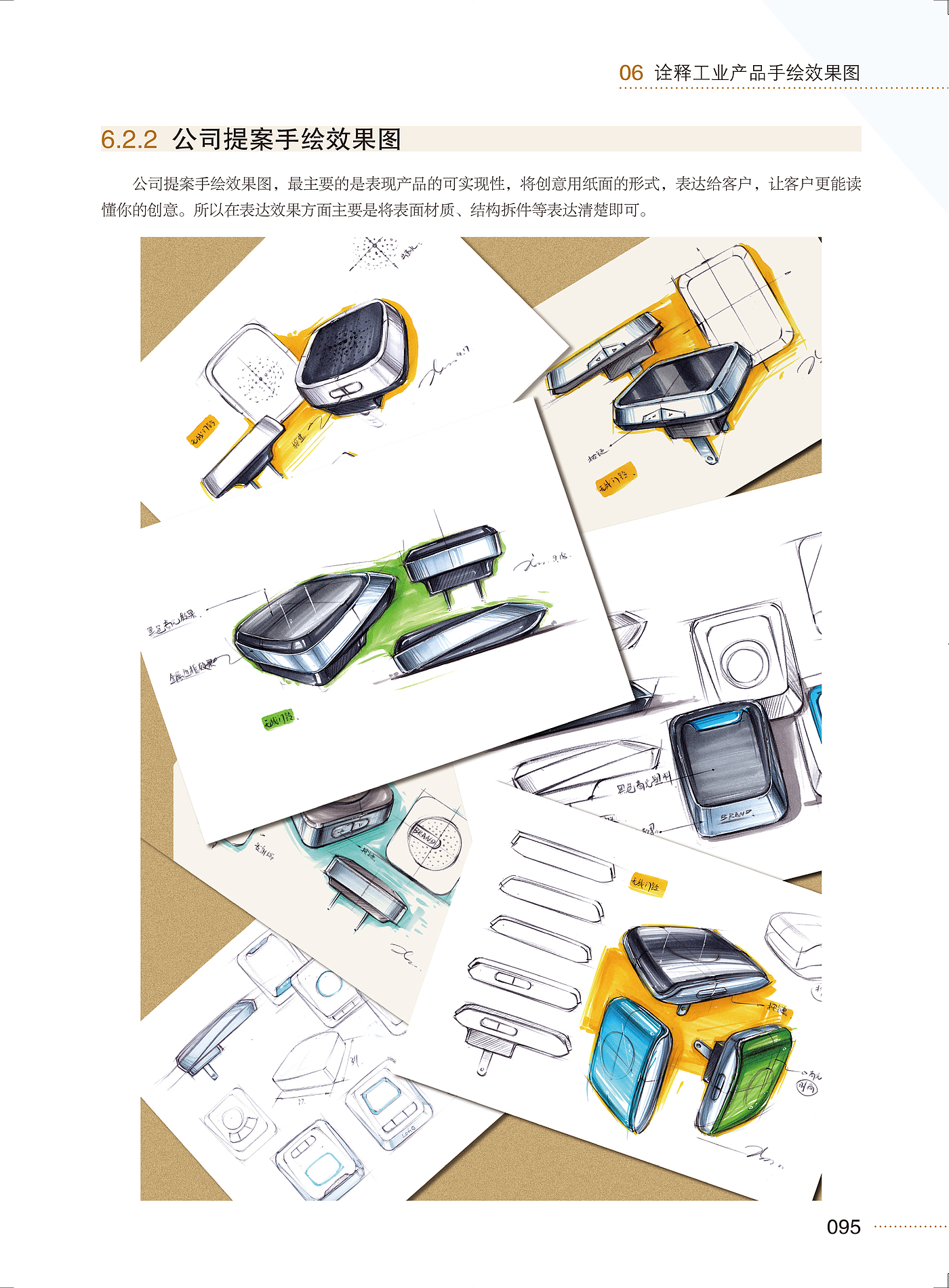

Excerpted from the book "Industrial Product Hand Painting and Innovative Design Expression" Chapter 7 Case

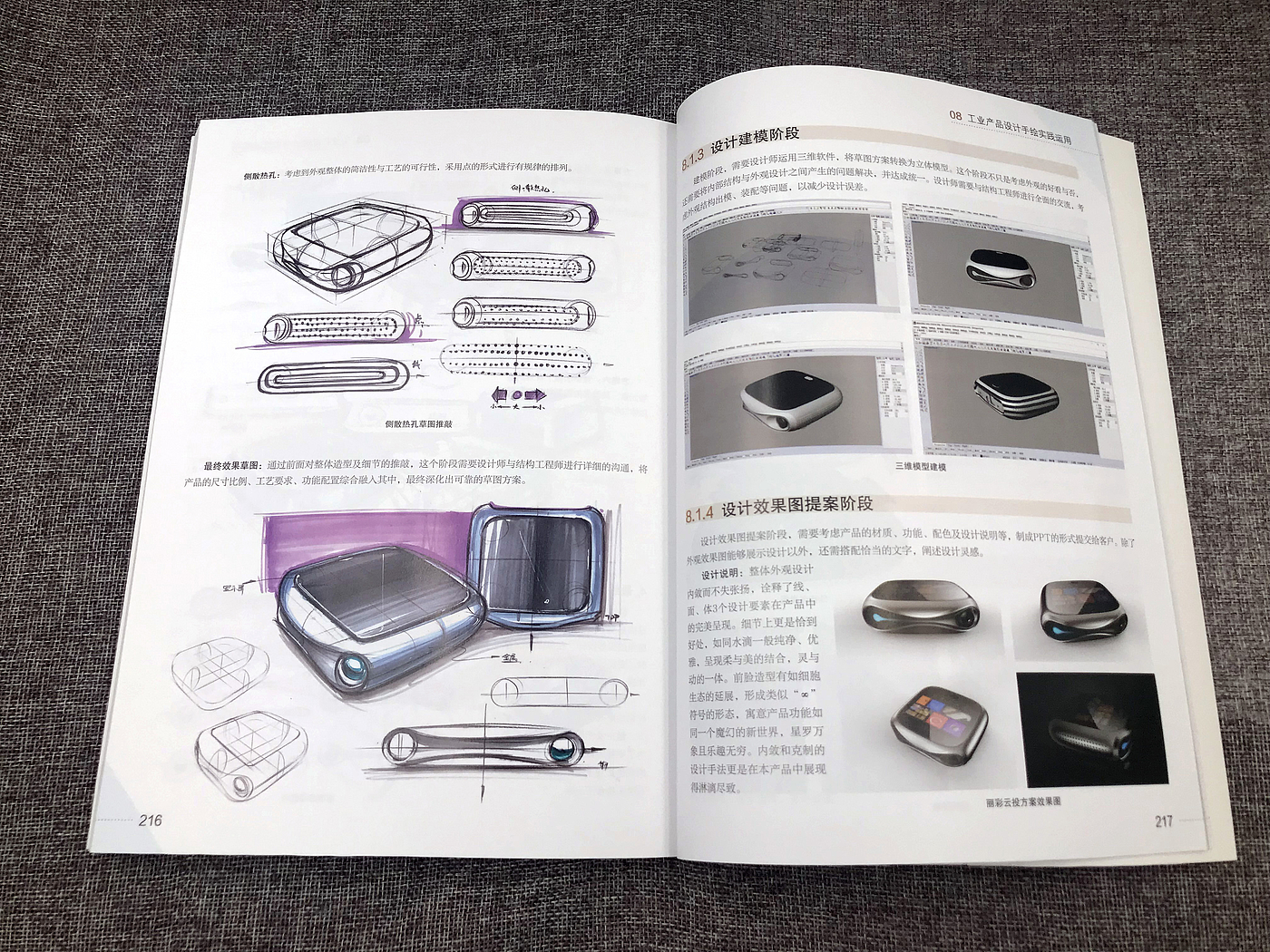

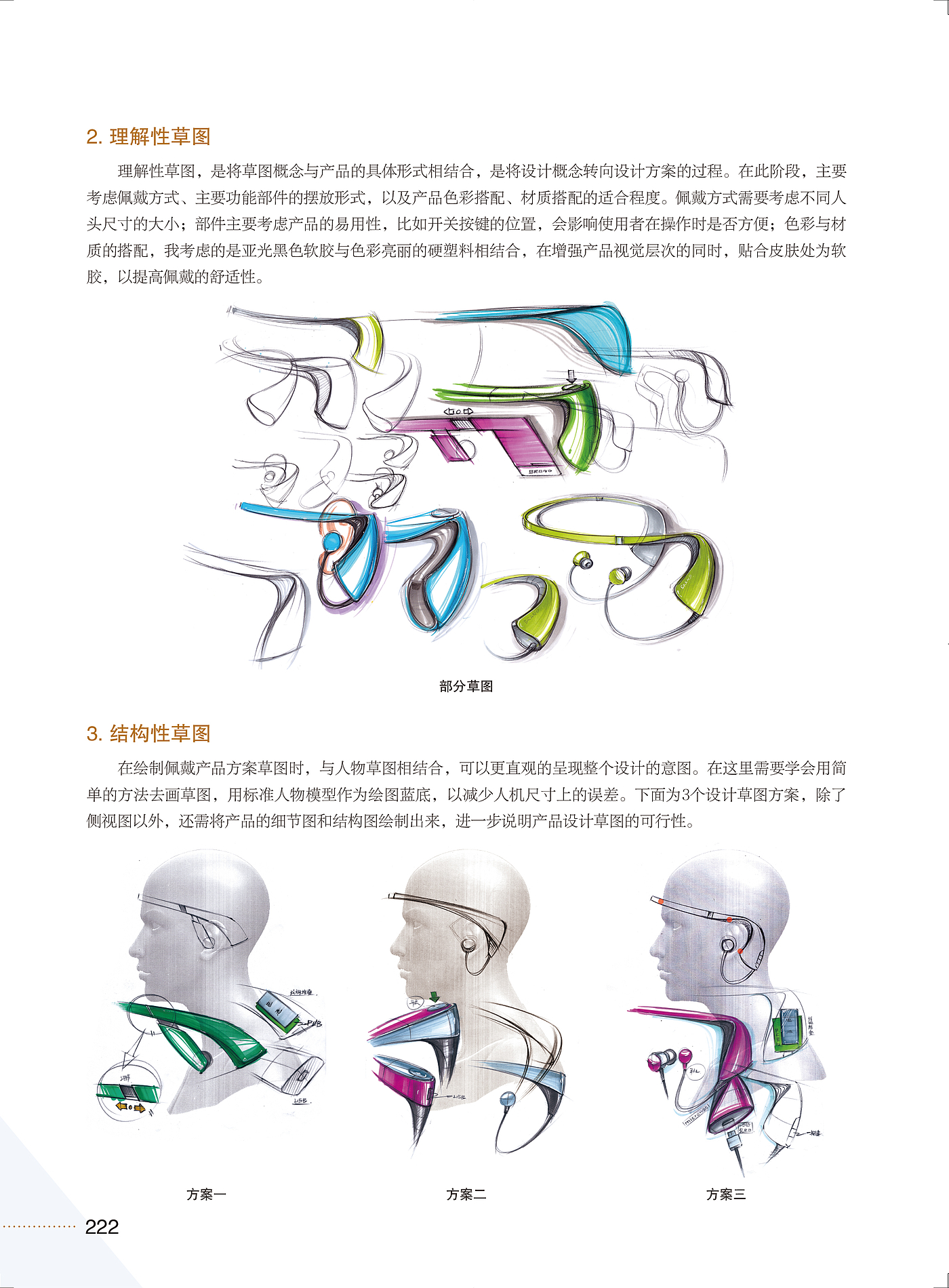

"Industrial Product Hand Painting and Innovative Design Expression" book

"Industrial Products Hand-painted and Innovative Design Expression" Book Catalog

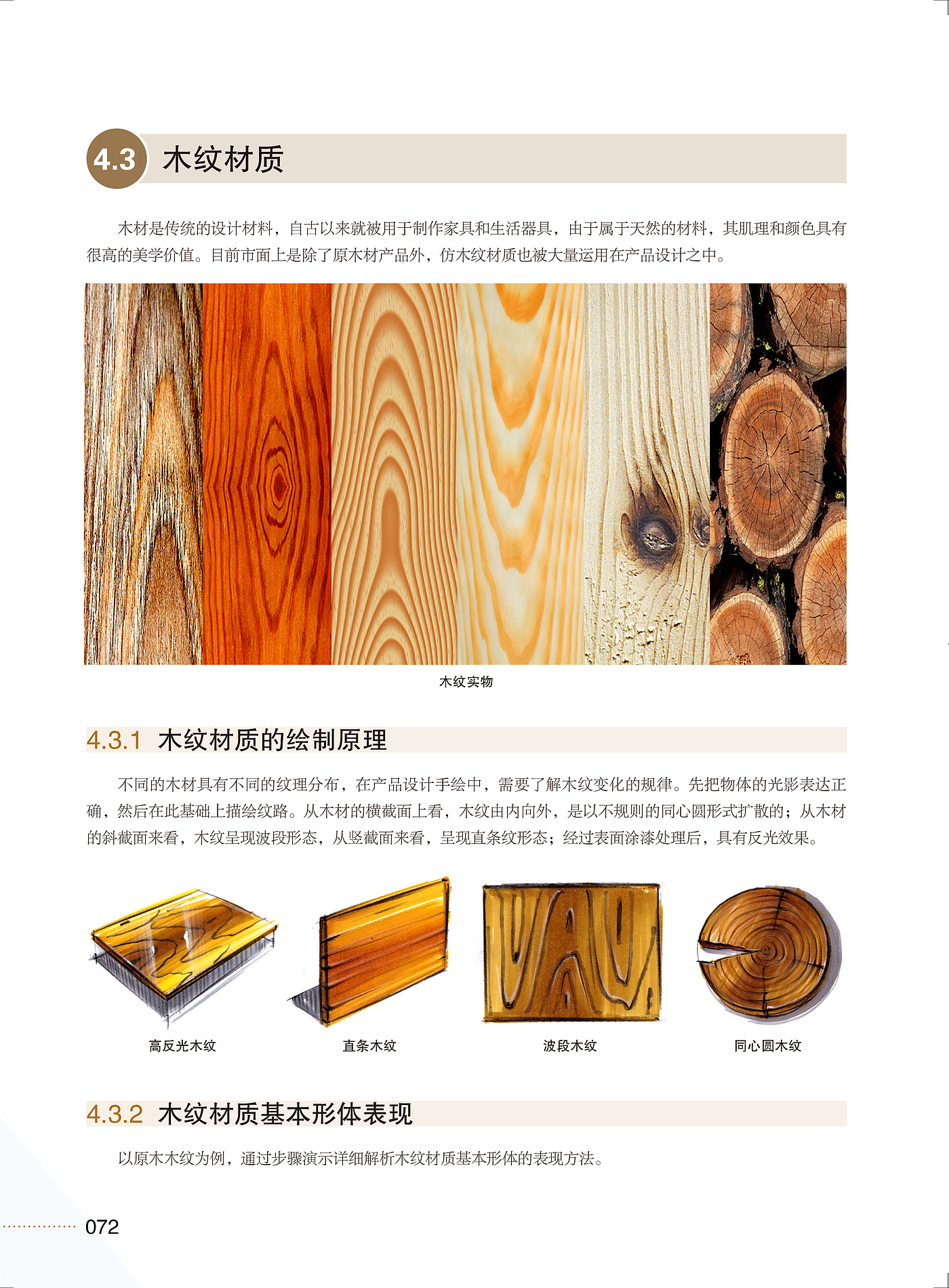

Basic knowledge explanation

Design Manuscripts at Work

The whole process of actual design cases

The whole process of actual design cases
