Product principle: this equipment is the principle of using light interference, diffraction, etc., with various sensors, through a certain algorithm to synthesize images.
Background: Our most common imaging surgery is this device. For example, if there is a cardiovascular problem, we usually look at the situation in the blood vessels through this minimally invasive surgery, and then see if there is a stent or something. At present, such products have been basically monopolized by foreign countries.

Let's take a look at this design scheme that has not been adopted!

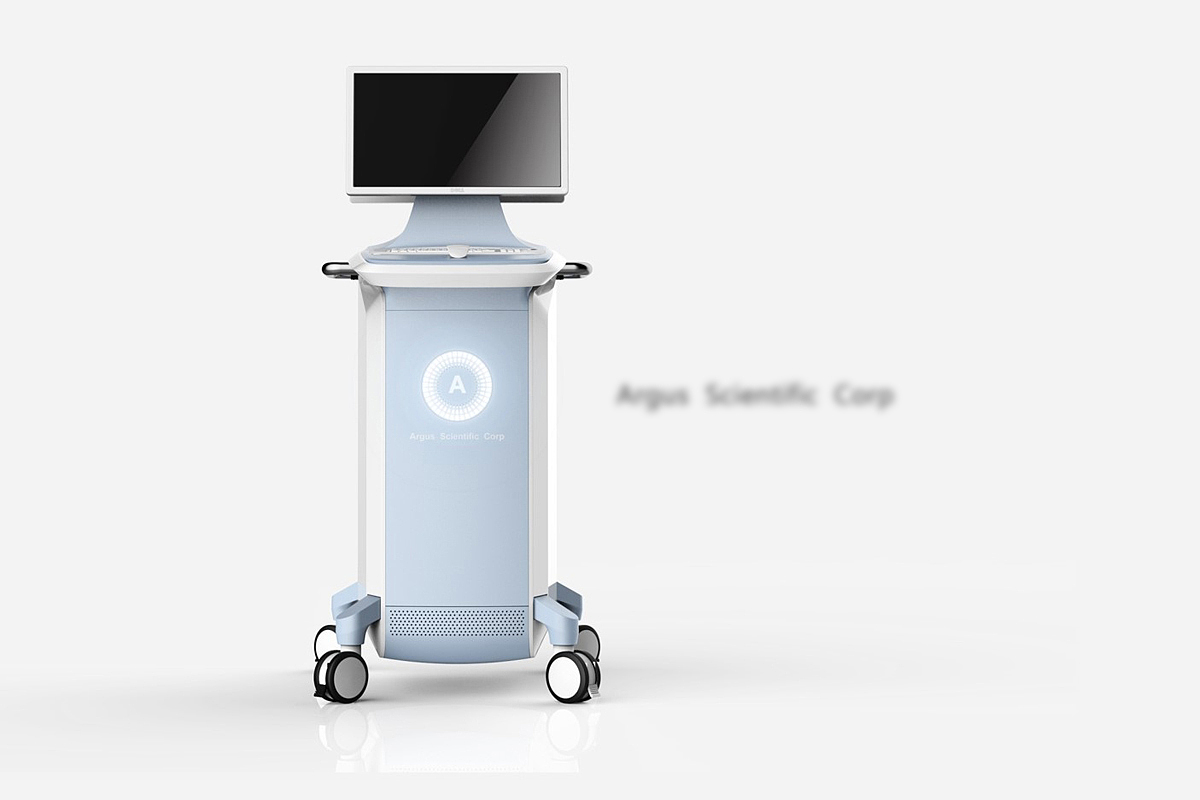

The two sides are adduction at oblique angles to make the front look more slender and straight.

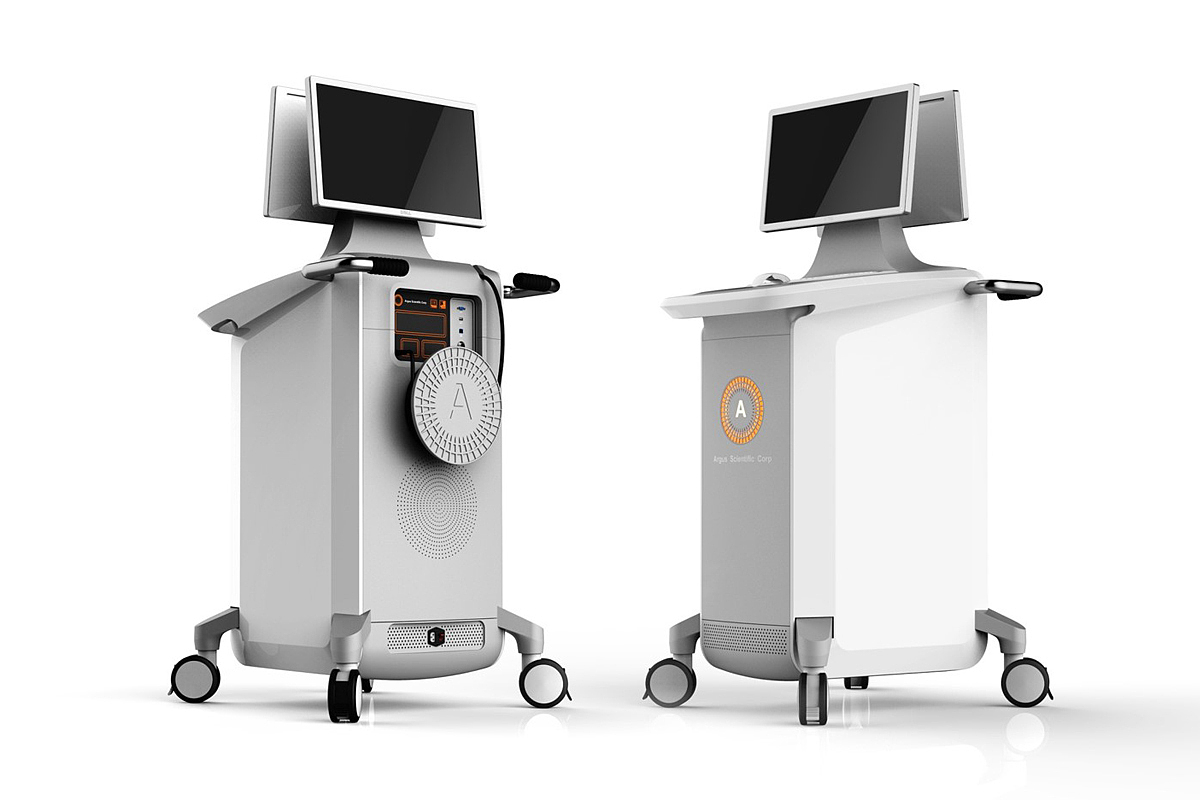

The front and rear handles are convenient for front and rear operation, and the status light is designed as a luminous logo, which is more recognizable. The mouse gold plate table top and the body are well integrated, and the front handle is also well integrated into the table top. The rear handle is more and more abrupt. However, in order to facilitate the operation of the rear personnel interface, a 2-stage design is adopted.

In order to ensure the stability of the operator's foot space and the table body, the four legs are designed with eight corners outside. The winding reel is also designed in logo form, which is more and more abrupt. In the later period, it was canceled due to the small winding radius and inconvenience. The rear heat dissipation hole also adopts a circular design, which is consistent with the logo. The monitor stand customer requires that it must be hidden, so the one-piece design is slightly stupid.

In order to ensure the convenience of the socket panel when disassembling the rear plate, the socket panel is fixed on the internal frame and can be separated from the rear cover plate.

Although the above case is not the solution adopted by the customer (the customer thinks it lacks the sense of equipment), the whole shape is simple and smooth, in line with the temperament of medical products, so it is posted and communicated with everyone!
