Status: Listed
Modeling: Creo3.0
Rendering: Keyshot 9.0
Time: 2019

This is the first winning design in the old employer Stone Smart Industry Design. It feels like time flies.

The domestic pelvic floor muscle treatment instrument is suitable for pelvic floor pain, high muscle tension, vaginal relaxation, urgency/stress/mixed urinary incontinence, moderate prolapse, etc.; it has multiple treatment modes, and the system is preset for different patients Dozens of treatment plans;

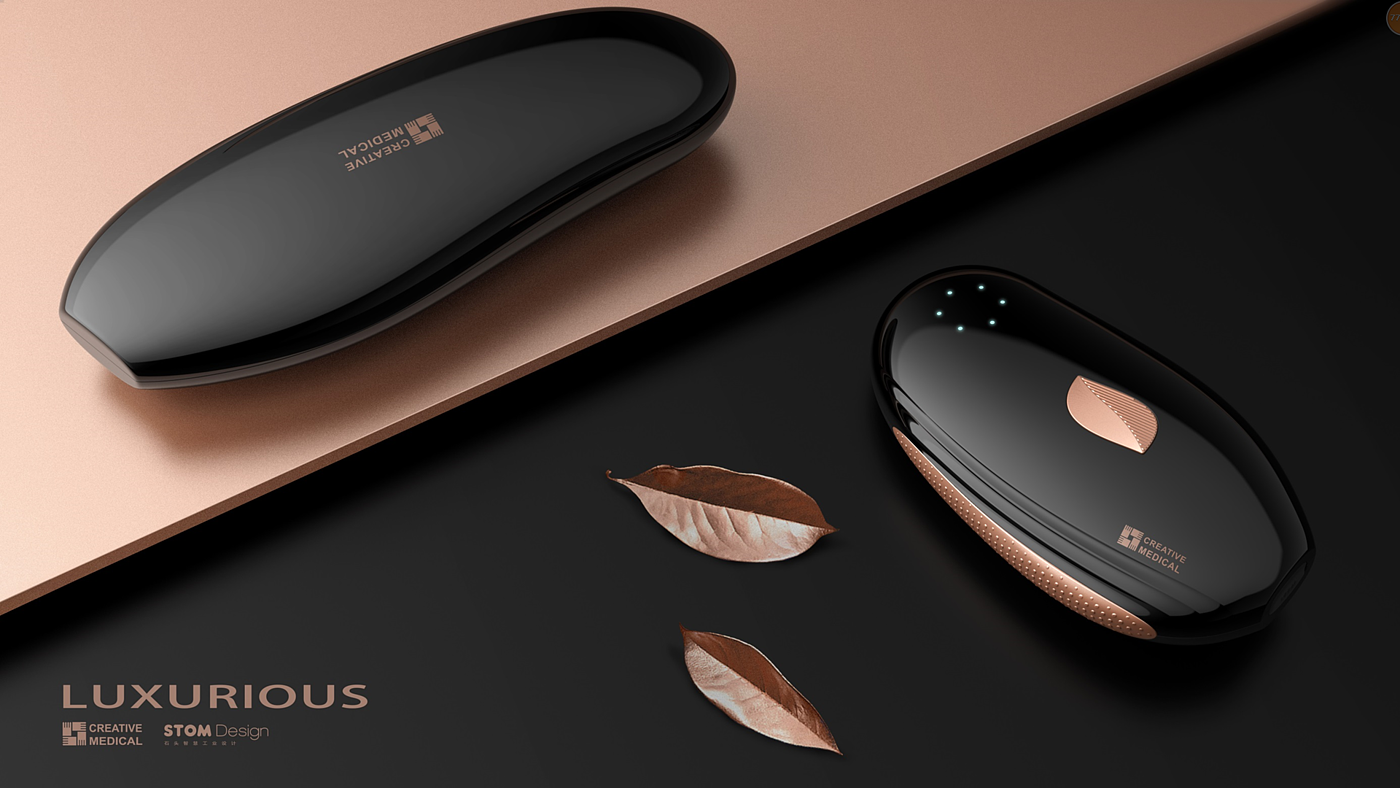

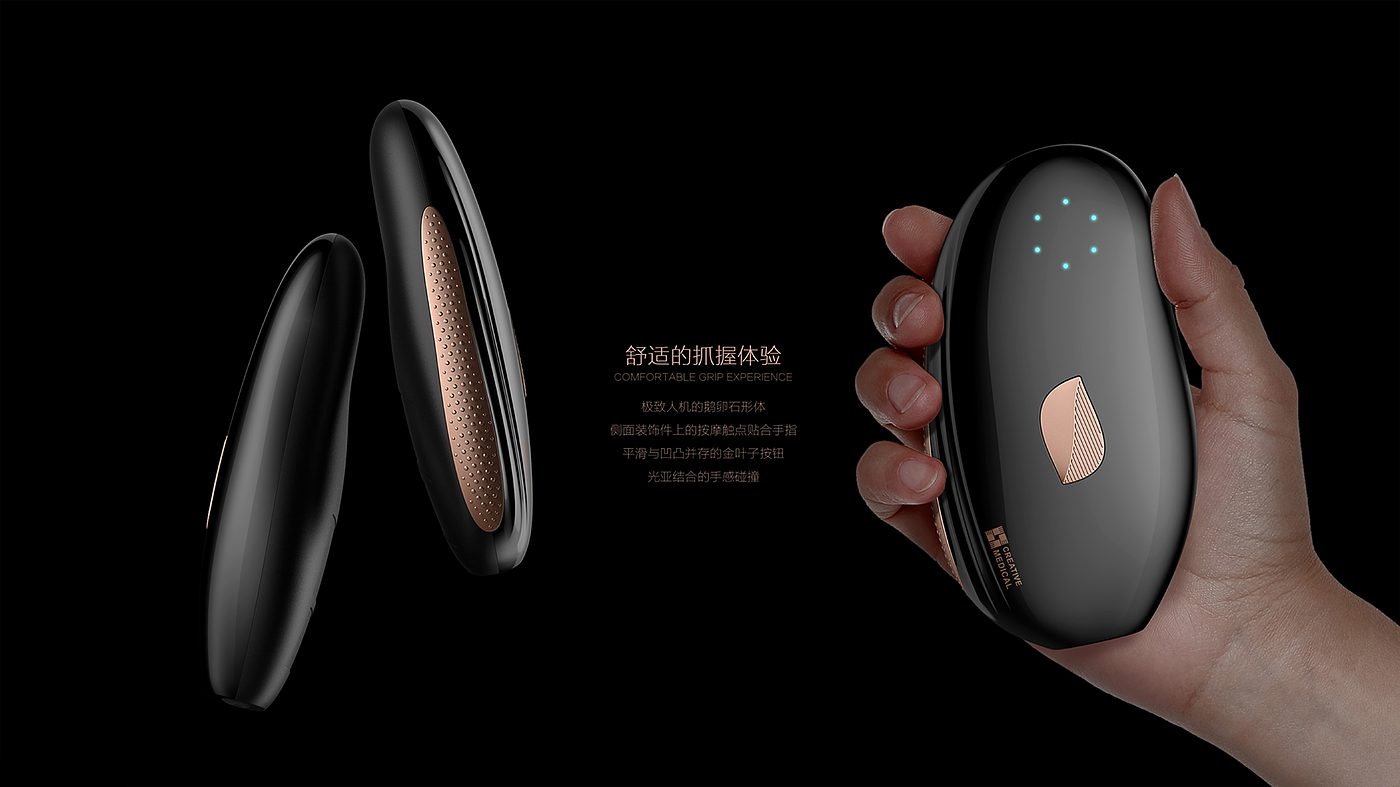

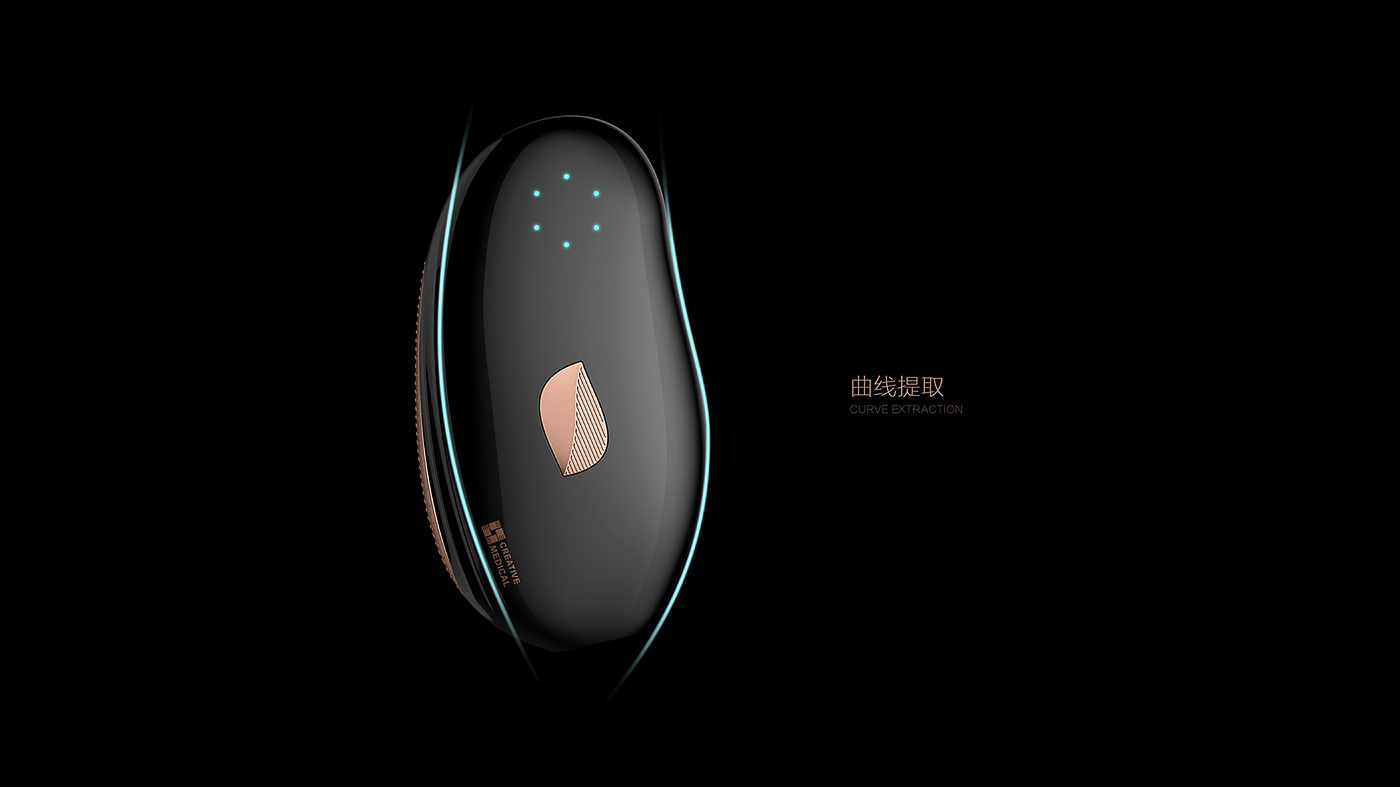

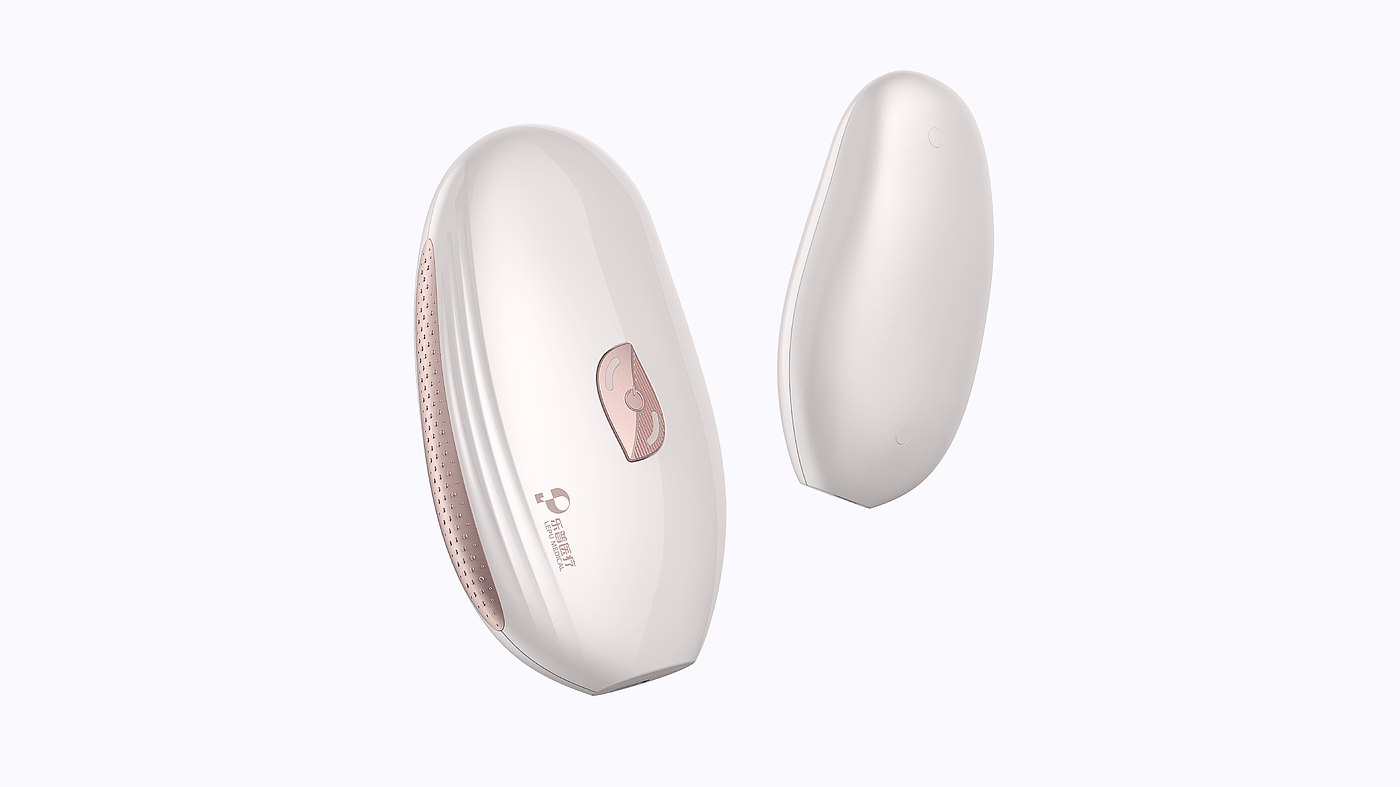

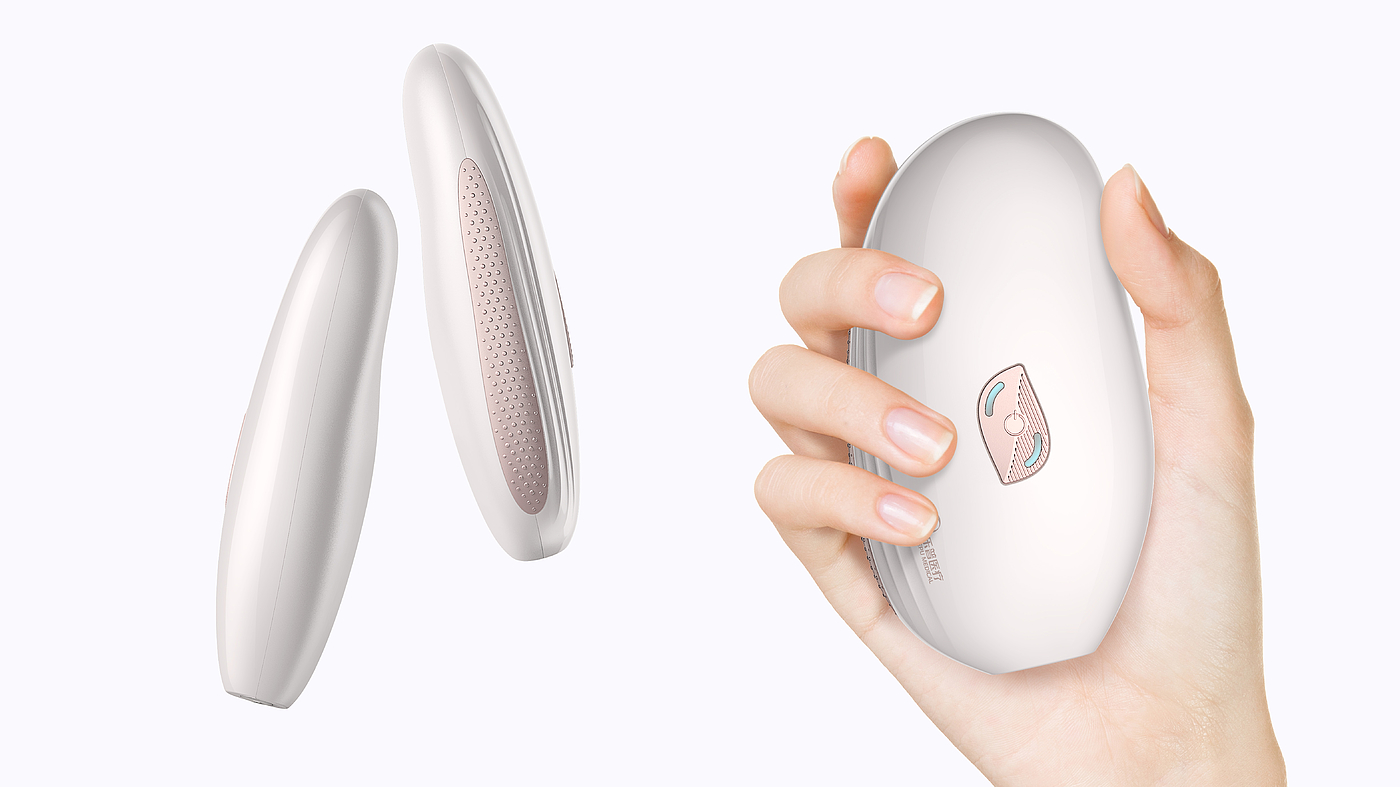

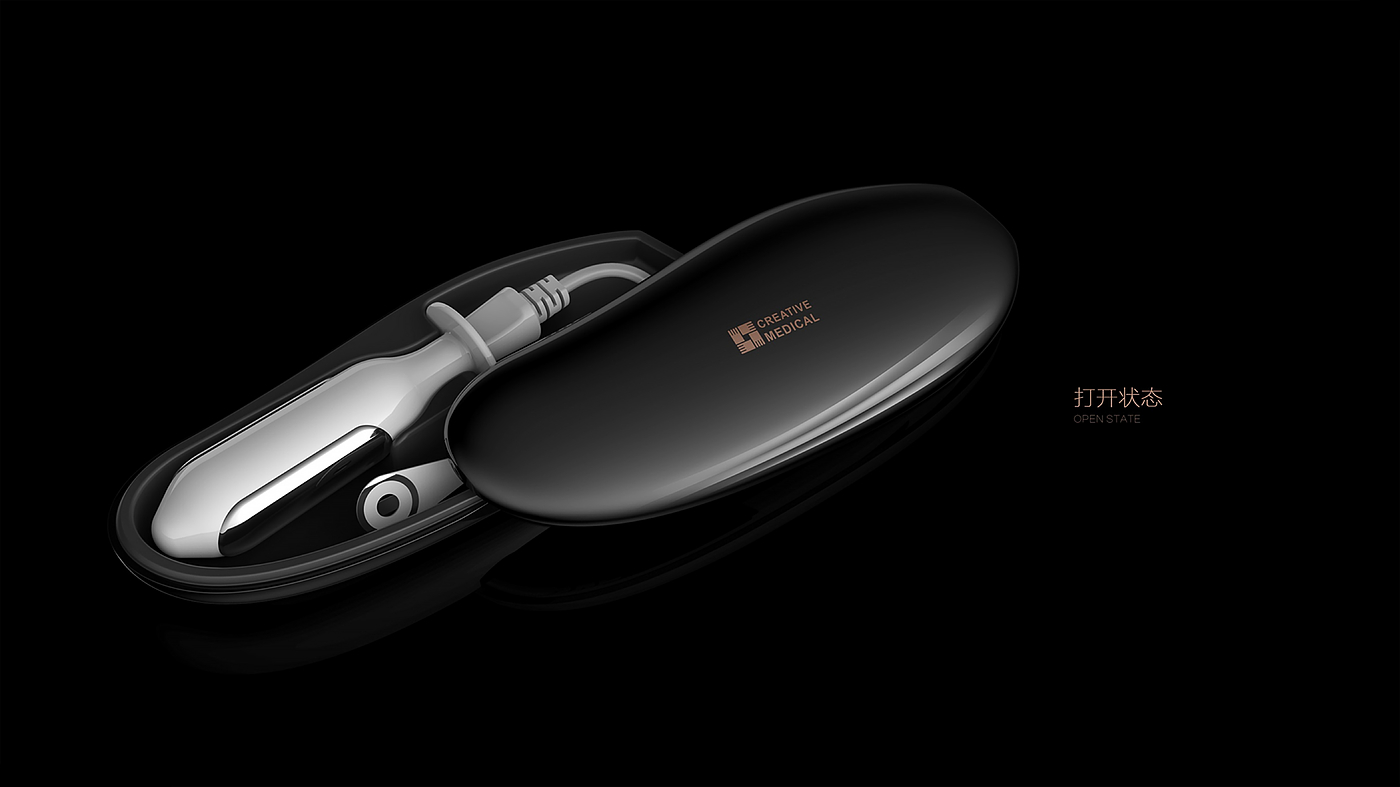

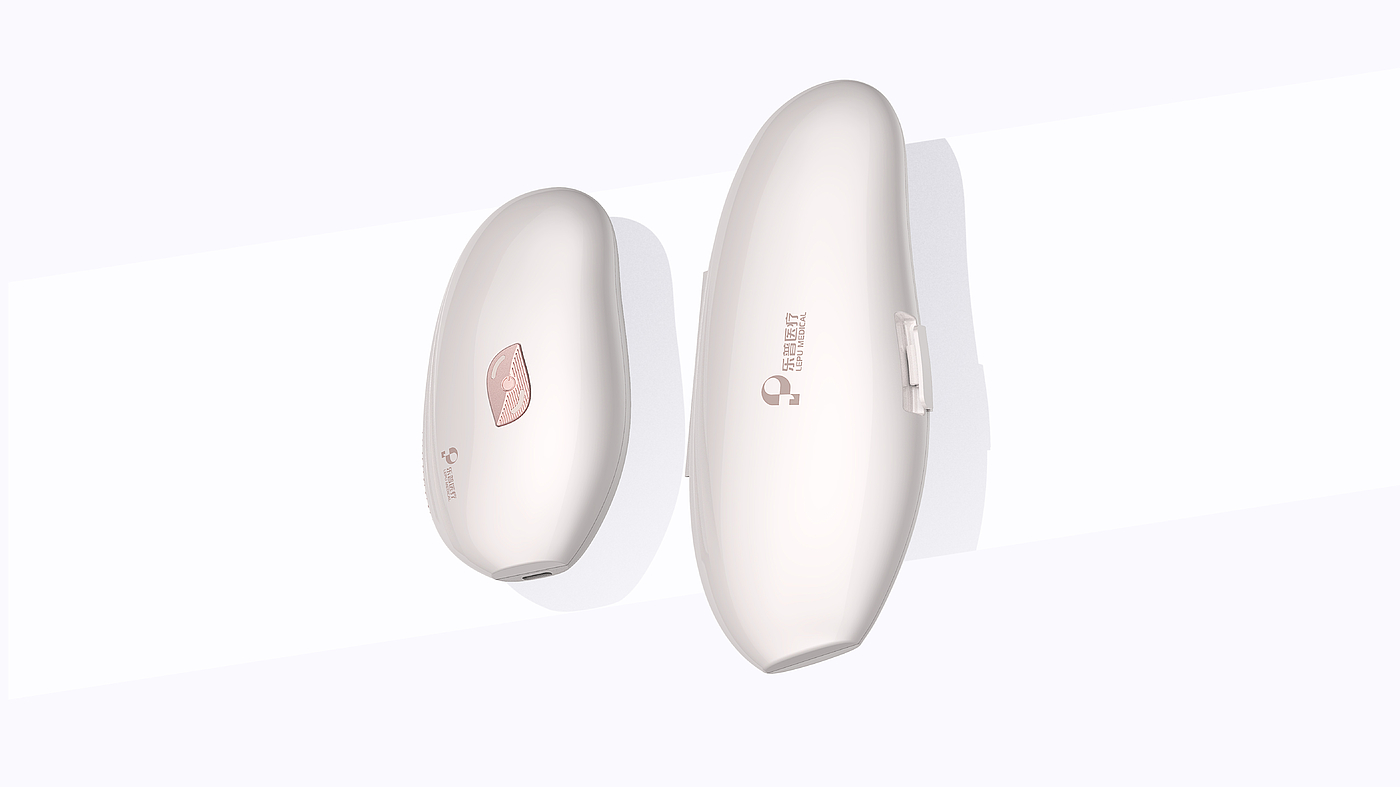

The appearance extracts the female waist line, and the gold leaf button implicitly reflects the target part of the product. The asymmetric shape not only has the curved beauty of women, but also fits the palm of the hand very well, and at the same time takes into account the operation experience of the left and right hands. The accessory box adopts the same body elements and echoes the host computer.

The following is a partial draft drawing.
