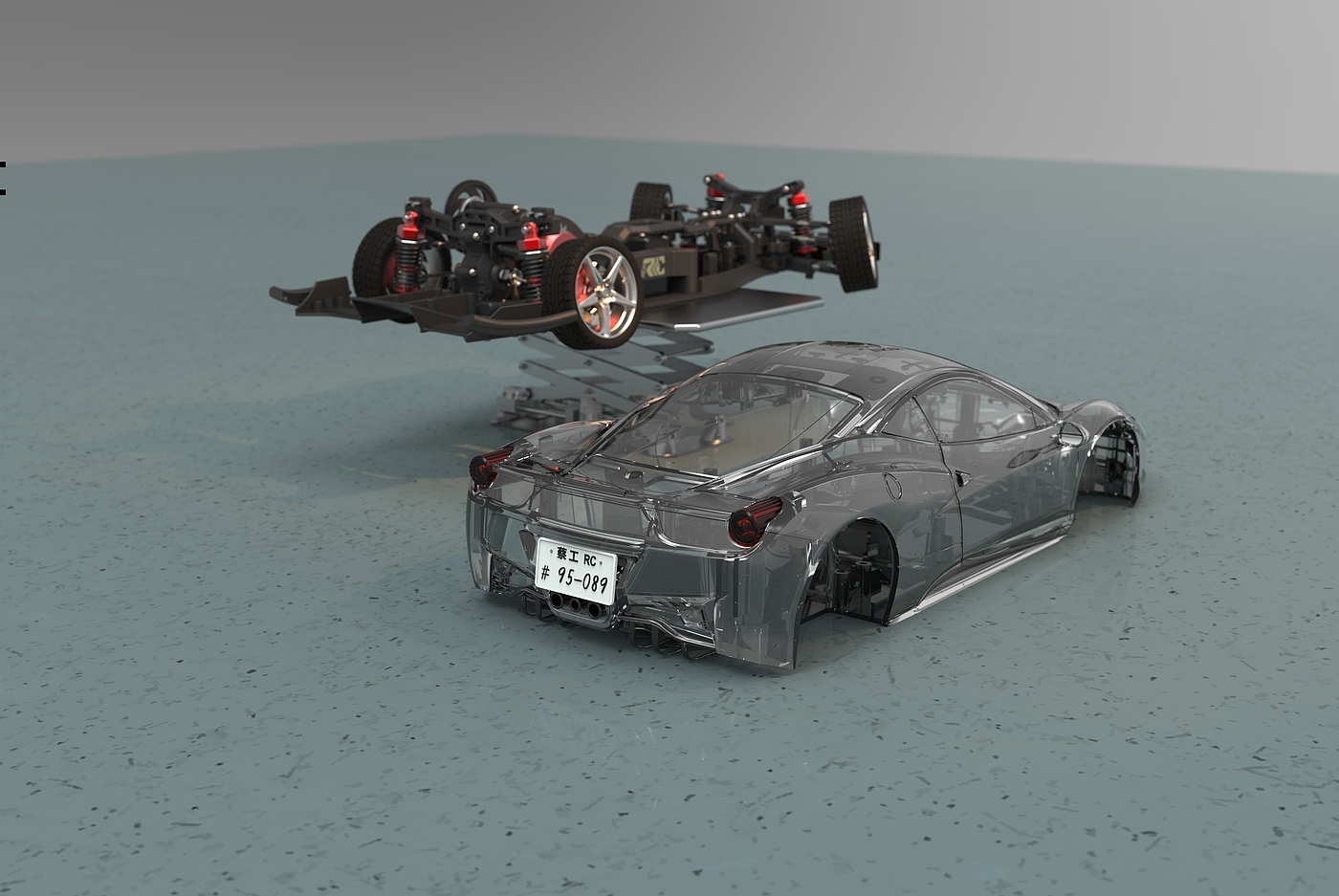

RC drift car 10 scale simulation frame

2021-04-21 Automotive Design 3728 9 30

EGOG

China · Digital Intelligence

The full name of RC is radio control, so in a sense, as long as it is a radio control model, it can be called RC. RC includes car models, ship models, and aircraft models. RC car models have the same mechanical principles as real cars, similar structure and handling characteristics, and amazing speed and posture that make super sports cars feel inferior! The main difference between hundreds of RC and tens of thousands of RC lies in: ① different groups of people; ② different materials and precision of parts; ③ high and low performance of electronic equipment; ④ rationality of frame structure and different simulation degree. I mainly play 1:10 RC drift. Therefore, I 'd like to tell you about drift (the reason why I don't play with real cars: it's too dangerous to play with one). The following pictures and texts are explained slowly

vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,

Drift is actually a "controlled slip". Car skidding means loss of control for most people. The same is true for drift. If you cannot "control the slip", you cannot make a beautiful drift. When drifting and cornering, the front wheels can always maintain the reverse direction. Rear-drive vehicles are born with the characteristics of "oversteer", that is, rear-drive vehicles can make the action of "running faster than the front of the car", thus having the characteristics of "natural tail flick. So there is the product of "anti-tire.
The anti-tire RC drift car is not a "rear drive" in the strict sense, but a "simulated rear drive" four-wheel drive system.

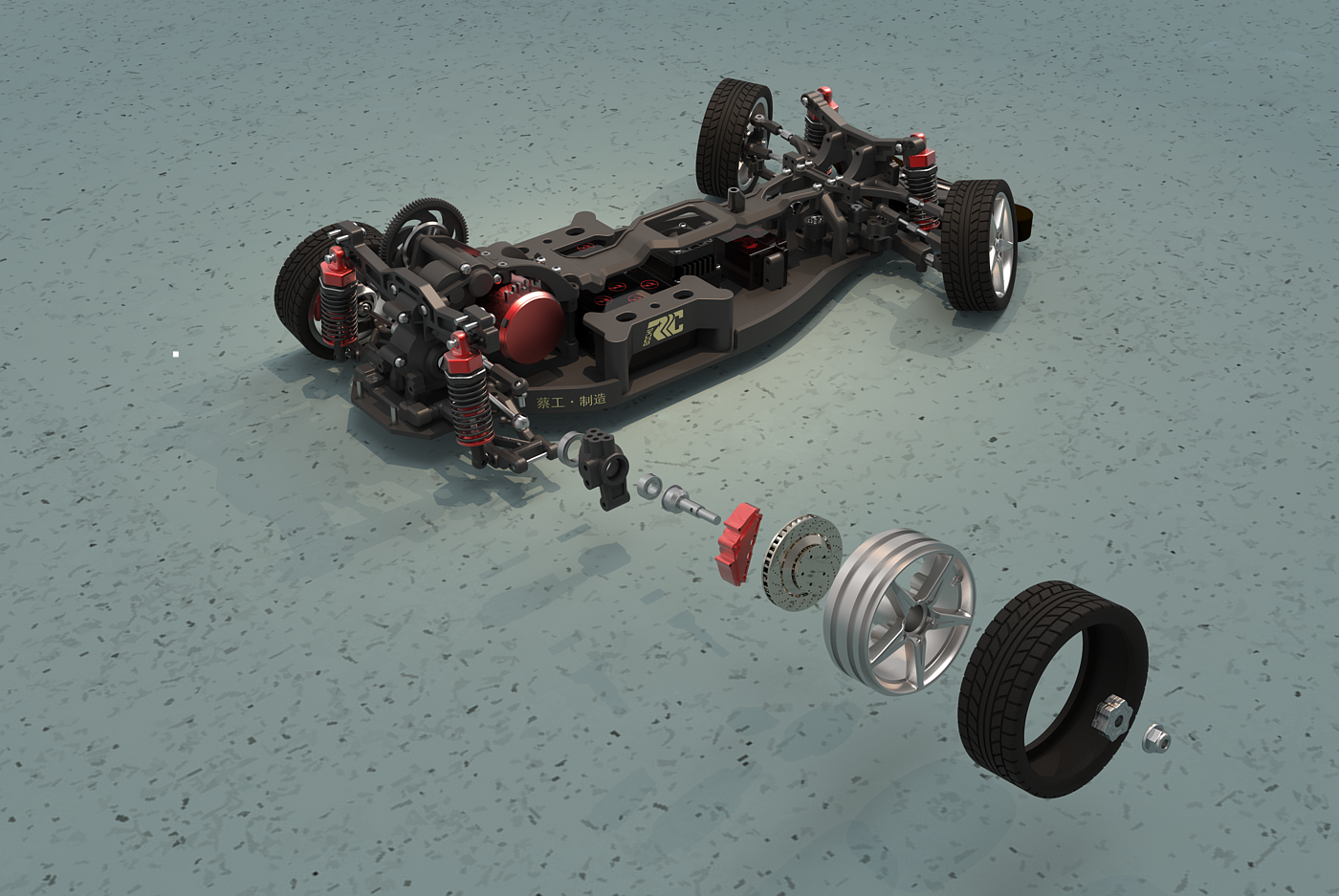

Simulation tire disassembly diagram

vehicle,RC,Remote control model,vehicle,

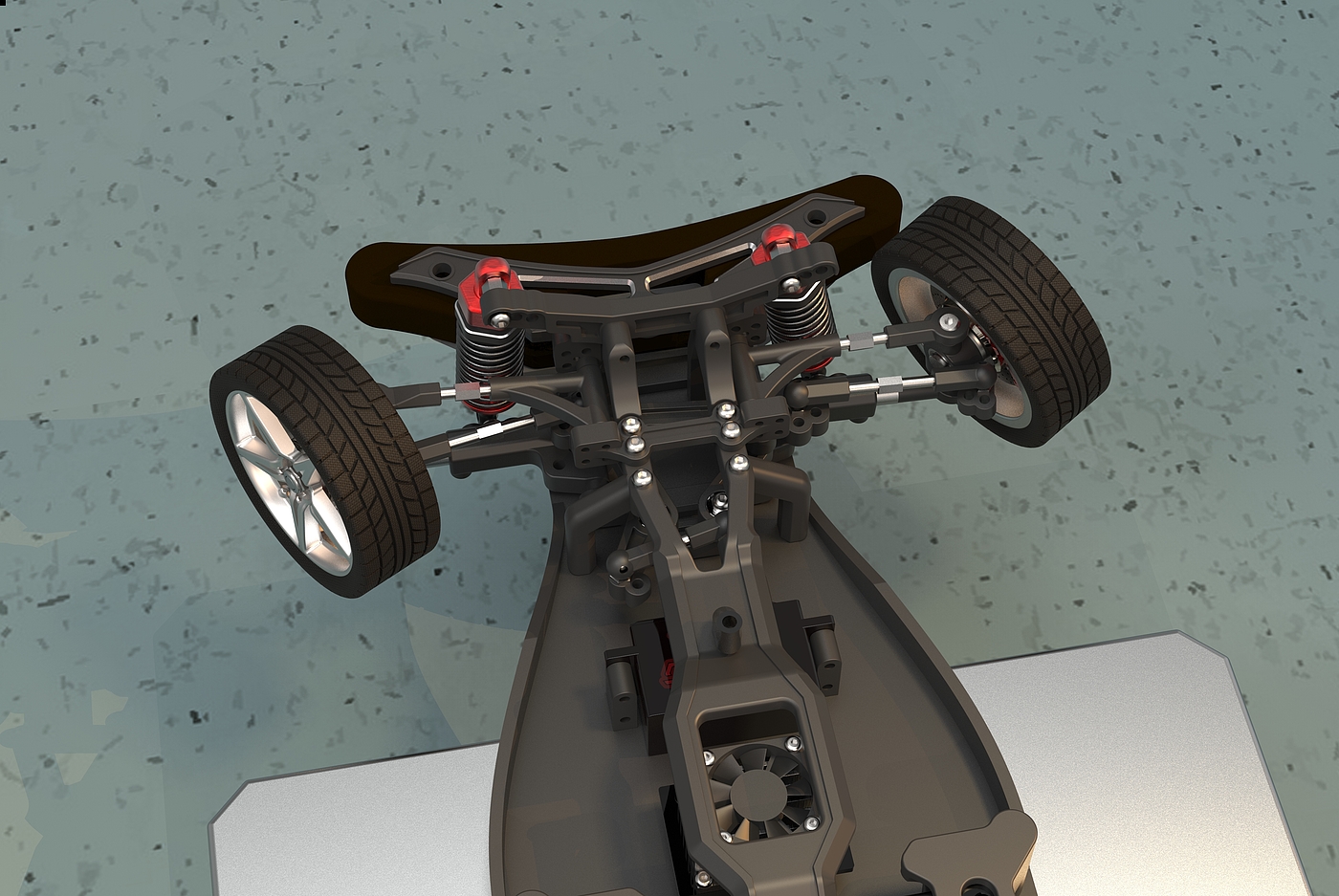

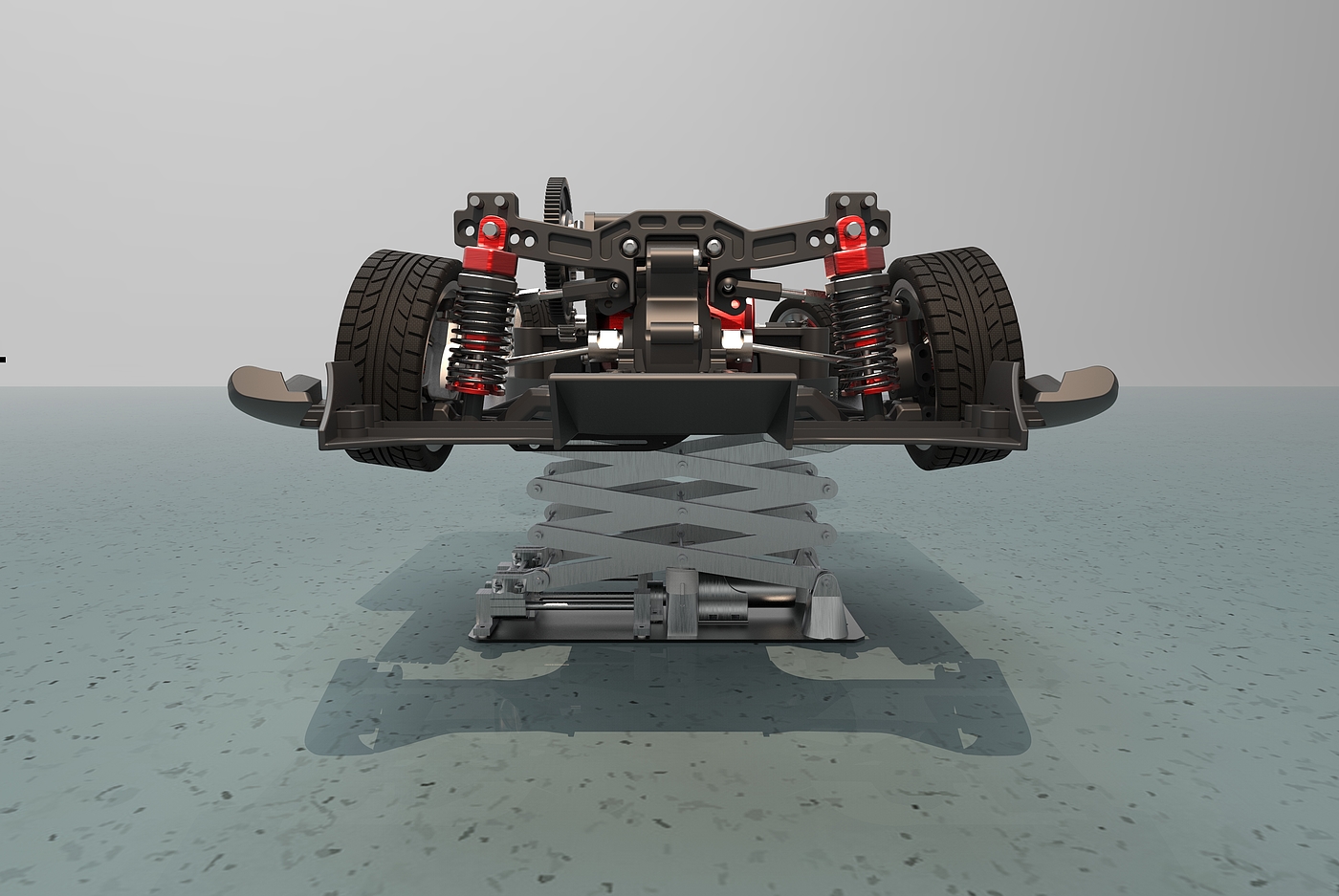

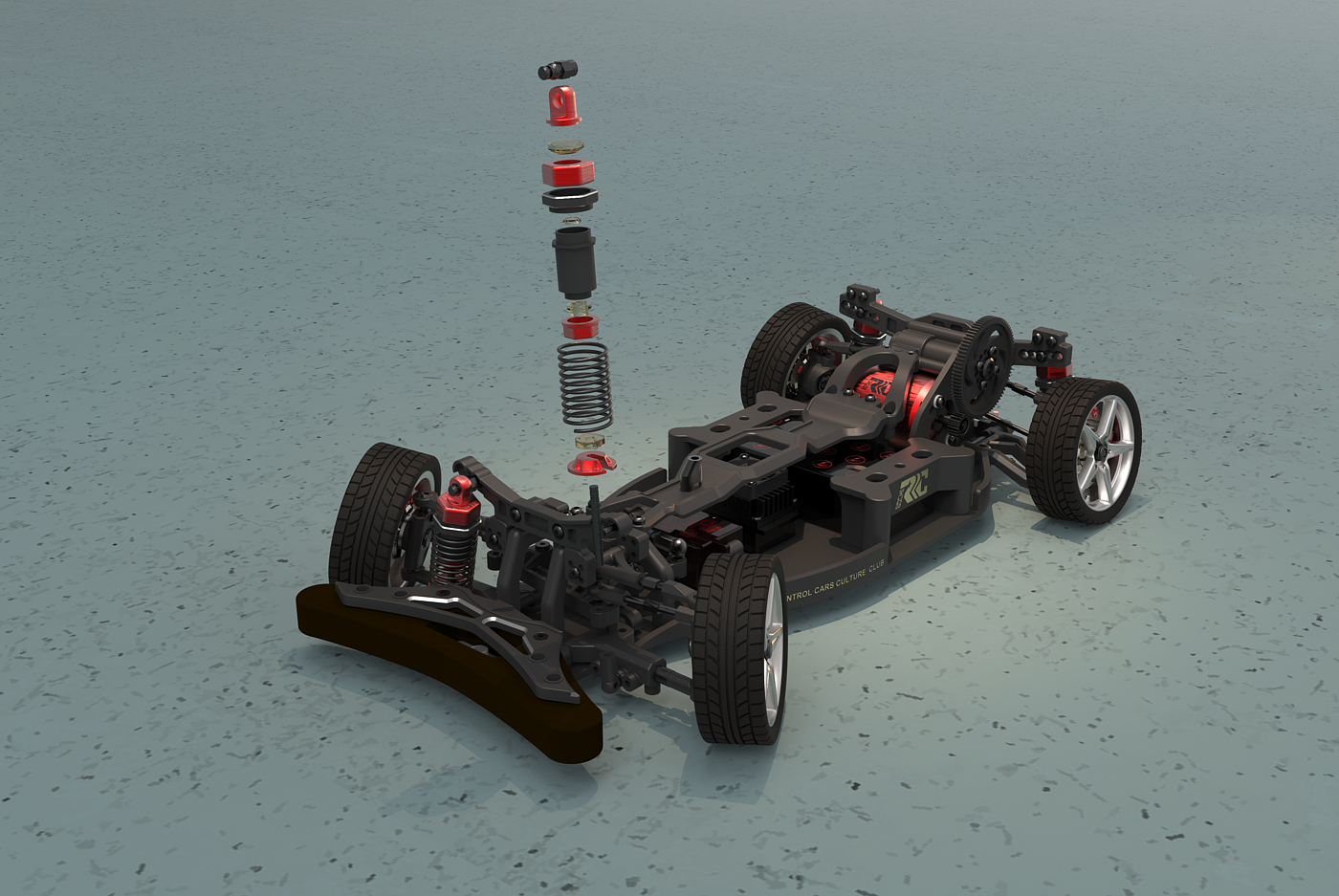

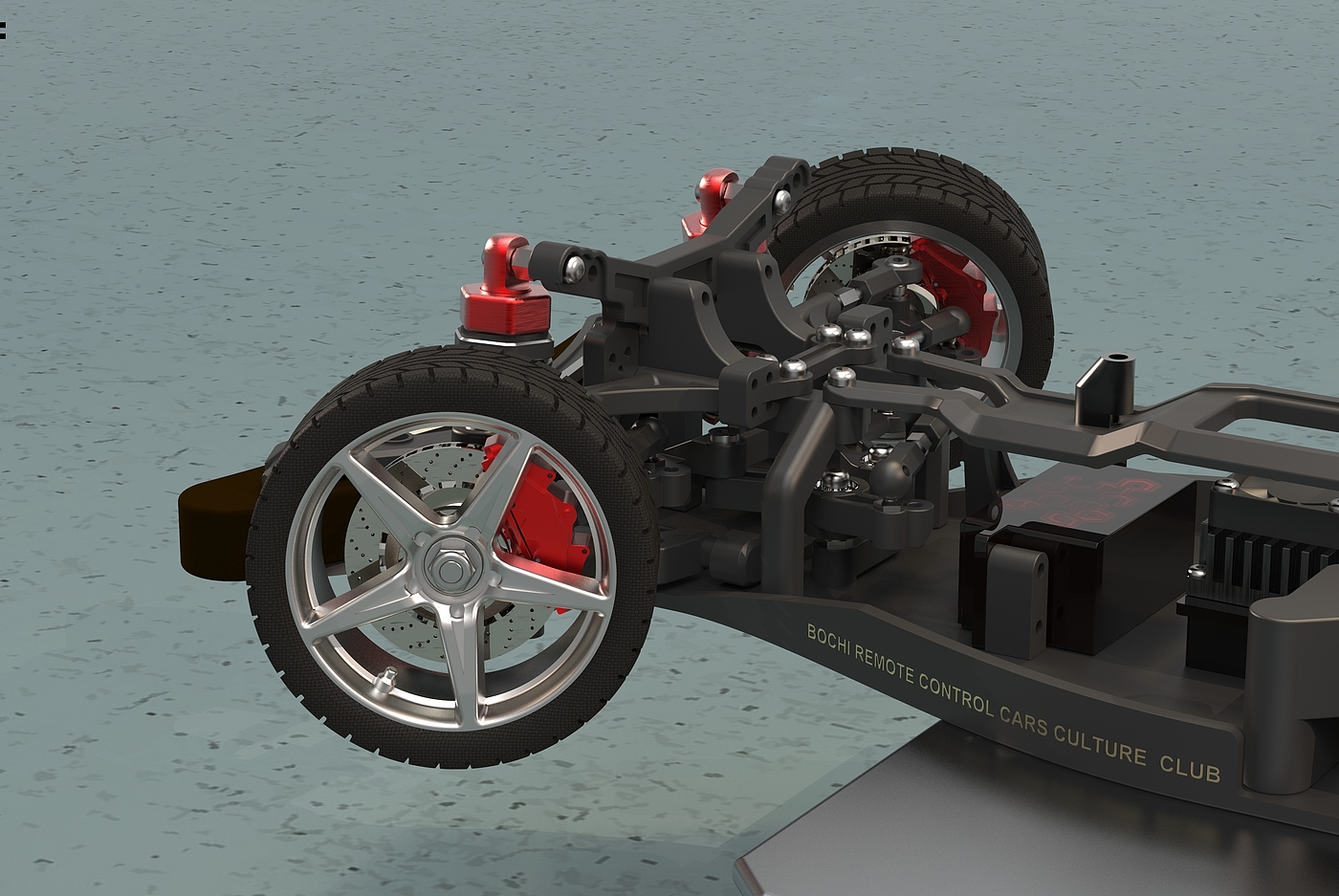

Dismantling Diagram of Simulation Suspension

vehicle,RC,Remote control model,vehicle,

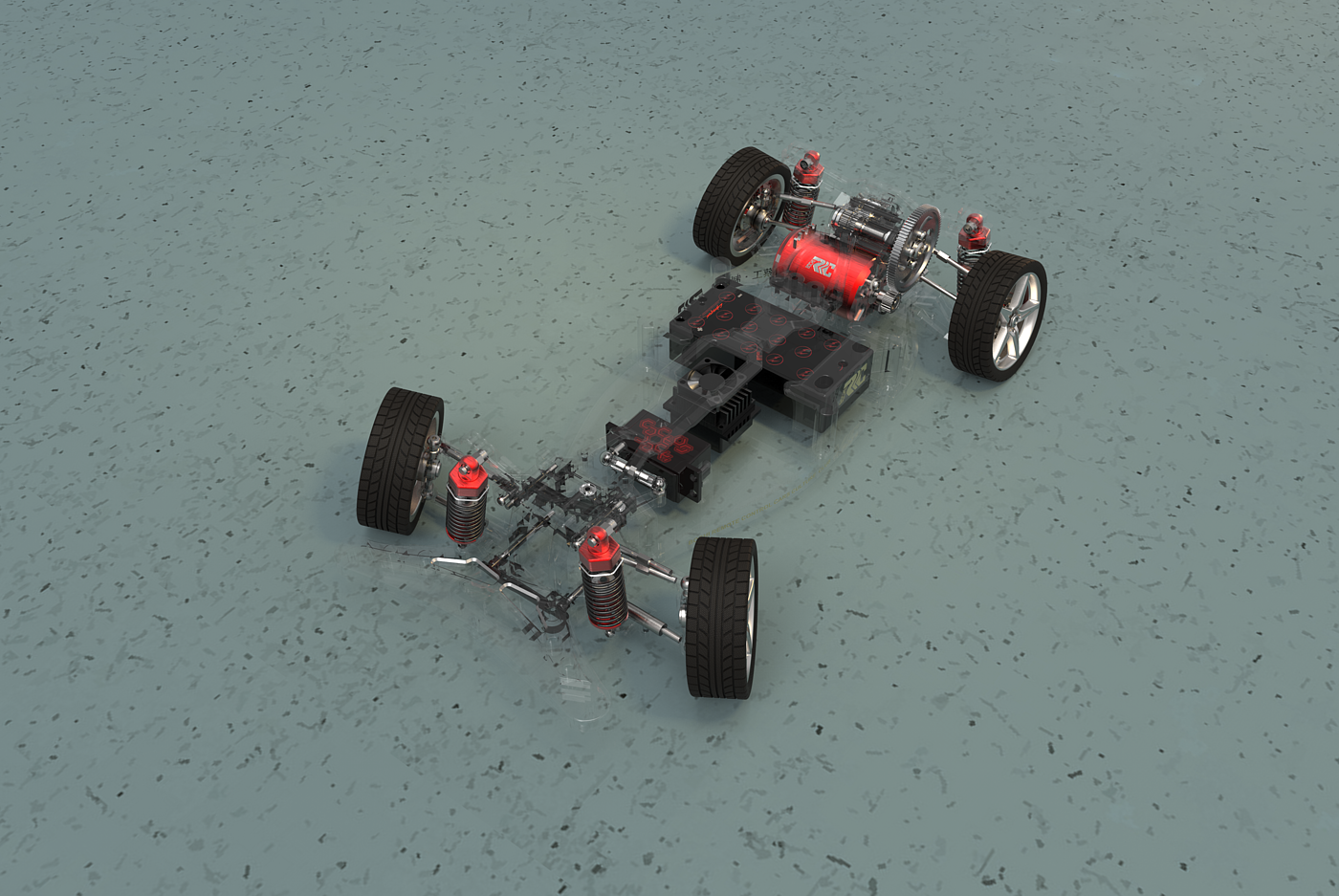

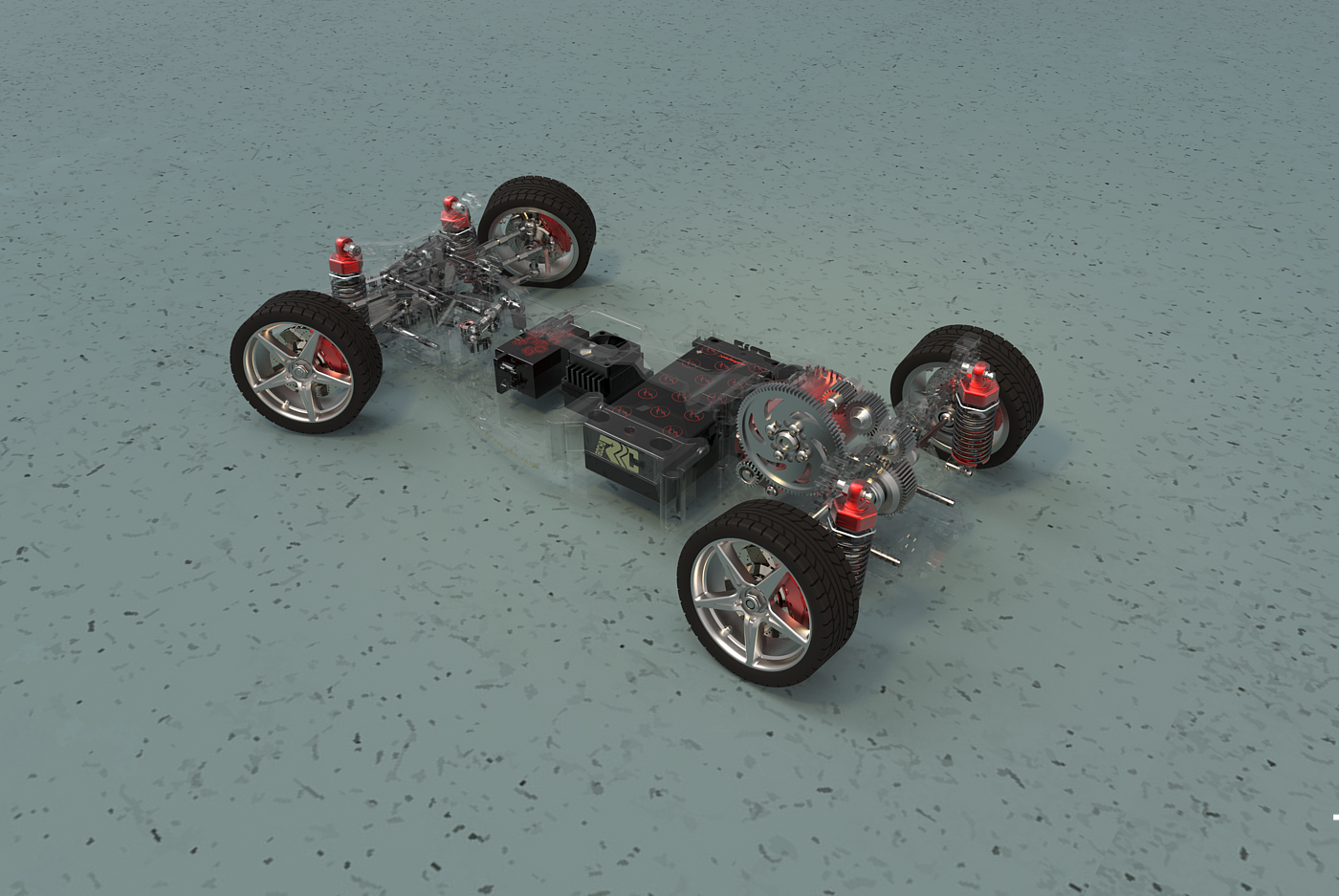

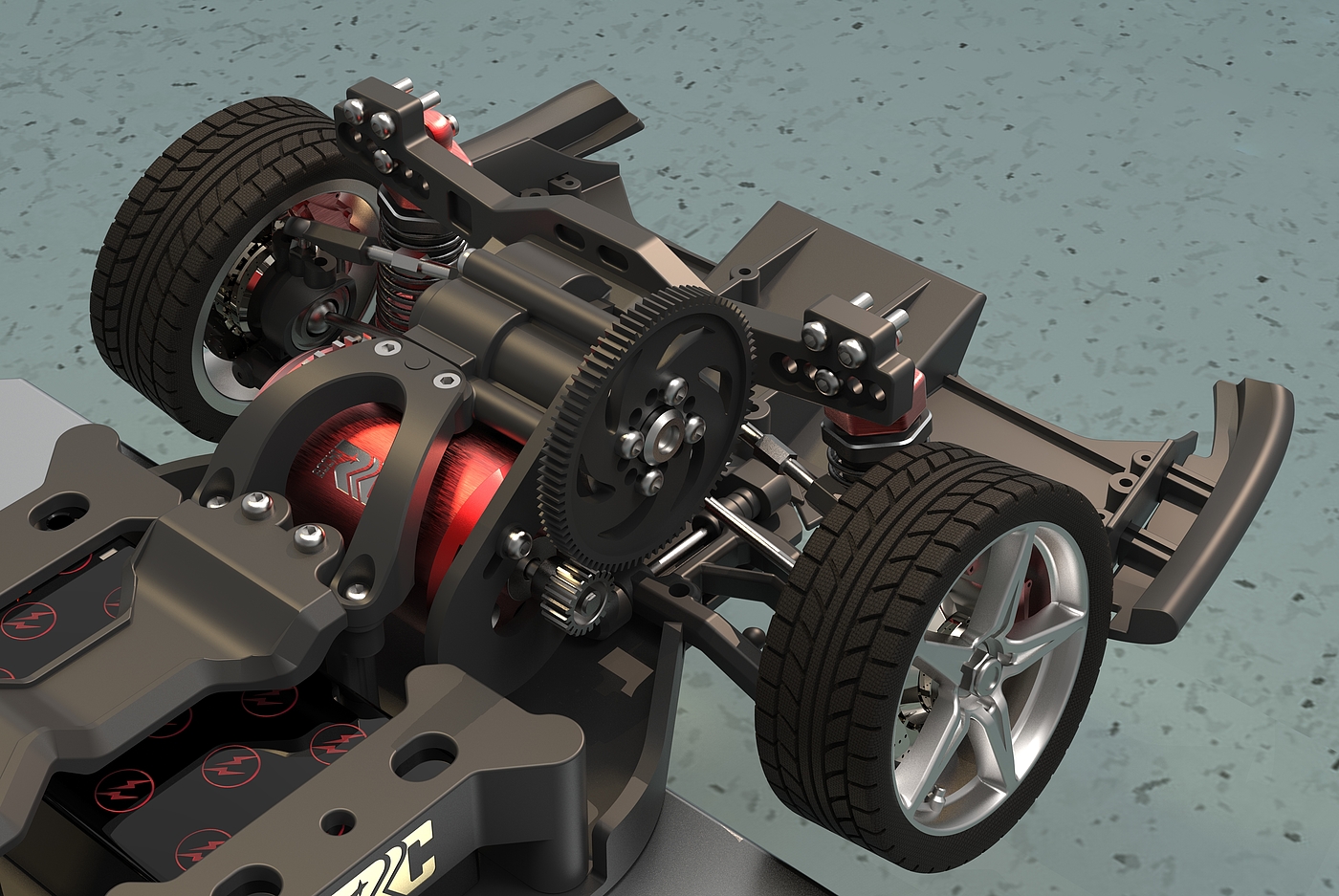

Power system

vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,

The principle of anti-tire is to change the transmission ratio of the front and rear wheels by changing the transmission teeth on the car, so that the speed of the rear wheels is higher than that of the front wheels. For example, the motor drives the front wheel to make one turn and the rear wheel to make 1.5 turns. Then the "anti-tire ratio" of this car is 1.5. The rear wheels turn faster than the front wheels, so that the rear of the car will actively slip and force the front wheels to reverse the direction to maintain the body's slip angle, such a perfect anti-tire drift is made. The greater the anti-tire ratio, the more "oversteer". The smaller the anti-tire ratio, the less obvious the "oversteer" characteristic. Therefore, the anti-tire drift car has one advantage that it can choose the appropriate anti-tire ratio according to its own operating requirements.

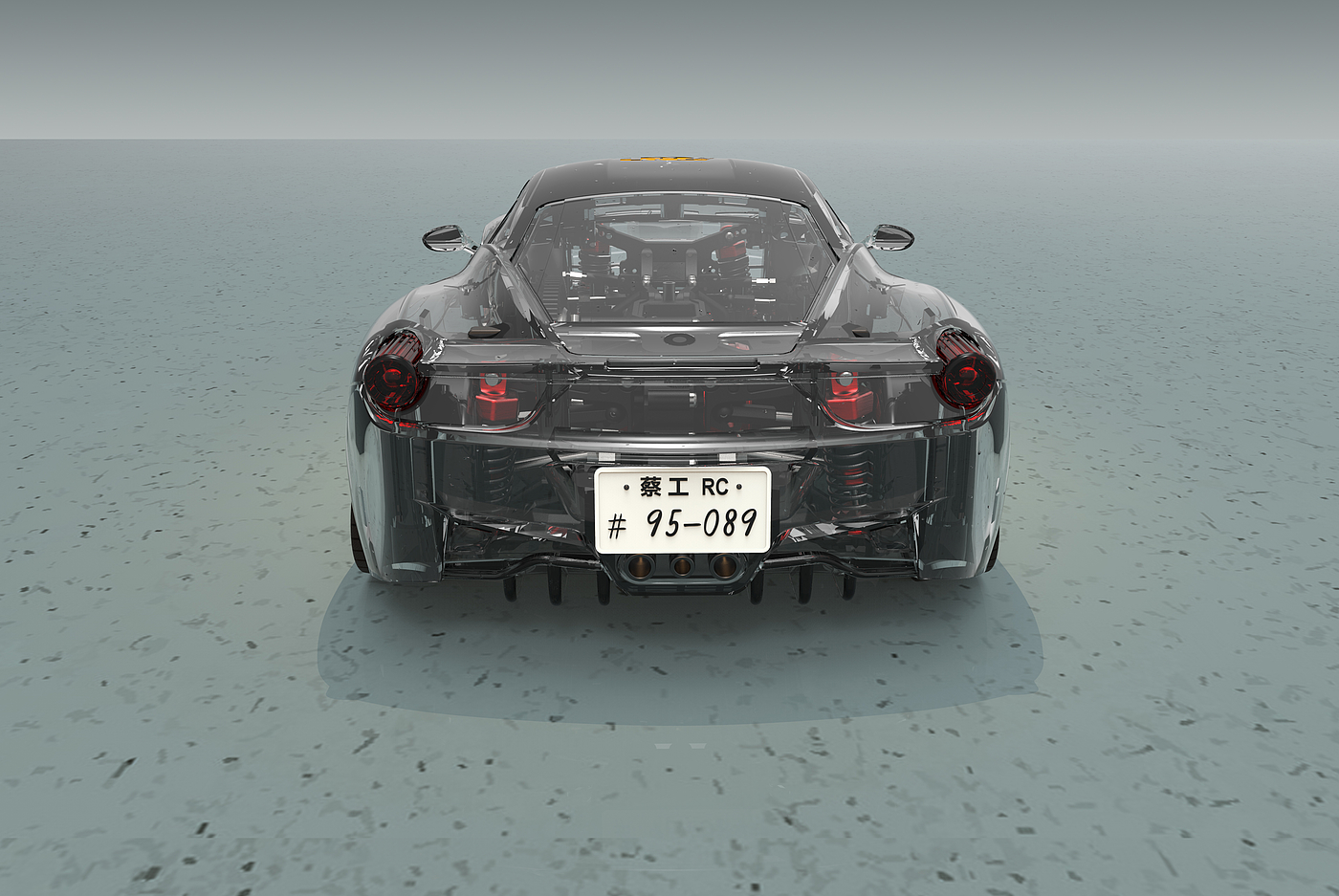

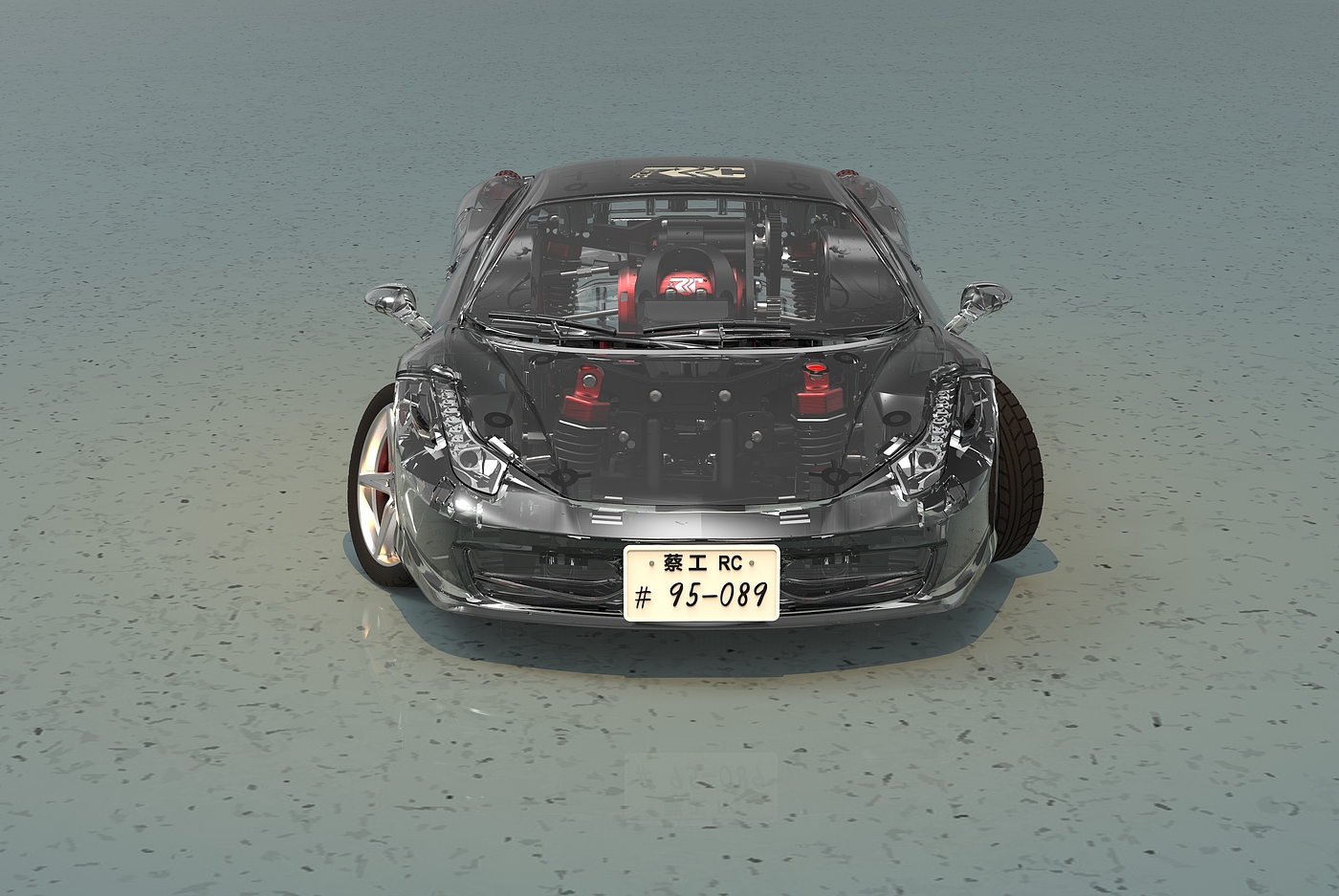

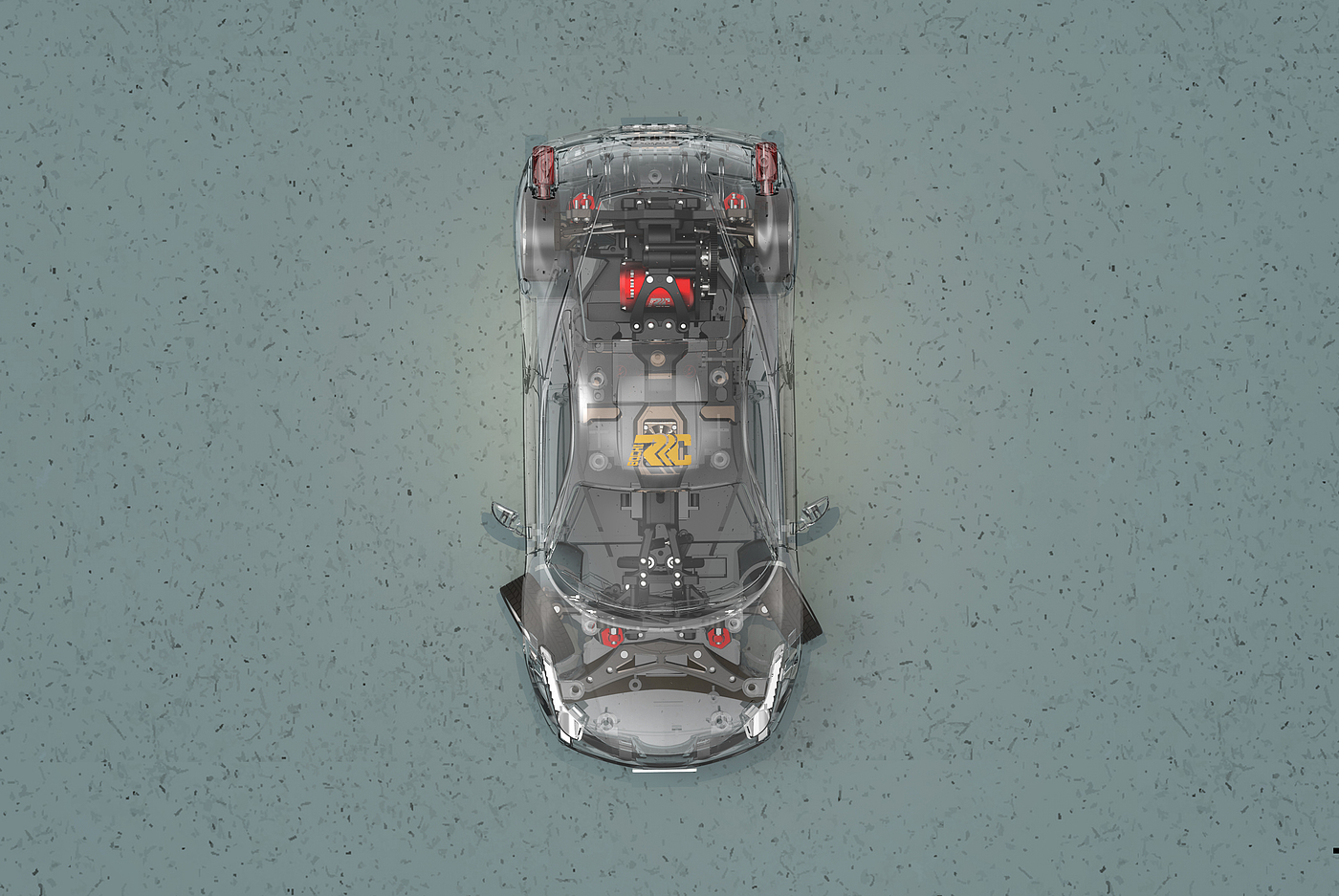

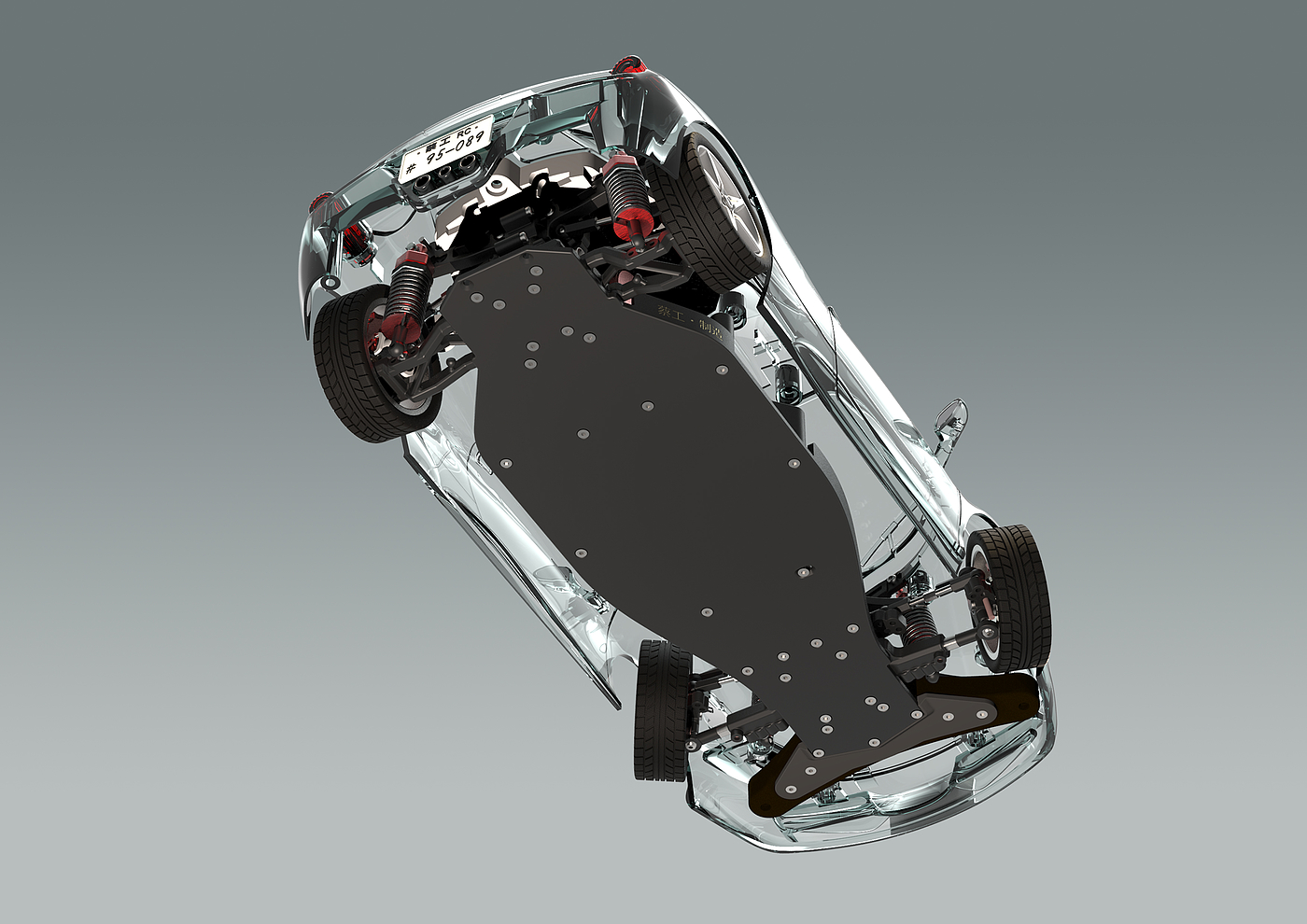

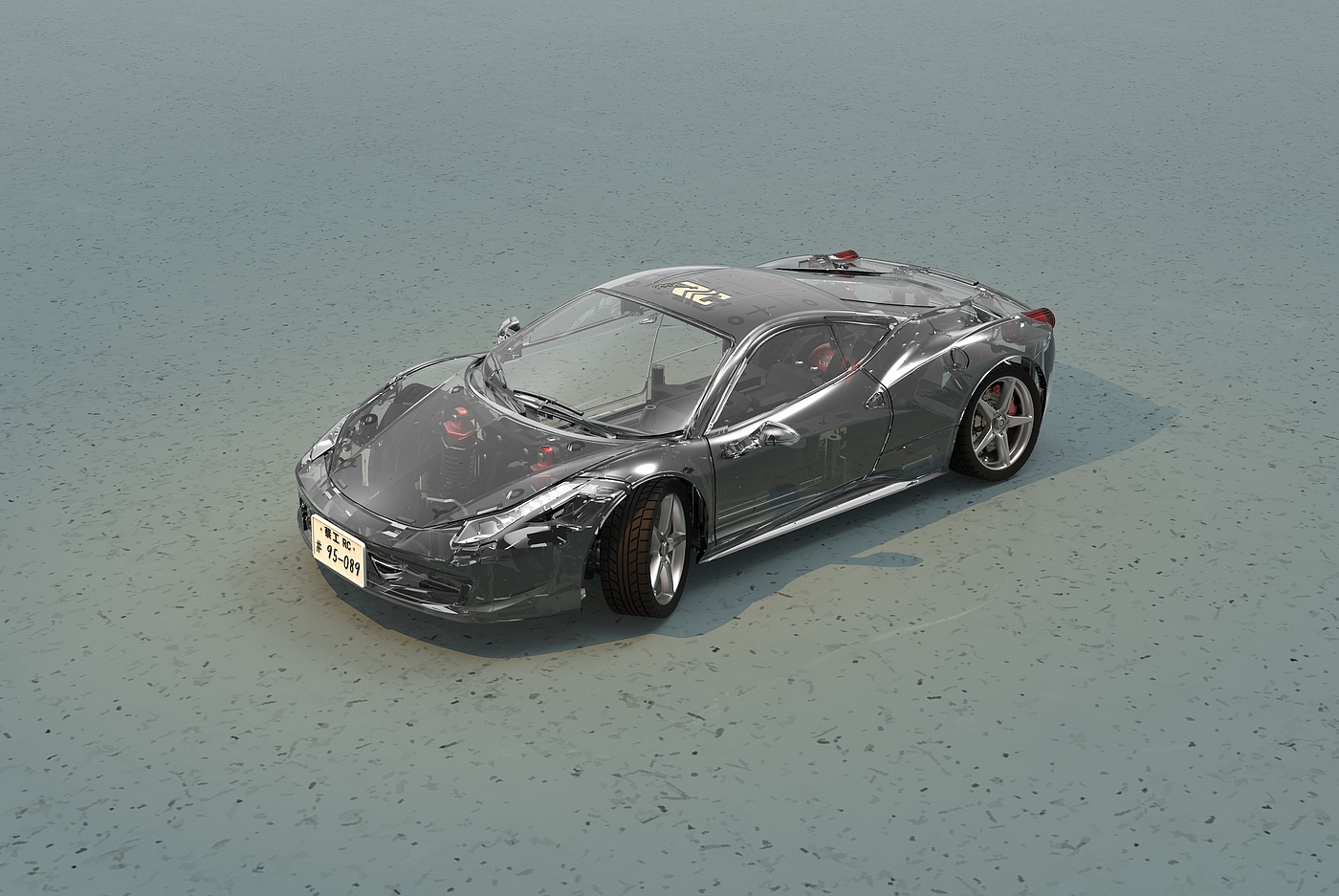

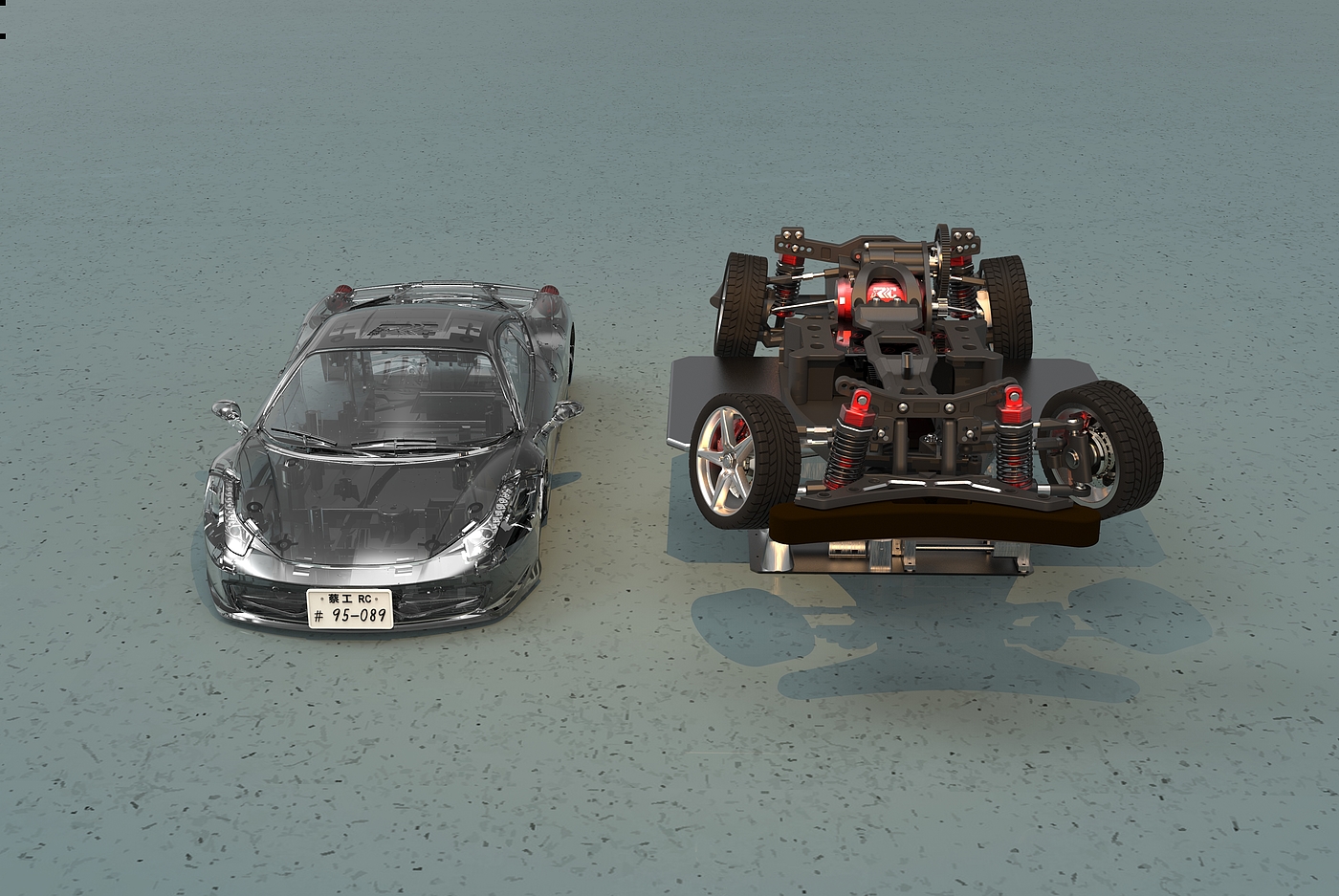

The product is equipped with a transparent car shell, which can be painted and painted and drawn on the hands of the player.

vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,

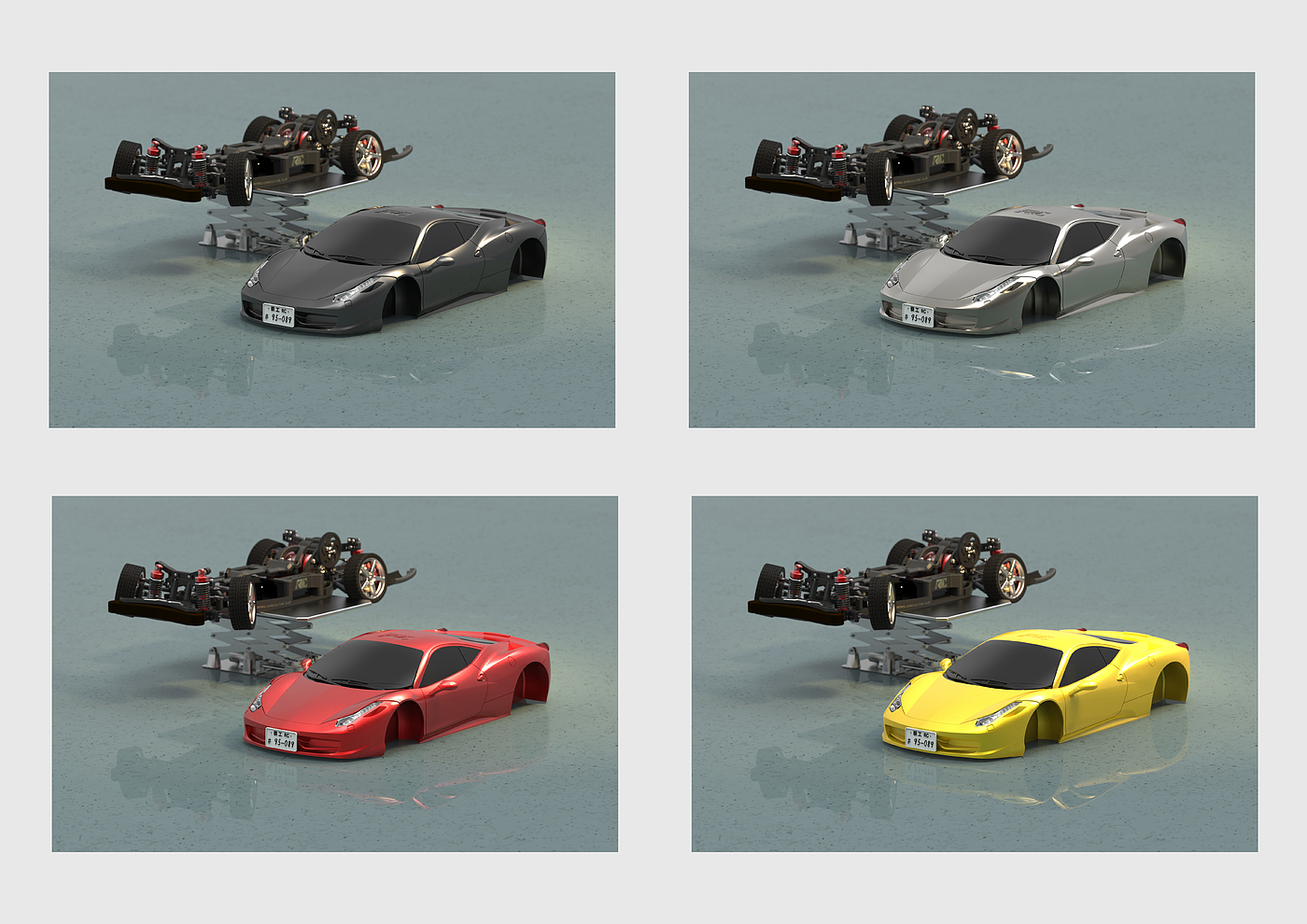

Official color reference: black, silver, red, yellow

vehicle,RC,Remote control model,vehicle,

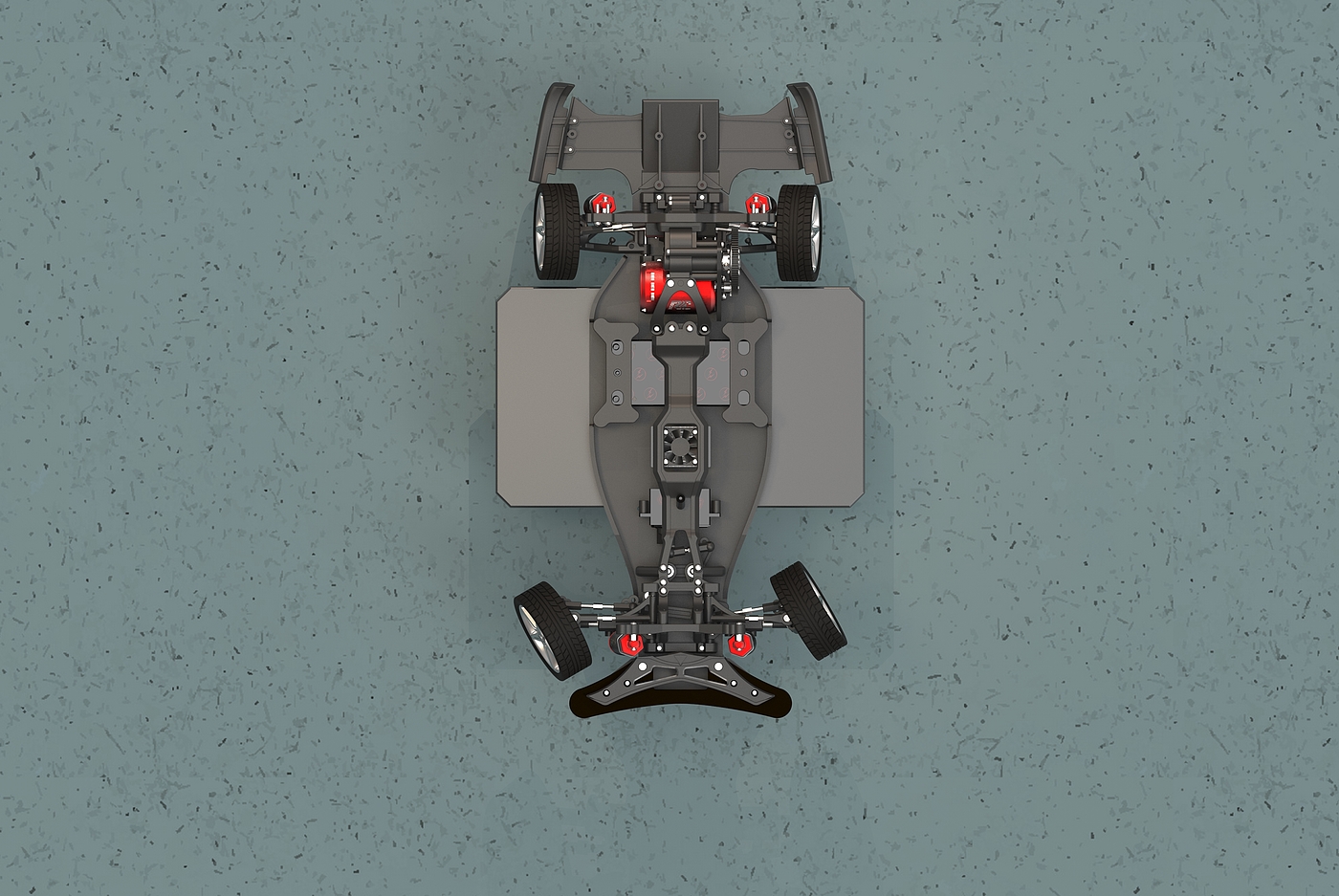

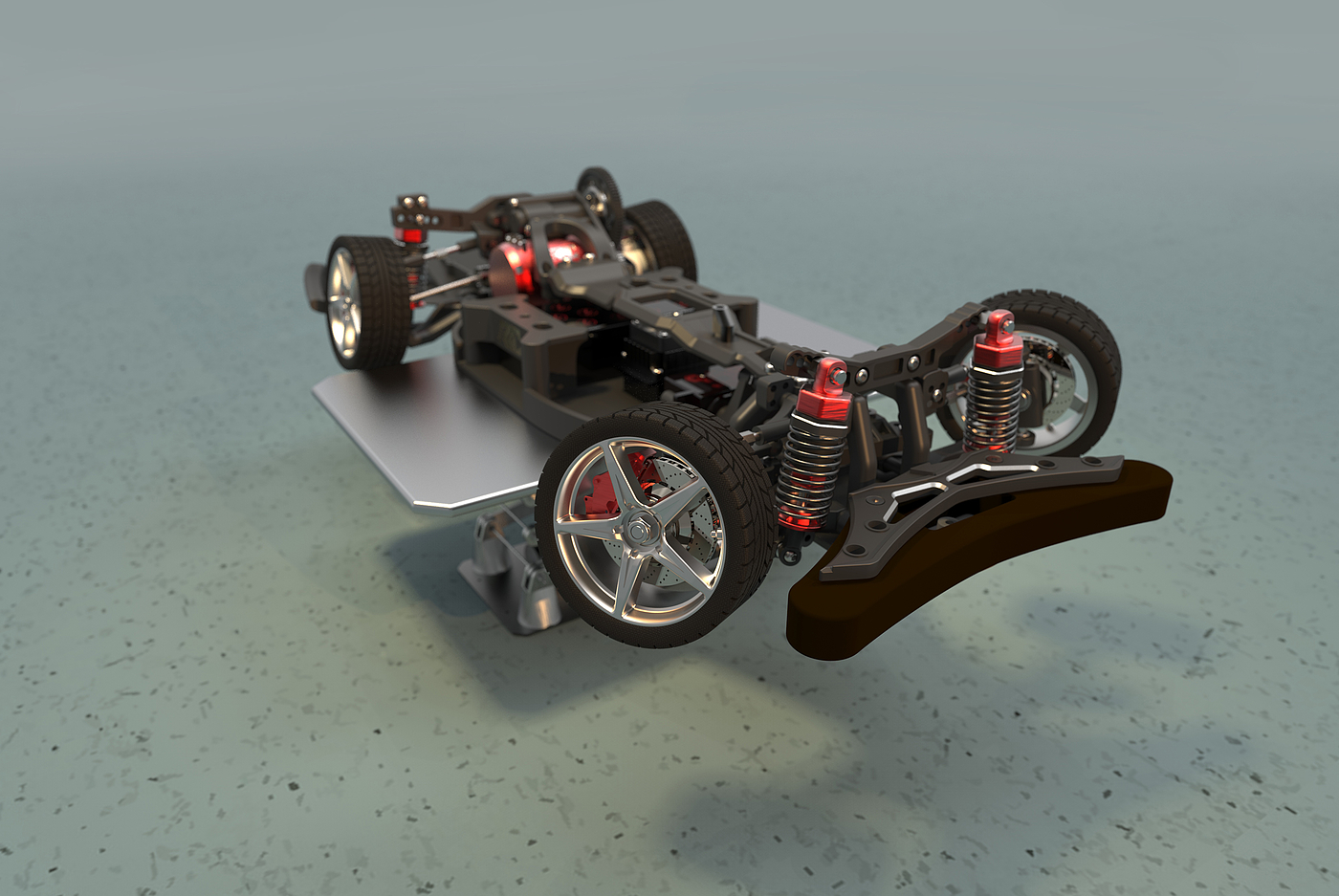

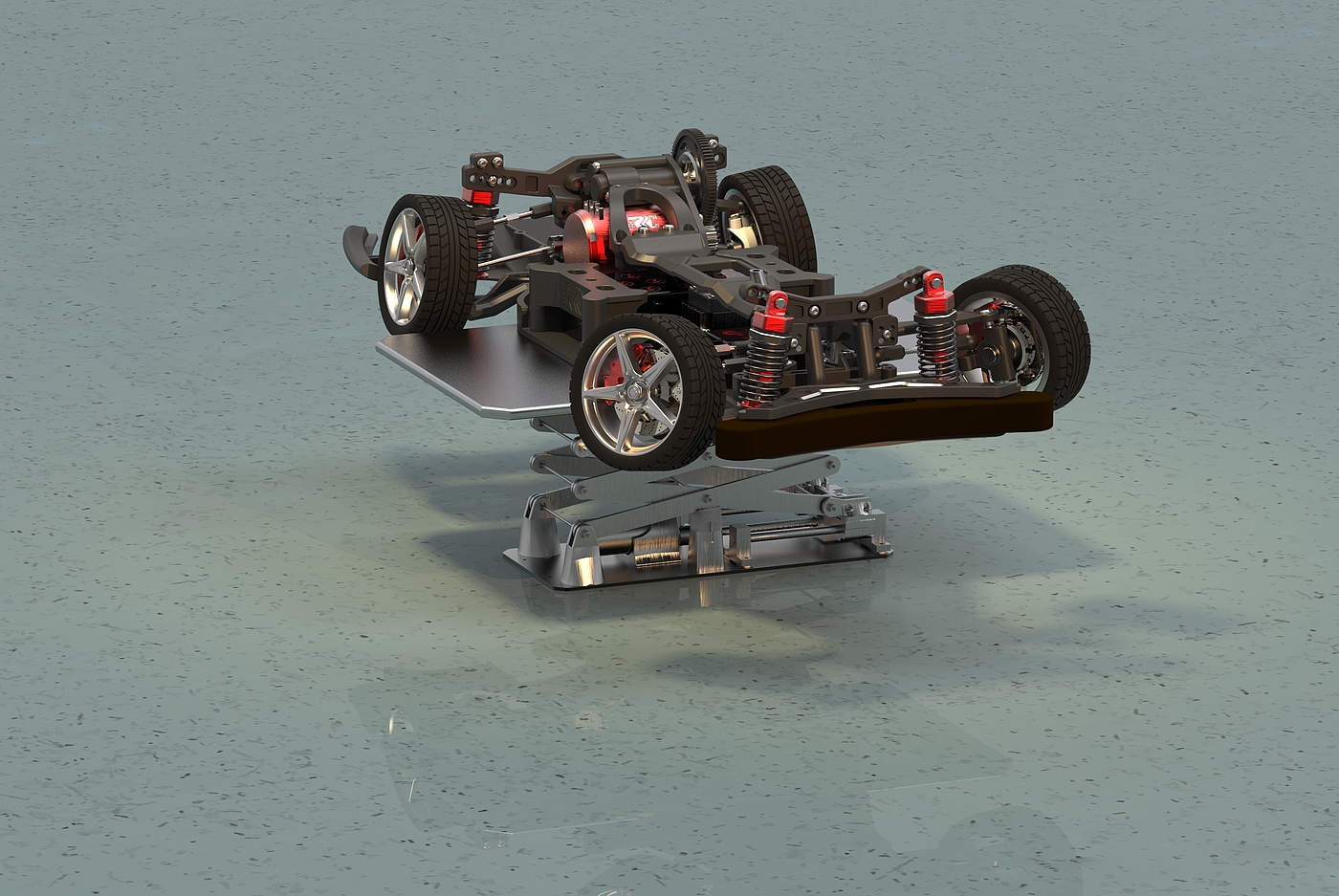

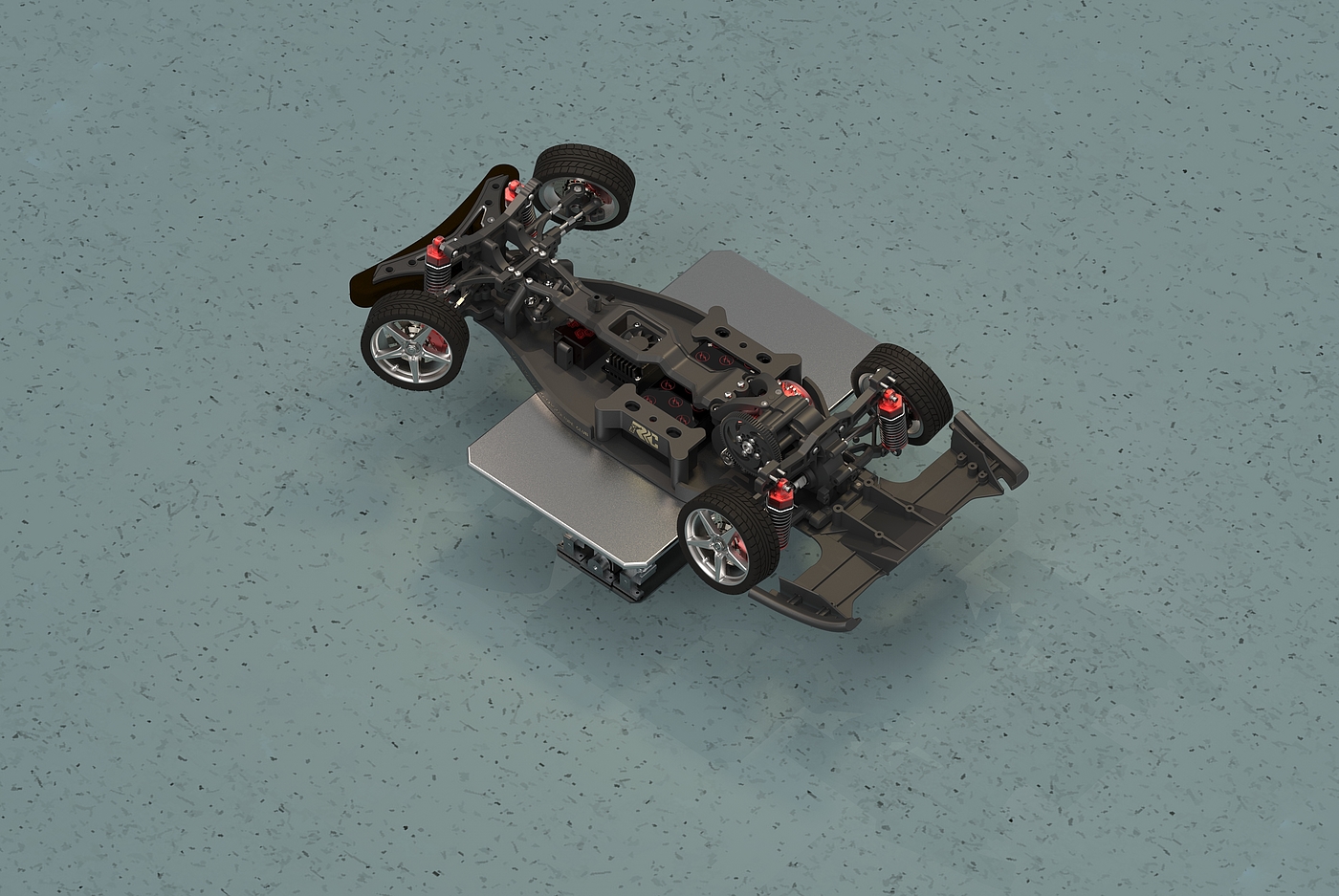

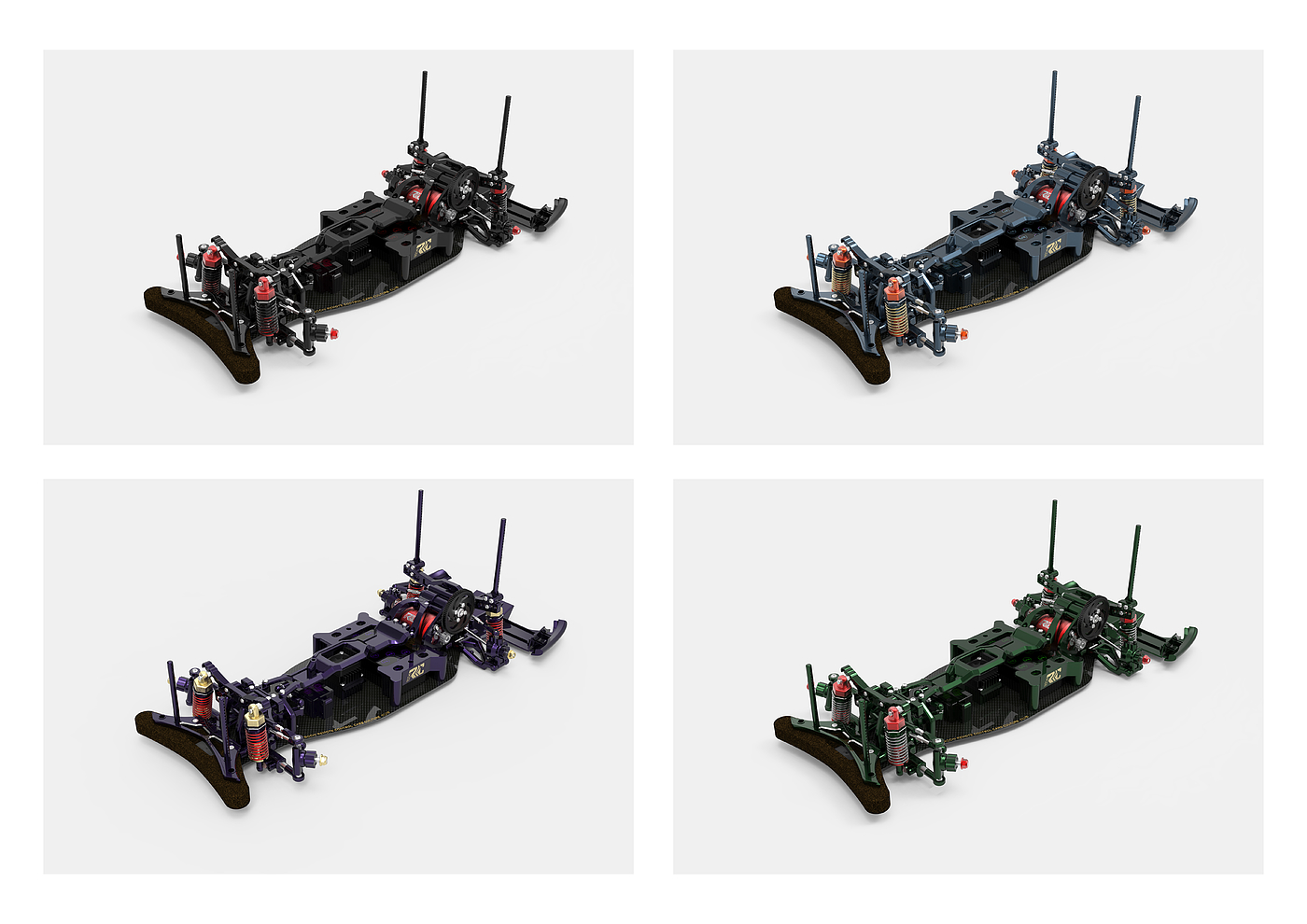

Frame upgrade: carbon fiber chassis and metal op accessories. Official color references are: Black Warrior, Navy Blue, Emperor Purple, British Green

vehicle,RC,Remote control model,vehicle,

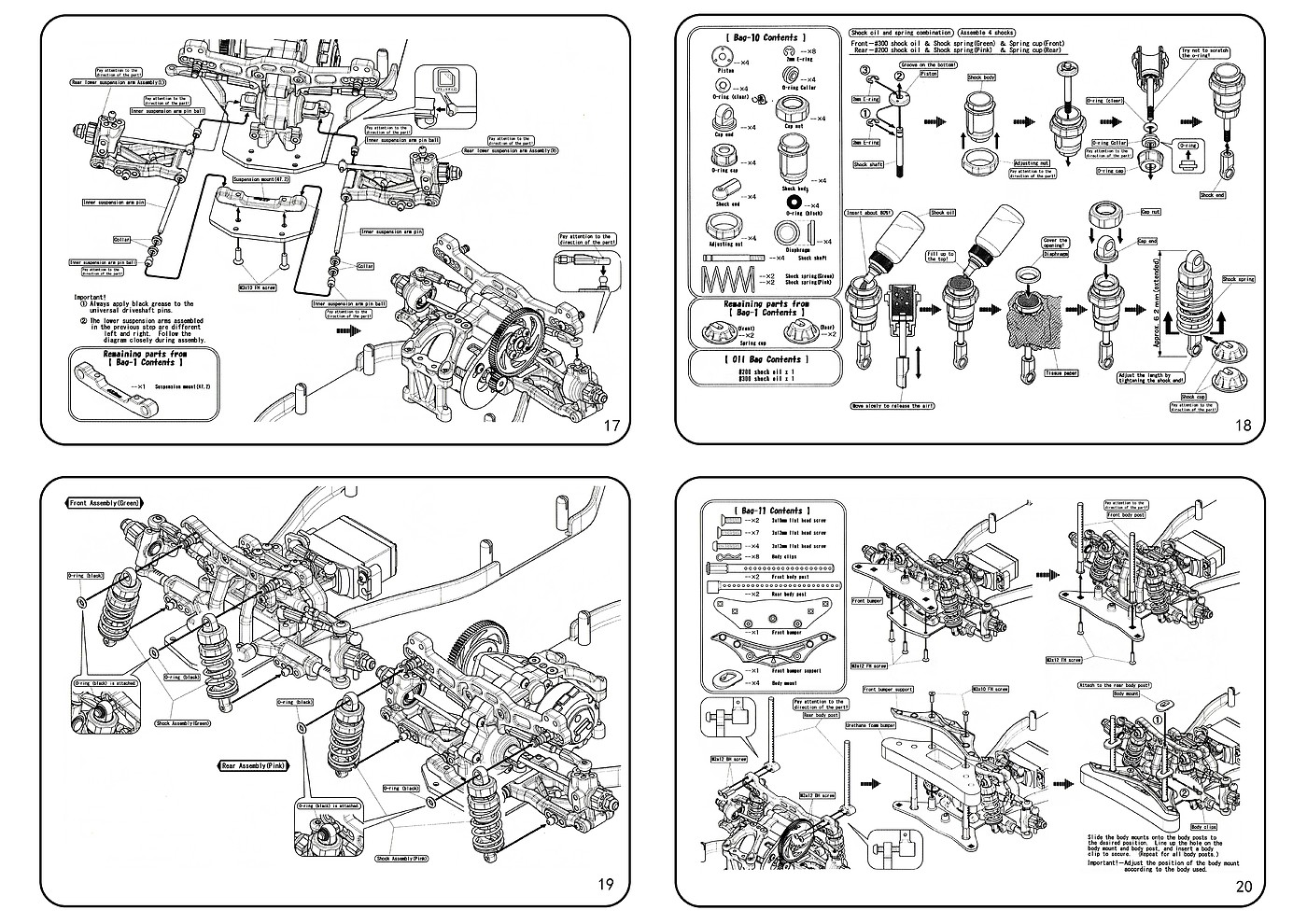

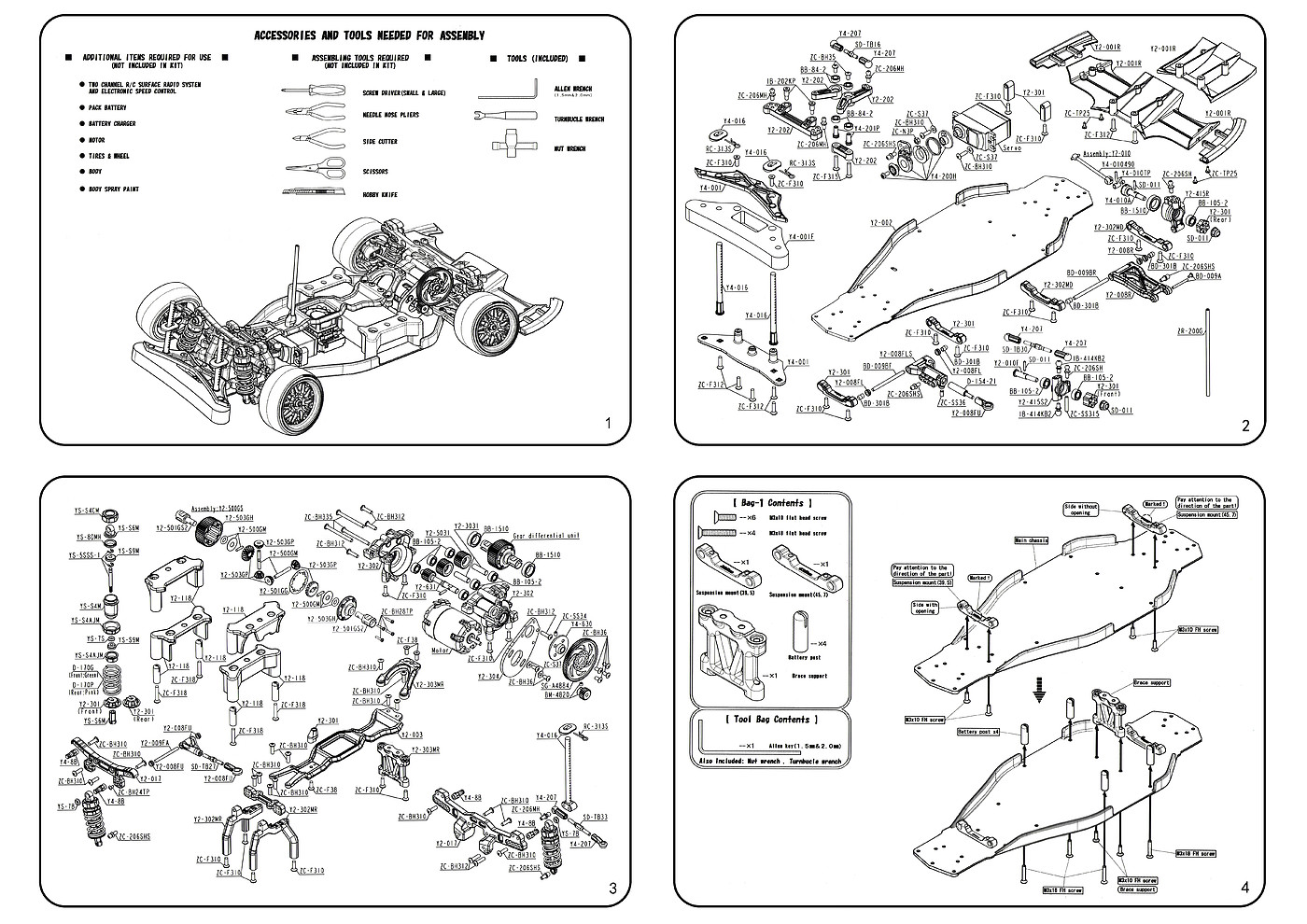

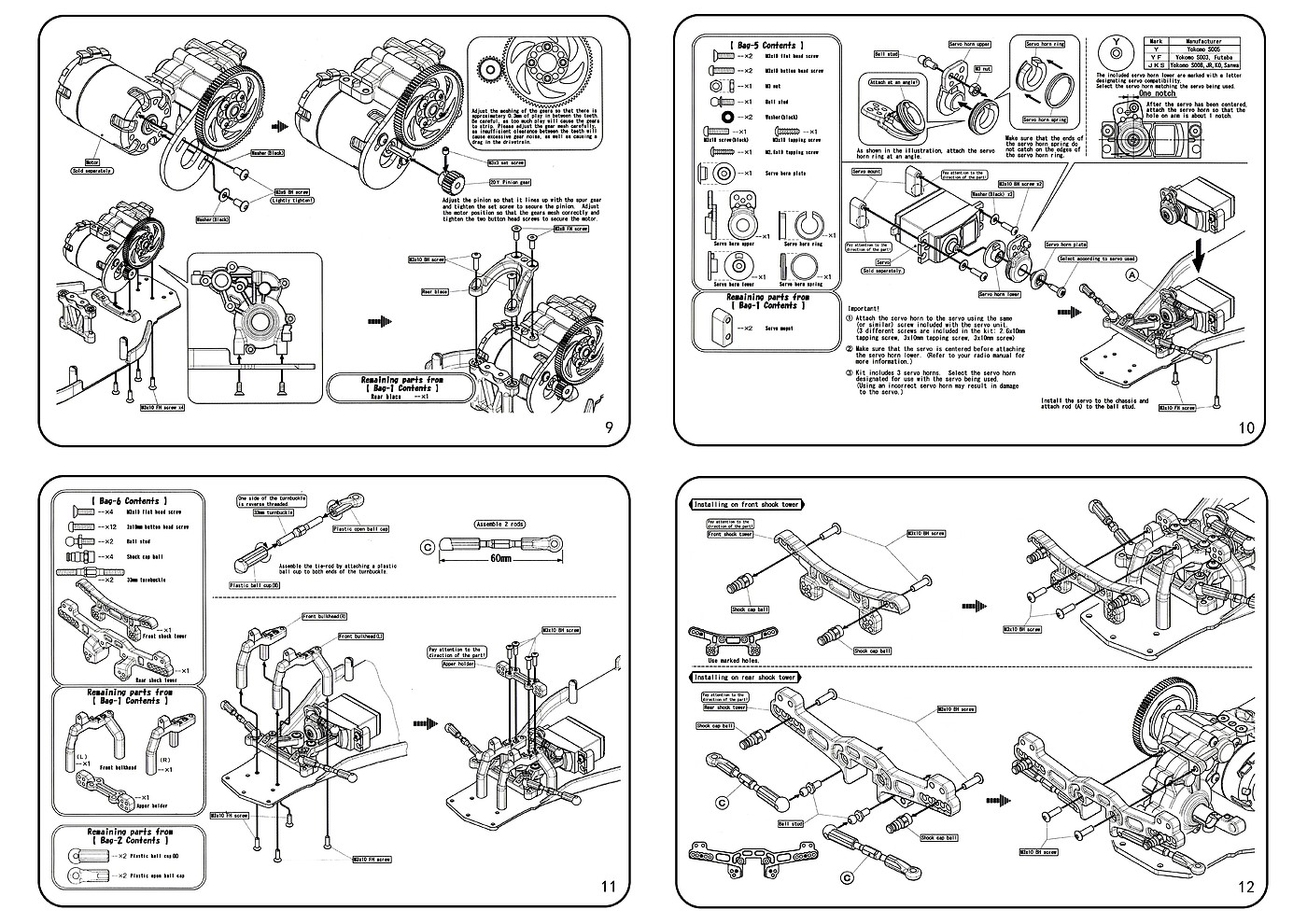

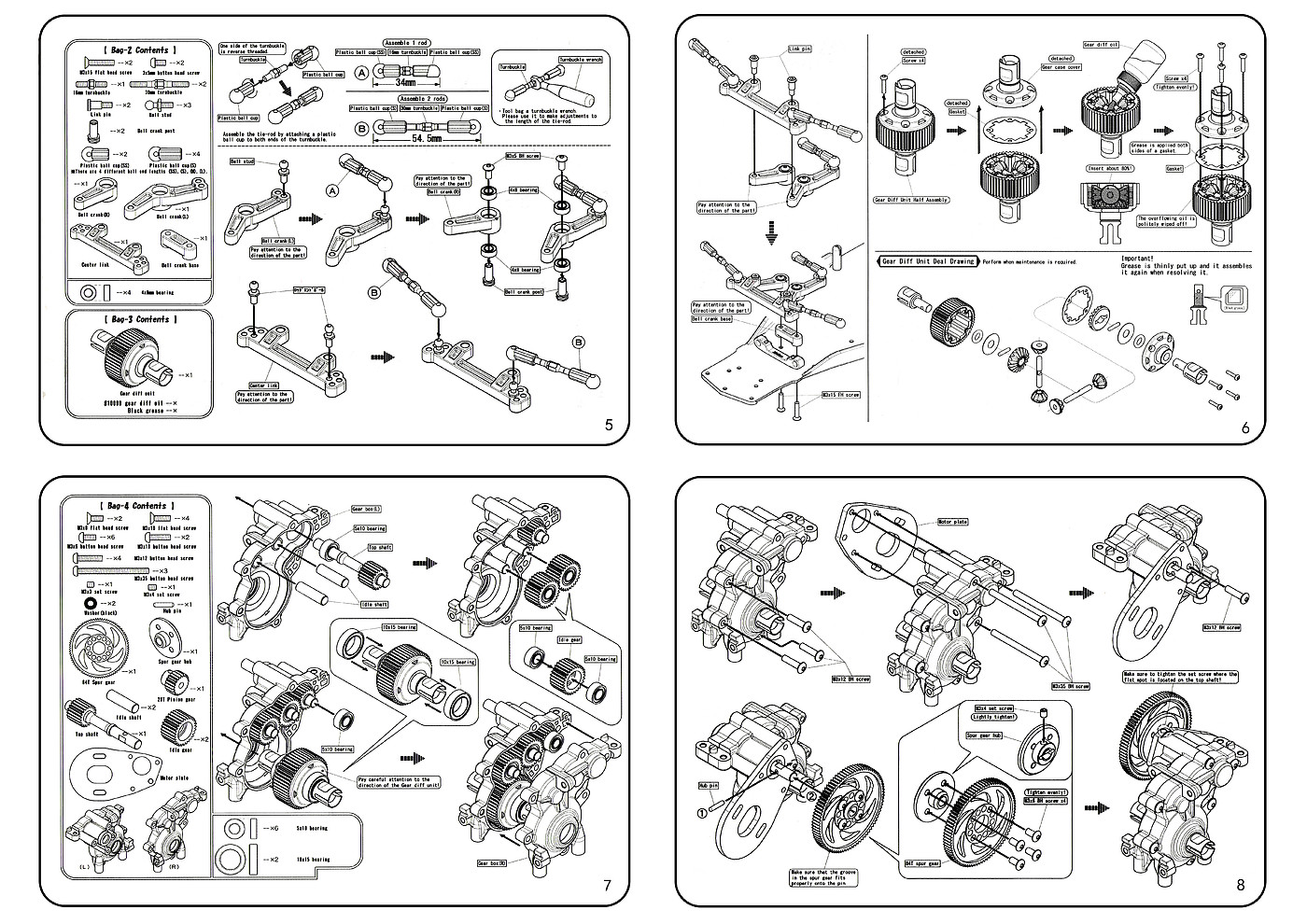

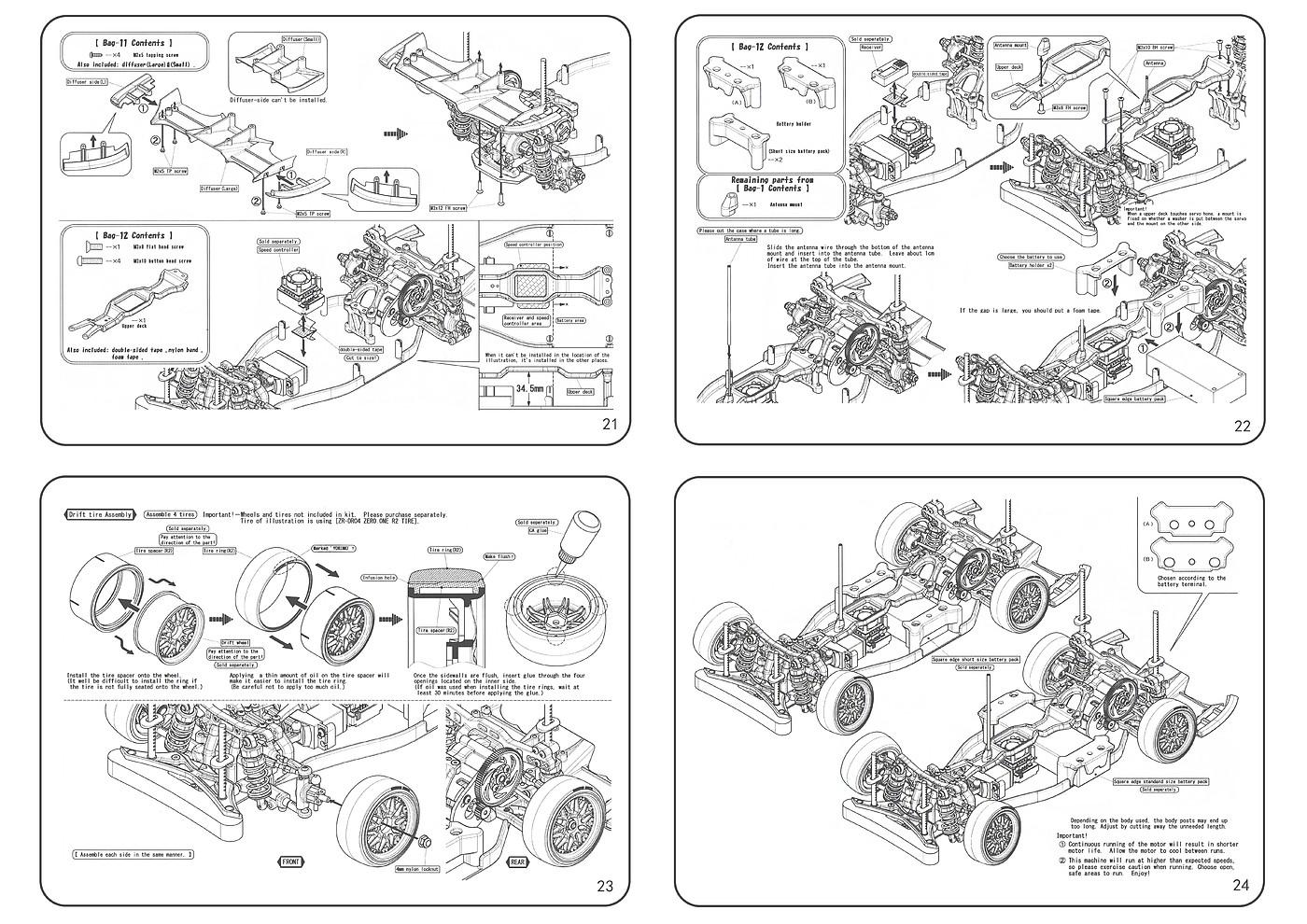

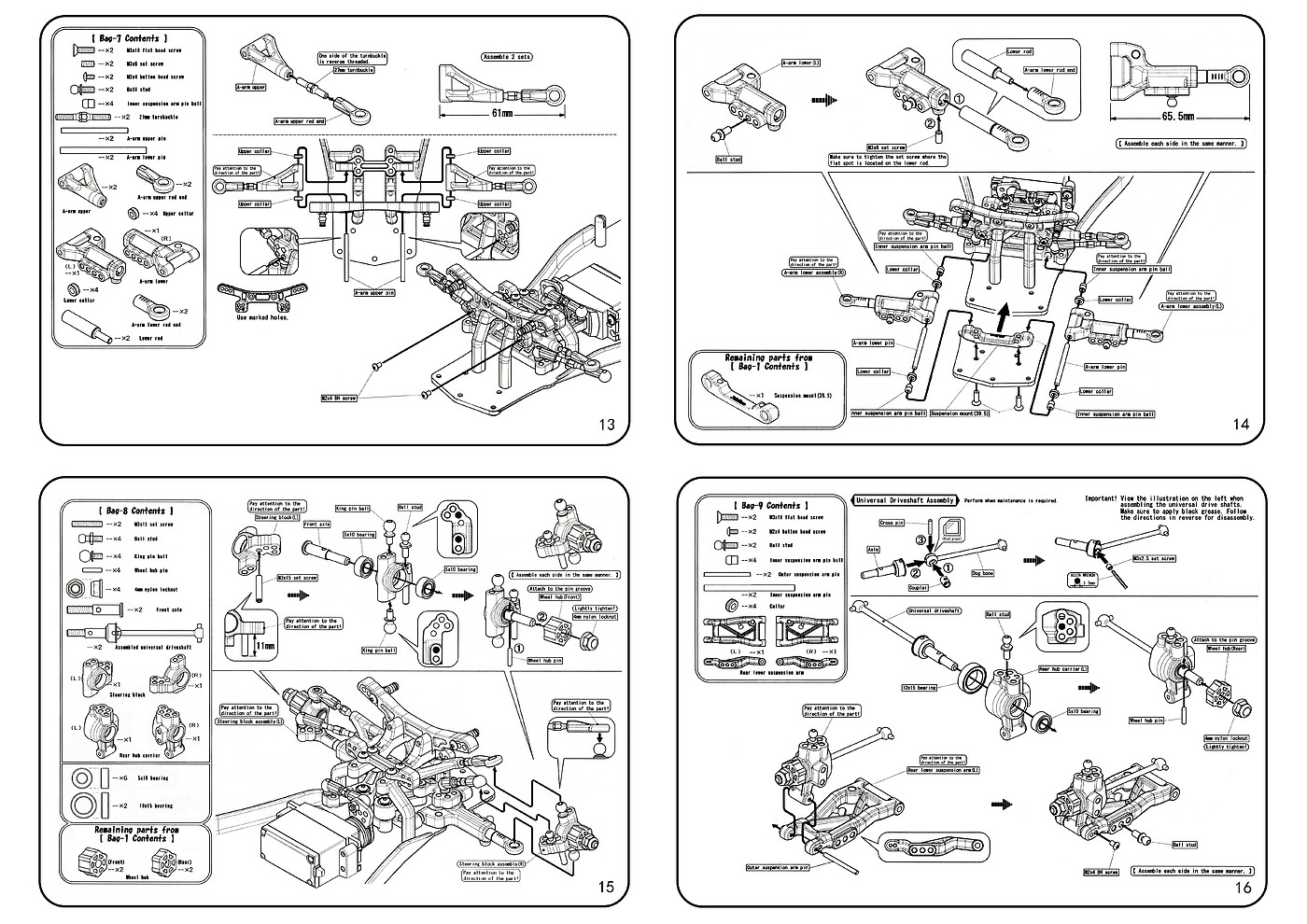

Assembly instruction instruction

vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,

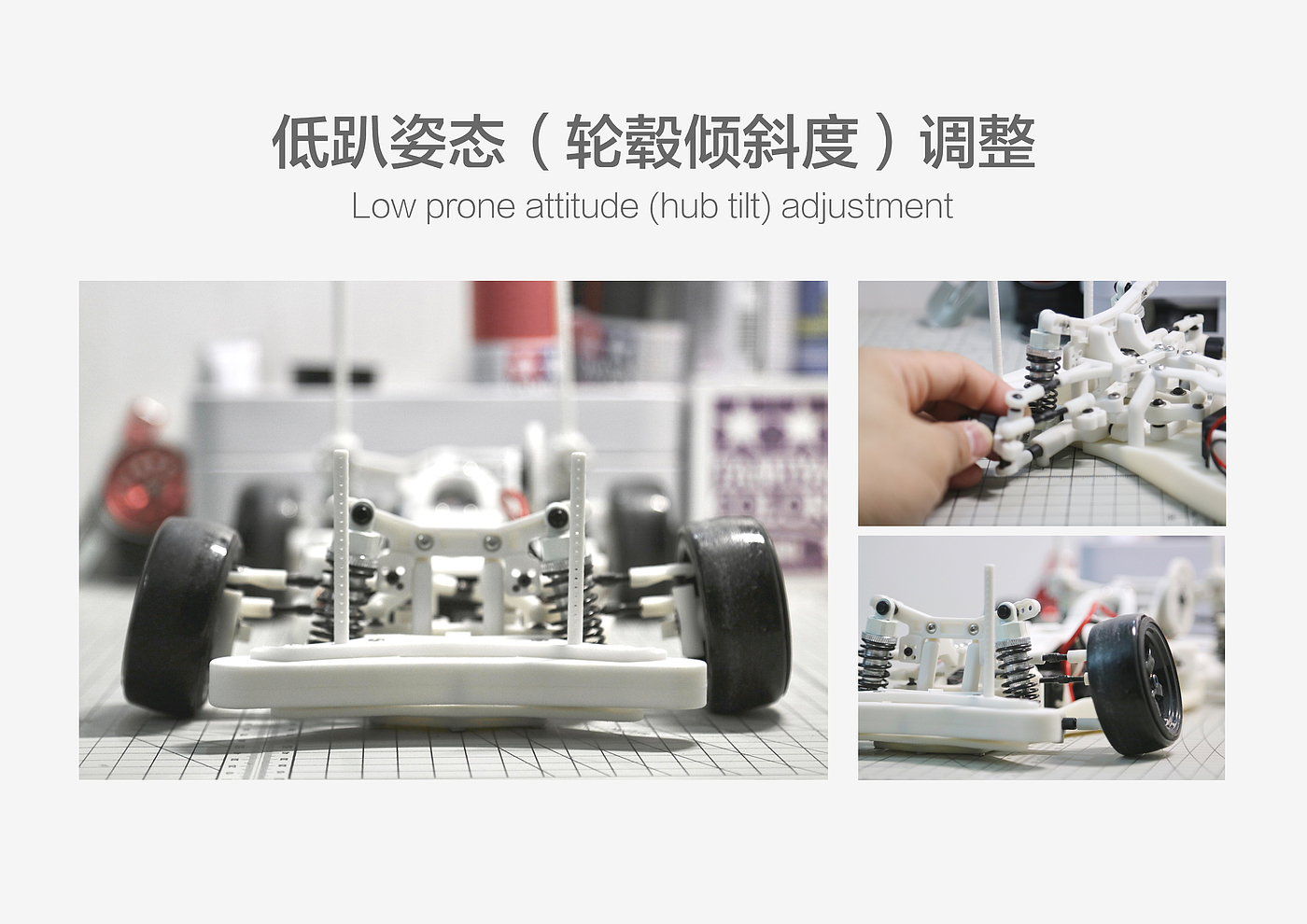

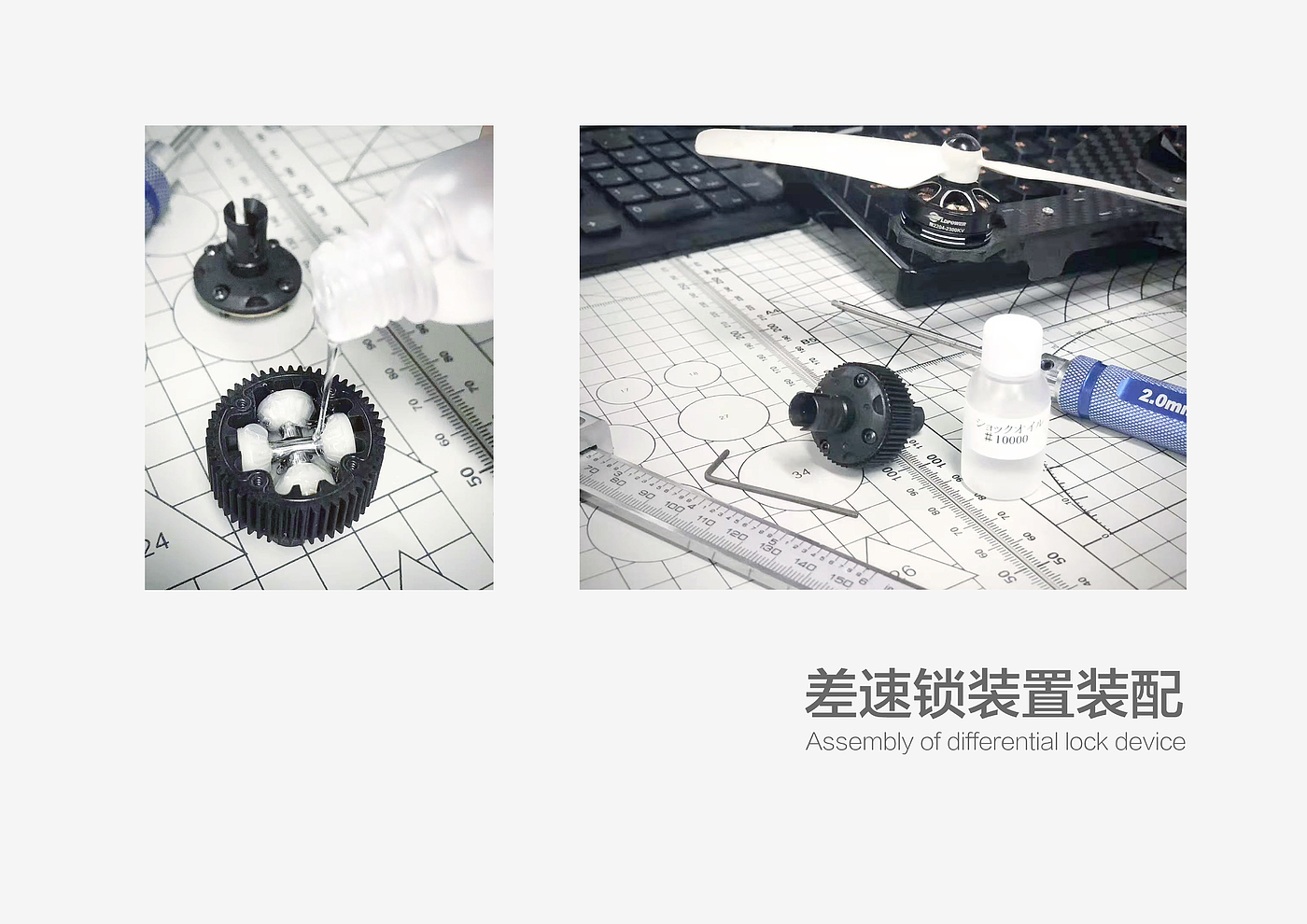

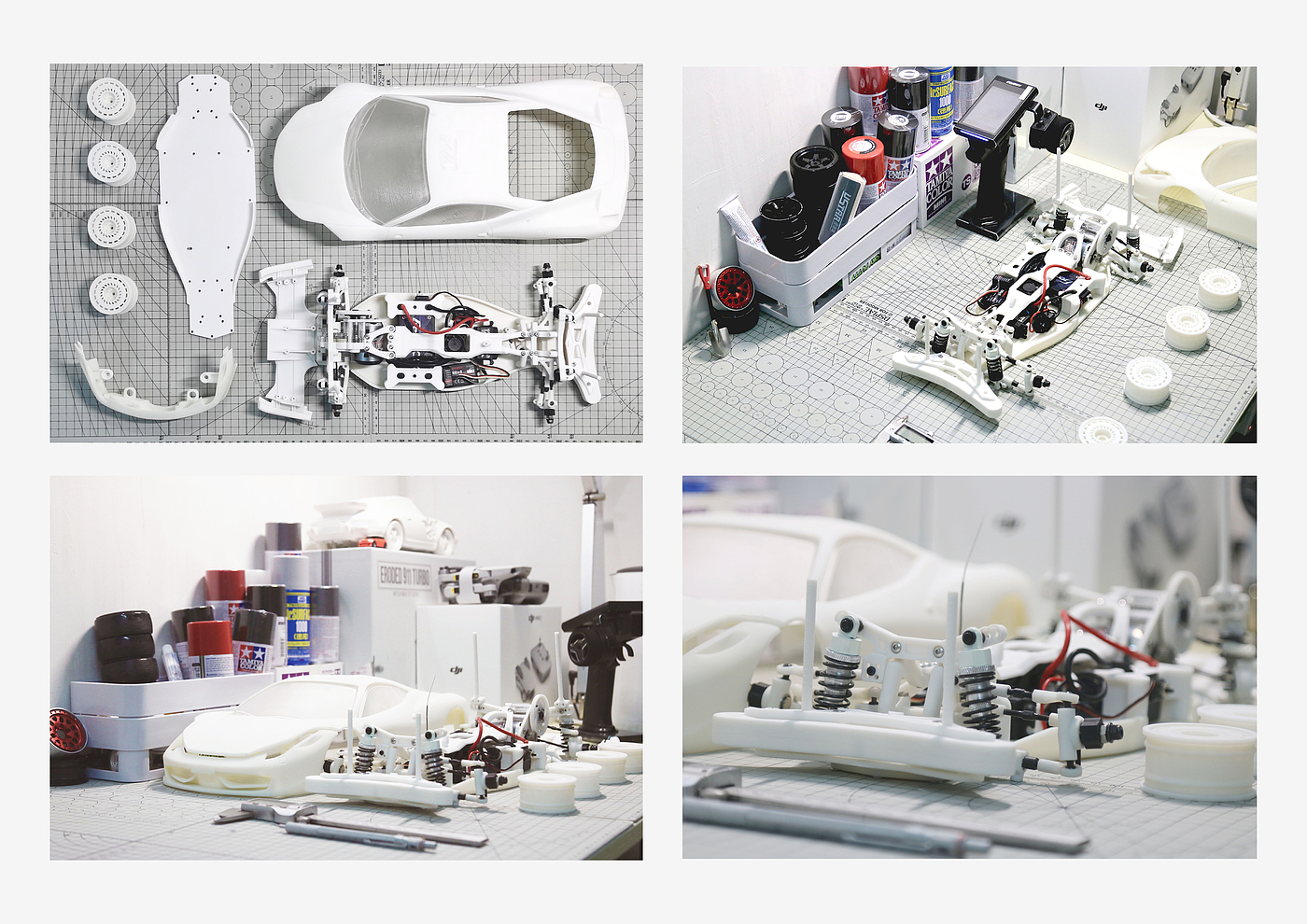

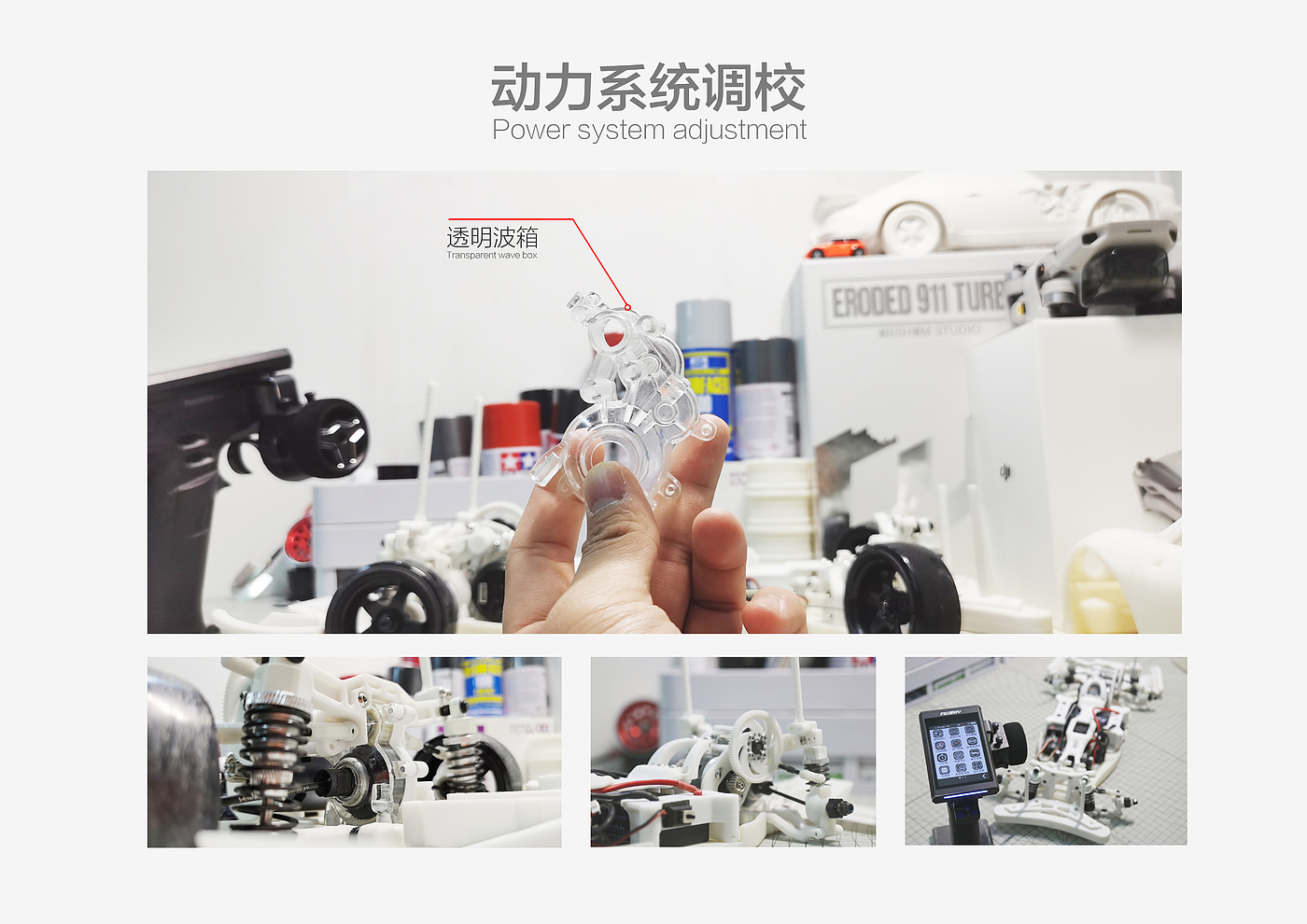

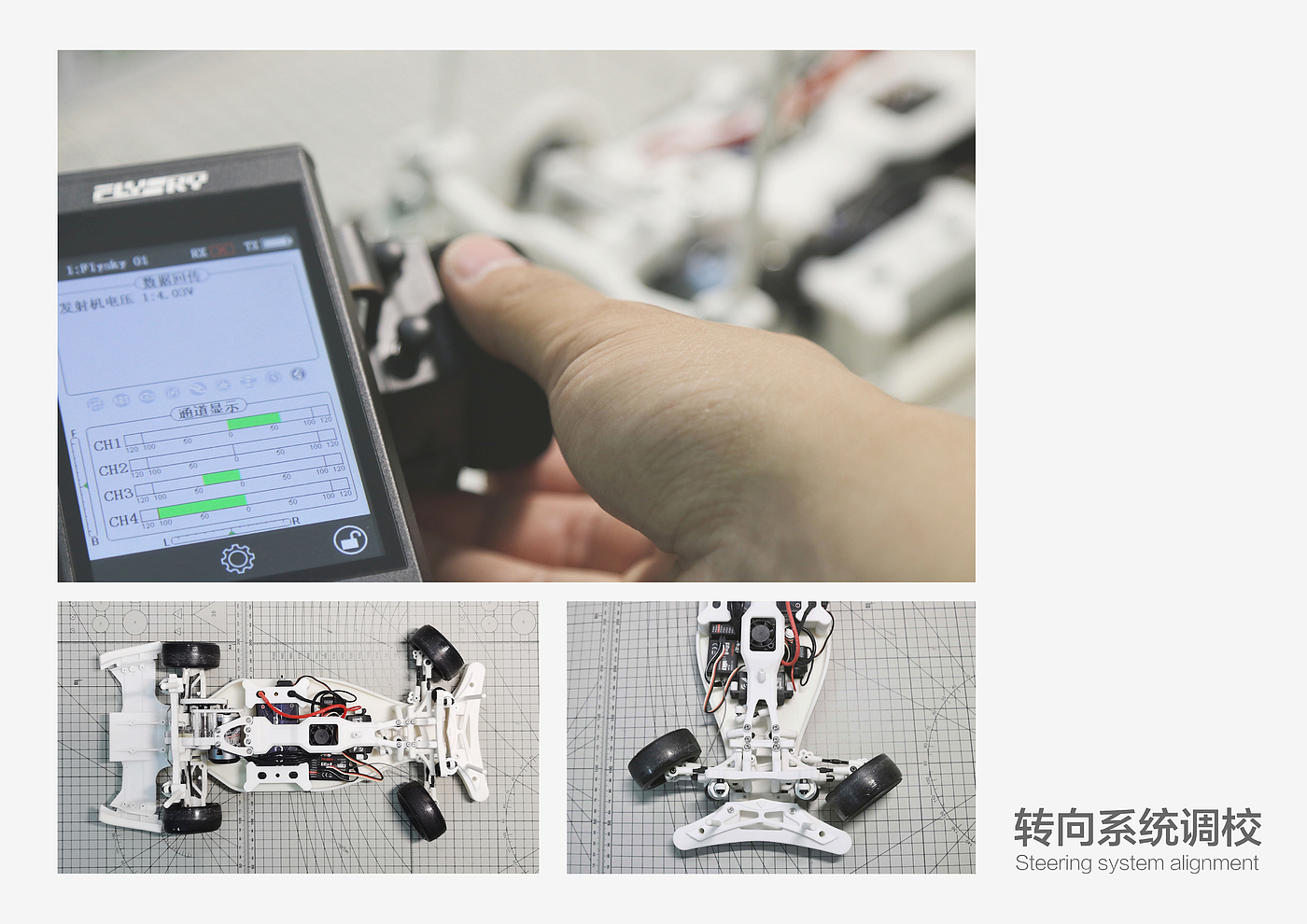

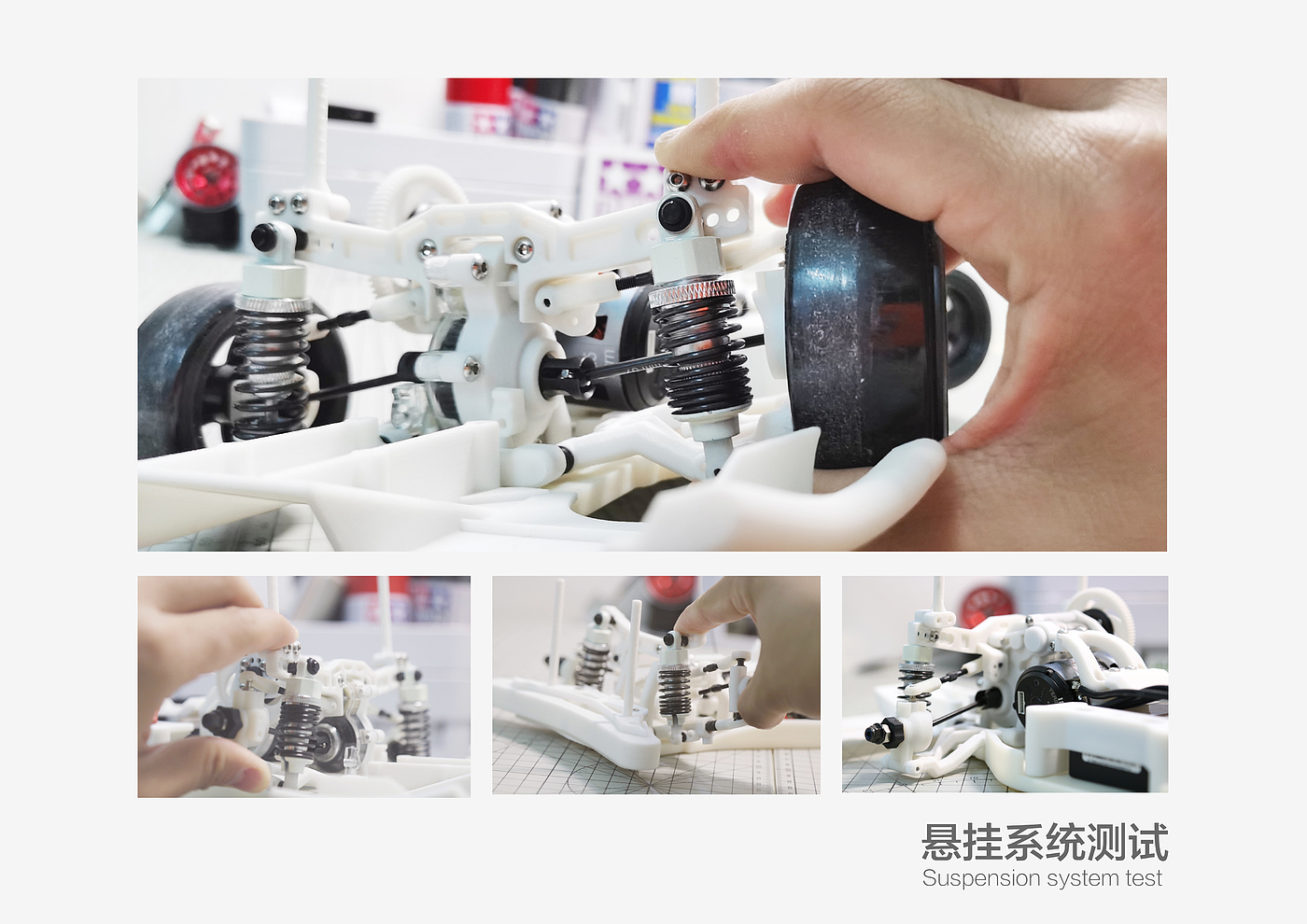

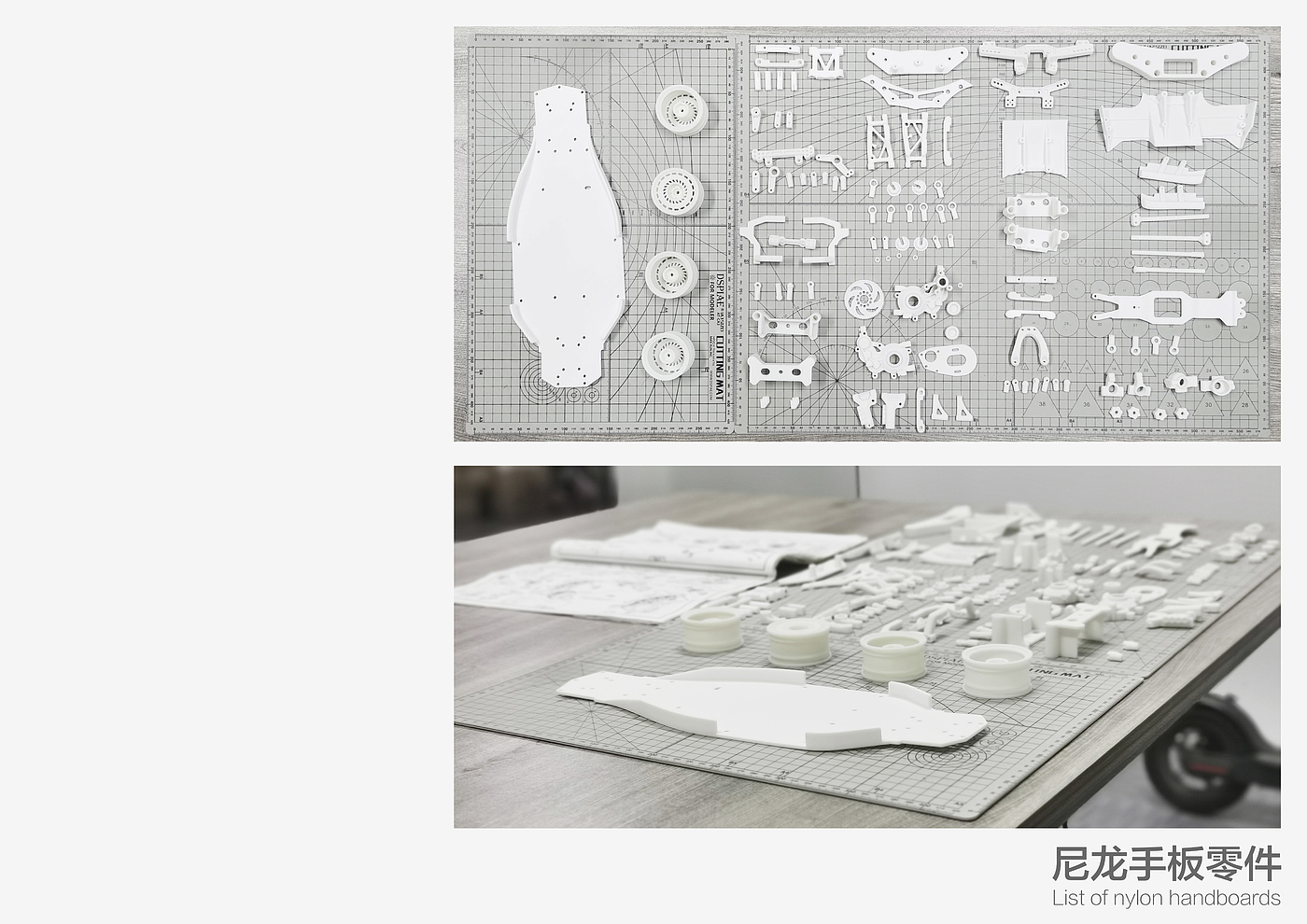

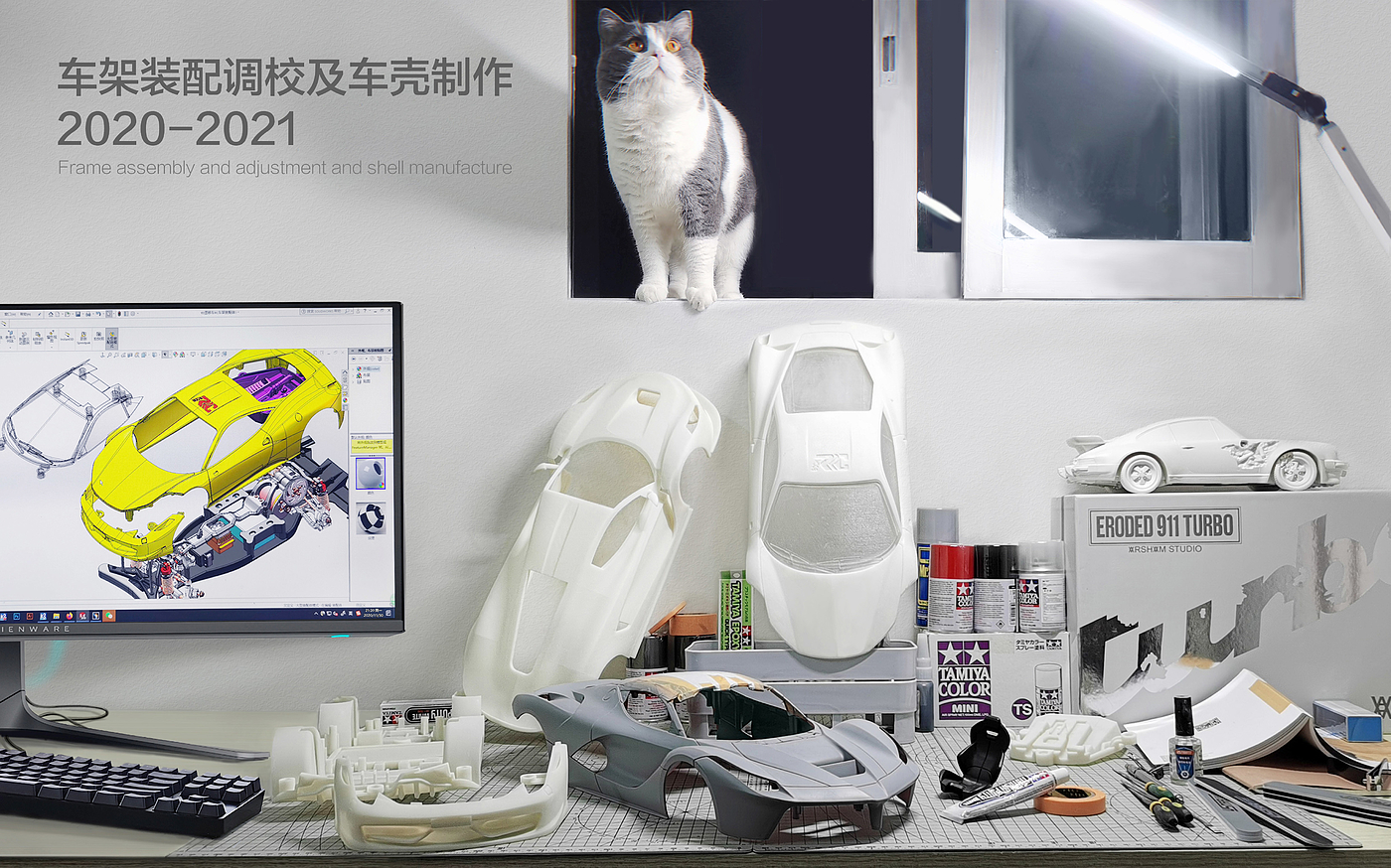

Template Parts Assembly and Body Tuning (Model Test)

vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,
vehicle,RC,Remote control model,vehicle,
30 17
用户其他作品 查看更多
评论

留言板 (9)

🆔傻仔👺🤏 2021-04-23
回复

Cai Gong is a cow force

hdaxing 2021-04-23
回复

Curious, can the precision of 3D printed structural parts meet the requirements?

EGOG作者 2021-04-23
回复
Nylon material, and then need to adjust tolerance many times
hdaxing 2021-04-23
回复
我也说一句
包老C 2021-04-22
回复

It is found that UP owners are also playing through machines, hoping to communicate with WeChat.

EGOG作者 2021-04-23
回复
Welcome
我也说一句
姜还是小的贵 2021-04-22
回复

Station B saw this kind of video. It's cool.

归来仍是少年 2021-04-21
回复

Drawing printing, assembly molding, powerful

我是我 2021-04-21
回复

Shit, cow force
