Project Name: Ultrasonic Handle Industrial Design
Cooperation content: design analysis | appearance design | structural design | prototype production | accompanying running assistance

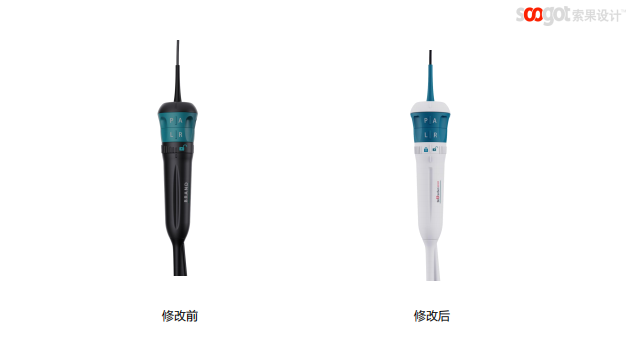

This is the iterative scheme of "before modification-after modification" designed and built by Suoguo. As the core operating end of ultrasonic equipment, its design upgrade revolves around "the comfort of accurate holding experience of ultrasonic operation". It realizes the double optimization of function and experience in form, color and details. It is a typical sample of medical human-computer interaction design iteration.
1. Design Analysis: Scenario Adaptation Upgrade for Ultrasound Operations
The core scenario of the ultrasound handle is the handheld operation of clinical ultrasound diagnosis, and the underlying logic of this iteration is centered on "scene pain point resolution:
Experience optimization of functional modules: both schemes retain the core modules of "operation control area (top key), holding area (handle body) and cable connection area (bottom interface)", but the modified scheme strengthens "holding comfort" and "operation identification"-aiming at the pain point of "pure black form is easy to show bulky and operation area identification degree is low" before modification, through color and form adjustment, adapt to the clinical needs of "long holding" and "rapid identification of the surgical field.
Scene upgrade of materials: before modification, "all black hard plastic" is the main one, which conveys professional feeling but lacks skin-friendly property; After modification, a "white and blue" medical grade plastic combination is adopted. White enhances skin-friendly feeling and visual lightness, and blue strengthens the identification of operation area, which not only conforms to the clean scene of ultrasonic diagnosis, but also improves the holding experience.
2. Design Language: The Transformation from "Tool Sense" to "Man-machine Sense"
The design language of this iteration has been upgraded from "cold tools" to "human-machine collaboration carriers:

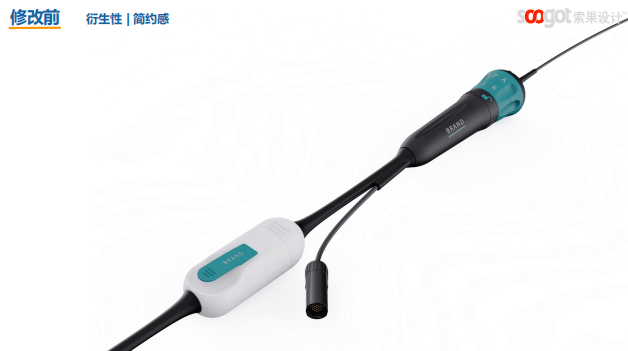

Before modification: rational tool language: compact key layout in all black form, which conveys the rational sex appeal of "professional tools", but pure black color matching is easy to be depressed in the surgical field, and lacks visual hierarchy, and the distinction between operation area and holding area is low.

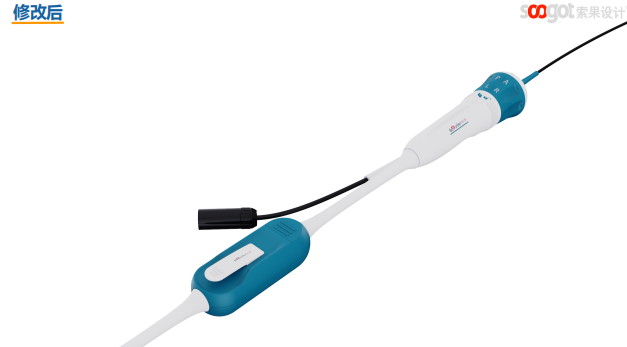

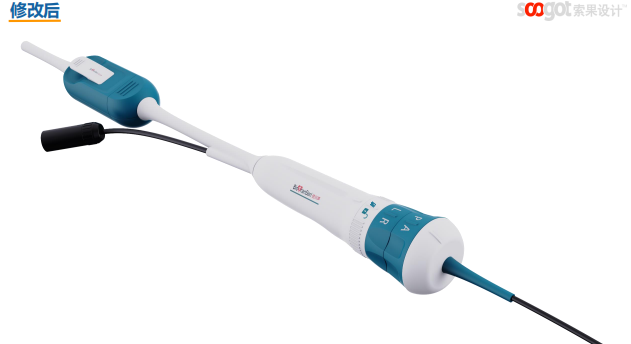

After modification: soft man-machine language: the color combination of "white and blue" weakens the cold feeling of the tool, the white holding area conveys the emotional attribute of "gentle care", and the blue operation area forms the visual focus, allowing medical care to quickly locate the function key; The arc surface optimization in form makes the handle fit the hand curve more closely, strengthens the operation perception of "man-machine integration", and adapts to the long-term holding requirements of ultrasonic diagnosis.
3. Design Details: Accurate Optimization of Operating Experience
Details of the upgrade around the "ultrasound operation accuracy and comfort:

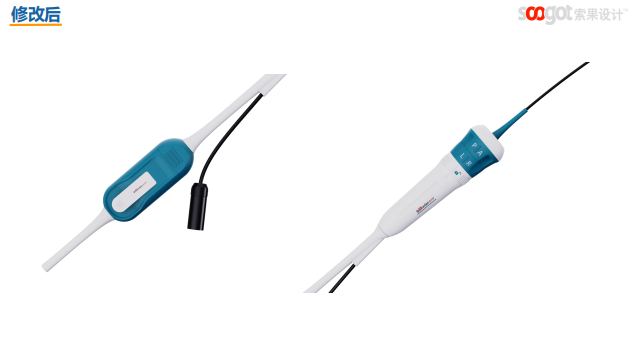

Details of the operation area: the key and the handle are the same color before modification, and the recognition degree is low; After modification, the "blue-white contrast" design is adopted. The key area is highlighted in blue. Doctors and nurses can quickly identify function keys in the surgical field to realize "blind operation". The convex height and spacing of the keys have also been optimized to avoid accidental touch during glove operation and improve the accuracy of ultrasonic parameter adjustment.
Details of the grip area: before modification, the grip area is in the form of a pure black straight line, which is easy to fatigue after long-term holding. After modification, the "arc texture gradient form" is adopted. The curve of the grip area conforms to the natural curvature of the fingers, and the texture enhances the friction force when wearing gloves, which not only ensures the stability of the grip, but also reduces the muscle tension of the hand and is suitable for long-term operation of ultrasonic diagnosis.

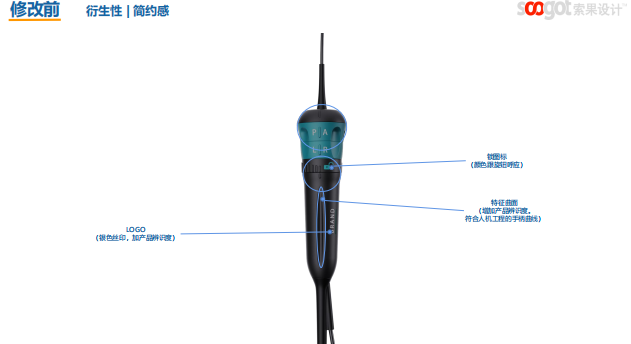

Details of the logo: the logo is the same color and light print before modification, with low recognition degree; After modification, "clear text with color logo" is adopted to make the product model and function prompt more eye-catching. Medical care can quickly confirm the type of ultrasonic probe suitable for the handle and improve clinical work efficiency.
4. Ergonomics: A Comprehensive Upgrade of Holding Experience
The ergonomic design of this iteration is precisely optimized for the "hand-held operation pain point of ultrasound diagnosis:

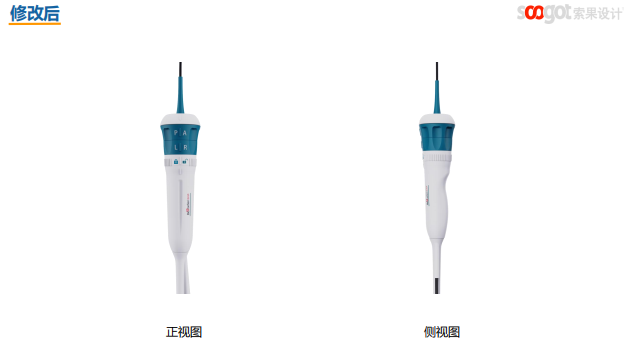

Adaptation of holding form: before modification, the handle diameter is thick and stiff, which is easy and laborious for small-hand medical care. After modification, the diameter of the handle has been reduced in weight and narrowed, and the holding area adopts "gradual arc surface" to meet the holding requirements of different hand types. Whether it is fine operation with one hand or stable operation with both hands, it can maintain natural hand posture.
Optimization of weight and center of gravity: after modification, the center of gravity will be optimized to the "middle of the holding area" through material and structure adjustment, so that the wrist will receive more uniform force when holding, avoiding wrist fatigue caused by long-term operation; The lightweight treatment of the overall weight also makes the mobile operation of ultrasonic diagnosis easier, and is suitable for mobile diagnosis and treatment scenes such as bedside and emergency.
Conclusion: Experience iteration sample of ultrasonic handle
The ultrasonic handle design from before modification to after modification is a symbiotic sample of "function upgrade" and "experience optimization" of medical human-computer interaction equipment. It is guided by the pain points of the scene and realizes the transformation from "instrumental rationality" to "human-machine sensibility"; supported by detail optimization, it improves the accuracy and comfort of ultrasonic operation; with ergonomics as the core, it adapts to the diversified needs of clinical diagnosis and treatment.
At a time when ultrasound diagnostic technology is becoming more and more refined, such iterative design not only improves the operating experience of the ultrasound handle, but also redefines the value of the "medical operating end"-it is no longer a simple functional carrier, but an "experiential partner" in medical diagnosis and treatment ". This concept of "user pain point-driven design iteration" also points out the direction for medical device design: only by deeply integrating "rationality of clinical function" and "sensibility of user experience" can we create medical products that really help clinical practice. SOGOT DESIGN: www.soogot.com
