PLANT
Design of New Fan with Electric Curtain
An Fresh Air Ventilation System with Electric curtain

As the smog problem in China becomes more and more serious, PM2.5 and smog are undoubtedly the most frequently mentioned words in winter. Fresh air ventilation systems have gradually replaced air purifiers and are well known to consumers.

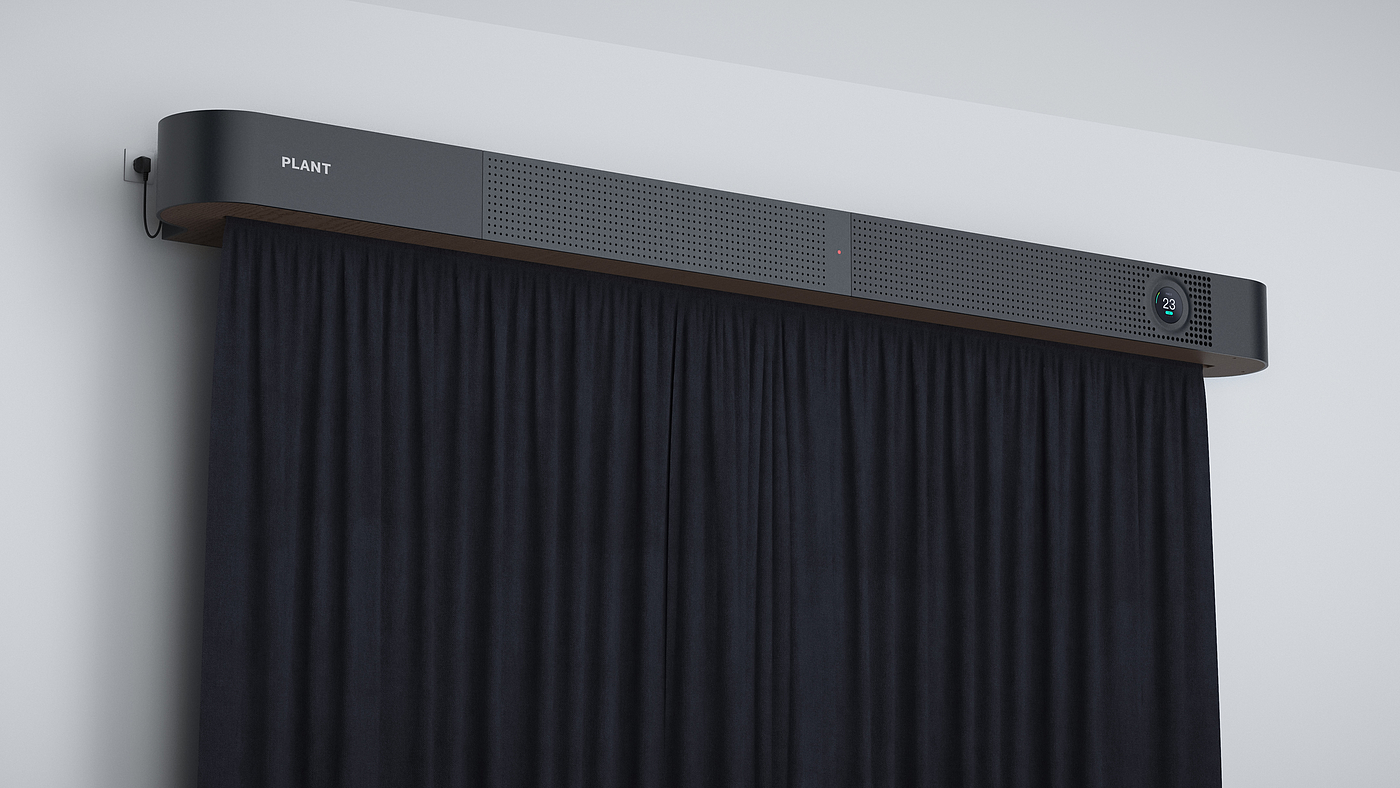

PLANT combines a new fan with an electric curtain. It can purify the outdoor air while sucking into the room, so that people can directly breathe high-quality fresh air. At the same time, PLANT saves a certain amount of indoor space.

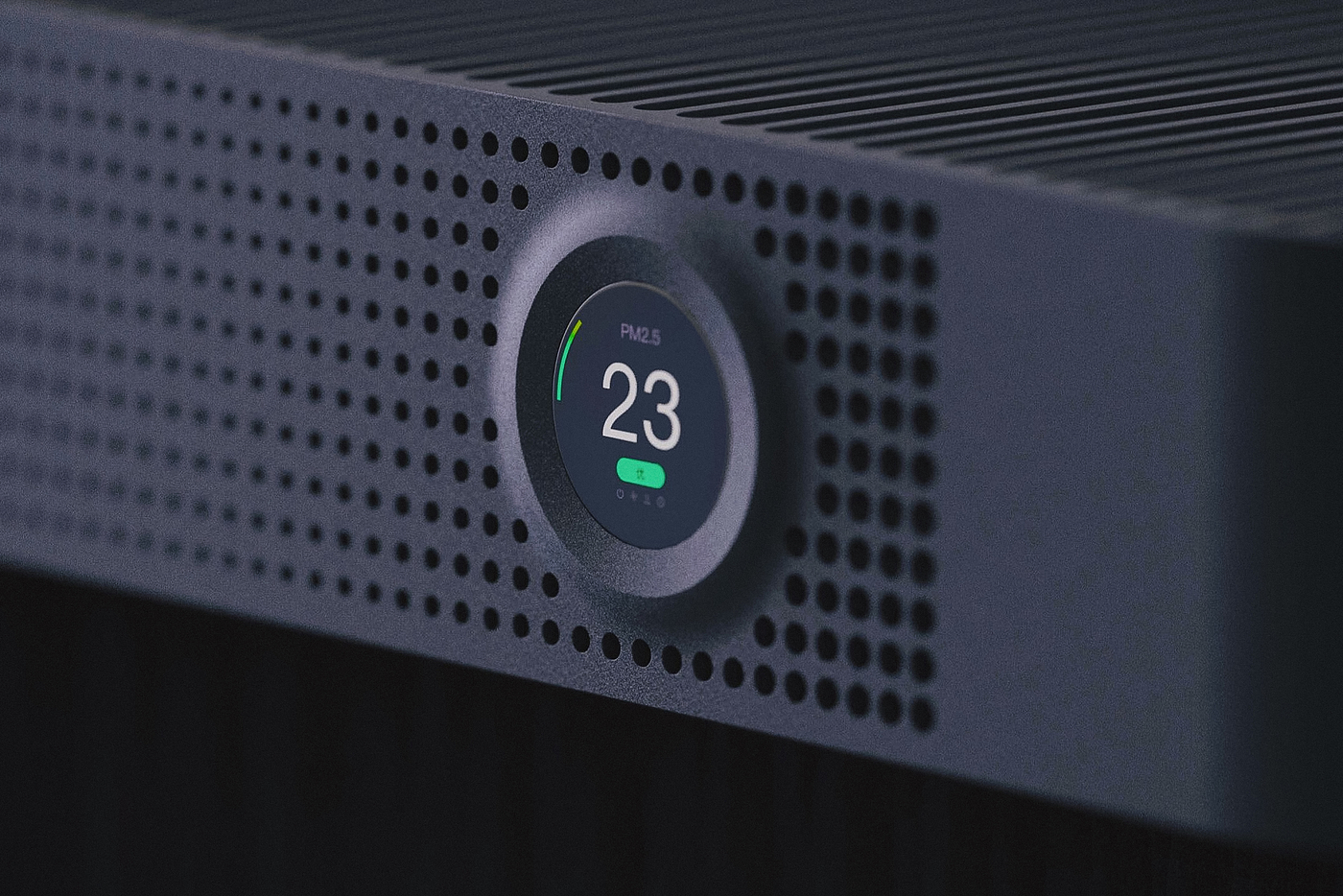

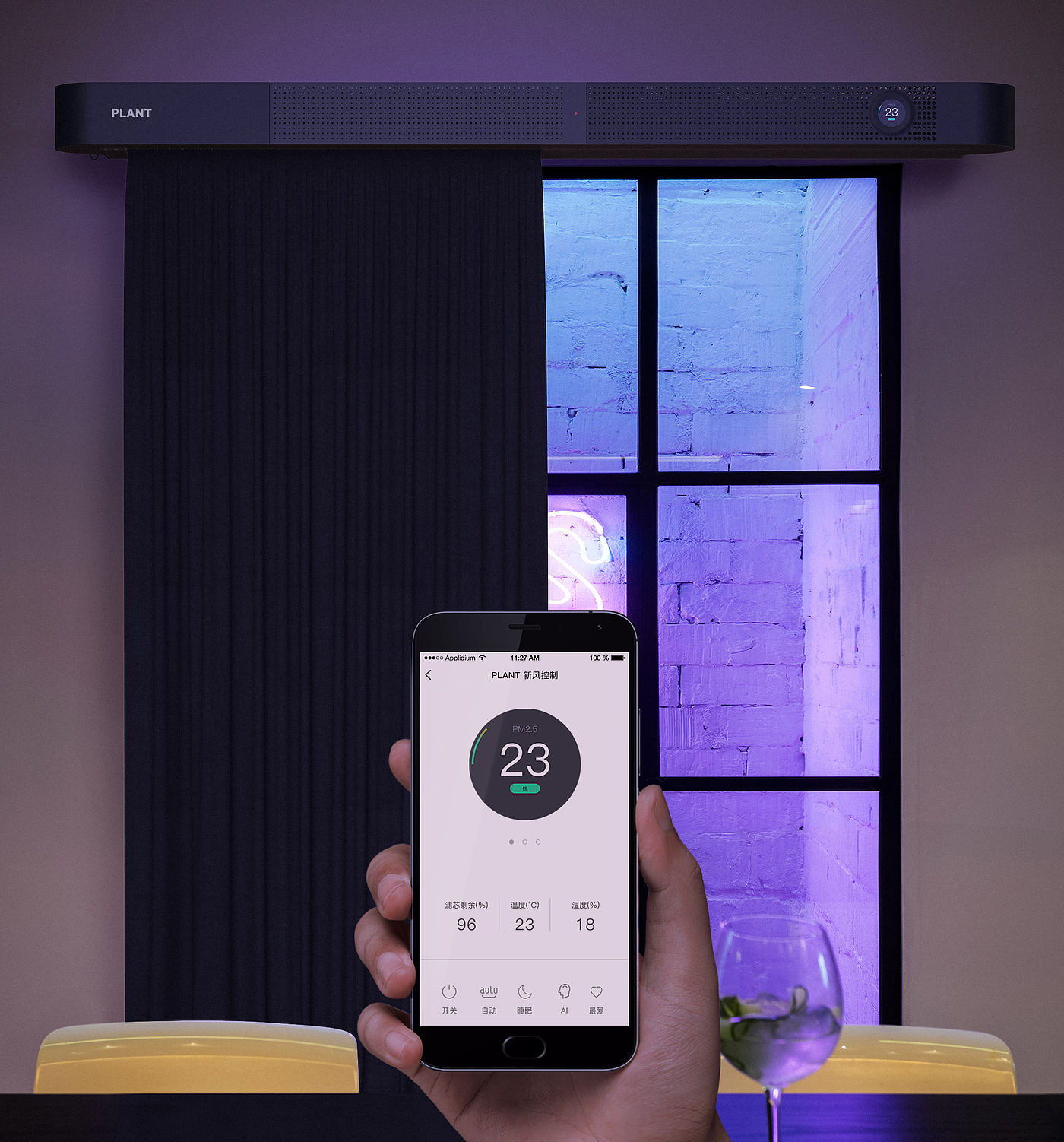

More control of PLANT can be given through mobile phones. In AI mode, PLANT adjusts the air volume in real time according to the feedback of the detector and air data, so that it is in a relatively balanced working state and avoids energy waste.

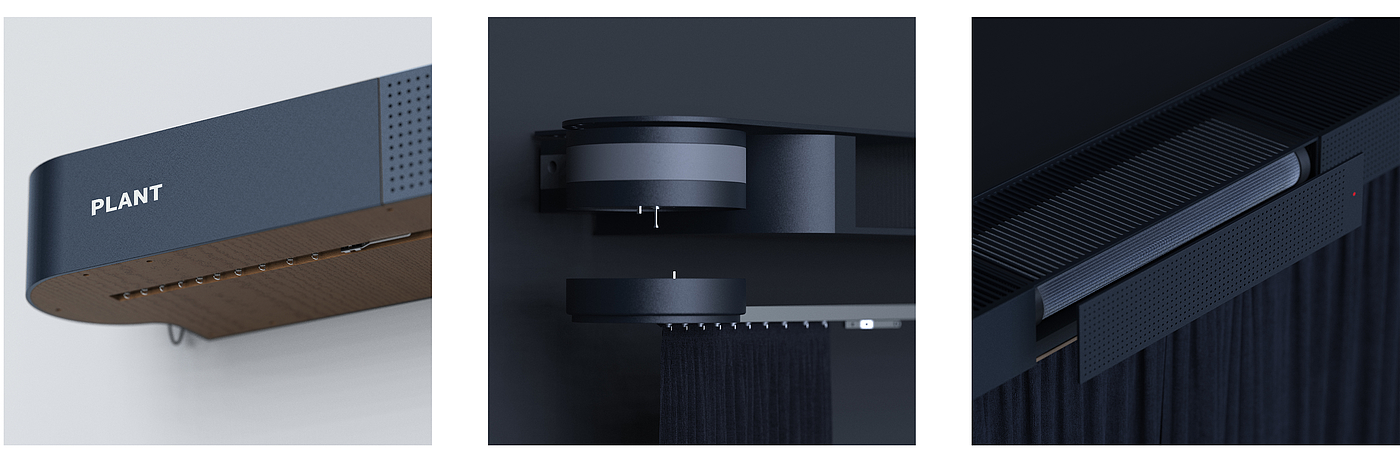

1. The combination of two different materials, wood bottom plate and plastic shell, is a combination of stable and unruly, giving people an "eclectic" visual sensory experience.

2. High-quality curtain track and super quiet wifi smart motor; gently pull down the curtain to start the motor operation.

3. The "primary effect", "activated carbon" and "high efficiency" three-layer filter element ensures that the air input into the room is almost 0 pm2.5. At the same time, this multi-layer filtration method also ensures the service life of the filter element.

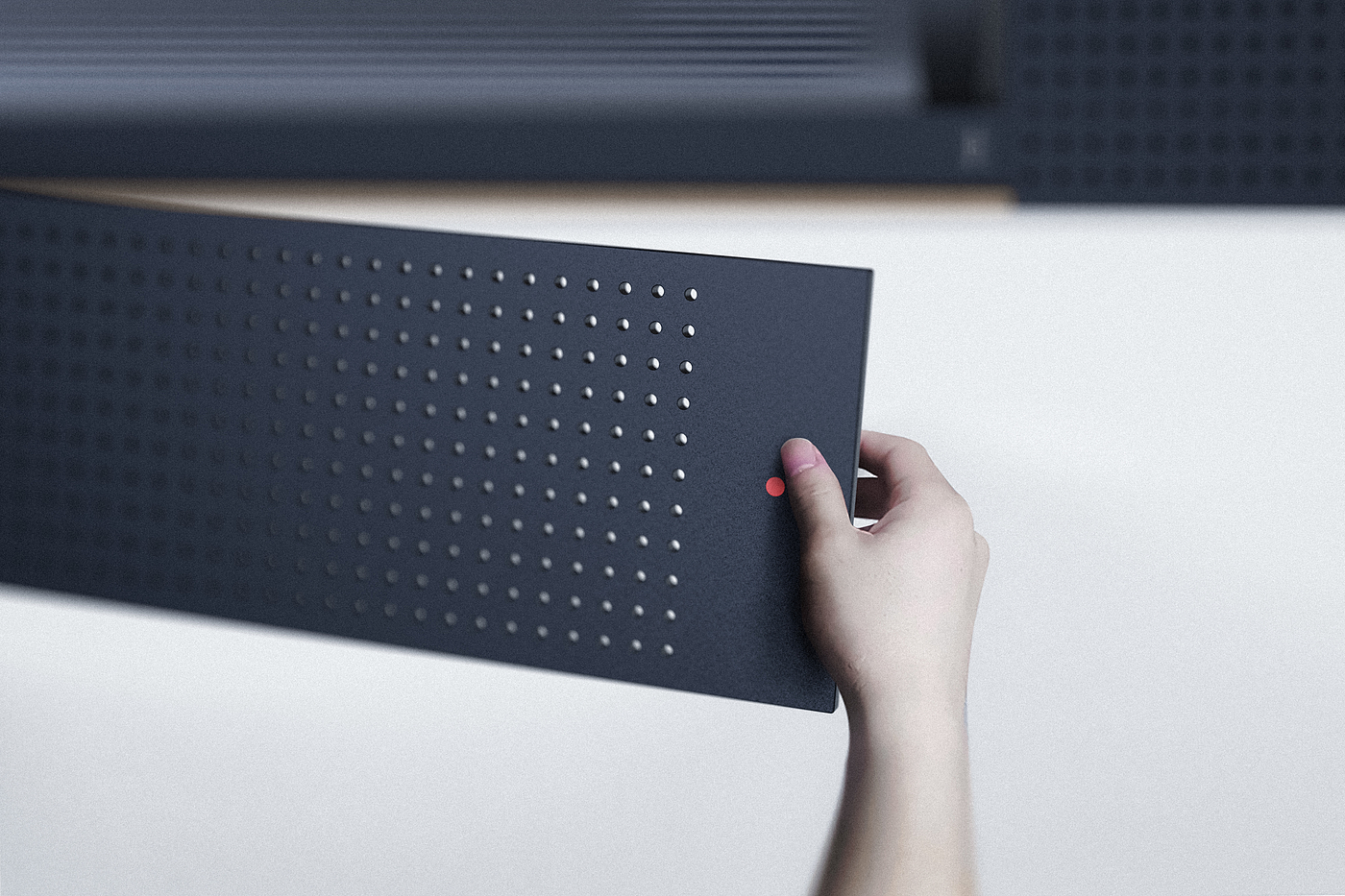

In order to facilitate users to replace the filter element, PLANT adopts a magnetic door design, which can be directly disassembled.

PROJECT
Plant

DATE
2018

WORK
Product Design
