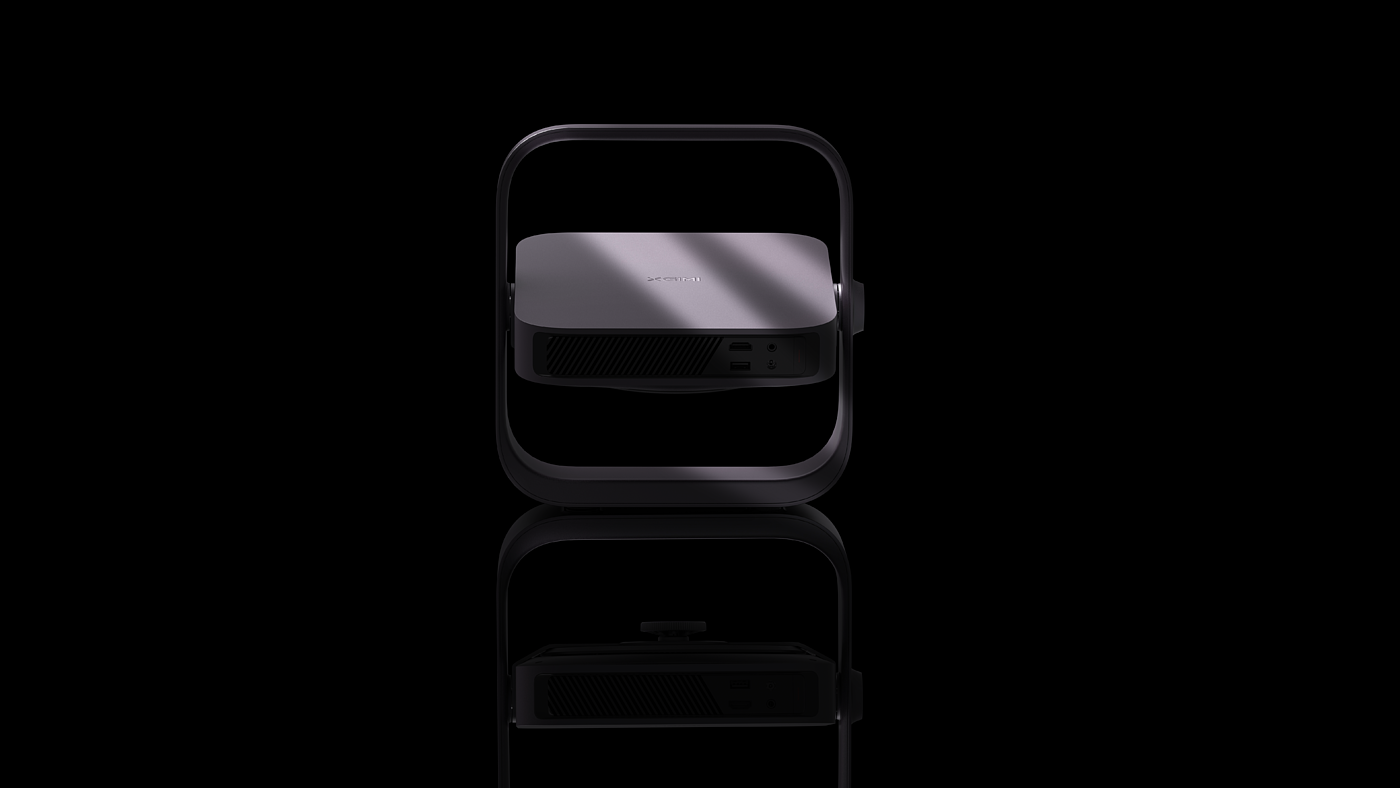

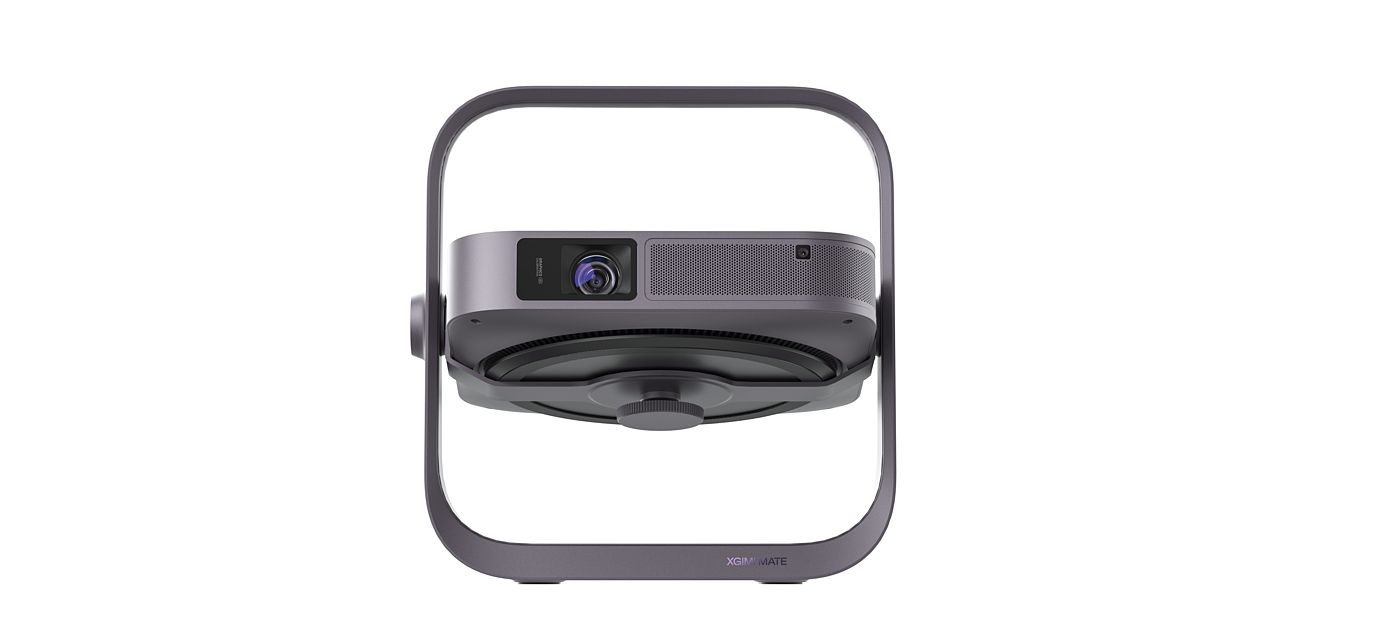

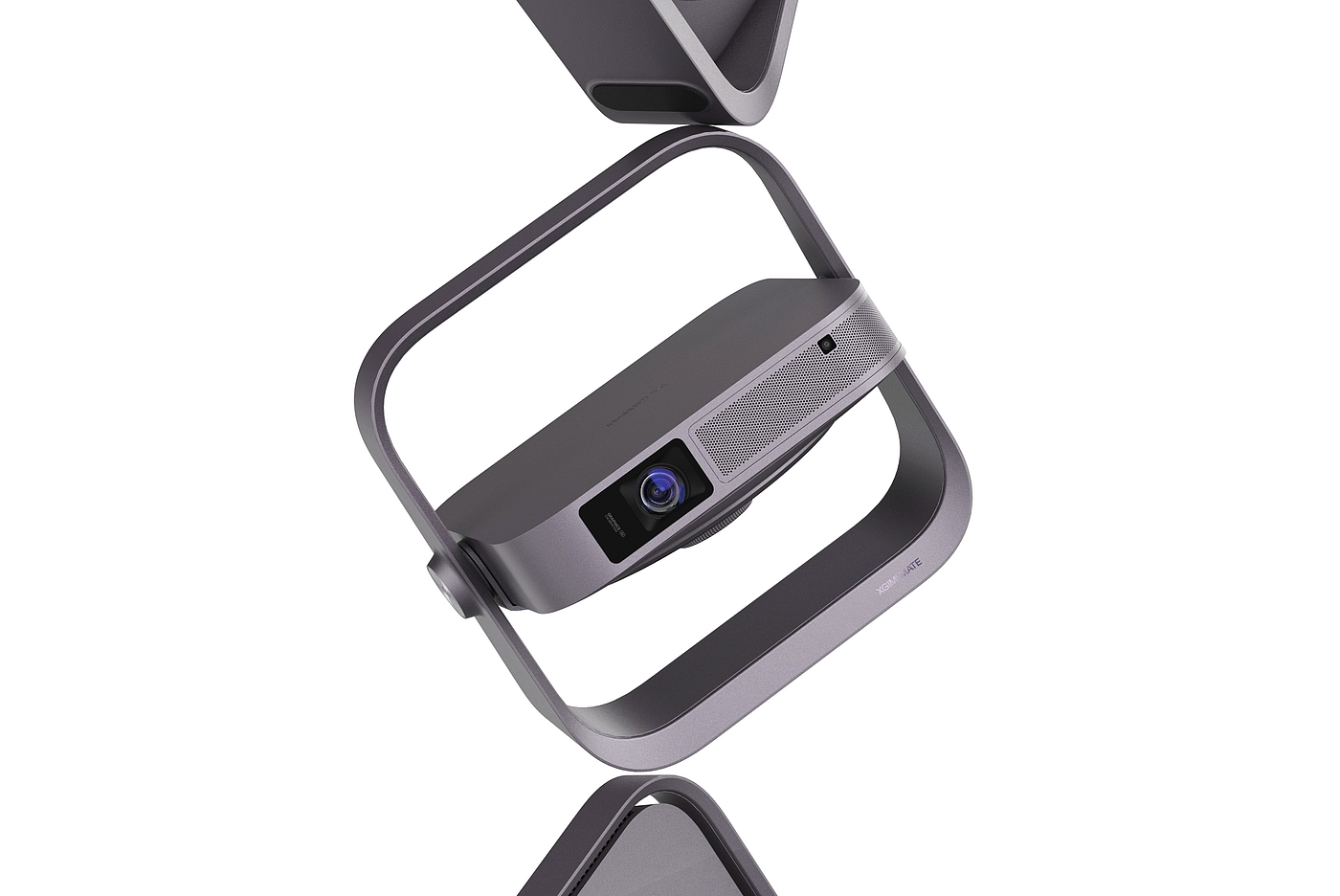

This is an upgraded version of the extreme meter Z series projection design. We have retained the design style of the extreme meter Z7X projector in the design process, and combined its cross-sectional shape with the concept of picture frame to provide users with more personalized use scenarios. At the same time, we have adopted a detachable and modular processing method to reduce the changes to the original product structure and improve the sustainability of the product.

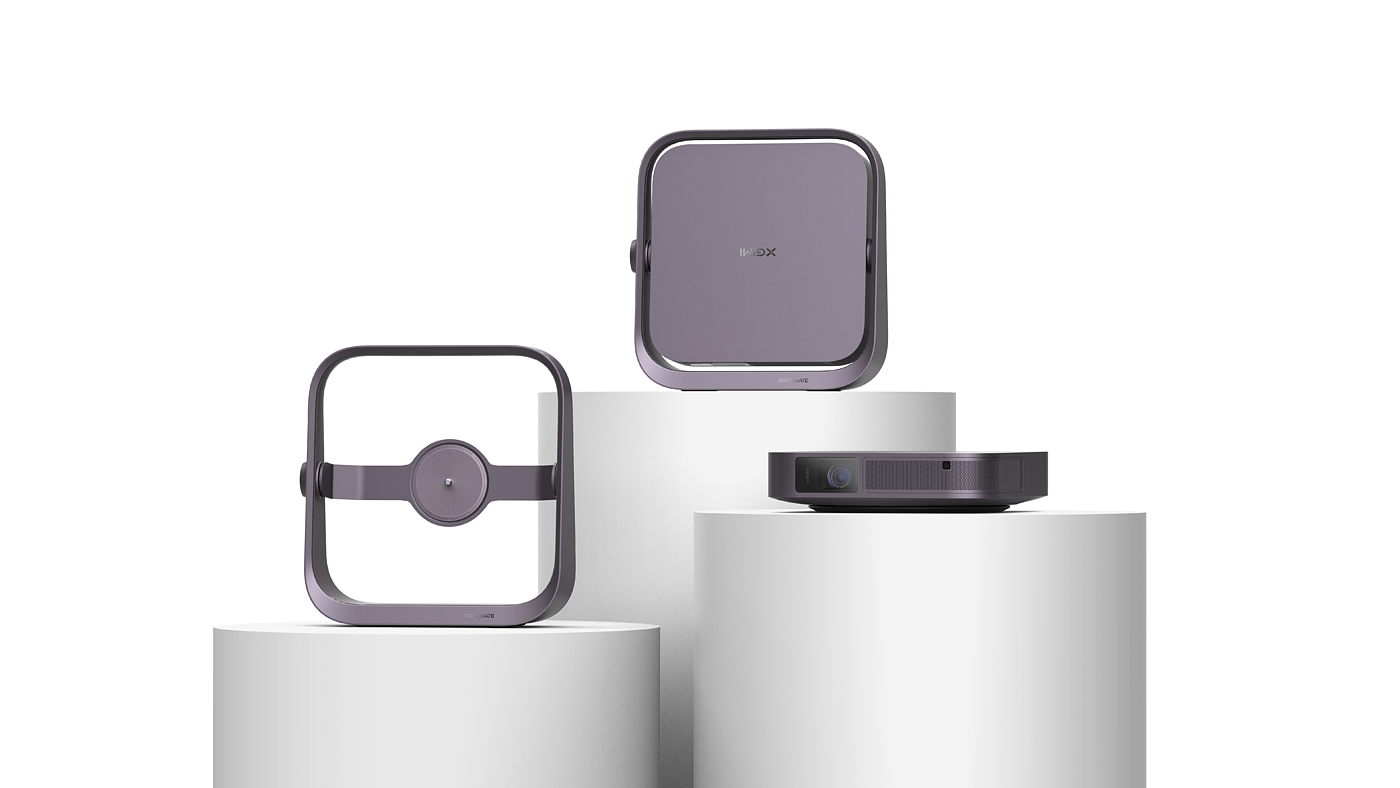

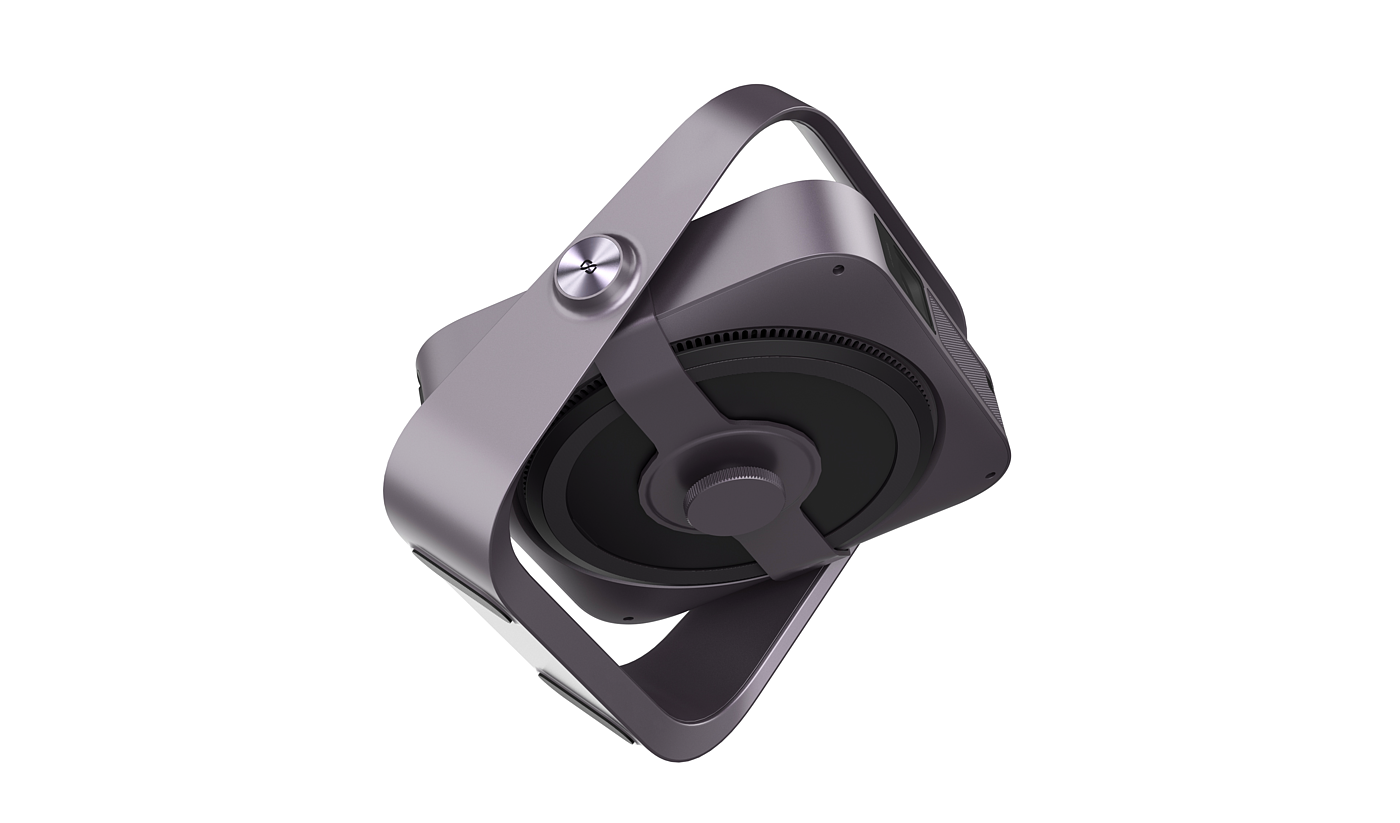

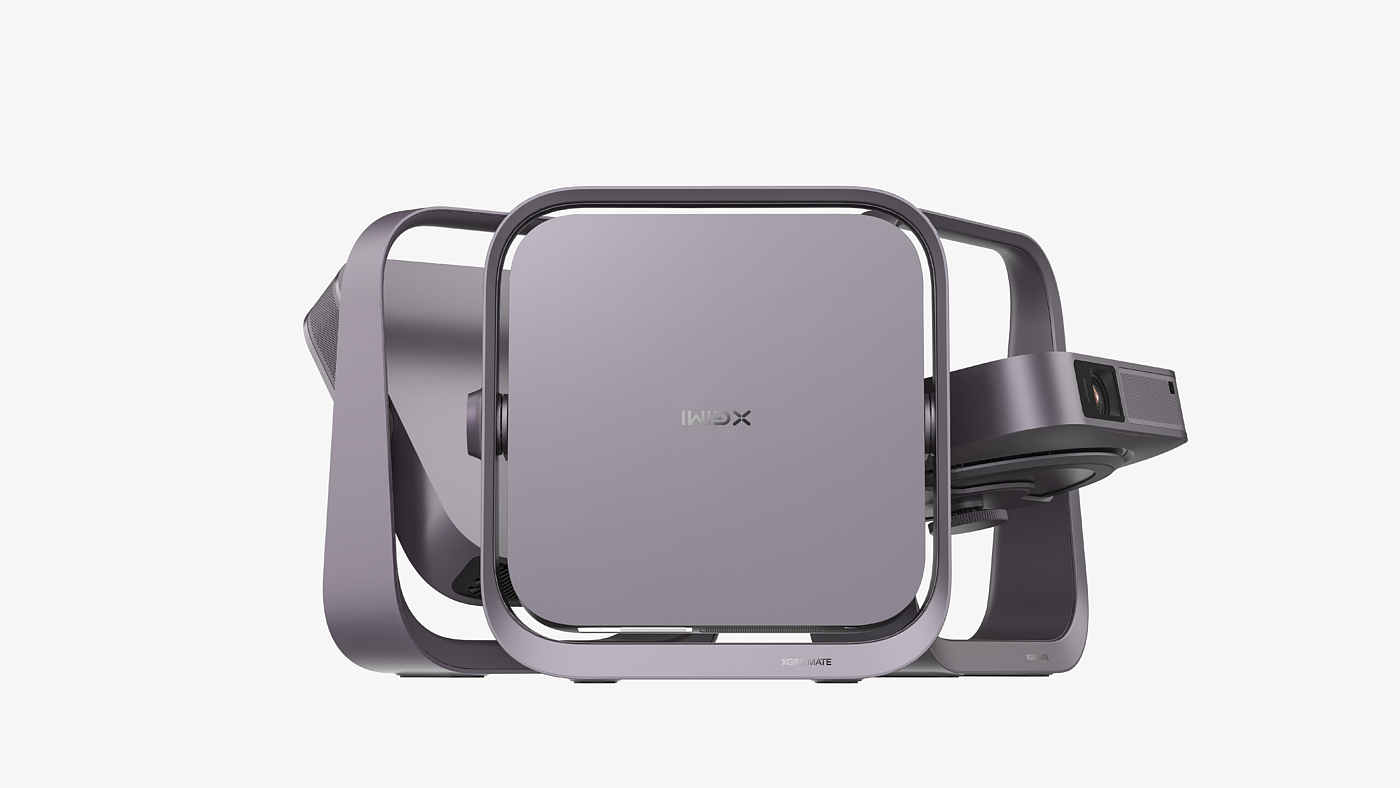

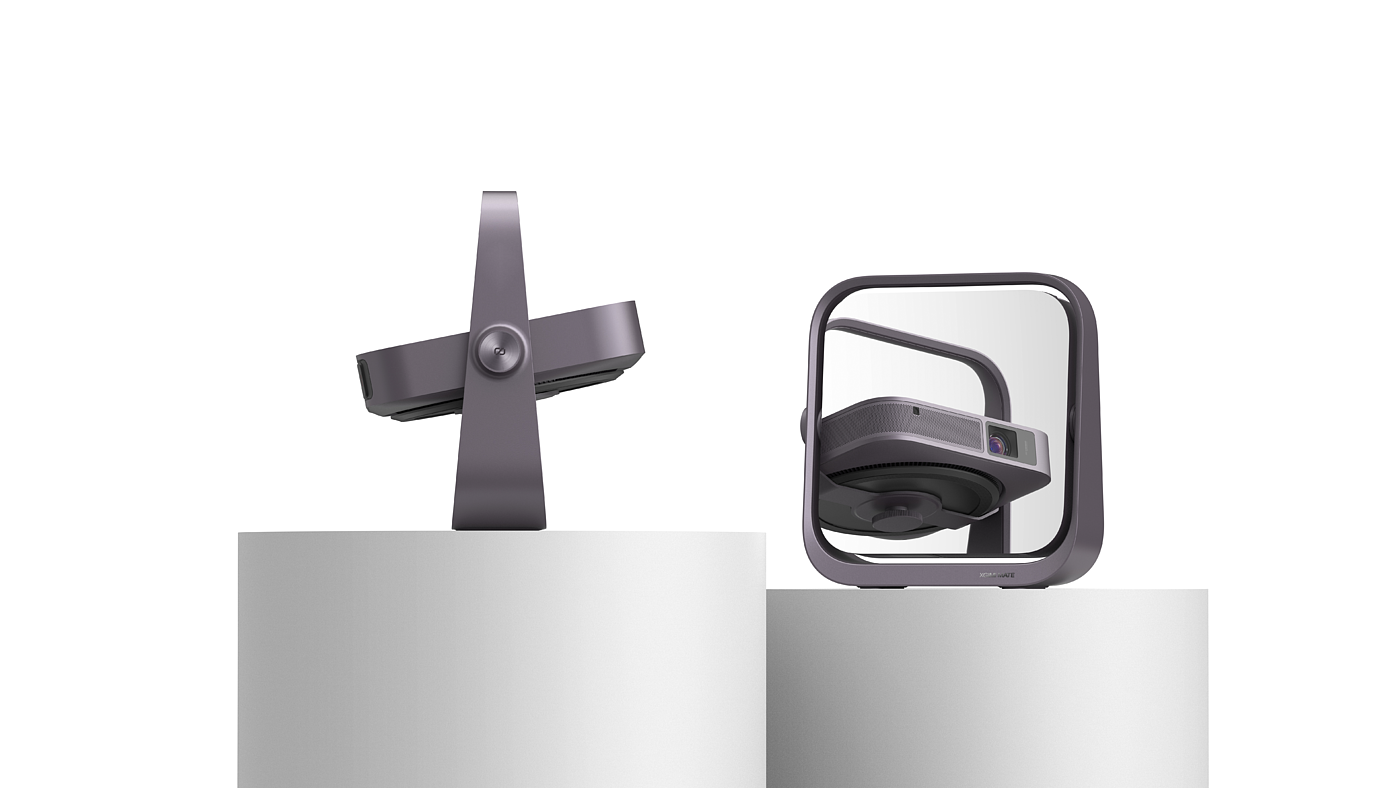

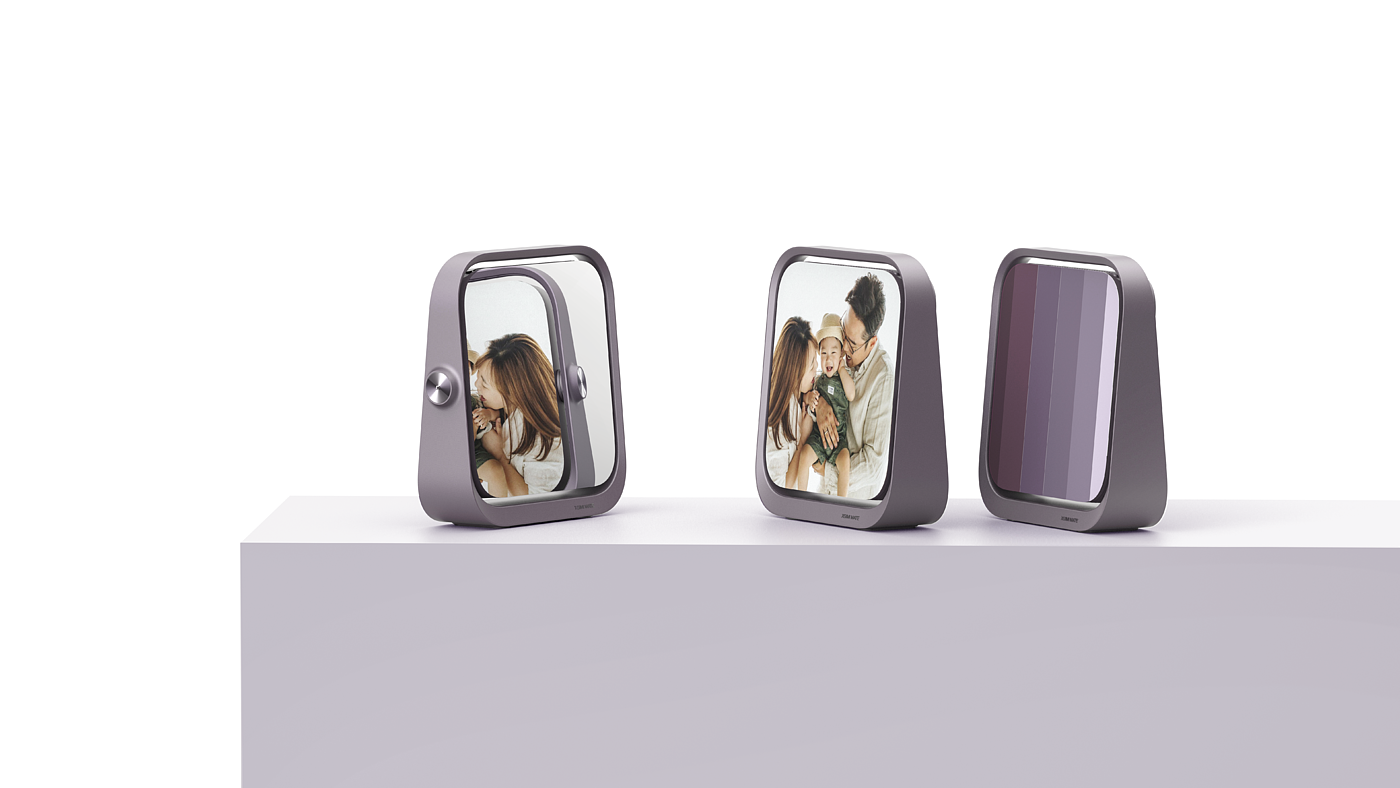

The design can easily adjust the projection angle, creating the best viewing scene for users, even in the case of lying down can also enjoy a very comfortable viewing experience. When the stand is folded, it is perfectly integrated with the host to form a light and thin art frame, which can be placed on the bookshelf to reduce the occupation of the user's desktop space. In the unfolded state, it can also be used as a convenient mobile handle, which is more convenient to carry and move. Through the above optimization, this design can bring users a more excellent experience.

Industrial design products projector home module pan-tilt，

138 120

迦南圣经【普象金牌点评员】 2024-04-29

How to charge

SHIYIN作者 2024-04-30

There is a charging port behind the fuselage

我也说一句

Captain 2024-04-29

I have one, in the lottery

I don't know if it is a bug in the projection. I project it obliquely. after manually adjusting the rectangle of the picture, there is still a circle of light and shadow outside that is oblique. it is very annoying

SHIYIN作者 2024-04-29

When throwing sideways, there will be a hypotenuse light and shadow. Oh, you can imagine that the picture hits the wall in parallel. At this time, the wall is a diagonal square, but we need the picture to be positive, so the manufacturer will make a correction technology, but it is only based on the oblique picture to make a positive picture, so the picture with the positive angle of view will be displayed in the large oblique picture.

Captain 2024-04-30

I feel this must be optimized, otherwise the experience is not good.

It really needs to be improved, which can weaken the virtual shadow. However, the virtual image cast by the projector side is caused by the principle of projection imaging. Whether it is DLP or LCD projection, there will be such a phenomenon, with brand, product level has nothing to do.

啊吧啊吧 2024-04-29

How can the function of the picture frame be realized? The structure is a bit unintelligible.

The design is done by magnetic attraction. We provide different styles of screen patches, and users can directly magnetically attract them.

etherealelf 2024-04-12

So you designed the Z6X series of polar meters? This series is the most comfortable one in their family. I have used it for several years. The others look at = m =.....

SHIYIN作者 2024-04-12

It's just that I made this design for this generation.

LW 2024-04-10

It's not hanging. There's no edge.

SHIYIN作者 2024-04-10

⚡️

BIGBIGBIGZHANG 2024-04-10

How to vote directly above

The projector has a projection angle. It only needs to bring a large elevation angle to the ceiling, because most of our placement is at the head of the bed or beside the sofa. If it is completely vertical, some pictures will hit the wall behind it. The vertical ceiling projection you mentioned will appear in the middle of the room, but this situation is relatively rare, so complete vertical projection is not considered.

BIGBIGBIGZHANG 2024-04-11

Thank you for your patience and explanation

You're welcome
