I am not an industrial designer, this work is a hobby, not up to professional standards, only for entertainment.

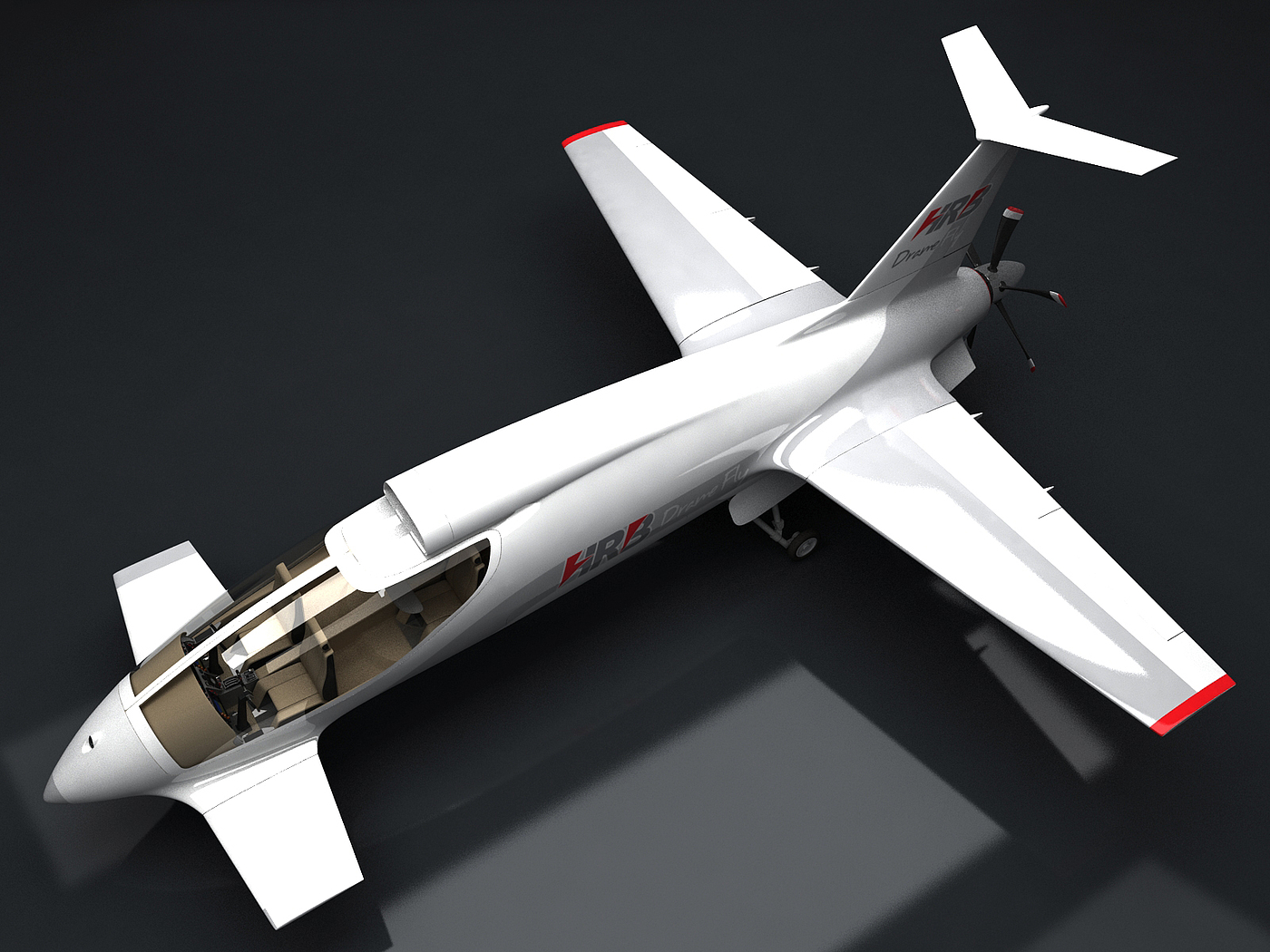

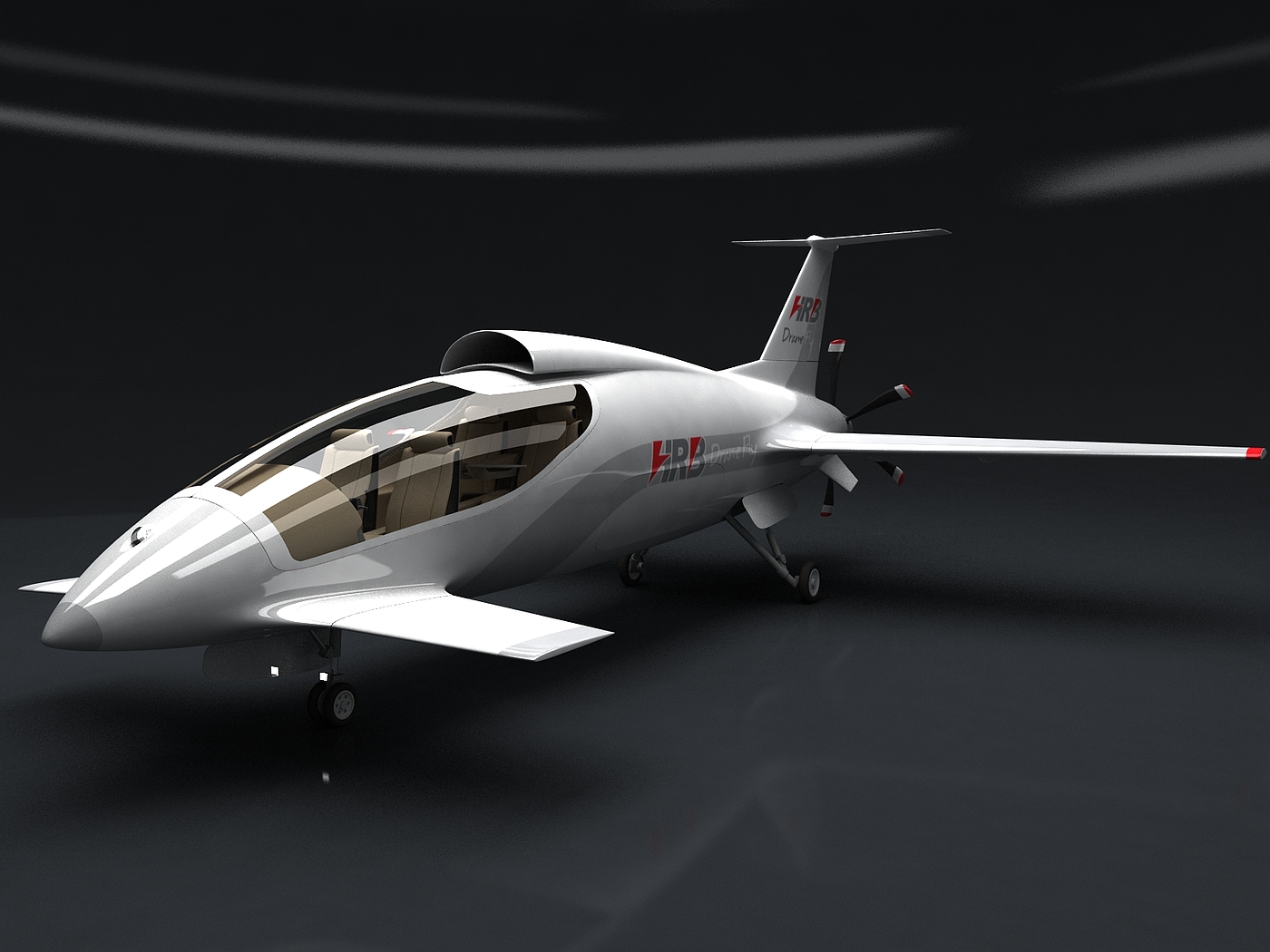

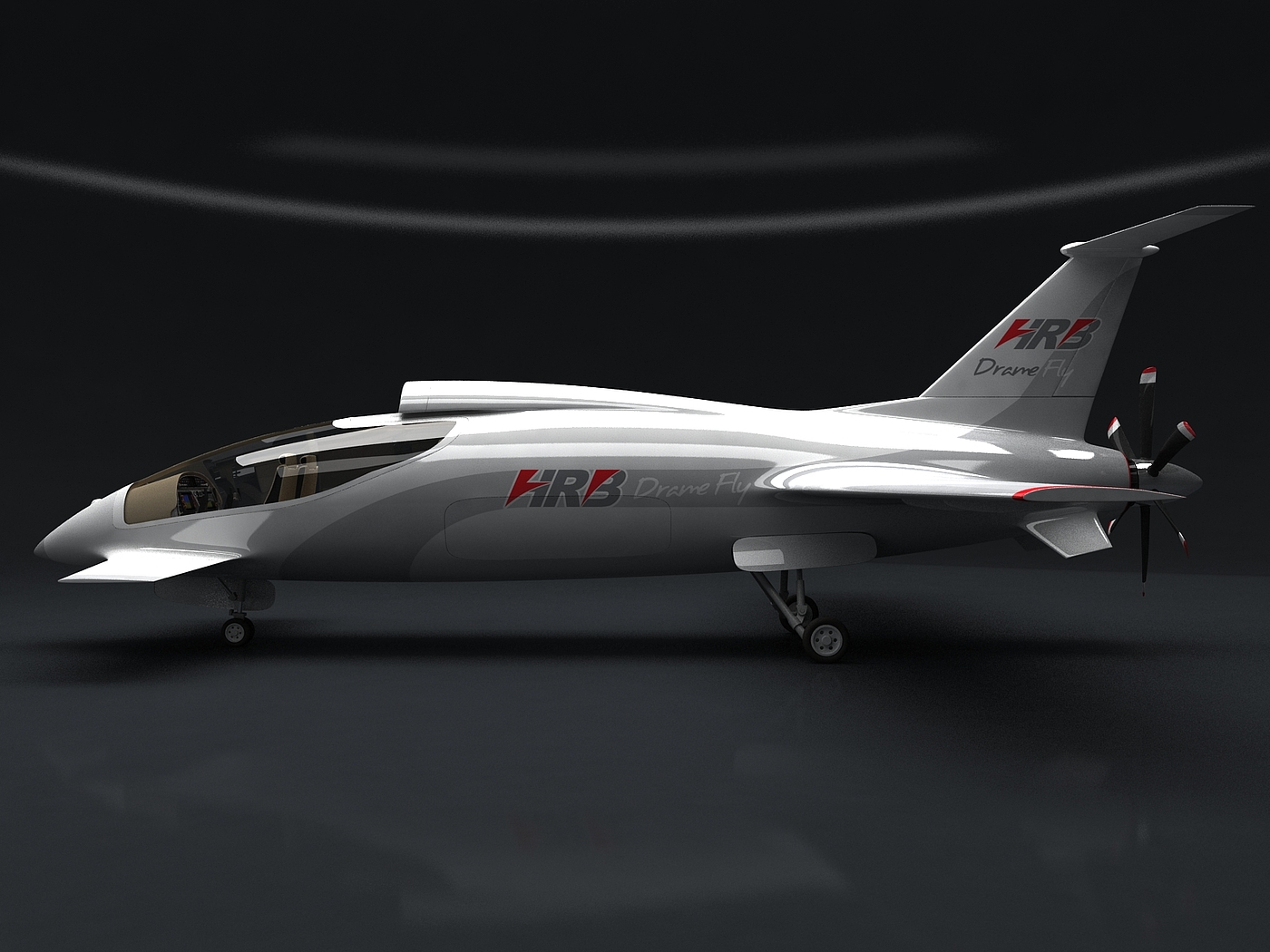

This is a single-engine propeller four-seat small aircraft, positioned between a small business airliner and a light sports aircraft, and can be used for private travel or business navigation. Duck aerodynamic layout, the main wing is in the middle and rear of the fuselage, full-action canard, full-action horizontal tail. The front three-point landing gear uses a turboprop engine rear-mounted, six-blade propeller.
Address of initial design draft: http://www.zcool.com.cn/work/ZMTc3NjY4NA==.html

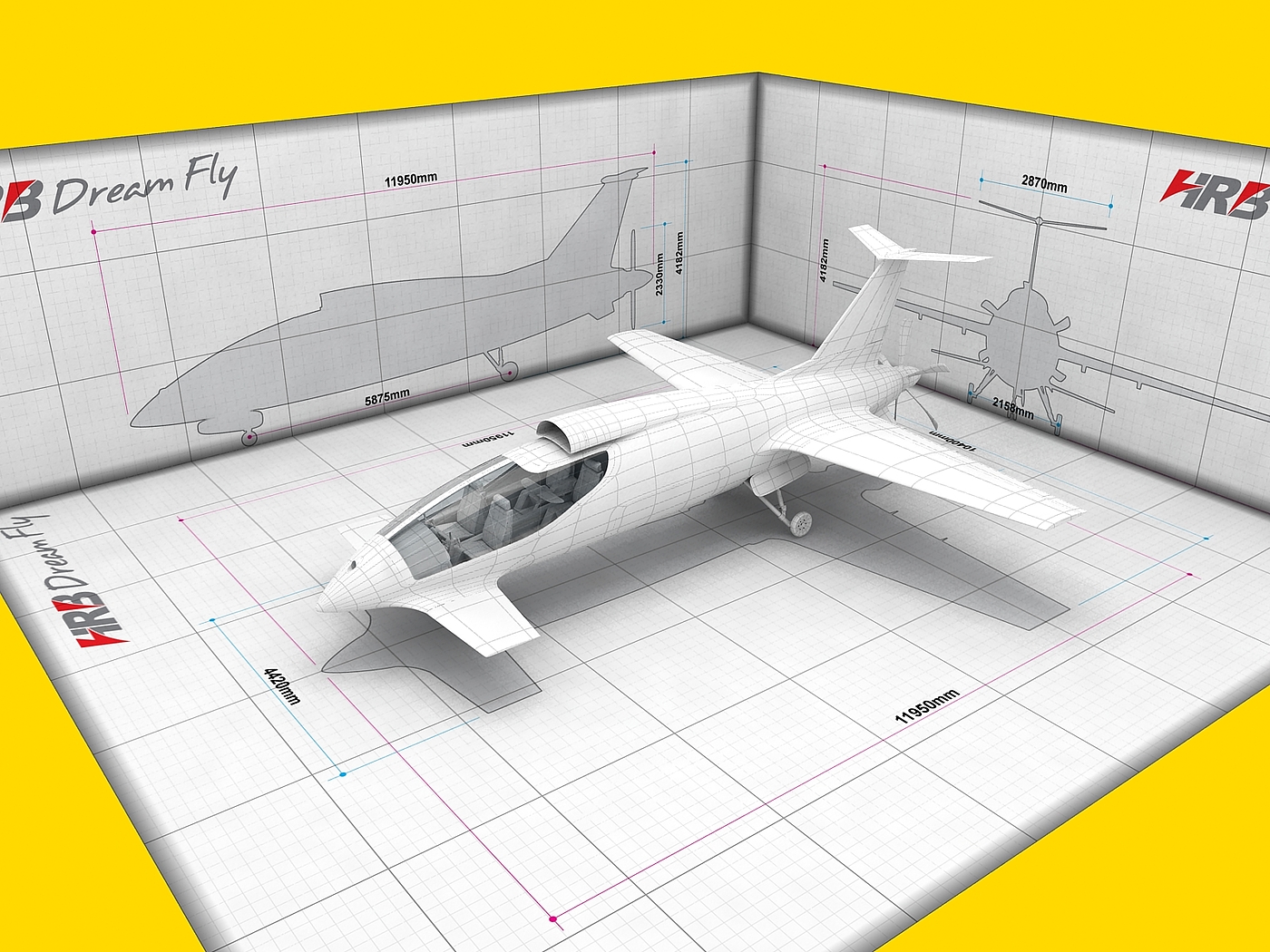

Later, I felt that the fuselage was slightly longer and the center of gravity was forward. Later, the fuselage was shortened and the tail was slightly longer, so that the weight ratio tended to be balanced. A simple painting was designed, officially named HRB Dream Fly.
新用户?创建账号
登录 重置密码
请输入电子邮件以重置密码。

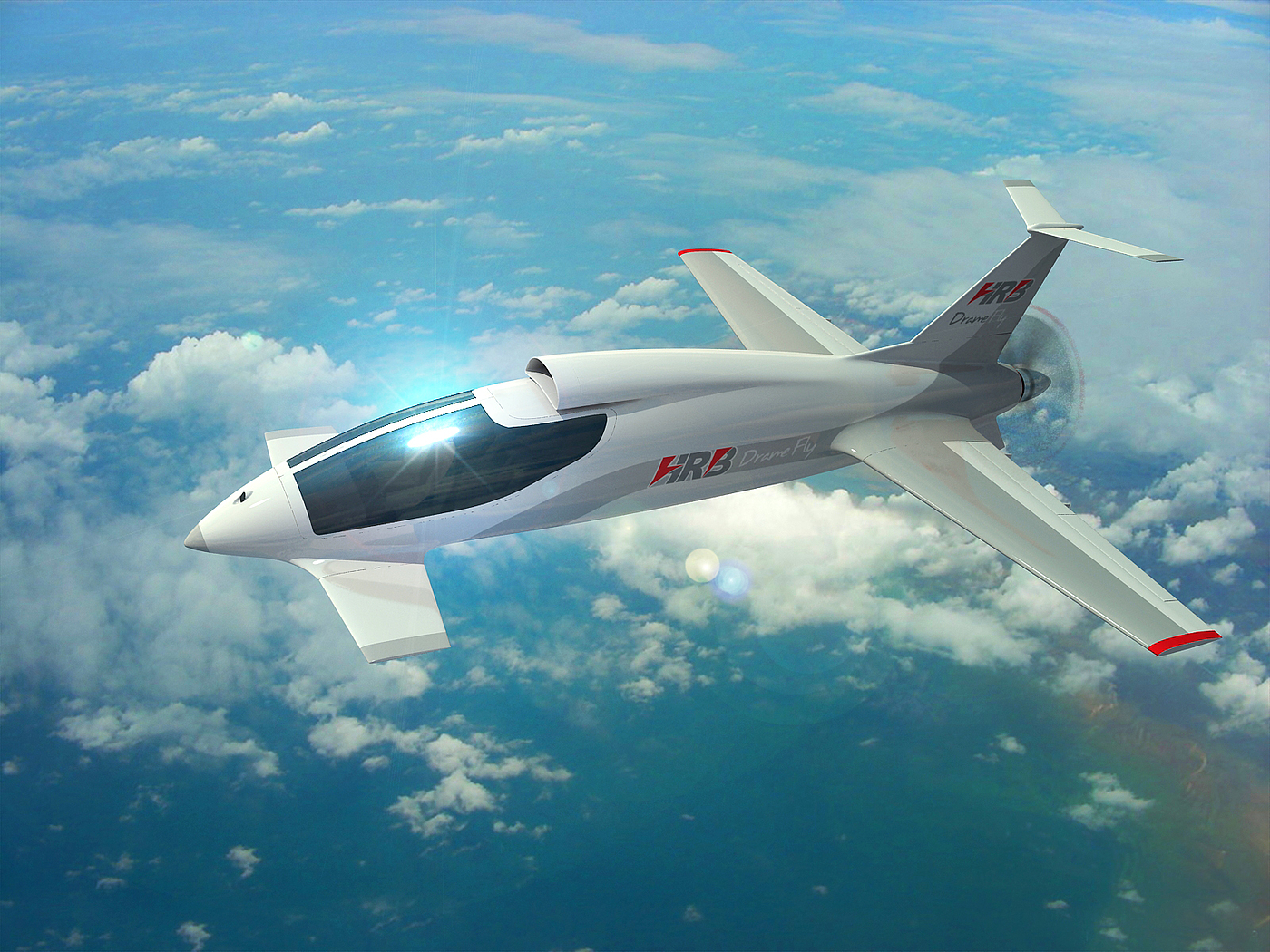

This sky matches well.

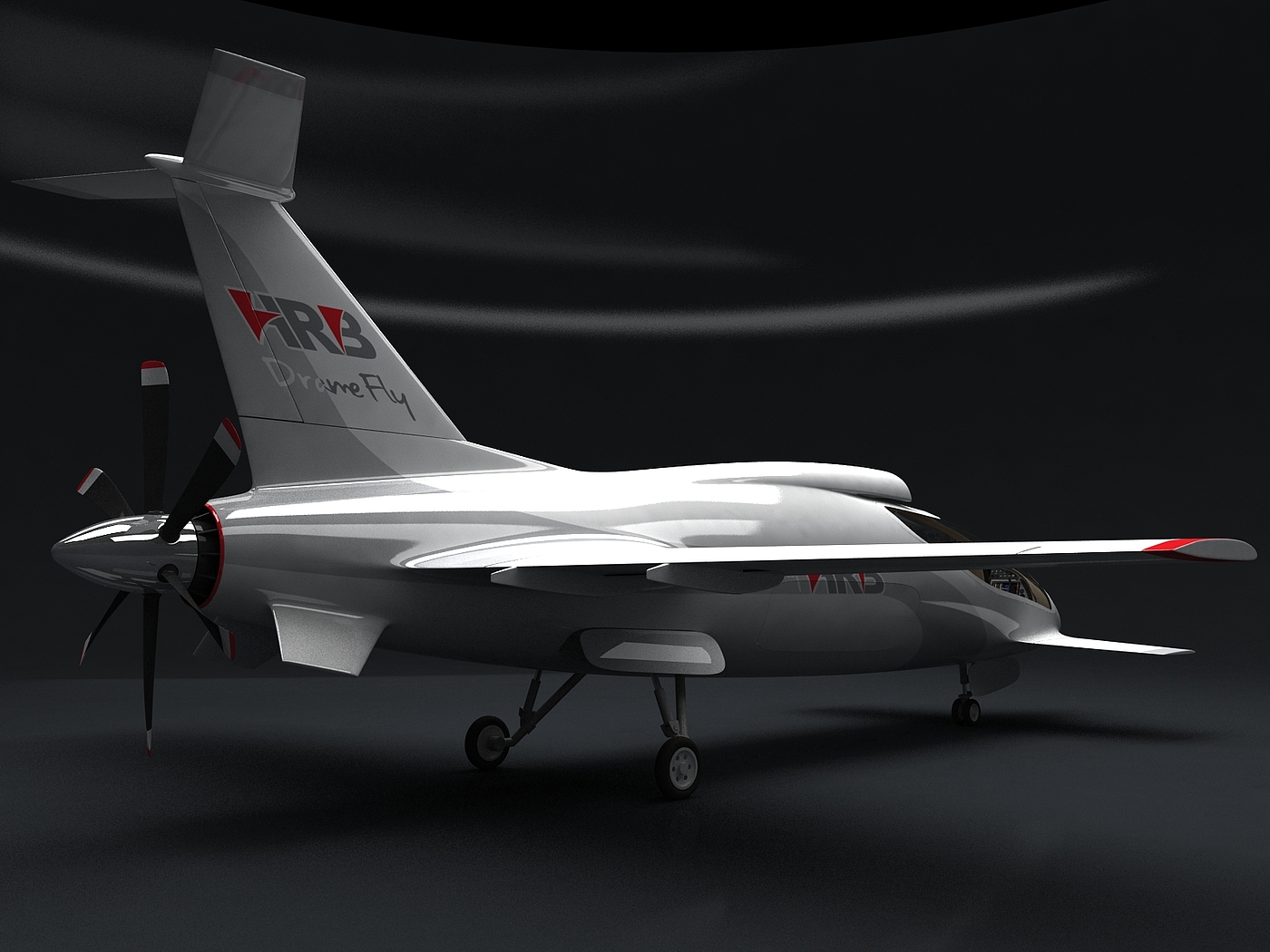

This is what the flaps look like when they are raised
