This work is a classroom demonstration case work, mainly demonstrating the expression and application of "point, line and surface" in basic form, accumulating experience and sharing ~

Simple scene renderings

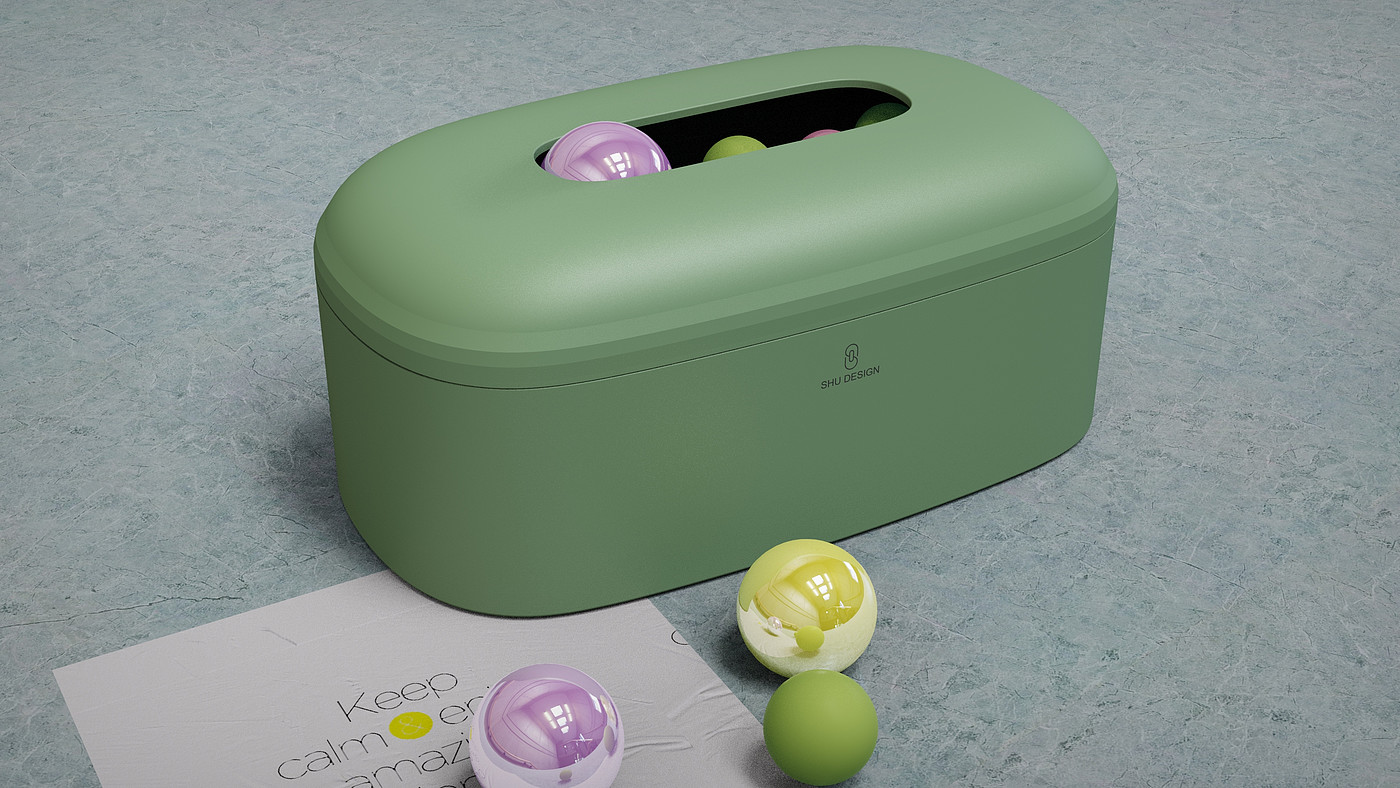

Simple Scene Effect Diagram 2 Wood Grain and Background Rendering Demonstration

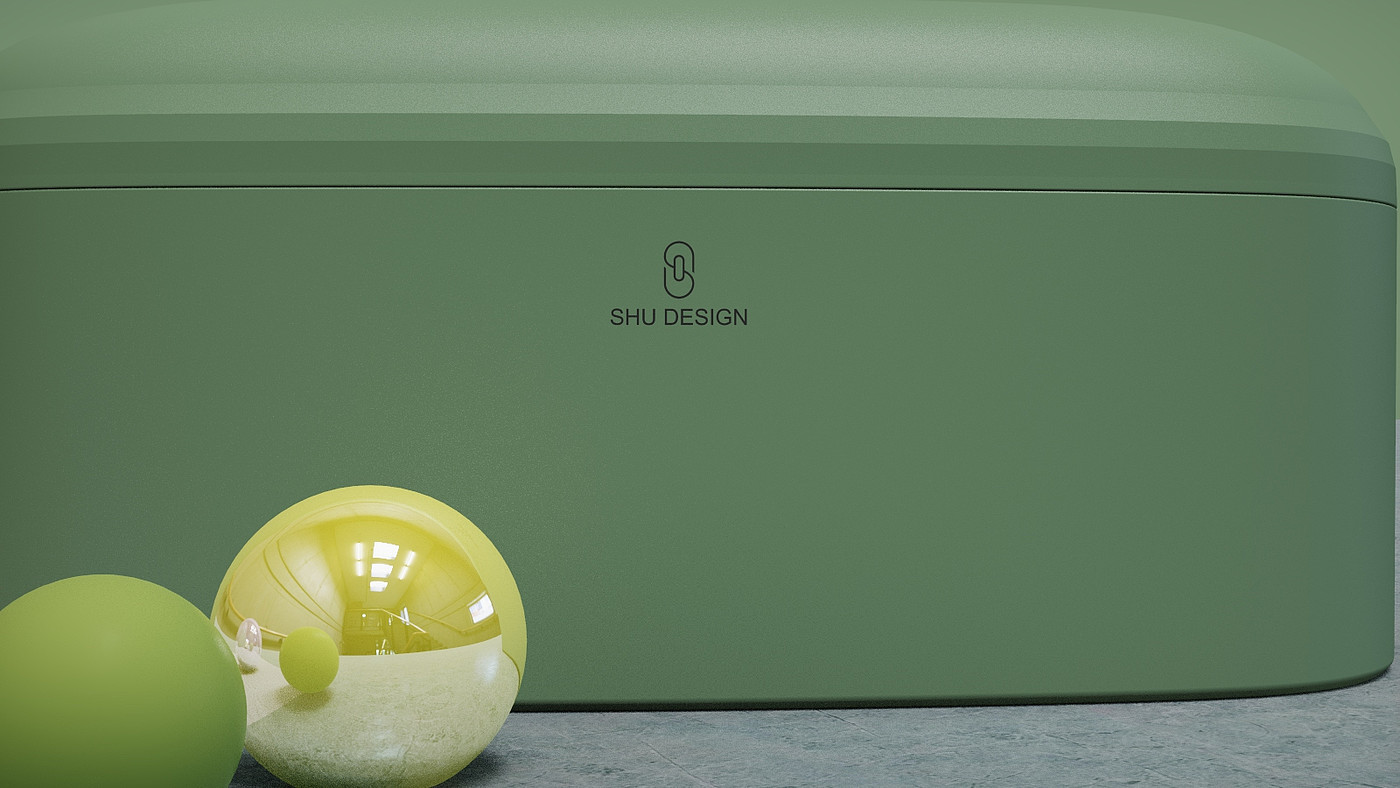

Demonstration of scene background map effect diagram

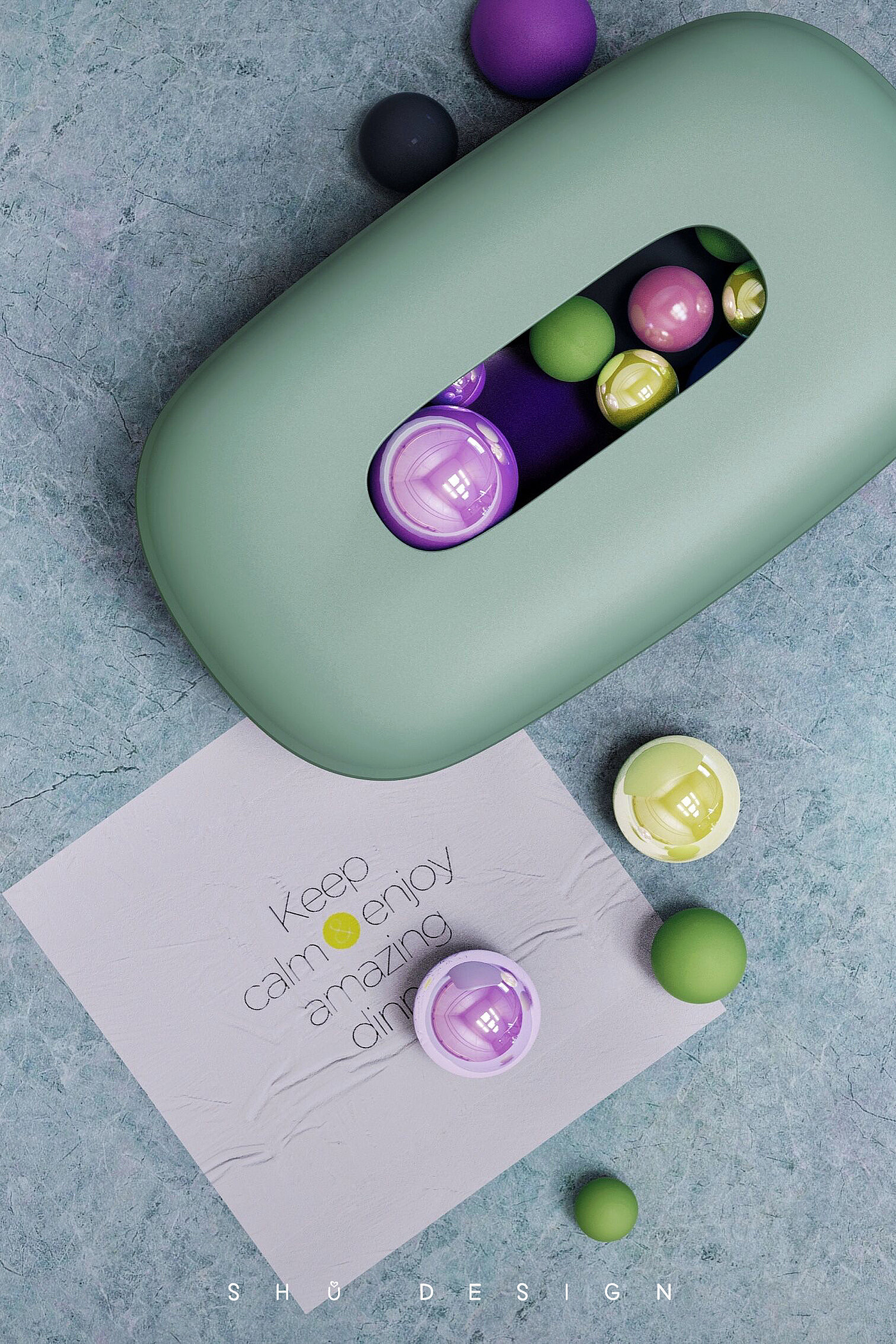

Detail diagram demonstration

Detail diagram demonstration 2

Detail drawing demonstration 3

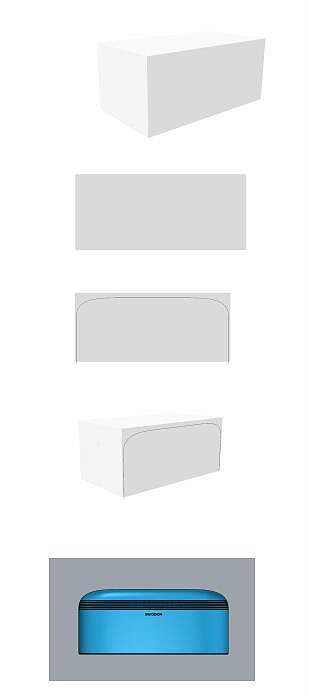

The following process is the application of the line modeling basic expression classroom case, skipping the basic sketch directly to the three-dimensional performance. First, a cube is used as the main body, and the software is actually used to rotate the second tool to rotate and form. Many mobile phone case designs and models also use this tool to make curved surfaces ~

The position expression of the line is very important. besides the contour line, parting line and decorative line, the line also involves its functional expression in this shape. the line just expresses the shape and can increase friction for splitting the lid and open the lid more easily ~

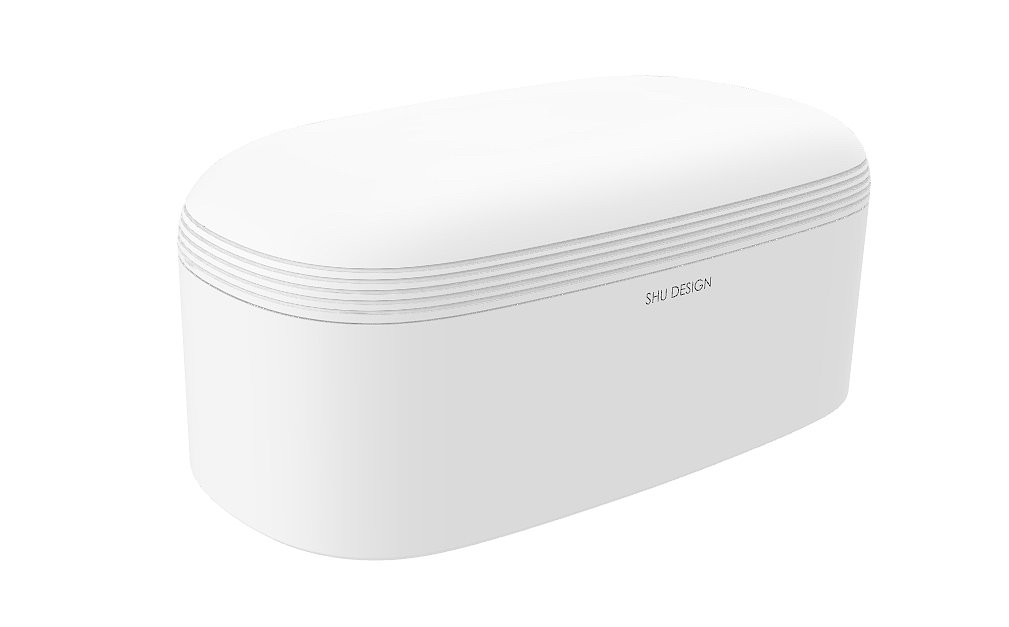

Overall shape after rotary molding

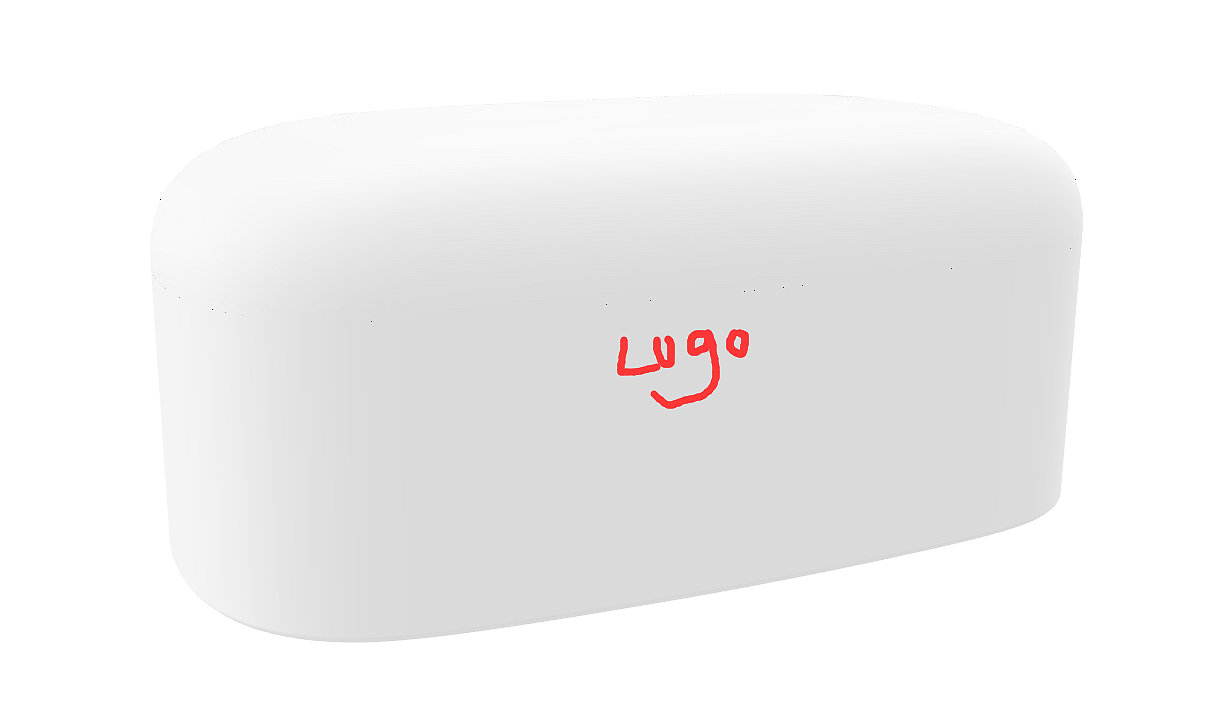

The application at the icon, this is modeling: the usage of dots

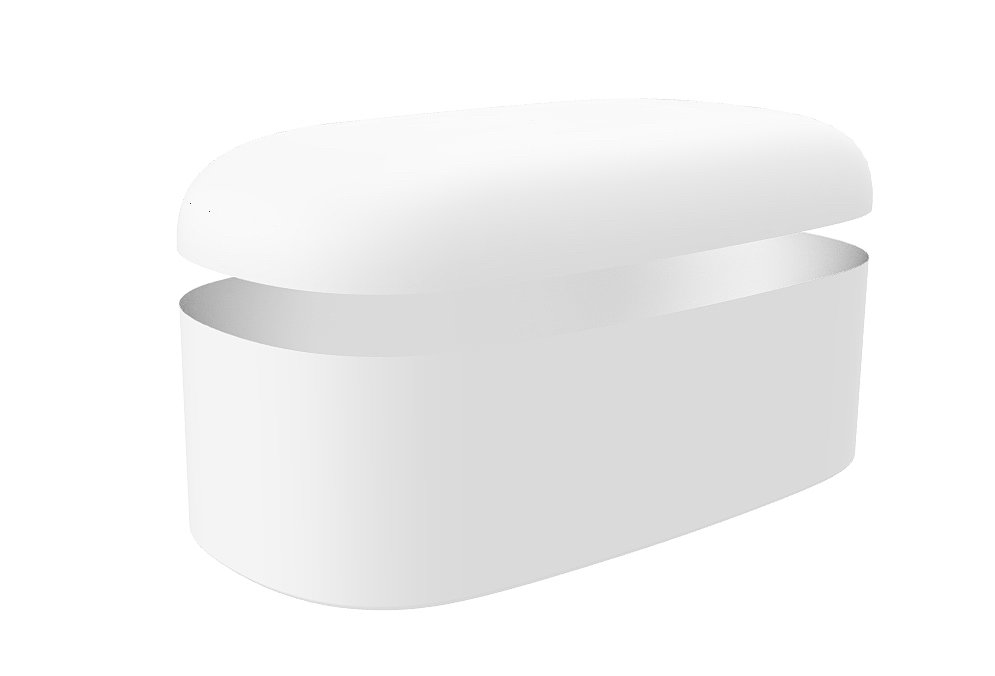

The expression of the parting line, distinguishing the actual use of the mold, is a structure up and down ~

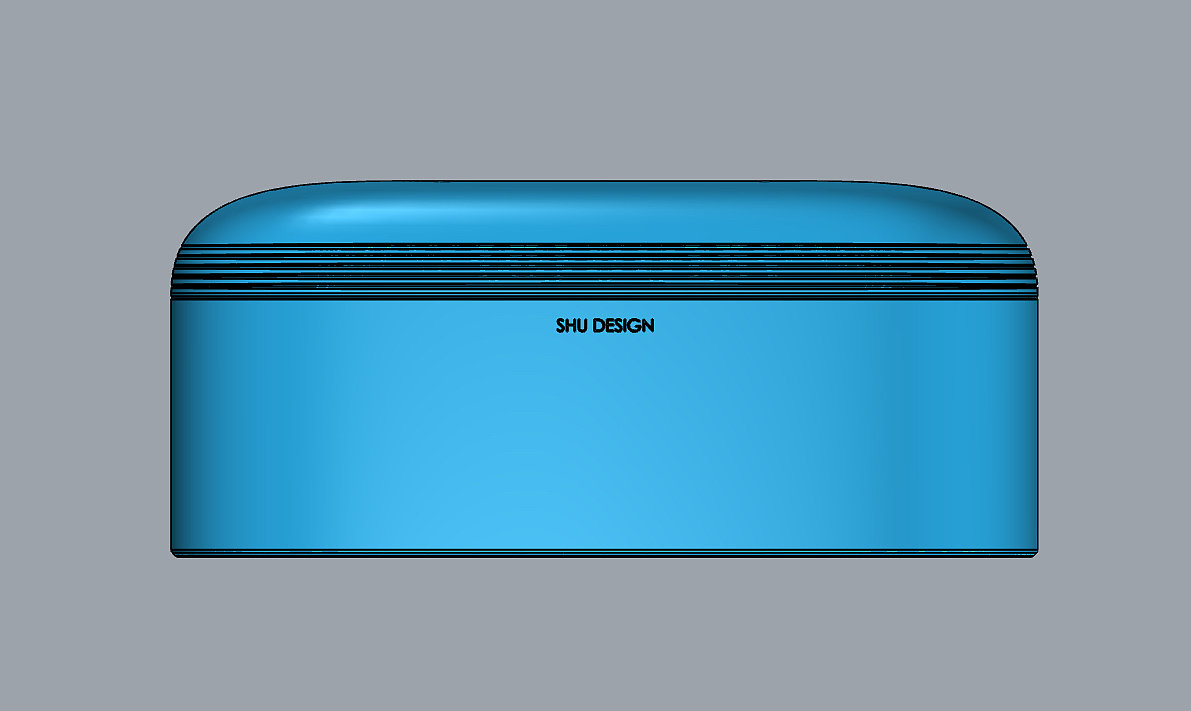

Determine the expression position of the line, clarify the form and function expression

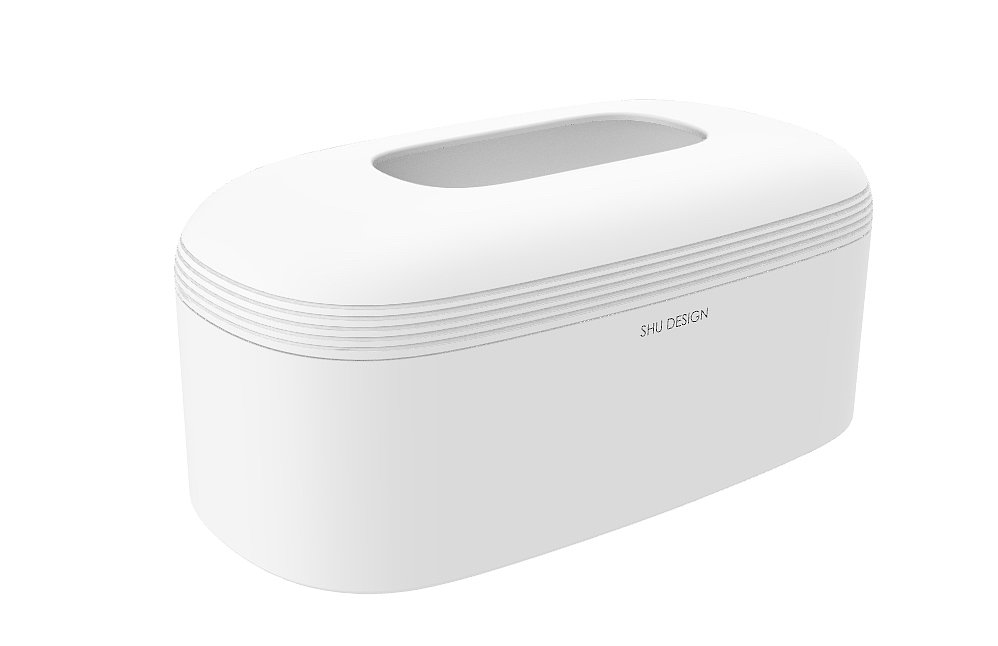

Overall modeling effect

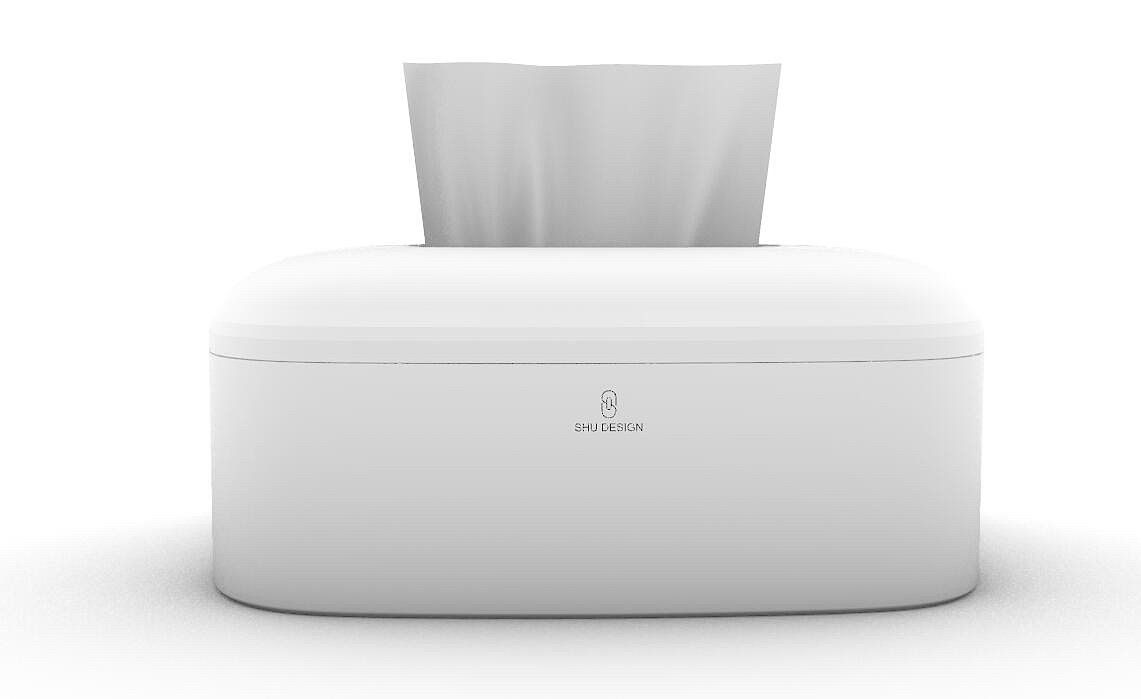

Modeling Expression at the Exit of Paper Tissue

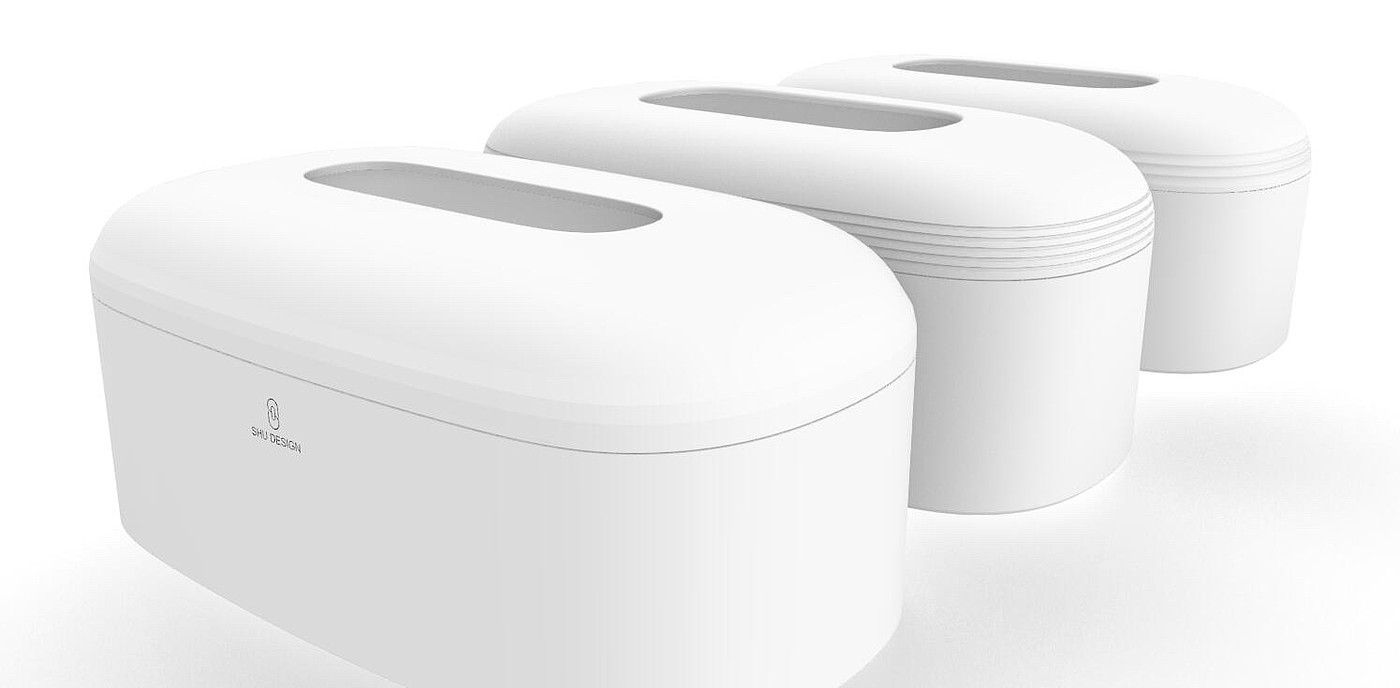

Through the comparison of the three line designs, it is clear which line is used to make the product shape more stereoscopic.

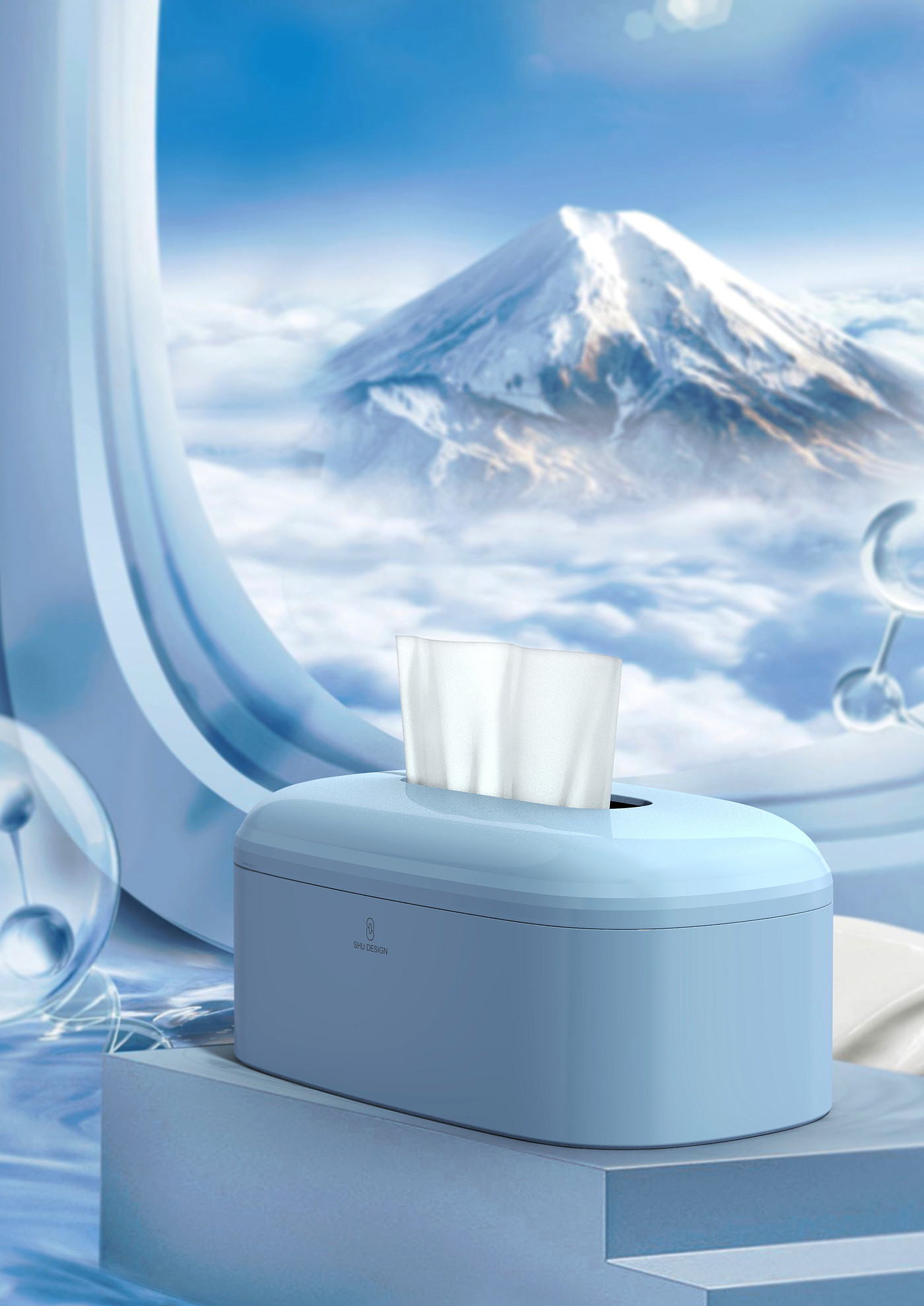

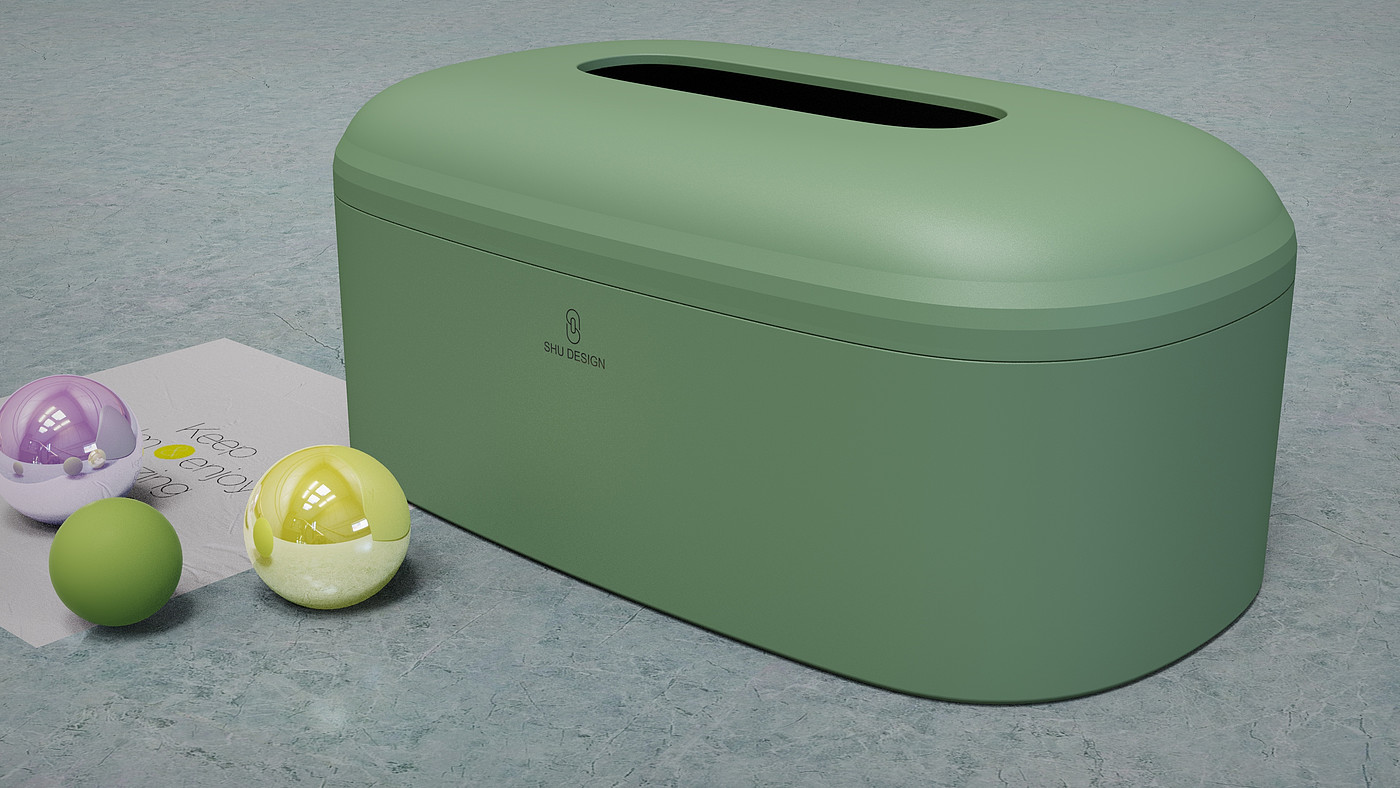

Paper towel scene display modeling

The performance of the contrast line in the shape after rendering and lighting is placed. By contrast, the line expression of the initial rendering effect diagram is selected. It is simple and has the shape of "somatosensory" conventional projection lines for Boolean operation. Therefore, it can be clear through comparison and the function of the line.

The material reference drawing of the modeling line, design is never a fantasy without accumulation, only to learn from experience and innovate again ~

Expression of Student Line 1

Student Works 2

Student Works 3
