If only a very early idea could come true.

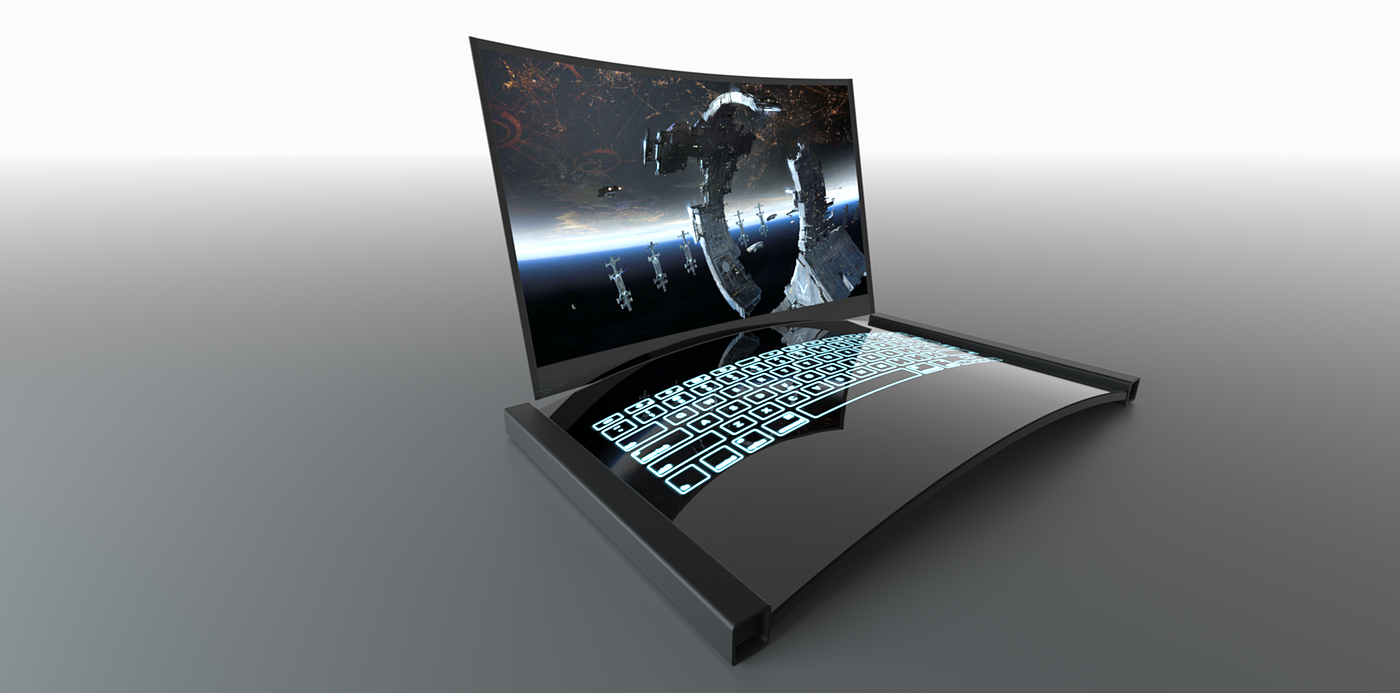

The screen picture was directly downloaded from Baidu, and I don't know who the author is. It won't infringe. The bending degree of the upper and lower hyperboloid screens and the lower curved screen is in line with ergonomic design, which can reduce the degree of wrist strain.

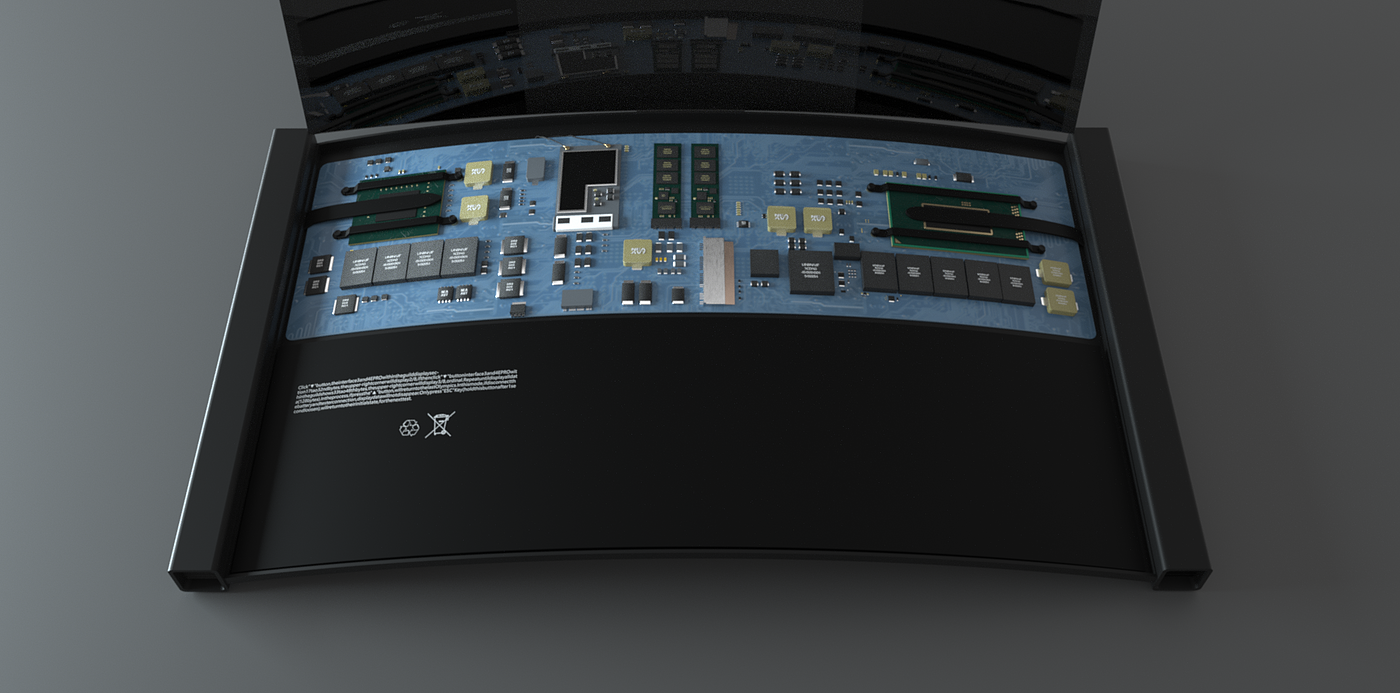

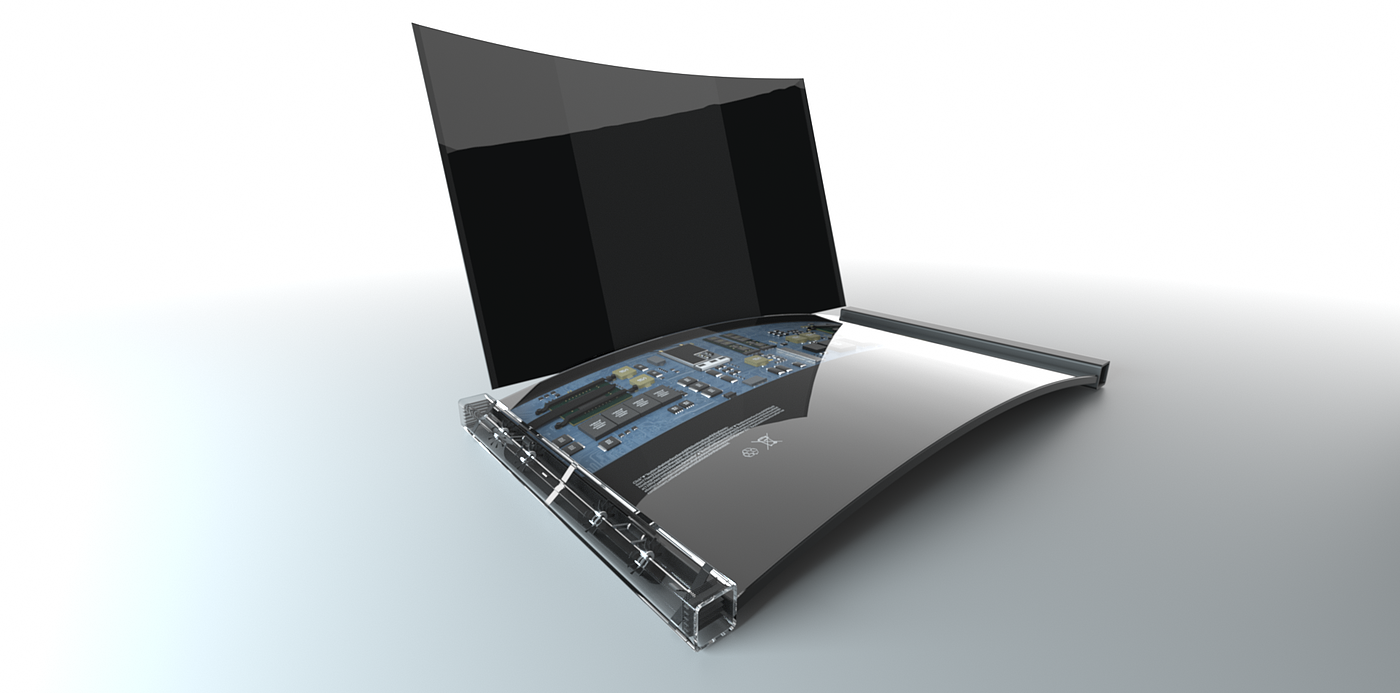

Overall internal deconstruction

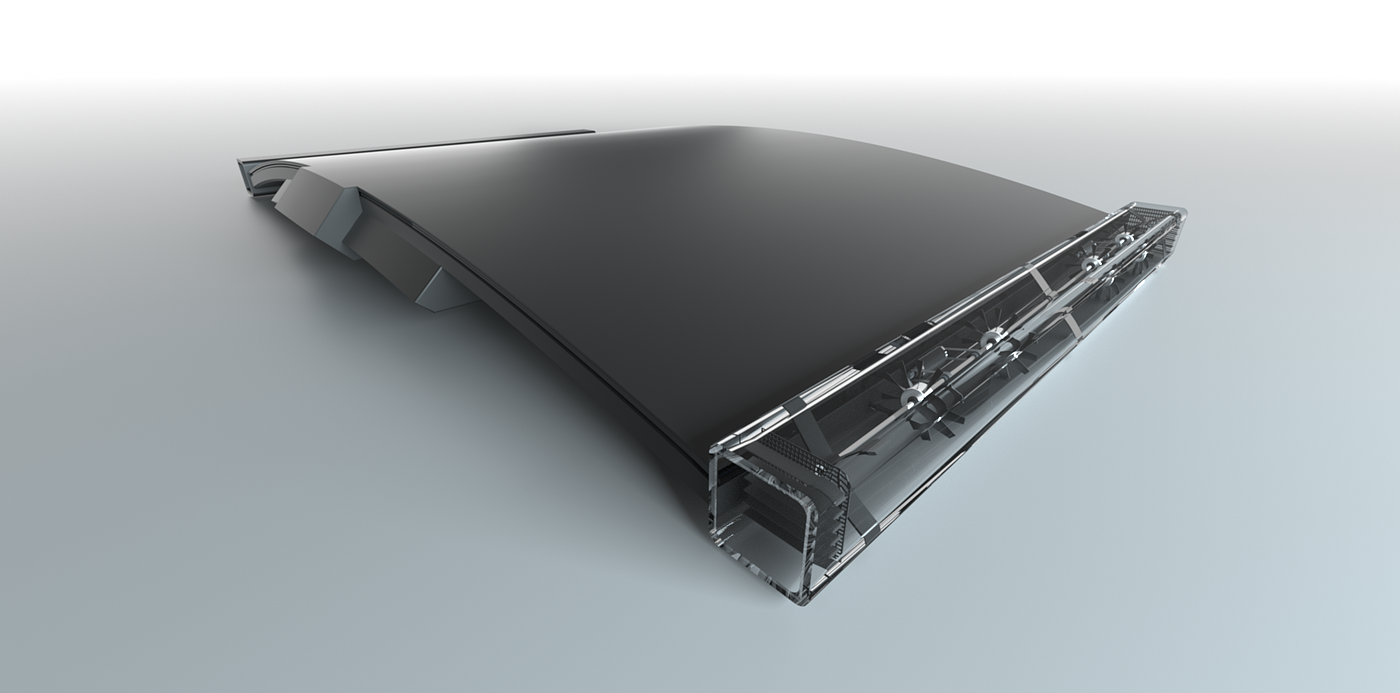

The whole heat dissipation structure

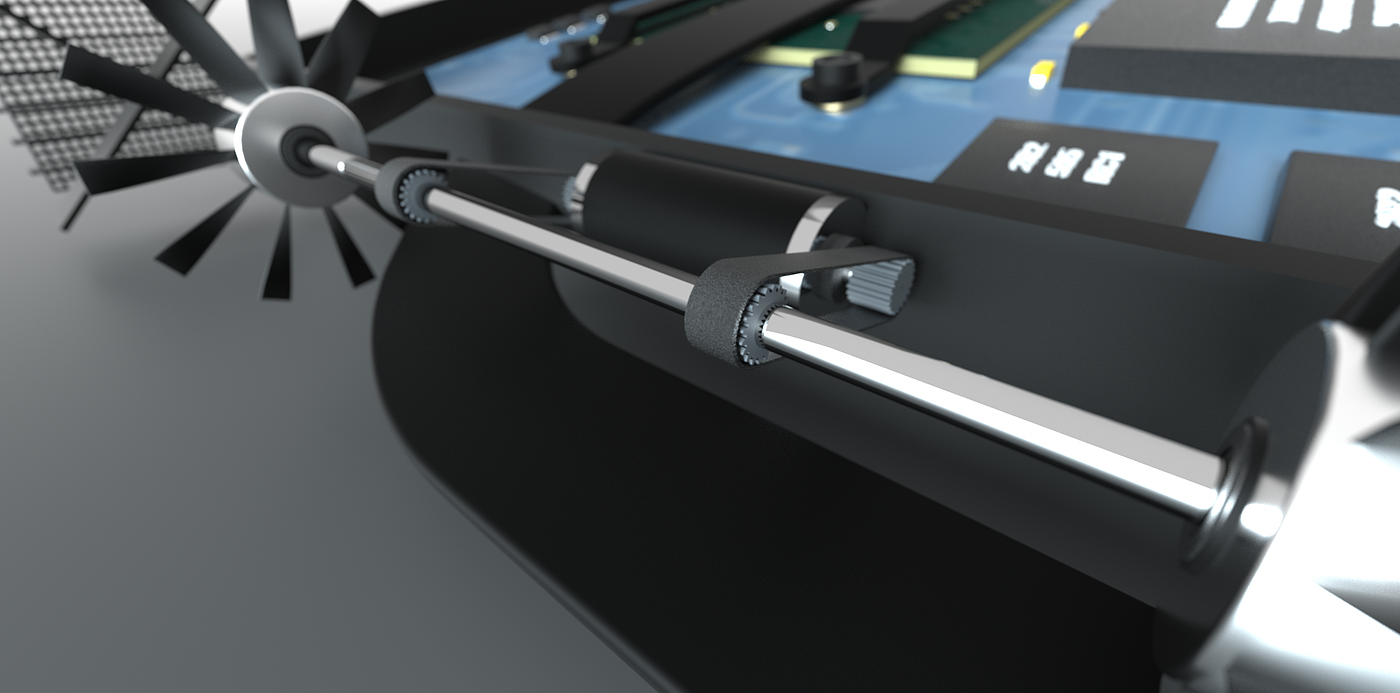

The group is driven by two small motors.

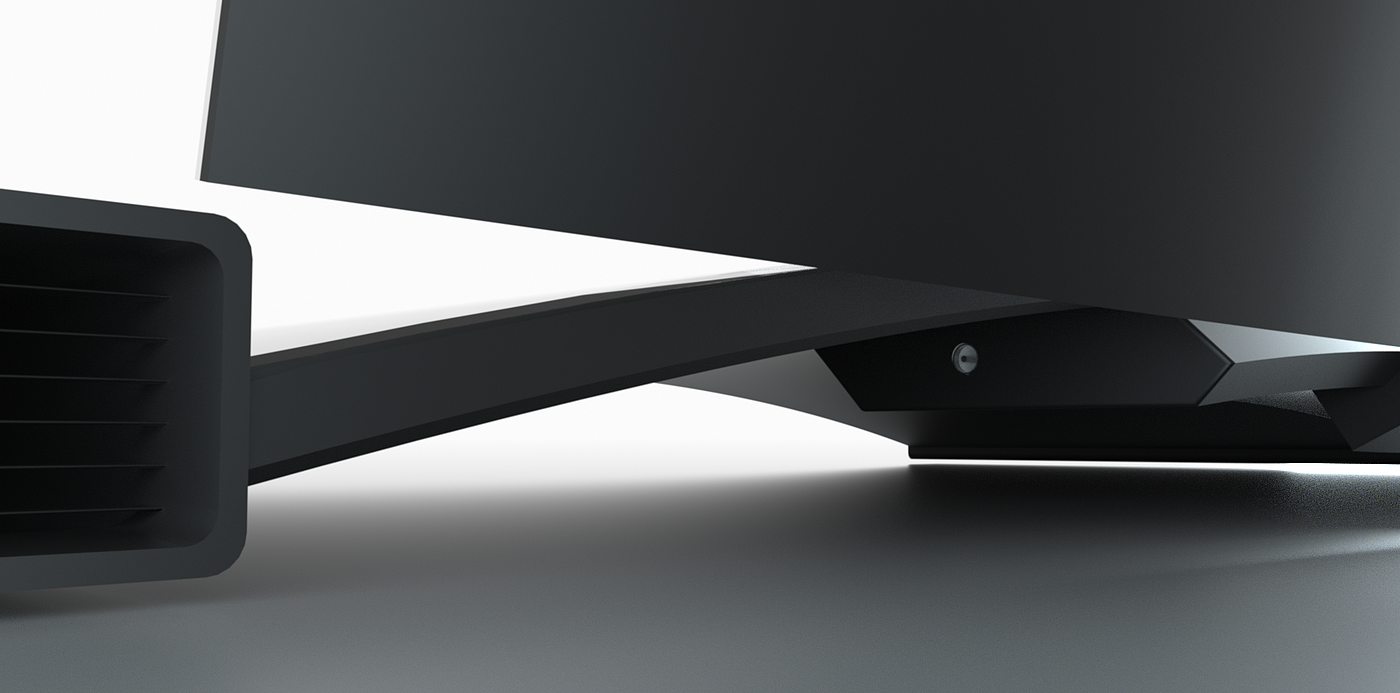

All interfaces are hidden on the pivot seat at the bottom.

3 9

用户其他作品查看更多

I don't know what to call an electric shaver with rgb lights.

留言板（16）

杳七 2022-08-13

Good looking

PoorDesign 2020-04-15

Copper tube, heat dissipation is mainly graphics card and U bar

Toyli作者 2020-04-25

The copper tube is not necessarily copper or black

PoorDesign 2020-04-28

Do you really think this heat dissipation structure is reasonable

Toyli作者 2020-04-28

They are all copper tubes for heat dissipation. The principle is the same. You can say it is reasonable, but no one has done it. You can also say it is unreasonable.

我也说一句

SUZUKA 2020-04-14

Student flavor

Lw 2020-07-30

In one word

我也说一句

BigOldMao 2020-04-13

I won't talk about the problem of heat conduction. This kind of air duct will dissipate heat or pull the crotch or the noise will explode.

Toyli作者 2020-04-13

There may be noise. I think it should be possible to dissipate heat.

莫离 2020-04-22

Do you know where the computer needs heat dissipation? The small module fan of the CPU blows away the heat. How do you get to the air duct? Where can the air outlet be circulated?

Toyli作者 2020-04-25

Do you really know about computers? Is the notebook fan blowing on this cpu module and gpu module? Please check Baidu before you comment. I have never seen a fan directly blowing cpu and gpu modules, either copper or heat sink.

Toyli作者 2020-04-25

It was also told that the fan was blowing outward, which means it is not blowing cpu

我也说一句

Aria 2020-04-13

The hyperboloid looks a bit strange.

云中月 2020-04-13

Why do you want curved surfaces? Is curved surfaces better to dissipate heat?

Toyli作者 2020-04-13

For surface display

云中月 2020-05-08
