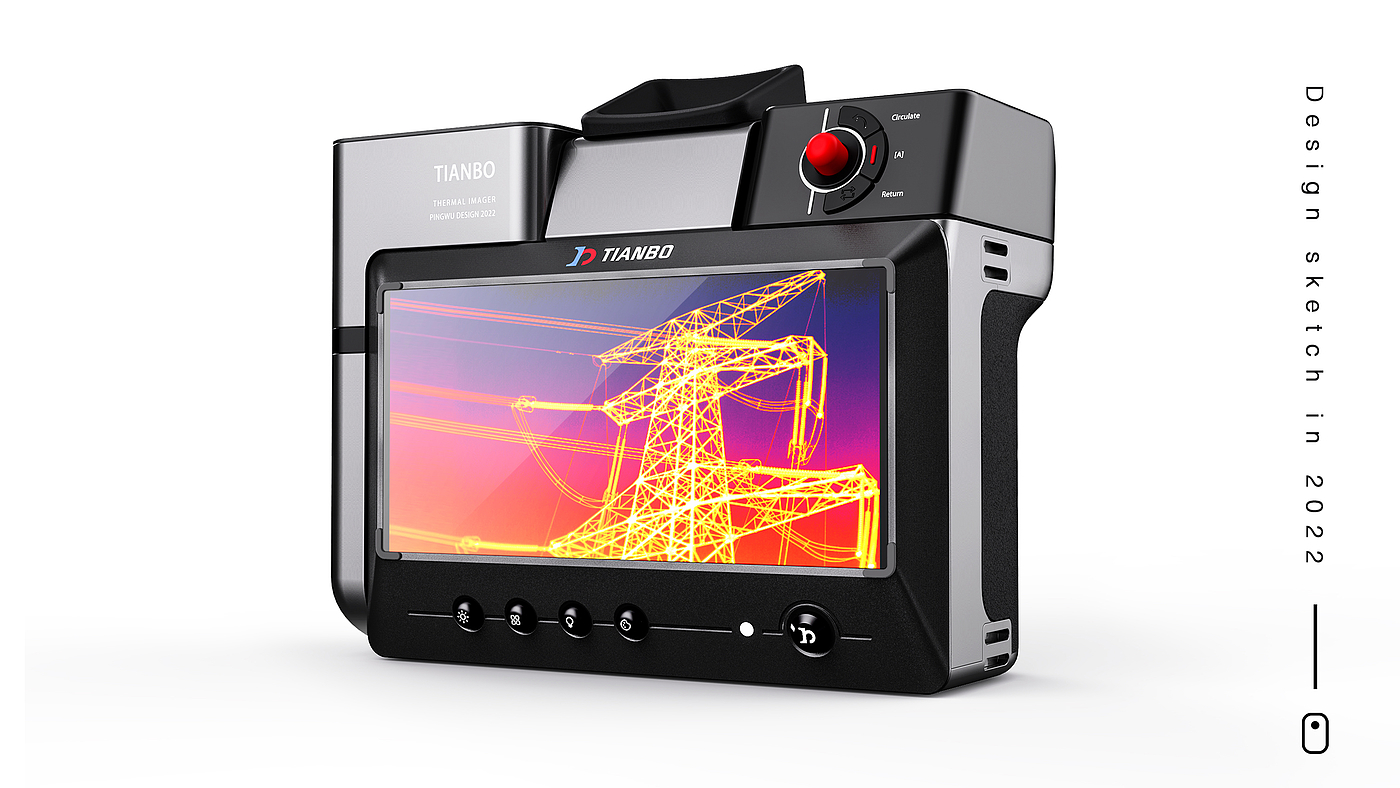

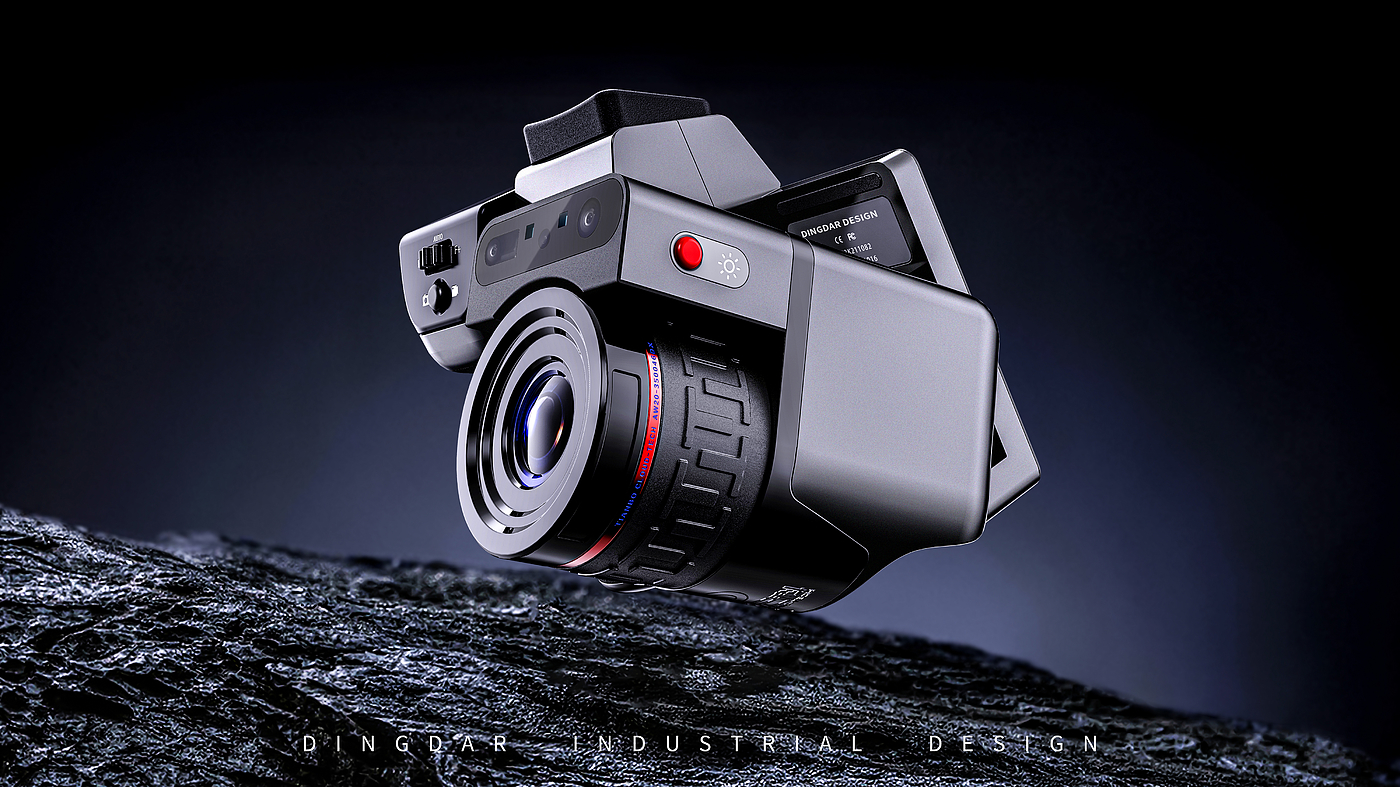

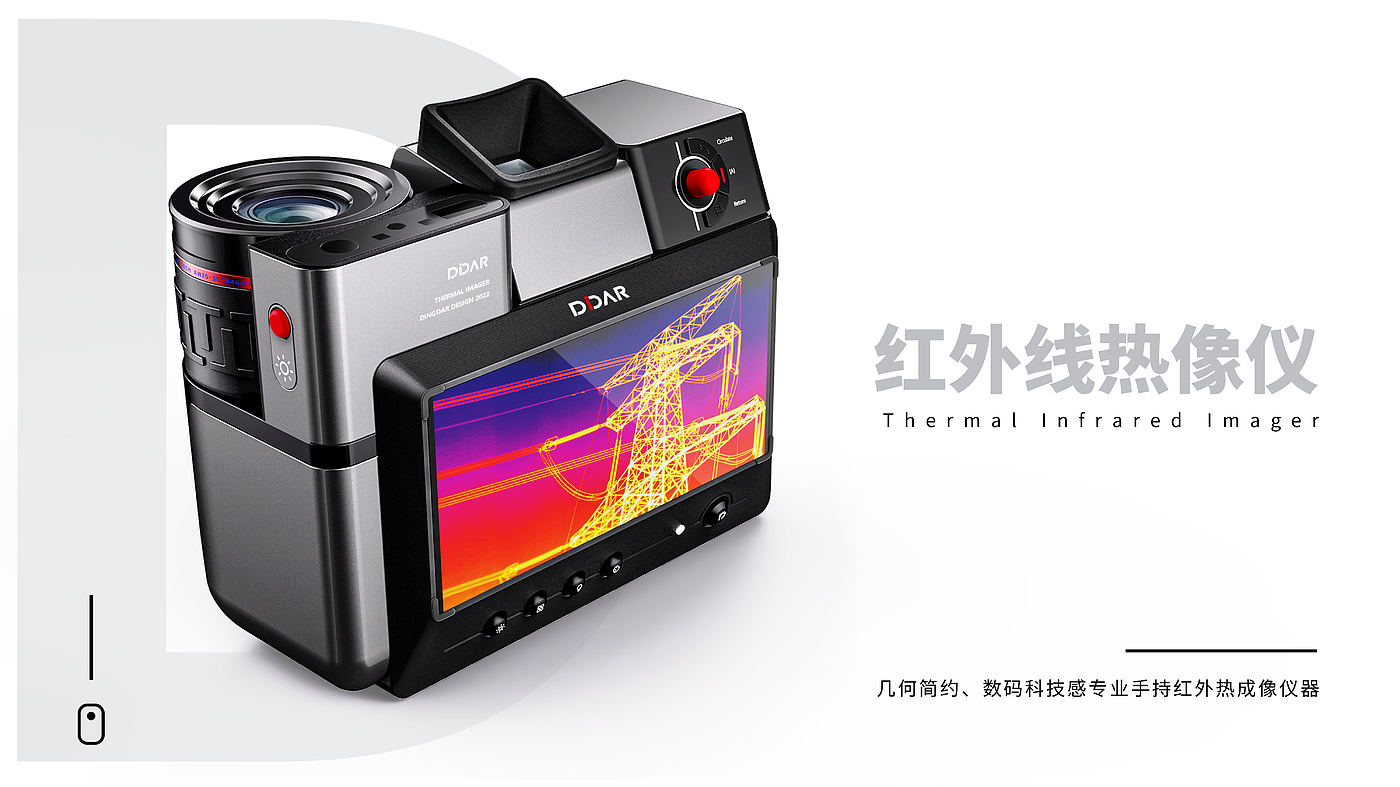

An industrial equipment with a relatively simple geometry and a sense of digital technology-infrared thermal imager
The design in January 2022 is also the first time to make this kind of equipment that looks more precise. At that time, it was intended to make it look less industrial. The design focused on dividing the general muscular interaction area into geometric small blocks according to the functional areas.

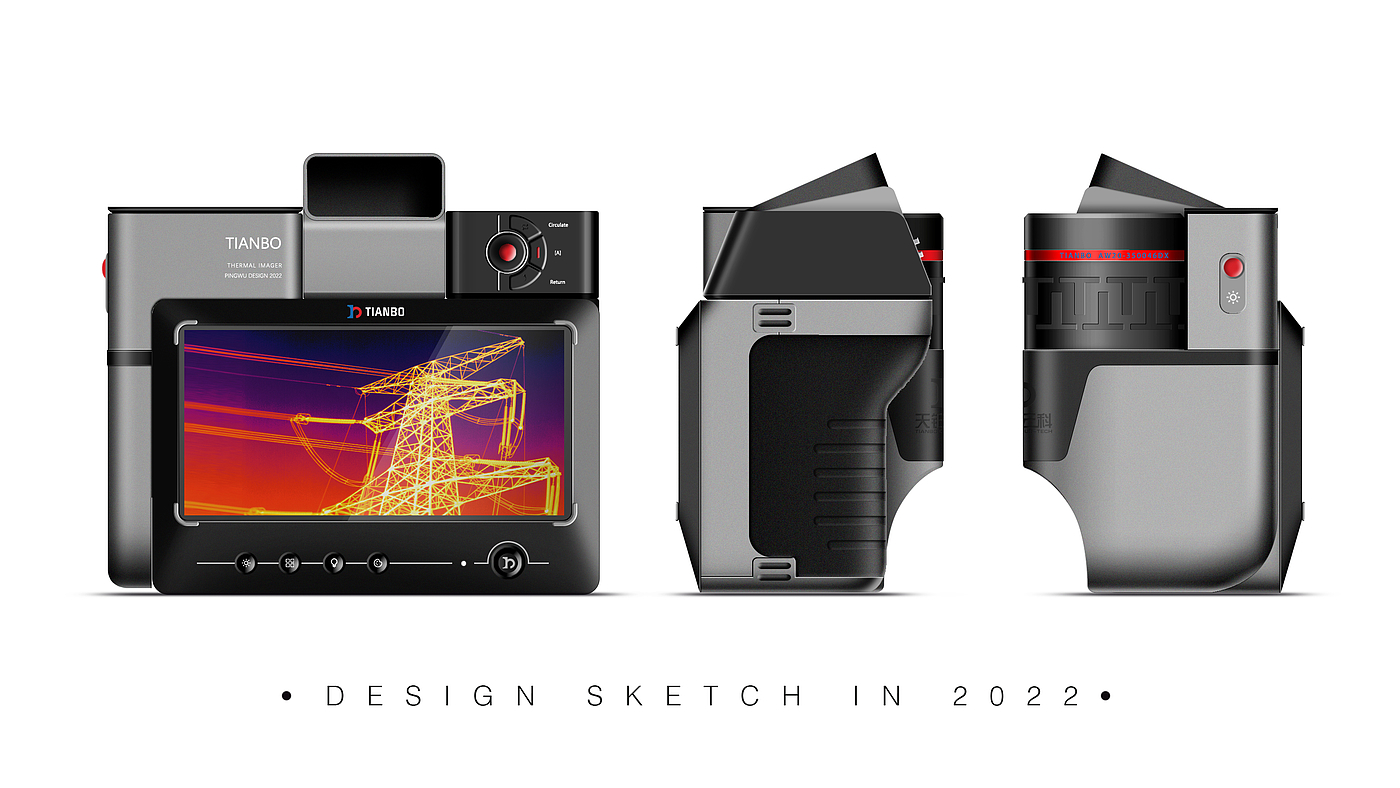

The modeling is relatively simple. It didn't take much time to model, but the sketch took a long time to refine (Figure 1 is a sketch)

Simplicity，Sense of science and technology，Geometry，Thermal imager，Digital，

37 18

用户其他作品查看更多

linked puppy hook-pet collar

Foldable portable-nasal washer

Light tide travel-electric scooter

Bubble Summer Suitcase

留言板（14）

小叮哒-巴啦啦 2023-09-14

High-end equipment ~

海猫 2023-09-13

very strong

小星球 2023-09-08

Cool cool cool

etherealelf 2023-09-07

After reading it several times, I have a question. How to control it? Where do you hold it? Are there any other supports? What is the use posture like?

小叮哒—彬彬作者 2023-09-07

There are three use states, one is the bracket, the bottom has a bracket assembly hole (no rendering close-up), the other is to hold the right hand holding area with one hand, and the side has a strap fixing area (can hang the neck and can be held). Hold it with two hands. When the lens is rotated down, hold the left lens with one hand (the lens needs to be rotated and adjusted) and hold the right holding area with the other hand.

小叮哒—彬彬作者 2023-09-07

When holding both hands, aim your eyes at the upper viewing area, similar to using a camera.

etherealelf 2023-09-07

Uh-huh, the main reason is that there is no user's picture, so it is difficult to understand the usage status by imagination. The texture is very good, it is a civilian-grade product, so there are more materials to choose from, and the expression space is relatively free, which is good.

小叮哒—彬彬作者 2023-09-07

Thank you ~ I will have time to add some usage charts later.
