The summer climate is hot and the temperature is rising. Fans and air conditioners are our necessities in summer. The fan is driven by electricity to generate airflow, and the fan configured in it rotates after being energized, turning into natural wind to bring a cool feeling. Bladeless fans are different from our common fans. There are no obvious fan blades, so don't worry about scratching your fingers.

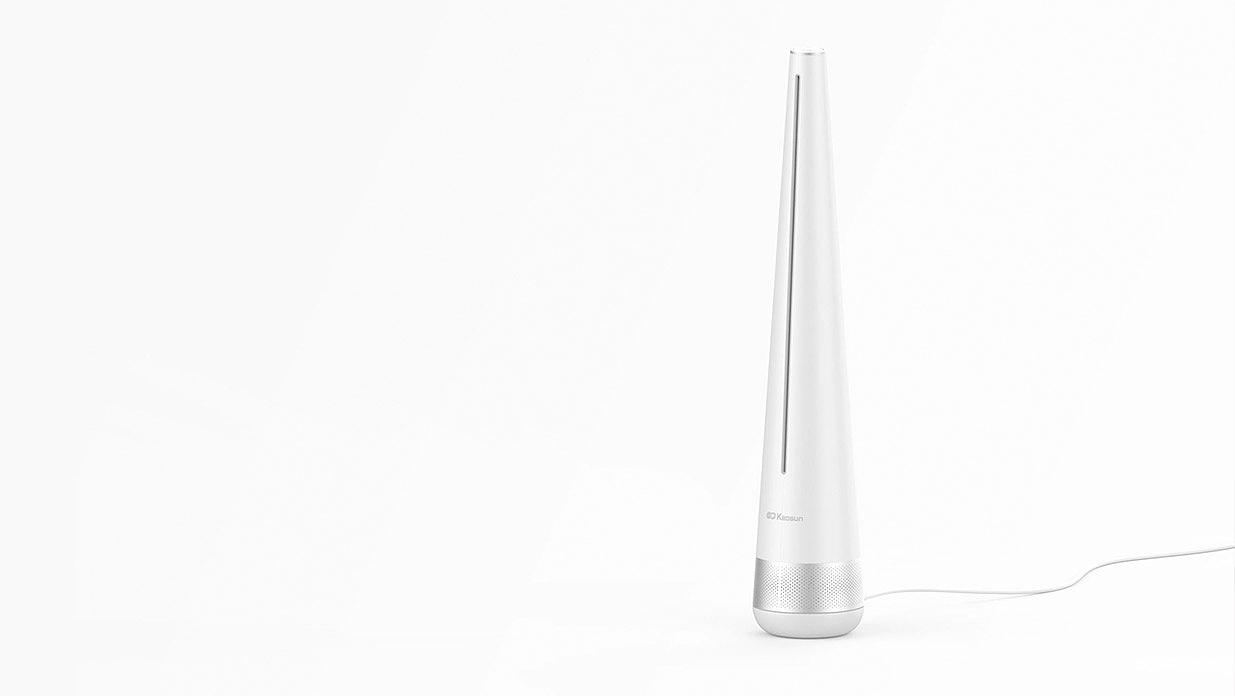

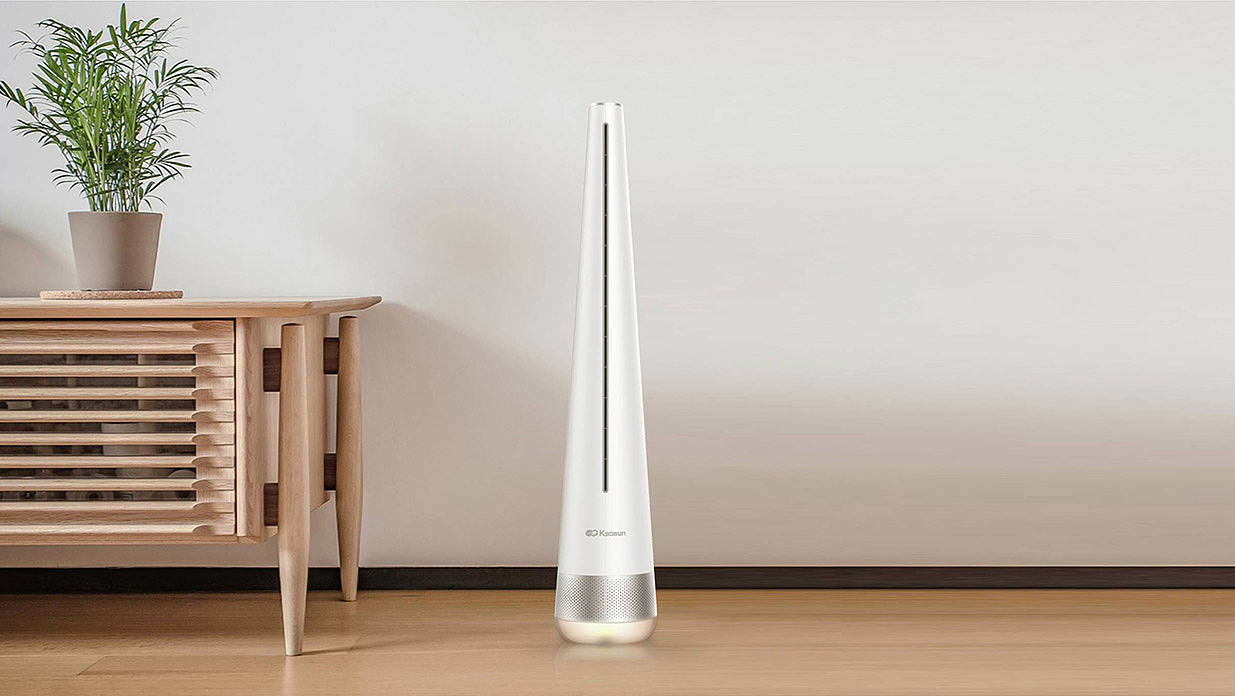

The appearance design is novel and unique. The design inspiration comes from a tumbler. The appearance design is like a conical cylinder. The color is white and silver. The whole is made of ABS plastic material, which has the characteristics of formaldehyde-free, high temperature resistance and impact resistance. Smooth shell, easy to clean, only need rag scrub.

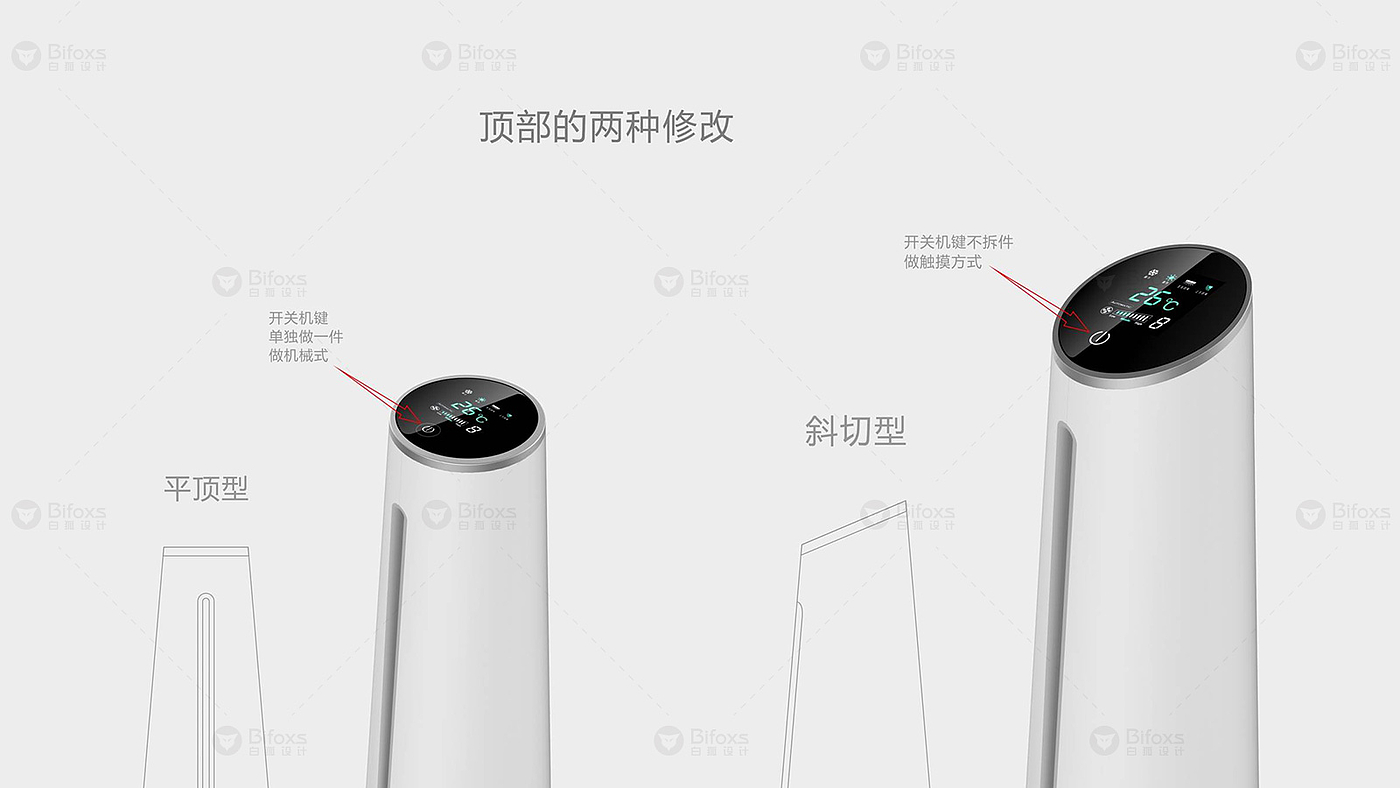

There are two different designs of flat top type and bevel type. The top is the operating area of the fan, which can control the wind speed, wind direction, sterilization and purification functions of the fan. The air outlet is I-shaped and has a certain swing angle. The following is the air inlet of the fan; Air is extracted through the mechanism of the base, compressed and released through the annular parts to form wind.

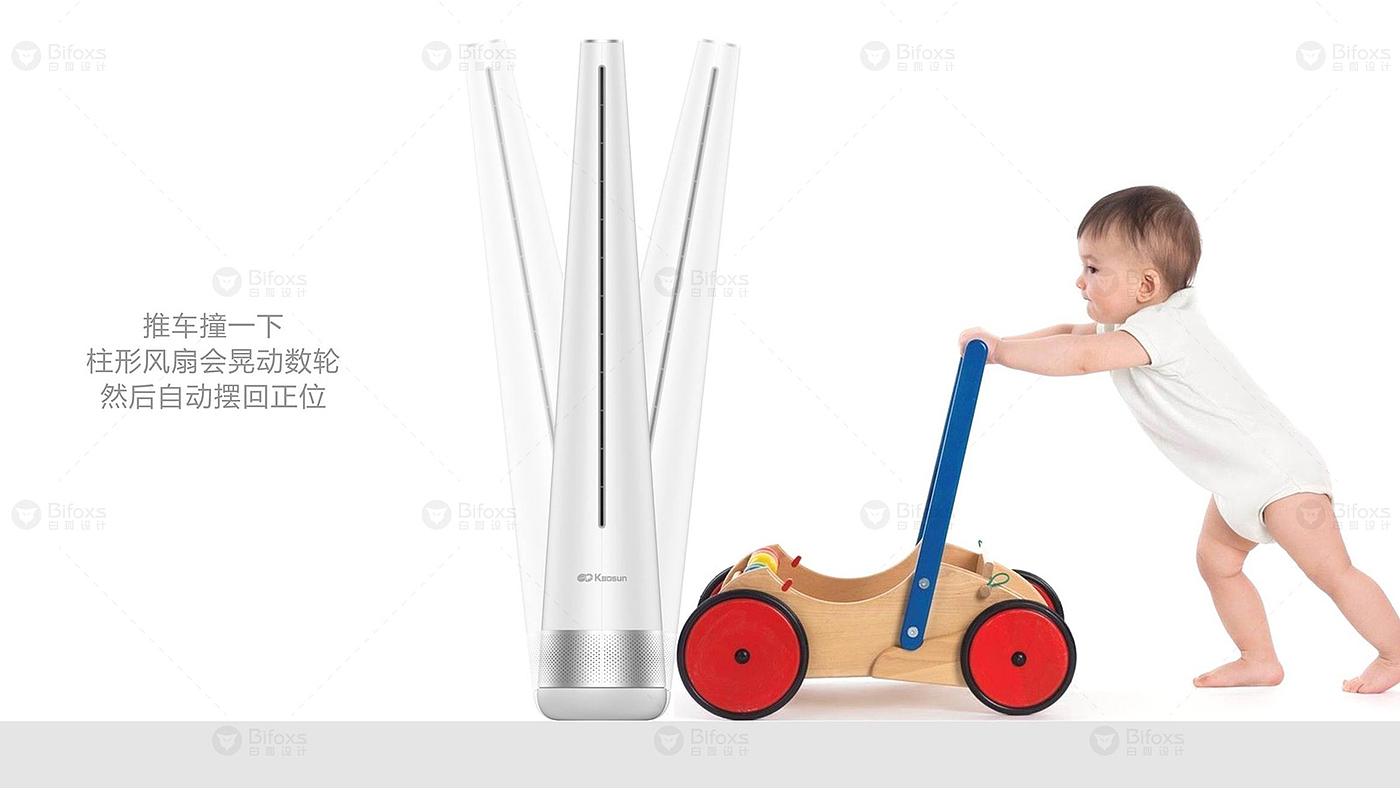

The base has a diameter of 310mm and a height of 1220mm. It supports horizontal 90-degree steering. It is small in size and occupies a small area. All weight parts are at the bottom. There is also a circle of counterweight circles at the bottom. On the basis of beauty, the radian of the side of the translucent shell at the bottom is modified. There are five light-colored breathing lights at the bottom, corresponding to different modes of the fan.
The key function is sensitive, and it is equipped with an LCD screen to clearly display the time and temperature; it has the characteristics of purifying air, low noise, and power saving; it can be adjusted by touch or remote control, and the fan can automatically adjust the direction according to the position of people; There is a hidden placement area on the body, which can place the remote control, which is very simple and convenient to use.
