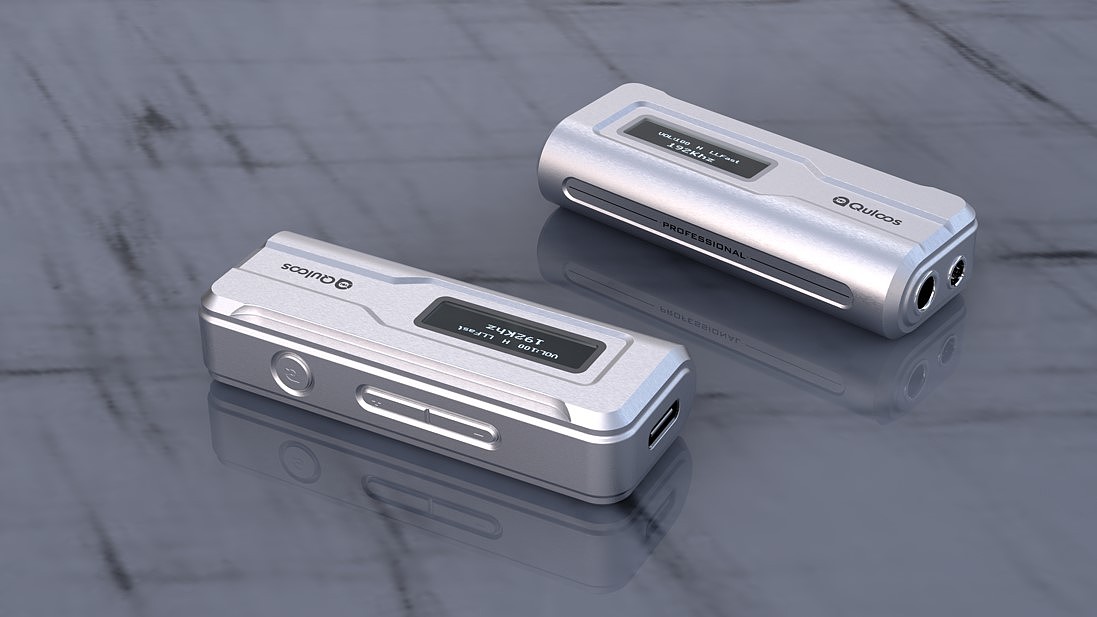

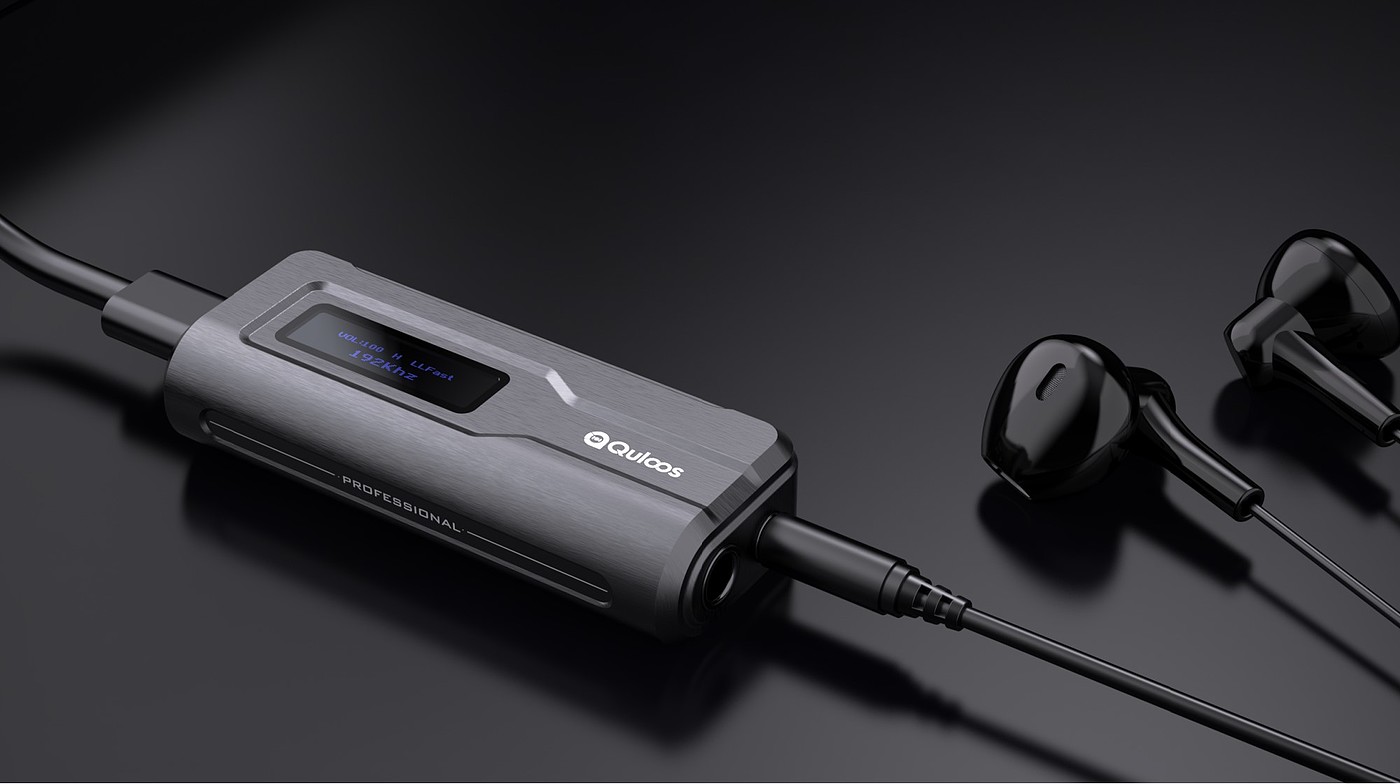

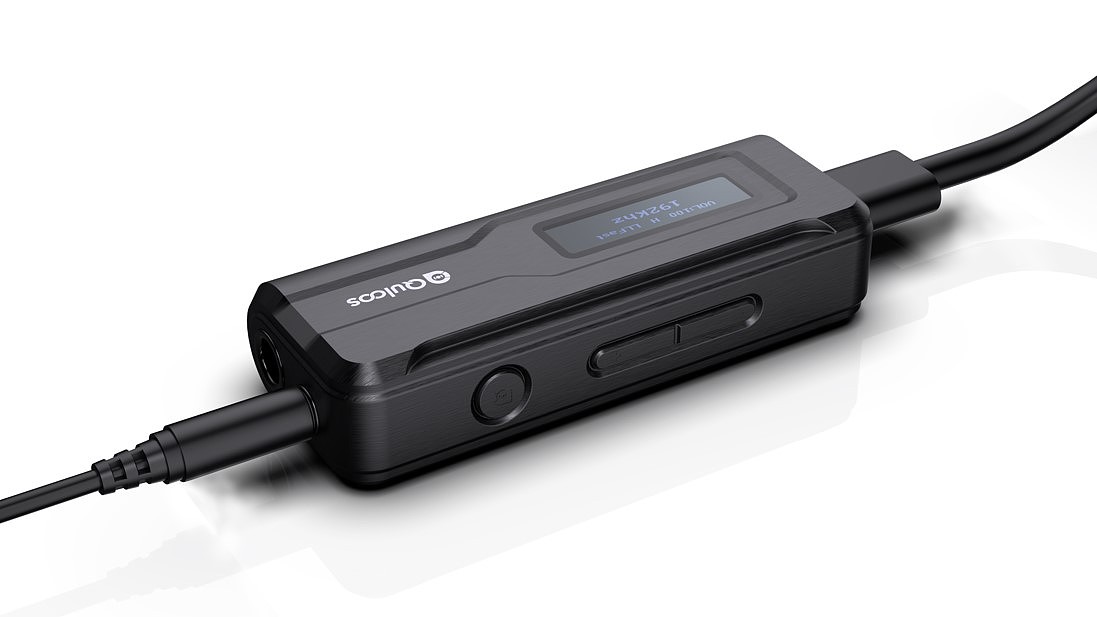

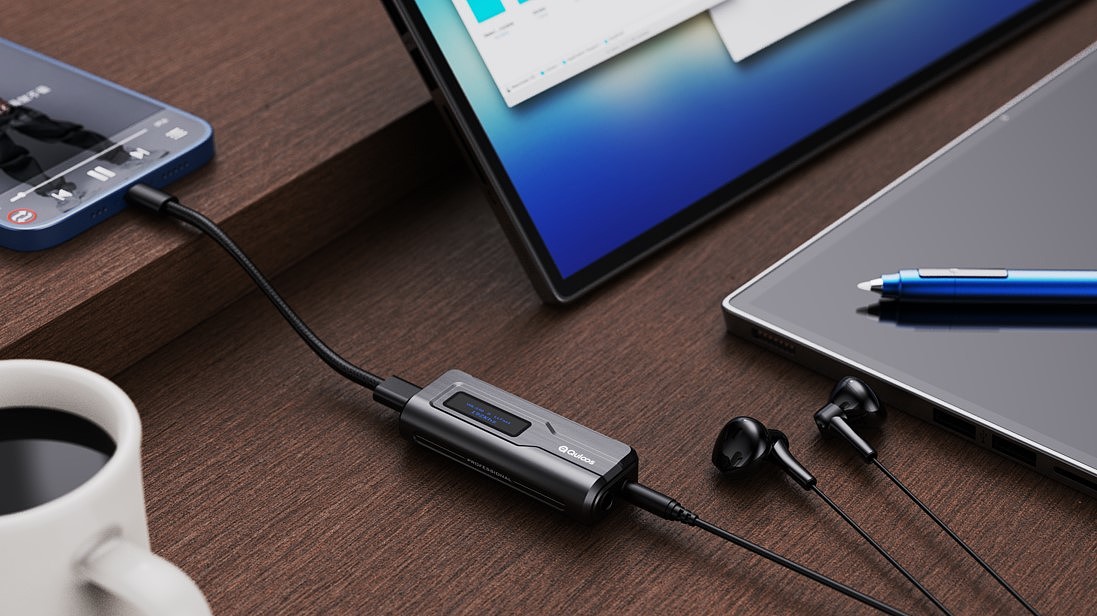

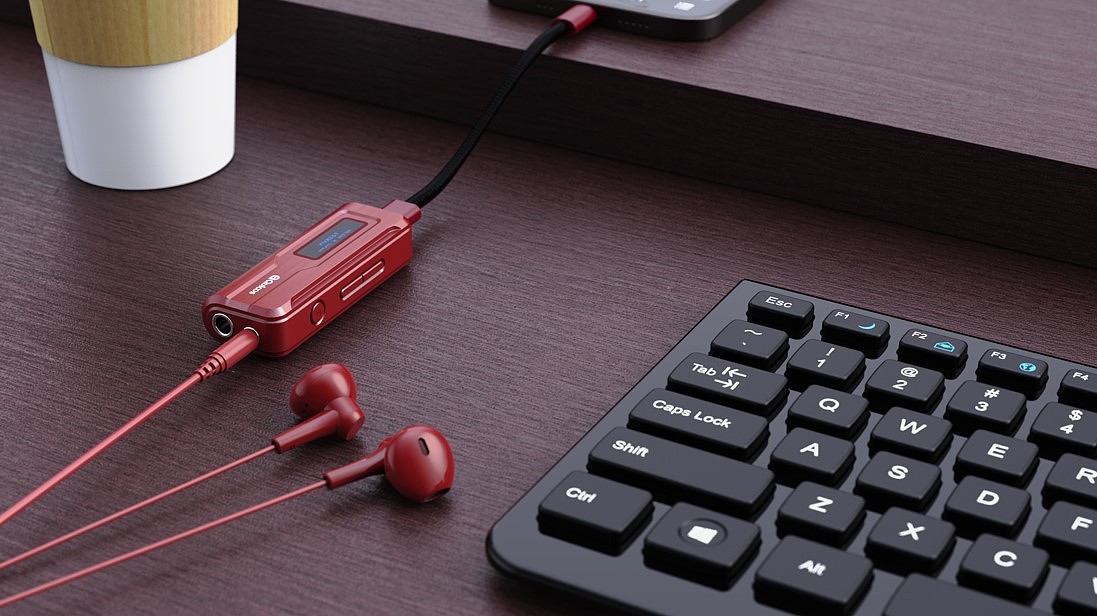

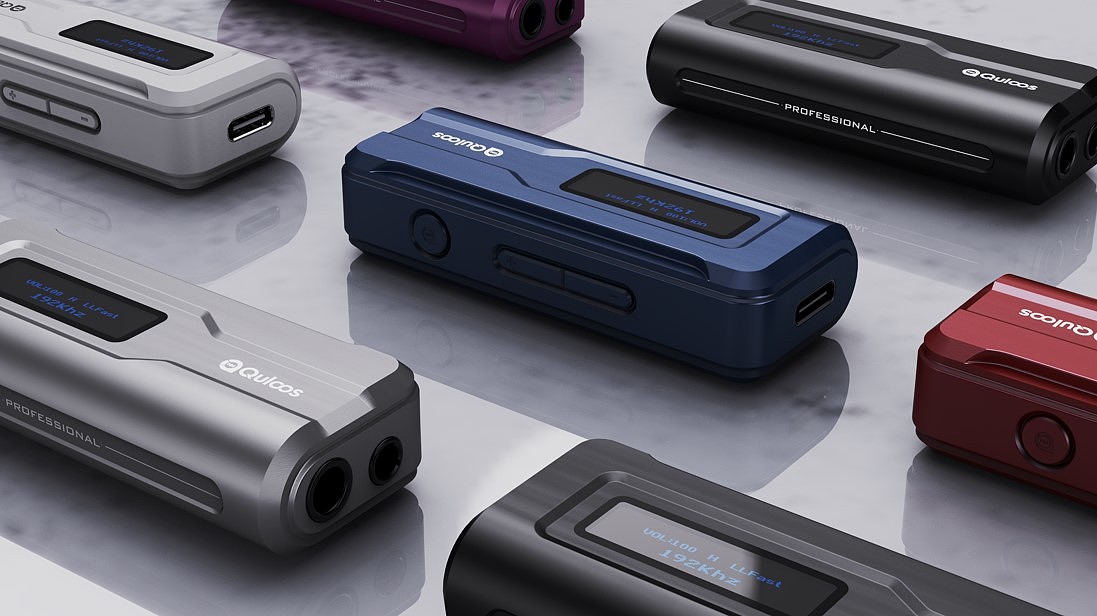

Project Name: Mobile Phone Interface Audio Converter
Design Description: When using the side surface, it is more comfortable to hold in your hand. The sunken design at the screen unifies the line of sight with logo; Do the boss design on the side to reflect the continuity of the jack and the key.
Design Company: Yidian Industrial Design

industrial design,product design,Appearance design,Structural design,
industrial design,product design,Appearance design,Structural design,
industrial design,product design,Appearance design,Structural design,
industrial design,product design,Appearance design,Structural design,
industrial design,product design,Appearance design,Structural design,
industrial design,product design,Appearance design,Structural design,
industrial design,product design,Appearance design,Structural design,
industrial design,product design,Appearance design,Structural design,
21 36
用户其他作品 查看更多
评论

留言板 (13)

zzz 2022-03-02
回复

Would you like to ask if the parting line will appear in the middle of the side facet? Or how do you divide the pieces?
Can the split line be hidden in that space line?

zzz 2022-03-02
回复
Will there be a parting line in the middle of that side of the button?
痴心换深情 2022-03-08
回复
Aluminum alloy shell, CNC machining. The parts can be as bottom as possible.
zzz 2022-04-02
回复
Oh, oh, it's aluminum alloy. I didn't look carefully enough. I thought it was plastic, because I also drew a similar surface, but a parting line appeared when dividing the pieces, which greatly affected the appearance, so I want to ask if there is a better way to divide the pieces. Thank you.
无以伦比 2022-04-06
回复
CNC machining, at that time in nonsense, this kind of small thing at most tens of dollars, on the NC a shell are more than one, finished processing and surface anodized. How much are you going to sell? You know how to remove two of them as soon as you look at the shape. One is like a thick dictionary. Take off all the paper inside, leaving only the upper and lower and side arcs. The other one doesn't need to be detailed. Two pieces of glue, or ultrasonic welding.
zzz 2022-05-06
回复
Wow, I think so too. However, I don't know how to connect it. I feel that the buckle will definitely not work. When you say ultrasound, it is suddenly enlightened. Ultrasound is too expensive. What I do is a very small project.
我也说一句
嗨~大海 2022-02-28
回复

Good!

好好学习 2022-02-28
回复

What's the use of this product? why not connect it directly with headphones

我就是我 2022-02-28
回复
This is responsible for the digital to analog audio. Now the mobile phones are all type c ports, while the earphone is a traditional analog 3.5 or 4.4 round hole interface, so this is needed for conversion in the middle.
我也说一句
#0000FF 2022-02-28
回复

未来不是梦 2022-02-28
回复

It's great

安雨凉 2022-02-28
回复

I haven't used this product before.

#0000FF 2022-02-28
回复

I don't know miscellaneous
