Model/Lei Bai V310 Mouse
Time/Listing in 2015
Design/zhouhongchao
The game series mouse has been sold in the market for 4 years. Due to the influence of market changes and the upgrading of consumer demand, Logitech and others have taken the lead in reshaping the style of the product series, such as G602\G502\G402 (Figure 1). Pirate ship and Tt have both reshaped the style of the series. The Lei Bai V series has advantages in man-machine, but its style and language are slightly behind, and. By the beginning of 2016, facing the reshaping of the entire game style, V310 is the last work of an individual in Lei Bai. Through design, it explains how to establish a new image, a new language and a new style, and establishes a new methodology.

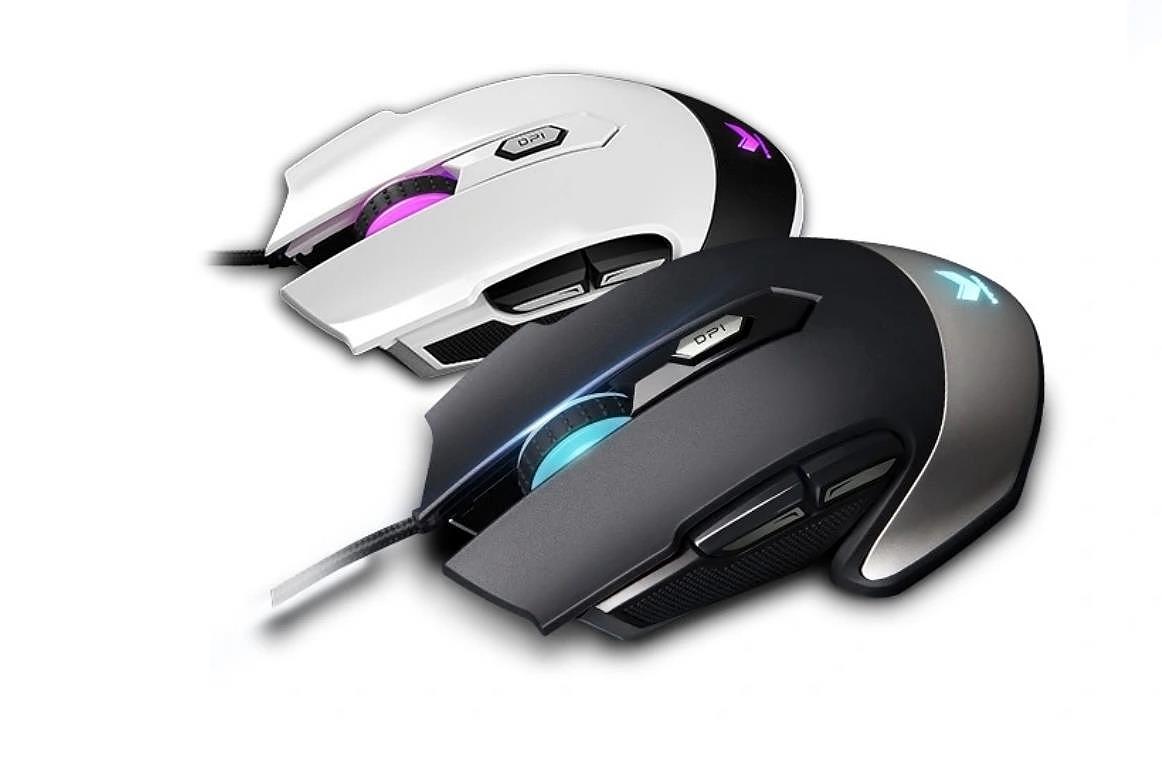

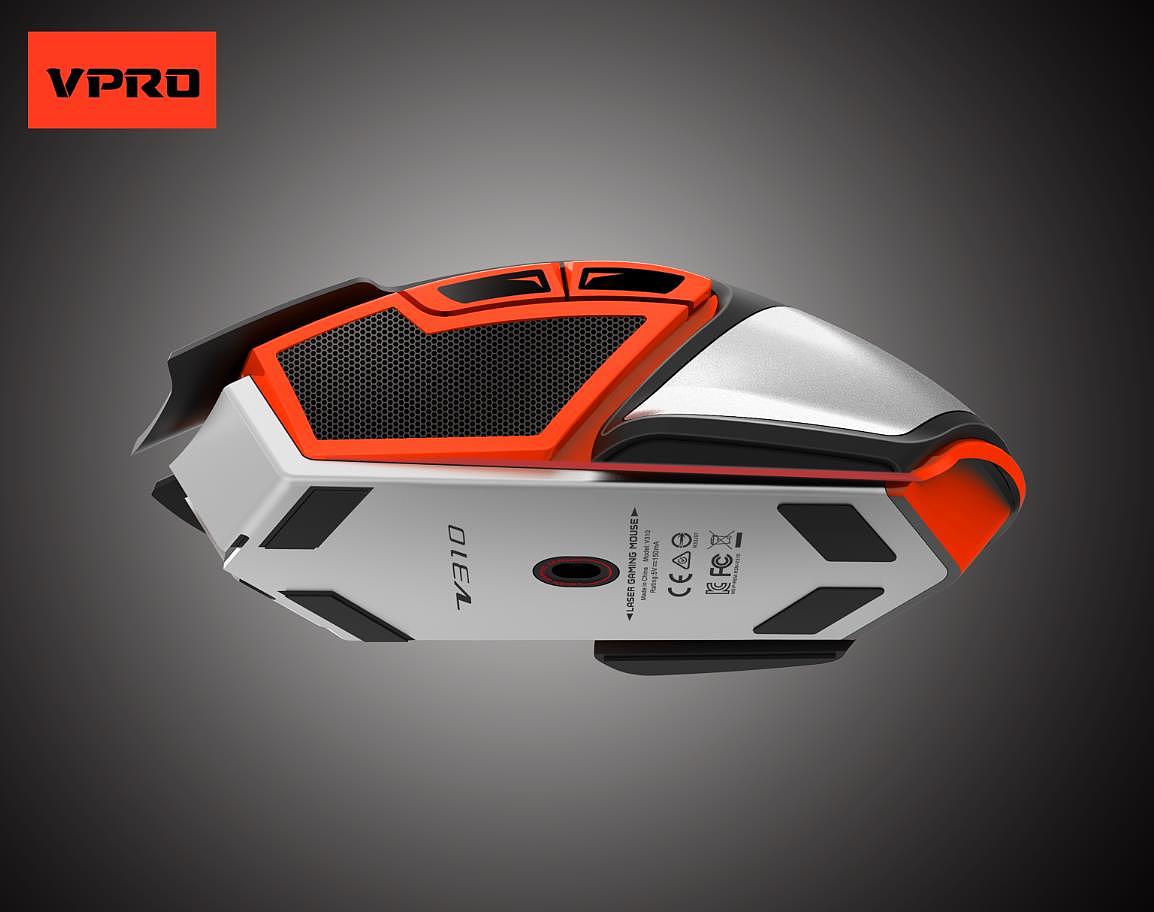

Lei Bai V310 is a medium and high-end positioning, focusing on high configuration, high performance, well-designed performance, metal with sand paint spraying. With simple appearance and strong performance, it is equipped with high-performance parameters, A9800 laser engine, 8200DPI, 20 million Omron micro switch, V-power3 exclusive game chip, 2MB of onboard memory, 16 million color breathing light, intelligent proximity sensing.

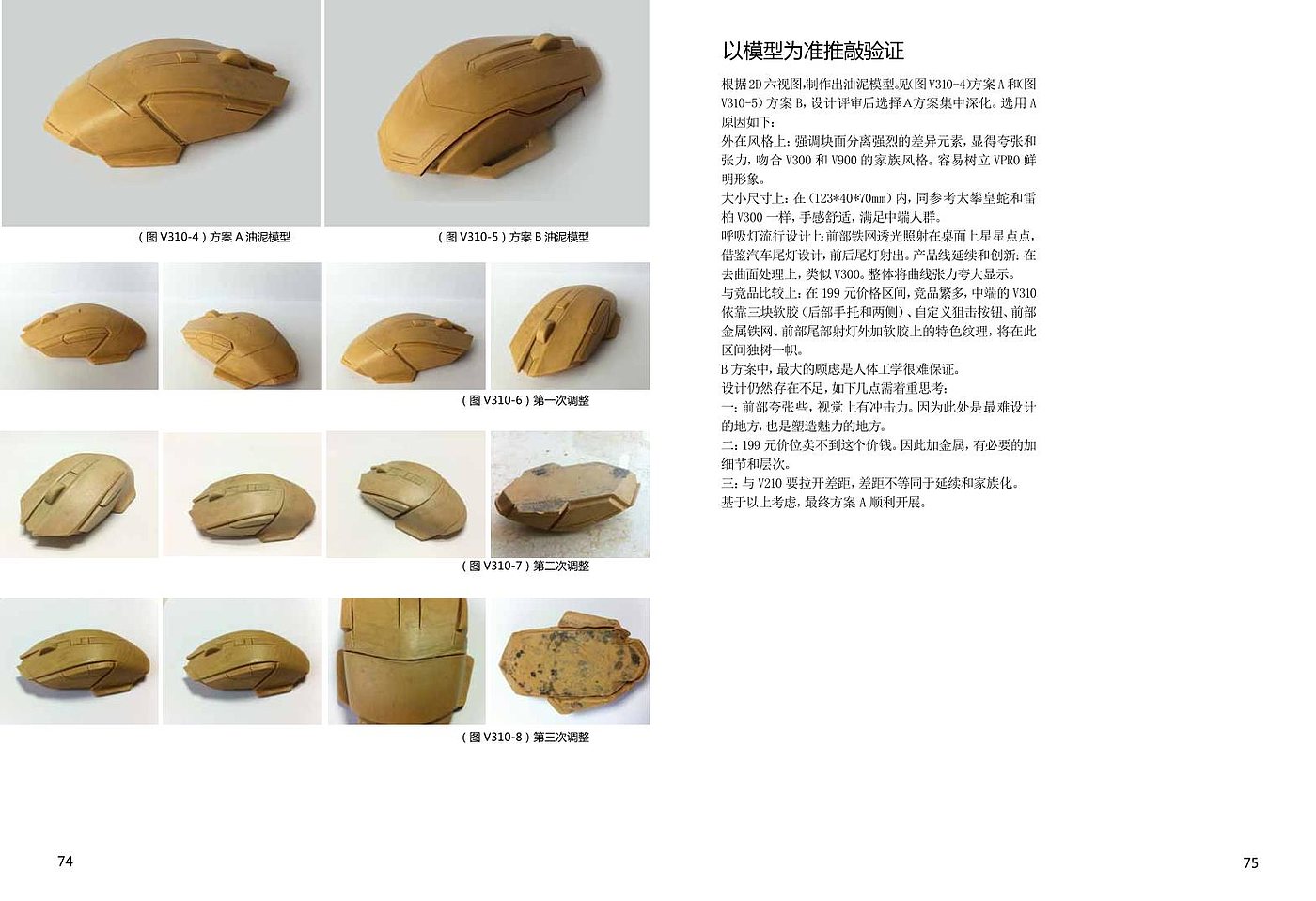

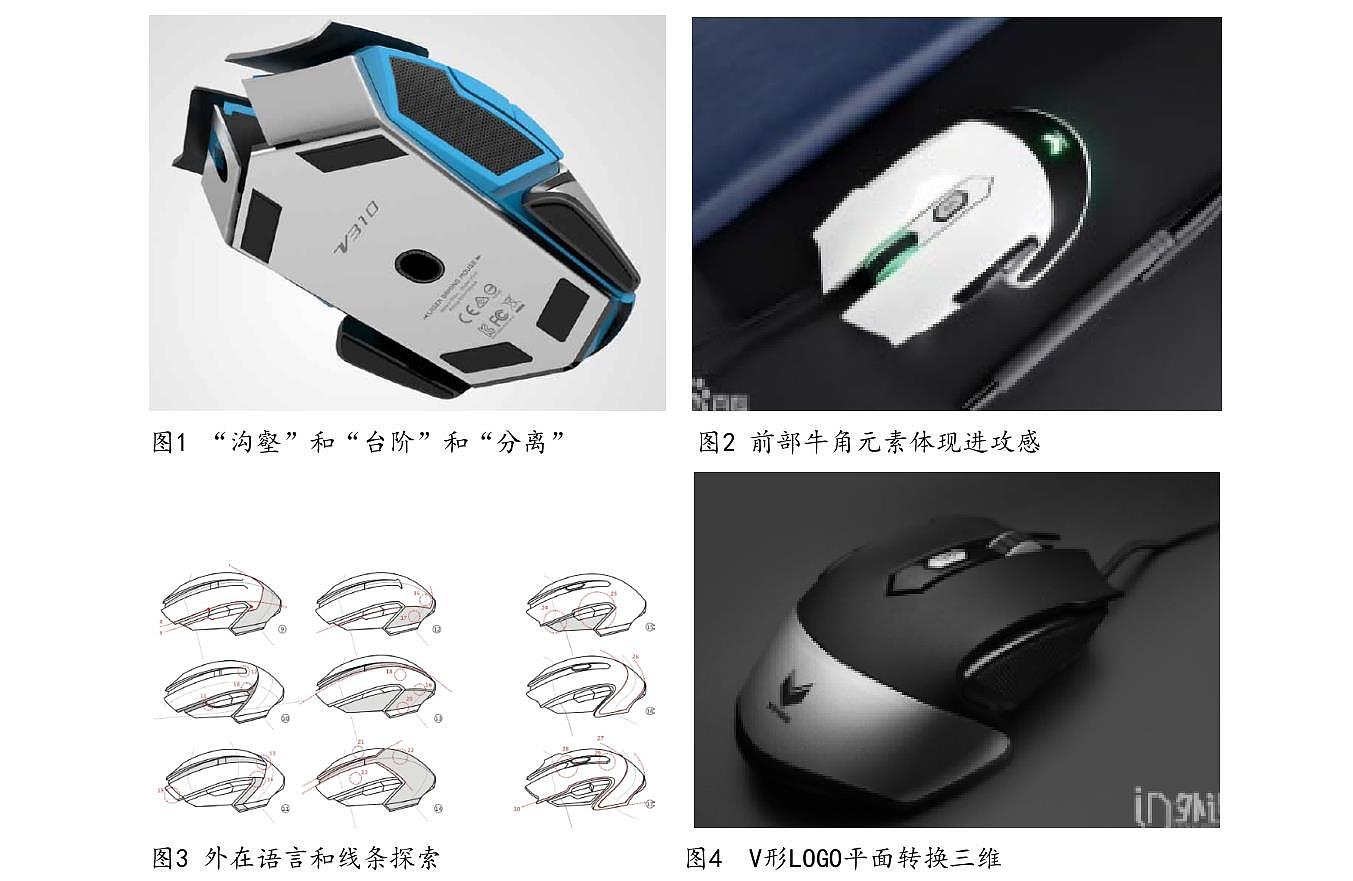

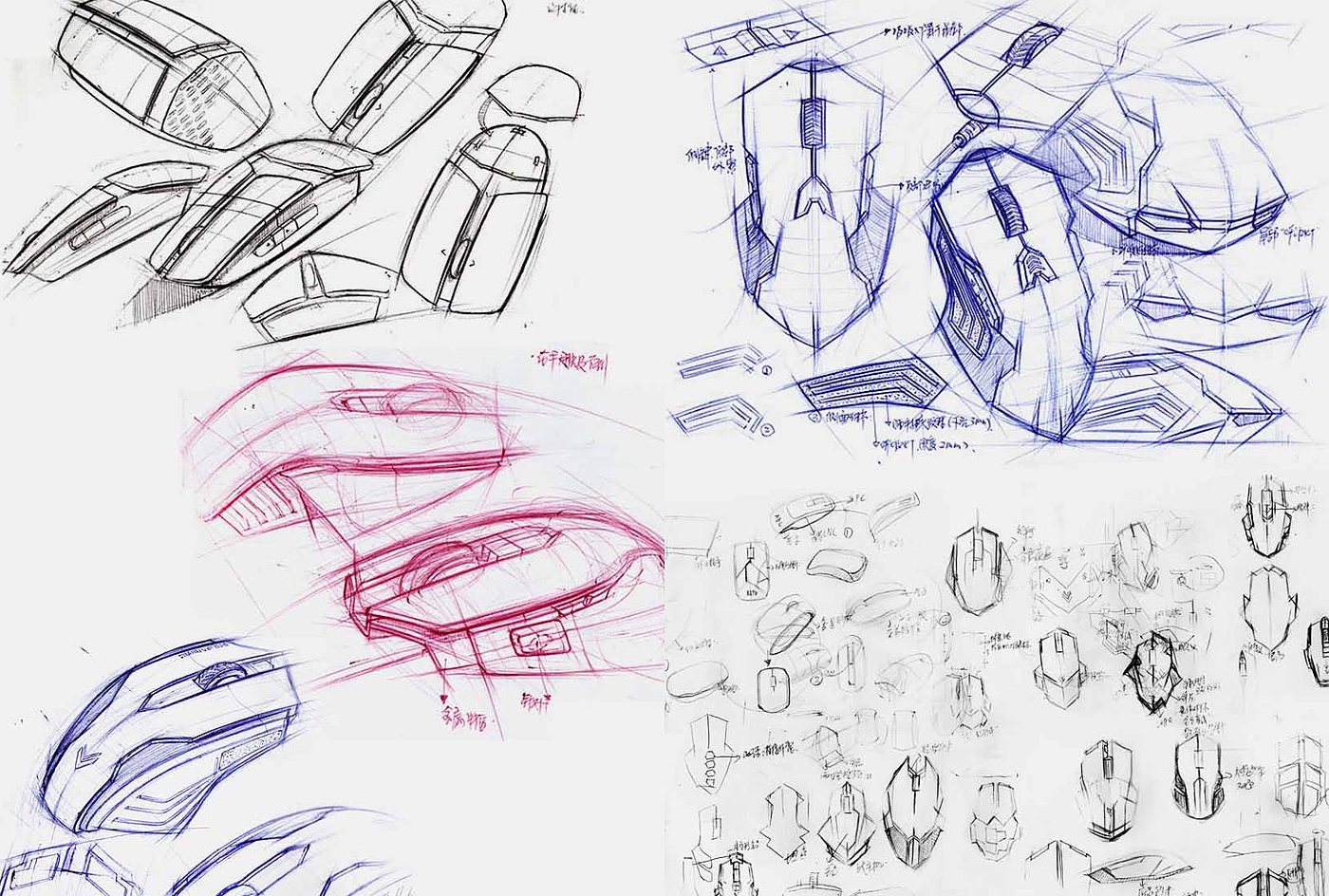

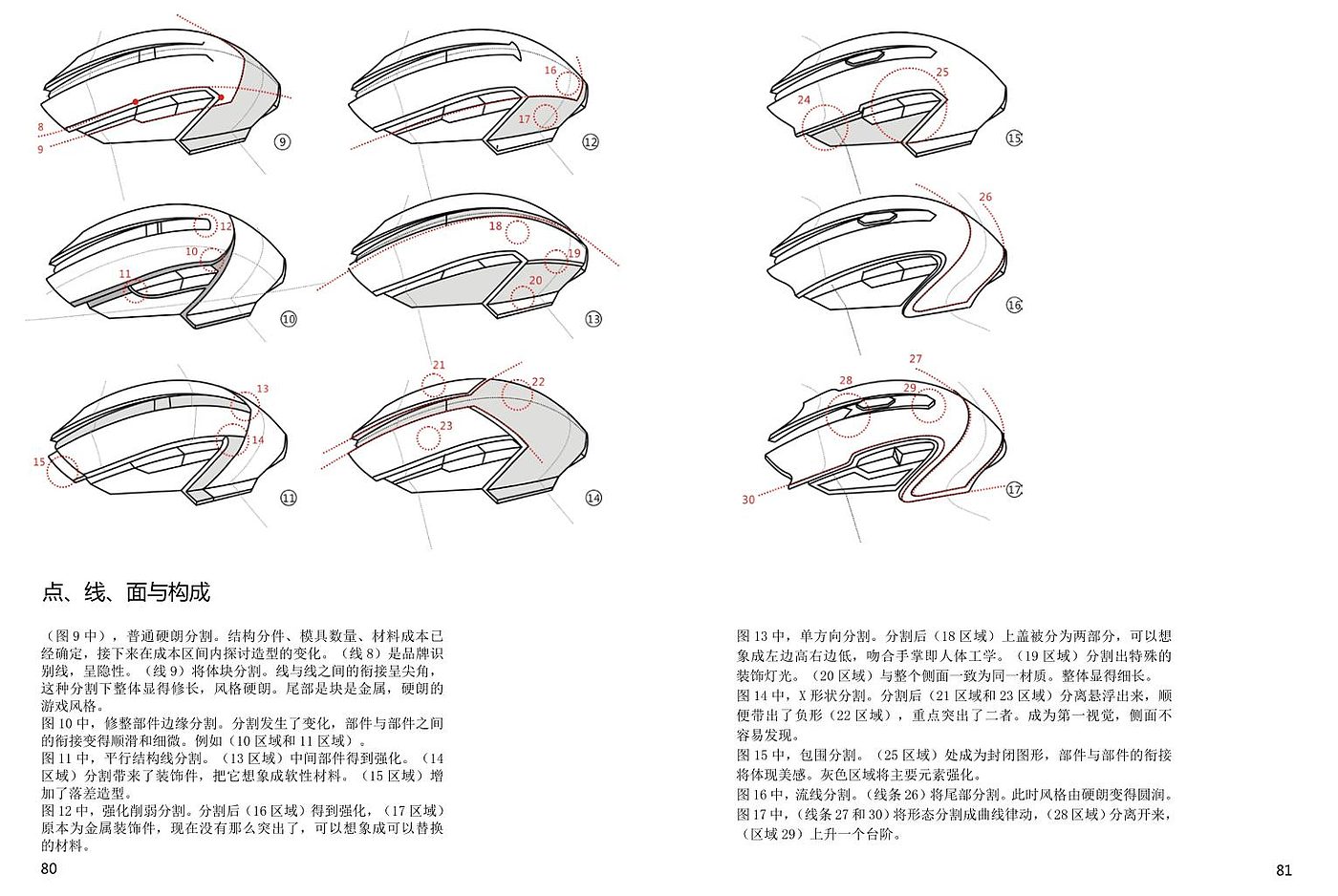

The combination of large modeling features and ergonomics, polished and optimized by sludge models, such as visual and tactile perception of lines accurate to 1mm, and the effect of density refinement of side silicone anti-skid pads on tactile touch. The redesign of game elements usually comes from the 3D scene of the game, resulting in similar products and breaking away from this thinking inertia. For example, the game style is reflected through the spatial relationship between lines and blocks, and the "gully" and "step" and "separation" features are designed at the parts where the palm does not touch (Figure 1). The front refined horn element reflects the sense of attack (Figure 2), which is distinguished from the front pliers element of the Thundersnake. The middle "sword" straight line design and hexagonal button emphasize the contrast between hardness and shape curve. The same psychological perception of products under the brand includes the identification and unification of serialized product perception lines, and the establishment of new product family DNA. The previous product language was less curve change, and the current situation was upgraded to "three-dimensional curve change". The purpose is to explain the current and The language in the next five years, explore 18 kinds of curves, and make decisions (Figure 3). For example, the external environment and brand subjective consciousness of the definition of physical constraints, towards the development of unique physical style. The subjective consciousness of the brand is not to deviate from the rationality of the previous generation system, and to make bold changes to the trend of the flow line. On top of the brand VI image application product, the V-pro trademark is converted into a palm rest in three dimensions (Figure 4). The spraying process laser induces light to strengthen the connection between VI and PI. This component has a 3-degree demoulding angle up and down, and built-in reinforcing ribs to prevent assembly errors caused by deformation of special-shaped large-area plastic.
