Project Name: Self-service Terminal for Entertainment Venue
Design team: Saichuang Jizhi (SightChamp Deisgn)
Service Customer: Zhike Network
Project time: early 2019
Service content: product strategy | product design | structural research and development | graphic design | product landing follow-up | product series iteration

©Original design, reprint please indicate from Saichuang Jizhi, thank you.

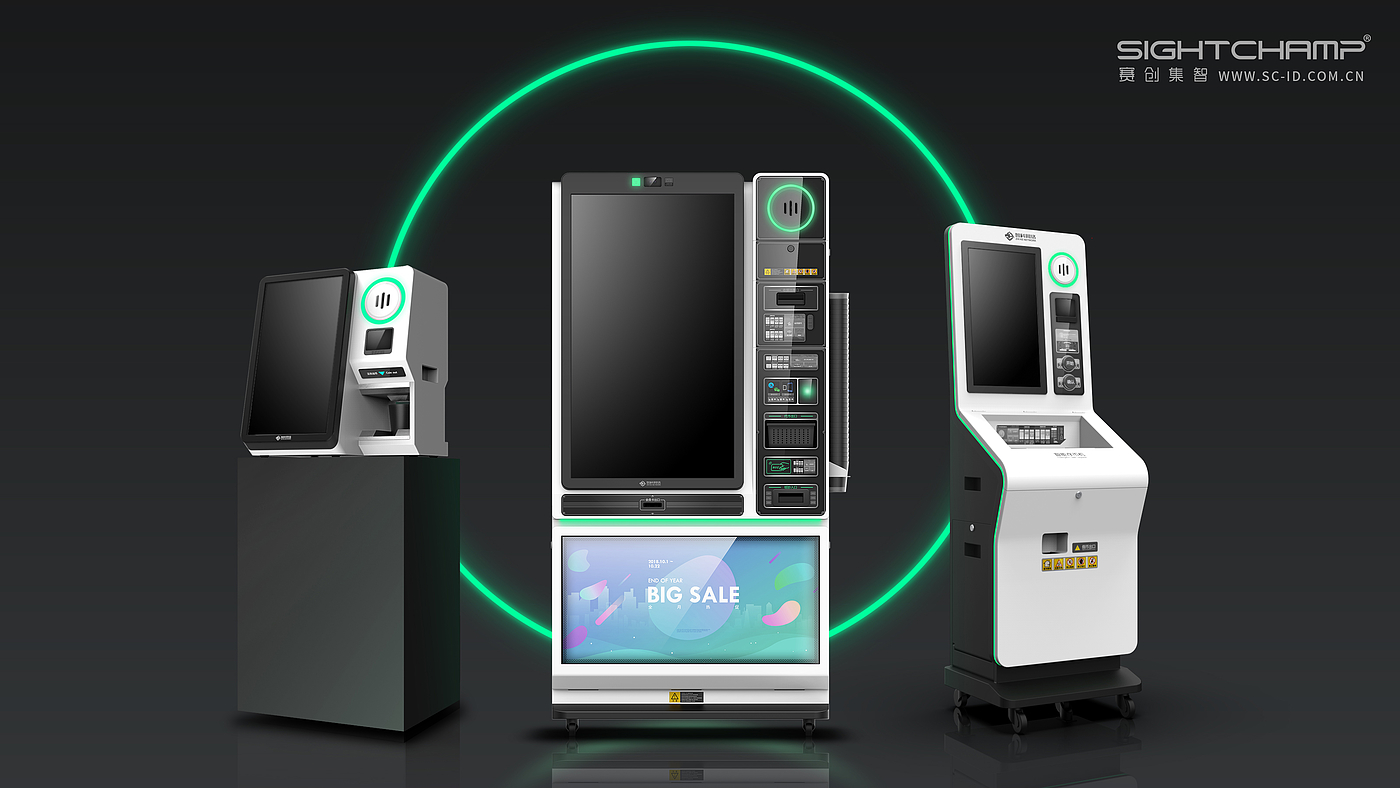

The use scenario of this series of products is the entertainment venue of the commercial complex, which solves a series of functional requirements of players in the venue, such as self-service currency purchase, value-added service, member currency deposit, consumer card purchase, etc. Sai Chuang Jizhi has created a brand-new family image for this series of products. The unified visual symbols and product temperament make the products more prominent in the use scenario. Site operators are also more willing to actively choose serial procurement, which has brought chain sales growth to manufacturing enterprises. At the same time, each single product has innovated its function and structure for the use scenario, which is the first to solve many pain points of the original products in the industry and create a better use experience.

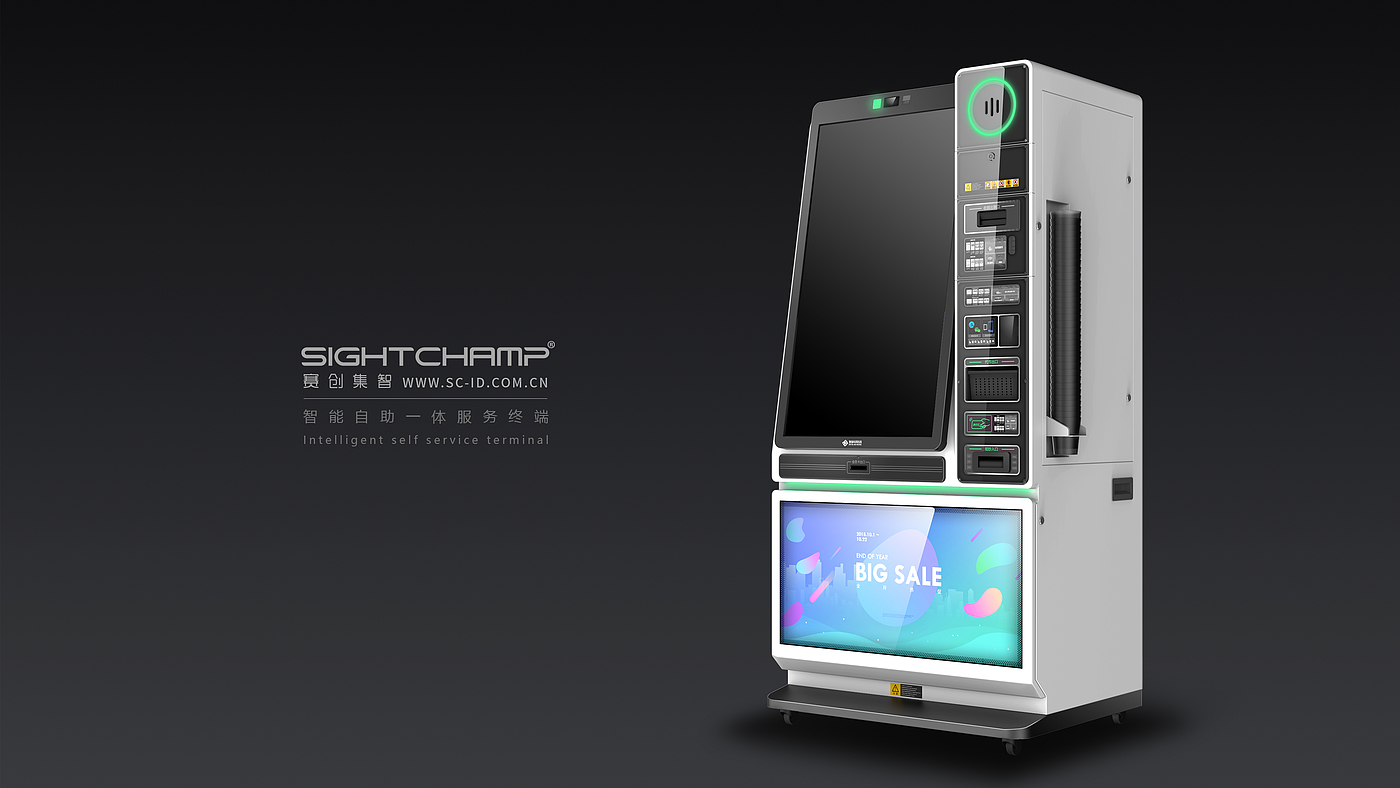

The overall design function partition of the self-service terminal all-in-one machine is clear and clear. Combined with the guiding interaction between the screen and the light, the user can quickly use the function service, and the body is simple and capable, so as to establish the user's trust in the terminal.

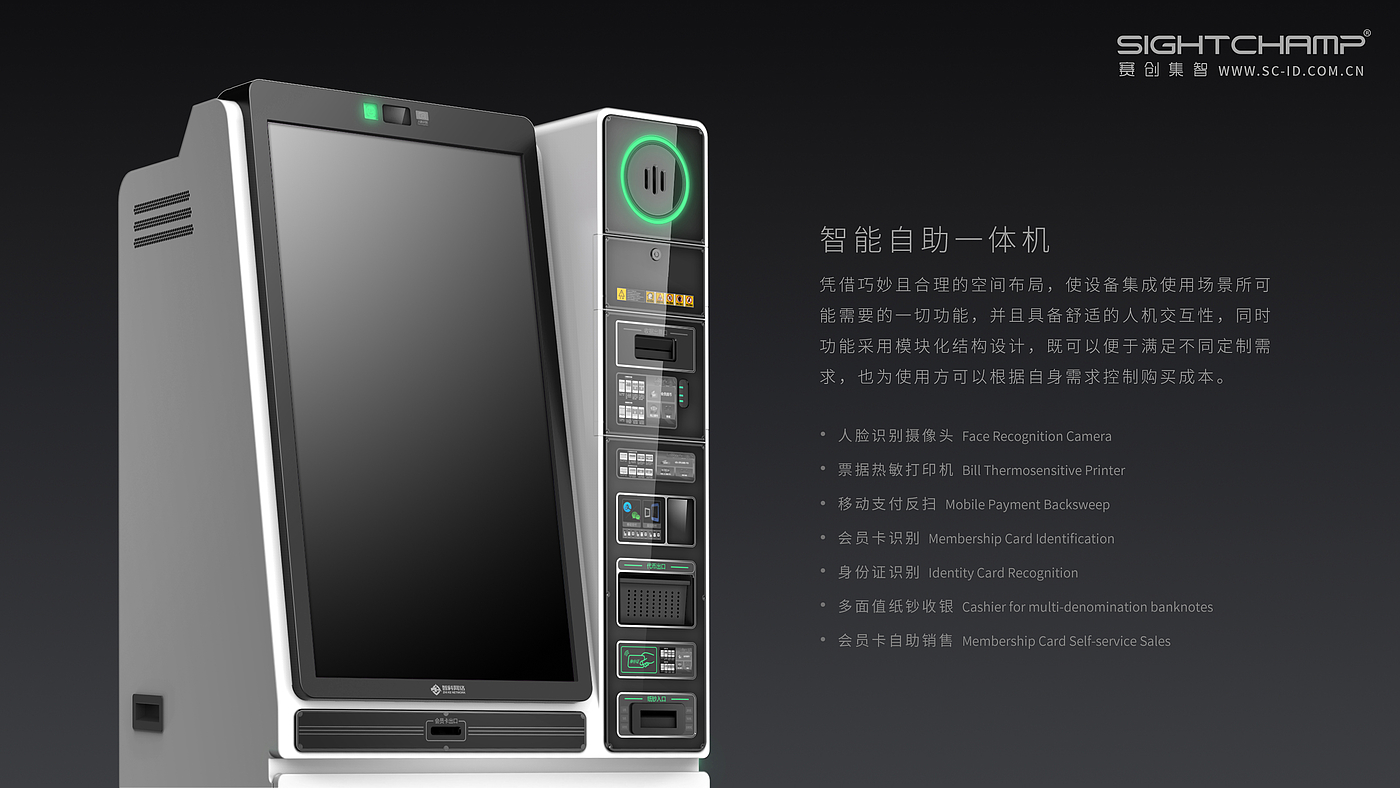

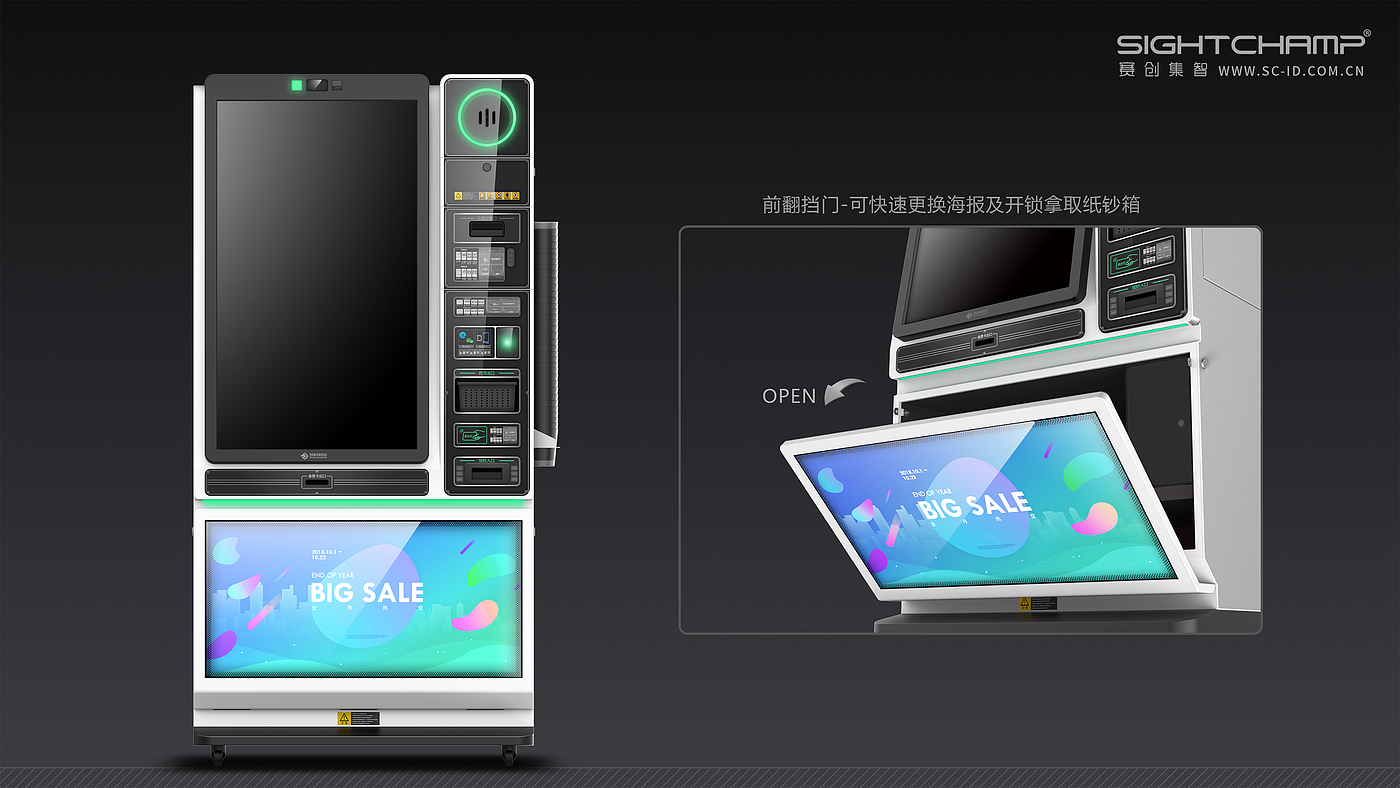

The product has the most complete functional configuration among similar competitors in the industry, and the functional areas on the right side and under the screen are all modular design. Different configurations and combinations can be quickly replaced by replacing the decorative acrylic on the surface, without adjusting the internal structure and sheet metal frame, and flexibility for mass production and different configurations and shipments.

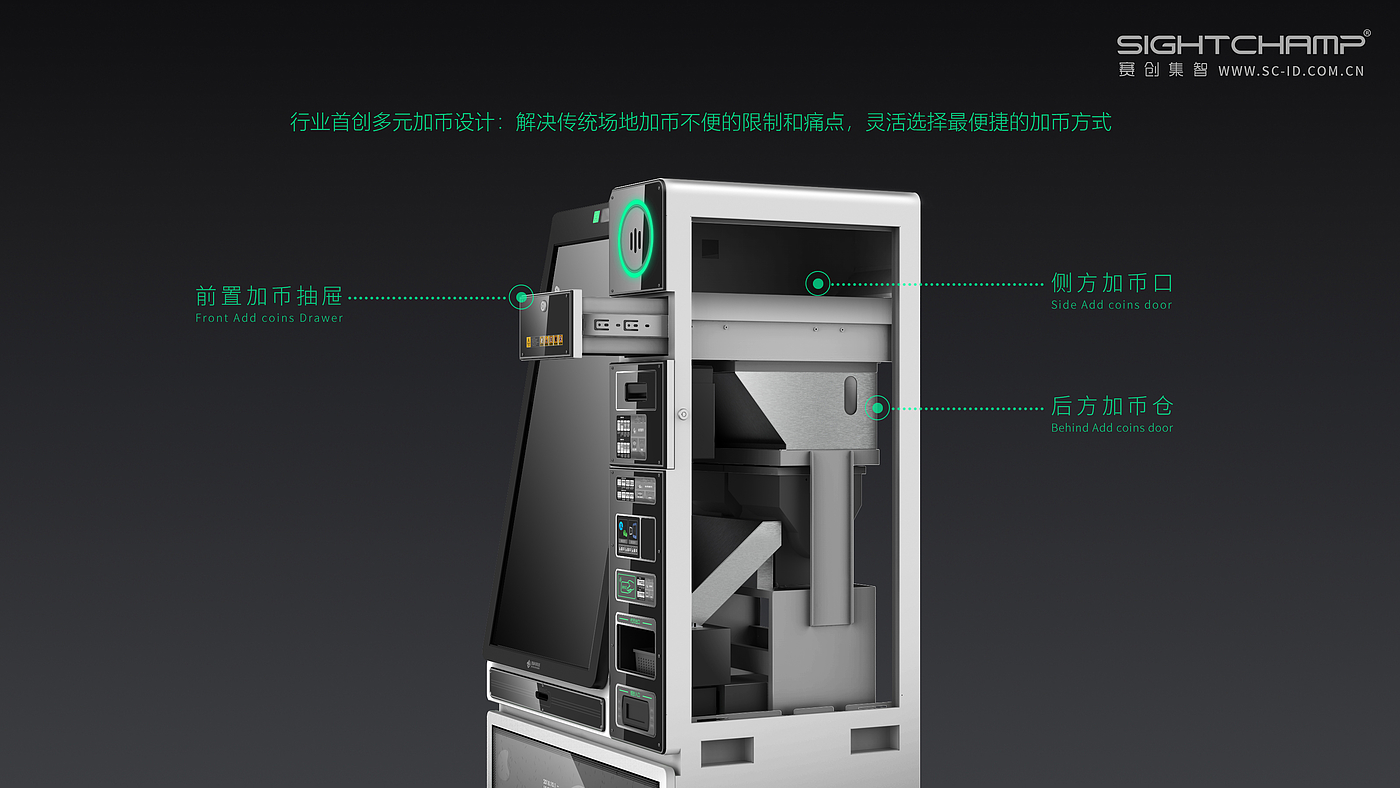

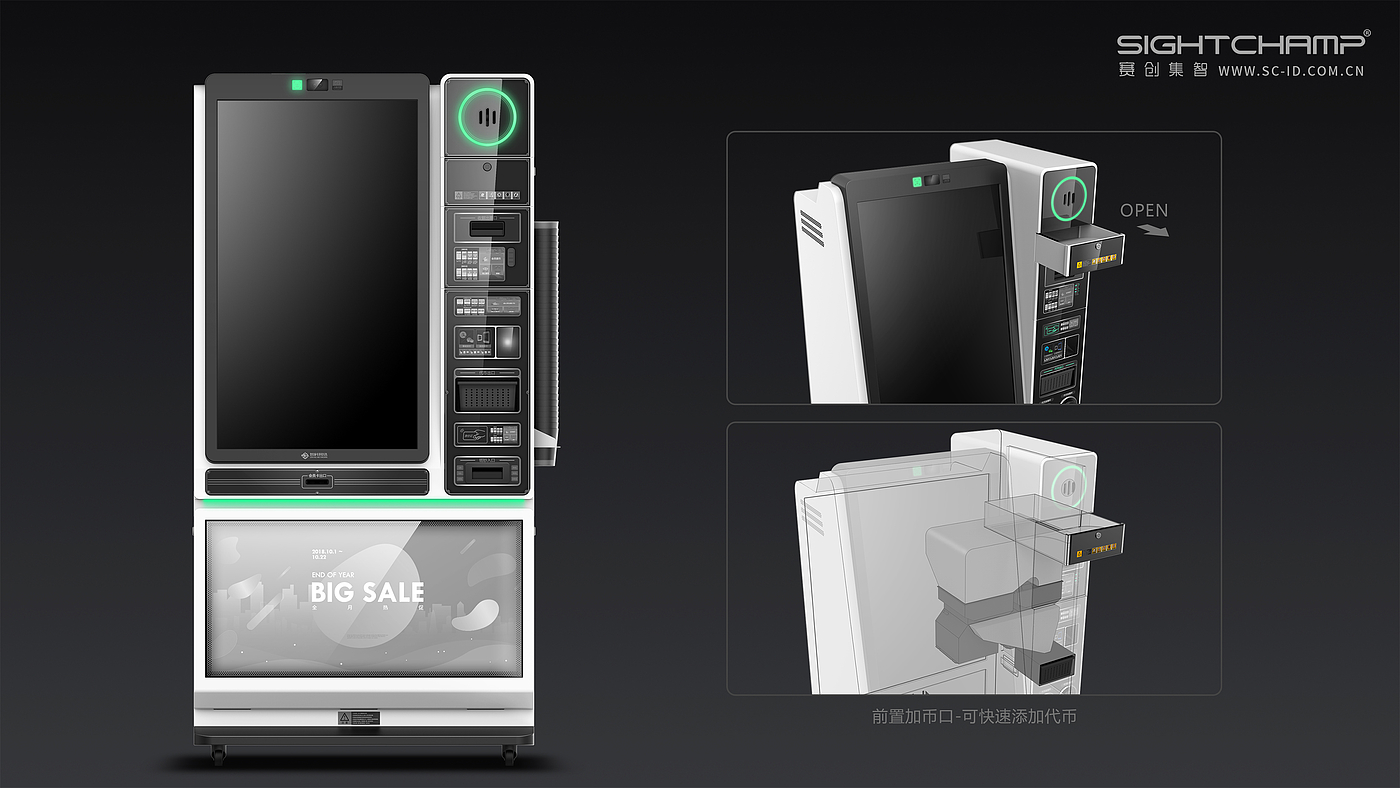

The product pioneered a multi-Canadian coin design. The special front Canadian coin drawer can solve the cumbersome problem of plugging and unplugging the power cord caused by traditional products that need to pull the machine before and after the Canadian coin. At the same time, a reasonable drawer height can also limit the height of the staff without adding coins at the top of traditional products like in the past.

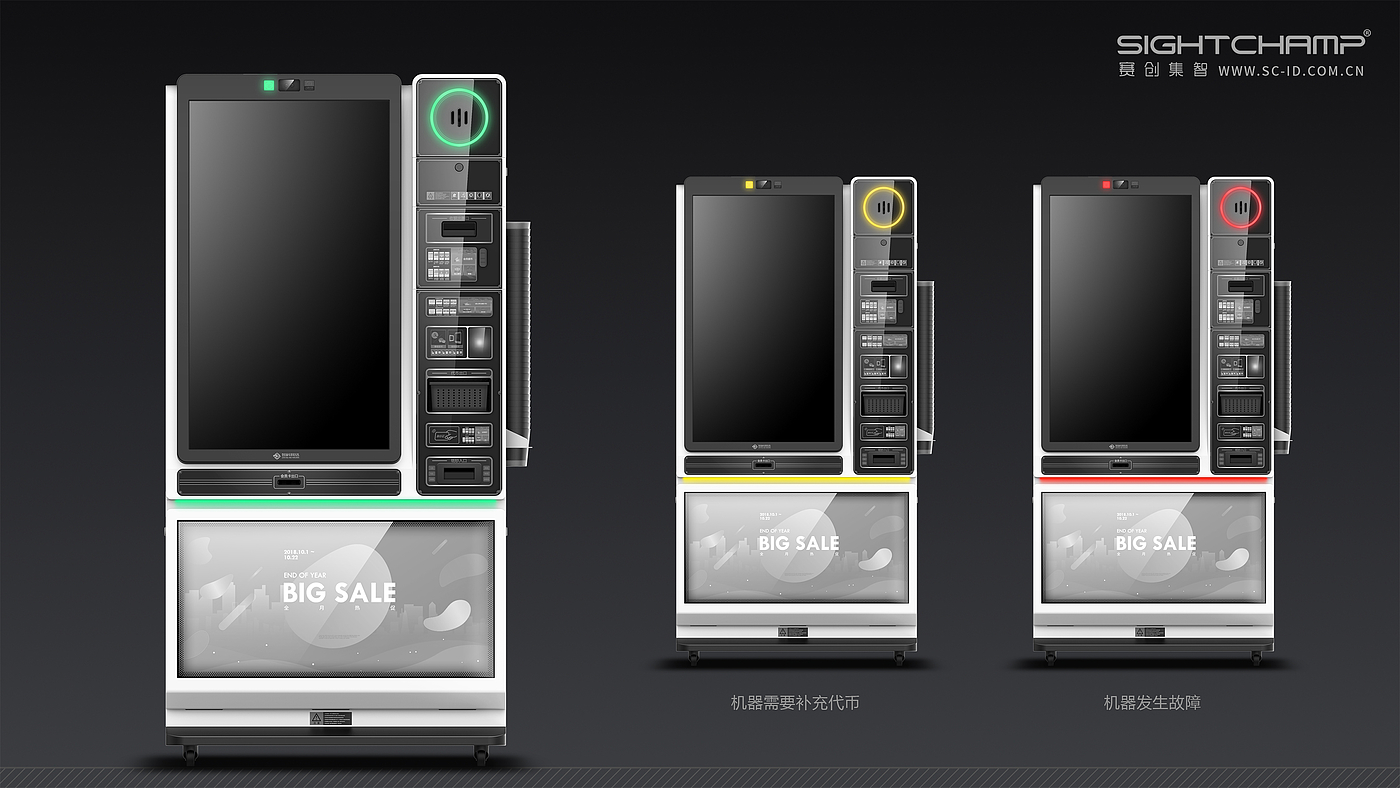

The ring indicator light on the right side of the product integrates the horn unit and intelligent indication function, which clearly enables the staff to know the operation status of the equipment in time to better serve the player users.

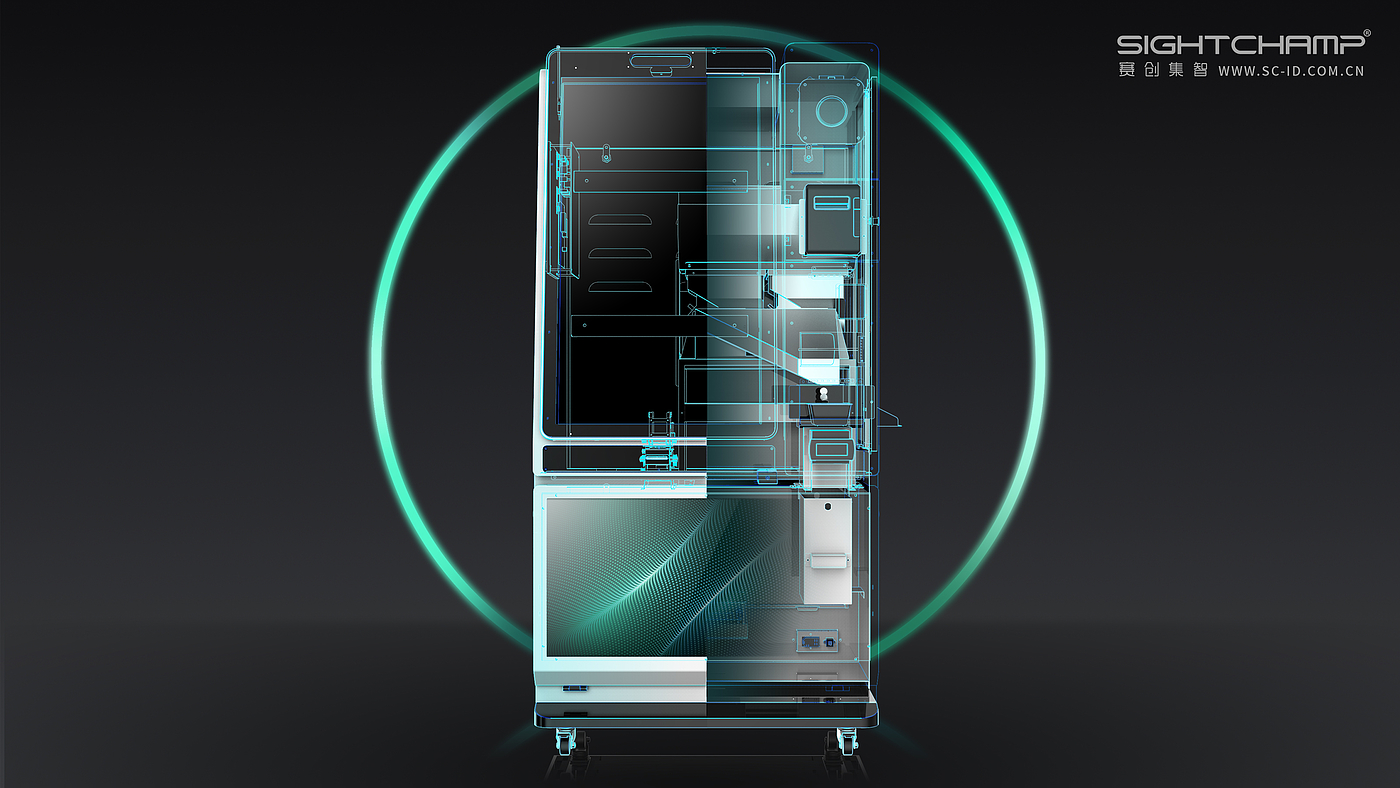

The whole product structure is innovated in combination with product strategy and design, including later maintenance and reliability.

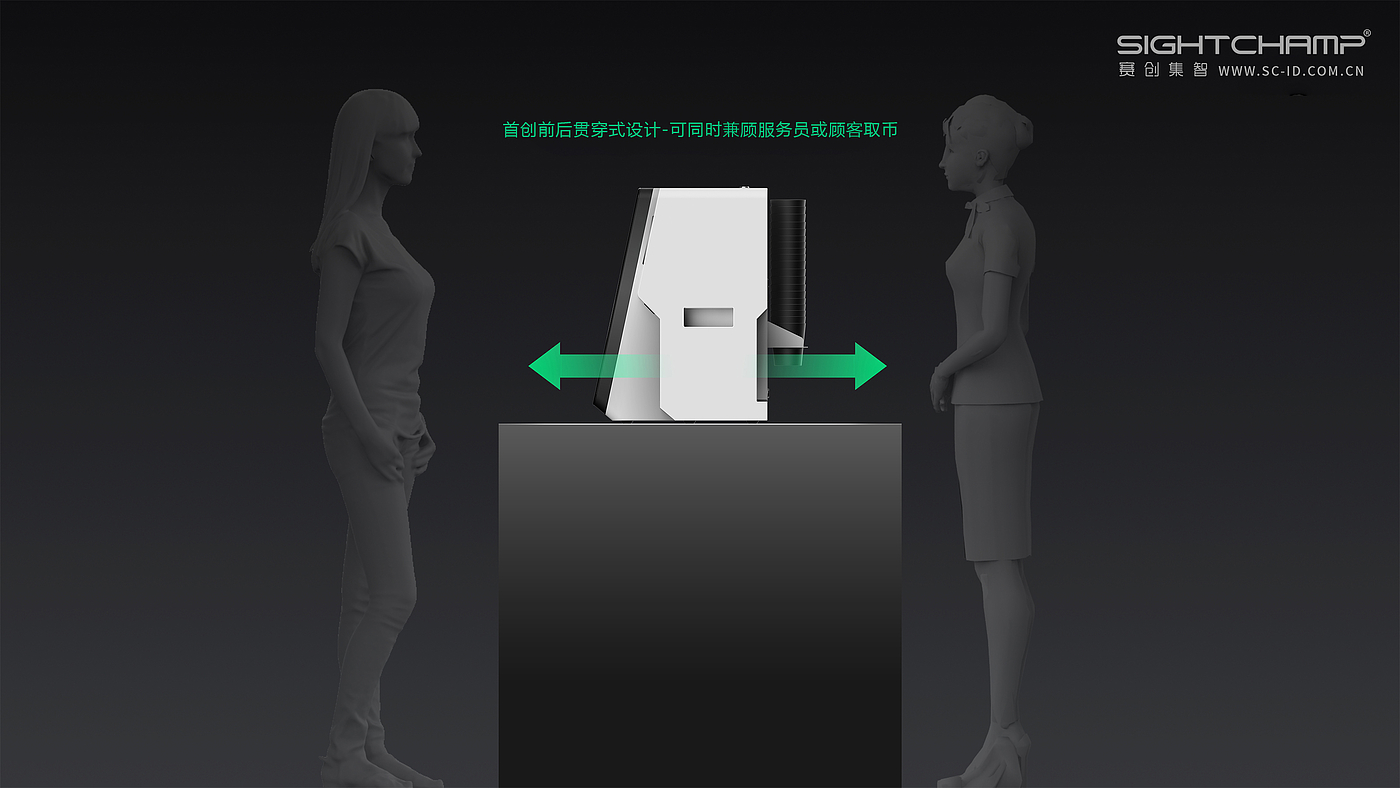

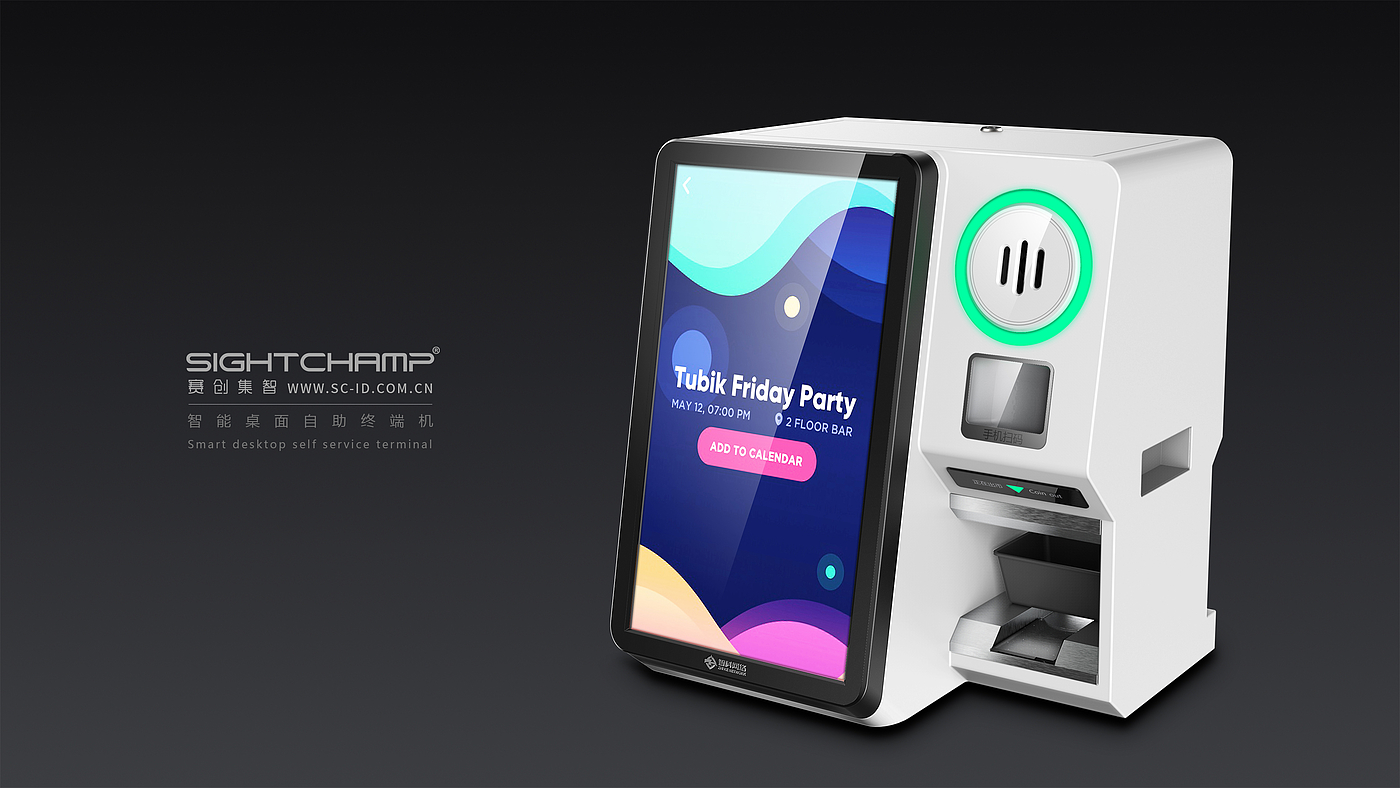

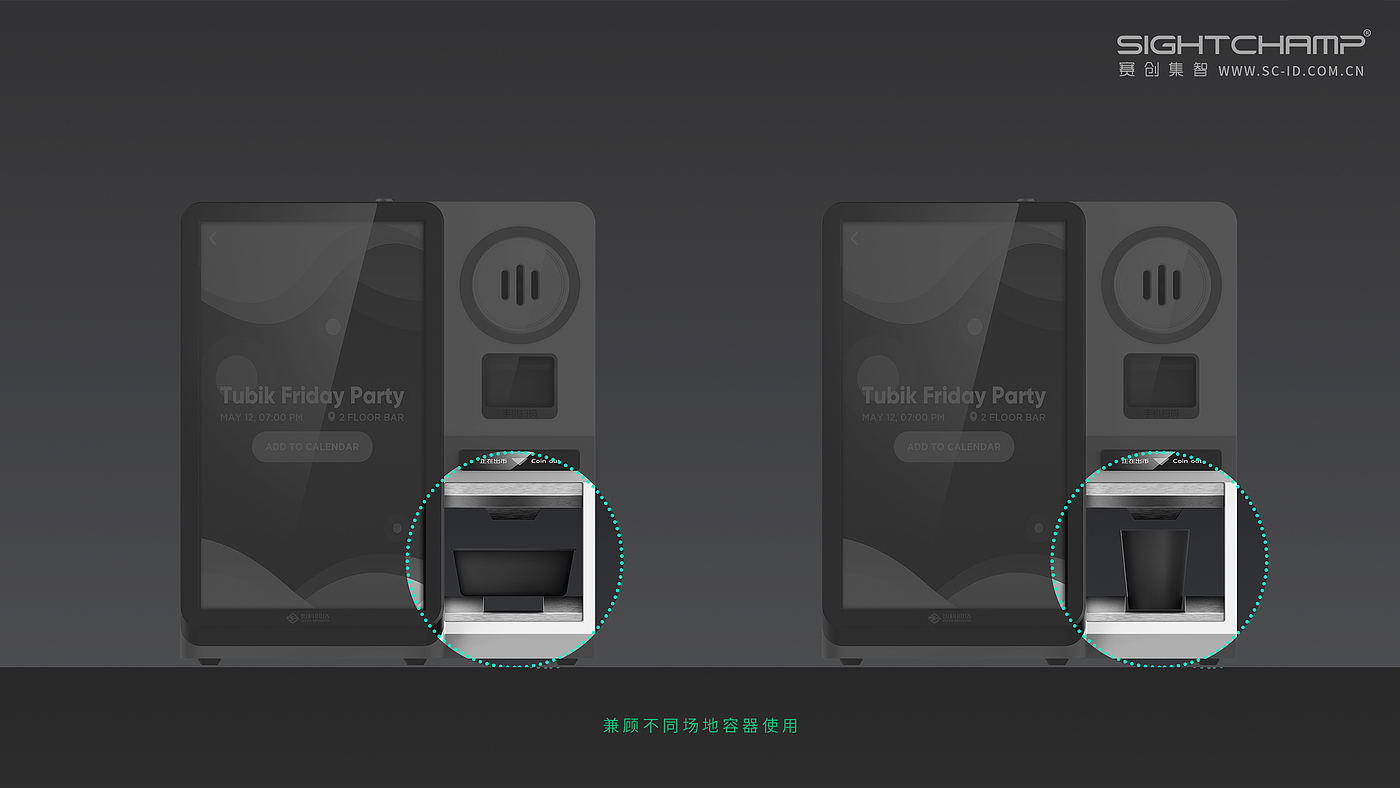

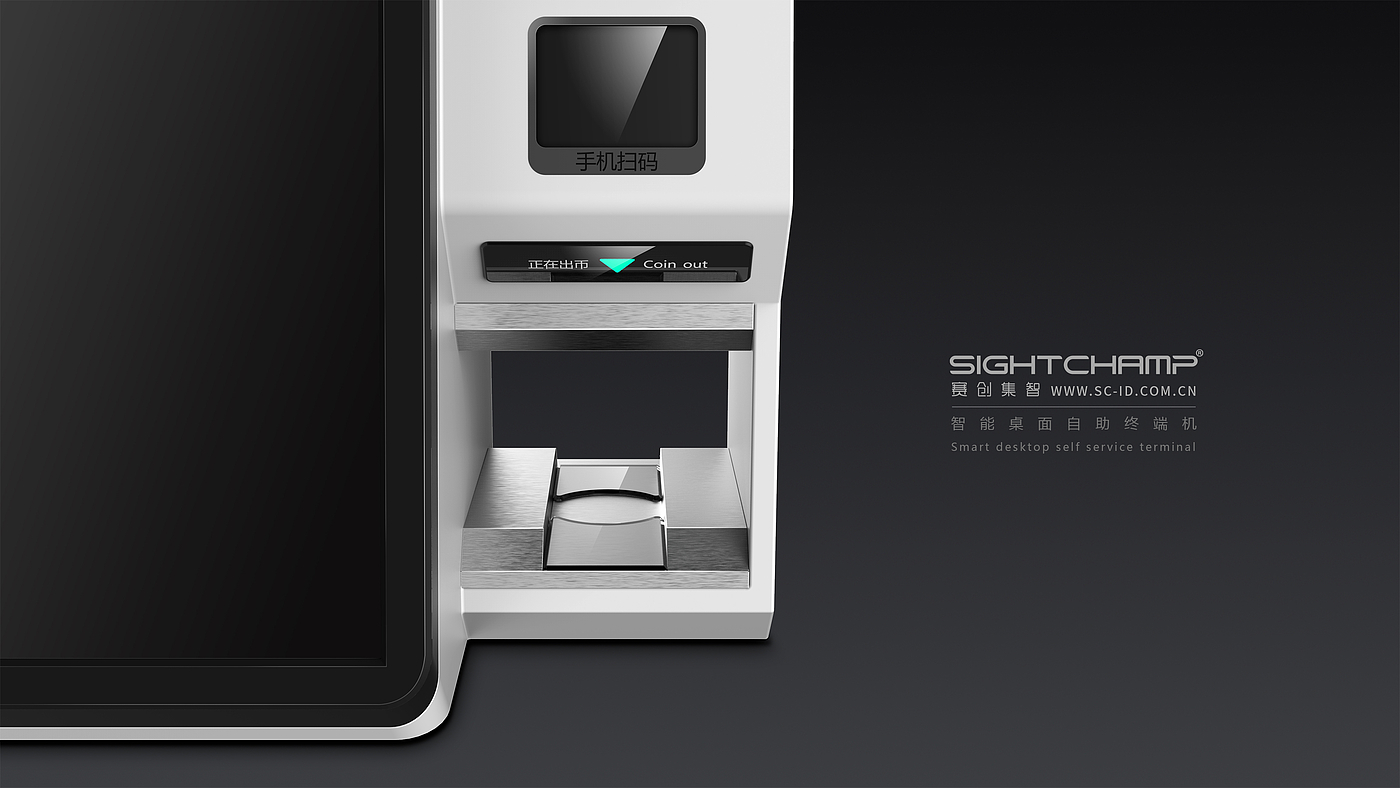

The desktop intelligent terminal is used for the service table. The traditional product has the problem of the directivity of the coin taking port. Because there are various forms of the coin taking process in different operating venues, such as player taking or waiter taking on behalf of the server, the product pioneered a penetrating coin taking port design, which enables both players and waiters to operate.

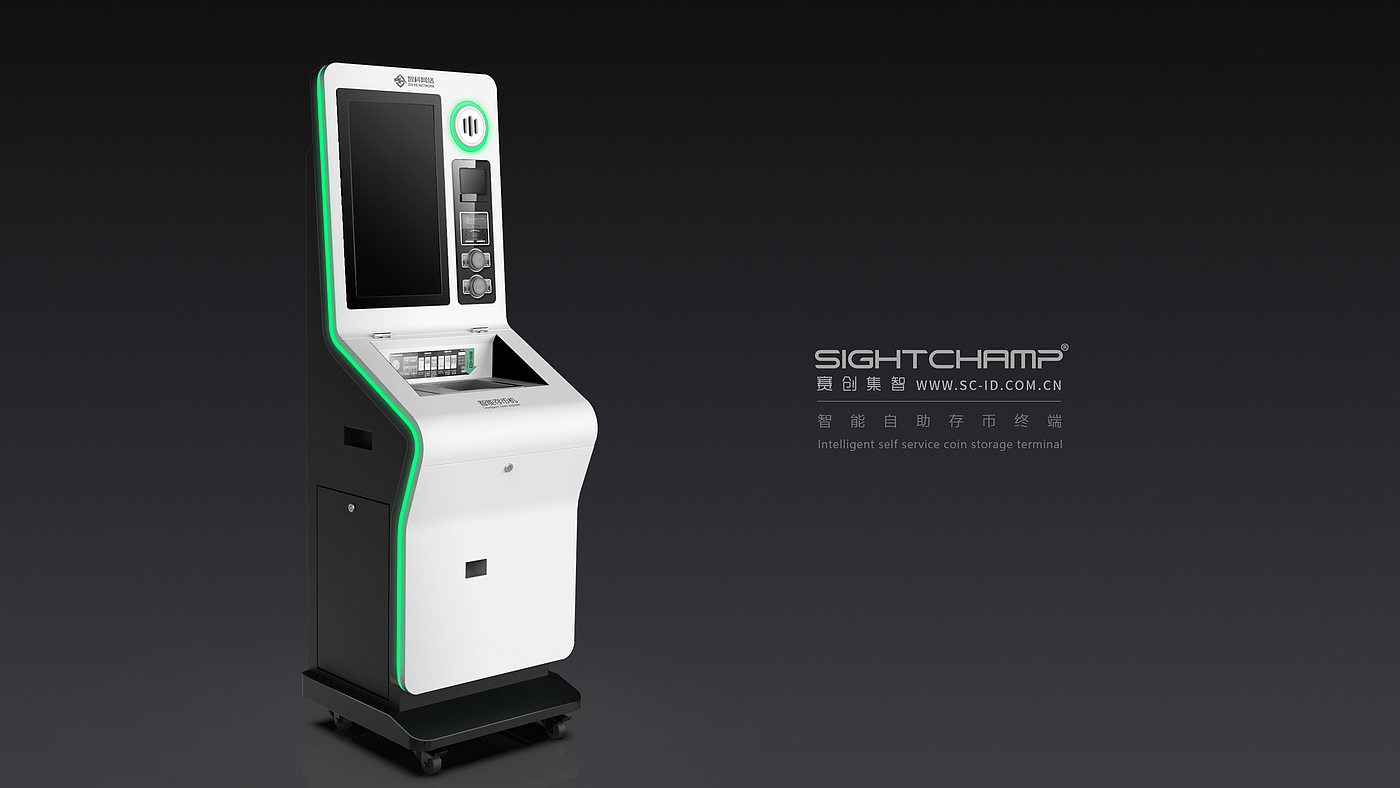

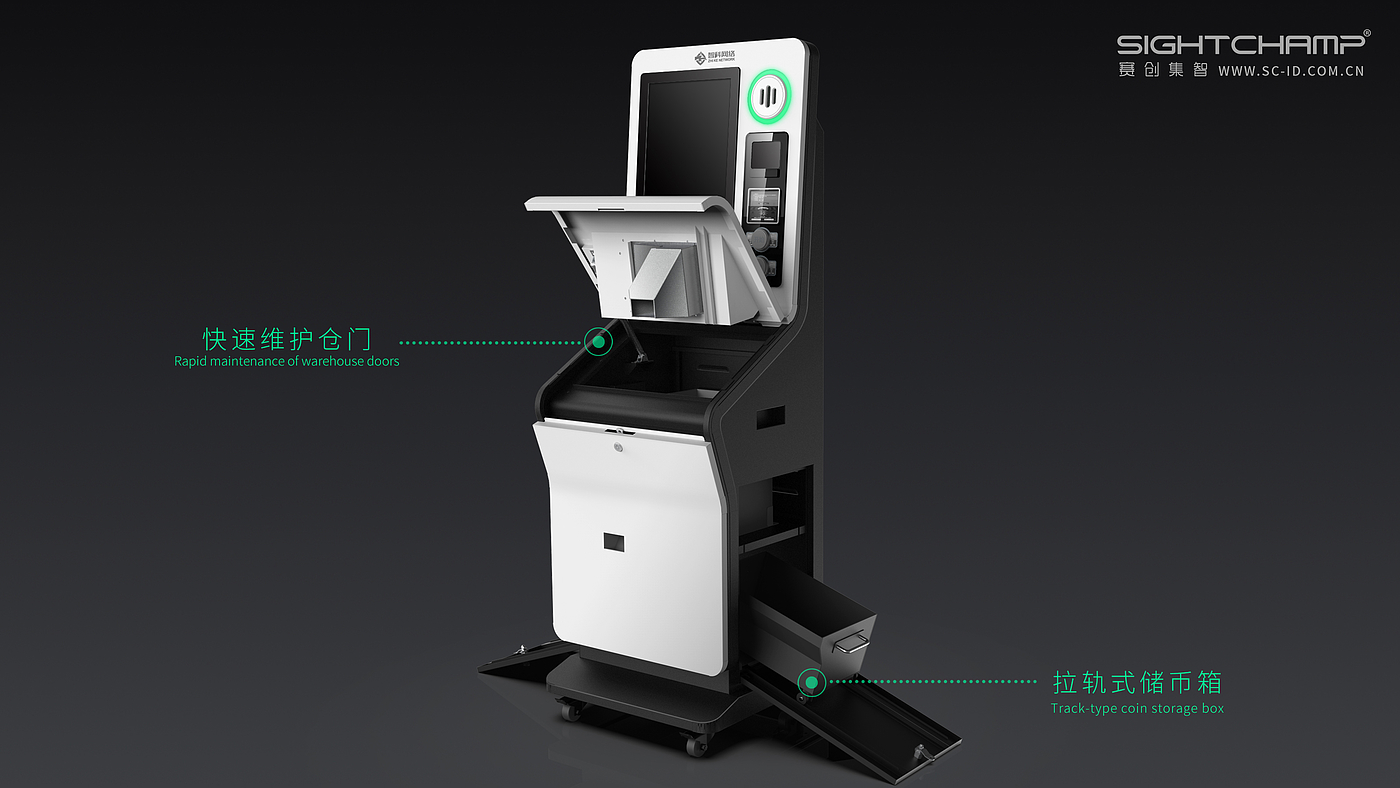

While upgrading the color value and temperament of traditional equipment, the self-service coin storage terminal has designed a fast-opening wind support panel in terms of maintenance convenience, which is convenient for workers to quickly maintain and remove foreign objects. The coin storage box at the bottom is designed to be equipped with rollers, and the side door is designed as a slideway, which solves the pain point that the coin storage box is too heavy to be taken out and moved. At the same time, the ring indicator light in the upper right corner can be combined to intelligently detect and prompt the running status of the equipment.
