In November last year, a project came up with three plans. After the revision, the customer selected the following one. The structural engineer also drew the structure. Finally, after the evaluation by the mold factory, the customer was shelved because the cost exceeded the budget... Very hurt...
The first time I came into contact with the design of sheet metal products, I didn't know how to start at first. After listening to the boss's explanation in detail, I began to search for various words and pictures of solar street lamps on the Internet with a little confused mind.
The design requirements are not complicated either. The customer requires that the main body is a profile, I .e. the front lamp slot and the rear battery compartment cannot be made into die castings. The sheets on both sides of the battery compartment are made of PVC plastic. The rest, such as plugs and the piece connected to the lamp pole under the battery compartment, are made into die castings. The solar panels above are ready-made and need not be designed again.
Although the project has been shelved, it is a new breakthrough for me to come into contact with the design of sheet metal products for the first time. Come on, SAO Nian ~

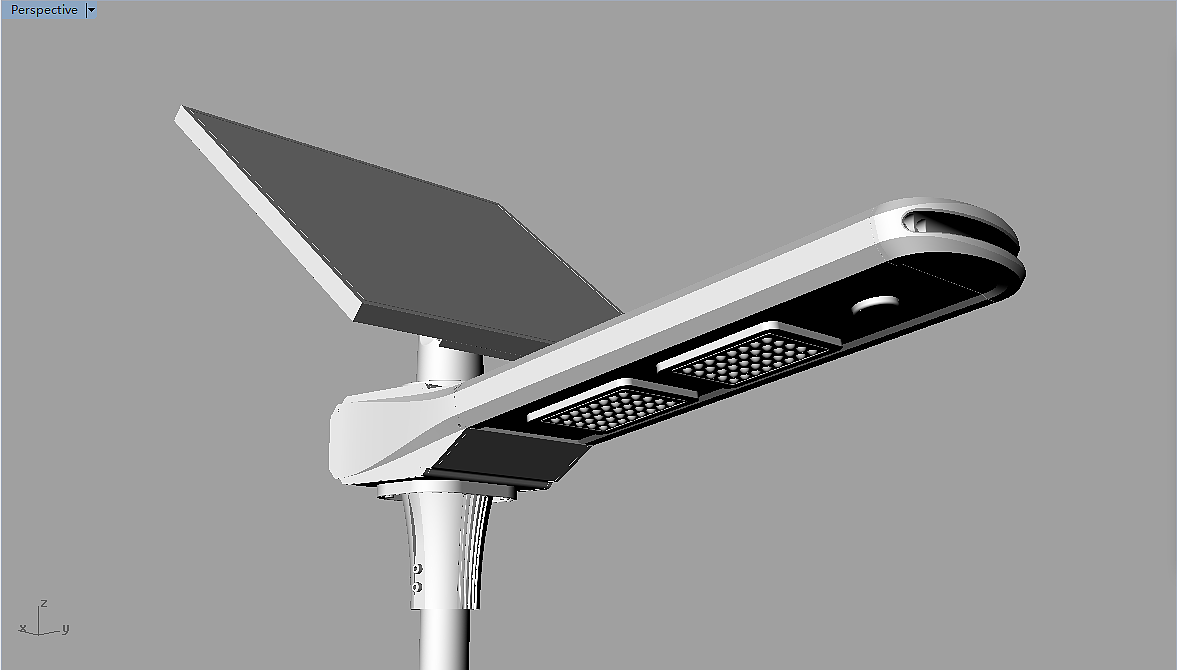

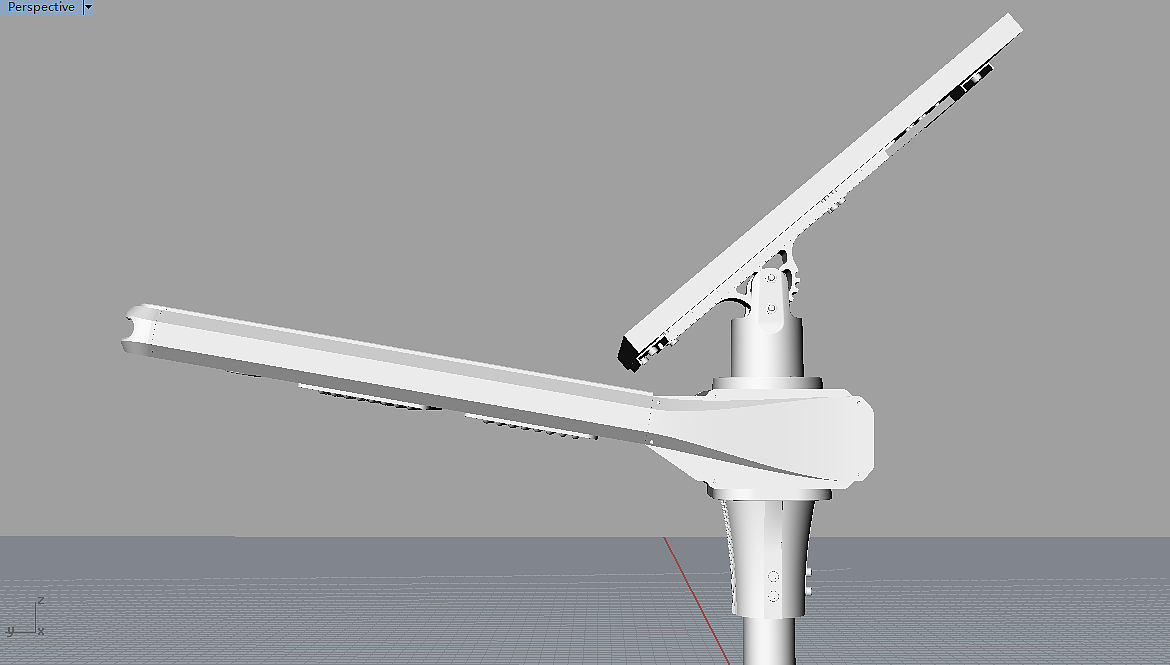

The modeling design is mainly tough and atmospheric, with various line element changes, and innovation is made on the basis of the principle of cost first. It is necessary to consider the design innovation points in each location and control the integrity of the product.

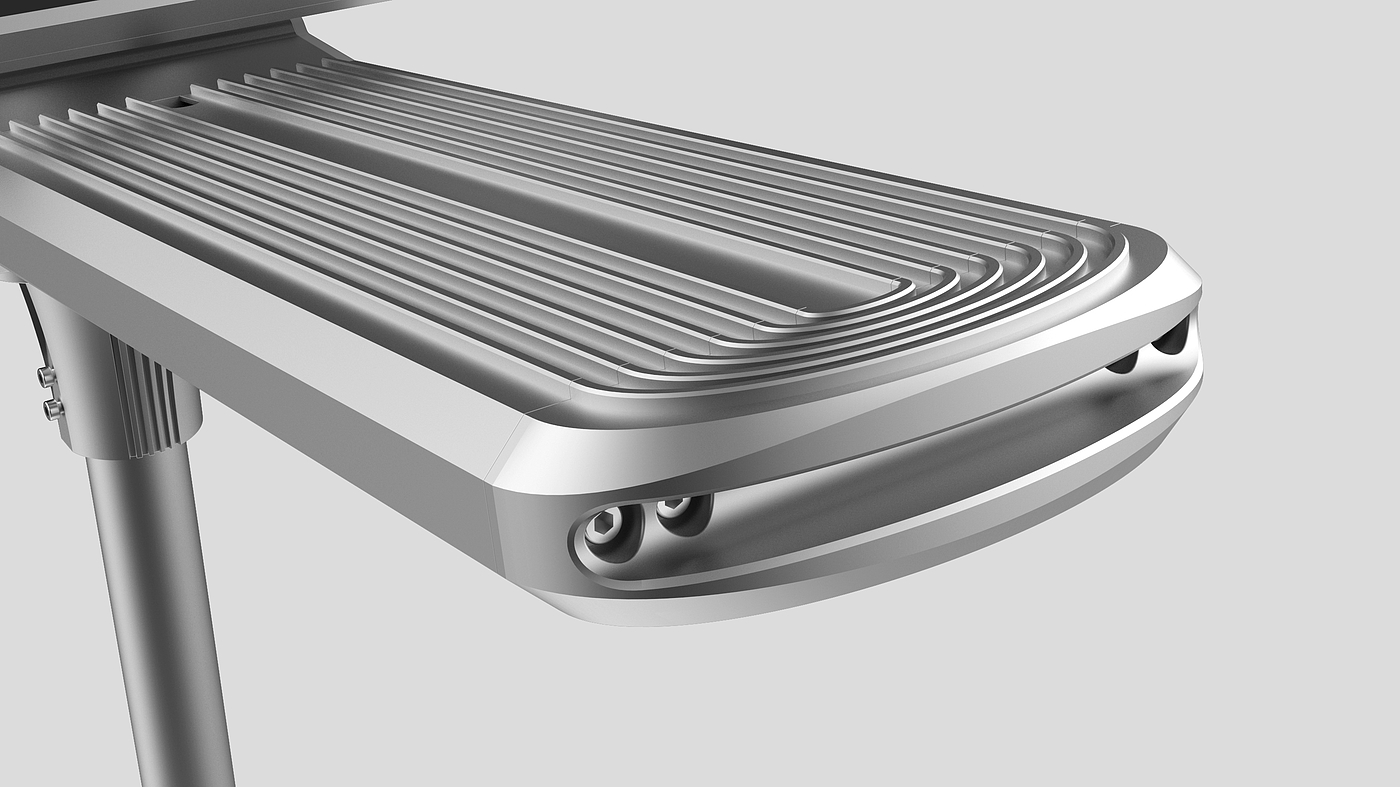

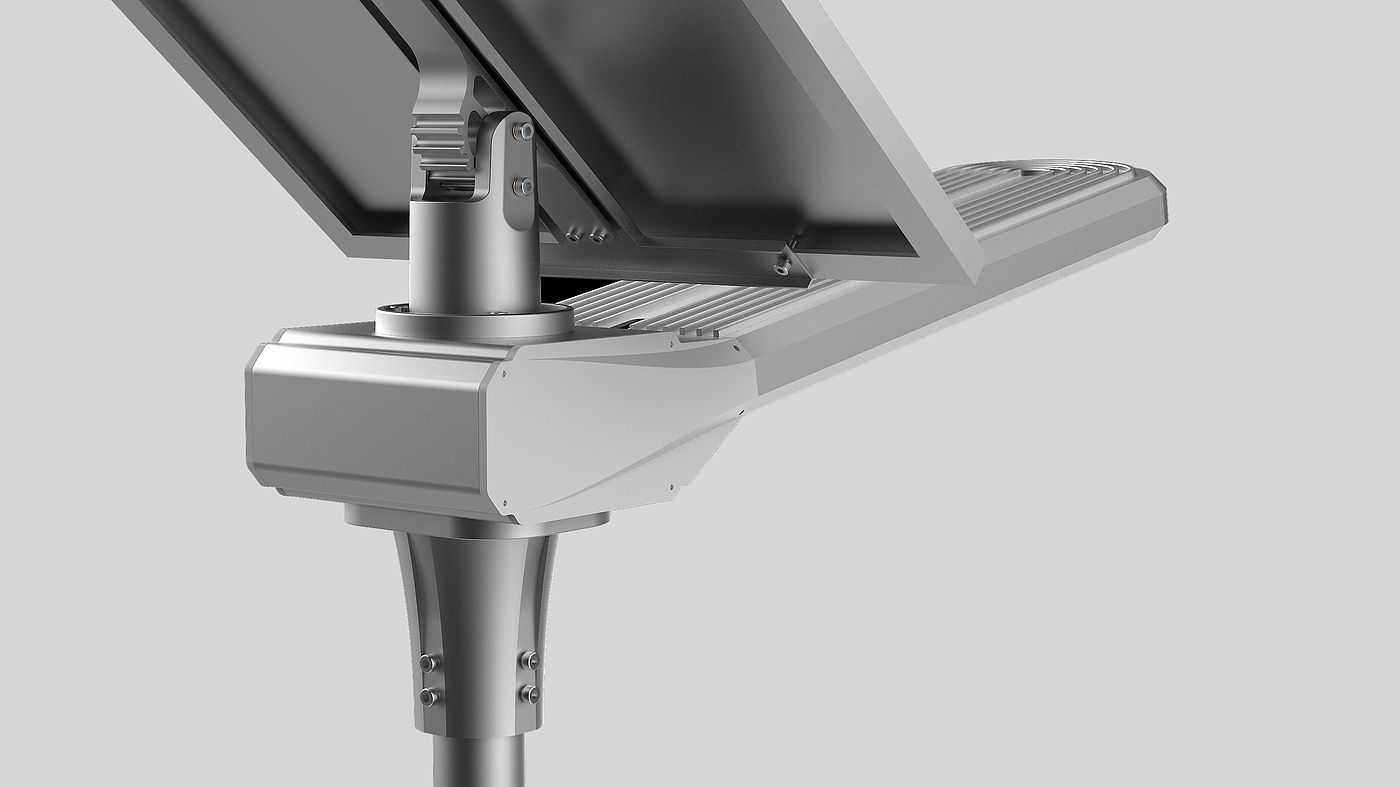

The prism design above the lamp slot not only plays a decorative role, connects the lamp slot (profile) and the plug, maintains continuity, highlights the industrial feeling of the product, but also plays a role of reinforcing ribs.

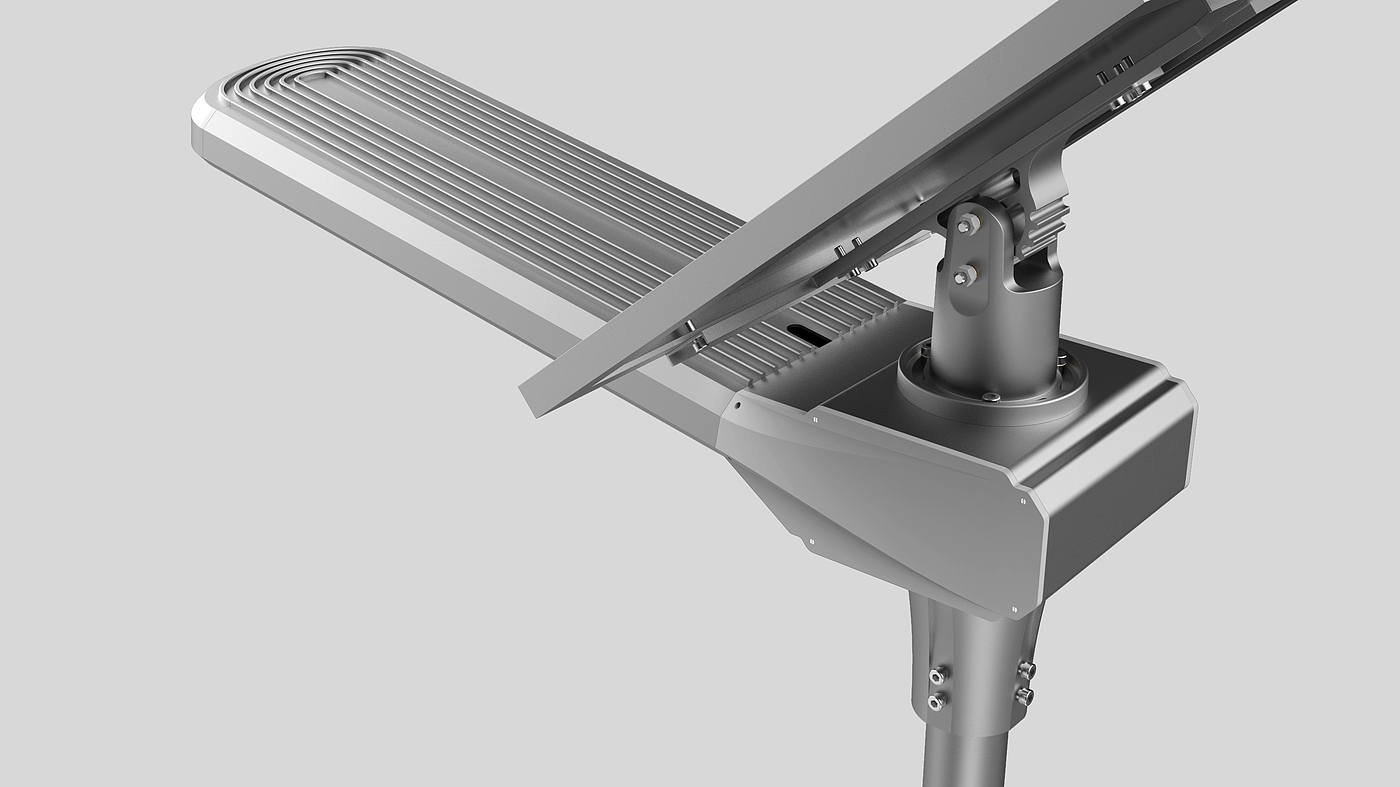

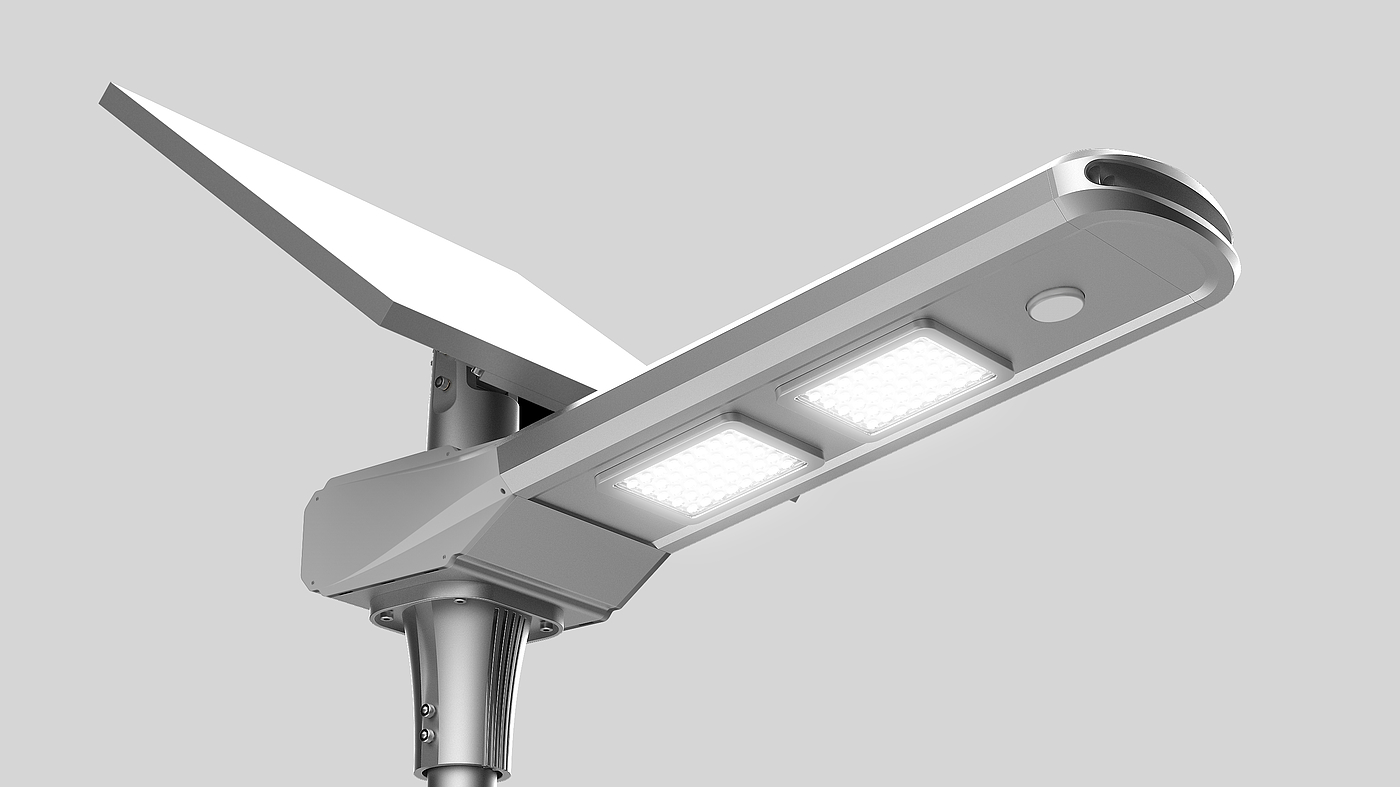

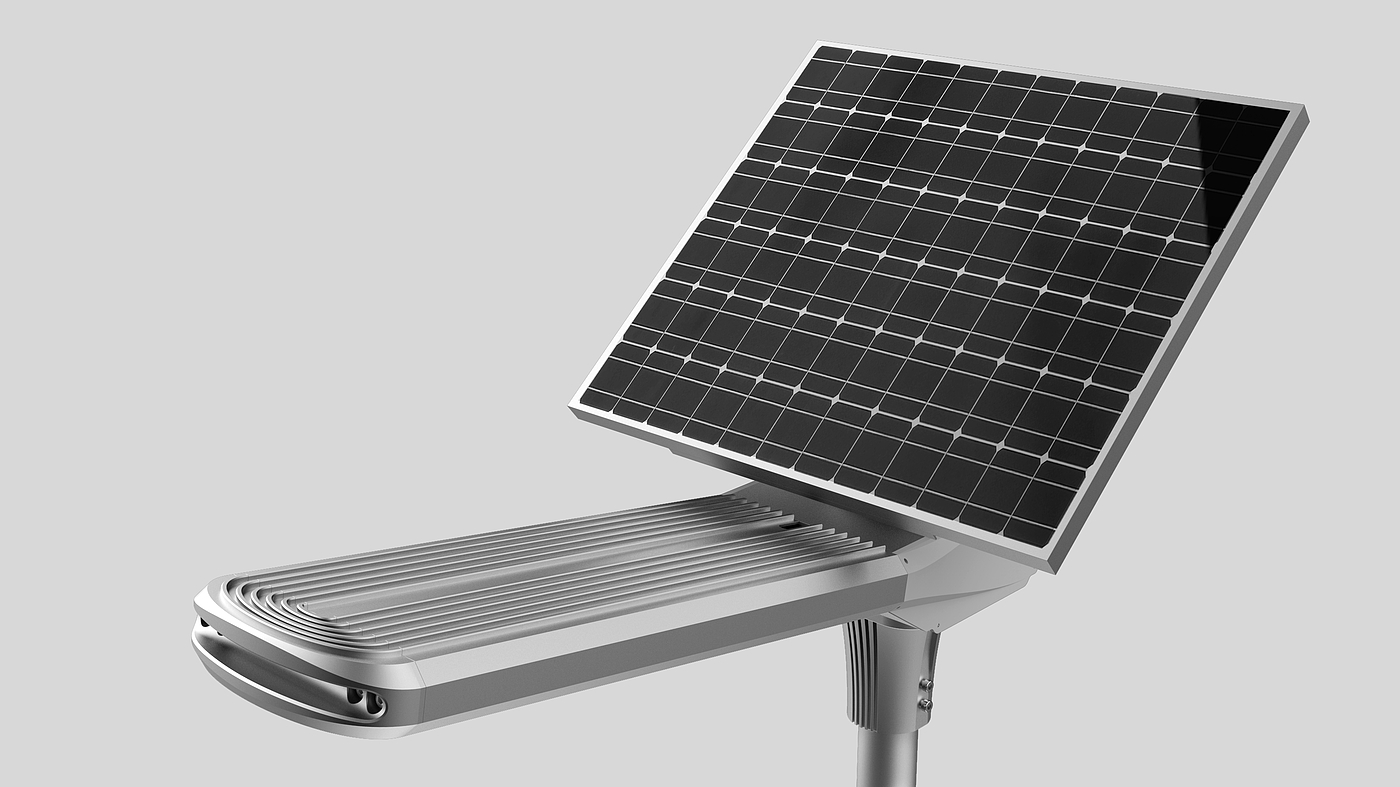

Because the model is relatively large, I reduced the model by ten times compared with the same period of last year before rendering. It is still a relatively large model. Rendering is still a little difficult for me who polished the slag. In addition, the metal material itself is easy to expose, so it took a lot of time to adjust various values in the keyshot.

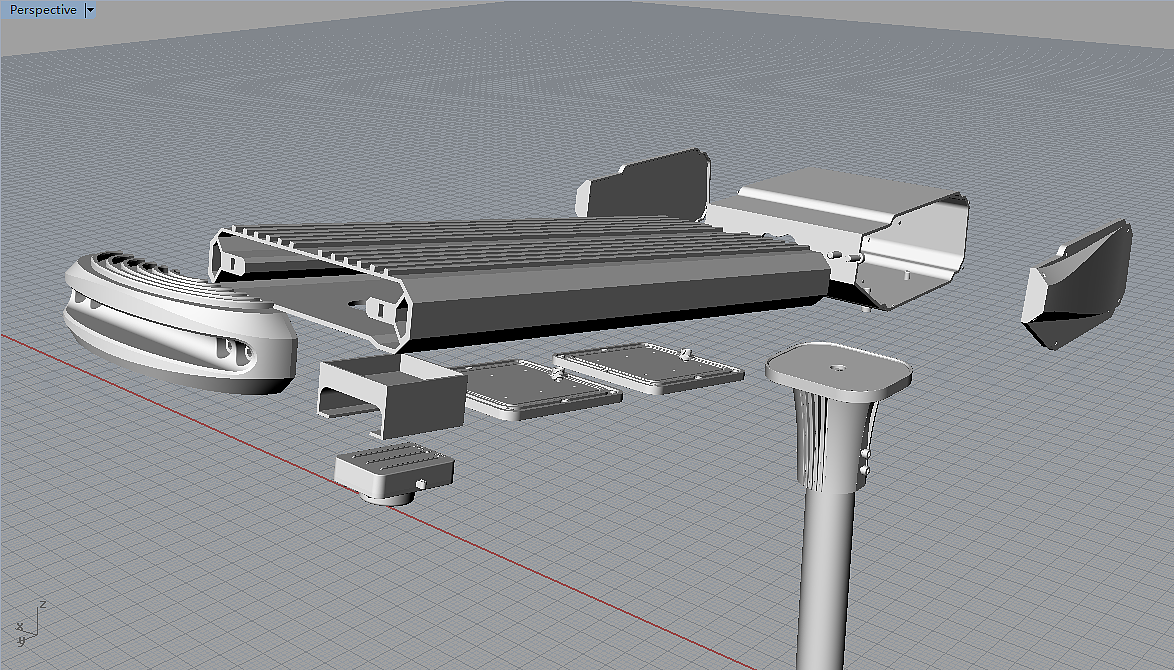

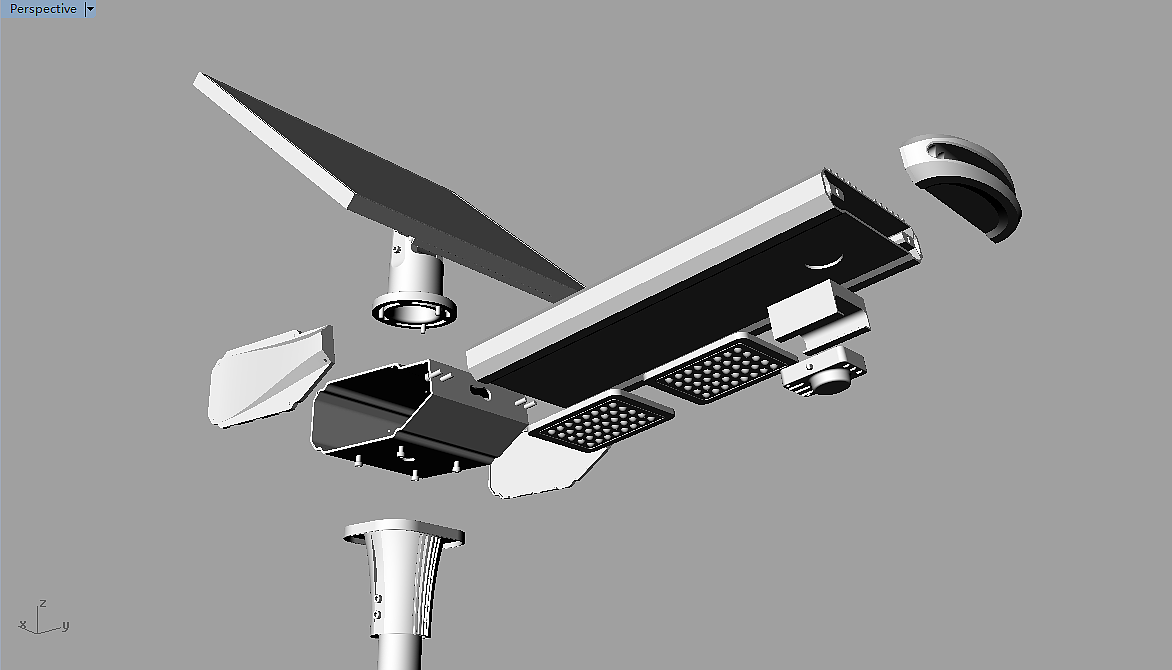

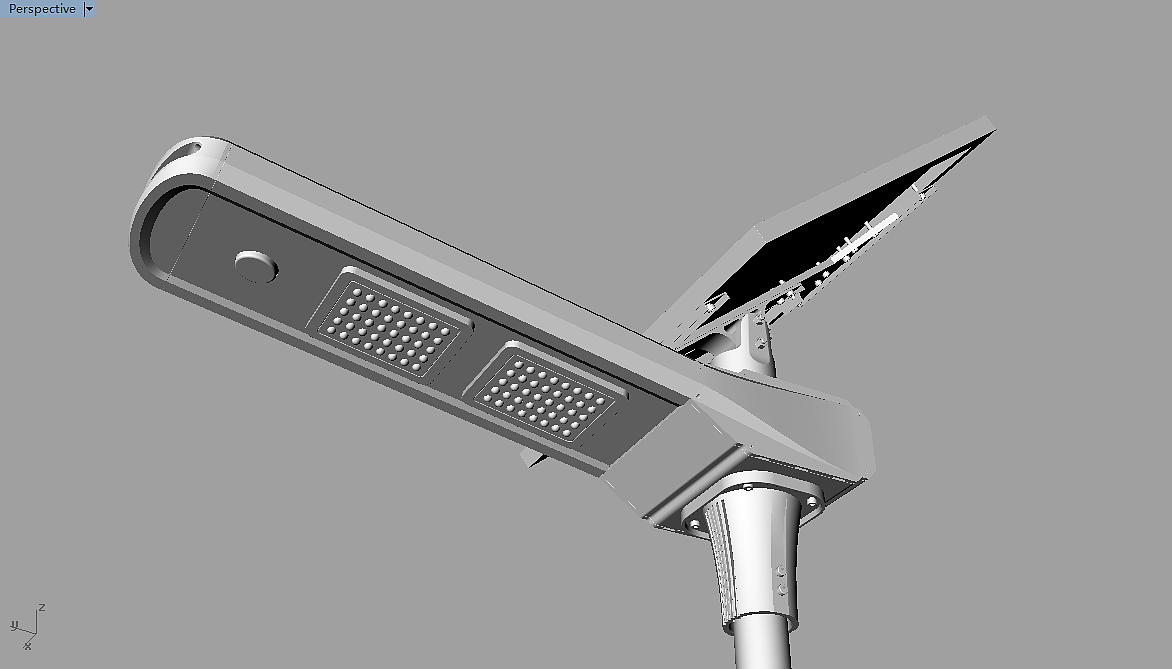

Simple rhino model disassembly drawing (without structure).
Finally, welcome your advice ~
