Desktop fan

First of all, the square will increase the area of wind inlet and outlet, and large wind can be achieved with universal motor fan blades (the standard is the 3.2-3.9 wind fan on the market.) Under 5.7*5.5*2.6 volume, the wind resistance of 3 can reach up to 3.8-4.5.
At the same time, because of the square shape, the front cover should be disassembled and cannot be directly rotated by the buckle, so a screw is locked at the bottom to ensure stability without abnormal noise and convenient cleaning.
The 1-2 gear is 20 decibels with low noise, and then the angle of 360 can be adjusted with the help of accessory hooks.

There is a small hook accessory and main body, and a type-c data cable.

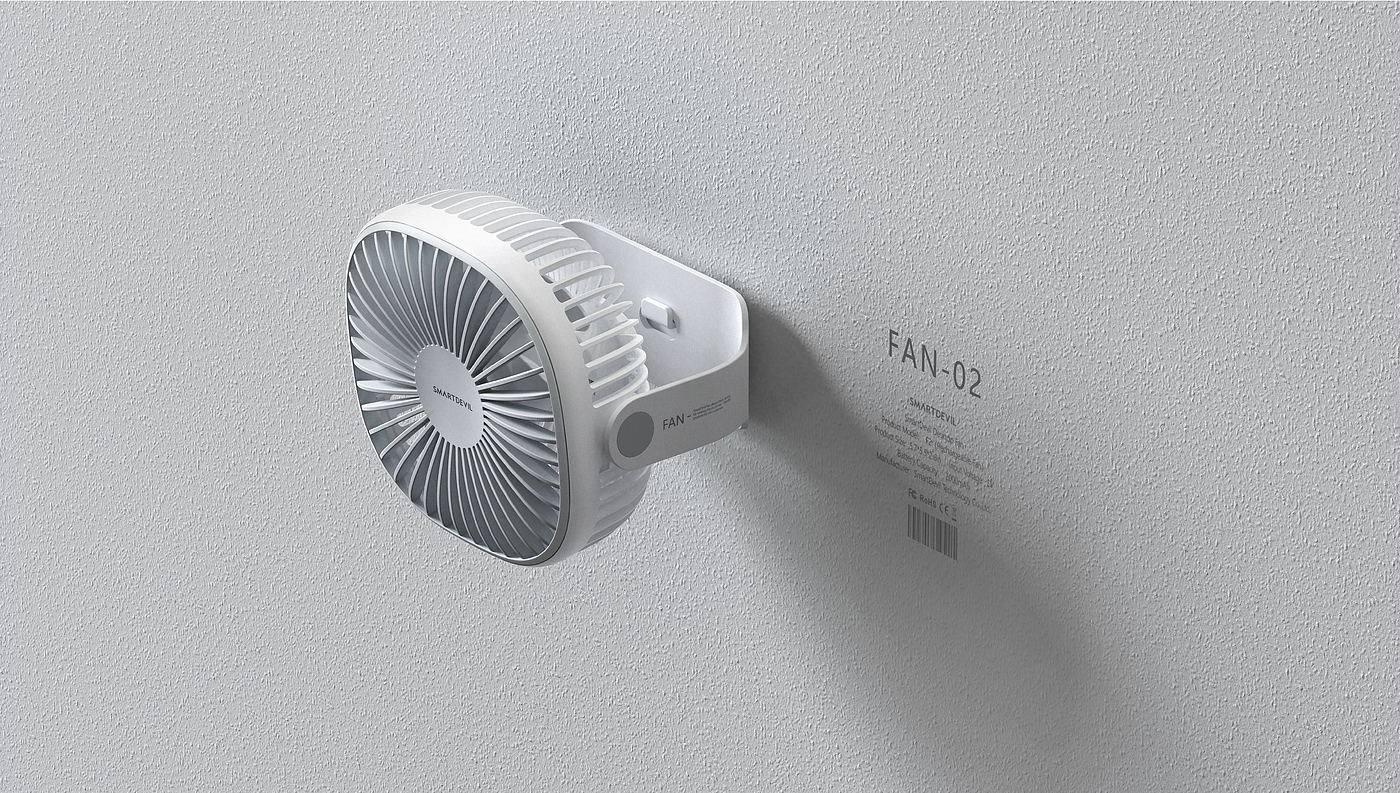

The angle of 360 can be adjusted with the help of accessory hooks.

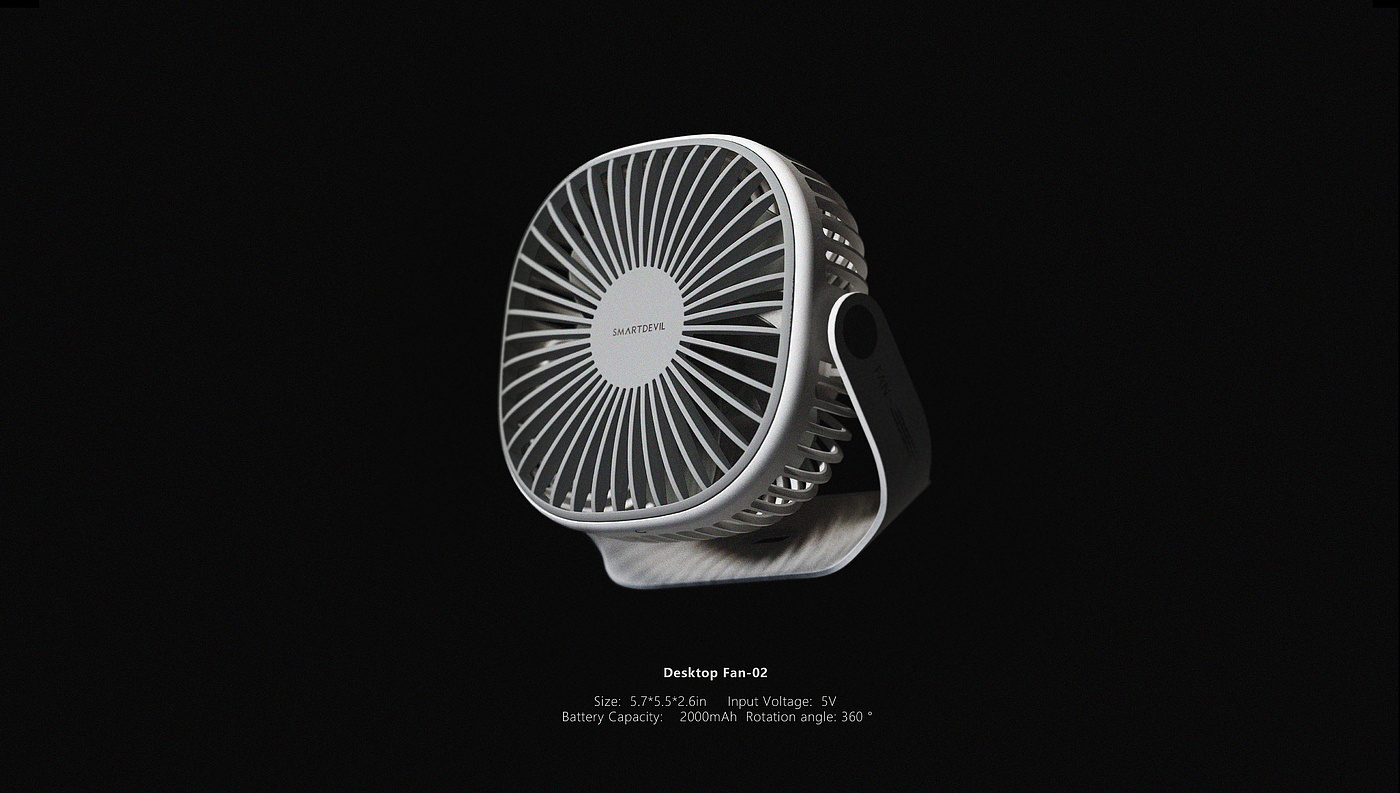

1. 2000mAh power to maintain battery life, with TYPE-C.

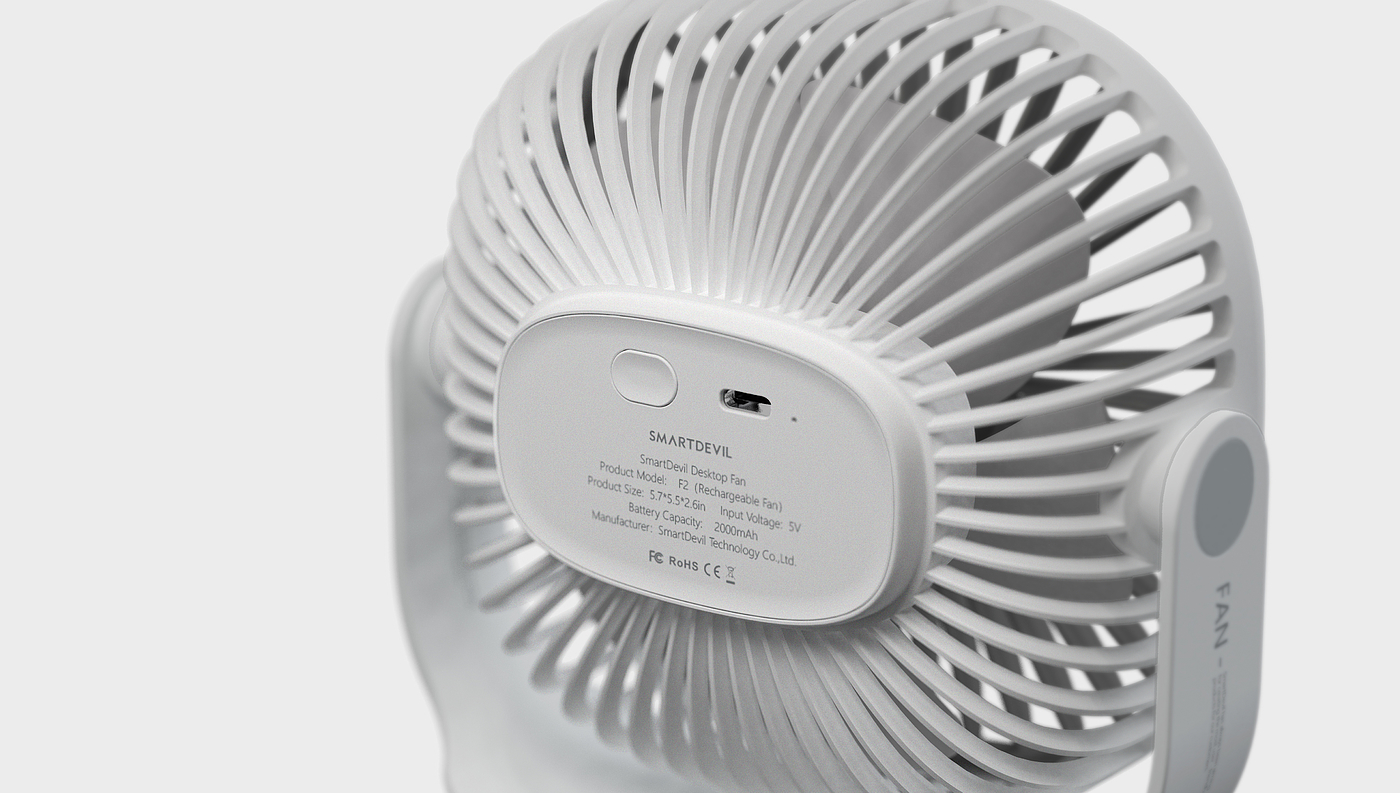

2. The key design is on the left side of the rear and recessed. It is for blind operation. The switch can be touched at the touch.

Because the square cannot rotate the buckle, there is a screw position at the bottom to ensure stability and no abnormal noise, and at the same time it can be disassembled and cleaned.

Good luck to you all.

82 107

菊花哥 2024-08-26

Add a V to design the fan

135****1094 2021-06-22

Worship

185****7650 2021-05-25

Can you tell me how the third picture is stuck?

LEESEE作者 2021-05-25

Pay attention to the second picture. The small hook shown in front of the fan. The back of the small hook is attached to the wall, which can be hooked through the hole of the fan bracket.

我也说一句

Maker 郭 2021-05-21

That's quite good, and the design is also good. The whole is simple and the cost should be controlled better. Making products is really not just a good design. What is more needed is that the products are reasonable, the market acceptance is high, the quality is high, the users are satisfied, and the producers can make money.

CLee 2021-05-19

欧欧 2021-05-19

In the past, when I first graduated and did design, I also hoped to see a product pointing at him on the road and saying, "I made this thing." after several years of design work, I no longer feel this way. I have done a lot of products. on the road, I often see a feeling of no excitement
